Optimization of Halbach Arrays for MICE PMs: Force Enhancement Analysis

This report discusses the optimization of Halbach arrays for the MICE (Muon Ionization Cooling Experiment) project, specifically focusing on permanent magnets (PMs). Initially, the coil's inner radius was reduced to 8.1mm while the PM's outer radius remained at 7.5mm, resulting in a calculated force of 75N. By adding axially magnetized blocks while keeping the overall length at 18mm, five blocks of varying lengths were arranged. The optimization yielded increased forces up to 107.2N. This analysis explores the impact of block configurations on overall performance.

hoang
Télécharger la présentation

Optimization of Halbach Arrays for MICE PMs: Force Enhancement Analysis

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. Halbach arrays for MICE PMs Ben Shepherd February 2012

  2. Previously • Coil inner radius reduced to 8.1mm • PM outer radius kept at 7.5mm (i.e. 0.6mm gap) • Calculated force (from 2D model): 75N

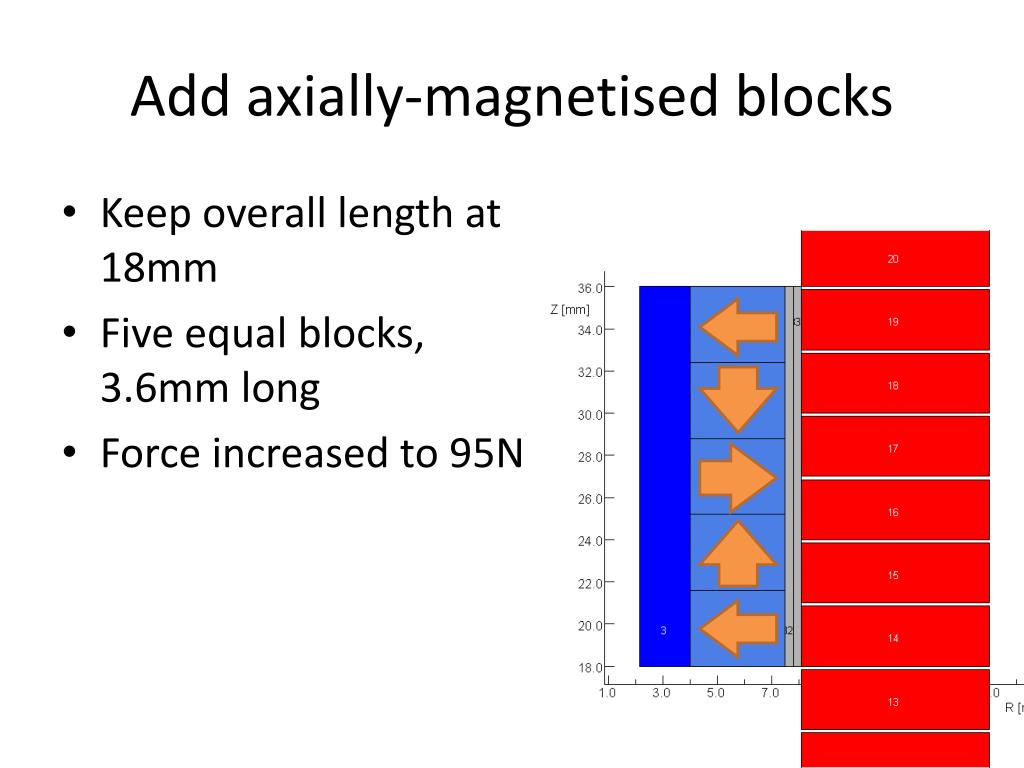

  3. Add axially-magnetised blocks • Keep overall length at 18mm • Five equal blocks, 3.6mm long • Force increased to 95N

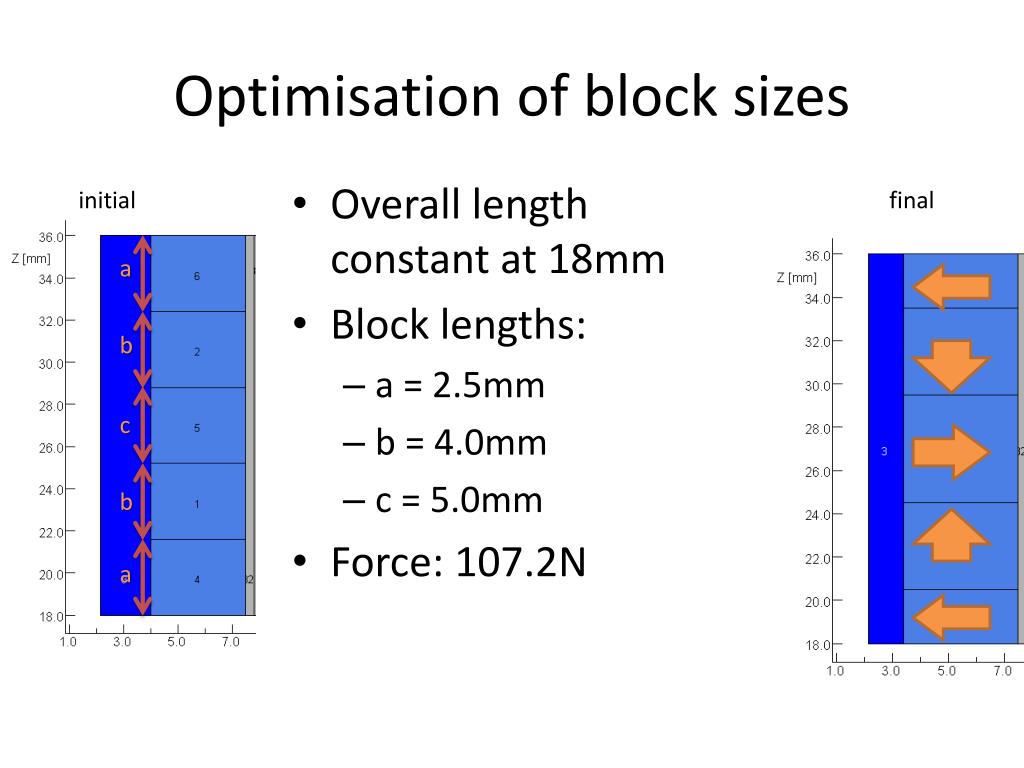

  4. Optimisation of block sizes • Overall length constant at 18mm • Block lengths: • a = 2.5mm • b = 4.0mm • c = 5.0mm • Force: 107.2N initial final a b c b a
