Types of Nuclear Reactions… Transmutation:

Types of Nuclear Reactions… Transmutation: Elements with atomic number ______ or higher ______________ exist naturally. They are created, through transmutation, in nuclear reactors or accelerators!. One element is changed into another by changes in the nucleus. 93. do not. Fission:

hovan
Télécharger la présentation

Types of Nuclear Reactions… Transmutation:

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

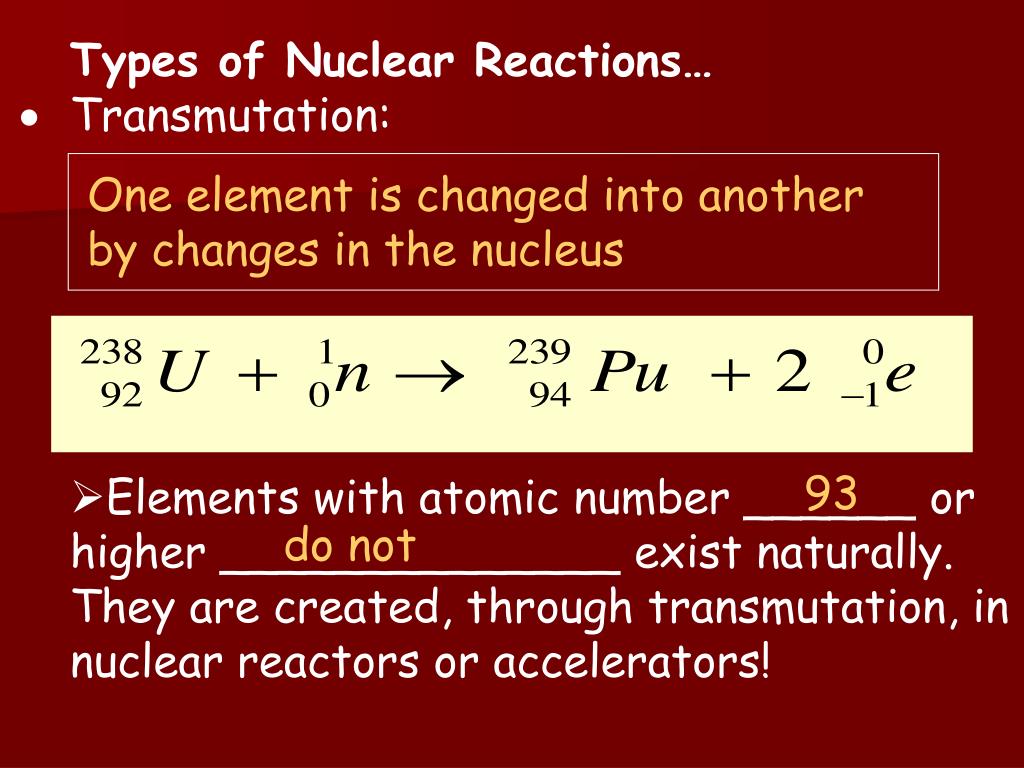

  1. Types of Nuclear Reactions… • Transmutation: • Elements with atomic number ______ or higher ______________ exist naturally. They are created, through transmutation, in nuclear reactors or accelerators! One element is changed into another by changes in the nucleus 93 do not

  2. Fission: • Splitting of a nucleus into smaller fragments • The neutrons given off can bombard more nuclei, causing a chain reaction. This chain reaction gives off lots of ________________. energy Fission reactions take place in _________________________, and fission was the driving force behind the ___________________. nuclear reactors atomic bomb

  3. Nuclear Fission: Large nuclei are split http://www.atomicarchive.com/Movies/Movie4.shtml

  4. A large smaller stability more

  5. Fusion: • Two or more nuclei combine to form a larger nucleus. • Fusion takes place in the ___________. • Fusion requires very high temperatures • ( ), so we cannot use it as an energy source. sun 1.5 x 107 ˚ C

  6. NUCLEAR FUSION http://www.atomicarchive.com/Movies/Movie5.shtml

  7. Two a larger even more sun stars

  8. USES OF RADIOACTIVITY Smoke detector A smoke detector has the radioactive isotope ____________. It decays by alpha emission. Americium-241

  9. The air is able to conduct a _________ to a sensing device. The alpha particles _________ the air inside of the detector. current ionize

  10. smoke When _________ is present, it blocks the sensor and the current is not passed. When this happens it triggers an _______. alarm BEEP BEEP

  11. Irradiated Foods • _____________ destroys viruses, bacteria, fungi, parasites and insects. • 1963-used for _________ and ________ • 1993-used for spices from other countries Gamma radiation wheat flour Today it is used for meat, pork, poultry, _______ & _________. fruits vegetables

  12. __________ is used on almost all food; strawberries for ___minutes, poultry for _____minutes. Extends shelf life by __________. Canned foods up to _________. Cobalt-60 8 20 1-2 weeks 2 years Concern: there is a need to study the URP: _______________________. These are changes that occur in irradiated foods. unique radiological products

  13. Determining the thickness of foils and plastic wrap… radiation Shoot ________ through foil and or plastic wrap…radiation detectors on the other side…if ____________ radiation passes through, the item was too thin…if not enough radiation passes through, the item was ____________ too much too thick

  14. Cancer Treatment… Example: __________cancer is treated with ________. Gamma radiation kills ___________________ (cancer cells). Unfortunately, also kills hair, stomach lining etc. Thyroid Iodine-131 the fastest growing cells

  15. Neutron Activation Analysis … Identifying chemical substances without __________ the material being studied. Used to identify elements in __________, crime detection, etc. Shoots __________ at material. Some neutrons are absorbed and then cause ______ to occur. By looking at the daughter nuclei and radiation formed it is possible to tell what _________________ were present to begin with. destroying meteorites neutrons fission type of elements
