Understanding Security in Authentication Services: A Quantitative Analysis

1. Chapter 5 A Quantitative Analysis of Authentication Services

2. Security • Security can be divided into the following categories • Authentication • Confidentiality • Data Integrity • Availability (Denial of Service) • Non-repudiation

3. Security Categories • Authentication • The process by which two parties involved in a dialogue are given a guarantee that they are indeed interacting with whom they think they are interacting • Server Authentication • You access the website of your favorite online bookstore • You want to make sure that you are indeed interacting with that site and not with an imposter • Client Authentication • An e-business site may also want to authenticate a business partner to make sure that an order is being placed by someone known and registered with the site

4. Security Categories • Confidentiality • Protecting the contents of messages or data transmitted over the Internet from unauthorized people • Protect your credit card information when you buy over the Internet • Data Integrity • Preventing data from being modified by an attacker • Attacker modifies your credit card while being transmitted

5. Security Categories • Availability (Denial of Service) • Guarantee that authentic users of an e-business site are given access to the site when they need it • Denial of Service (DoS) attack • Reduces the availability of the site • Attacker setup a program that continuously attempts to be authenticated by a site • Authentication fails • Precious resources wasted at the e-commerce site to deny access to the attacker • Possible to bring a system to its knees making it unavailable to valid users

6. Security Categories • Non-repudiation • Prevents the sender of a message from denying having sent it • Online trading want to ensure that a customer will not be able to deny having requested to buy or sell securities • Cryptography can be used to support • Authentication • Confidentiality • Data integrity • Non-repudiation

7. Cryptography • Cryptography • A technique by which data, called plaintext, is scrambled or encrypted in such a way that it becomes extremely difficult, expensive, and time consuming for an unauthorized person to unscramble or decrypt it • ciphertext • Scrambled text

8. Cryptography • Encryption EncryptedMsg = Encrypt(Msg, Keye) • Decryption Msg = Decrypt(EncryptedMsg, Keyd) • Two classes of cryptographic algorithms • Symmetric algorithms • Public-key (PK)

9. Cryptography – Symmetric Algorithms • Same key is used for encryption and decryption • Keye = Keyd • Secret key shared between sender and receiver • Anyone who discovers the secret key will be able to decrypt any messages encrypted with that key • Assume encryption and decryption algorithms are known to everyone • Examples • Data Encryption Standard (DES), triple-DES (TDES), IDEA, RC2, RC4, RC5

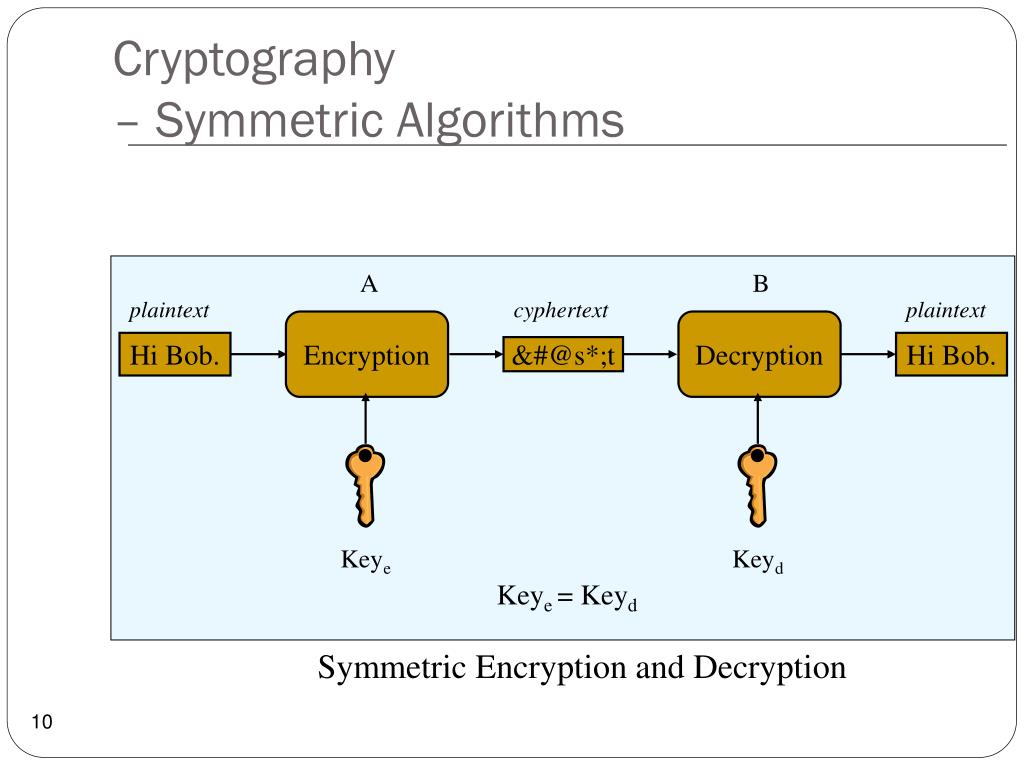

10. A B plaintext cyphertext plaintext Encryption Decryption Hi Bob. Hi Bob. &#@s*;t Keye Keyd Keye = Keyd Cryptography– Symmetric Algorithms Symmetric Encryption and Decryption

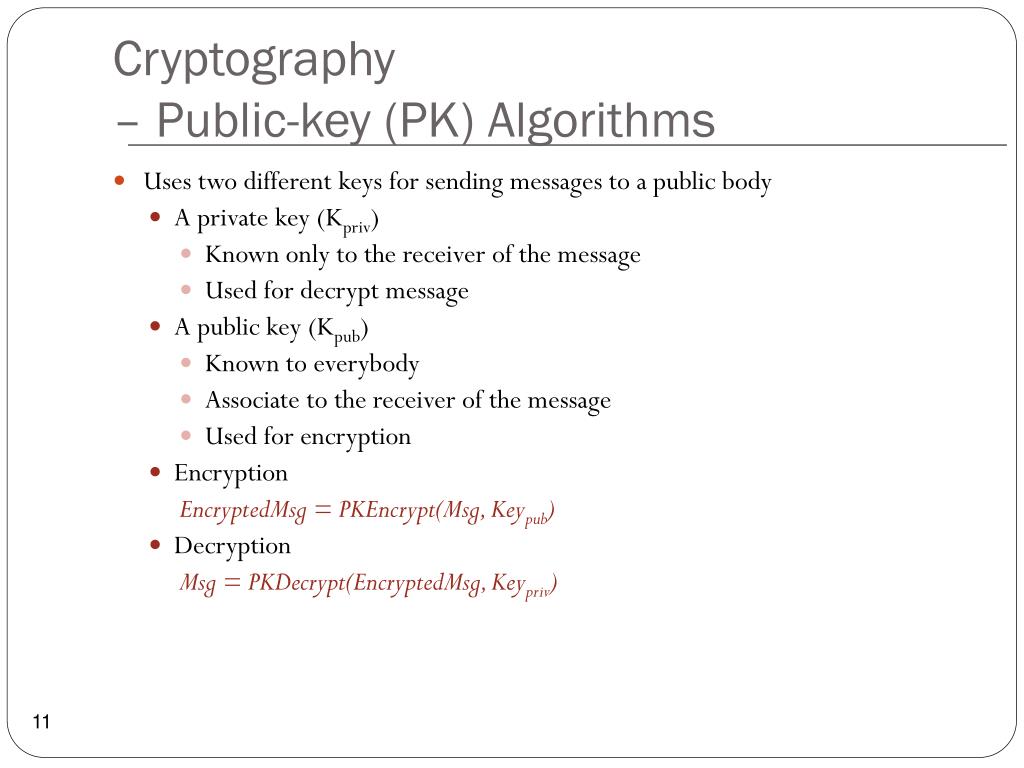

11. Cryptography– Public-key (PK) Algorithms • Uses two different keys for sending messages to a public body • A private key (Kpriv) • Known only to the receiver of the message • Used for decrypt message • A public key (Kpub) • Known to everybody • Associate to the receiver of the message • Used for encryption • Encryption EncryptedMsg = PKEncrypt(Msg, Keypub) • Decryption Msg = PKDecrypt(EncryptedMsg, Keypriv)

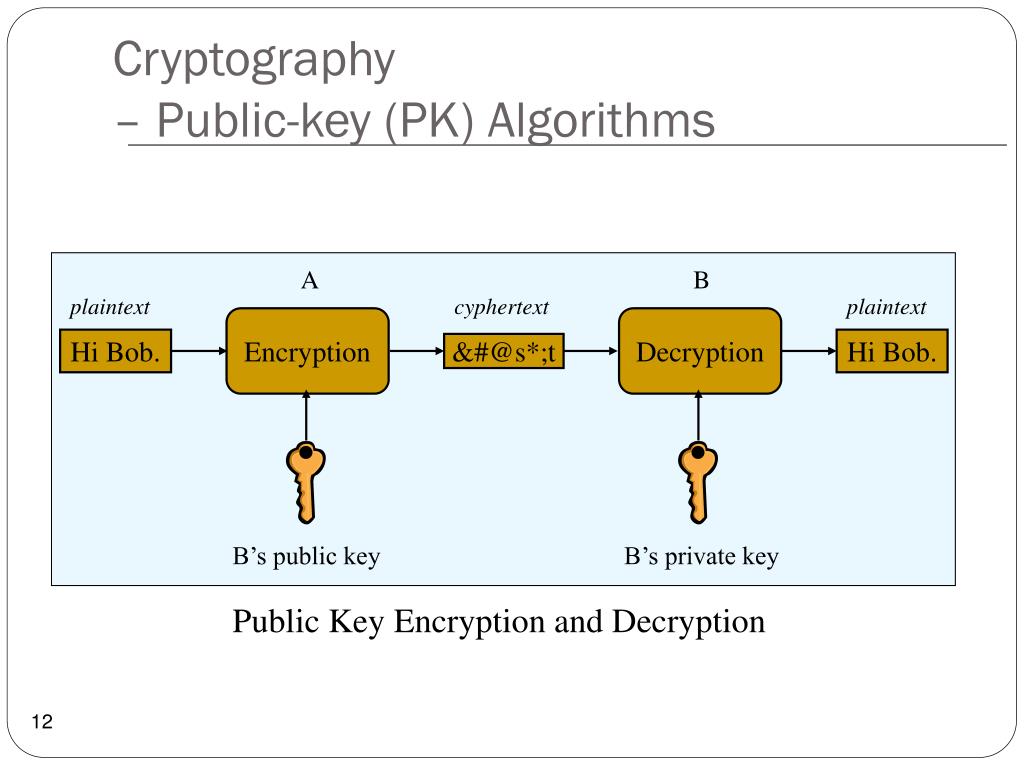

12. A B plaintext cyphertext plaintext Encryption Decryption Hi Bob. Hi Bob. &#@s*;t B’s public key B’s private key Public Key Encryption and Decryption Cryptography– Public-key (PK) Algorithms

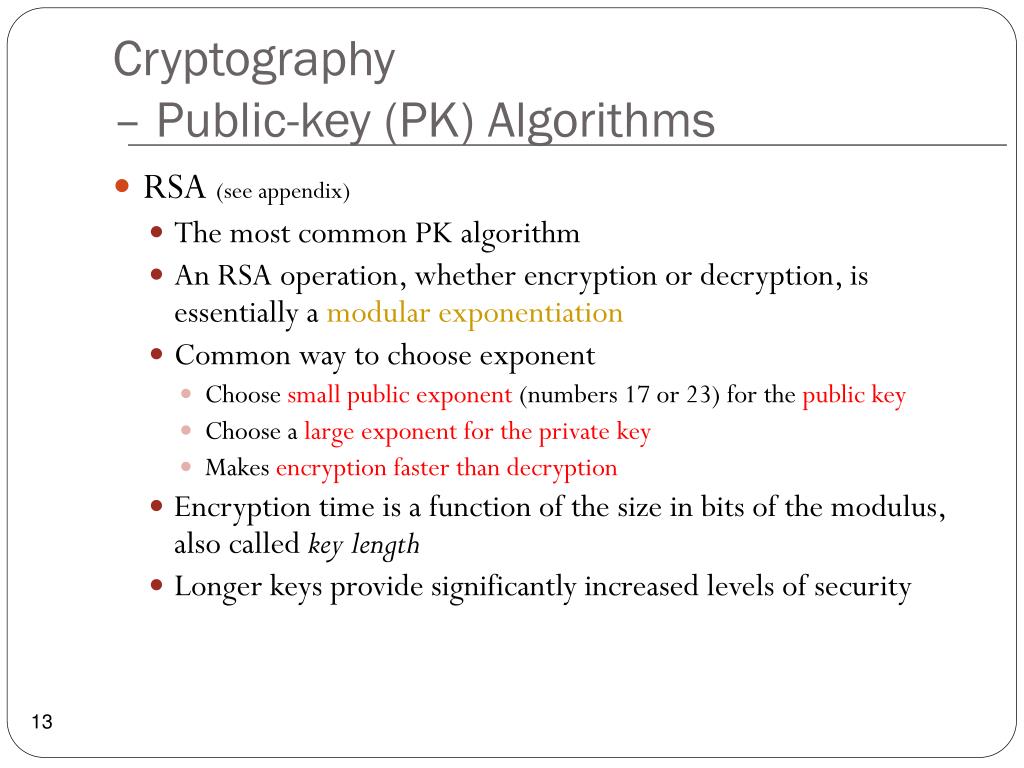

13. Cryptography– Public-key (PK) Algorithms • RSA(see appendix) • The most common PK algorithm • An RSA operation, whether encryption or decryption, is essentially a modular exponentiation • Common way to choose exponent • Choose small public exponent (numbers 17 or 23) for the public key • Choose a large exponent for the private key • Makes encryption faster than decryption • Encryption time is a function of the size in bits of the modulus, also called key length • Longer keys provide significantly increased levels of security

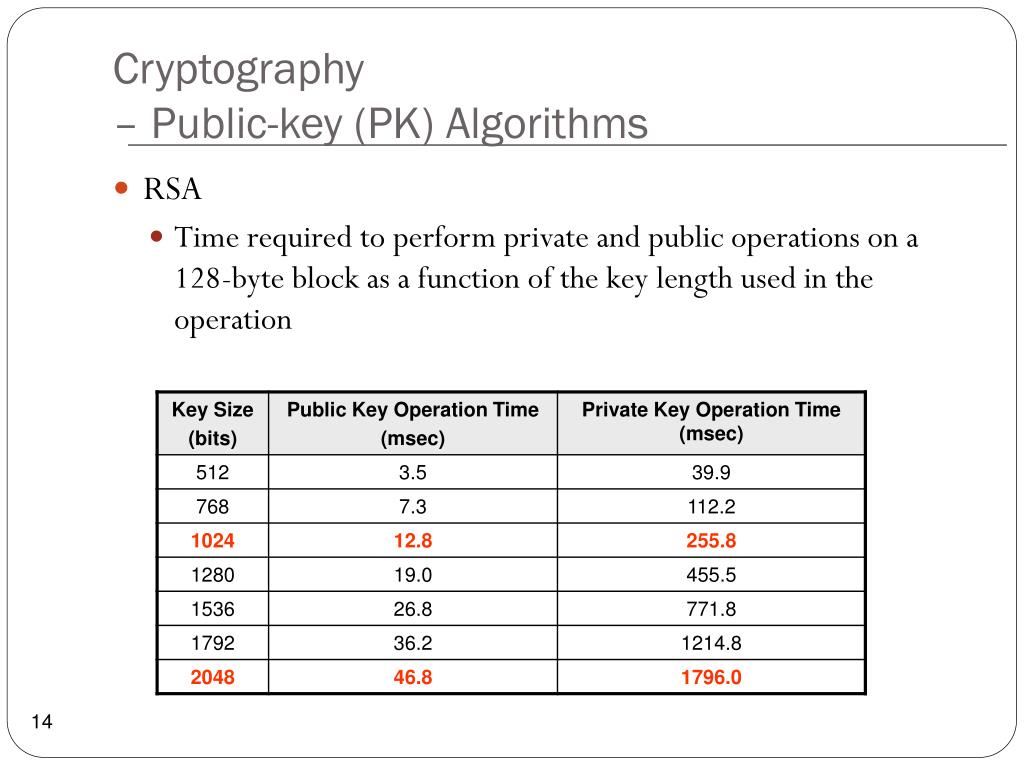

14. Cryptography– Public-key (PK) Algorithms • RSA • Time required to perform private and public operations on a 128-byte block as a function of the key length used in the operation

15. Cryptography– Public-key (PK) Algorithms • Conclusions drawn from the table • Private key operations grows with k3, where k is the key length in bits • Public key operations grows with k2 • Public key operation time, even for a small 128-byte block, is of the same order of magnitude of a disk access time • Private key operation time varies from one to two orders of magnitude greater than a disk access time

16. Cryptography– Public-key (PK) Algorithms • PK Conclusions • PK encryption cannot be efficiently used for bulk data transfer • Adv.: Not necessary to exchange a secret key before two parties can communicate through a secure channel • Key used for encryption is public • Disadv.: Symmetric cryptography is much faster than PK cryptography, but requires the exchange of a secret key • Current software implementation of RSA are a hundred times slower than DES • In hardware, DES is a thousand to ten thousand times faster than RSA

17. Digital Signatures • PK encryption can be used for digitally signing an electronic document in a way that allows for later validation for authenticity • Suppose that A wants to send a message Msg to B

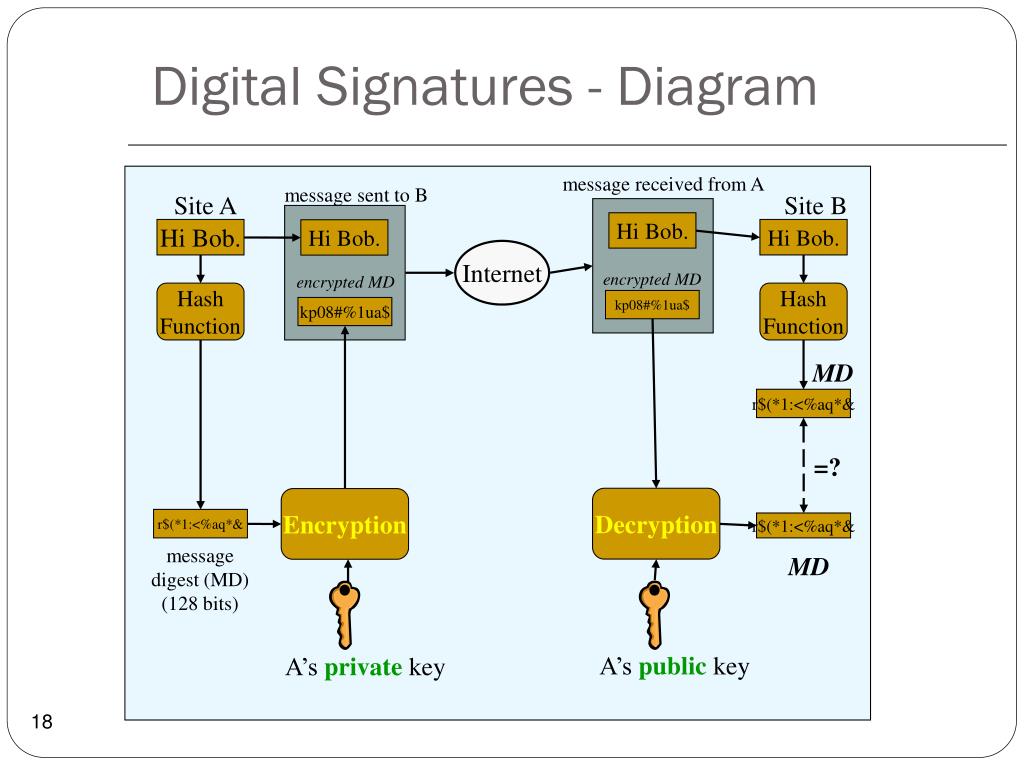

18. Digital Signatures - Diagram message received from A message sent to B Site A Site B Hi Bob. Hi Bob. Hi Bob. Hi Bob. Internet encrypted MD encrypted MD Hash Function Hash Function kp08#%1ua$ kp08#%1ua$ MD r$(*1:<%aq*& =? Decryption Encryption r$(*1:<%aq*& r$(*1:<%aq*& messagedigest (MD)(128 bits) MD A’s publickey A’s private key

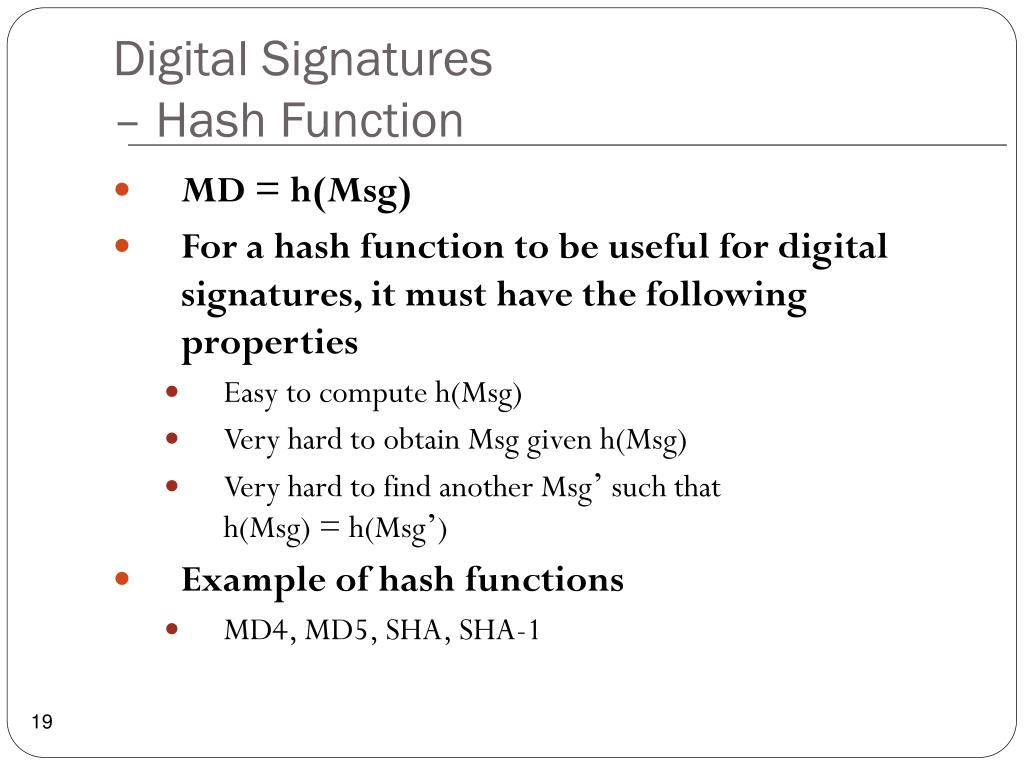

19. Digital Signatures – Hash Function • MD = h(Msg) • For a hash function to be useful for digital signatures, it must have the following properties • Easy to compute h(Msg) • Very hard to obtain Msg given h(Msg) • Very hard to find another Msg’ such thath(Msg) = h(Msg’) • Example of hash functions • MD4, MD5, SHA, SHA-1

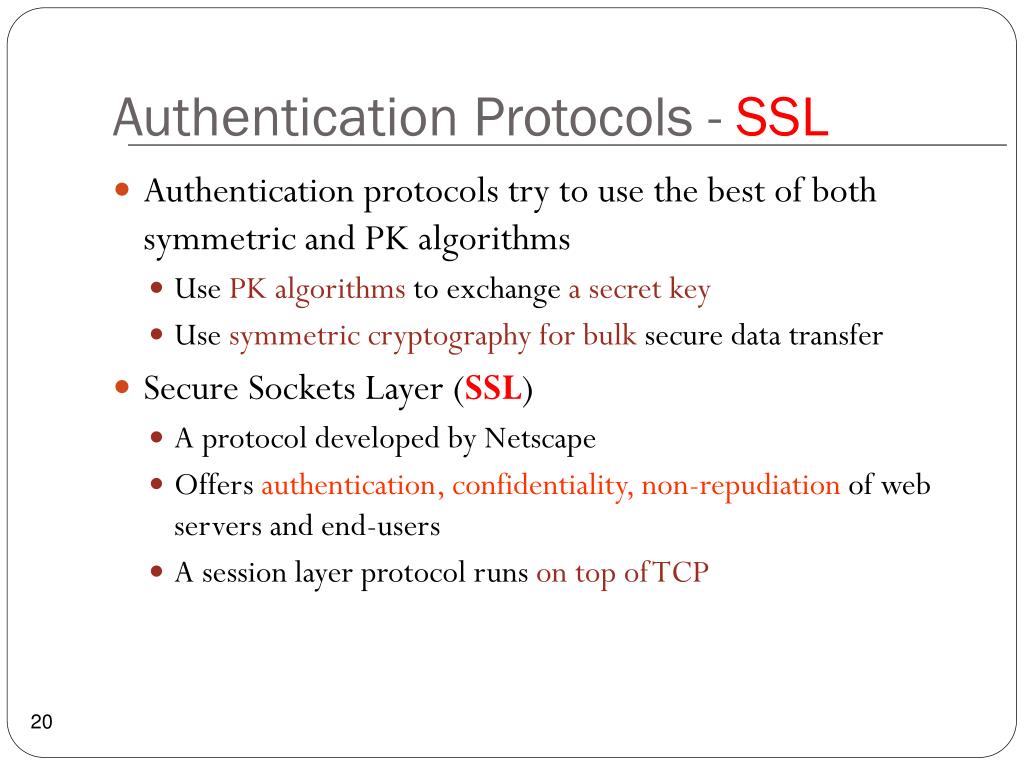

20. Authentication Protocols - SSL • Authentication protocols try to use the best of both symmetric and PK algorithms • Use PK algorithms to exchange a secret key • Use symmetric cryptography for bulk secure data transfer • Secure Sockets Layer (SSL) • A protocol developed by Netscape • Offers authentication, confidentiality, non-repudiation of web servers and end-users • A session layer protocol runs on top of TCP

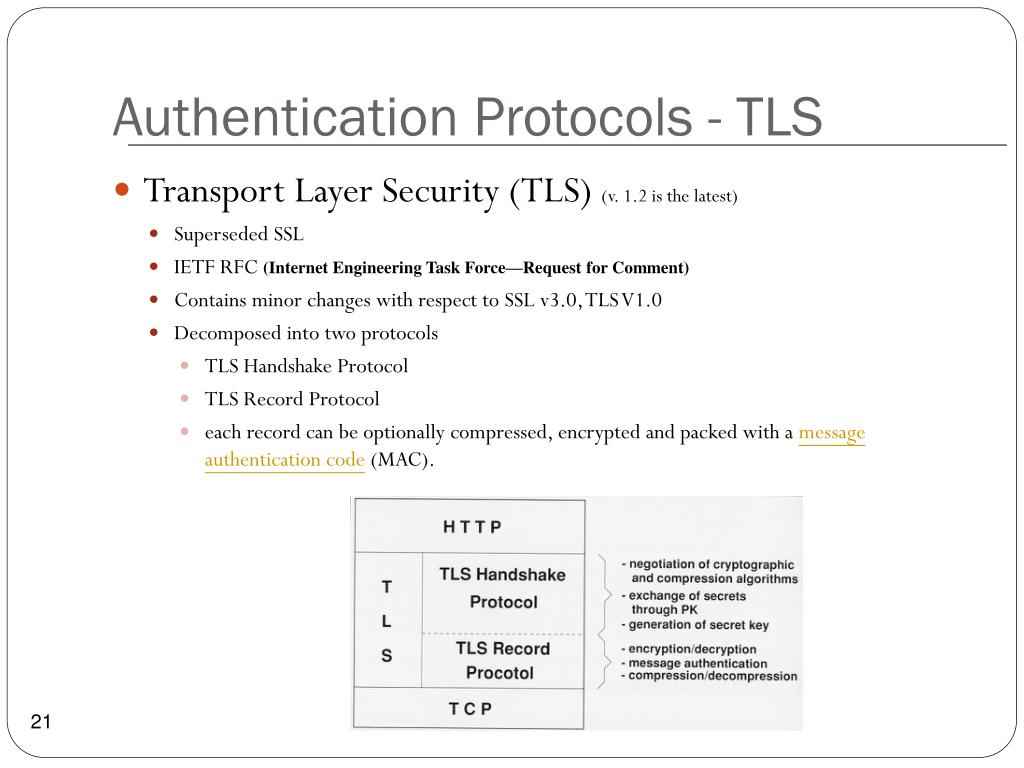

21. Authentication Protocols - TLS • Transport Layer Security (TLS)(v. 1.2 is the latest) • Superseded SSL • IETF RFC(Internet Engineering Task Force—Request for Comment) • Contains minor changes with respect to SSL v3.0, TLS V1.0 • Decomposed into two protocols • TLS Handshake Protocol • TLS Record Protocol • each record can be optionally compressed, encrypted and packed with a message authentication code (MAC).

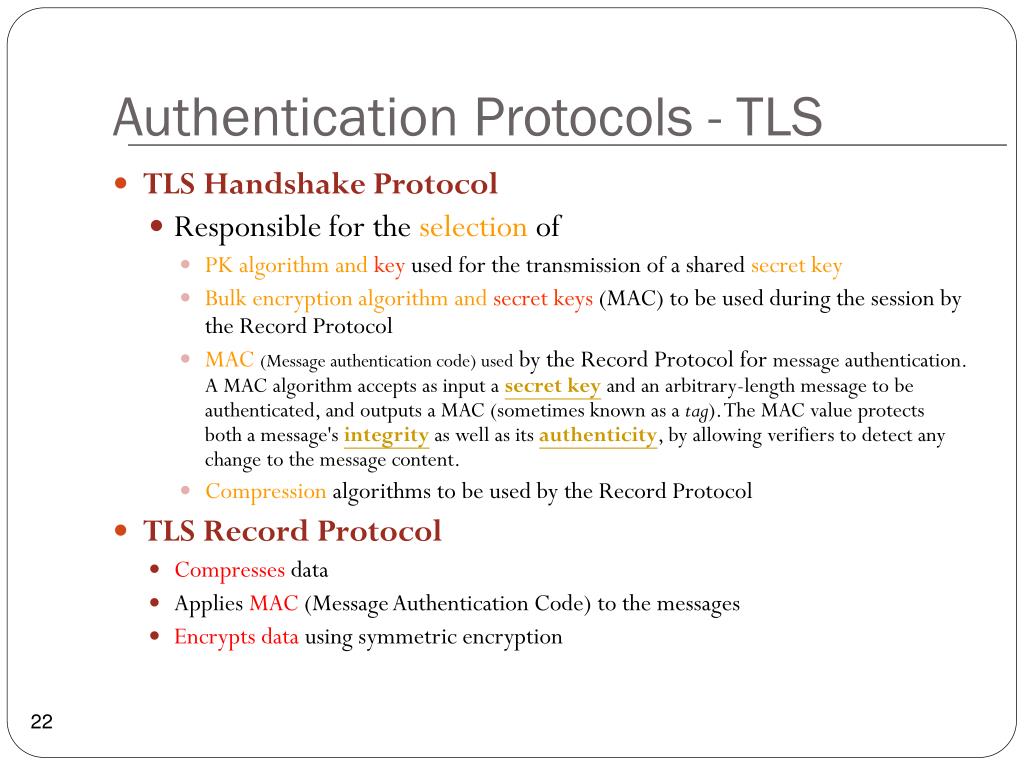

22. Authentication Protocols - TLS • TLS Handshake Protocol • Responsible for the selection of • PK algorithm and key used for the transmission of a shared secret key • Bulk encryption algorithm and secret keys(MAC) to be used during the session by the Record Protocol • MAC (Message authentication code) used by the Record Protocol for message authentication.A MAC algorithm accepts as input a secret keyand an arbitrary-length message to be authenticated, and outputs a MAC (sometimes known as a tag). The MAC value protects both a message's integrity as well as its authenticity, by allowing verifiers to detect any change to the message content. • Compression algorithms to be used by the Record Protocol • TLS Record Protocol • Compresses data • Applies MAC (Message Authentication Code) to the messages • Encrypts data using symmetric encryption

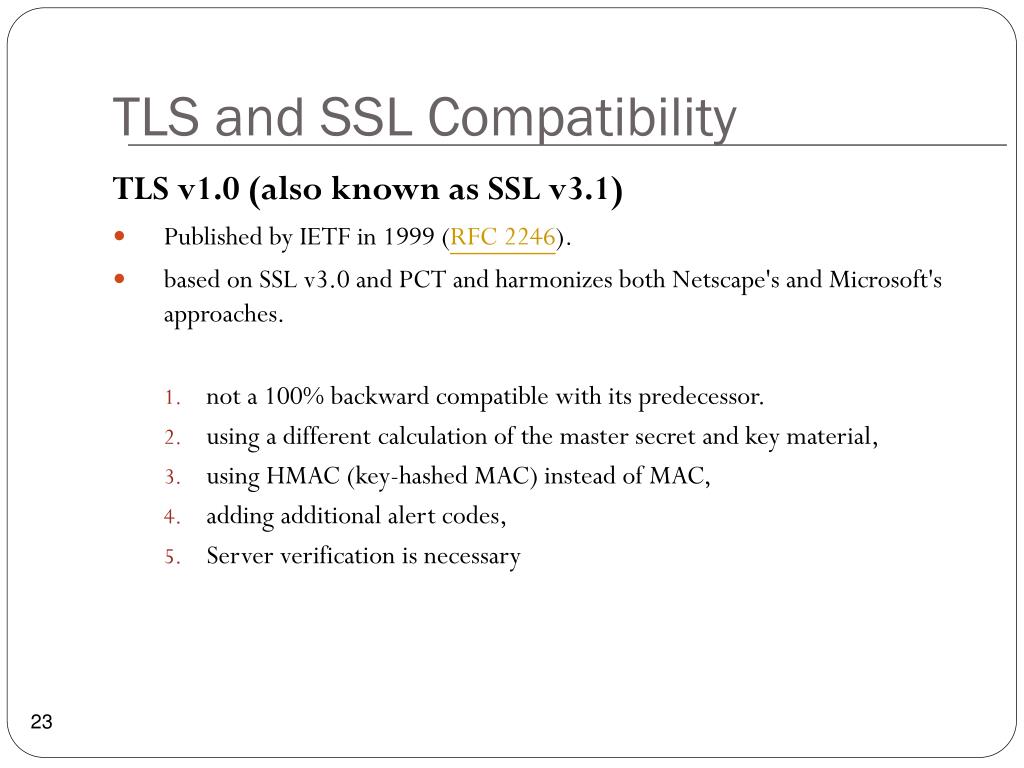

23. TLS and SSL Compatibility TLS v1.0 (also known as SSL v3.1) • Published by IETF in 1999 (RFC 2246). • based on SSL v3.0 and PCT and harmonizes both Netscape's and Microsoft's approaches. • not a 100% backward compatible with its predecessor. • using a different calculation of the master secret and key material, • using HMAC (key-hashed MAC) instead of MAC, • adding additional alert codes, • Server verification is necessary

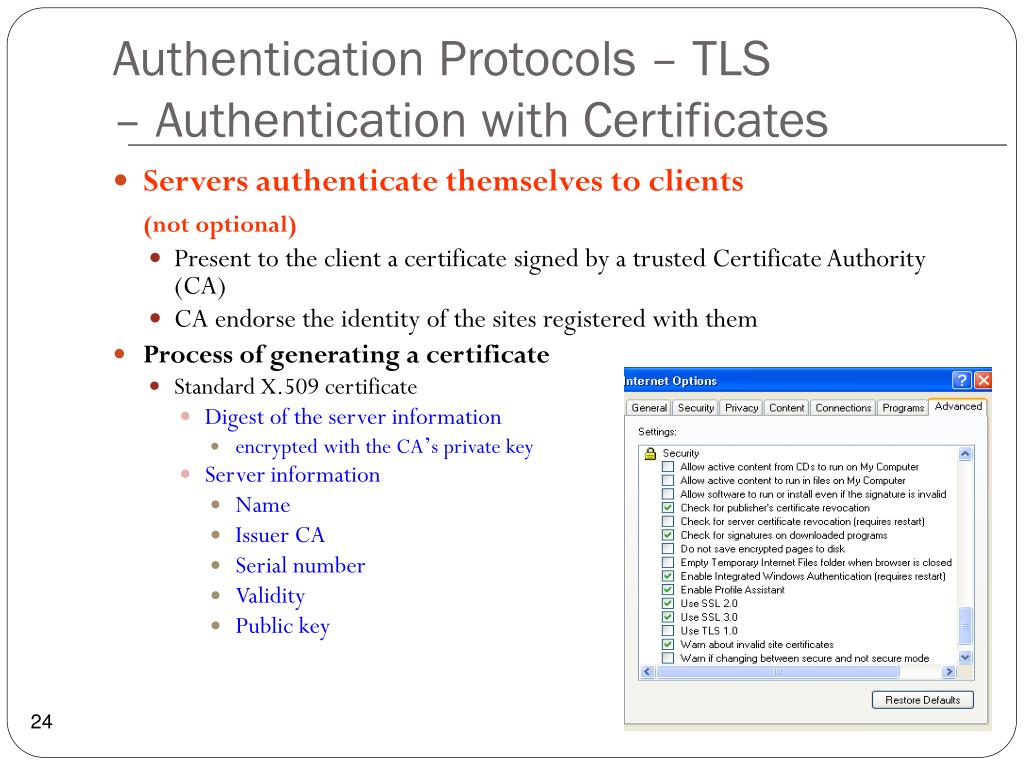

24. Authentication Protocols – TLS– Authentication with Certificates • Servers authenticate themselves to clients (not optional) • Present to the client a certificate signed by a trusted Certificate Authority (CA) • CA endorse the identity of the sites registered with them • Process of generating a certificate • Standard X.509 certificate • Digest of the server information • encrypted with the CA’s private key • Server information • Name • Issuer CA • Serial number • Validity • Public key

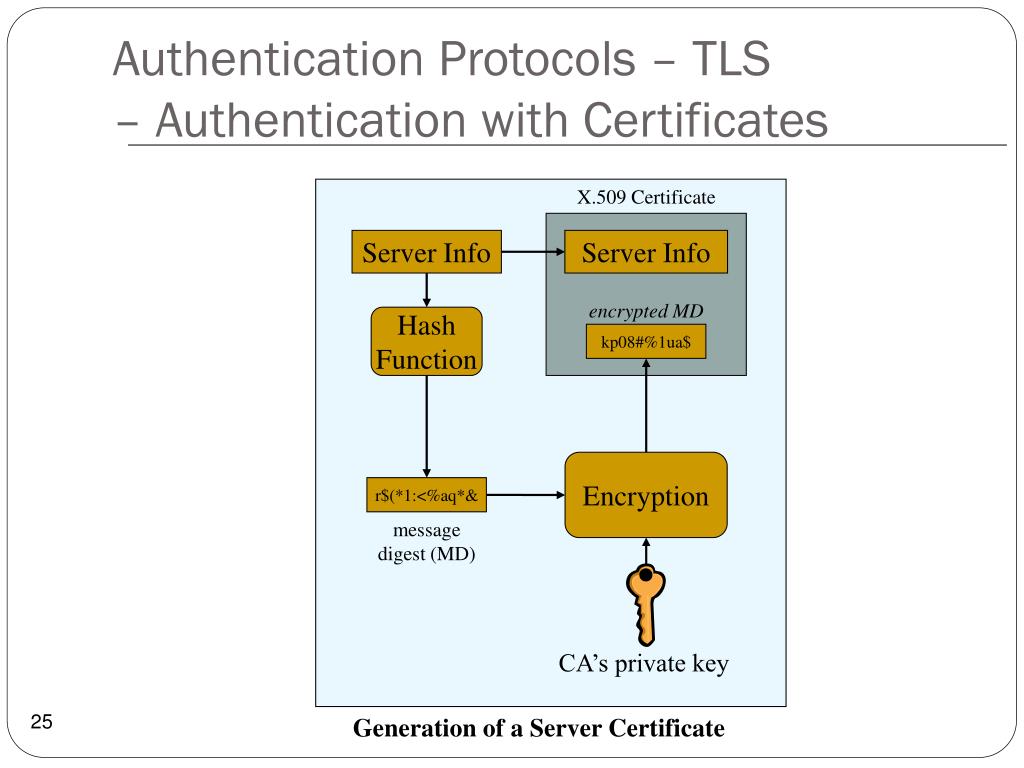

25. Authentication Protocols – TLS– Authentication with Certificates X.509 Certificate Server Info Server Info encrypted MD Hash Function kp08#%1ua$ Encryption r$(*1:<%aq*& messagedigest (MD) CA’s private key Generation of a Server Certificate

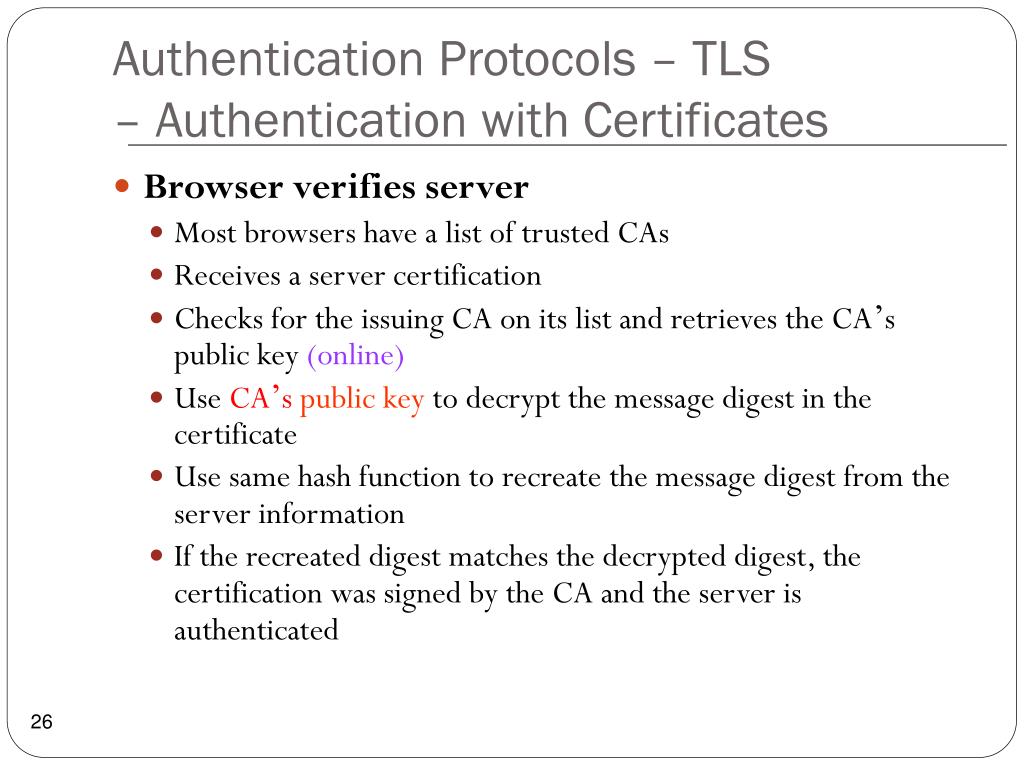

26. Authentication Protocols – TLS– Authentication with Certificates • Browser verifies server • Most browsers have a list of trusted CAs • Receives a server certification • Checks for the issuing CA on its list and retrieves the CA’s public key(online) • Use CA’s public key to decrypt the message digest in the certificate • Use same hash function to recreate the message digest from the server information • If the recreated digest matches the decrypted digest, the certification was signed by the CA and the server is authenticated

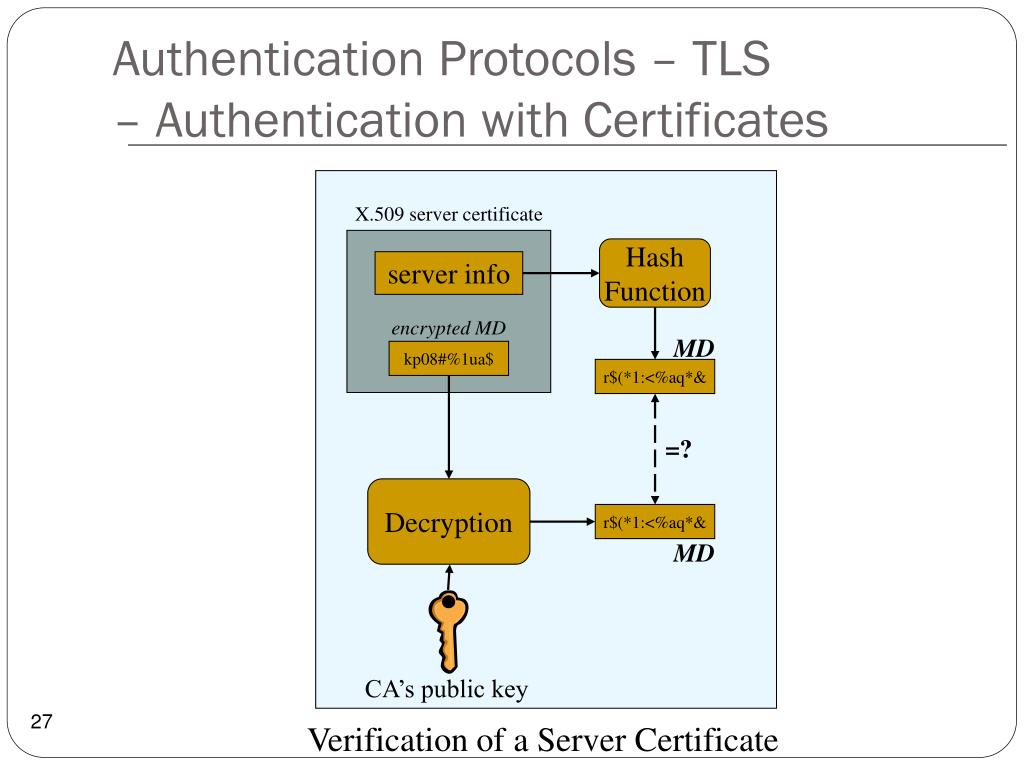

27. Authentication Protocols – TLS– Authentication with Certificates X.509 server certificate Hash Function server info encrypted MD MD kp08#%1ua$ r$(*1:<%aq*& =? Decryption r$(*1:<%aq*& MD CA’s public key Verification of a Server Certificate

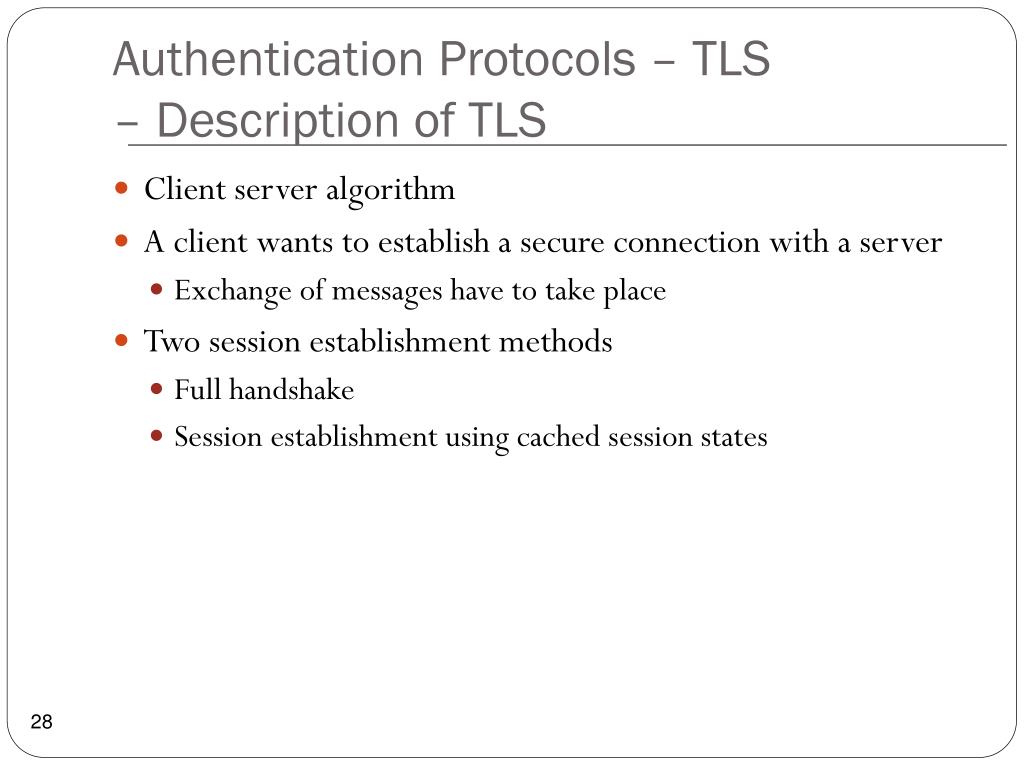

28. Authentication Protocols – TLS– Description of TLS • Client server algorithm • A client wants to establish a secure connection with a server • Exchange of messages have to take place • Two session establishment methods • Full handshake • Session establishment using cached session states

29. TLS-- optional

30. Authentication Protocols – TLS– Description of TLS • If the client establishes a new session while its session state is cached at the server, TLS can skip the authentication and secret negotiation steps • The client sends the session ID of the session it wants to reuse • If the state of the that session is still cached at the server, it replies with a “Server Hello” message • With a session ID equal to the client session ID sent in the “Client Hello” message • New server random numbers (master secret remains unchanged) • Client and server generate new session keys from the cached state and the new random numbers • Session caching eliminates the use of PK during session establishment and cuts down the number of messages from four to three

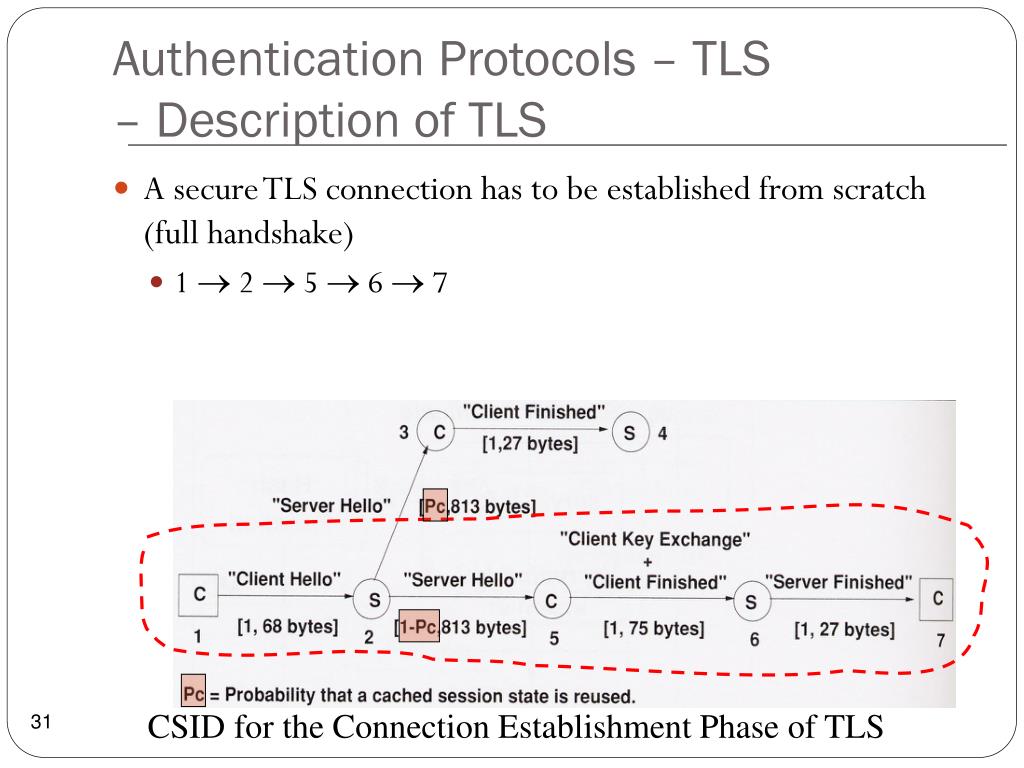

31. Authentication Protocols – TLS– Description of TLS • A secure TLS connection has to be established from scratch (full handshake) • 1  2  5  6  7 CSID for the Connection Establishment Phase of TLS

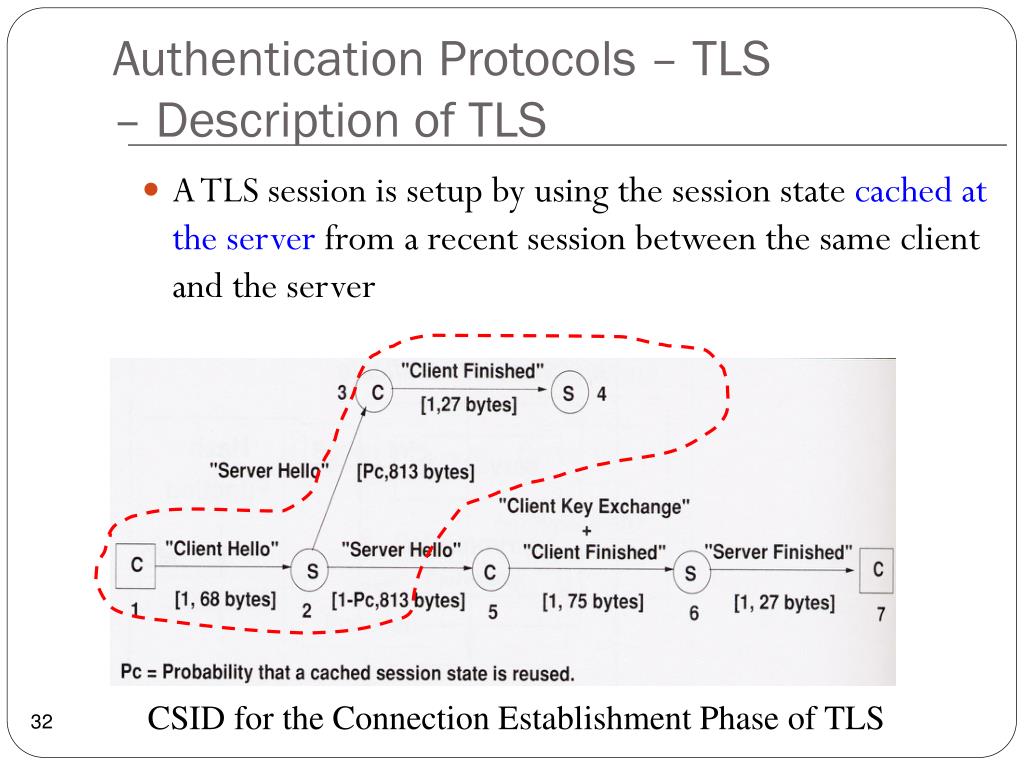

32. Authentication Protocols – TLS– Description of TLS • A TLS session is setup by using the session state cached at the server from a recent session between the same client and the server CSID for the Connection Establishment Phase of TLS

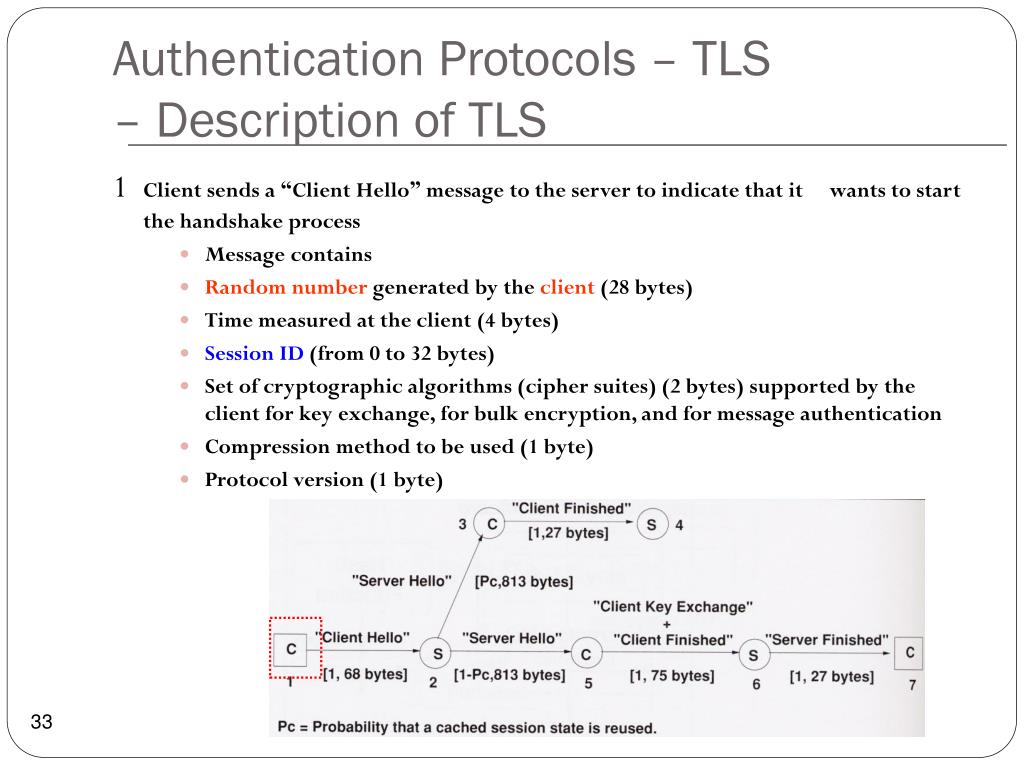

33. Authentication Protocols – TLS– Description of TLS 1 Client sends a “Client Hello” message to the server to indicate that it wants to start the handshake process • Message contains • Random number generated by the client (28 bytes) • Time measured at the client (4 bytes) • Session ID (from 0 to 32 bytes) • Set of cryptographic algorithms (cipher suites) (2 bytes) supported by the client for key exchange, for bulk encryption, and for message authentication • Compression method to be used (1 byte) • Protocol version (1 byte)

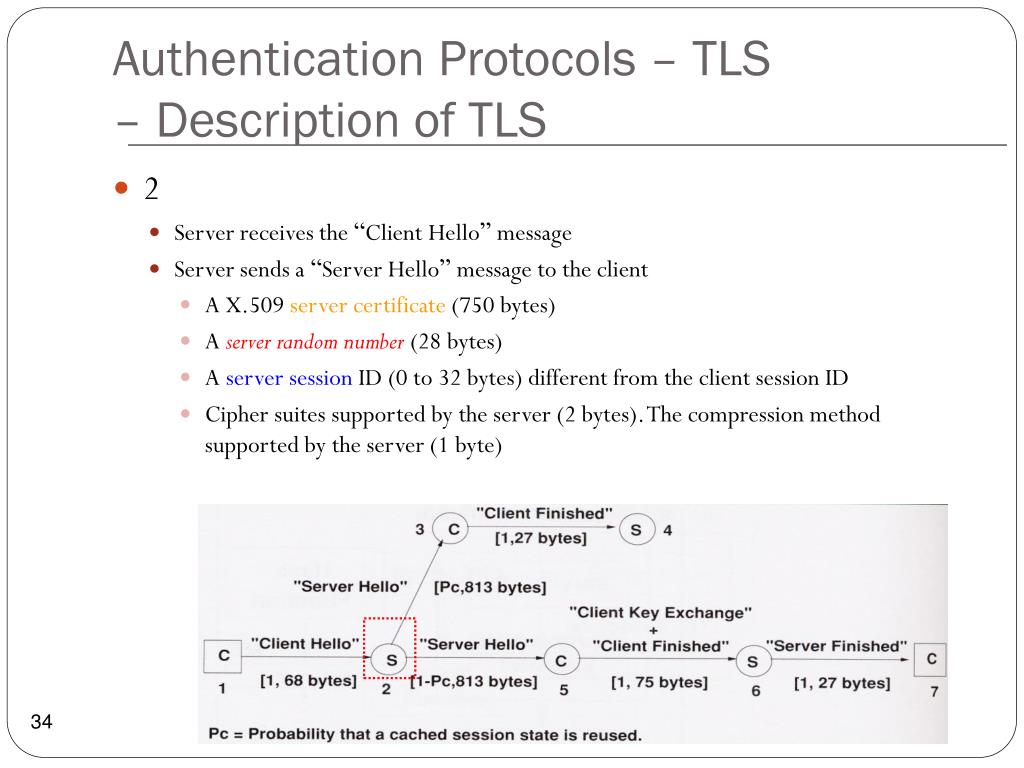

34. Authentication Protocols – TLS– Description of TLS • 2 • Server receives the “Client Hello” message • Server sends a “Server Hello” message to the client • A X.509 server certificate (750 bytes) • A server random number (28 bytes) • A server session ID (0 to 32 bytes) different from the client session ID • Cipher suites supported by the server (2 bytes). The compression method supported by the server (1 byte)

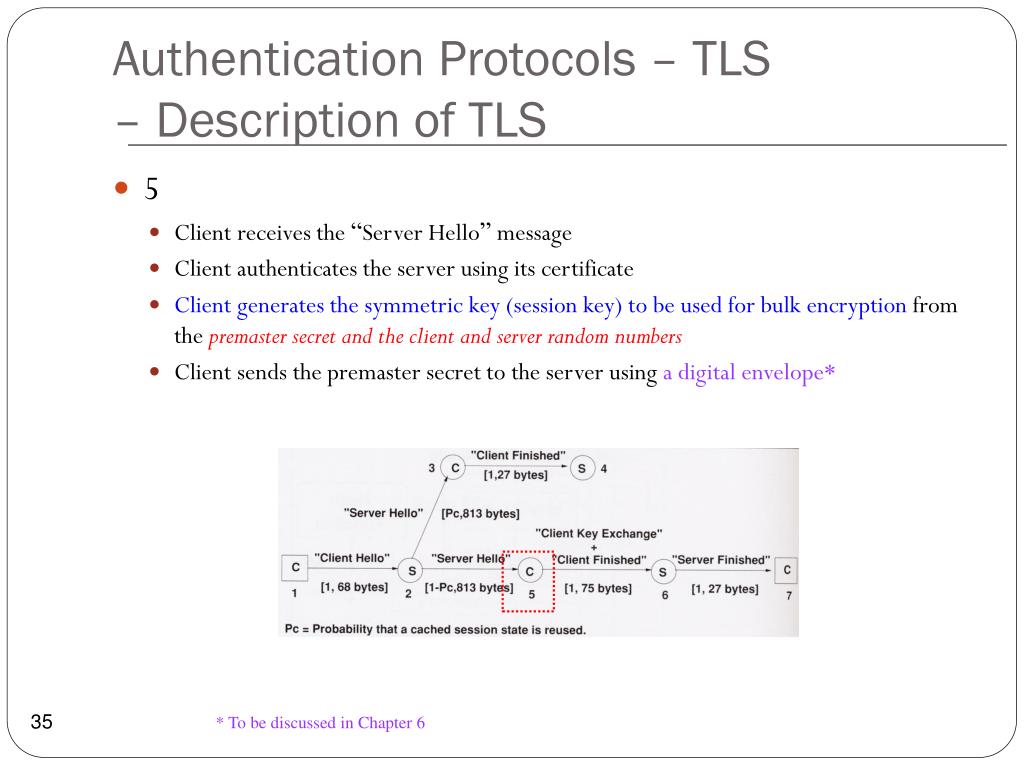

35. Authentication Protocols – TLS– Description of TLS • 5 • Client receives the “Server Hello” message • Client authenticates the server using its certificate • Client generates the symmetric key (session key) to be used for bulk encryption from the premaster secretand the client and server random numbers • Client sends the premaster secret to the server using a digital envelope* *To be discussed in Chapter 6

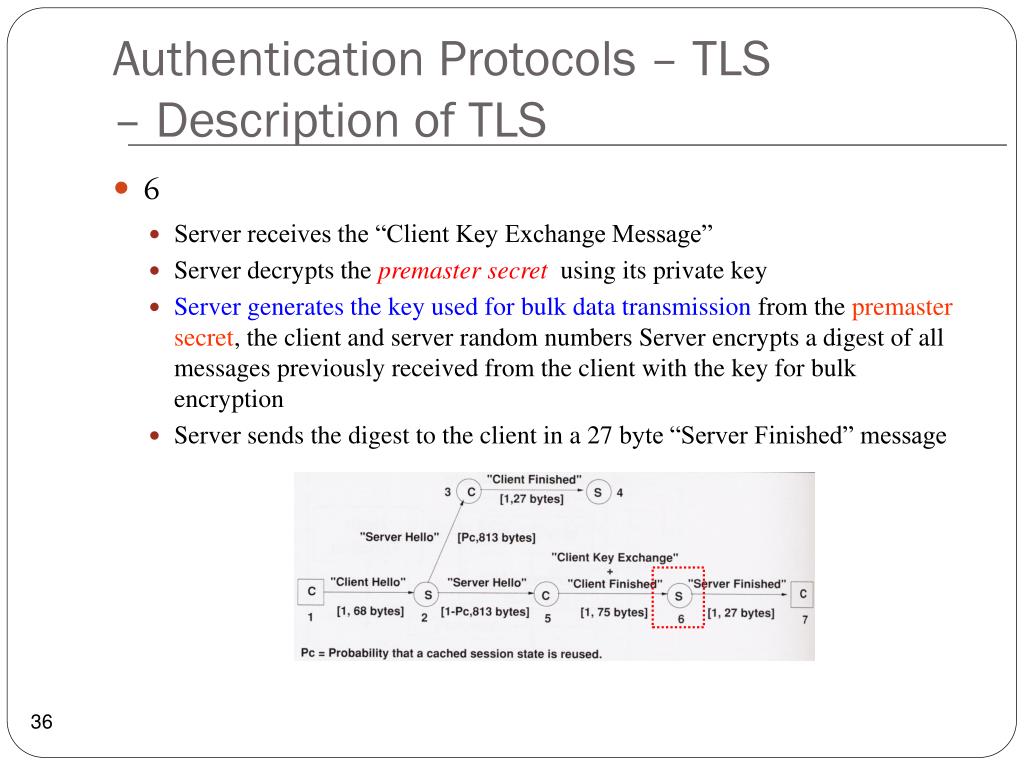

36. Authentication Protocols – TLS– Description of TLS • 6 • Server receives the “Client Key Exchange Message” • Server decrypts the premaster secret using its private key • Server generates the key used for bulk data transmission from the premaster secret, the client and server random numbers Server encrypts a digest of all messages previously received from the client with the key for bulk encryption • Server sends the digest to the client in a 27 byte “Server Finished” message

37. Authentication Protocols – TLS– Description of TLS • 3 • Client receives the “Server Hello” message • Client authenticates the server using its certificate • Client generates the symmetric key to be used for bulk encryption from the previouspremaster secretand the new client andserver random numbers(no digital envelope)

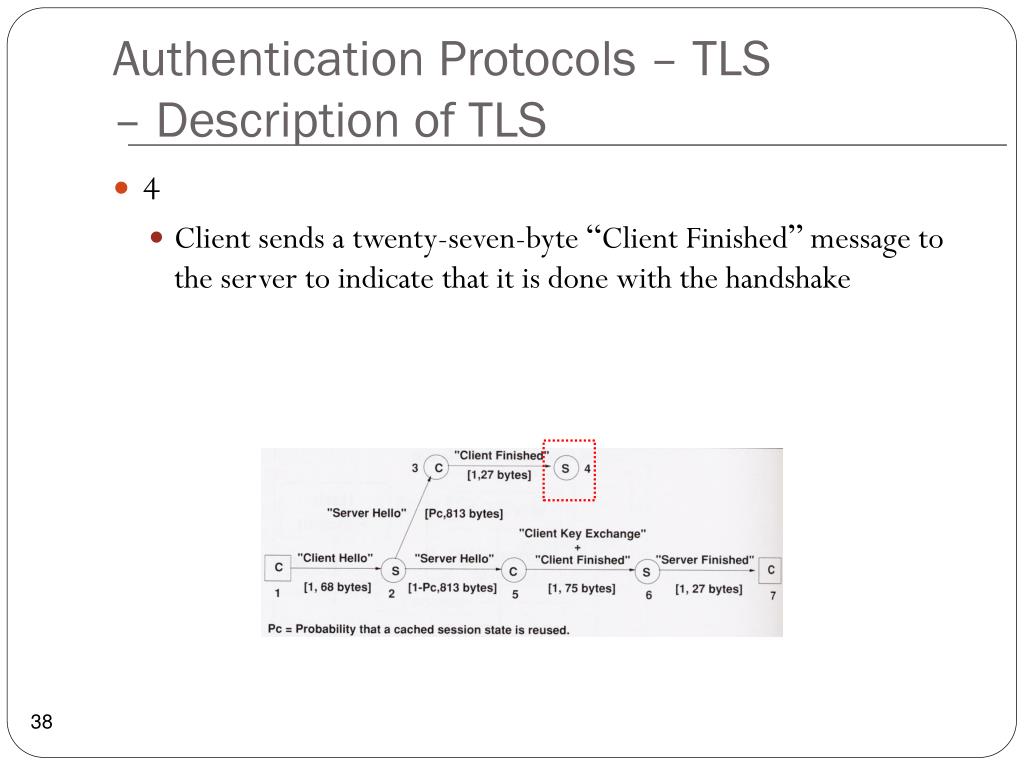

38. Authentication Protocols – TLS– Description of TLS • 4 • Client sends a twenty-seven-byte “Client Finished” message to the server to indicate that it is done with the handshake

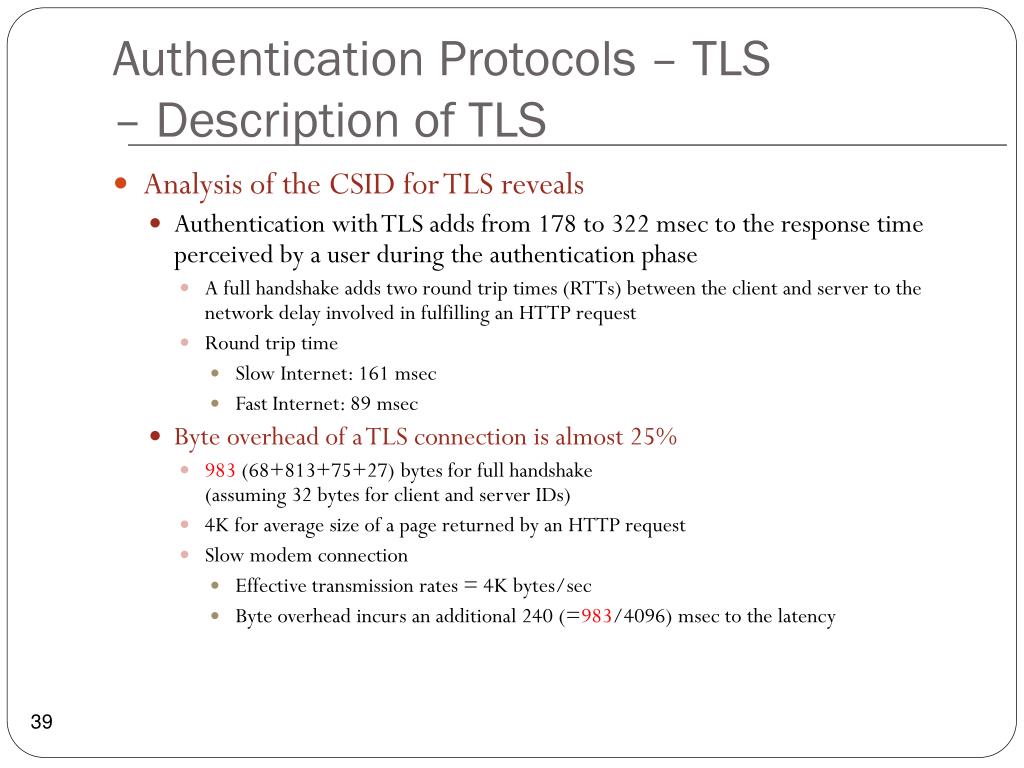

39. Authentication Protocols – TLS– Description of TLS • Analysis of the CSID for TLS reveals • Authentication with TLS adds from 178 to 322 msec to the response time perceived by a user during the authentication phase • A full handshake adds two round trip times (RTTs) between the client and server to the network delay involved in fulfilling an HTTP request • Round trip time • Slow Internet: 161 msec • Fast Internet: 89 msec • Byte overhead of a TLS connection is almost 25% • 983(68+813+75+27) bytes for full handshake (assuming 32 bytes for client and server IDs) • 4K for average size of a page returned by an HTTP request • Slow modem connection • Effective transmission rates = 4K bytes/sec • Byte overhead incurs an additional 240 (=983/4096) msec to the latency

40. Authentication Protocols – TLS– Example – Assumptions • Timings in (msec) for Client Operations During TLS Handshake • Timings in (msec) for Server Operations During TLS Handshake

41. Authentication Protocols – TLS– Example – Assumptions • Several clients are connected to the server through a high-speed LAN • Clients continuously request files that are 16,384 bytes long • Server • Average CPU time involved in accessing a file is 0.002sec when no processing involved for establishing secure connections • Average disk time to retrieve a file is 0.010sec • Encryption/Decryption and Message Digest (MD) Generation/Verification Rates (in Mbps)

42. Authentication Protocols – TLS– Example 1 • Investigate the impact on server throughput, measured in requests/sec, due to the use of TLS • Assume all requests involve a full handshake • No session reuse • Algorithm for data encryption (symmetric) • RC4 • Message authentication by TLS’ Record Protocol • MD5 • Consider four cases • Insecure connections • Secure connections using TLS for key sizes of • 512 bits • 768 bits • 1024 bits for the PK cryptography used in the Handshake Protocol

43. Authentication Protocols – TLS– Example 1 • Evaluate the server throughput as a function of load, measured by the number of clients actively sending requests to the server • Computing the service demands: The sum of total time spent by a request at • Client • Network • Server CPU • Server disk

44. Authentication Protocols – TLS– Example 1 • Time spent at client • Handshake phase • File retrieval phase • Decryption • Verification • Example: 1024-bit key for PK algorithm Service demand at client= Handshake* + Decryption** + Verification**= = 0.01405 sec *Overhead of TLS. Slide 40; ** slide 41, 140,000,000 is the RC4 decryption speed, 180,000,000 is the MD5 verification speed, *** 16484 is file size

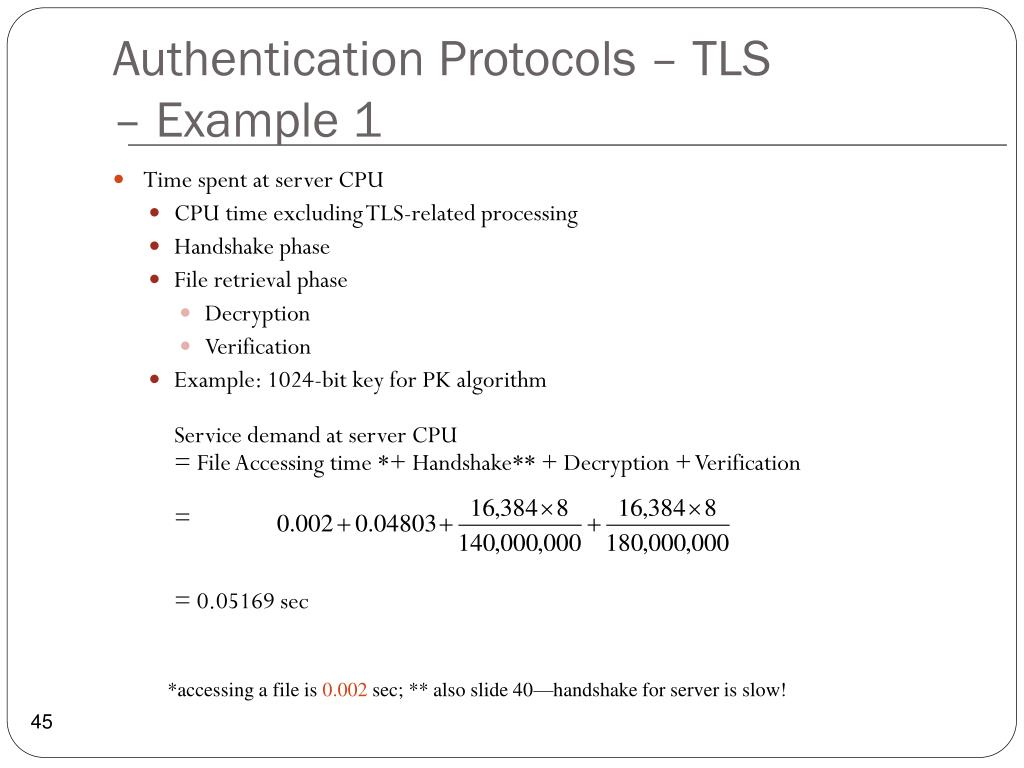

45. Authentication Protocols – TLS– Example 1 • Time spent at server CPU • CPU time excluding TLS-related processing • Handshake phase • File retrieval phase • Decryption • Verification • Example: 1024-bit key for PK algorithmService demand at server CPU= File Accessing time*+ Handshake** + Decryption + Verification== 0.05169 sec *accessing a file is 0.002 sec; ** also slide 40—handshake for server is slow!

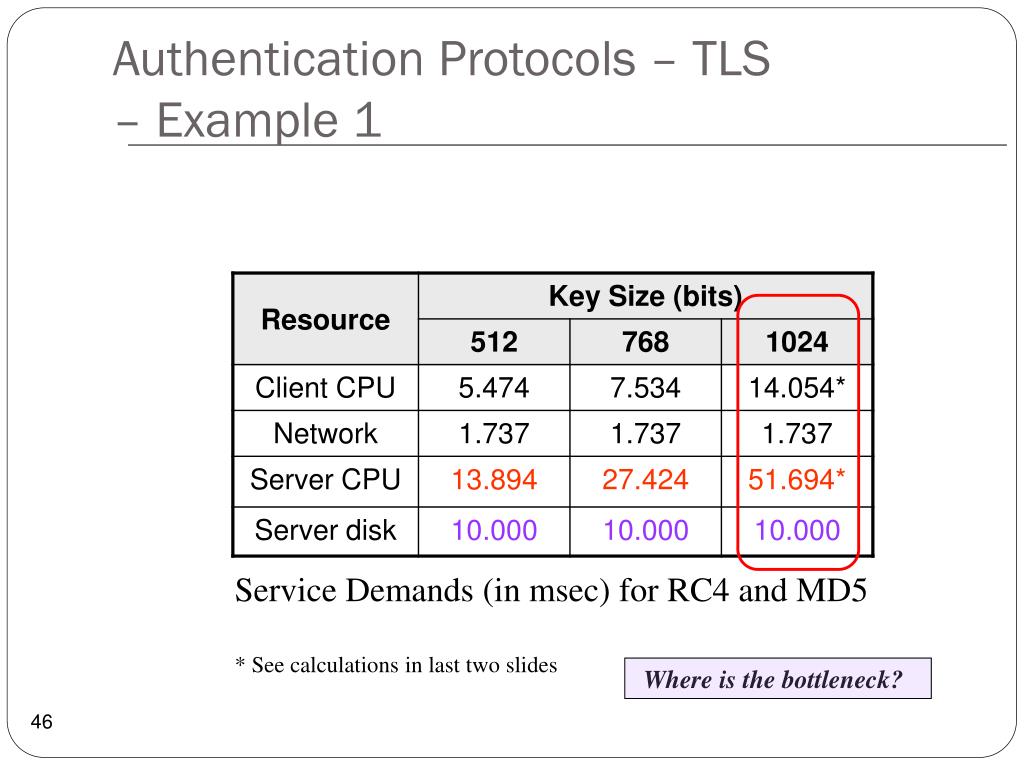

46. Authentication Protocols – TLS– Example 1 Service Demands (in msec) for RC4 and MD5 * See calculations in last two slides Where is the bottleneck?

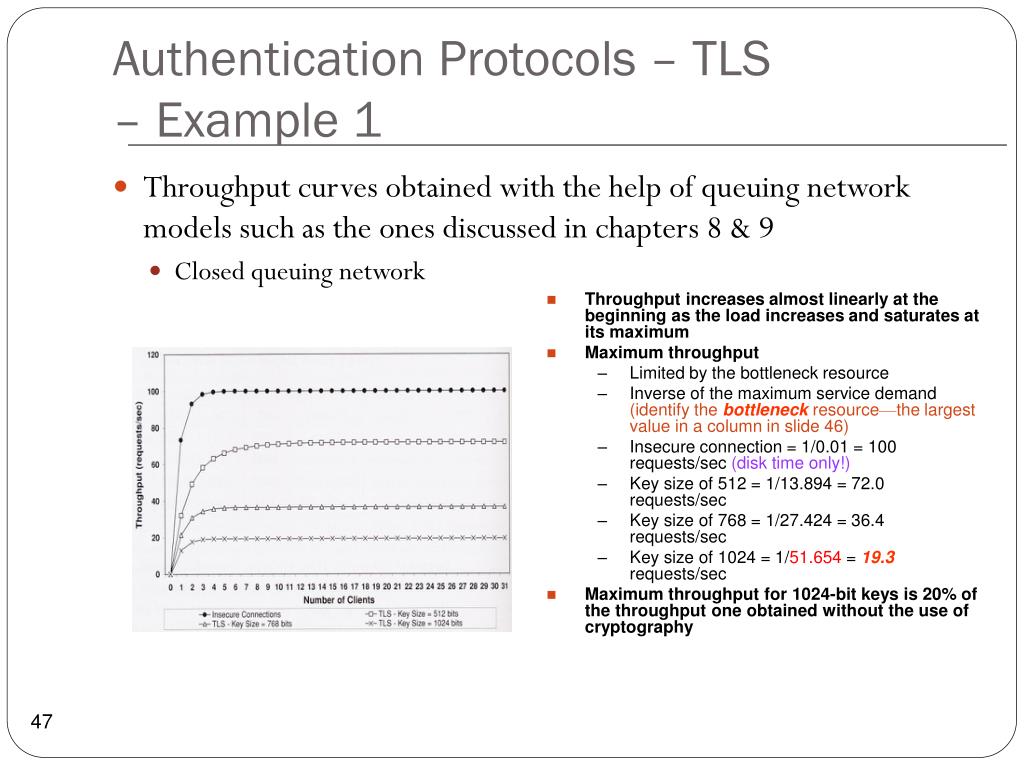

47. Authentication Protocols – TLS– Example 1 • Throughput curves obtained with the help of queuing network models such as the ones discussed in chapters 8 & 9 • Closed queuing network • Throughput increases almost linearly at the beginning as the load increases and saturates at its maximum • Maximum throughput • Limited by the bottleneck resource • Inverse of the maximum service demand(identify the bottleneckresource—the largest value in a column in slide 46) • Insecure connection = 1/0.01 = 100 requests/sec(disk time only!) • Key size of 512 = 1/13.894 = 72.0 requests/sec • Key size of 768 = 1/27.424 = 36.4 requests/sec • Key size of 1024 = 1/51.654 = 19.3 requests/sec • Maximum throughput for 1024-bit keys is 20% of the throughput one obtained without the use of cryptography

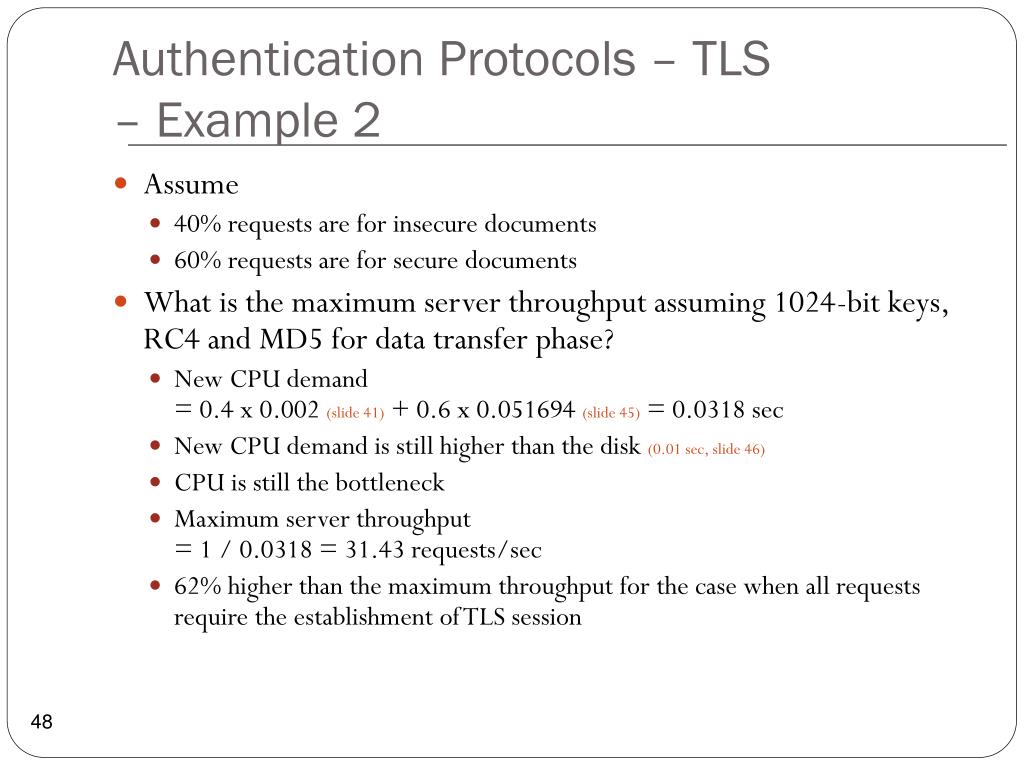

48. Authentication Protocols – TLS– Example 2 • Assume • 40% requests are for insecure documents • 60% requests are for secure documents • What is the maximum server throughput assuming 1024-bit keys, RC4 and MD5 for data transfer phase? • New CPU demand= 0.4 x 0.002 (slide 41)+ 0.6 x 0.051694 (slide 45)= 0.0318 sec • New CPU demand is still higher than the disk(0.01 sec, slide 46) • CPU is still the bottleneck • Maximum server throughput= 1 / 0.0318 = 31.43 requests/sec • 62% higher than the maximum throughput for the case when all requests require the establishment of TLS session

49. Authentication Protocols – TLS– Example 2 • Generalize this analysis for any value Fs of the faction of secure connections • Upper bound on the server throughput X,

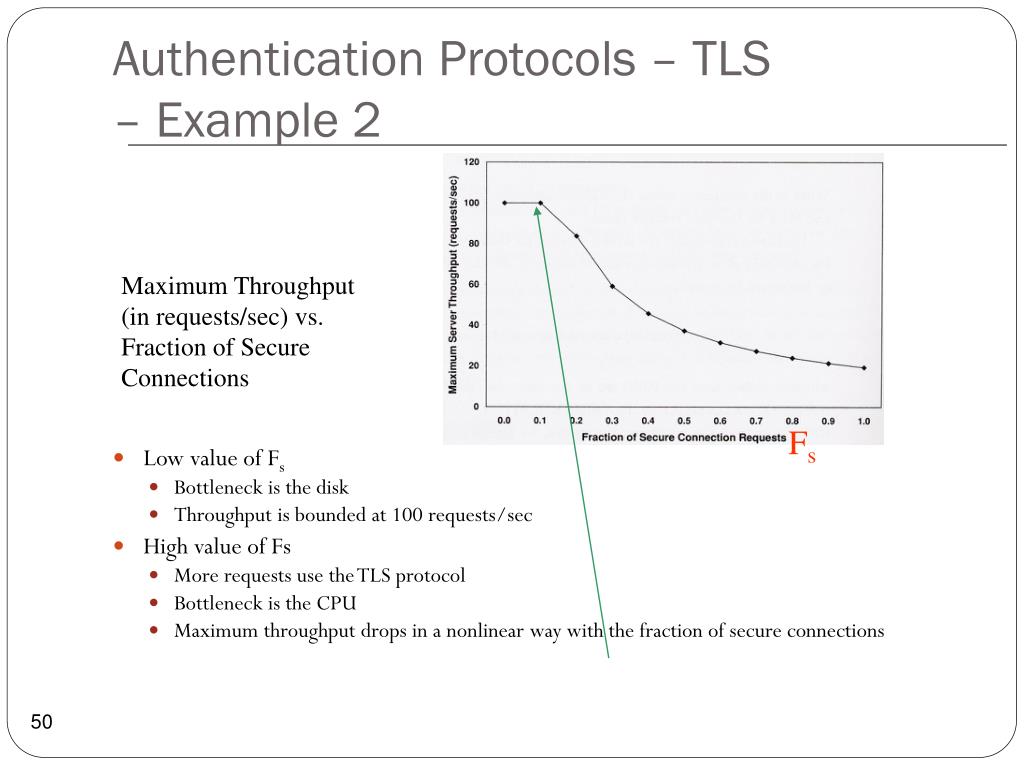

50. Authentication Protocols – TLS– Example 2 • Low value of Fs • Bottleneck is the disk • Throughput is bounded at 100 requests/sec • High value of Fs • More requests use the TLS protocol • Bottleneck is the CPU • Maximum throughput drops in a nonlinear way with the fraction of secure connections Maximum Throughput (in requests/sec) vs. Fraction of Secure Connections Fs
