  1. Training & Flight Operations Support and Services AIRBUS LMS AIRBUS TRAINING - C.B.T. Software Design Jacques TALVARD AIRBUS LMS / STID2

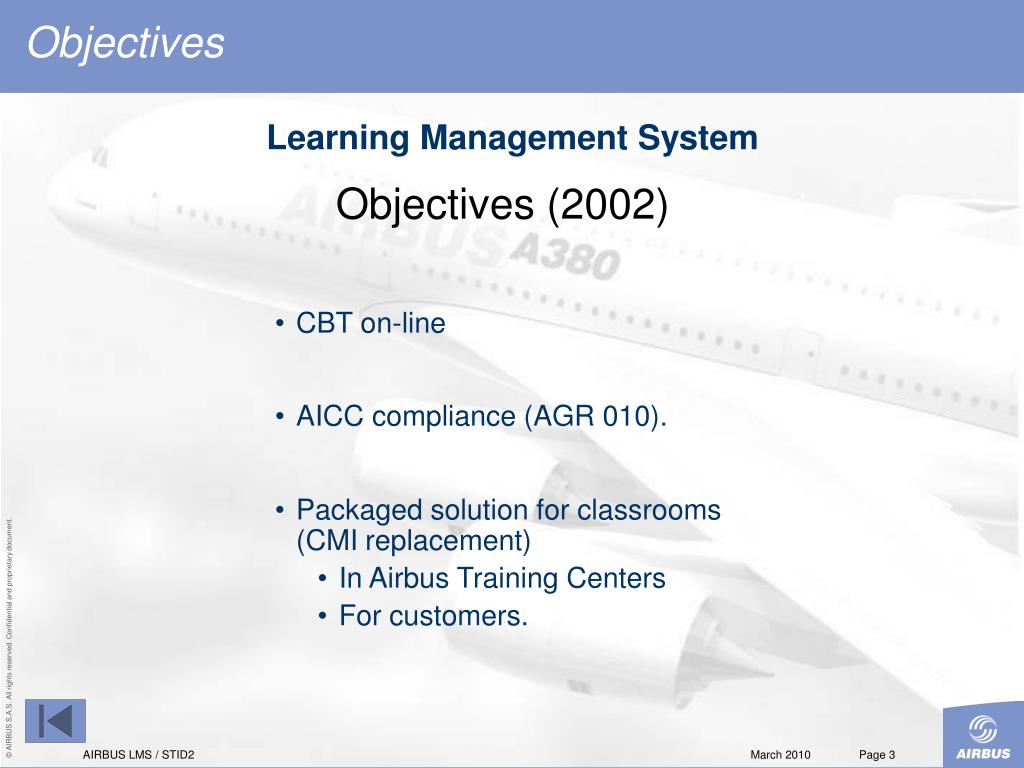

  2. Objectives Learning Management System Objectives (2002) • CBT on-line • AICC compliance (AGR 010). • Packaged solution for classrooms (CMI replacement) • In Airbus Training Centers • For customers. AIRBUS LMS / STID2

  3. Choice Choice for the AIRBUS LMS is the consequence of: • COTS analysis. • Keep the simple functions of the CMI. • Take into account the big amount of existing menus and routers. • Existence of legacy lessons (GSM, PPT) AIRBUS LMS / STID2

  4. Utilisation The AIRBUS LMS can be installed on • A Windows server (intranet or internet) 12 laptops 7 workstations 2 videoprojectors 2 screens 15 flat screens + spare • A Windows workstation or laptop ACT Mobile classrooms - Courseware - ACT 2D Trainer Airbus Competency Training AIRBUS LMS / STID2

  5. ACT mobile classrooms AIRBUS LMS / STID2

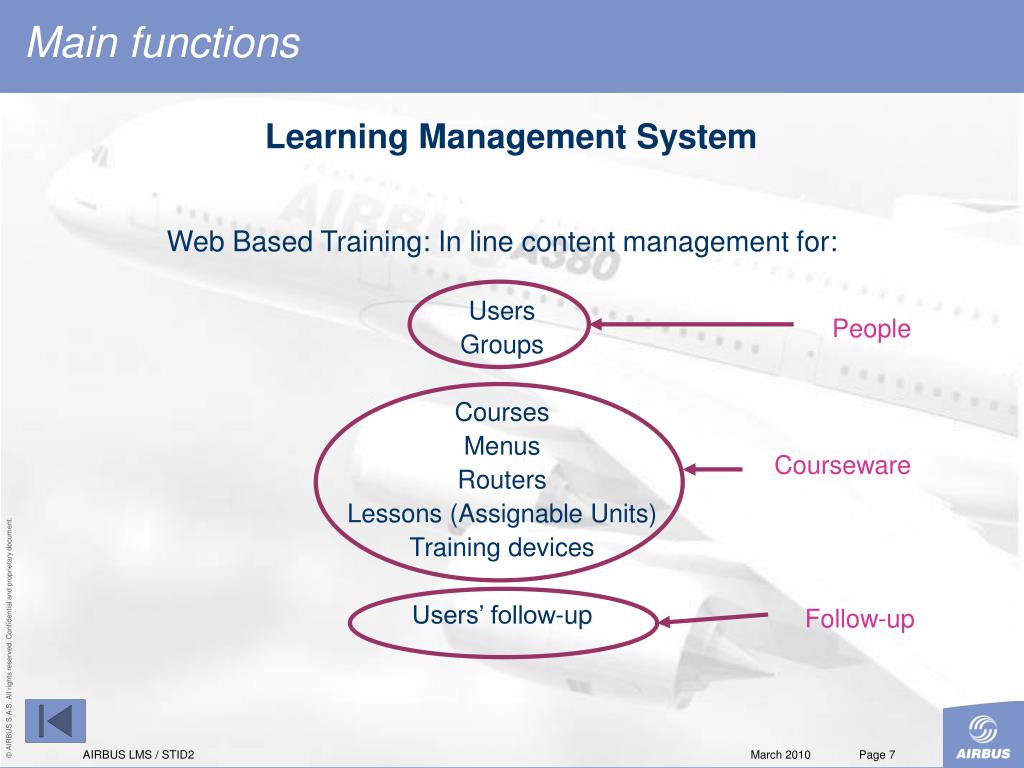

  6. Main functions Learning Management System Web Based Training: In line content management for: Users Groups Courses Menus Routers Lessons (Assignable Units) Training devices Users’ follow-up People Courseware Follow-up AIRBUS LMS / STID2

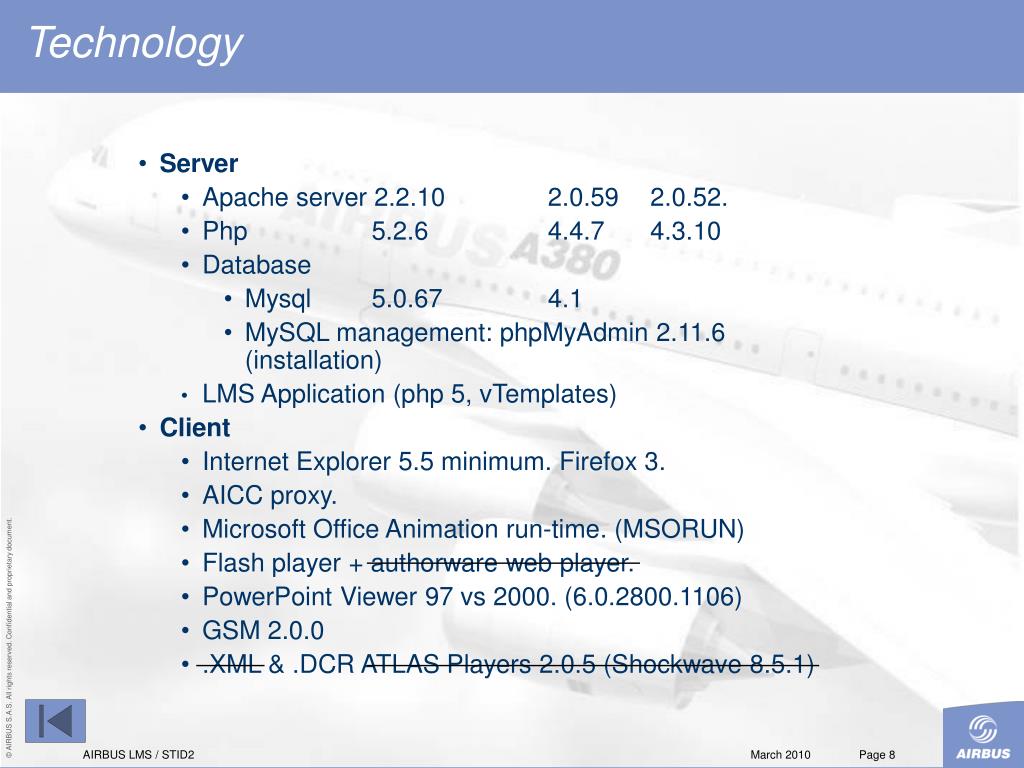

  7. Technology • Server • Apache server 2.2.10 2.0.59 2.0.52. • Php 5.2.6 4.4.7 4.3.10 • Database • Mysql 5.0.67 4.1 • MySQL management: phpMyAdmin 2.11.6 (installation) • LMS Application (php 5, vTemplates) • Client • Internet Explorer 5.5 minimum. Firefox 3. • AICC proxy. • Microsoft Office Animation run-time. (MSORUN) • Flash player + authorware web player. • PowerPoint Viewer 97 vs 2000. (6.0.2800.1106) • GSM 2.0.0 • .XML & .DCR ATLAS Players 2.0.5 (Shockwave 8.5.1) AIRBUS LMS / STID2

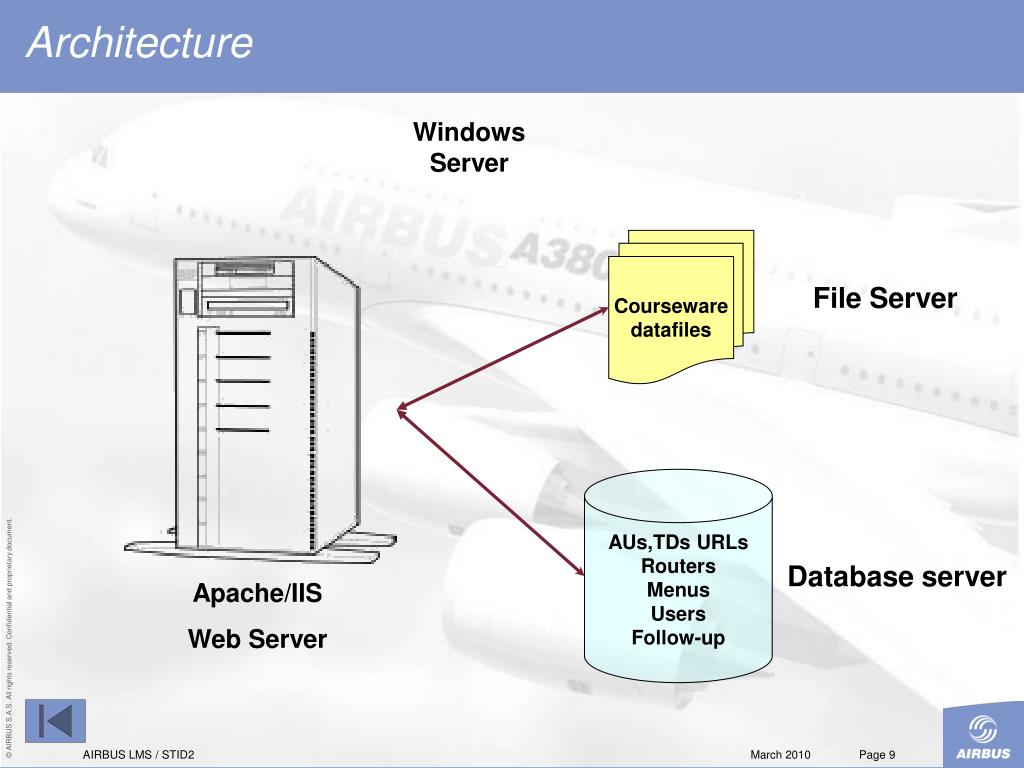

  8. Architecture Windows Server Courseware datafiles File Server AUs,TDs URLs Routers Menus Users Follow-up Database server Apache/IIS Web Server AIRBUS LMS / STID2

  9. AICC AGRs • AGR 002: Hardware • AGR 003: Digital audio • AGR 004: Courseware delivery station: Software • AGR 005: Peripheral devices • AGR 006: CMI interoperability • AGR 007: Courseware Interchange • AGR 008: Digital video • AGR 009: Icon standards: user interface • AGR 010: Web Based CMI interoperability • AGR 011: CBT Package exchange notification • AGR 012: Training development checklist AIRBUS LMS / STID2

  10. AGR-010 AGR-010 communication AICC Communication LMS HACP Internet Explorer PHP MySql PPT GSM ATLAS Apache/IIS AICC Proxy API Windows/Linux Windows LMS Web Server Client Workstation AIRBUS LMS / STID2

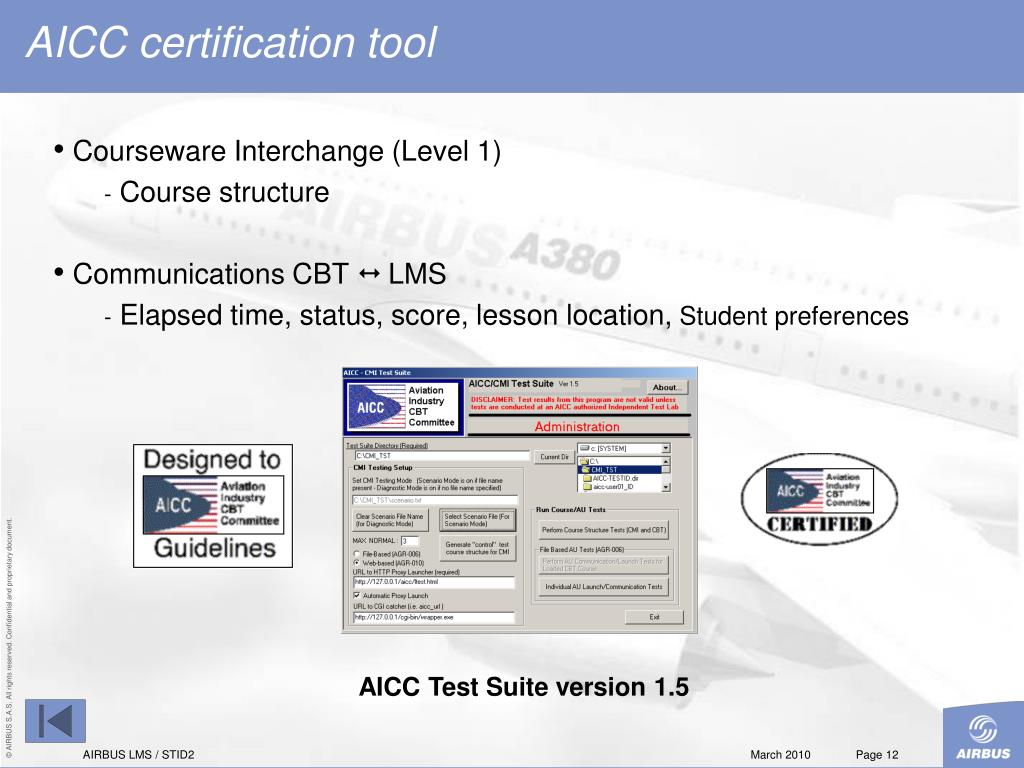

  11. AICC certification tool • Courseware Interchange (Level 1) • Course structure • Communications CBT  LMS • Elapsed time, status, score, lesson location, Student preferences AICC Test Suite version 1.5 AIRBUS LMS / STID2

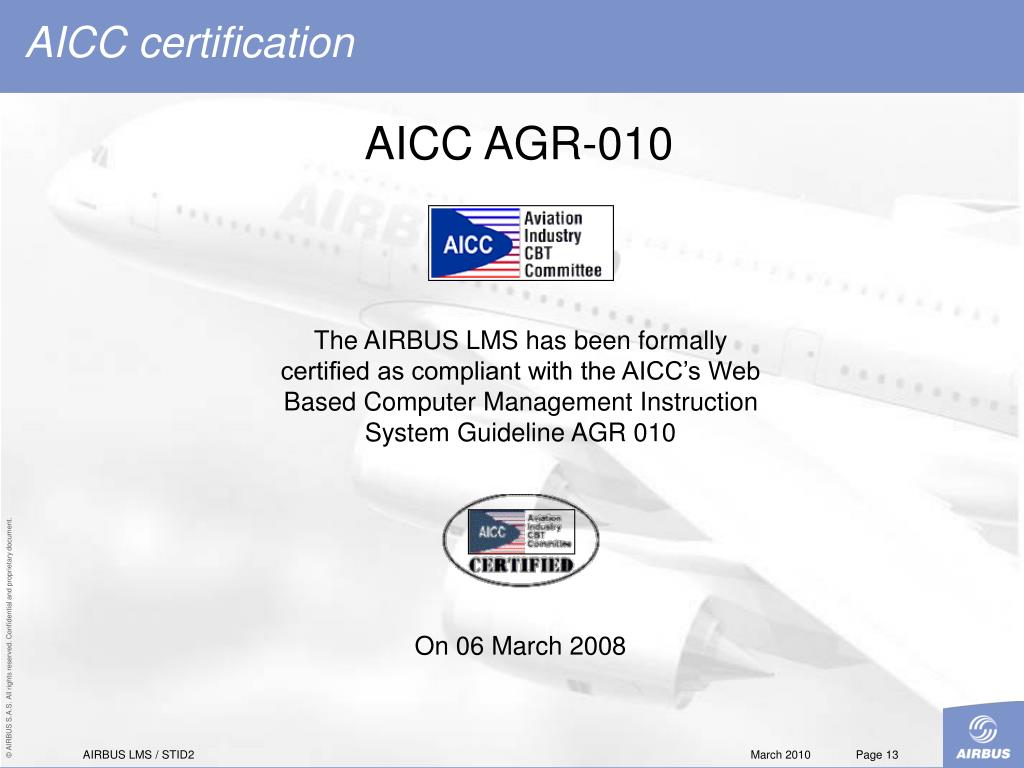

  12. AICC certification AICC AGR-010 The AIRBUS LMS has been formally certified as compliant with the AICC’s Web Based Computer Management Instruction System Guideline AGR 010 On 06 March 2008 AIRBUS LMS / STID2

  13. Server‘s developments • Server. • Application (PHP 5, MySQL 5, javascript, vTemplate). • Data uploading SQL scripts. • Setup. • Apache server v2, PHP, MySQL database and LMS. • MySQL database initialisation SQL scripts. AIRBUS LMS / STID2

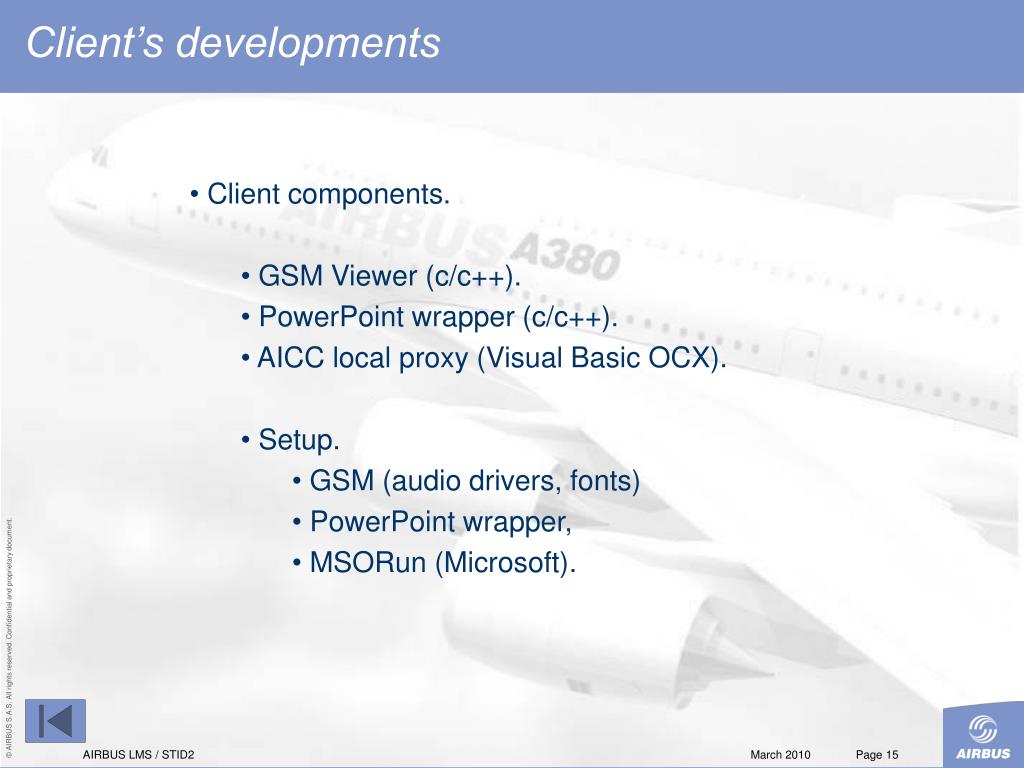

  14. Client’s developments • Client components. • GSM Viewer (c/c++). • PowerPoint wrapper (c/c++). • AICC local proxy (Visual Basic OCX). • Setup. • GSM (audio drivers, fonts) • PowerPoint wrapper, • MSORun (Microsoft). AIRBUS LMS / STID2

  15. Dimensions • Users. • 200 simultaneous users. • Routers and menus. • 1000 routers with 400 entries per router. • Design for easy change of database. • MySQL, SQL Server, Oracle. AIRBUS LMS / STID2

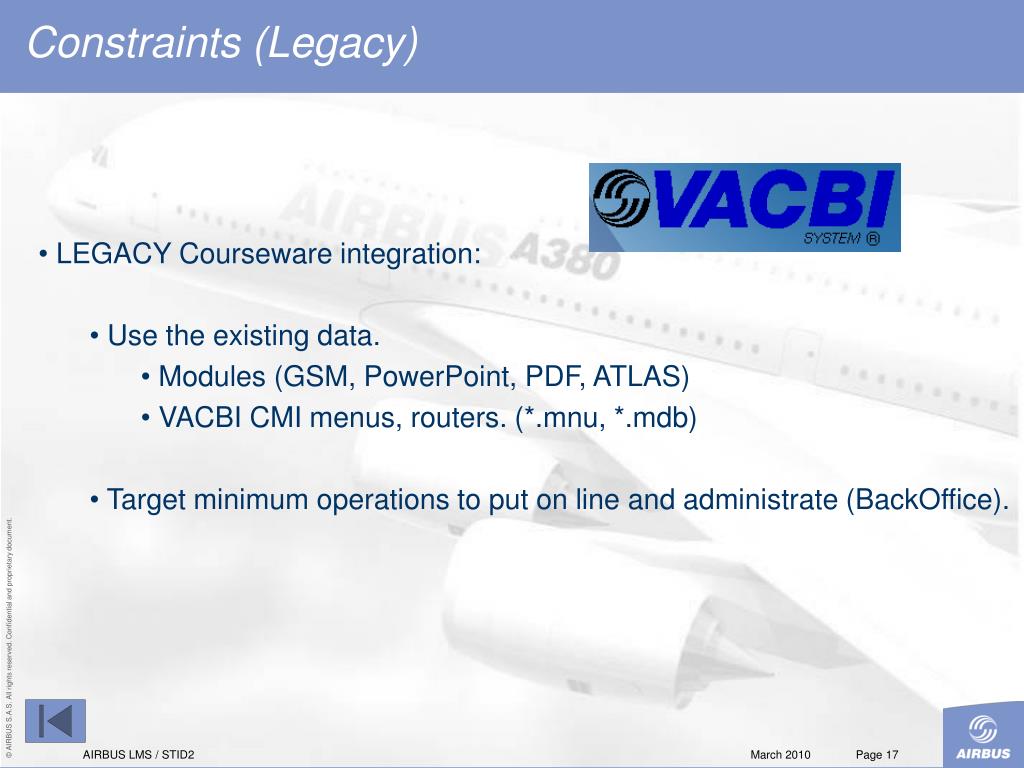

  16. Constraints (Legacy) • LEGACY Courseware integration: • Use the existing data. • Modules (GSM, PowerPoint, PDF, ATLAS) • VACBI CMI menus, routers. (*.mnu, *.mdb) • Target minimum operations to put on line and administrate (BackOffice). AIRBUS LMS / STID2

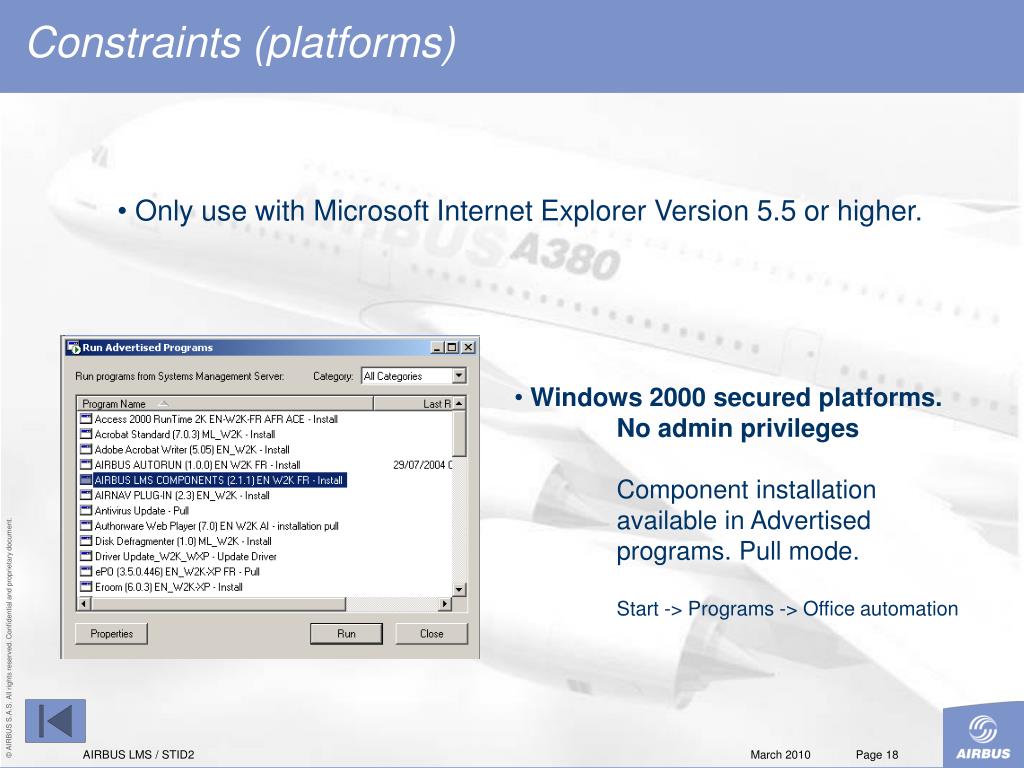

  17. Constraints (platforms) • Only use with Microsoft Internet Explorer Version 5.5 or higher. • Windows 2000 secured platforms. • No admin privileges • Component installation available in Advertised programs. Pull mode. • Start -> Programs -> Office automation AIRBUS LMS / STID2

  18. User’s interface Lessons Menus Statistics Preferences User’s Interface Users Administrators Instructors Login Routers Groups AIRBUS LMS / STID2

  19. User’s menus User’s Interface Groups is optional Administrator Instructor Student AIRBUS LMS / STID2

  20. Administration Course administration Roster (groups & users) Menus Routers Lessons Training Devices Statistics (reports & exports) Application preferences AIRBUS LMS / STID2

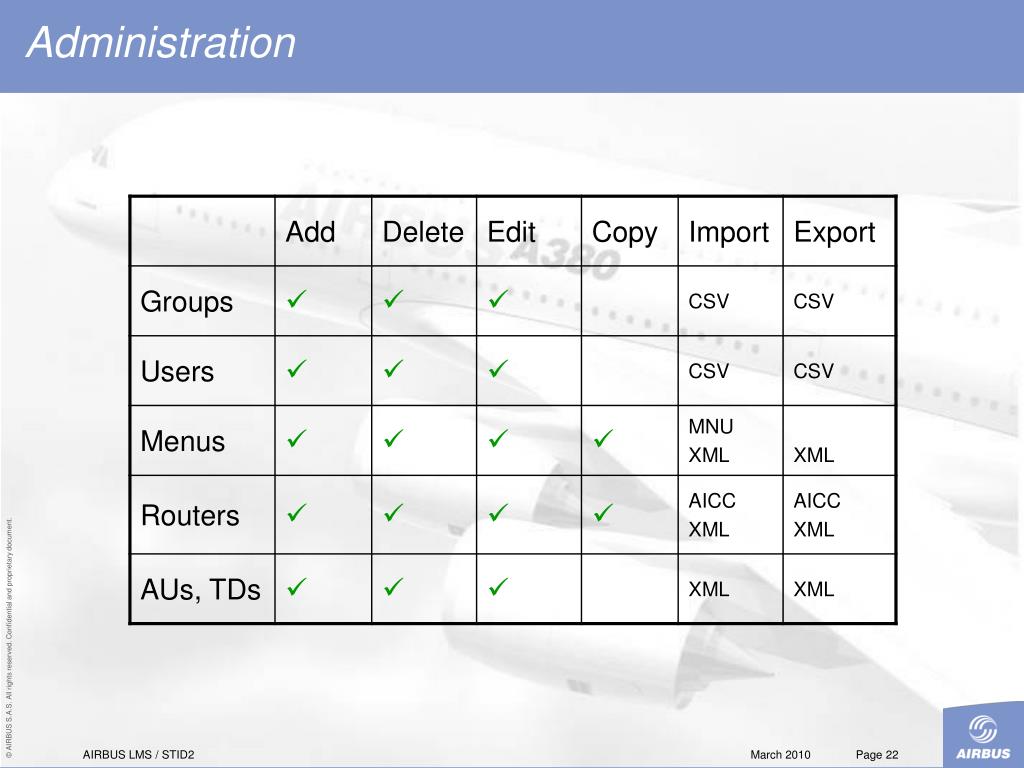

  21. Administration AIRBUS LMS / STID2

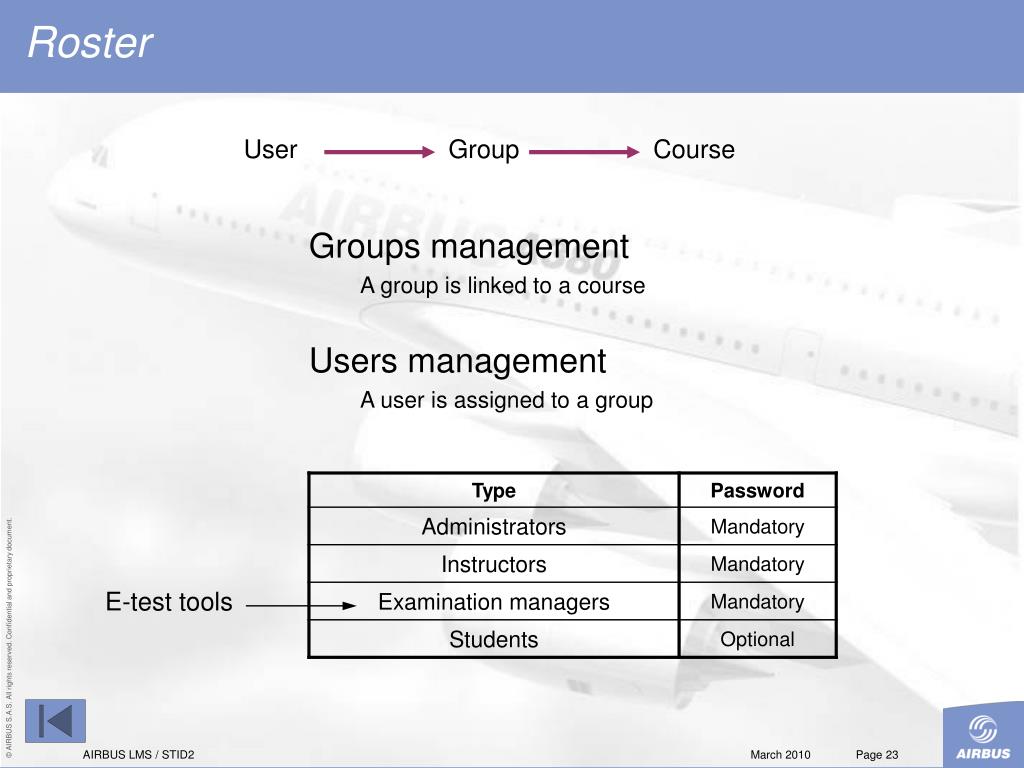

  22. Roster User Group Course • Groups management • A group is linked to a course Users management A user is assigned to a group E-test tools AIRBUS LMS / STID2

  23. Routers edition Editing function for menus and routers AIRBUS LMS / STID2

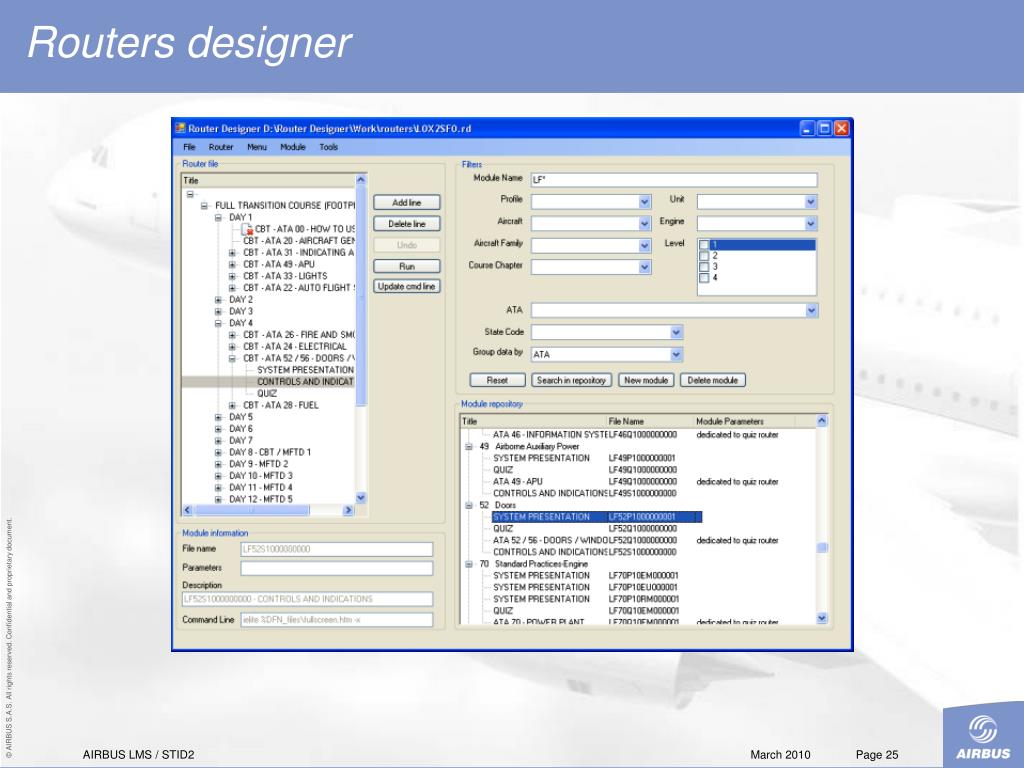

  24. Routers designer AIRBUS LMS / STID2

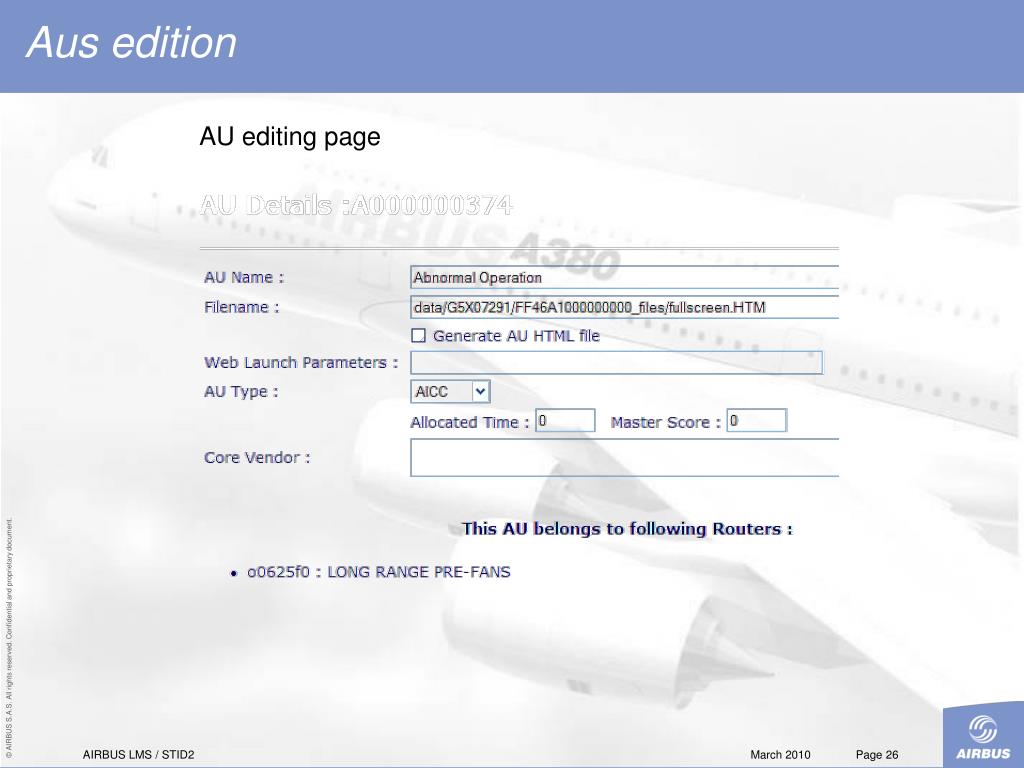

  25. Aus edition AU editing page AIRBUS LMS / STID2

  26. TDs edition TD editing page AIRBUS LMS / STID2

  27. Preferences (application) Login page title Picture AIRBUS LMS / STID2

  28. Preferences (application) Group editing for instructors Contact button Setup for client components Tools AIRBUS LMS / STID2

  29. Preferences (application) AIRBUS LMS / STID2

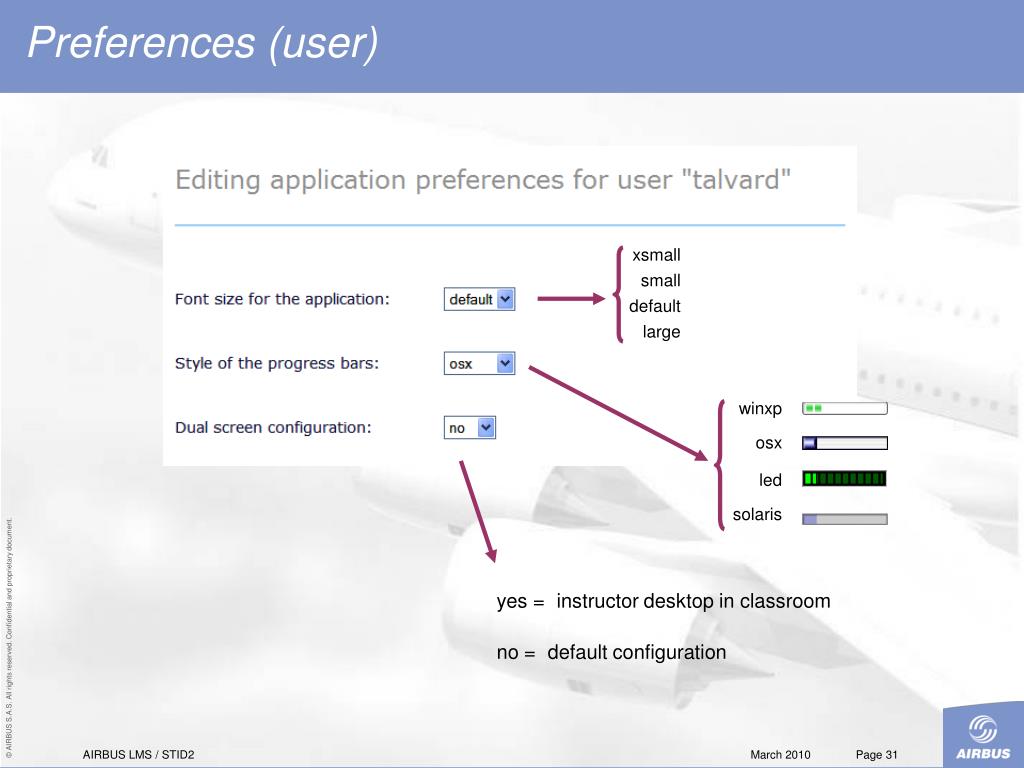

  30. Preferences (user) xsmall small default large winxp osx led solaris yes = instructor desktop in classroom no = default configuration AIRBUS LMS / STID2

  31. Training Devices • Associated to a group Each group have its own TDs ‘ menu There is no follow-up on TDs AIRBUS LMS / STID2

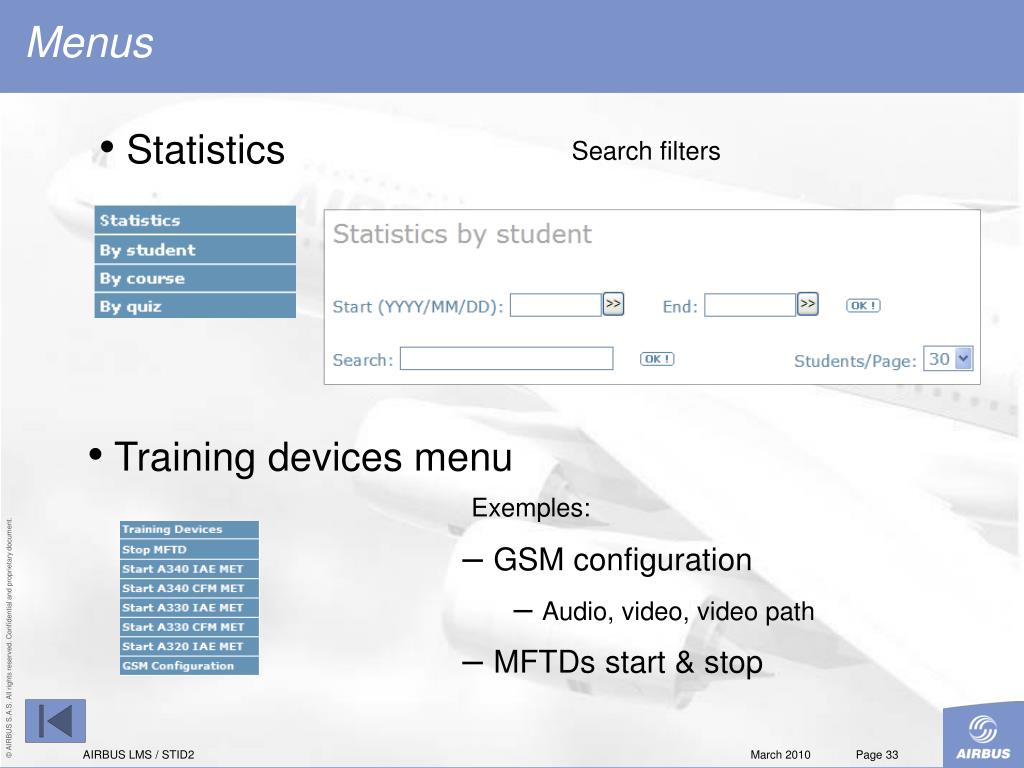

  32. Menus • Statistics Search filters • Training devices menu Exemples: • GSM configuration • Audio, video, video path • MFTDs start & stop AIRBUS LMS / STID2

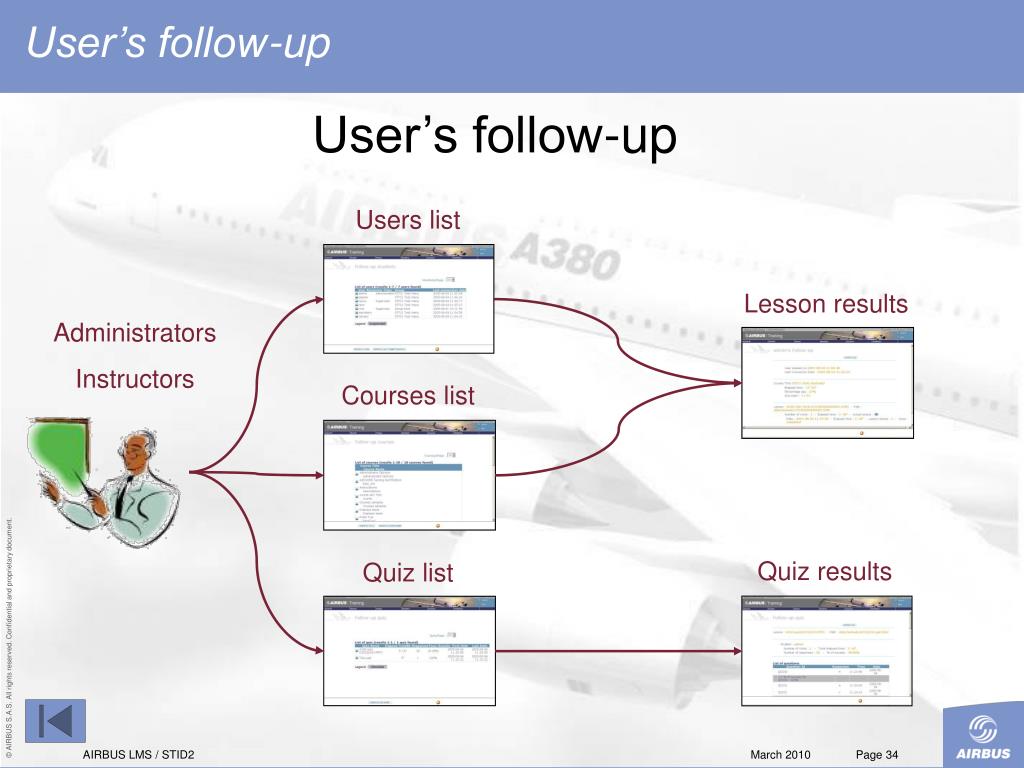

  33. User’s follow-up User’s follow-up Users list Lesson results Administrators Instructors Courses list Quiz results Quiz list AIRBUS LMS / STID2

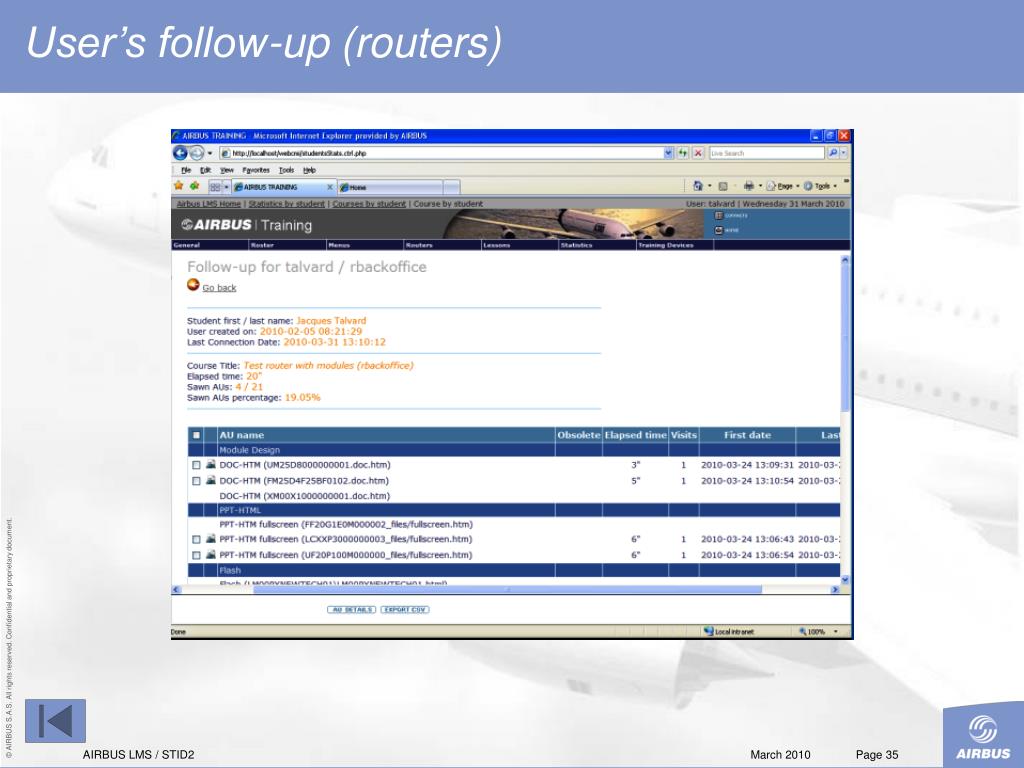

  34. User’s follow-up (routers) AIRBUS LMS / STID2

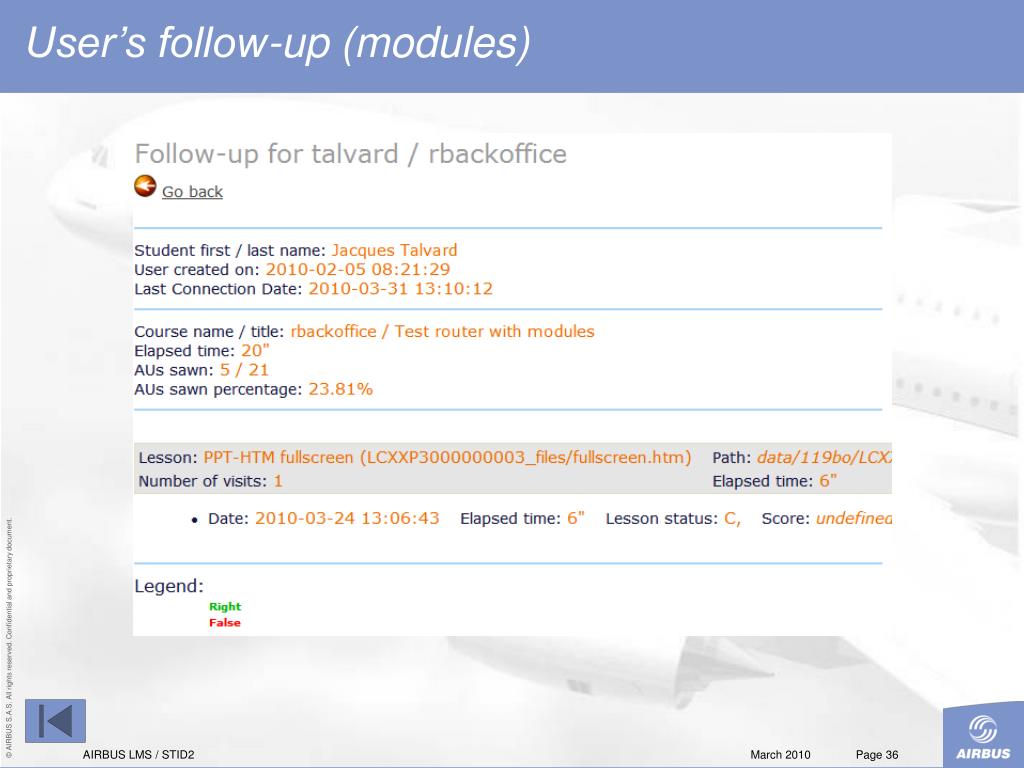

  35. User’s follow-up (modules) AIRBUS LMS / STID2

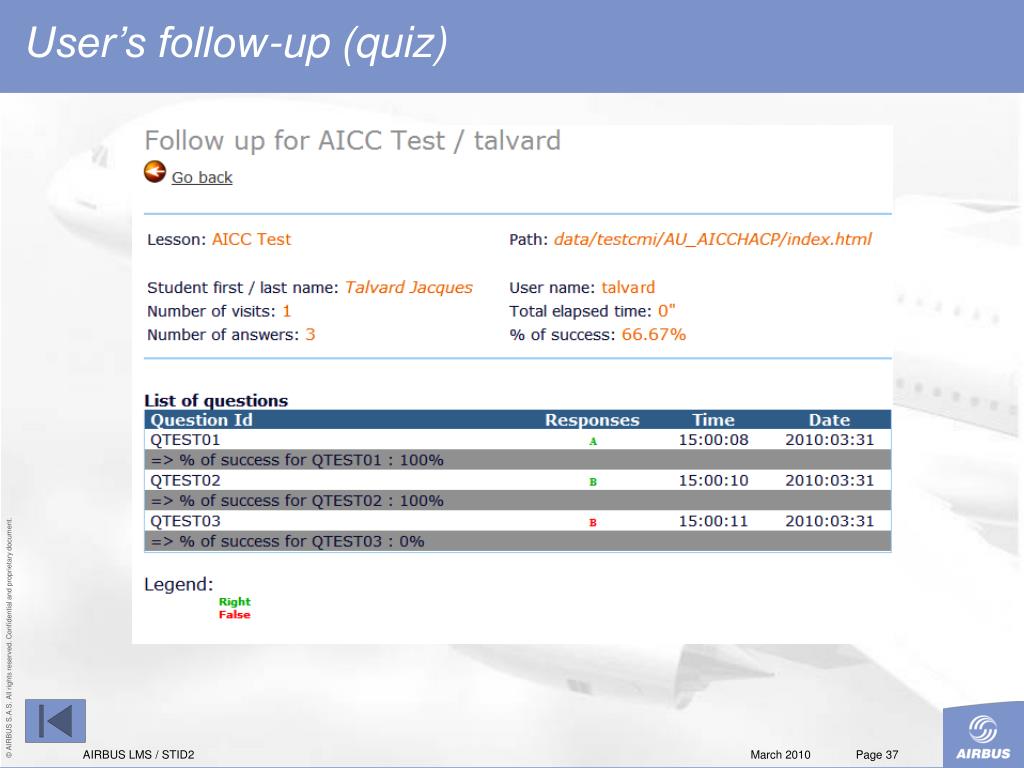

  36. User’s follow-up (quiz) AIRBUS LMS / STID2

  37. Autorun CD/DVD-ROMs Courseware is delivered on autorun CD/DVD-ROMs. Media contains routers at AICC format Admin rights at first install only AIRBUS LMS / STID2

  38. Autorun CD/DVD-ROMs AIRBUS LMS / STID2

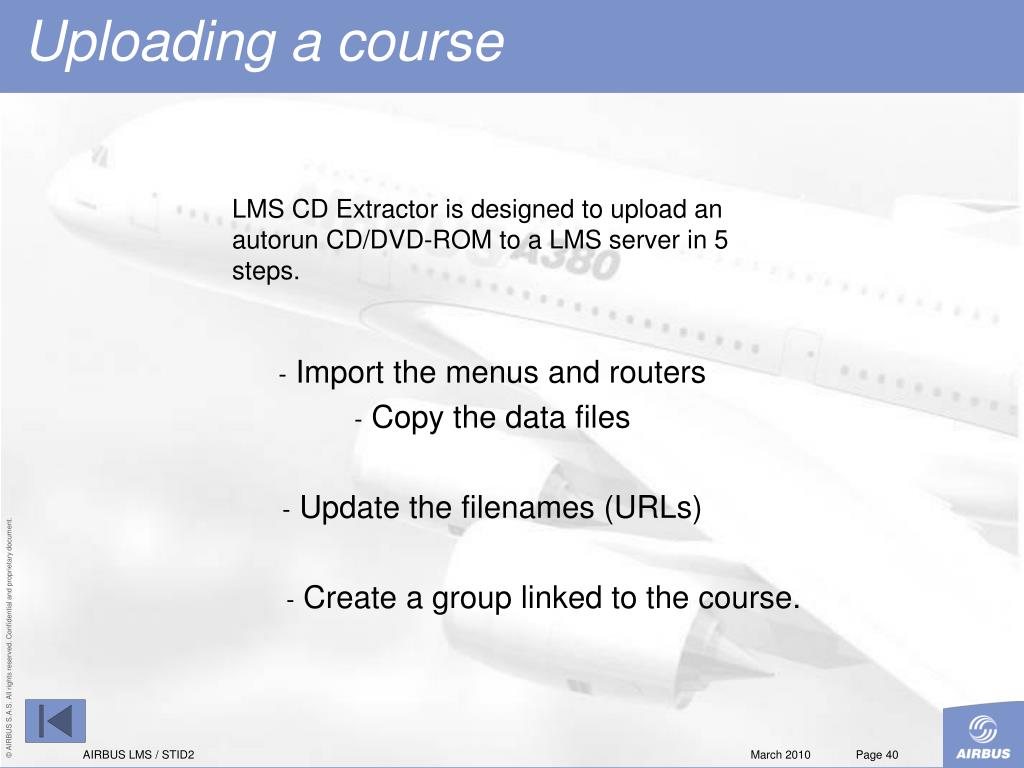

  39. Uploading a course LMS CD Extractor is designed to upload an autorun CD/DVD-ROM to a LMS server in 5 steps. • Import the menus and routers • Copy the data files • Update the filenames (URLs) • Create a group linked to the course. AIRBUS LMS / STID2

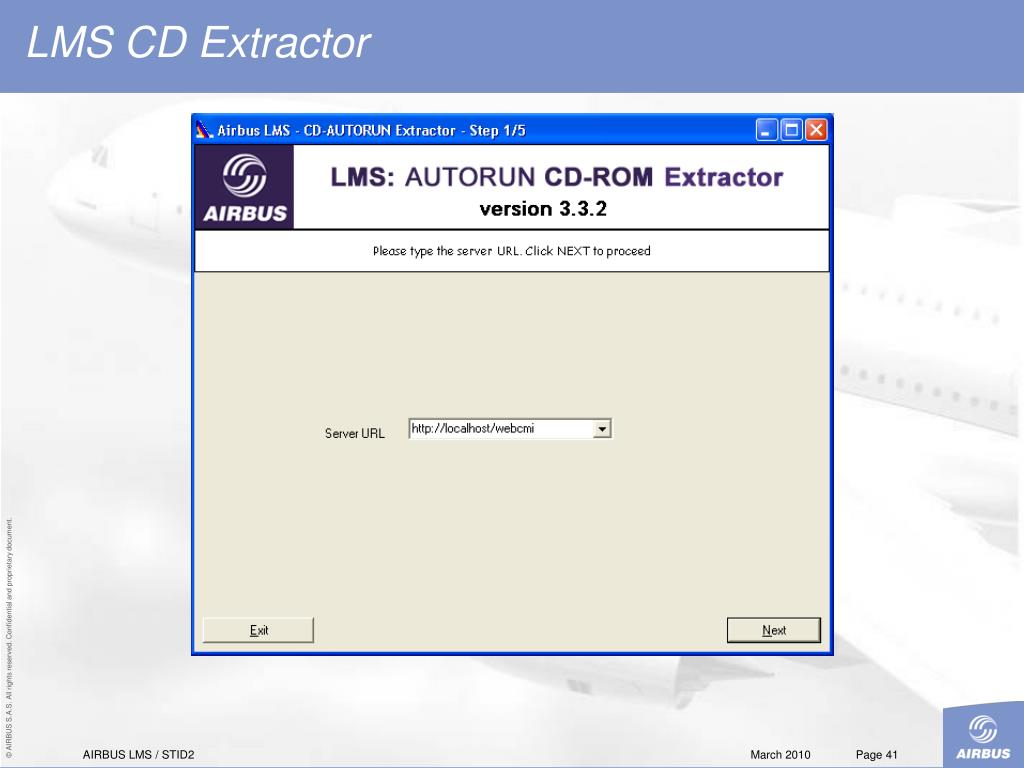

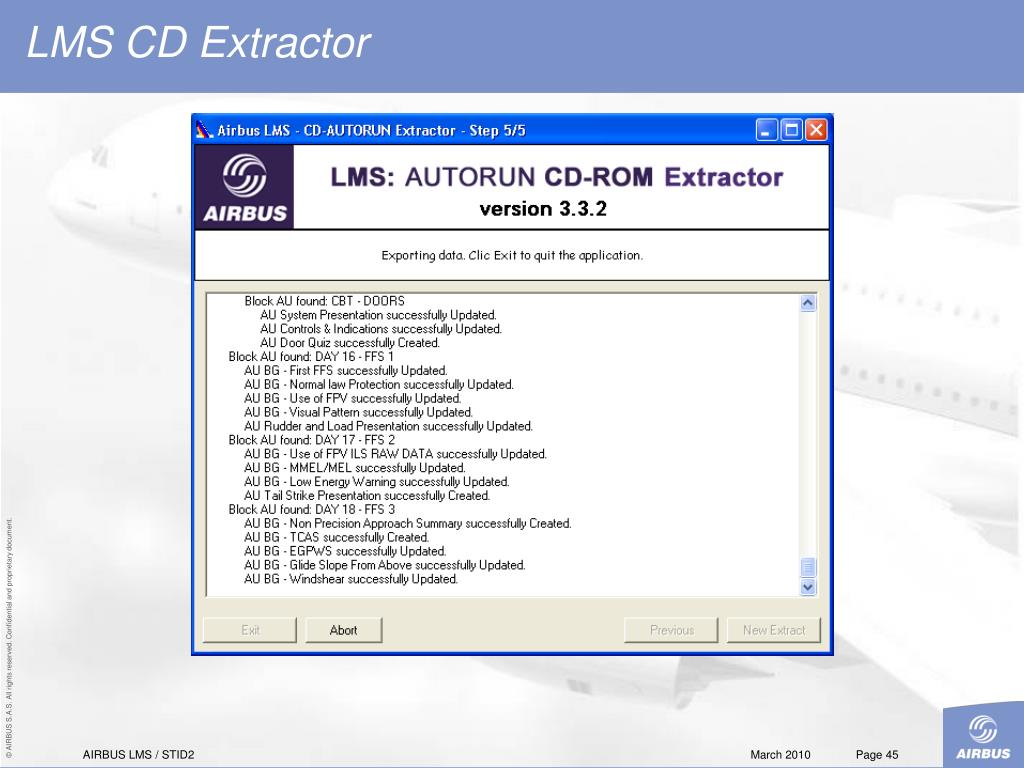

  40. LMS CD Extractor AIRBUS LMS / STID2

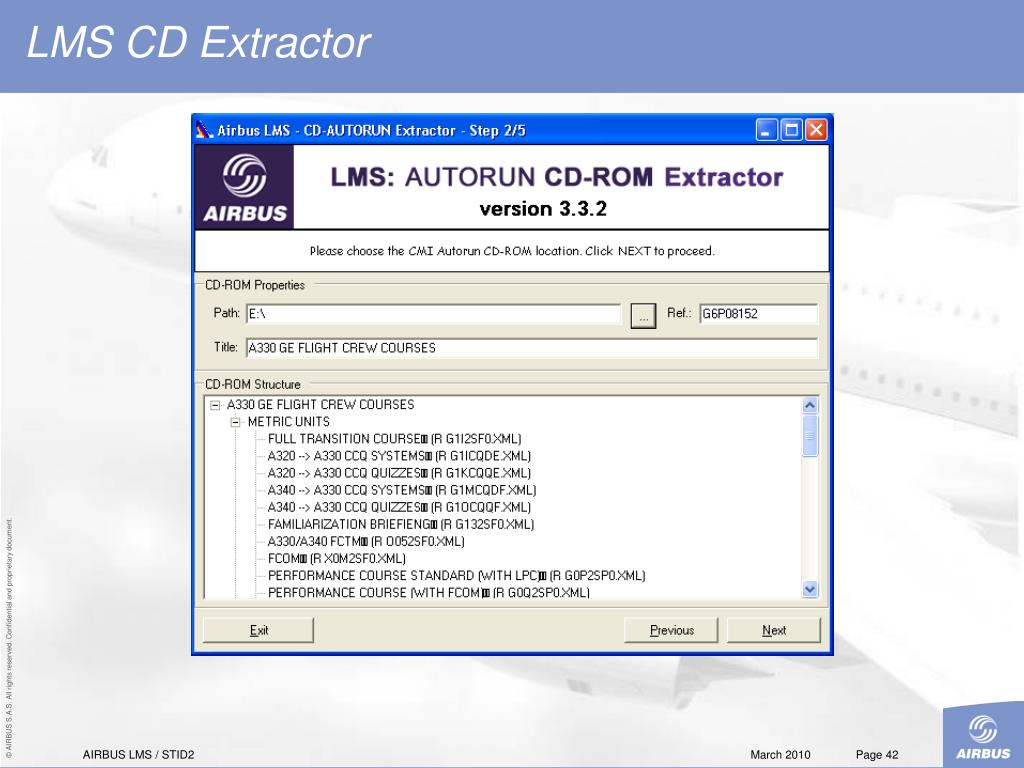

  41. LMS CD Extractor AIRBUS LMS / STID2

  42. LMS CD Extractor AIRBUS LMS / STID2

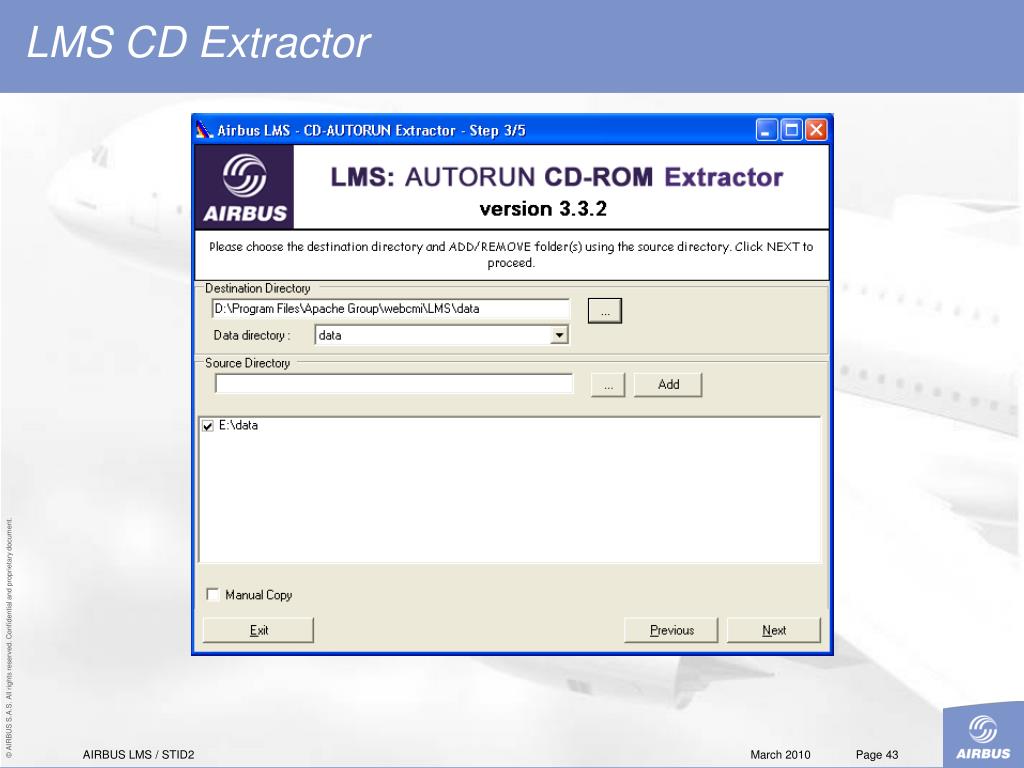

  43. LMS CD Extractor AIRBUS LMS / STID2

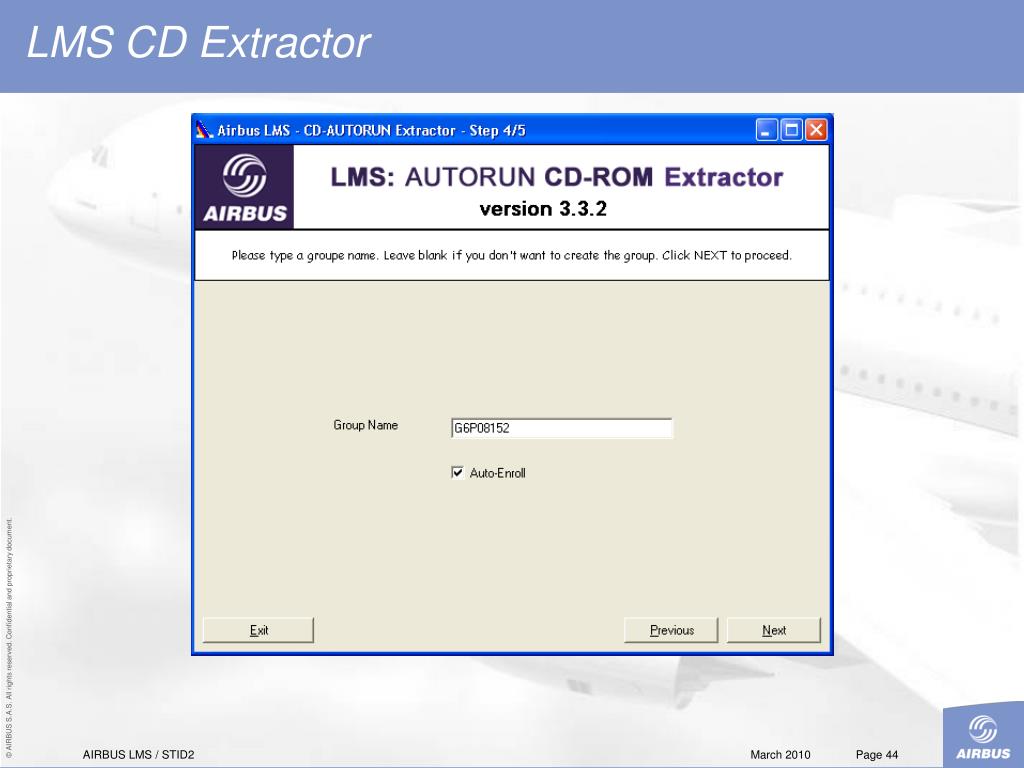

  44. LMS CD Extractor AIRBUS LMS / STID2

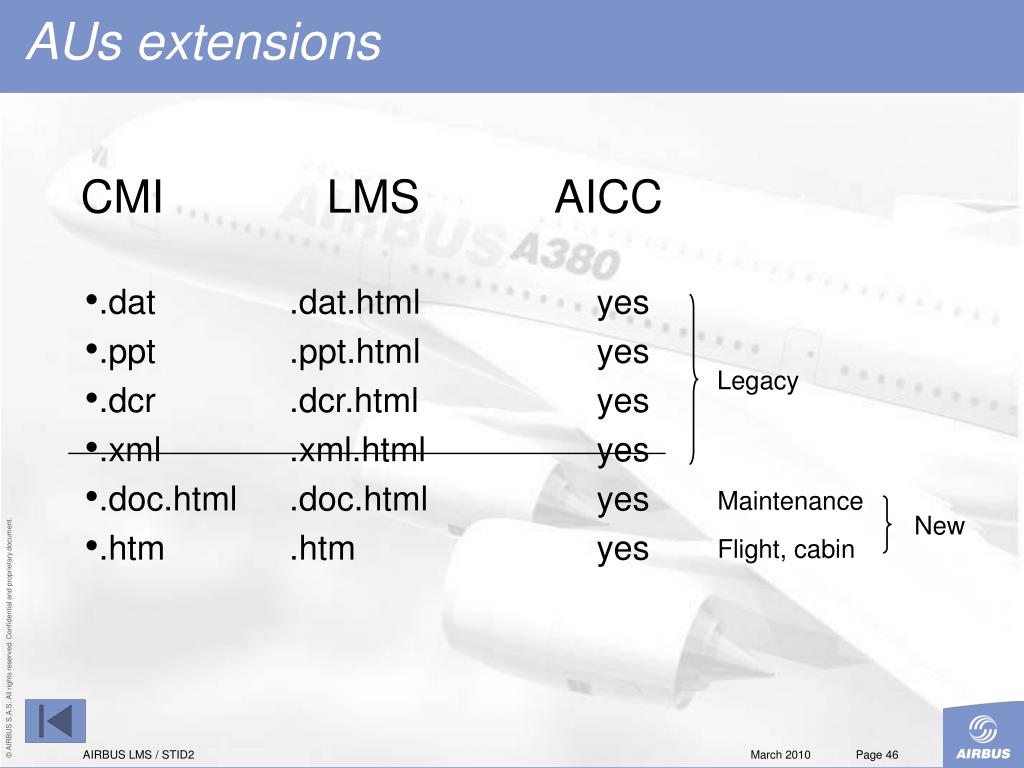

  45. AUs extensions • CMI LMS AICC • .dat .dat.html yes • .ppt .ppt.html yes • .dcr .dcr.html yes • .xml .xml.html yes • .doc.html .doc.html yes • .htm .htm yes Legacy Maintenance New Flight, cabin AIRBUS LMS / STID2

  46. MYSQL Administration Backup Restore utility AIRBUS LMS / STID2

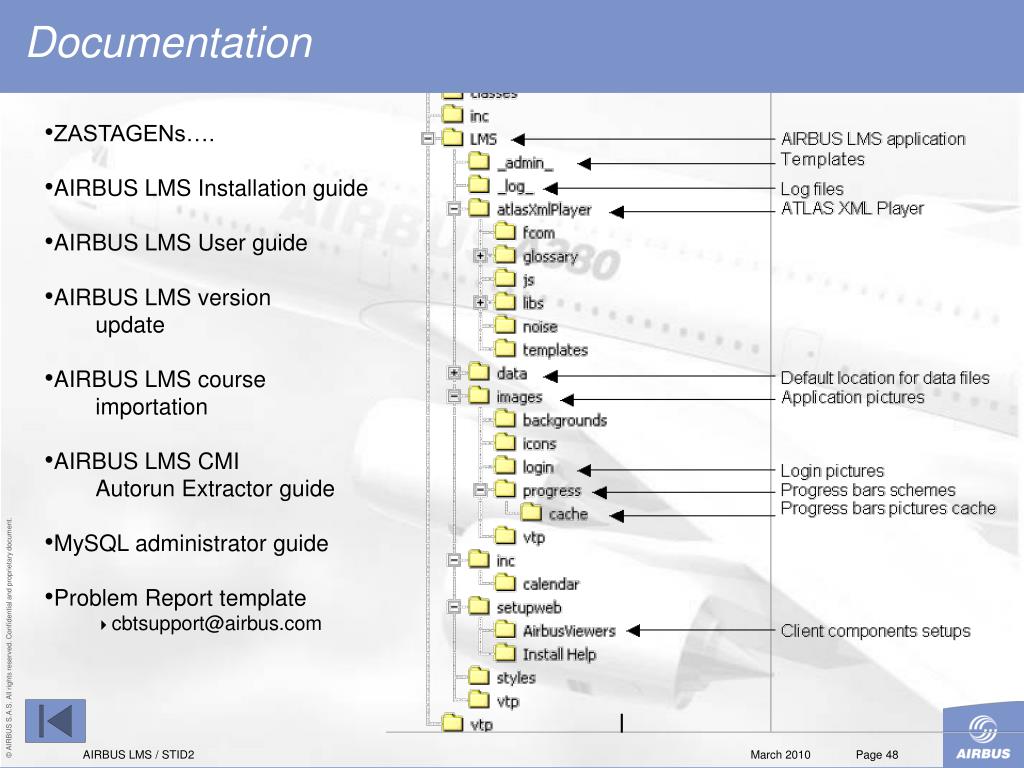

  47. Documentation • ZASTAGENs…. • AIRBUS LMS Installation guide • AIRBUS LMS User guide • AIRBUS LMS version • update • AIRBUS LMS course • importation • AIRBUS LMS CMI • Autorun Extractor guide • MySQL administrator guide • Problem Report template • cbtsupport@airbus.com AIRBUS LMS / STID2

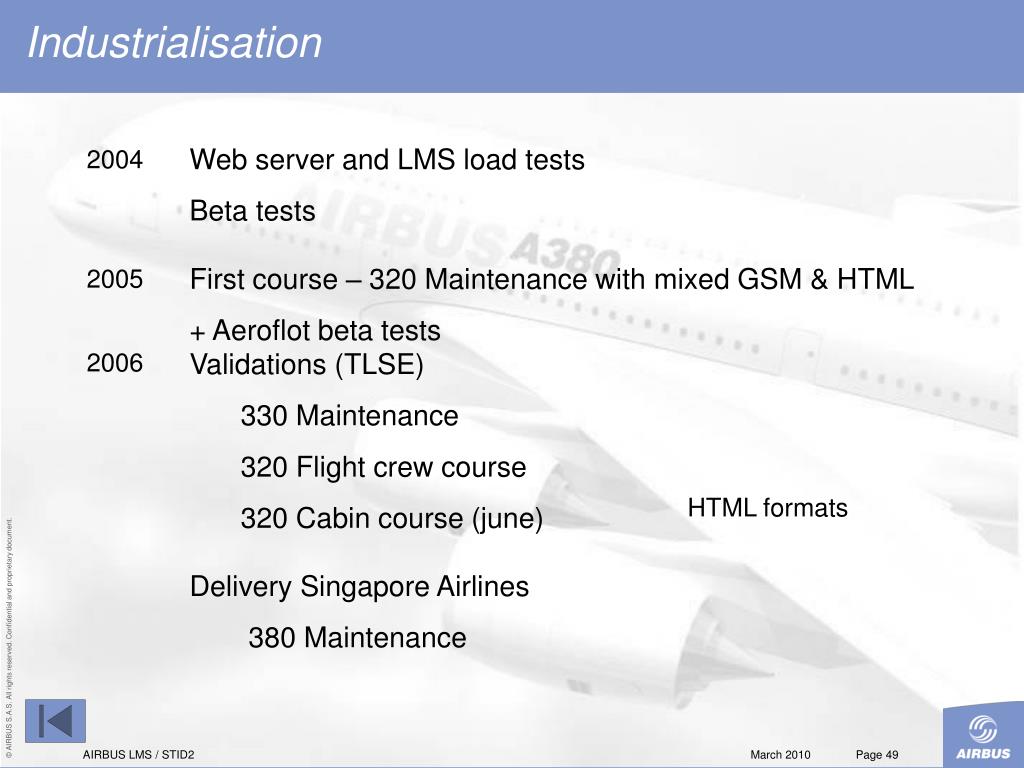

  48. Industrialisation Web server and LMS load tests Beta tests 2004 First course – 320 Maintenance with mixed GSM & HTML + Aeroflot beta tests 2005 2006 • Validations (TLSE) • 330 Maintenance • 320 Flight crew course • 320 Cabin course (june) HTML formats • Delivery Singapore Airlines • 380 Maintenance AIRBUS LMS / STID2

  49. Development planning 1/2 Customers beta tests First course integration Load test 2.4 2002 2003 2004 2005 Mock-ups (MySQL) Prototypes Pathware, Docent, Saba evaluations (AICC) Beta tests Versions 1 340 (Admin options) Versions 2 Securing LMS CD Extractor Aeroflot, Hamburg ATC AIRBUS LMS / STID2

  50. Development planning 2/2 1.40 HTM 1.8 Vista Customers beta tests 1.19 2.8 2.9 2.4 2.5 2.7 1.0 2005 2006 2009 2008 2007 340 330 380 Versions FC, Cab Securing FC 320 LMS CD Extractor CAB 340 Certification AICC certification Autorun LMS Airbus People Airbus World Windows 7, IE 8, Firefox 3 Aeroflot, Hamburg ATC AIRBUS LMS / STID2
