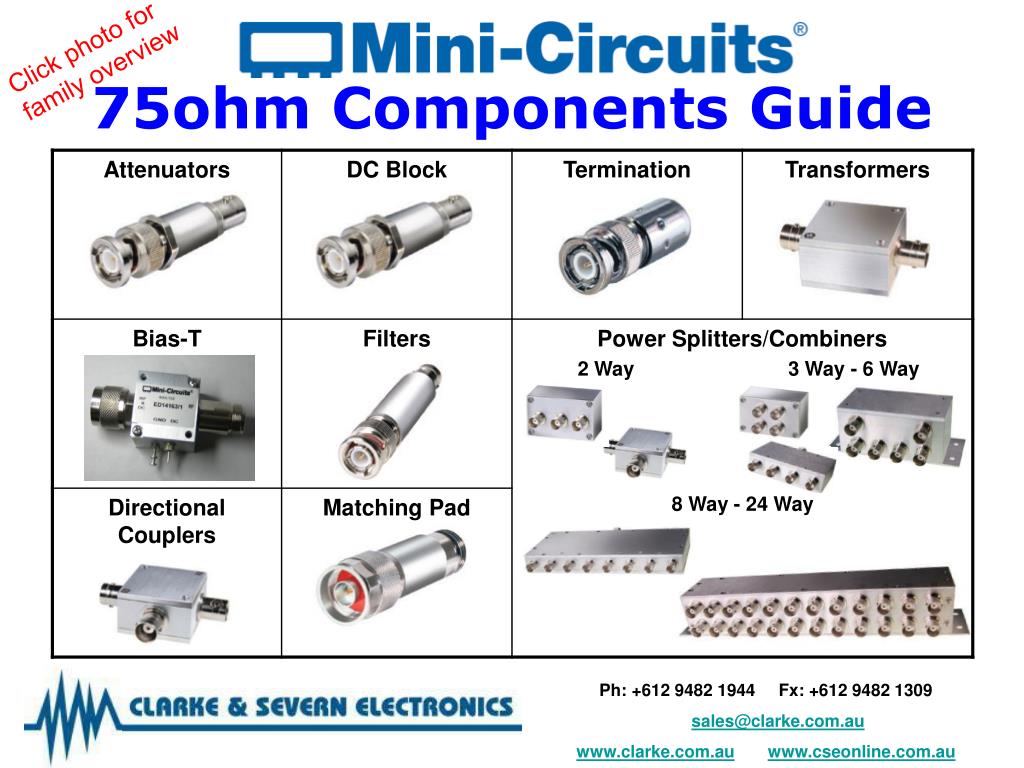

  1. Click photo for family overview 75ohm Components Guide Ph: +612 9482 1944 Fx: +612 9482 1309 sales@clarke.com.au www.clarke.com.auwww.cseonline.com.au

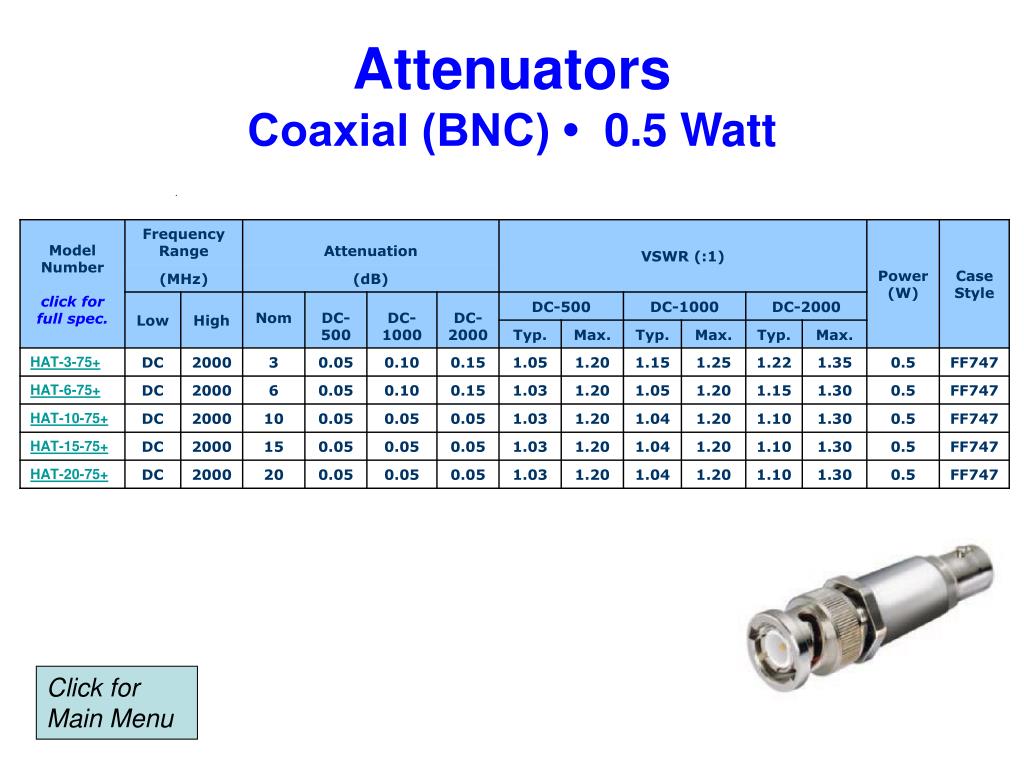

  2. AttenuatorsCoaxial (BNC) •  0.5 Watt Click for Main Menu

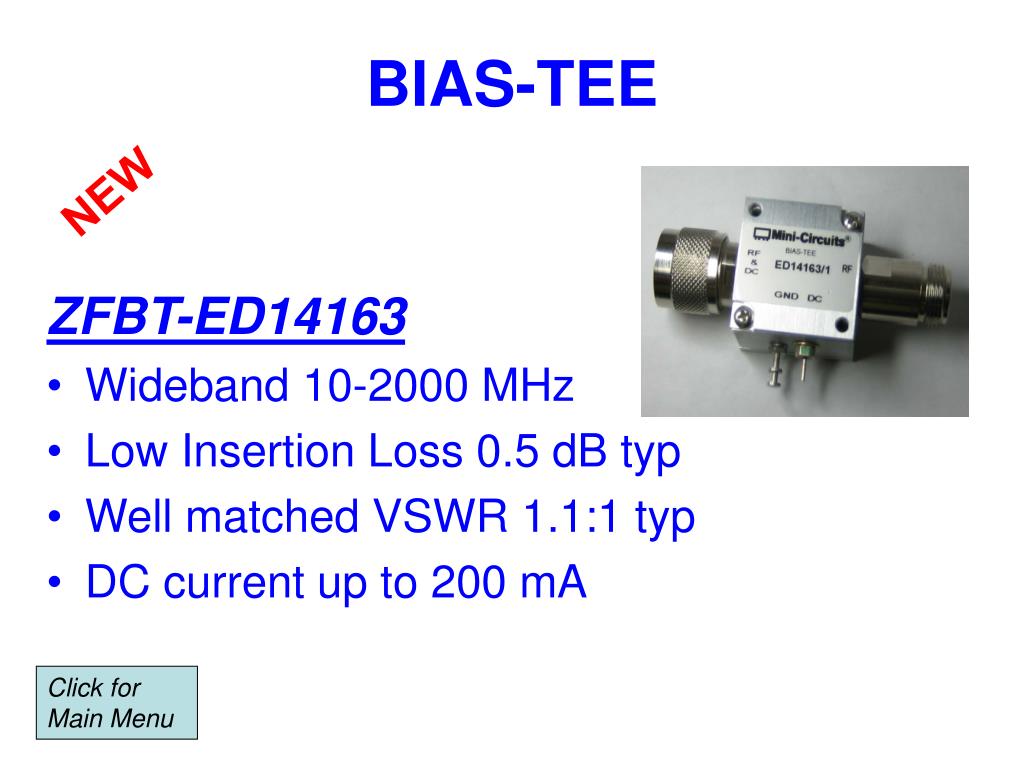

  3. BIAS-TEE NEW ZFBT-ED14163 • Wideband 10-2000 MHz • Low Insertion Loss 0.5 dB typ • Well matched VSWR 1.1:1 typ • DC current up to 200 mA Click for Main Menu

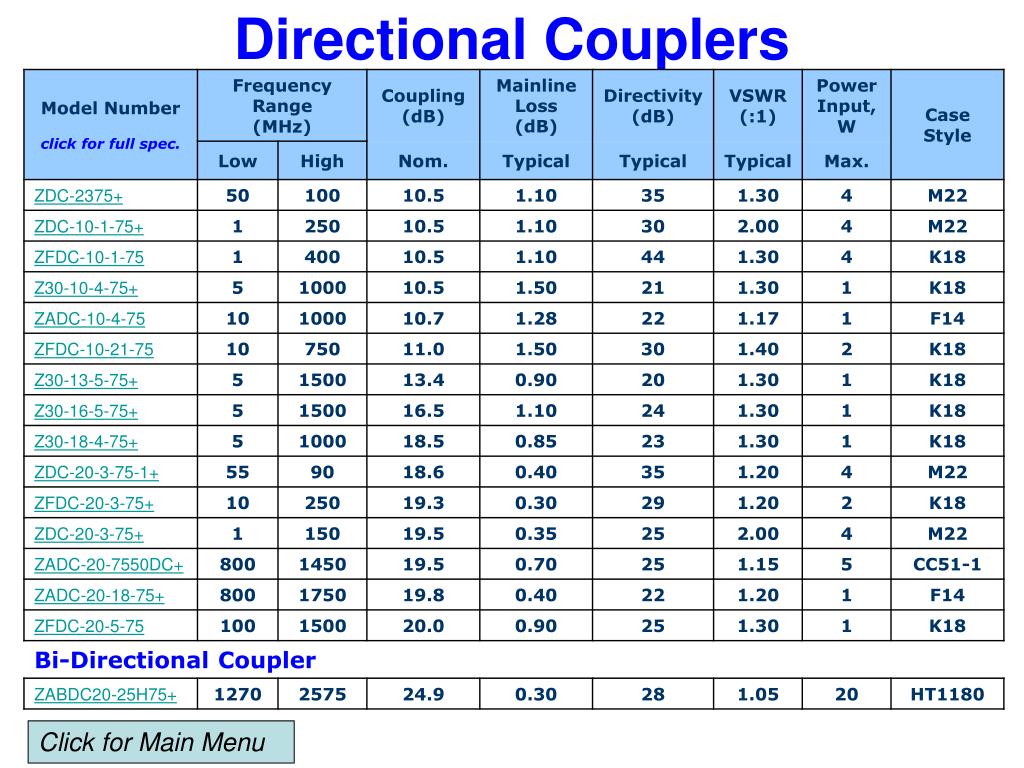

  4. Directional Couplers Click for Main Menu

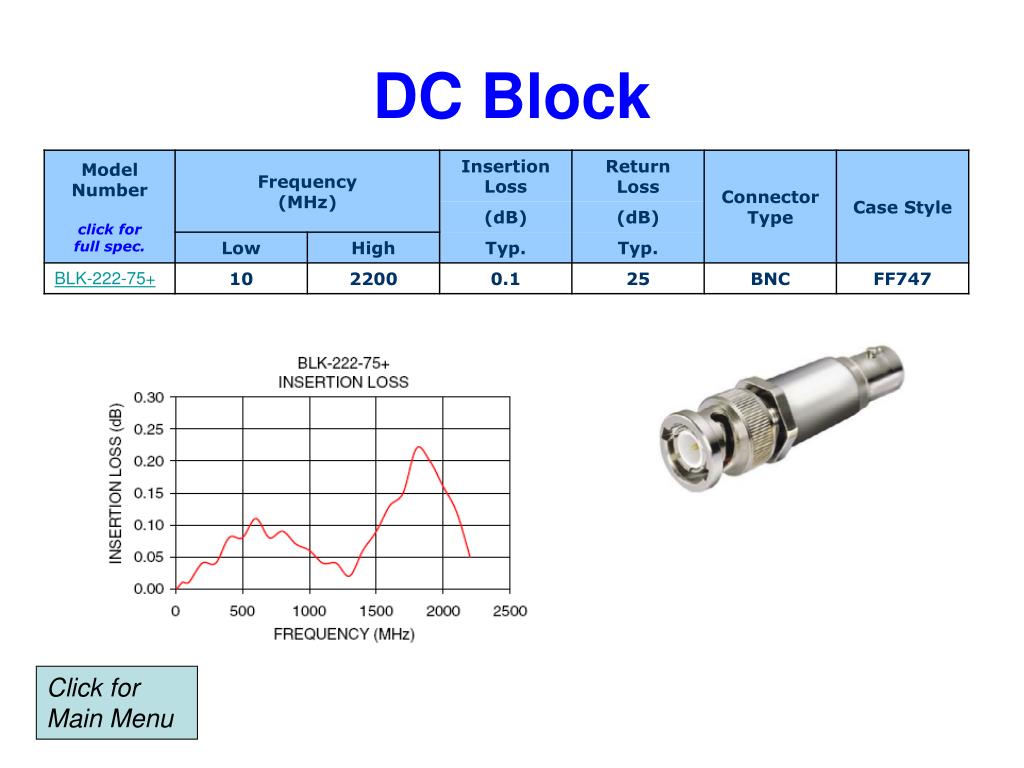

  5. DC Block Click for Main Menu

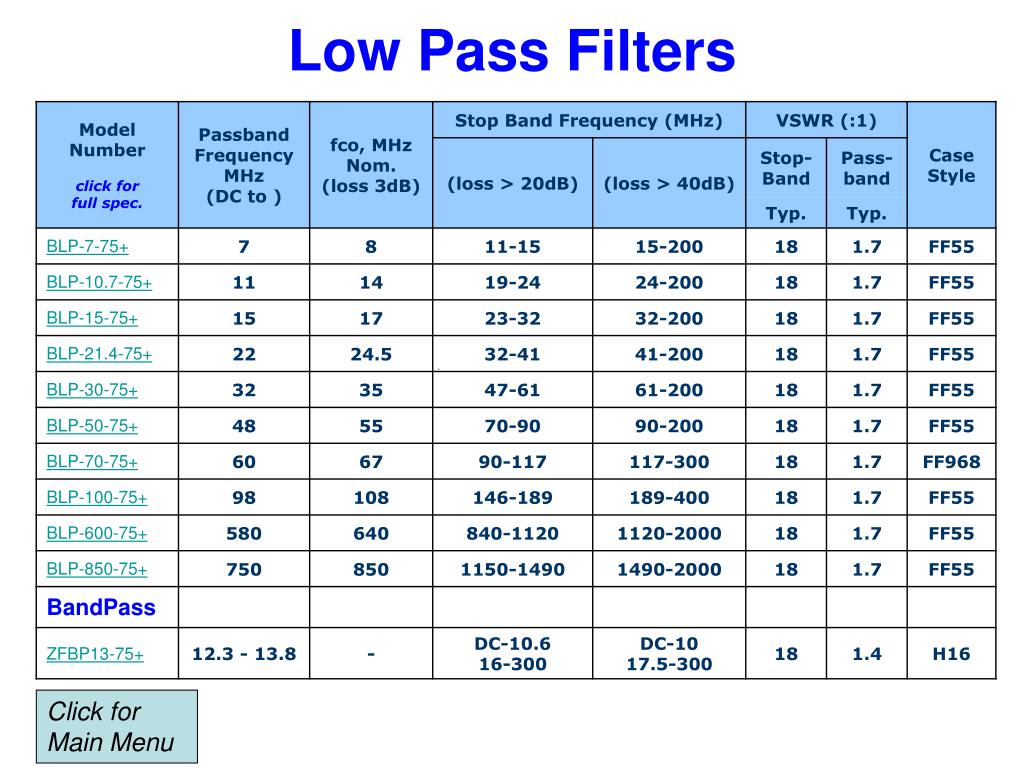

  6. Low Pass Filters Click for Main Menu

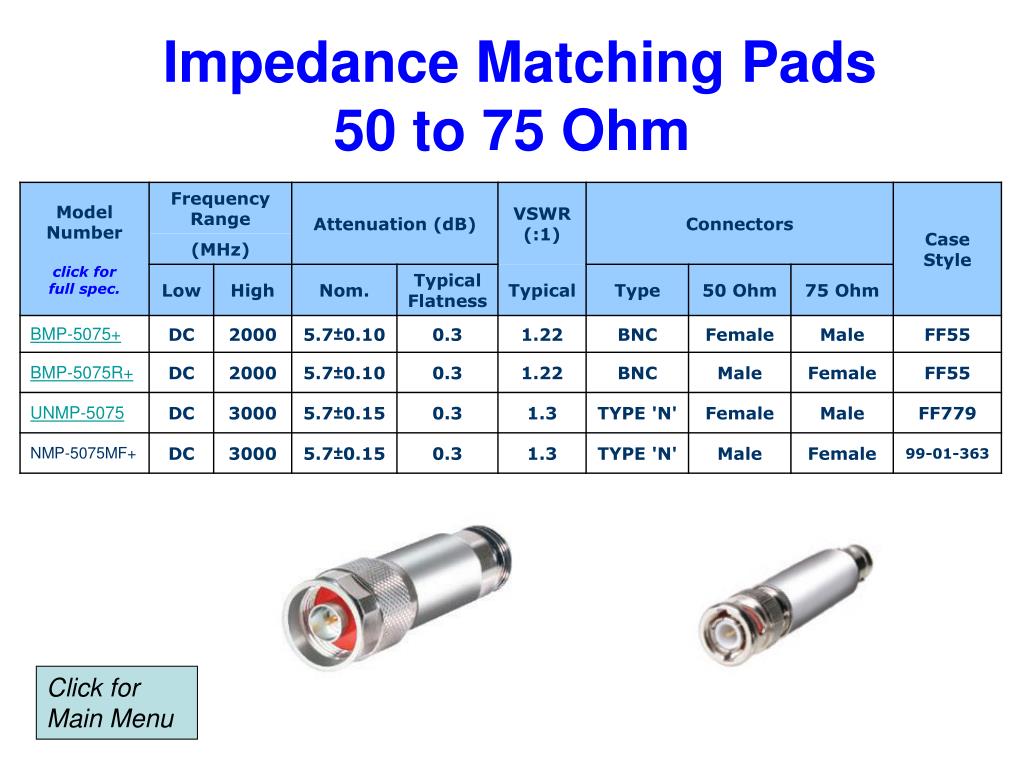

  7. Impedance Matching Pads50 to 75 Ohm Click for Main Menu

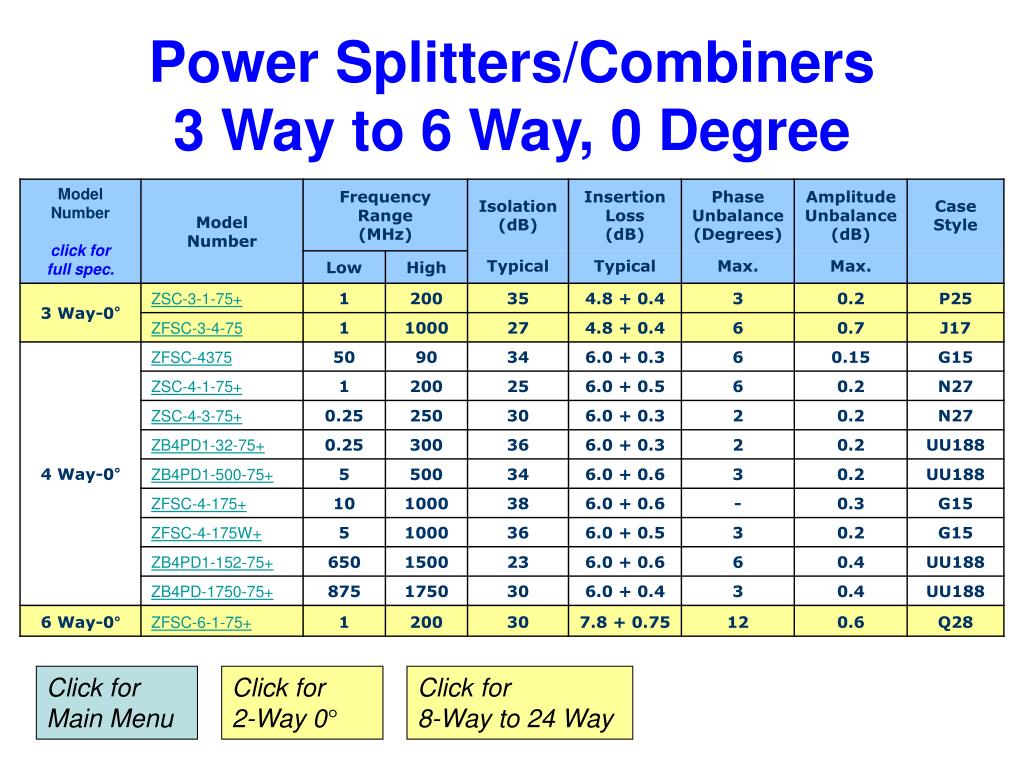

  8. Power Splitters/Combiners 2 Way, 0 Degree Click for 3-Way to 6 Way Click for Main Menu Click for 8-Way to 24 Way

  9. Power Splitters/Combiners3 Way to 6 Way, 0 Degree Click for Main Menu Click for 2-Way 0° Click for 8-Way to 24 Way

  10. Power Splitters/Combiners8 Way to 24 Way, 0 Degree Click for Main Menu Click for 2-Way 0° Click for 3-Way to 6 Way

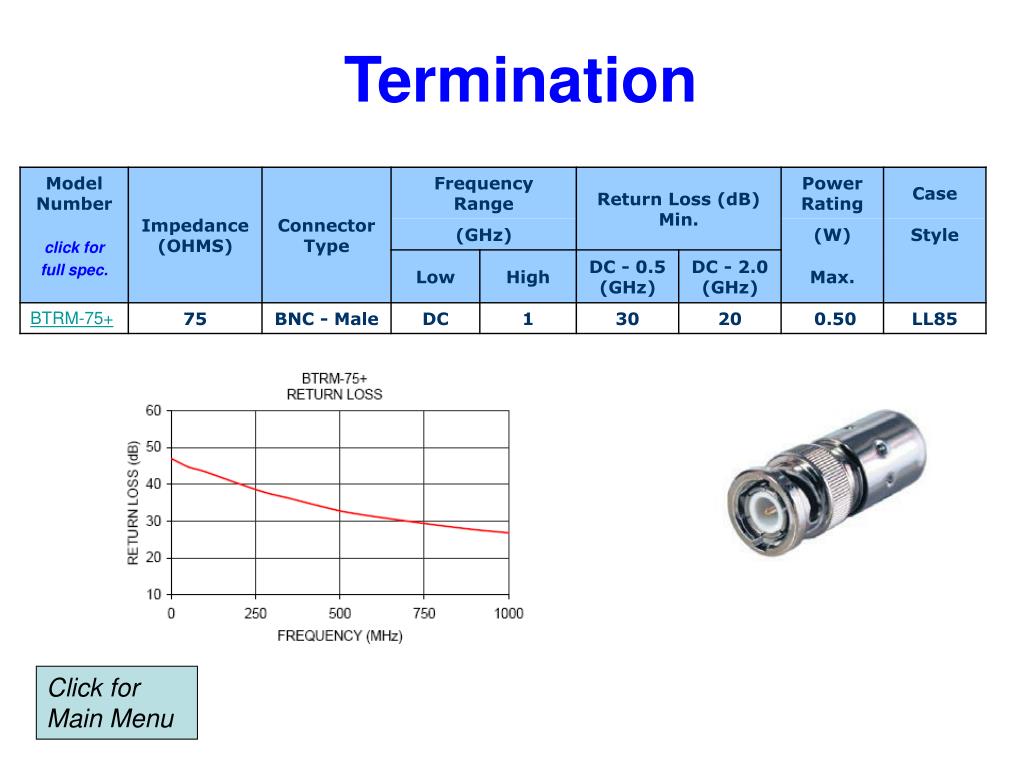

  11.  Termination Click for Main Menu

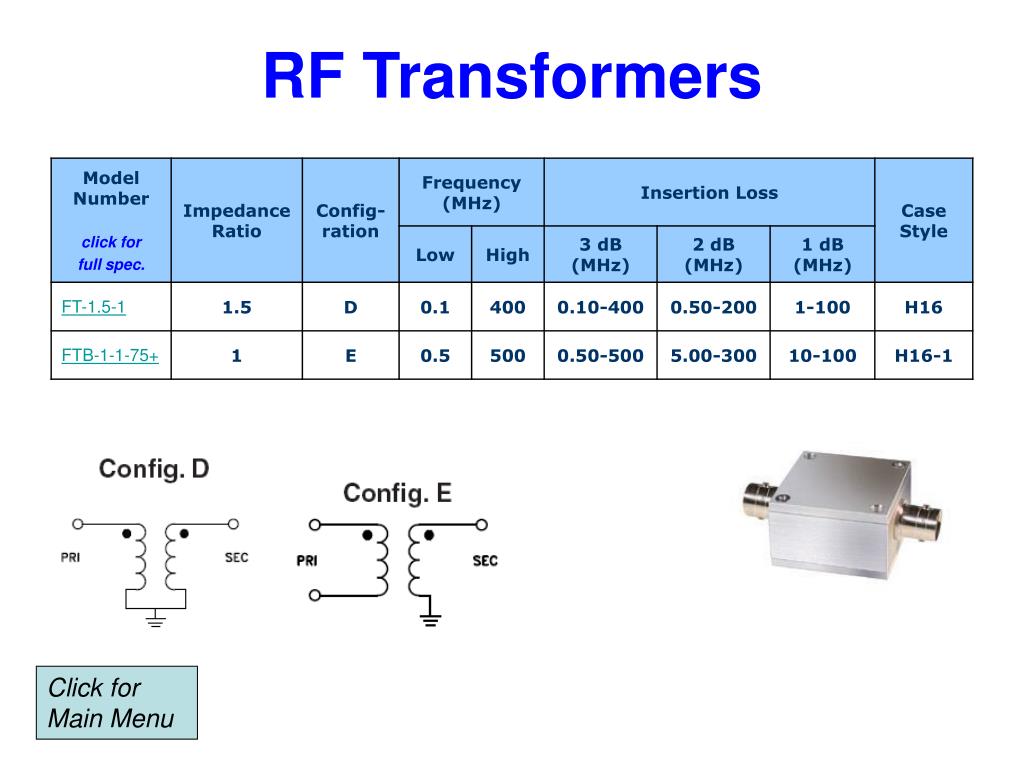

  12. RF Transformers Click for Main Menu
