  1. Diffraction Image Library

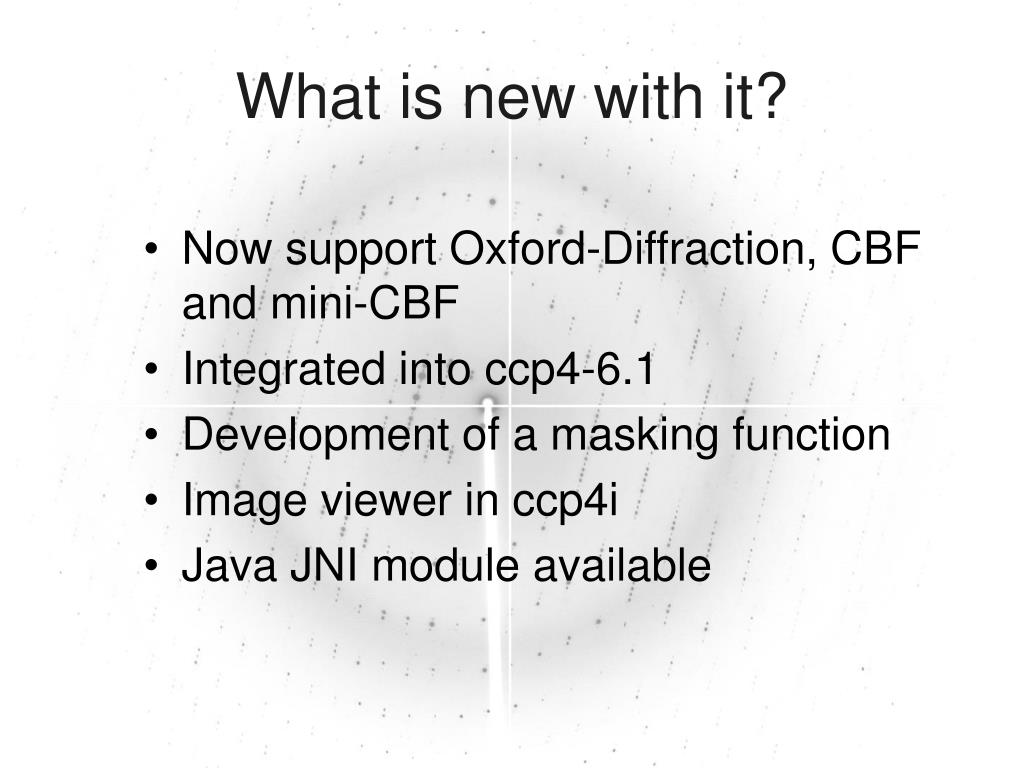

  2. What is new with it? • Now support Oxford-Diffraction, CBF and mini-CBF • Integrated into ccp4-6.1 • Development of a masking function • Image viewer in ccp4i • Java JNI module available

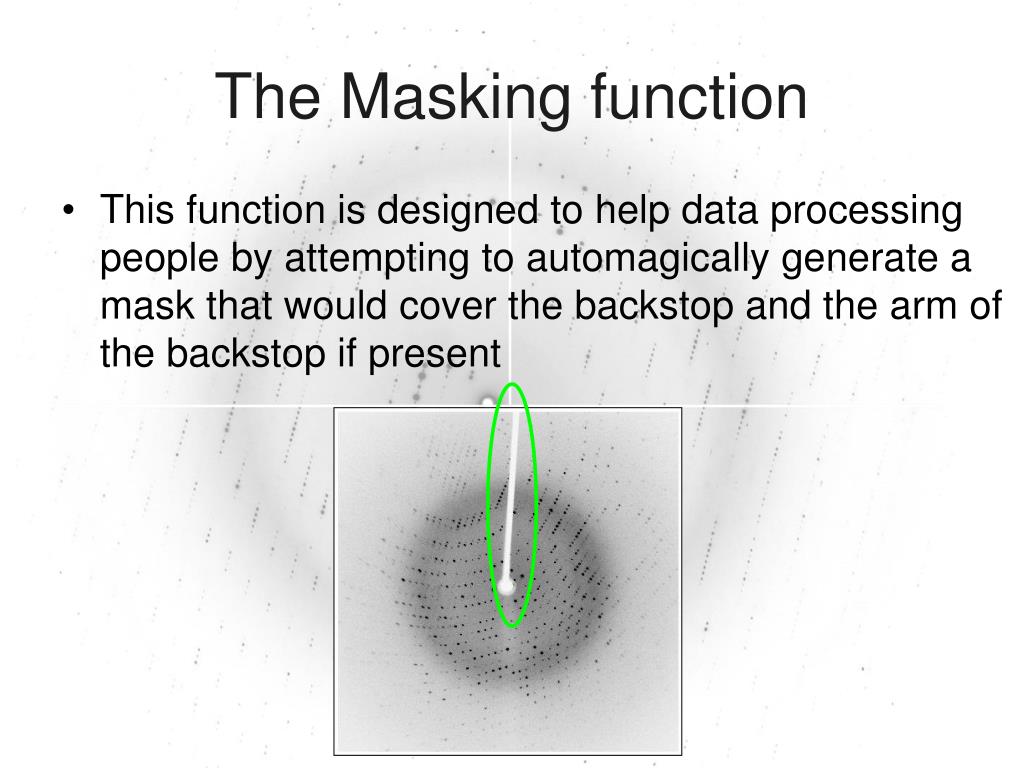

  3. The Masking function • This function is designed to help data processing people by attempting to automagically generate a mask that would cover the backstop and the arm of the backstop if present

  4. Is it any good? • If the problem is easy, the answer is quick(-ish). • If it is complicated it might take a while depending on the size of the image. But very rarely more than 30-35 s.

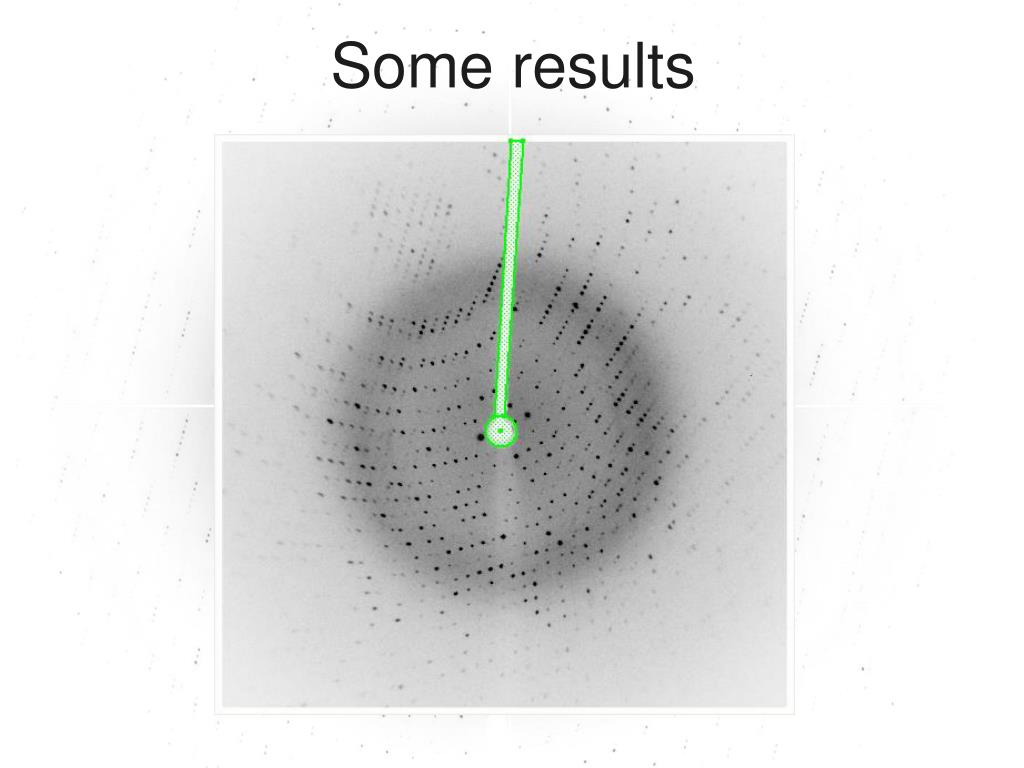

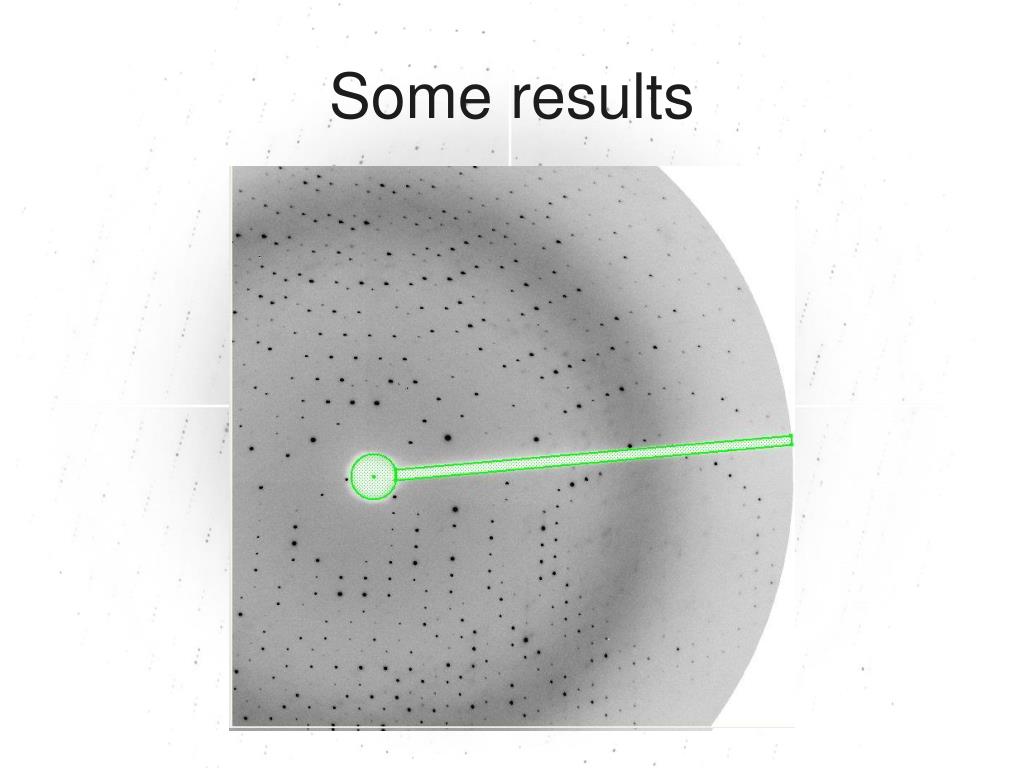

  5. Some results

  6. Some results

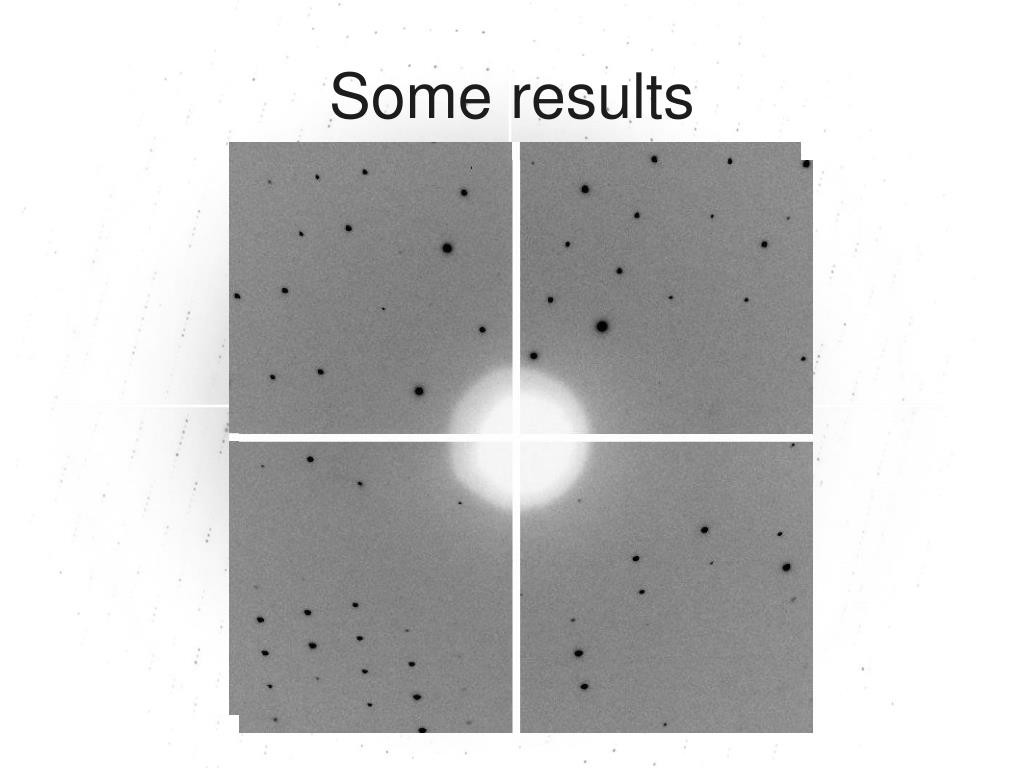

  7. Some results

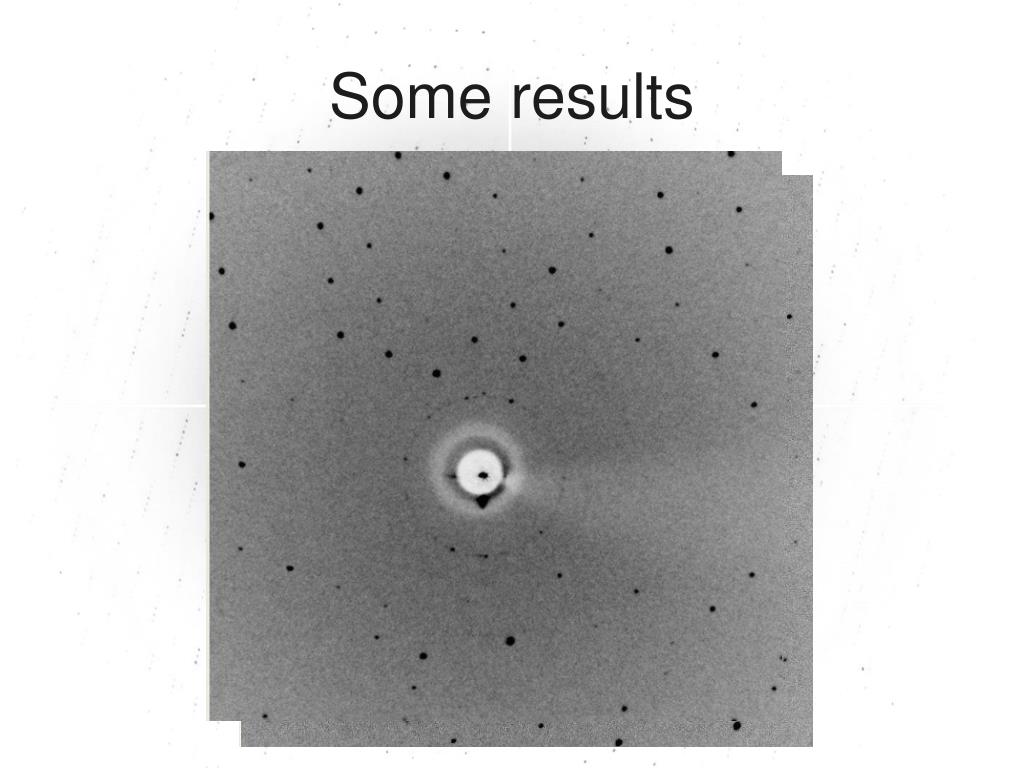

  8. Some results

  9. Some results

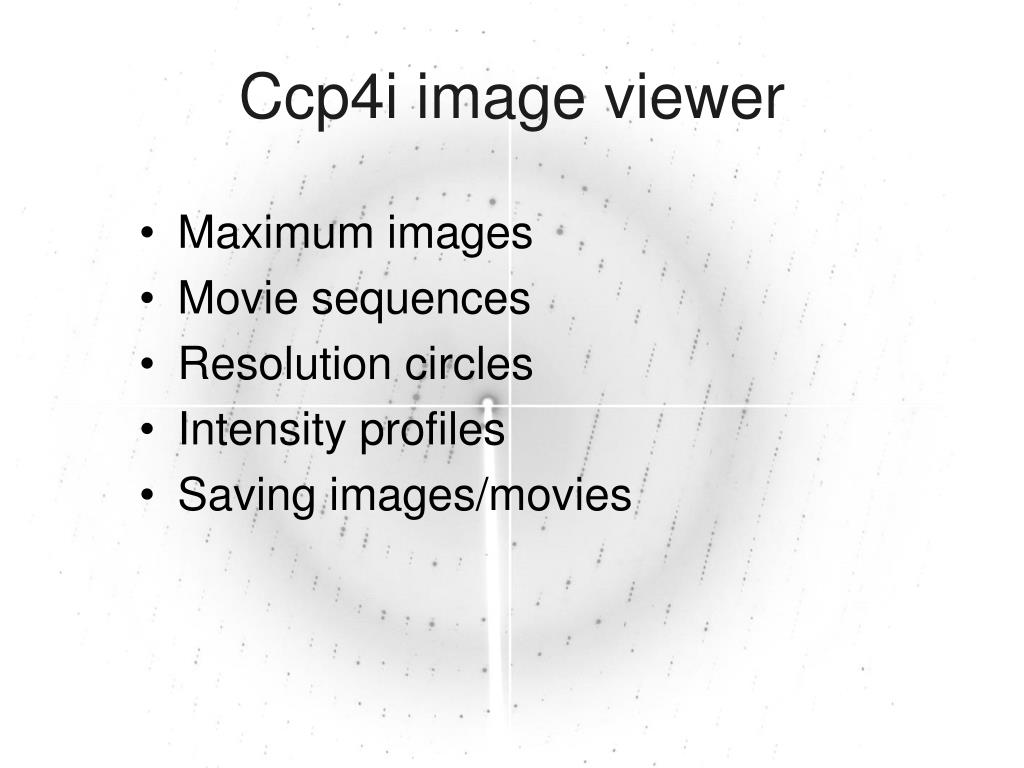

  10. Ccp4i image viewer • Maximum images • Movie sequences • Resolution circles • Intensity profiles • Saving images/movies

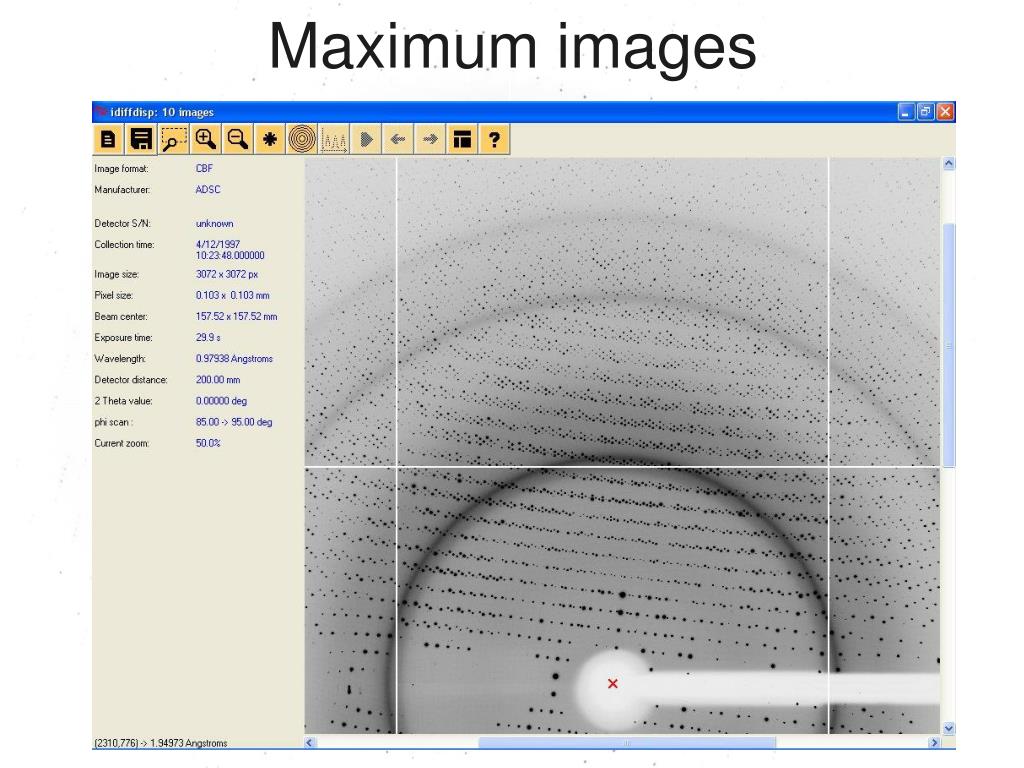

  11. Maximum images

  12. Movie sequences

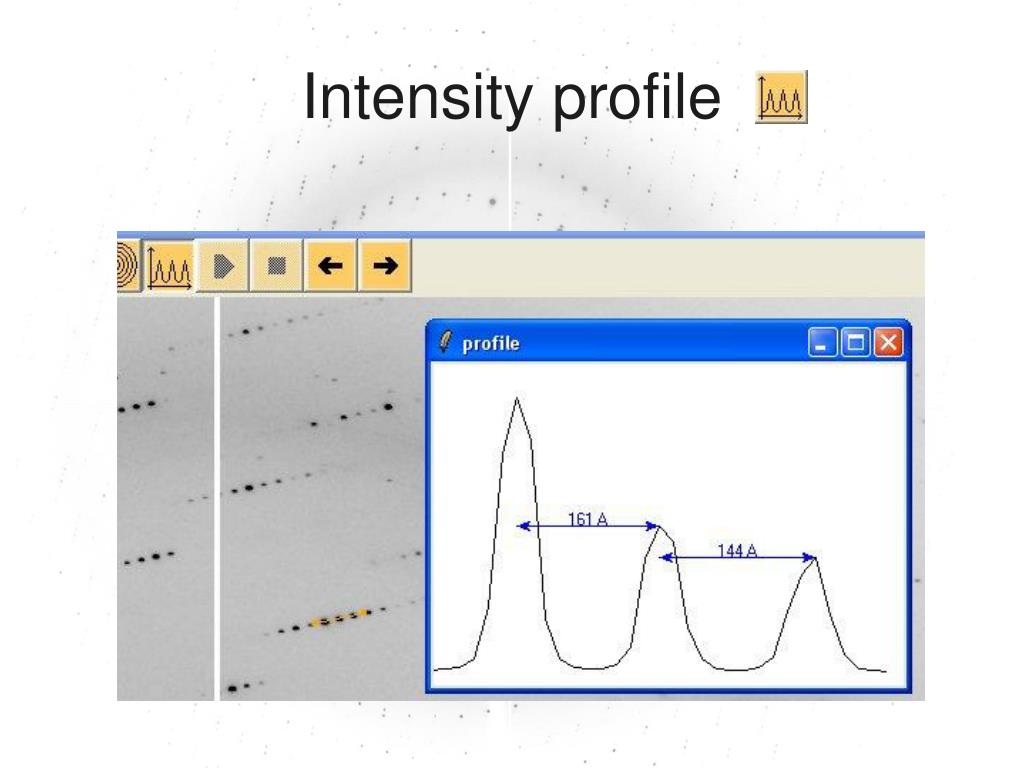

  13. Intensity profile

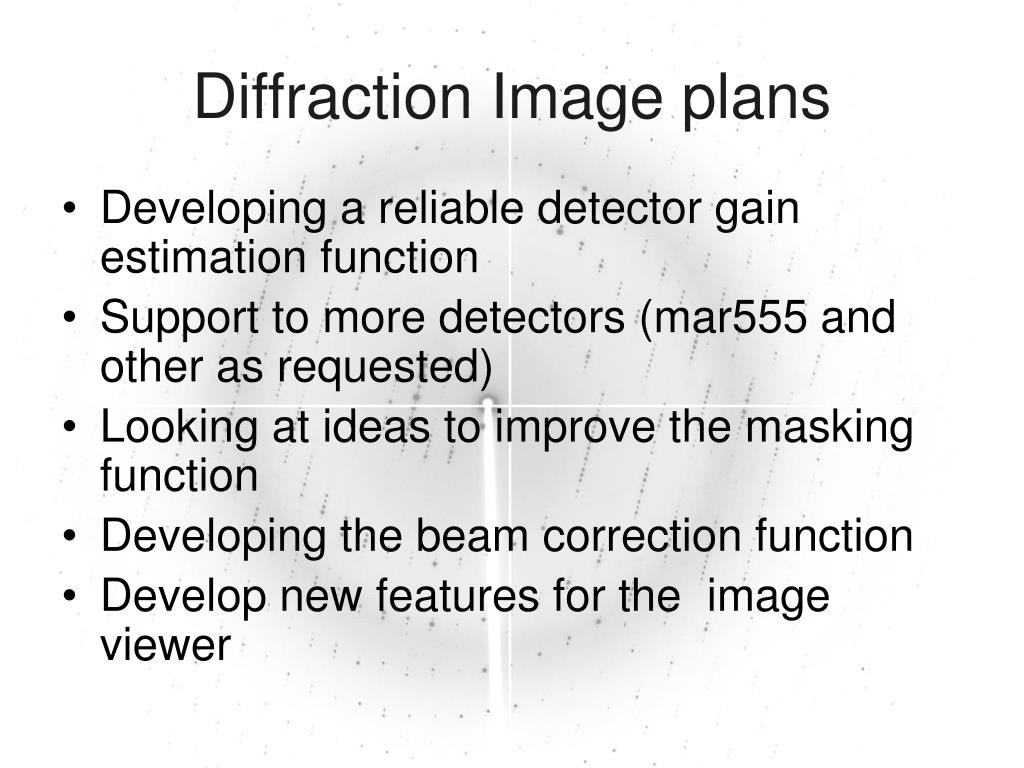

  14. Diffraction Image plans • Developing a reliable detector gain estimation function • Support to more detectors (mar555 and other as requested) • Looking at ideas to improve the masking function • Developing the beam correction function • Develop new features for the image viewer
