  1. Topographic Maps

  2. Topographic Maps

  3. A topographic map of part of Ithaca

  4. Topographic Maps • Maps of an elevation field • Show elevation by contour lines • Also show other natural and man-made features by using symbols

  5. HOW TO READ TOPOGRAPHIC MAPS

  6. 1. Contour lines – lines the connect points of equalelevation

  7. Steep slope Gentle slope • Contour Lines close together – • Contour Lines far apart –

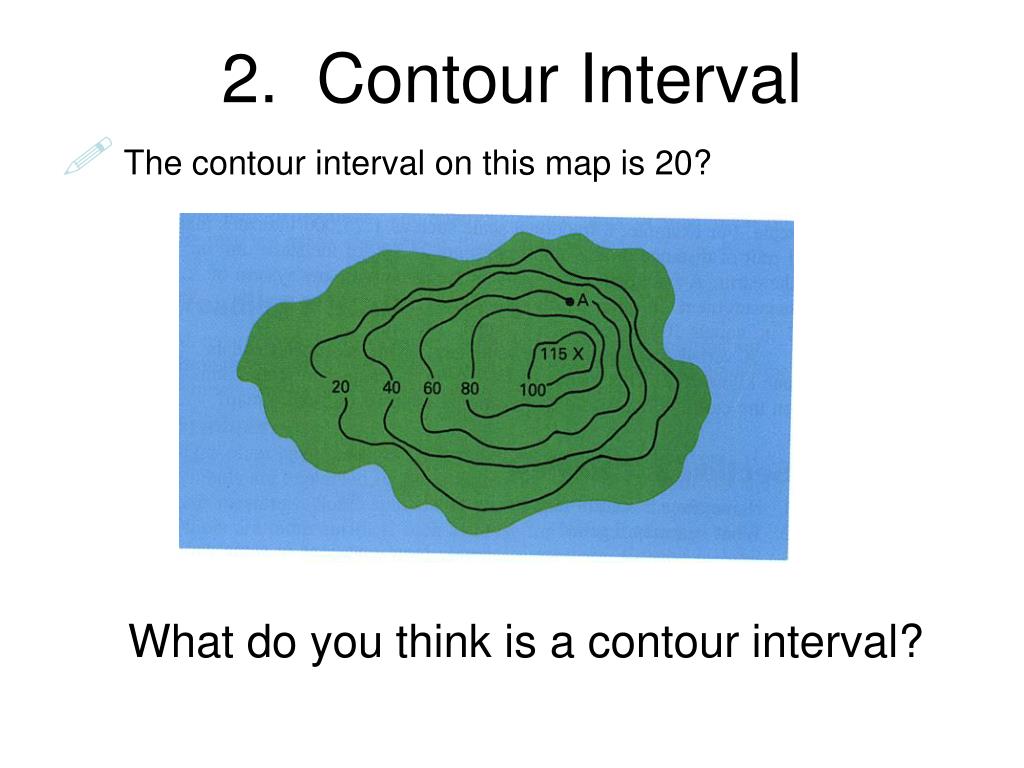

  8. 2. Contour Interval  The contour interval on this map is 20? What do you think is a contour interval?

  9. Contour Interval Change in elevation in between two consecutive contour lines Usually listed in key or legend

  10. If you are at sea level, your elevation is 0. The contour line for the coastline is 0.

  11. 3. Index Contour Line • The Index Contour lines on the map below are the 700 and 800 lines Why do you think they are darker?

  12. Index Contour Lines • Every 4th or 5th line that is thicker or bolder • Line is labeled with the elevation • Helps to read the map

  13. Index contour lines are placed every 50 units on this map

  14.  What is the spacing of Index Contours on this map?  What is the contour interval?

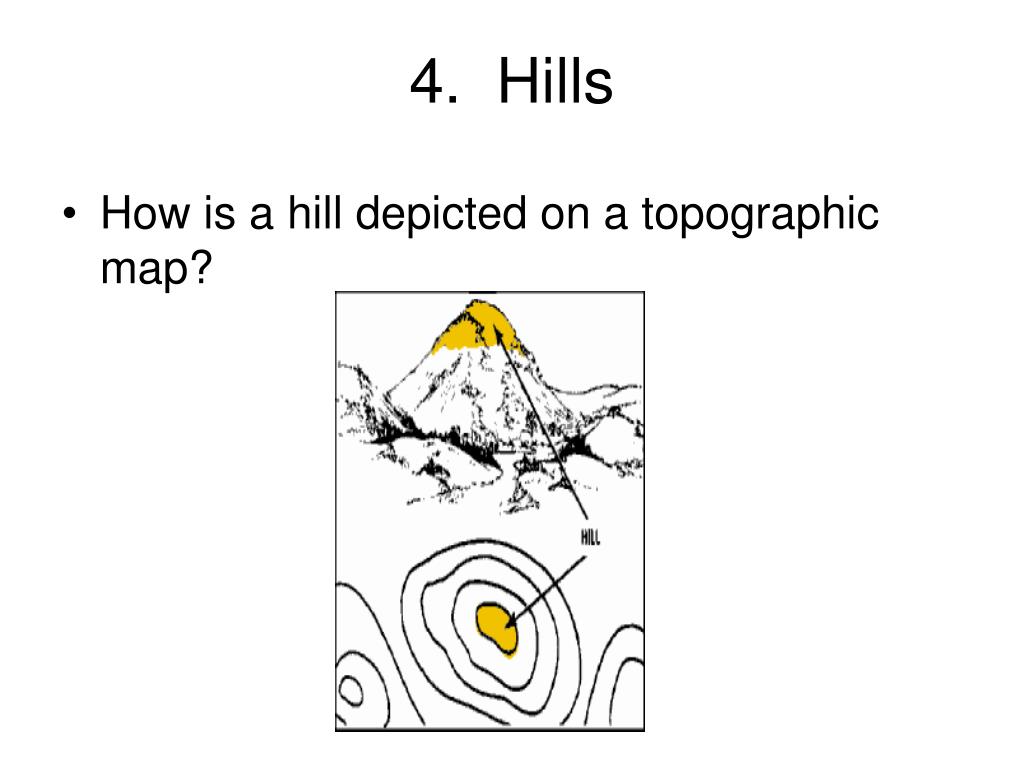

  15. 4. Hills • How is a hill depicted on a topographic map?

  16. Hills • Closed contours in a circle or elliptical (oval) shape • “Bulls eye”

  17. 5. Depressions • The opposite of a hill is a depression which is a low point in the ground. They are represented by hachure lines. Describe what a hachure line looks like. Feathered line or a line with hash marks

  18. 5. Hachured Lines • Does the elevation go up or down when you see the hachured lines? • The first depression line is going to the ________ elevation as the closest contour line down same

  19. 6. Benchmark - EXACT Elevation Indicated by a BM or X on a topographic map

  20. What is the exact elevation of the benchmark on this map? 2919 feet

  21. 7. Streams always flow Downhill – from higher elevation to lower elevation Can a stream flow northward? Yes

  22. N What direction is this stream flowing? South

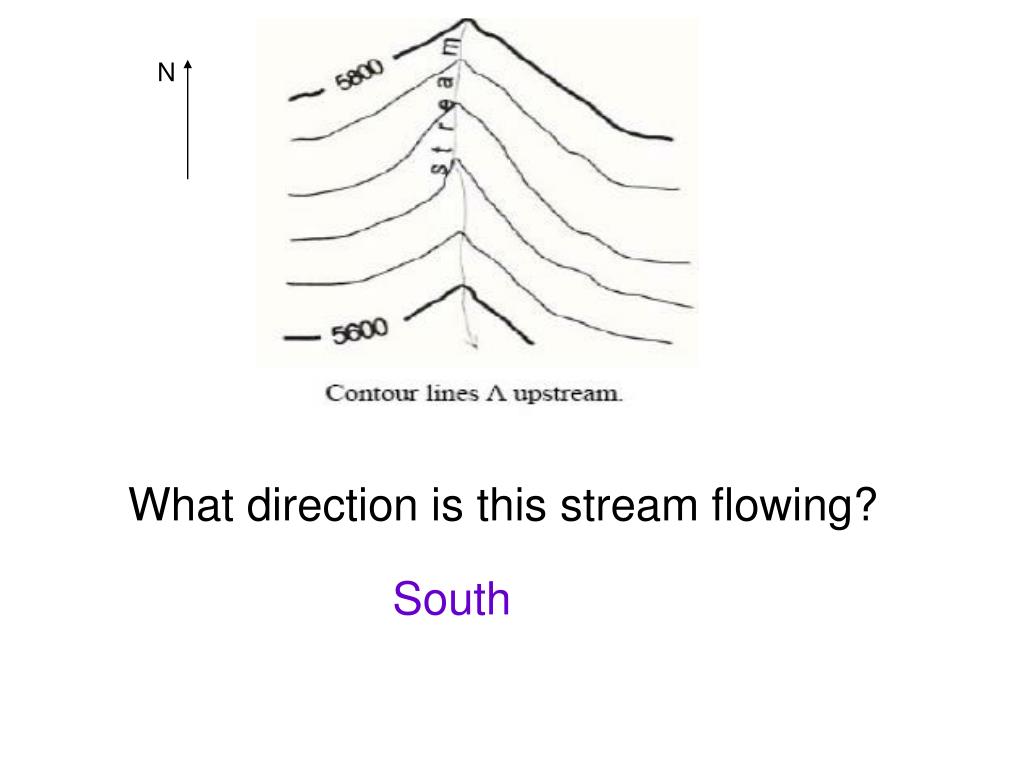

  23. N Describe what the contour lines look like when they are crossing a stream? Contour lines point in the opposite direction the stream is flowing!

  24. Streams always flow in the opposite direction the V or U is pointing.

  25. 8. Maximum Elevation of a Hill Steps to follow: 1. Count up the contour lines using the contour interval. 2. Pretend that there is one more contour line at the top of the hill (imaginary line). 3. Subtract 1

  26. How is the highest possible elevation? Highest contour line = 40 Pretend one more so that would be 50 Subtract 1 50 – 1 = Maximum elevation of hill is 49

  27. 9. Minimum Elevation of a Depression Steps to follow: 1. Count down the contour lines using the contour interval. 2. Pretend that there is one more contour line at the bottom of the depression (imaginary line). 3. add 1

  28. Map Scales • The relationship between distance as measured on a map and the actual distance on Earth’s surface

  29. Types of Map Scales • Verbal Scale – 1 inch = 20 miles • Bar Scale One Mile

  30. Types of Map Scales c. Ratio Scale - One of any unit on this map represents 24,000 of the same unit on Earth’ s surface.Ex, one inch would equal 24,000 inches on the Earth

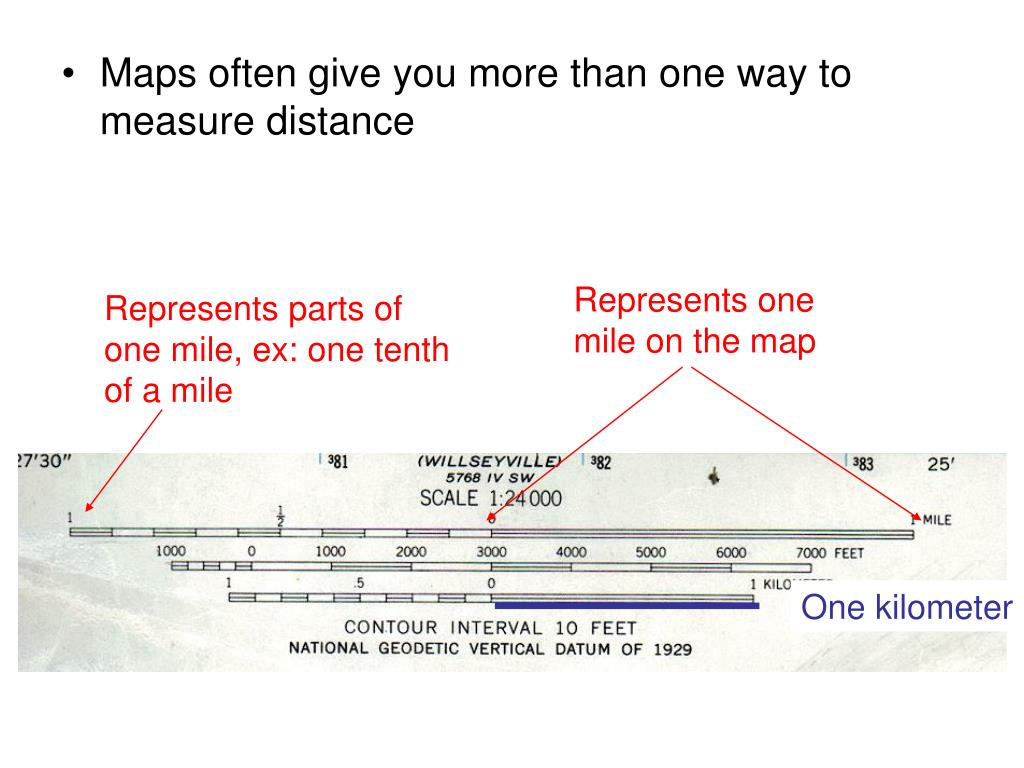

  31. Maps often give you more than one way to measure distance Represents one mile on the map Represents parts of one mile, ex: one tenth of a mile One kilometer
