Presentation Transcript

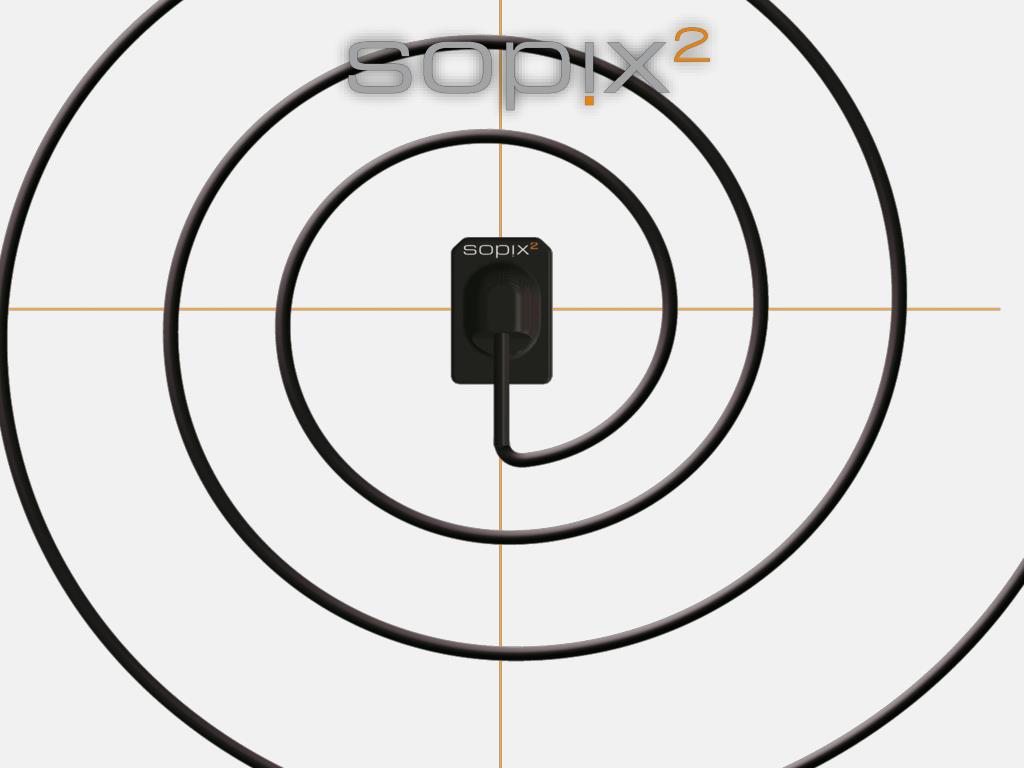

  1. Practical. A miniature controller (120g), Sopix² is delivered with a 5m active extension cable. The maximum length can beincreasedto 13.7m Technology. Sopix² is equipped with a latest generation CMOS sensor, a CsI scintillator (Caesium Iodide) and layer of optical fiber. Simple. Full automation sets Sopix2 apart from competing CMOS sensors. Additionally, trimmed corners contribute to easier placement. Functionality. Sopix² is the only sensor that pioneers features such as the oscilloscope or protection against over-exposure making it truly unique. Quality. Sopix² gives exceptional image quality that is a real cut above the industry standard. Sturdiness. Tested in the most difficult conditions, Sopix² comes with 2 years warranty.

  2. Technology. • Latest CMOS generation. • Size 1 : 1.5Mpixels (25x39mm/20x30mm) • Size 2 : 2.2Mpixels (31x42mm/26x34mm) • Fibre optics. • Improves the image quality by eliminating “noise” • Protects the sensor against X-rays, increasing its durability • Scintillator. • Converts X-rays into photons • Made of Caesium Iodide (CsI) sensitive and durable

  3. Simple. Fully automated sensor. • Trimmed corners. • More comfortable for the patient • Easier to place for the practitioner • Sopix² control on the computer: • always ready to acquire • Quick. • 2.5s sensor size 1 • 4.2s sensor size 2 • Reduced dose. • XMind AC : 100 - 160ms • XMind DC : 80 - 120ms

  4. Quality. • A step ahead. • Image Quality • Sharpness of detail • Improved, confident diagnosis Dedicated filters. Sopro Imaging allows the user to fine tune filters to be automatically applied to each image, or they can be disabled altogether.

  5. Practical. • Smaller. • Miniature controller (120g) • An accessible and mastered electronic board • 3.70m from sensor to USB connector Longer. An active USB extension is provided with every Sopix², bringing the length to 8.7m (note : a second extension can be added). • Automatic Control of Exposure. • Sopro patent • Adapts to all generators • Protects the image against over-exposure • Displays a measure of the dose for each acquisition Under exposure (noise) Correct exposure Over exposure

  6. Functionality • Troubleshooting made easy. • Monitors the X-ray generator thanks to its unique oscilloscope function. • Monitors the computer’s USB thanks to its unique integrated voltmeter function. Ac or low frequency generator DC or high frequency generator

  7. Compatibility.
