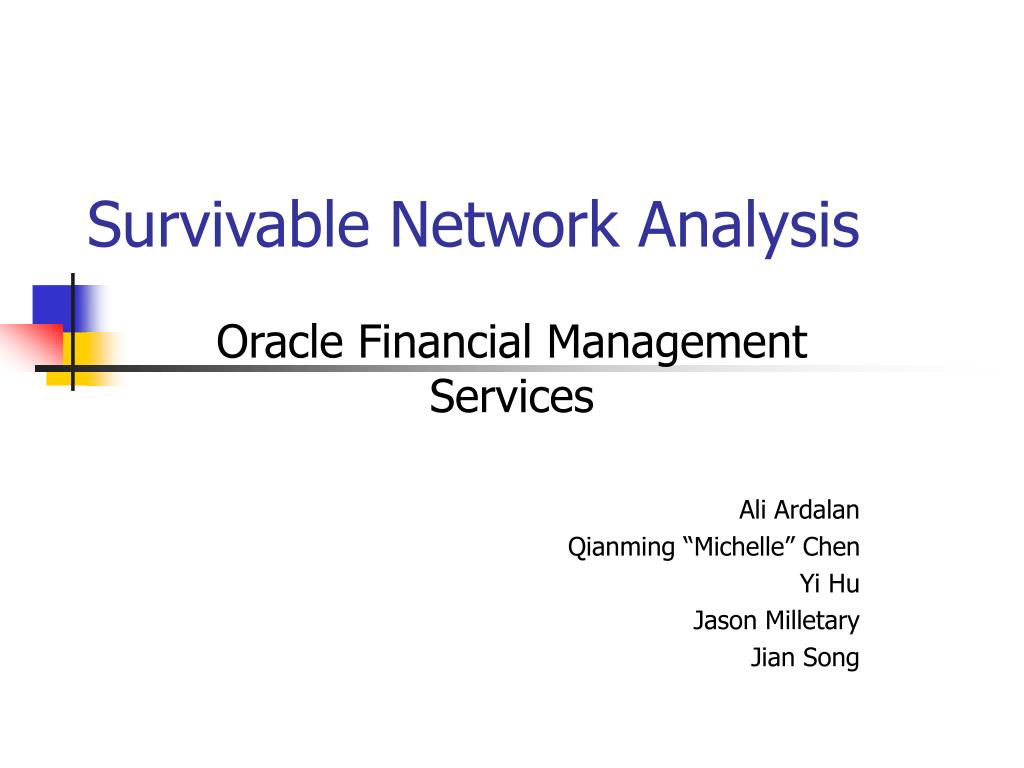

  1. Survivable Network Analysis Oracle Financial Management Services Ali Ardalan Qianming “Michelle” Chen Yi Hu Jason Milletary Jian Song

  2. FMS Mission Overview • Provide financial service applications • Core Financial Applications • Self Service Web Applications • Application Desktop Integrator Applications • Integrate feeder systems • Facilitate billing, reporting, reconciliation

  3. FMP Deployment Requirements • Support all major campus desktop platforms • Achieve excellent performance on all platforms • Implement a ‘thin client’ • Minimize software installation, distribution and maintenance • Leverage existing infrastructure • Mitigate any/all security risks

  4. Users • Casual users • Expense reports, purchasing • Self-service web application • Fulltime users • Business managers, accountants • Desktop applications • Feeder systems • Payroll, grants management, charge back systems

  5. System Architecture

  6. Data Processing Layer • System core layer • Oracle database • Accompanied with concurrent processing and administration Servers • Offsite machine to serve as backup • Data mirrored every 5 minutes

  7. Physical Layout Production Server Disaster/Recovery Machine Fiber link to campus Development Server Cyert Hall Machine Room 6555 Penn Ave

  8. Application Layer • Intermediate layer • Includes forms, web, and application servers. • Provides different forms of data presentation to work with diverse applications

  9. Desktop Client Layer • Customer front-end • Includes all major campus desktop users • ‘Thin client’ • Supports multiple platforms • Microsoft, Mac and Unix

  10. System Impact • Uptime is not mission-critical • Switchover to backup machine comes at a cost of 2 days • Feeder systems will function on their own • Most affected • General ledger • Billing/invoice generation

  11. Existing Security Measures • Secure Socket Layer (SSL) for transmission of sensitive data • Secure Shell (SSH) access • Kerberos identification • Separate realm • Firewall • Disaster/Recovery plan • Piecemeal components

  12. Policies and Practices • Internal • Promote knowledge transfer • Access policies • External • Departmental contact responsible for assigning rights and privileges within department • Heavy reliance on campus-wide policy regarding appropriate use of computing resources

  13. Team Activities • Weekly meeting • Evaluating progress and milestone • Assigning tasks to team members • Planning for the next step • Analytical sessions • Analyzing system architecture and components

  14. Next Step • Next joint meeting on October 10 • Essential service and asset selection • Scenario traces and components • Document request and gathering • Disaster/Recovery Plan • Security Policies • Oracle Application Integration Methodology • Field trip to the off-site data center

  15. Client Meetings 9/25 Preliminary Meeting 10/10 Meeting # 2 (11/6-11/9) Meeting # 3 (11/27-11/29) Meeting # 4 Presentations 9/28 Preliminary Presentation 11/2 Presentation # 2 11/14 Presentation # 3 12/5 Presentation # 4 Project Timeline & Milestones Team Meetings - Tuesdays 8:30 - 10:30pm & Sundays 2:00 - 4:00pm

  16. Project Timeline SNA Phase I. II. III. IV. Meeting #1 Presentation #1 Meeting #2 Presentation #2 Meeting #3 Presentation #3 Meeting #4 Final Presentation September October November December

  17. Project Client Contacts Primary Contact • Mary Ann Carr, Director of Administrative Computing • Business Needs, Policy Issues, Documentation, Direction Secondary Contacts • Bob Rittager, Development Team Leader • Security Issues, Integration, Roles & Responsibilities • Brian Gallew, • System Administration, Hardware, Disaster Recovery, Security • Massimo Bigliardo, Database Admin. • Database Administration, Software
