Sandbox Calibration

This report presents a comprehensive calibration study conducted on various sky shots and clutter scenarios using different configurations, including attenuation settings and measurement distances. The analysis covers both raw data and signal-to-noise ratio (SNR) assessments for specific conditions involving metal and air-filled tubes. Various sky shots were captured without and with a 6 dB attenuator at multiple distances, while clutter was evaluated at varying sizes. The findings aim to enhance understanding of radar response in different environmental settings.

ishmael-tyson
Télécharger la présentation

Sandbox Calibration

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

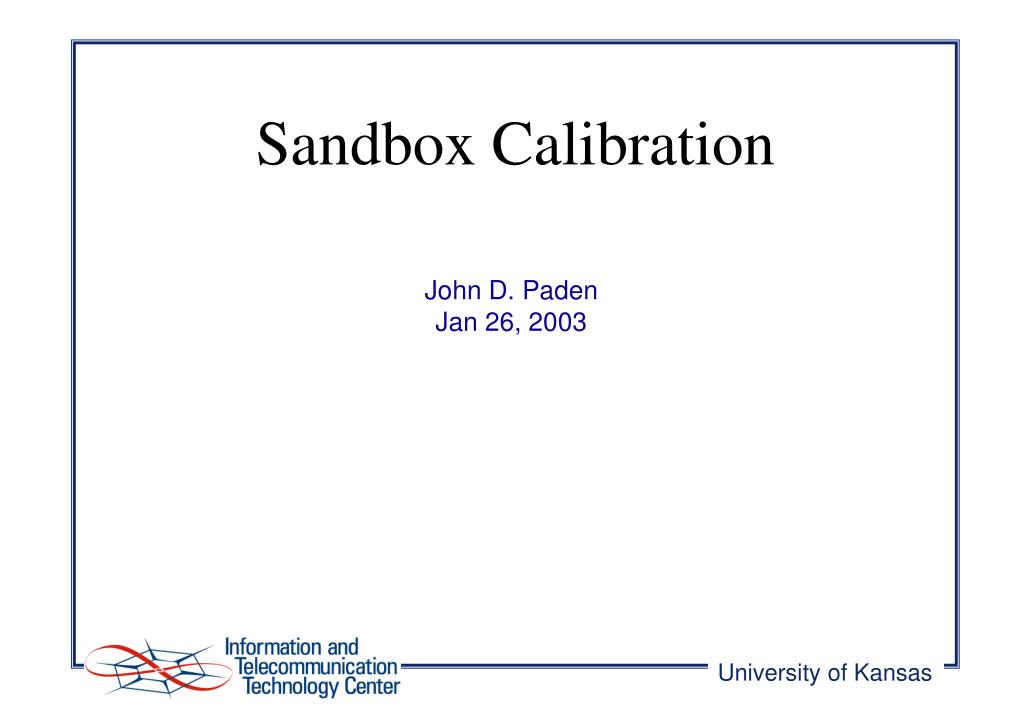

  1. Sandbox Calibration John D. Paden Jan 26, 2003

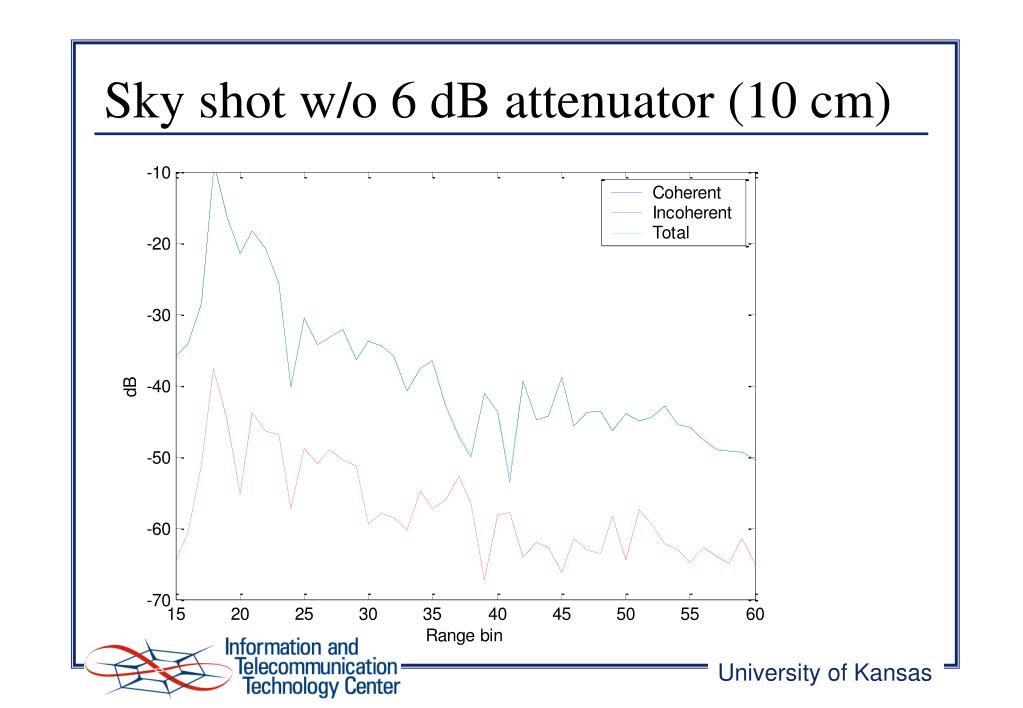

  2. Sky shot w/o 6 dB attenuator (10 cm)

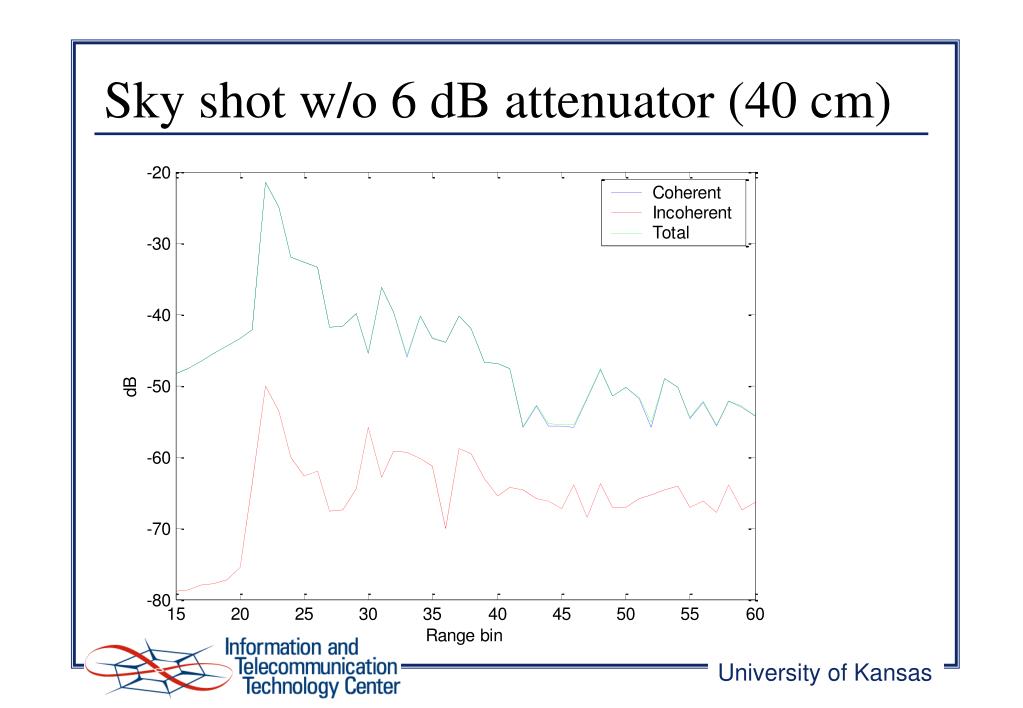

  3. Sky shot w/o 6 dB attenuator (40 cm)

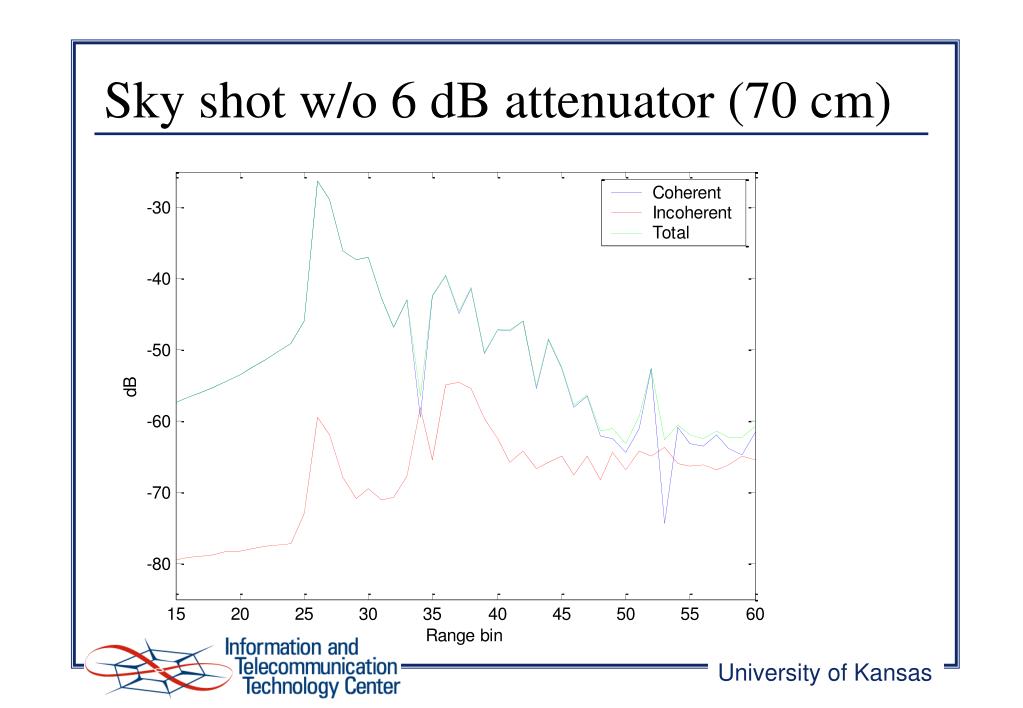

  4. Sky shot w/o 6 dB attenuator (70 cm)

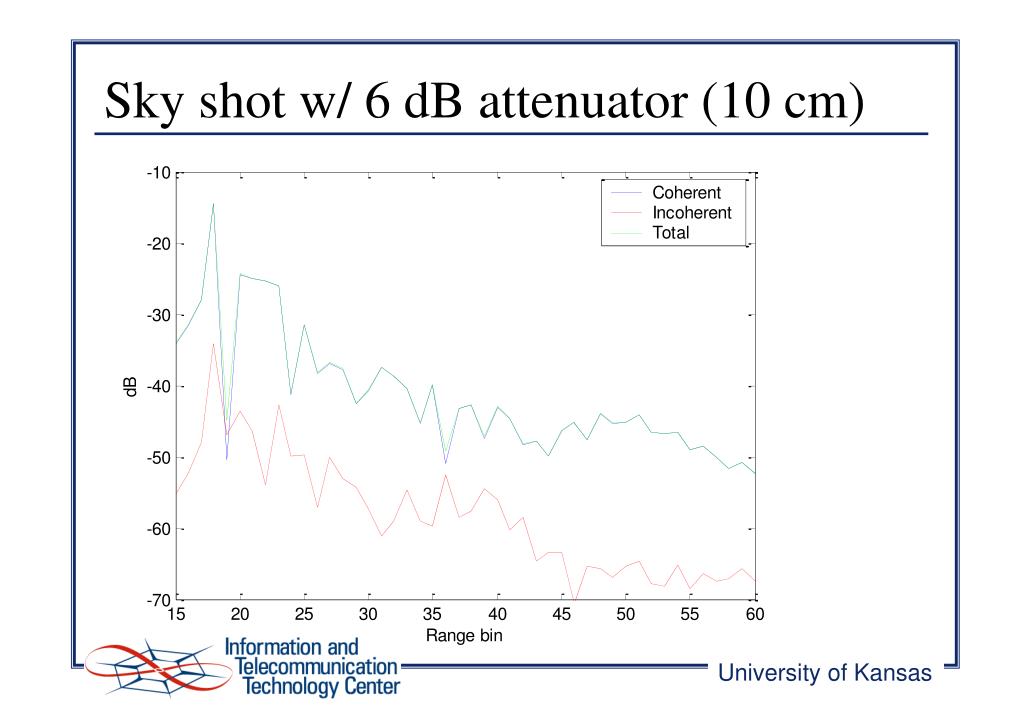

  5. Sky shot w/ 6 dB attenuator (10 cm)

  6. Sky shot w/ 6 dB attenuator (40 cm)

  7. Sky shot w/ 6 dB attenuator (70 cm)

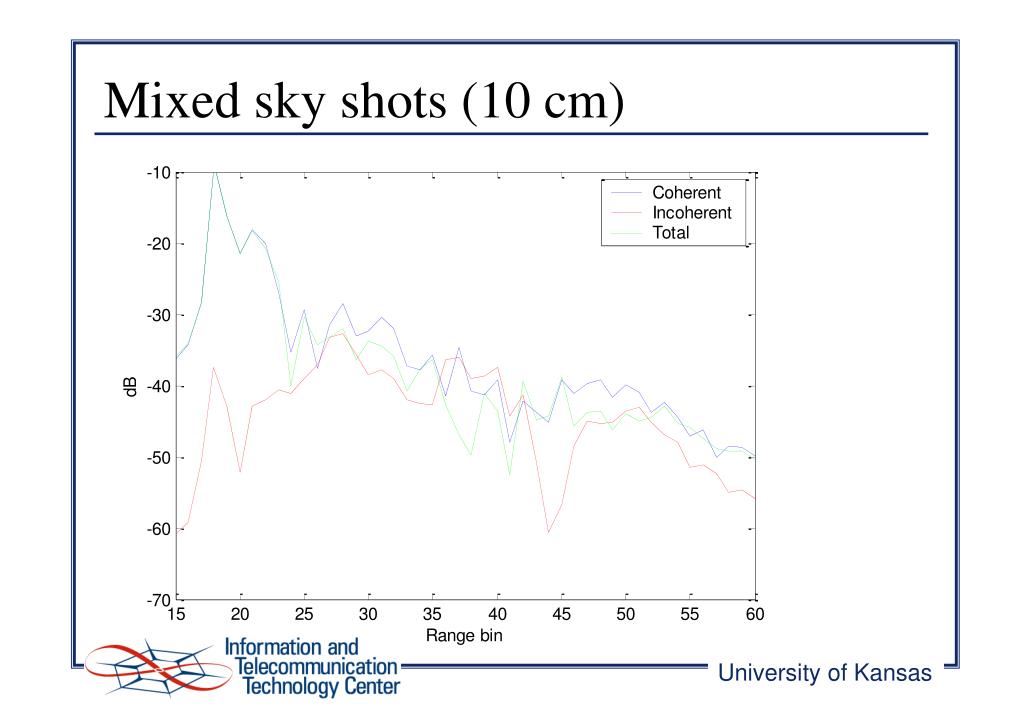

  8. Mixed sky shots (10 cm)

  9. Mixed sky shots (40 cm)

  10. Mixed sky shots (70 cm)

  11. Clutter over 60 cm (10 cm)

  12. Clutter over 60 cm (40 cm)

  13. Clutter over 60 cm (70 cm)

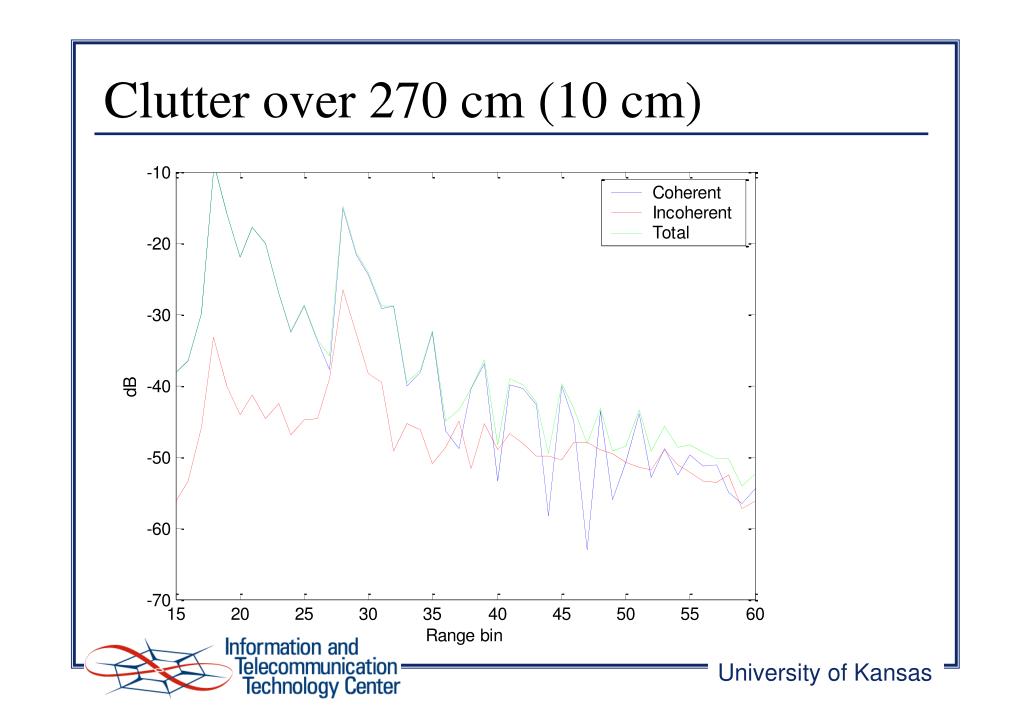

  14. Clutter over 270 cm (10 cm)

  15. Clutter over 270 cm (40 cm)

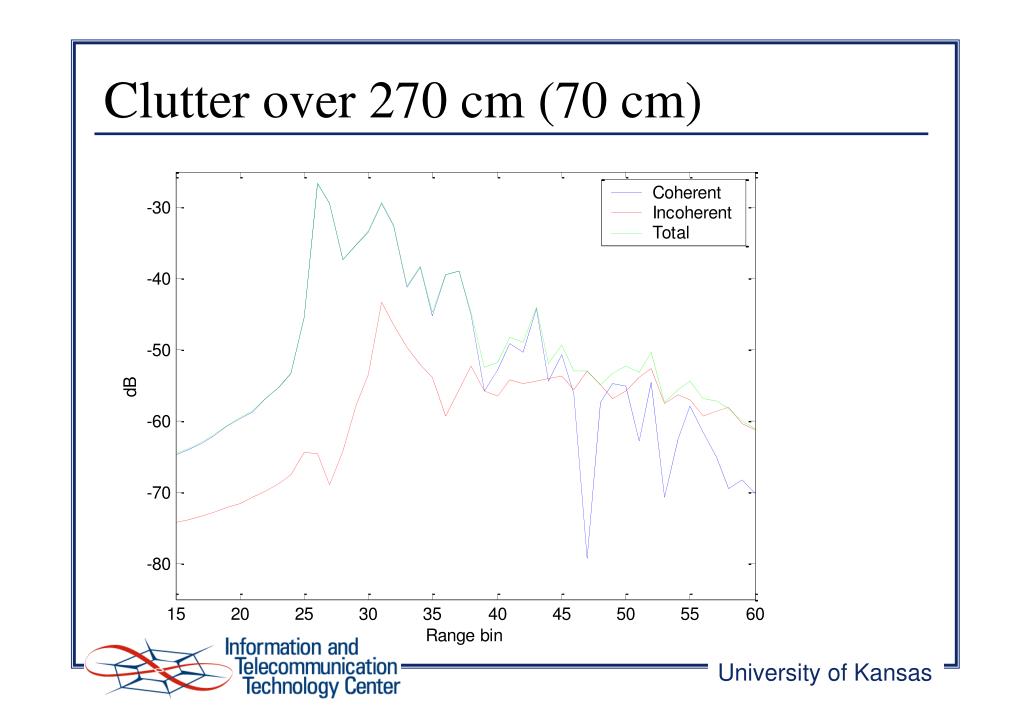

  16. Clutter over 270 cm (70 cm)

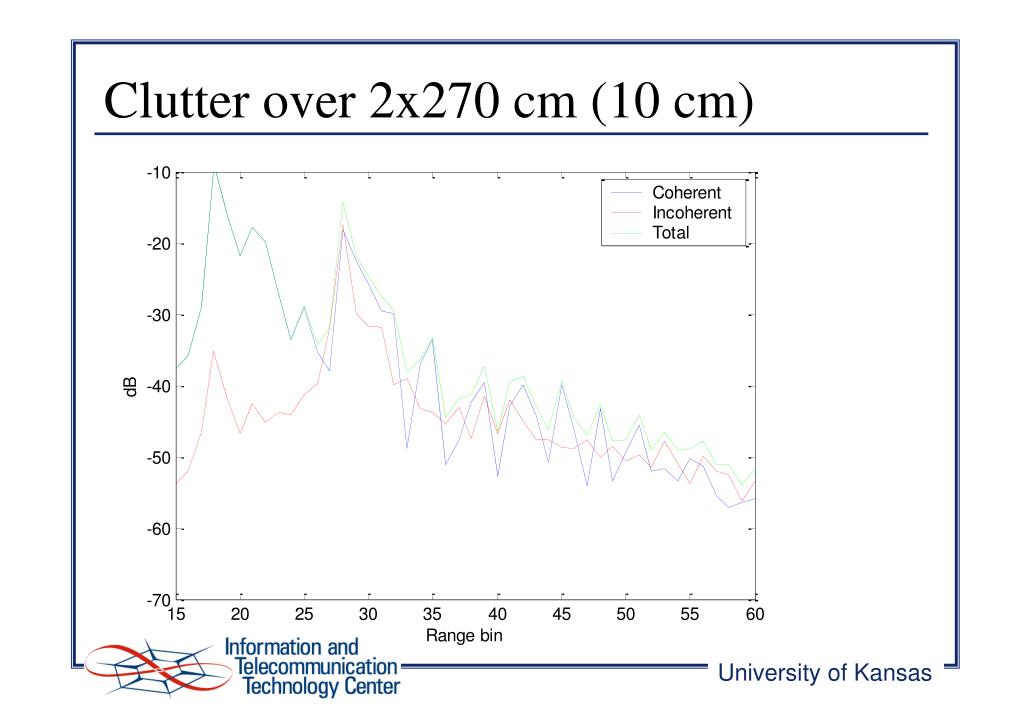

  17. Clutter over 2x270 cm (10 cm)

  18. Clutter over 2x270 cm (40 cm)

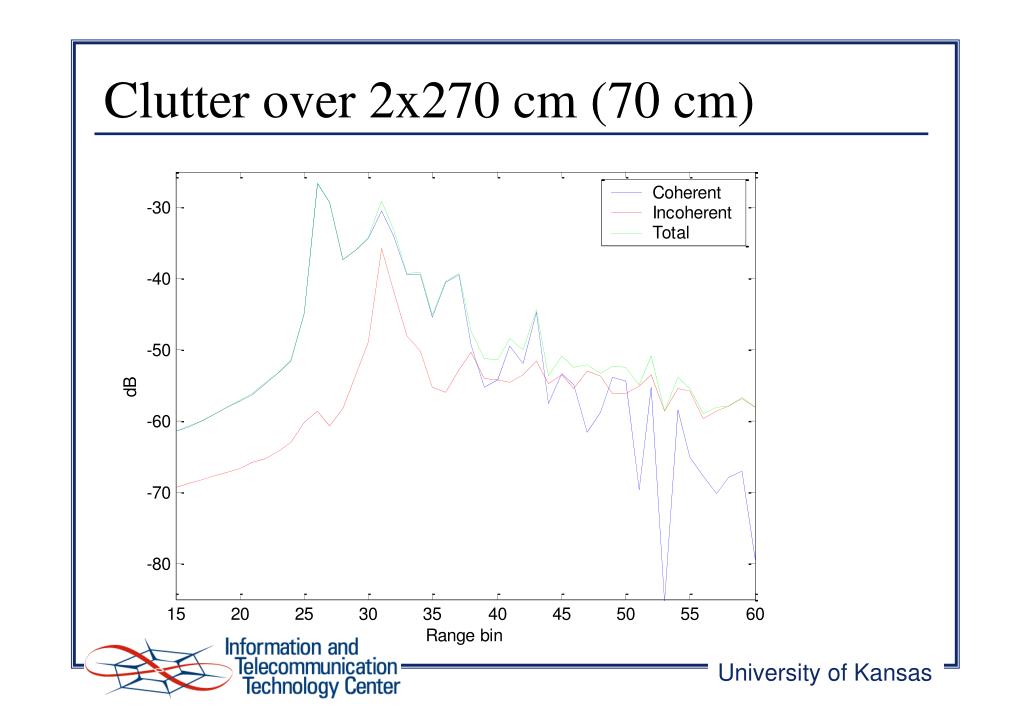

  19. Clutter over 2x270 cm (70 cm)

  20. Clutter w/ sky (10 cm)

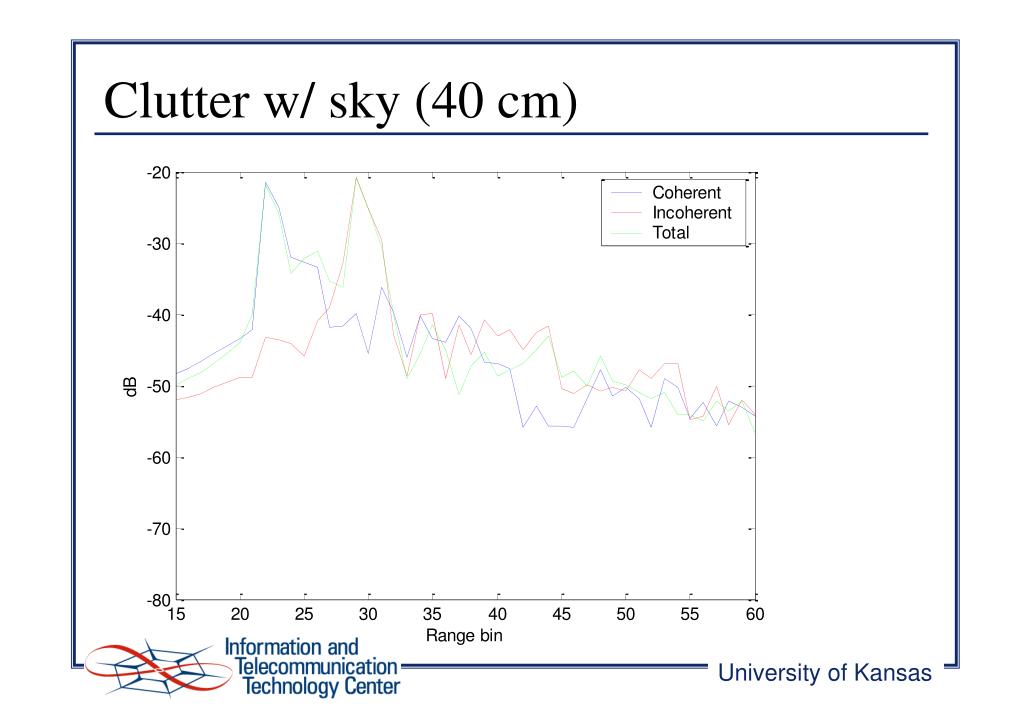

  21. Clutter w/ sky (40 cm)

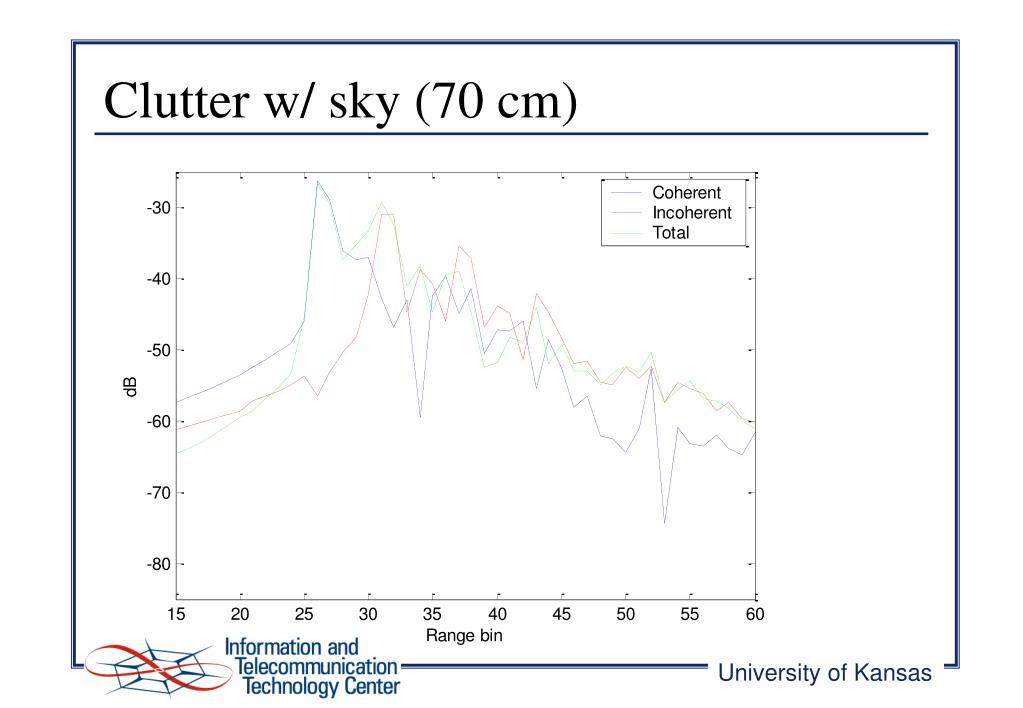

  22. Clutter w/ sky (70 cm)

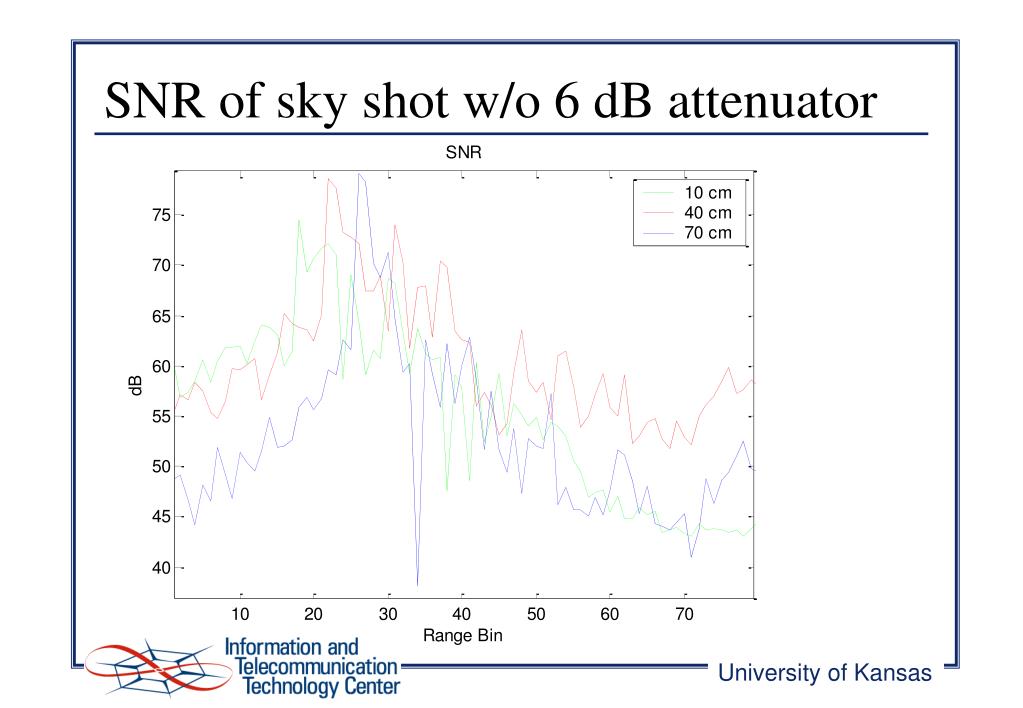

  23. SNR of sky shot w/o 6 dB attenuator

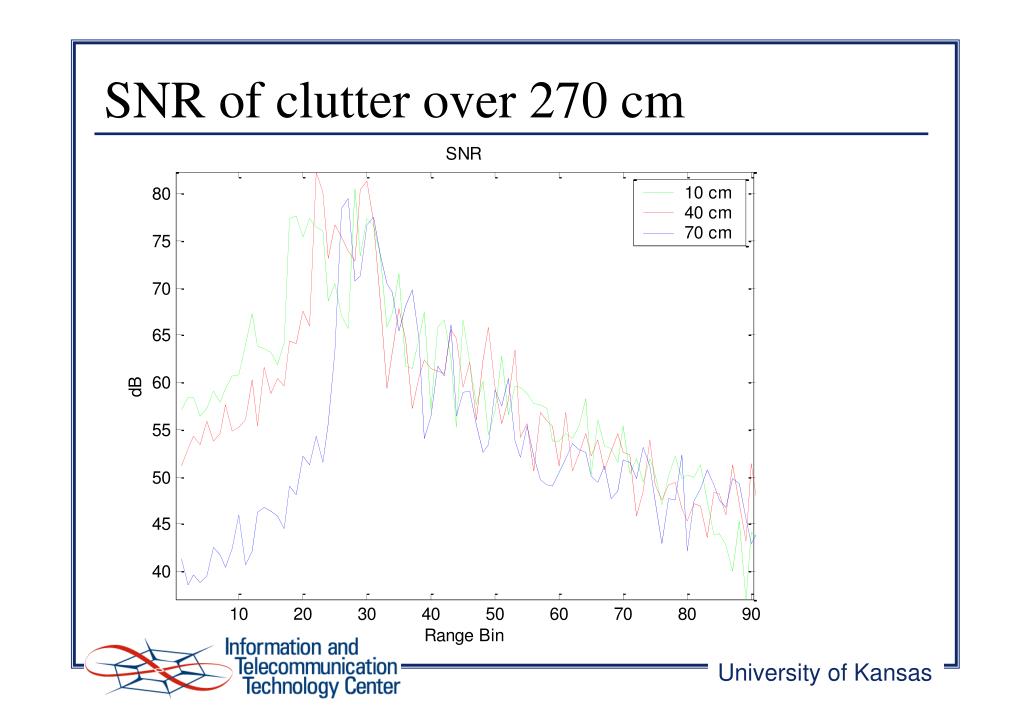

  24. SNR of clutter over 270 cm

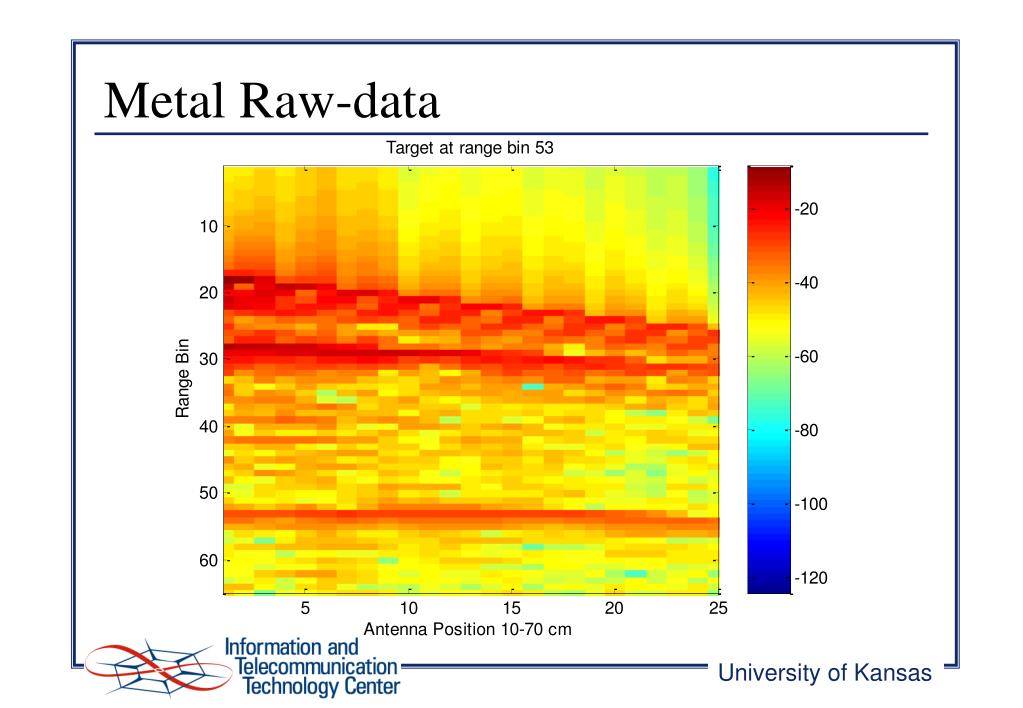

  25. Metal Raw-data

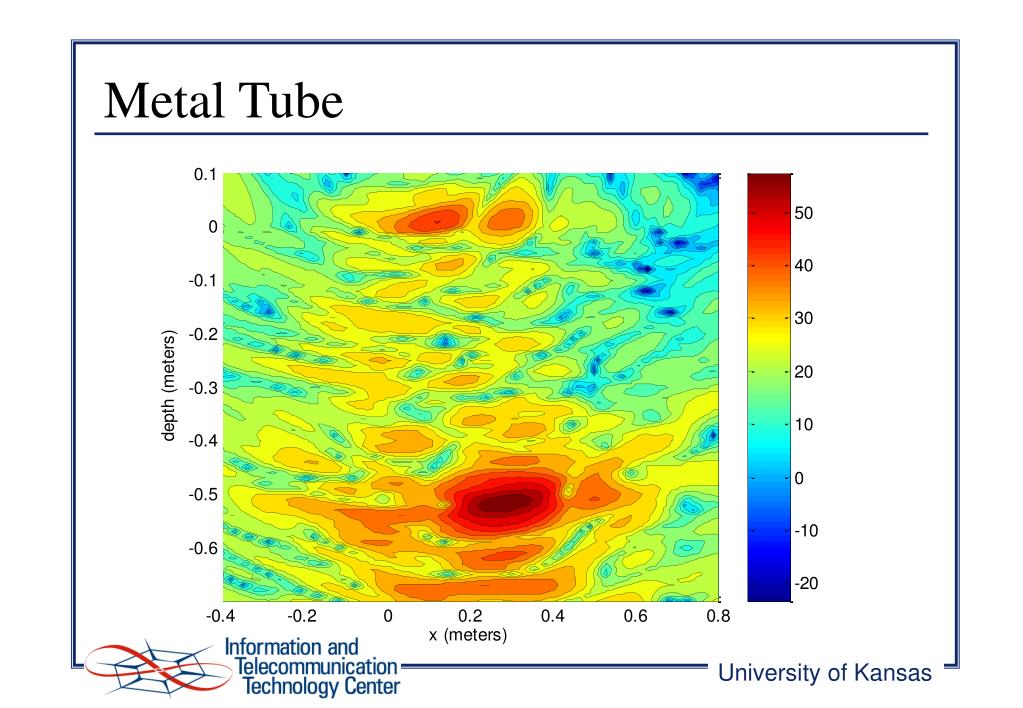

  26. Metal Tube

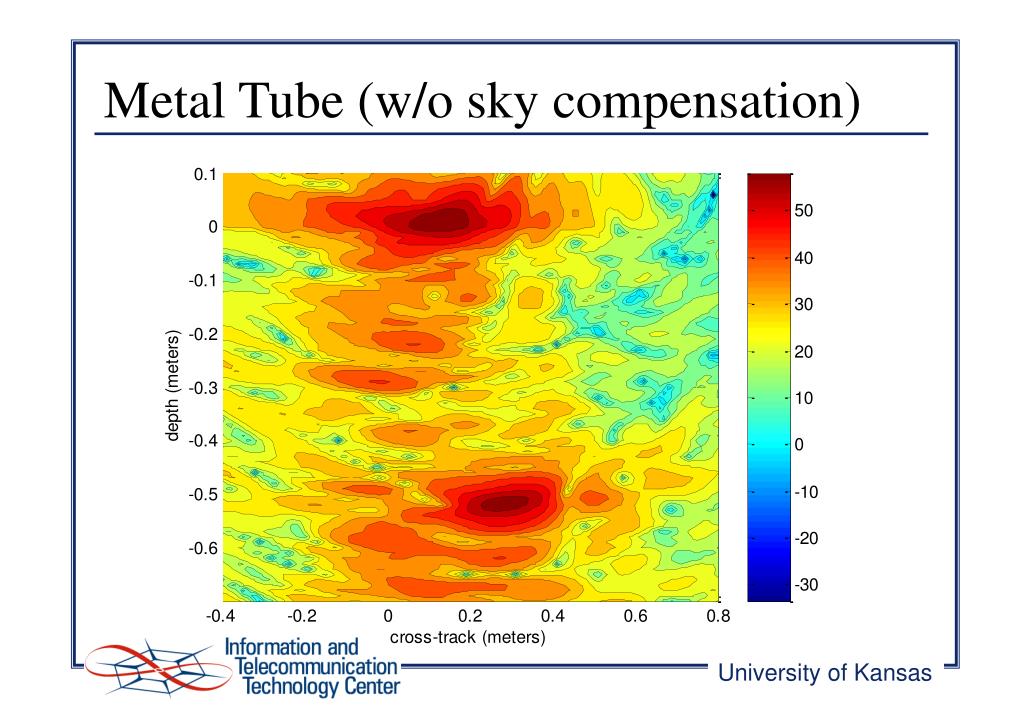

  27. Metal Tube (w/o sky compensation)

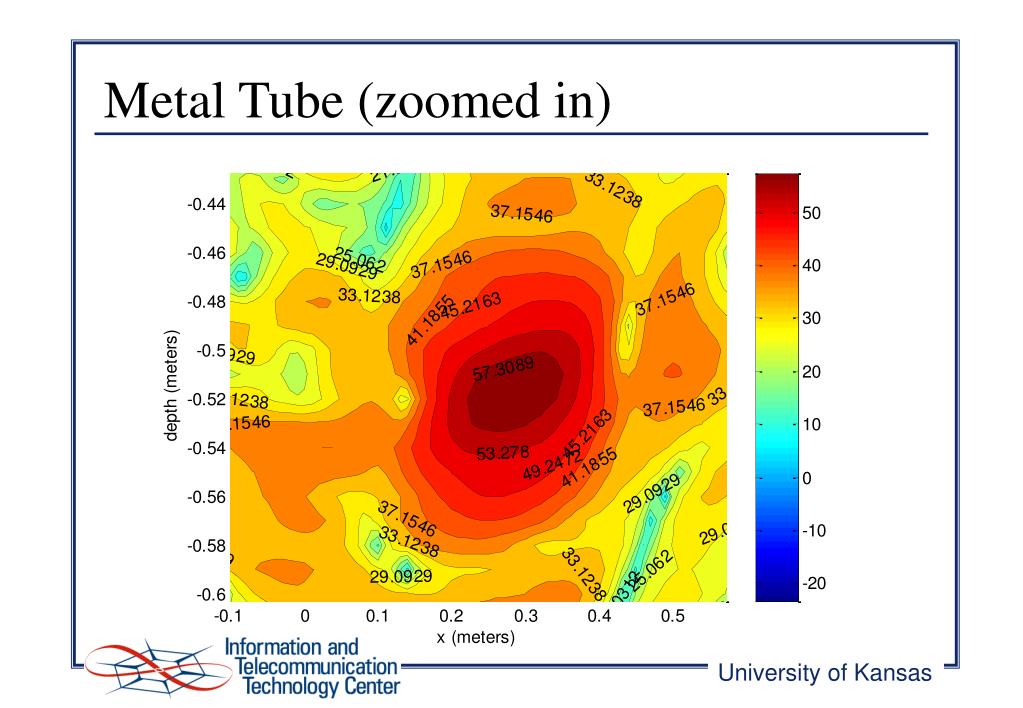

  28. Metal Tube (zoomed in)

  29. Air-filled Raw-data

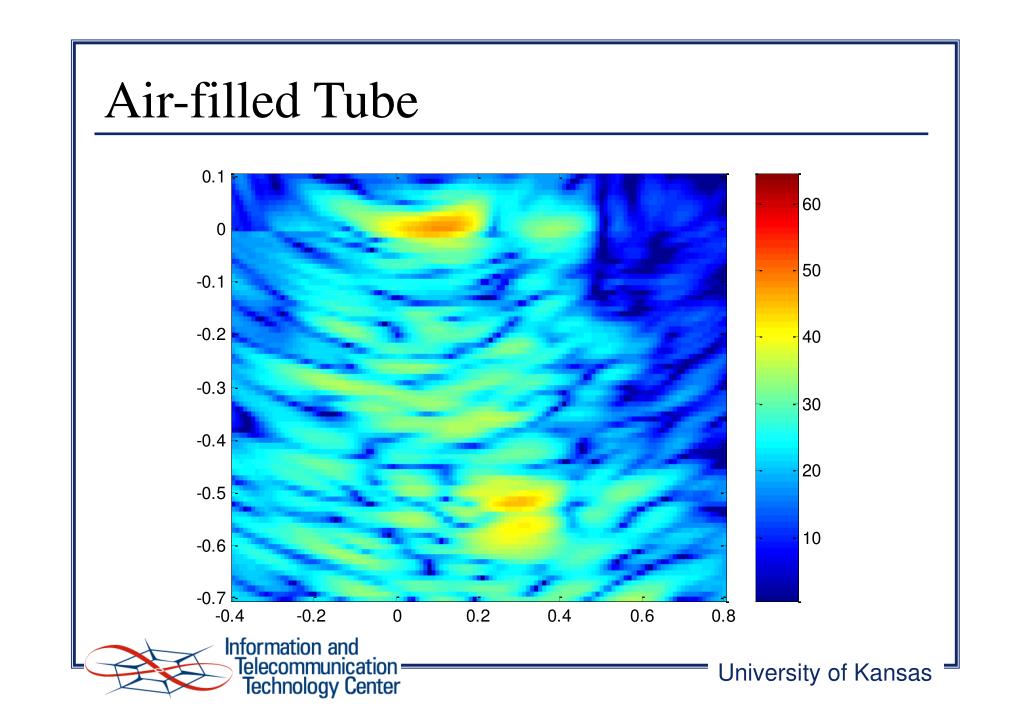

  30. Air-filled Tube

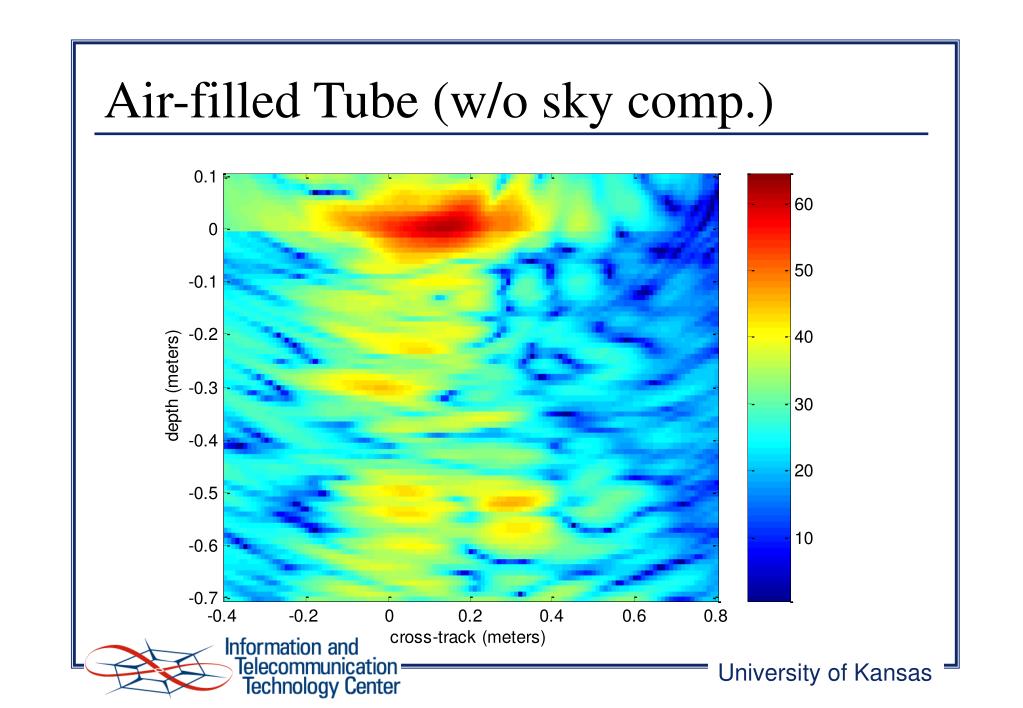

  31. Air-filled Tube (w/o sky comp.)

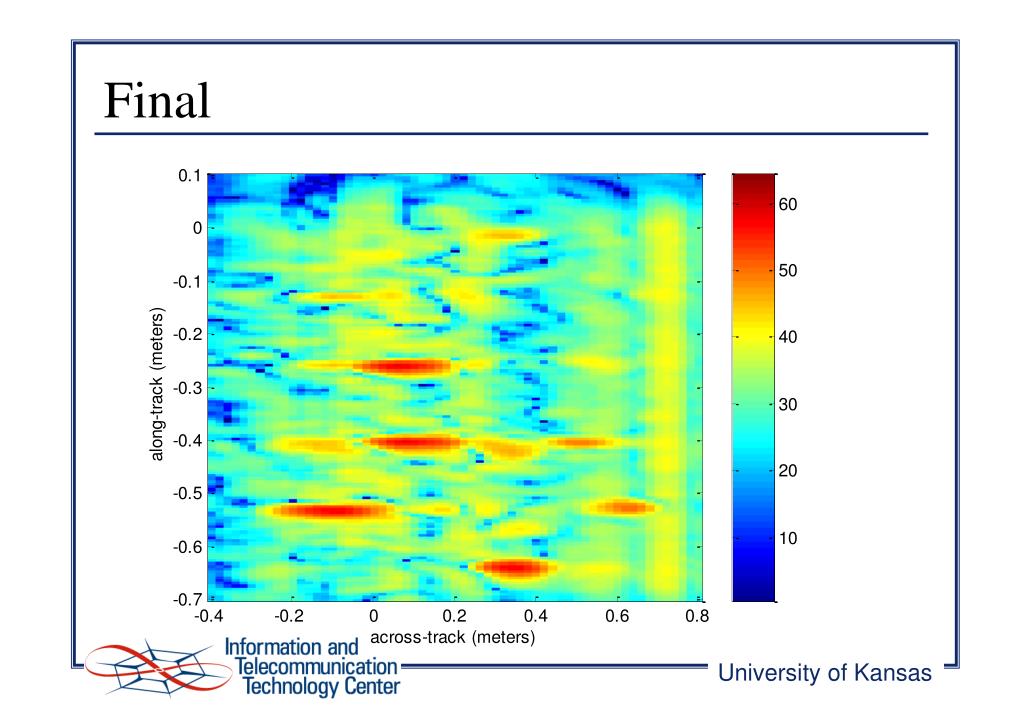

  32. Final

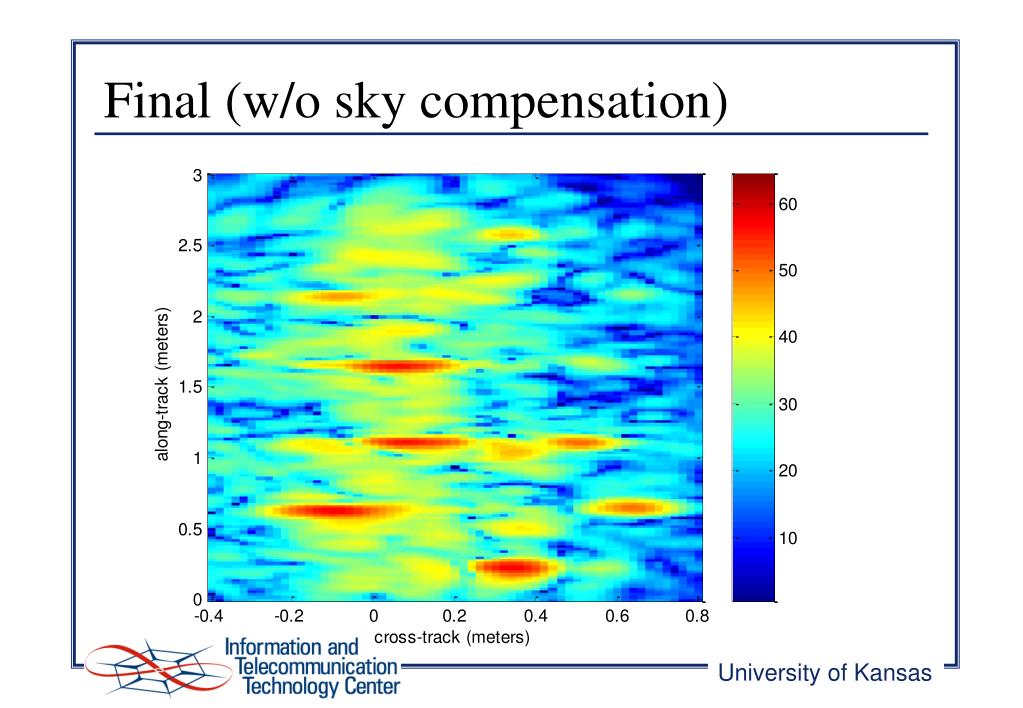

  33. Final (w/o sky compensation)
