Presentation Transcript


  1. University of KentuckyProxy Service Presentation By Kelly Vickery http://www.uky.edu/~kmvick0/proxy/ezptrouble.ppt

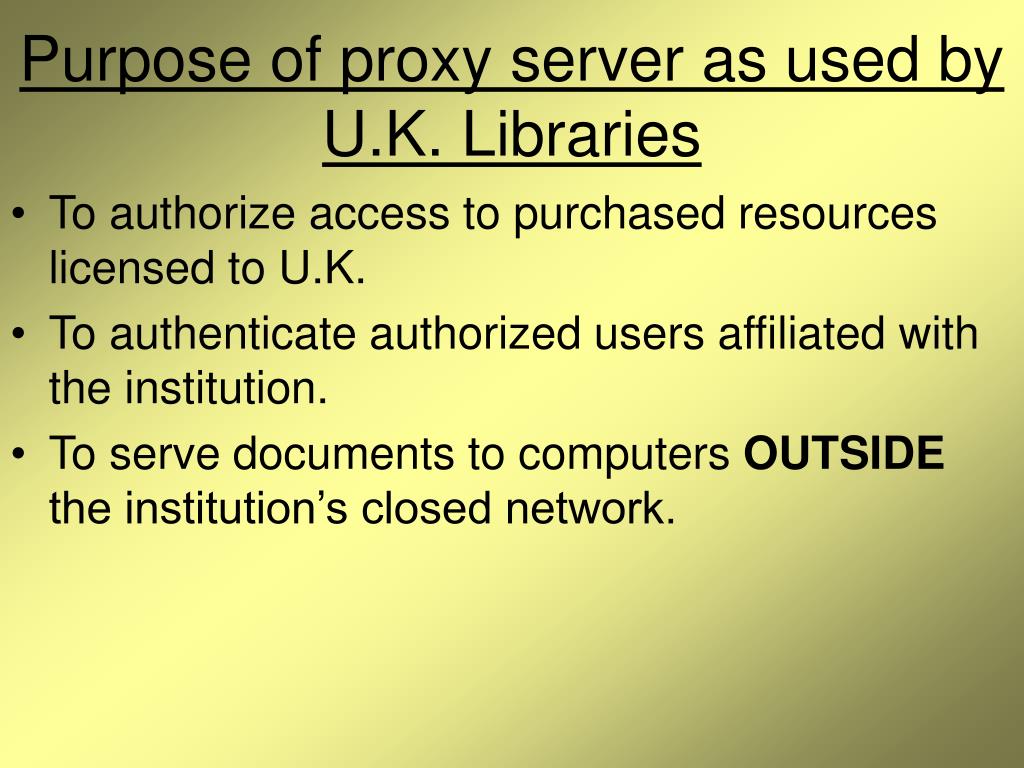

  2. Purpose of proxy server as used by U.K. Libraries • To authorize access to purchased resources licensed to U.K. • To authenticate authorized users affiliated with the institution. • To serve documents to computers OUTSIDE the institution’s closed network.

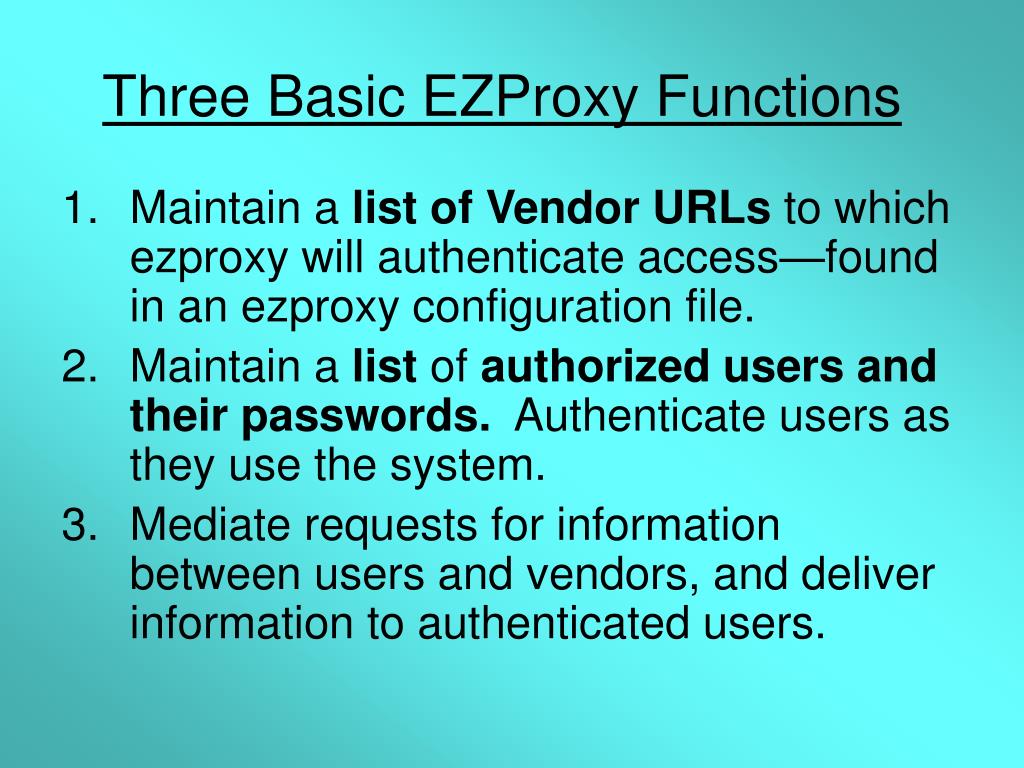

  3. Three Basic EZProxy Functions • Maintain a list of Vendor URLs to which ezproxy will authenticate access—found in an ezproxy configuration file. • Maintain a list of authorized users and their passwords. Authenticate users as they use the system. • Mediate requests for information between users and vendors, and deliver information to authenticated users.

  4. Prerequisite Knowledge • What is an IP (Internet Protocol) address? • What is a Domain Name? • Anatomy of a URL (Uniform Resource Locator)

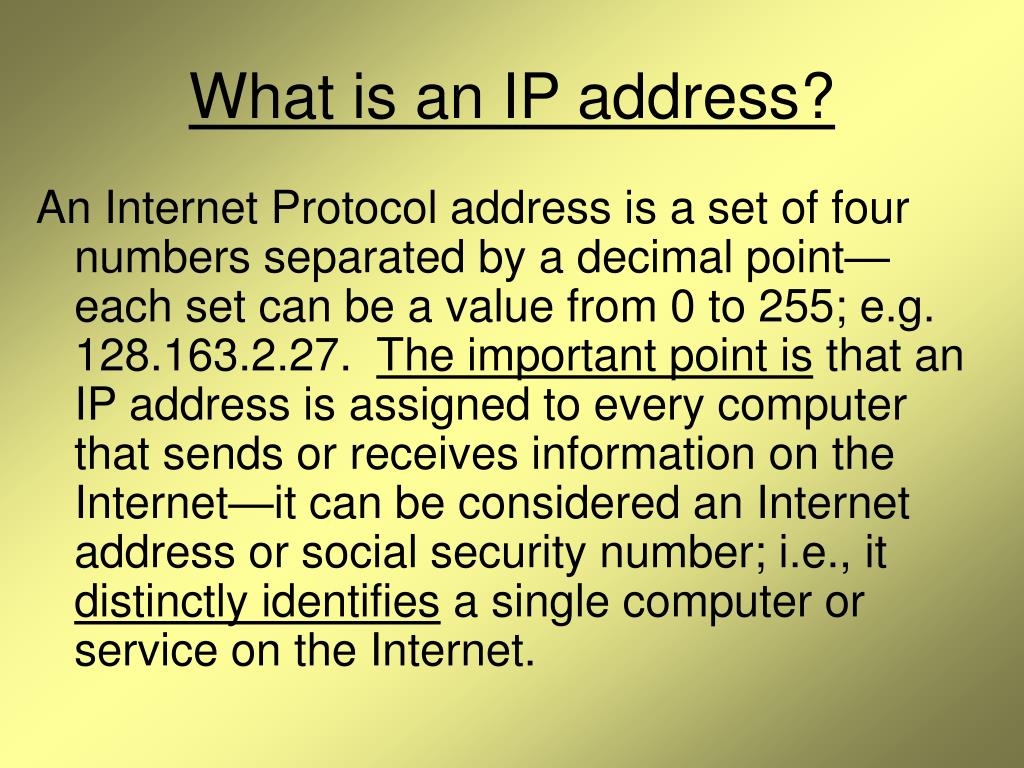

  5. What is an IP address? An Internet Protocol address is a set of four numbers separated by a decimal point—each set can be a value from 0 to 255; e.g. 128.163.2.27. The important point is that an IP address is assigned to every computer that sends or receives information on the Internet—it can be considered an Internet address or social security number; i.e., it distinctly identifies a single computer or service on the Internet.

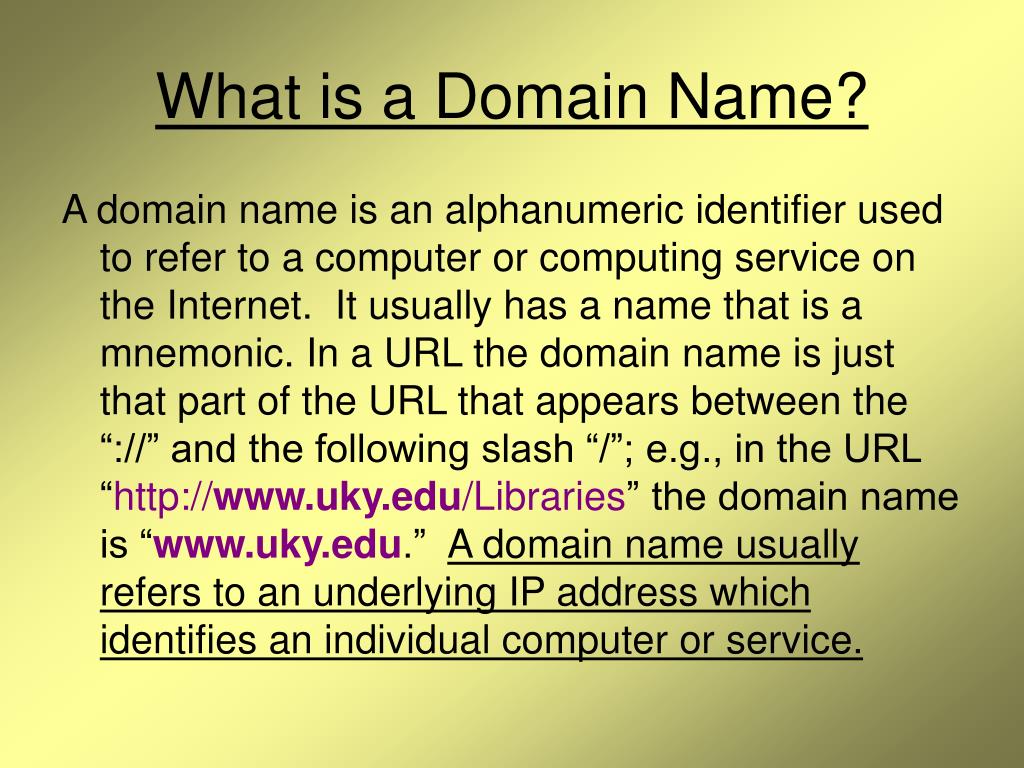

  6. What is a Domain Name? A domain name is an alphanumeric identifier used to refer to a computer or computing service on the Internet. It usually has a name that is a mnemonic. In a URL the domain name is just that part of the URL that appears between the “://” and the following slash “/”; e.g., in the URL “http://www.uky.edu/Libraries” the domain name is “www.uky.edu.” A domain name usually refers to an underlying IP address which identifies an individual computer or service.

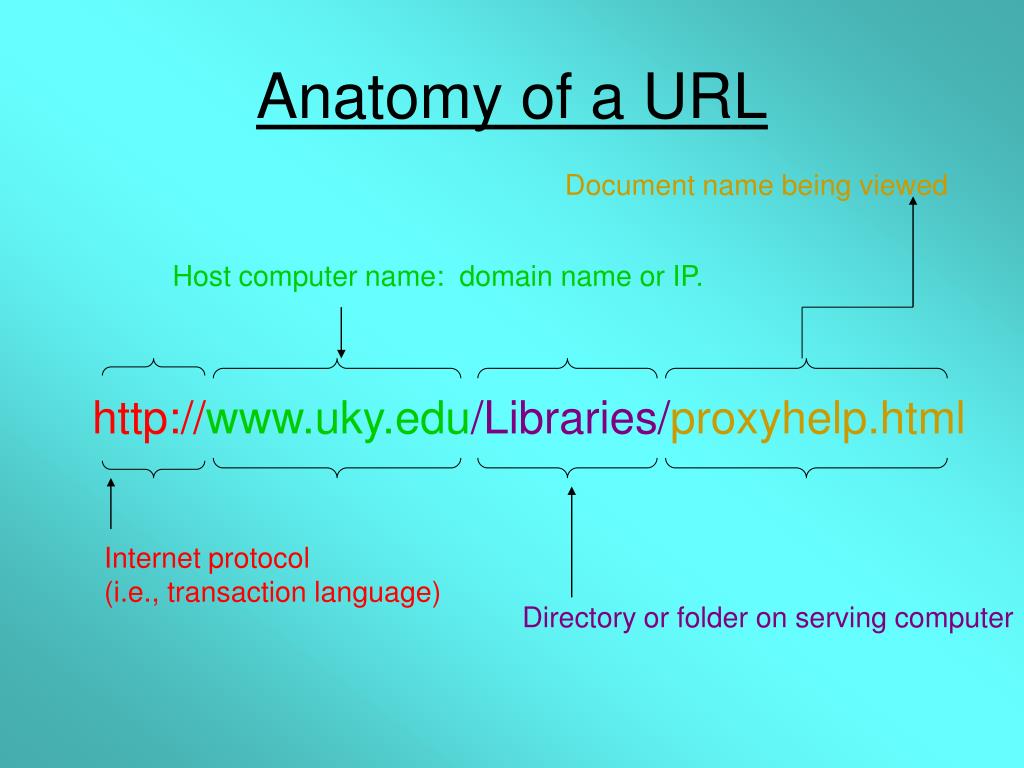

  7. http://www.uky.edu/Libraries/proxyhelp.html Anatomy of a URL Document name being viewed Host computer name: domain name or IP. Internet protocol (i.e., transaction language) Directory or folder on serving computer

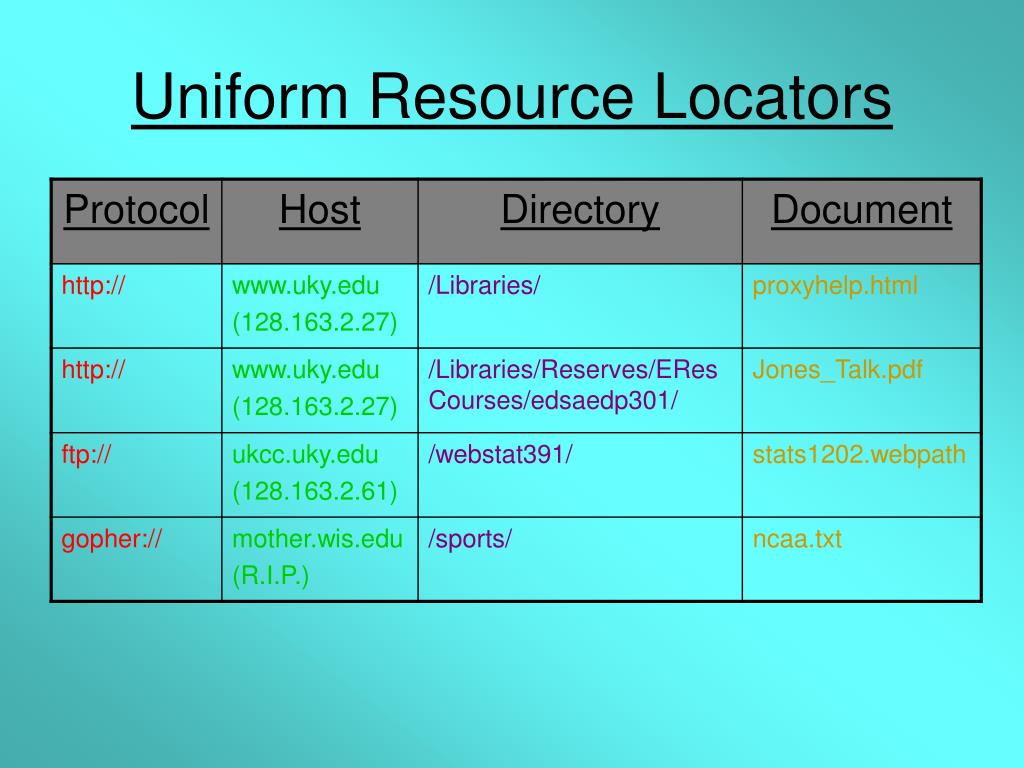

  8. Uniform Resource Locators

  9. …so a link is… <a href=“http://www.uky.edu/Libraries/proxyhelp.html”>Libraries</a> Libraries

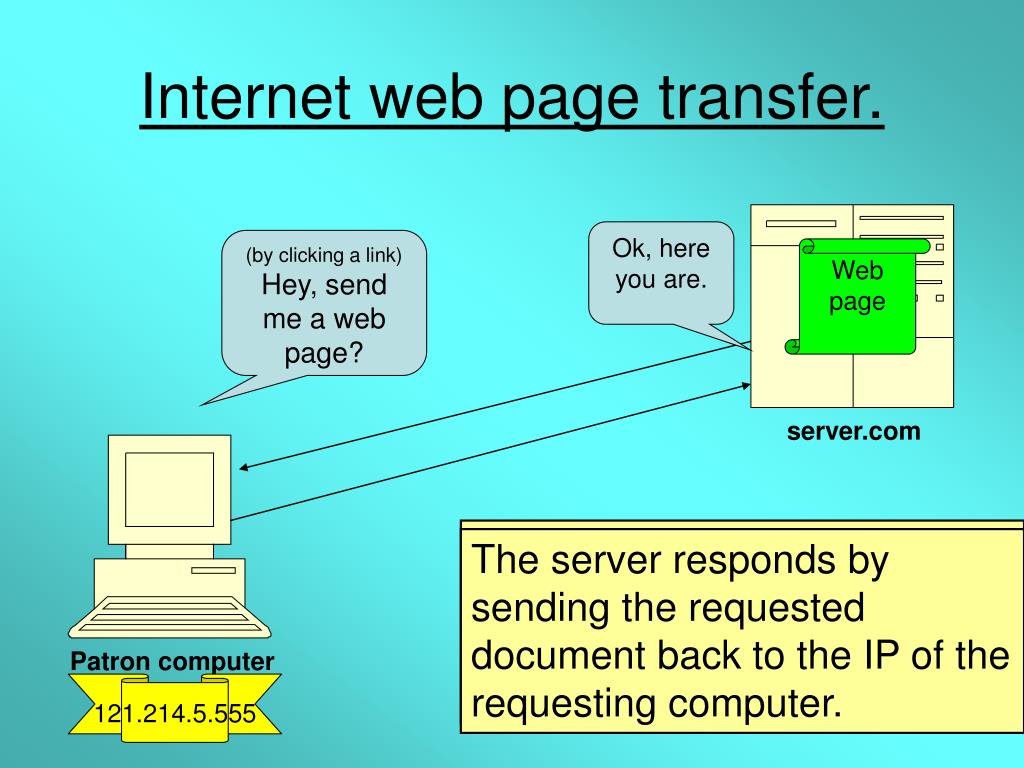

  10. Internet web page transfer. Ok, here you are. (by clicking a link) Hey, send me a web page? Web page server.com In a standard transaction a client (patron’s) computer requests a document and sends its IP to a server. The server responds by sending the requested document back to the IP of the requesting computer. Patron computer 121.214.5.555

  11. IP protected service. NO SOUP FOR YOU! You’re not on my IP list. Hey, send me a web page? Vendor.com When an off-campus library patron requests a document from the vendor, the patron’s IP is not in the vendor’s list of customer IPs. To restrict access a vendor maintains a list of IPs of all customers who purchase access to the service. …and delivery of the requested document is denied. Patron computer 121.214.5.555

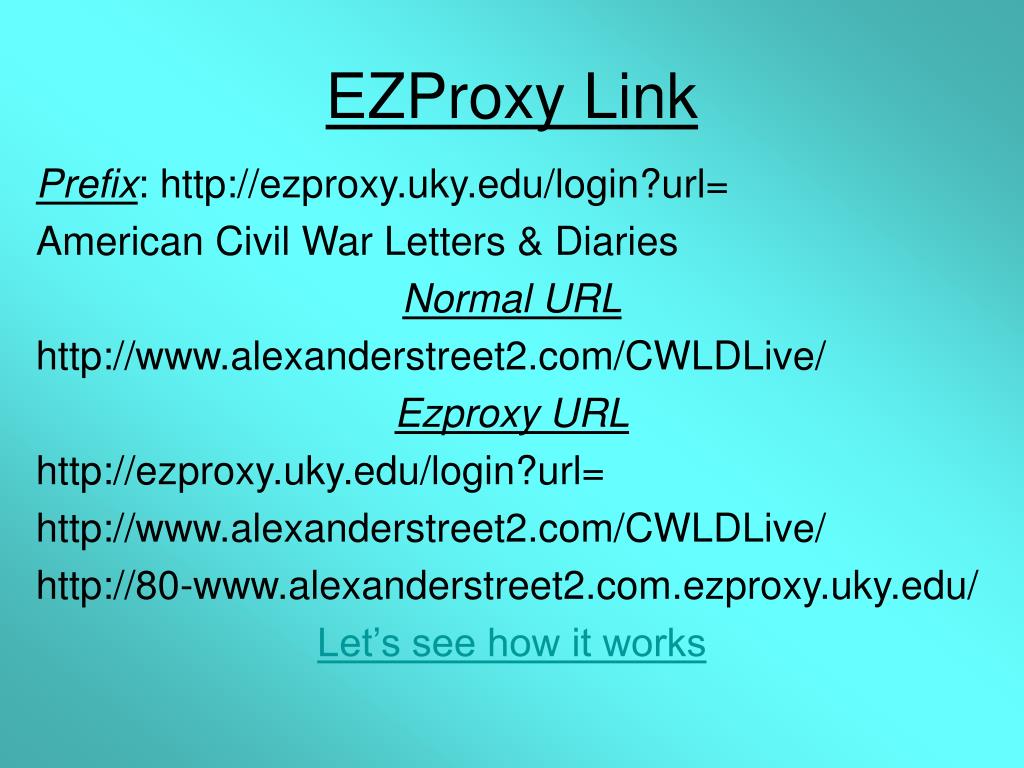

  12. EZProxy Link Prefix: http://ezproxy.uky.edu/login?url= American Civil War Letters & Diaries Normal URL http://www.alexanderstreet2.com/CWLDLive/ Ezproxy URL http://ezproxy.uky.edu/login?url= http://www.alexanderstreet2.com/CWLDLive/ http://80-www.alexanderstreet2.com.ezproxy.uky.edu/ Let’s see how it works

  13. If the ID and Password entered in the prompt are not in the list of authorized users then access is denied; if they are in the list then the proxy fetches the document and sends it to the patron. EZProxy transaction-1. (by clicking ezproxy link) Hey ezproxy! Send me a web page from Vendor.com. Vendor.com UK EZProxy Server Get ID & Password Ok, but first, who are you? Patron computer 121.214.5.555 128.163.1.29

  14. EZProxy transaction-2. You’re IP is authorized for access. I’ll send the web page. Vendor web page Ok, here is my ID and password. Please get Vendor.com for me. Vendor.com UK EZProxy Server Vendor web page Post ID & Password You’re on my list. I’ll Get Vendor.com for you. Ok, 121.214.5.555, here is your web page from Vendor.com Patron computer 121.214.5.555 128.163.1.29

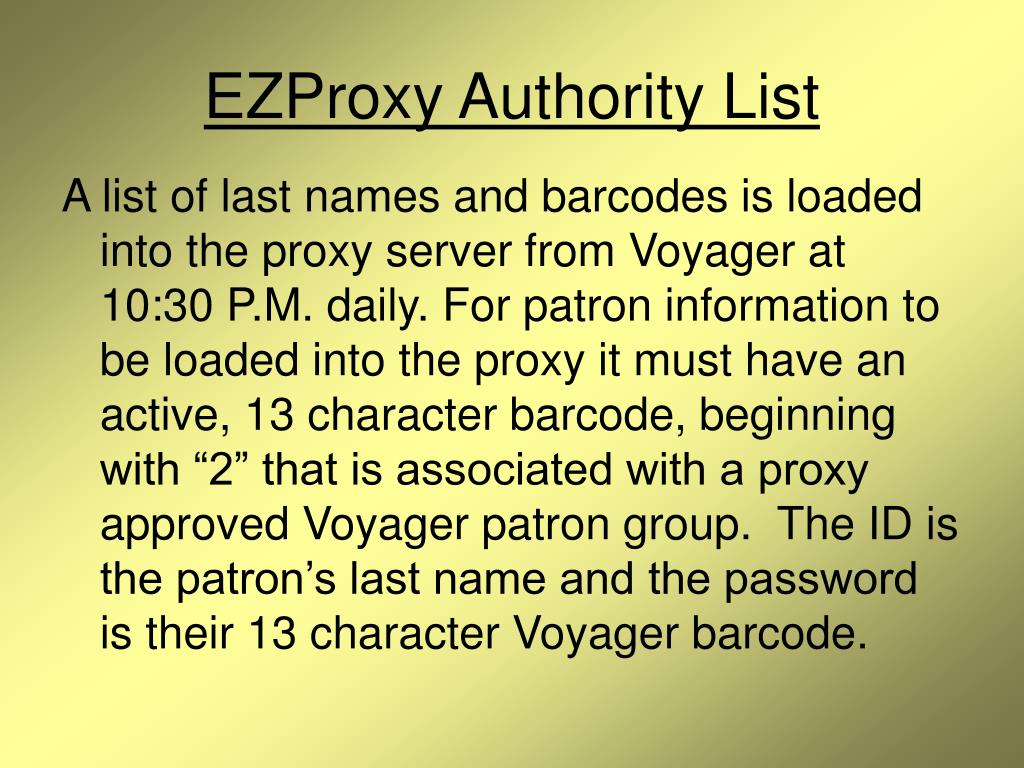

  15. EZProxy Authority List A list of last names and barcodes is loaded into the proxy server from Voyager at 10:30 P.M. daily. For patron information to be loaded into the proxy it must have an active, 13 character barcode, beginning with “2” that is associated with a proxy approved Voyager patron group. The ID is the patron’s last name and the password is their 13 character Voyager barcode.

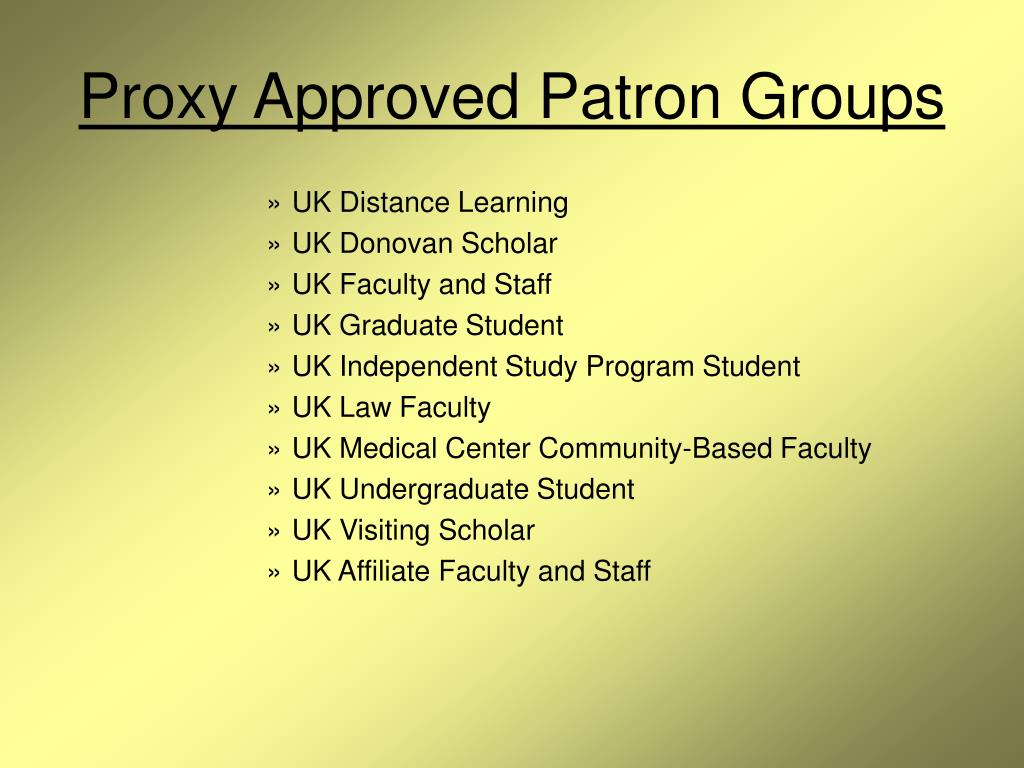

  16. Proxy Approved Patron Groups • UK Distance Learning • UK Donovan Scholar • UK Faculty and Staff • UK Graduate Student • UK Independent Study Program Student • UK Law Faculty • UK Medical Center Community-Based Faculty • UK Undergraduate Student • UK Visiting Scholar • UK Affiliate Faculty and Staff

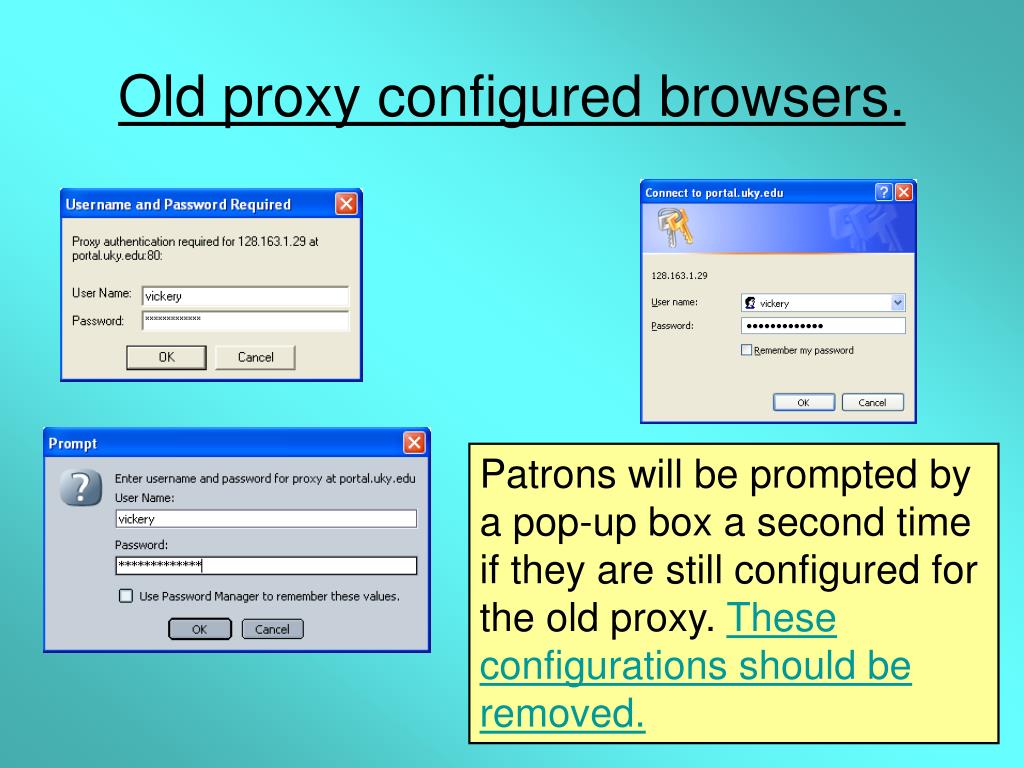

  17. Old proxy configured browsers. Patrons will be prompted by a pop-up box a second time if they are still configured for the old proxy. These configurations should be removed.

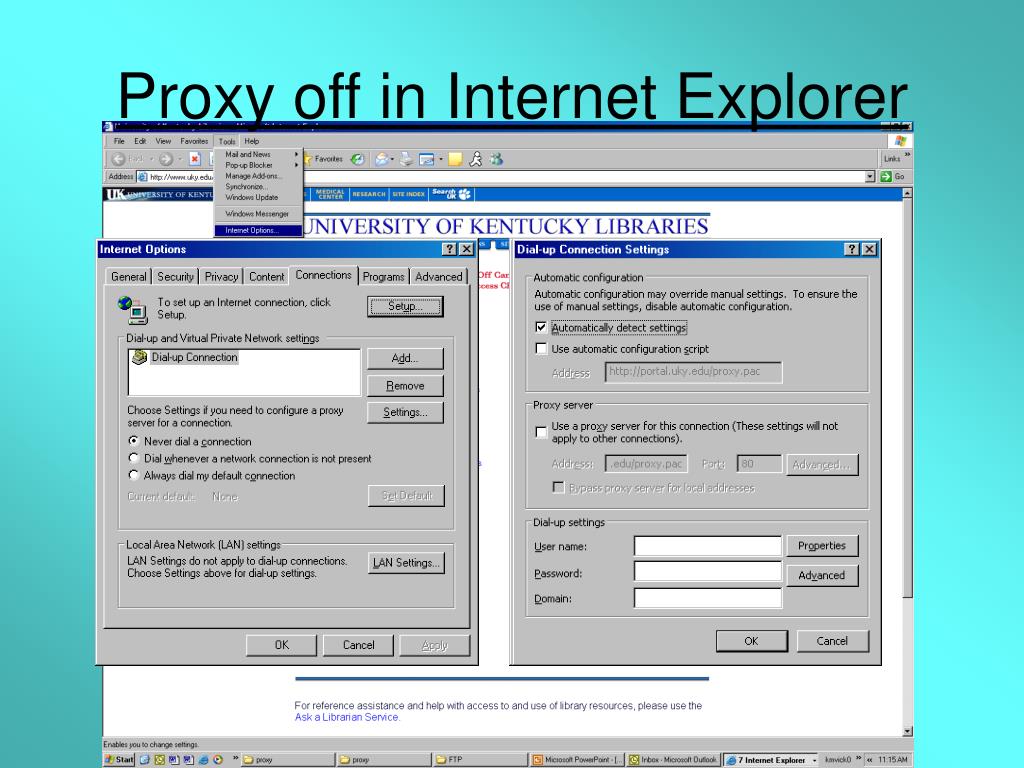

  18. Proxy off in Internet Explorer

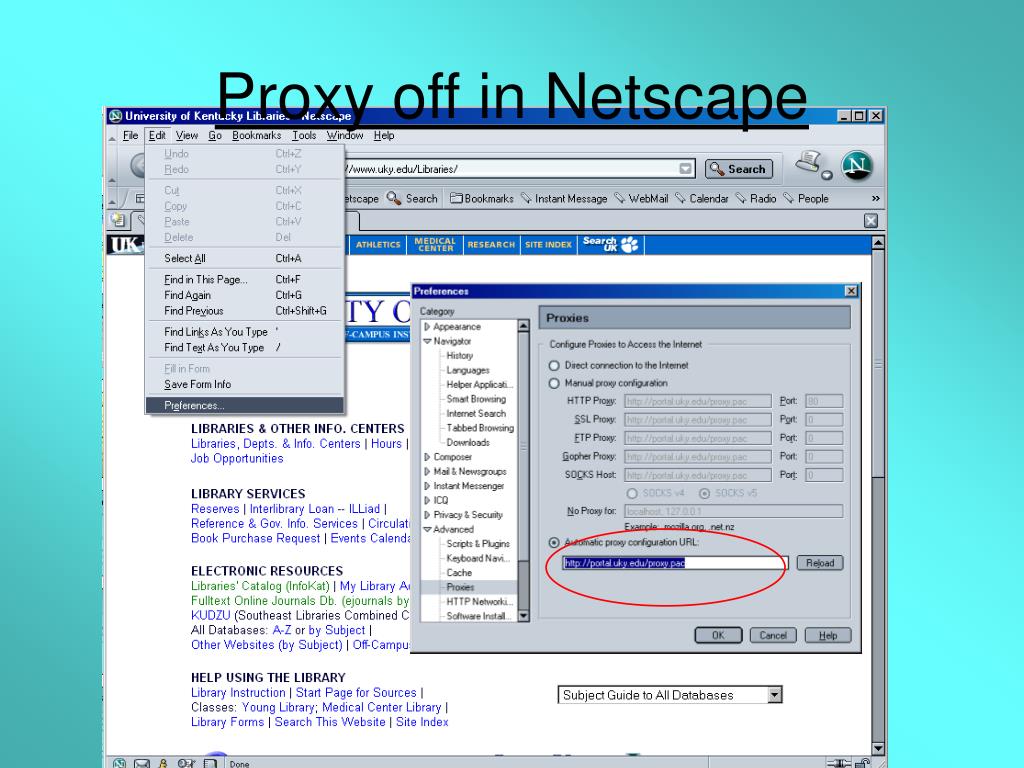

  19. Proxy off in Netscape

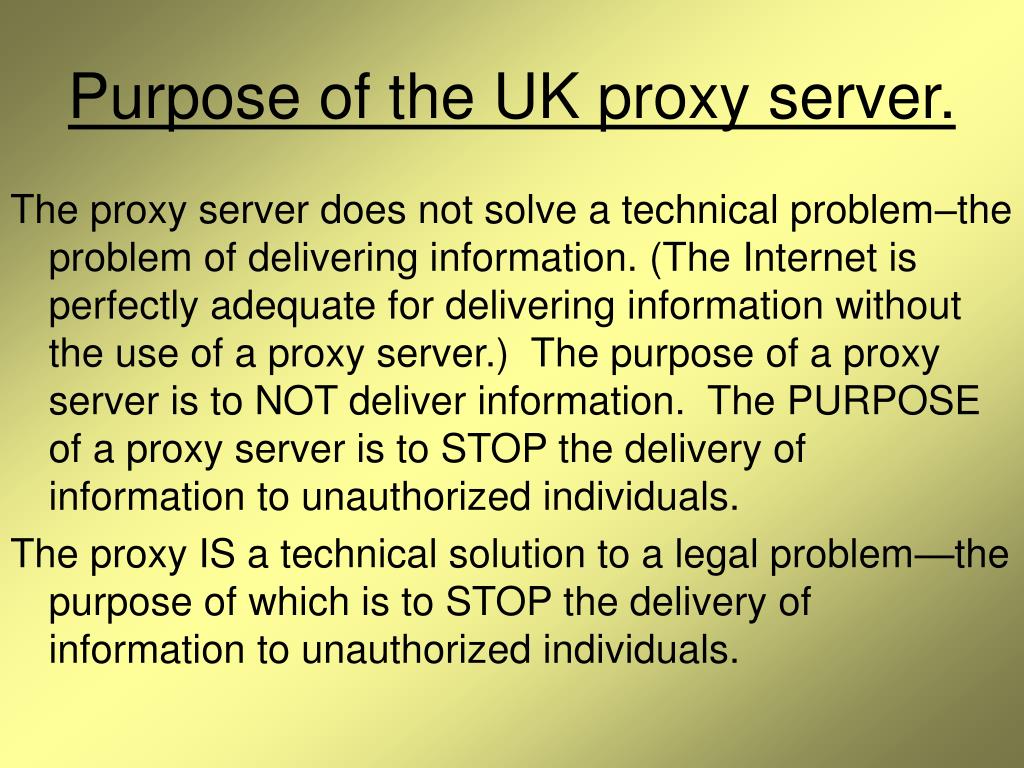

  20. Purpose of the UK proxy server. The proxy server does not solve a technical problem–the problem of delivering information. (The Internet is perfectly adequate for delivering information without the use of a proxy server.) The purpose of a proxy server is to NOT deliver information. The PURPOSE of a proxy server is to STOP the delivery of information to unauthorized individuals. The proxy IS a technical solution to a legal problem—the purpose of which is to STOP the delivery of information to unauthorized individuals.

  21. EZProxy function summary • Patron must click a link with ezproxy prefix. • Link must contain domain or host name in ezproxy configuration file. • Proxy prompts & checks User’s ID and password. • Proxy requests document from Vendor. • Proxy delivers document to Patron. Problems can occur in each step.

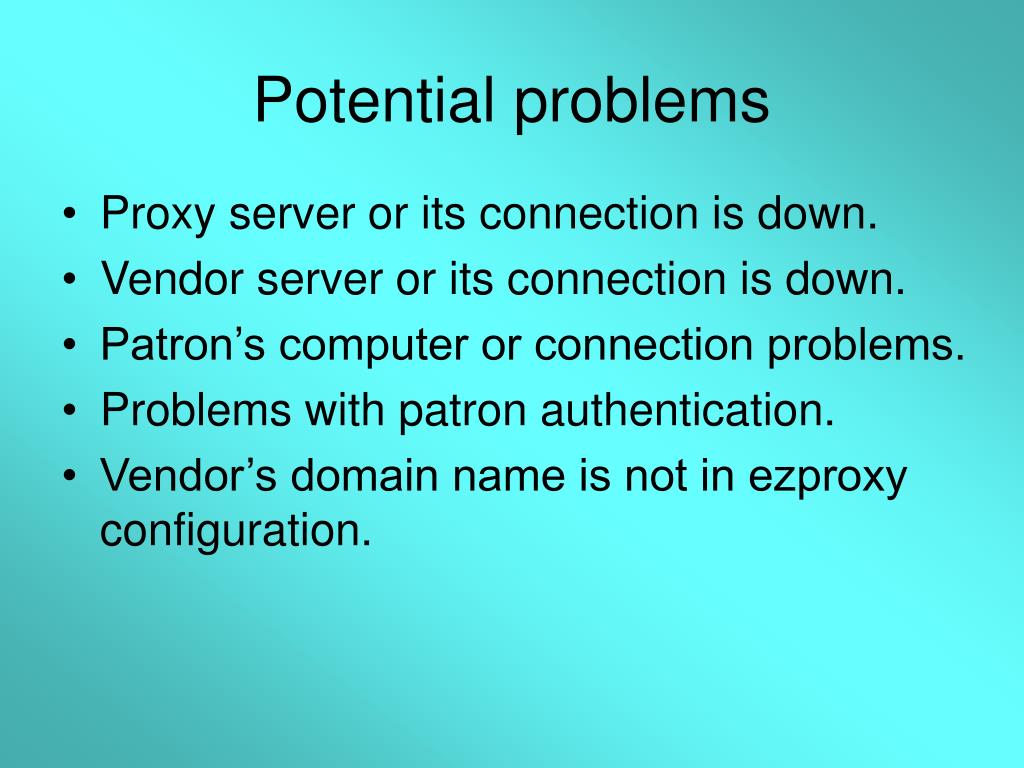

  22. Potential problems • Proxy server or its connection is down. • Vendor server or its connection is down. • Patron’s computer or connection problems. • Problems with patron authentication. • Vendor’s domain name is not in ezproxy configuration.

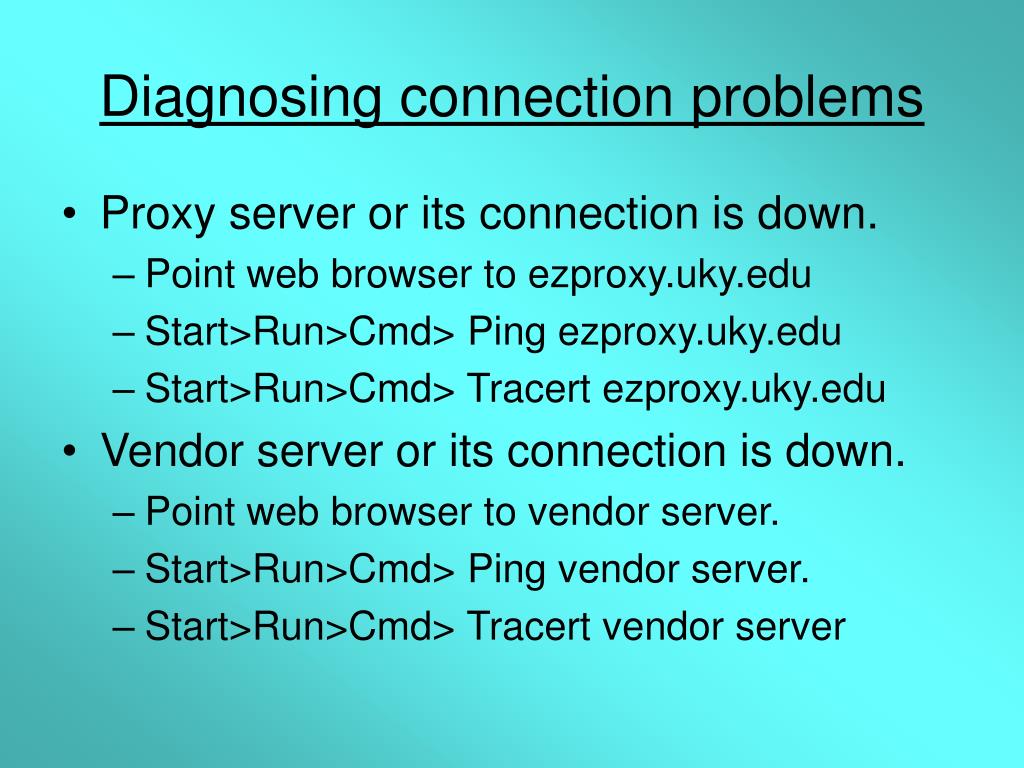

  23. Diagnosing connection problems • Proxy server or its connection is down. • Point web browser to ezproxy.uky.edu • Start>Run>Cmd> Ping ezproxy.uky.edu • Start>Run>Cmd> Tracert ezproxy.uky.edu • Vendor server or its connection is down. • Point web browser to vendor server. • Start>Run>Cmd> Ping vendor server. • Start>Run>Cmd> Tracert vendor server

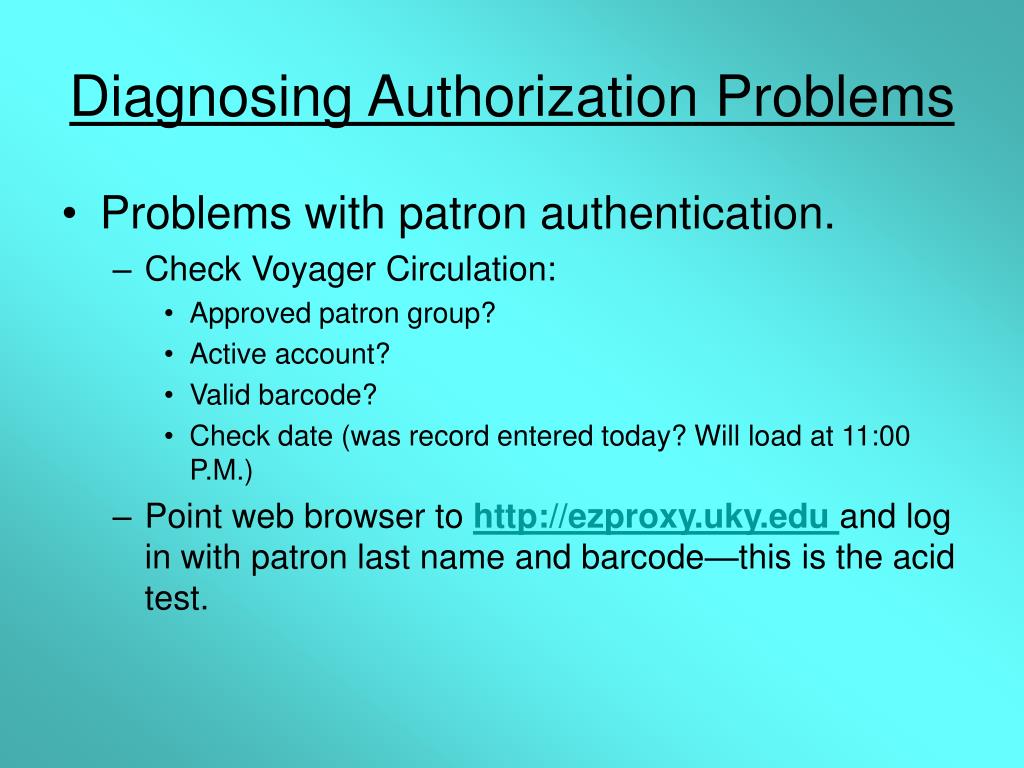

  24. Diagnosing Authorization Problems • Problems with patron authentication. • Check Voyager Circulation: • Approved patron group? • Active account? • Valid barcode? • Check date (was record entered today? Will load at 11:00 P.M.) • Point web browser to http://ezproxy.uky.eduand log in with patron last name and barcode—this is the acid test.

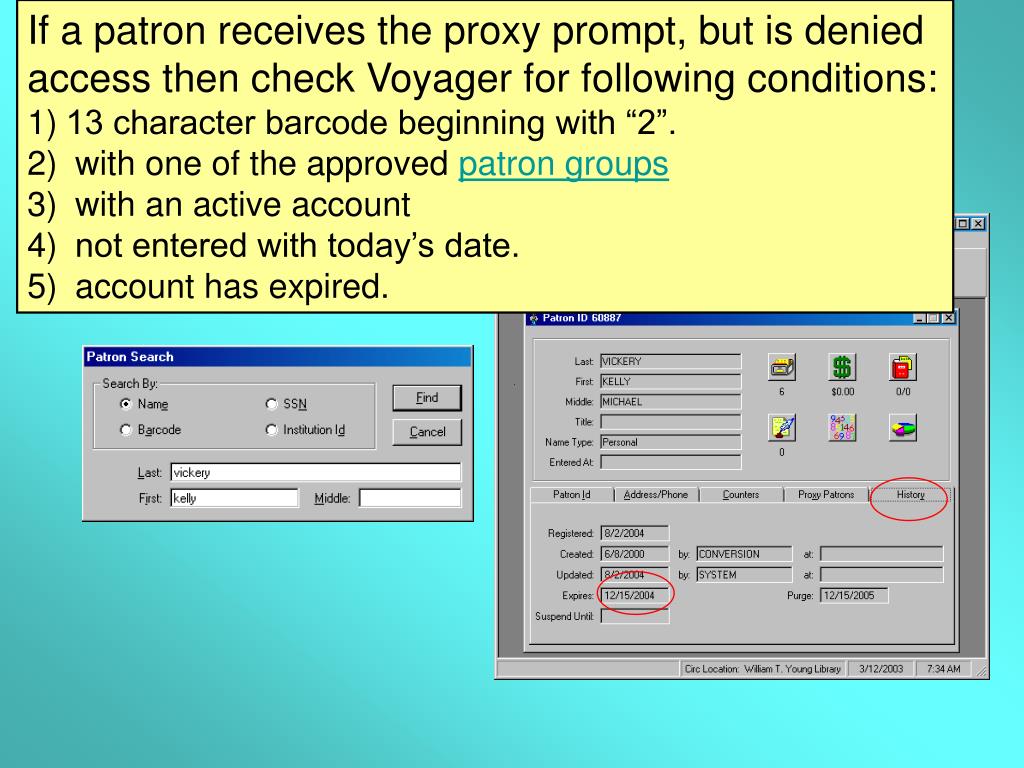

  25. If a patron receives the proxy prompt, but is denied • access then check Voyager for following conditions: • 13 character barcode beginning with “2”. • with one of the approved patron groups • with an active account • not entered with today’s date. • account has expired. Voyager Circulation

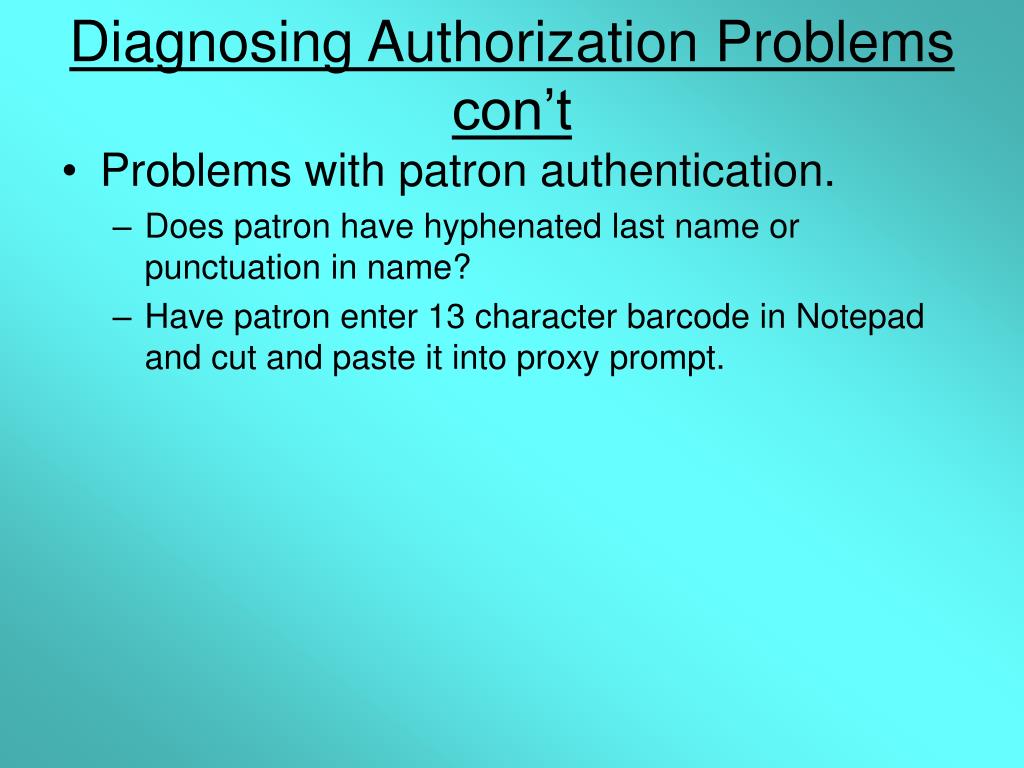

  26. Diagnosing Authorization Problems con’t • Problems with patron authentication. • Does patron have hyphenated last name or punctuation in name? • Have patron enter 13 character barcode in Notepad and cut and paste it into proxy prompt.

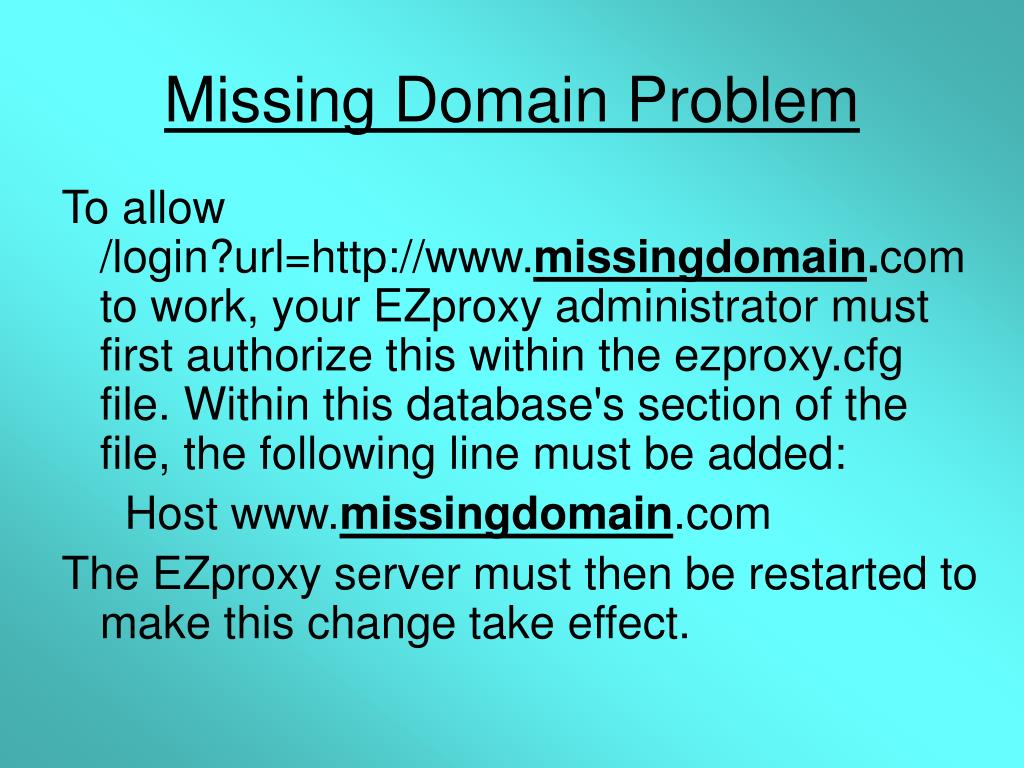

  27. Missing Domain Problem To allow /login?url=http://www.missingdomain.com to work, your EZproxy administrator must first authorize this within the ezproxy.cfg file. Within this database's section of the file, the following line must be added:      Host www.missingdomain.com The EZproxy server must then be restarted to make this change take effect.

  28. Domain & Host not in ezproxy config If a vendor domain and host name are not in the ezproxy configuration file then access to that service will be denied to all off-campus users. If patrons receive a message telling them to contact the ezproxy administrator then, if possible, send the URL displayed on the error page to proxy-l@lsv.uky.edu.

  29. You never would believe where those proxy cookies come from.

  30. Have a cookie Never higher than “Medium High”. Advanced…> Not “Block”

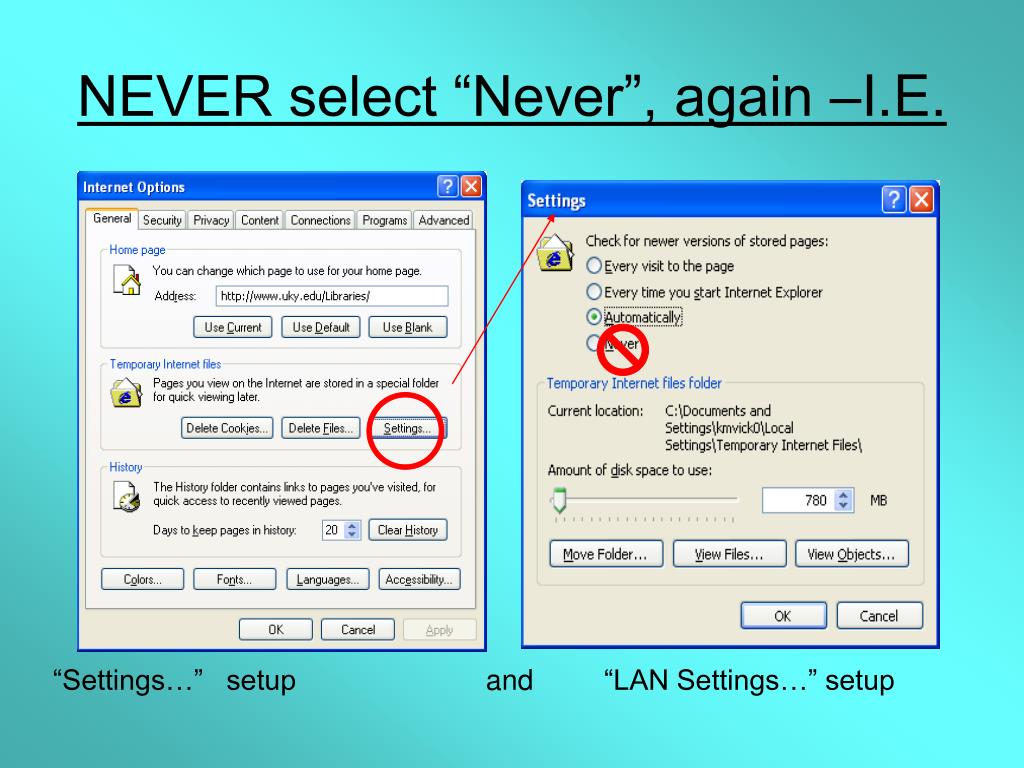

  31. NEVER select “Never”, again –I.E. “Settings…” setup and “LAN Settings…” setup

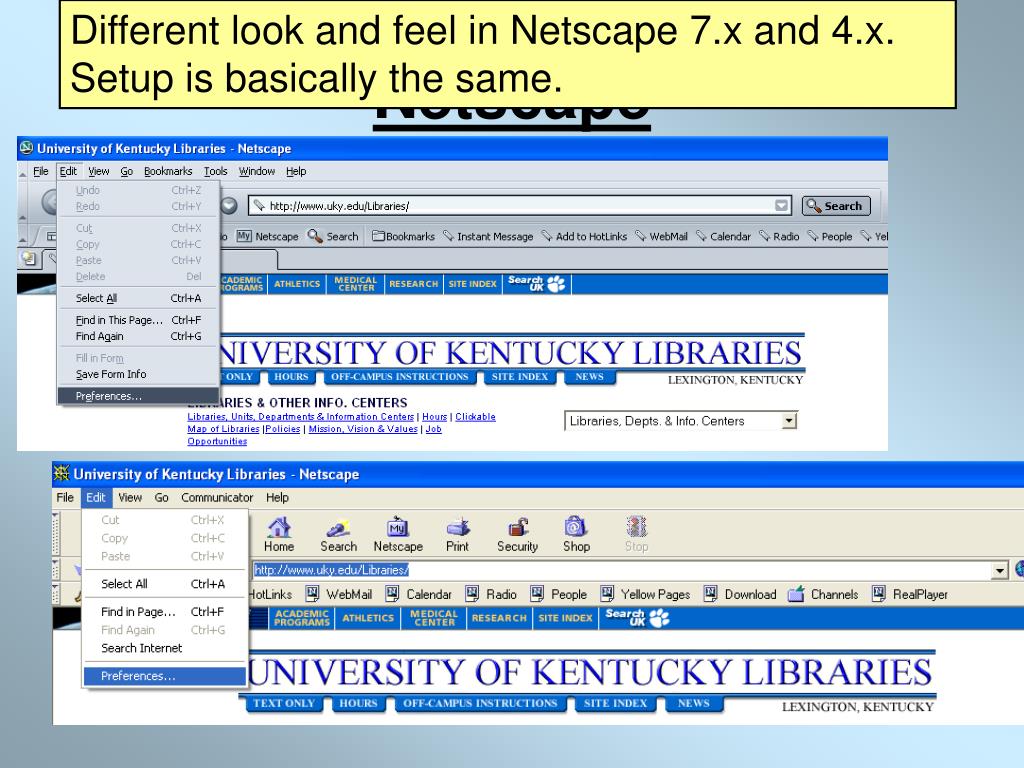

  32. Different look and feel in Netscape 7.x and 4.x. Setup is basically the same. Netscape

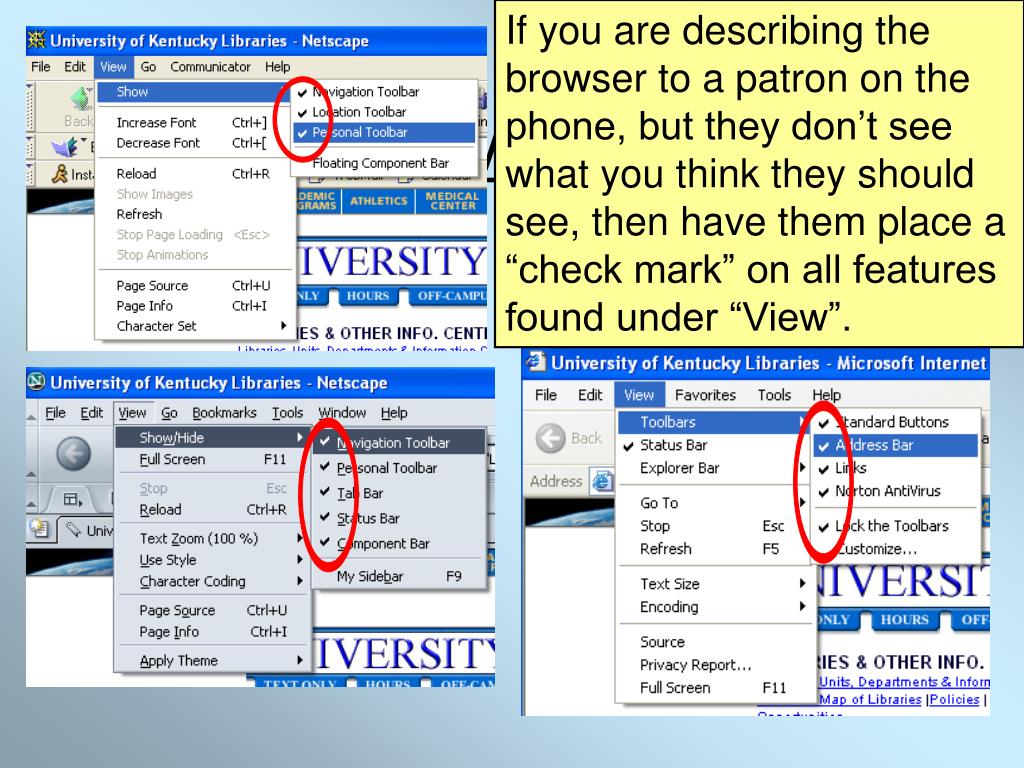

  33. If you are describing the browser to a patron on the phone, but they don’t see what you think they should see, then have them place a “check mark” on all features found under “View”. Viewing Problems

  34. Some web problems or browser configuration problems get blamed on the proxy. Check some of the following browser settings to ensure they are configured correctly (enabling Java, for instance). Check “Enable-Java” and cookies Netscape 4.8 and 7.0

  35. In the Cache, make sure “Never” is NOT selected. This can create problems if the patron receives an error viewing a web page. If the problem is corrected on the server the patron will continue viewing the cached error page. NEVER select “Never”!--Netscape

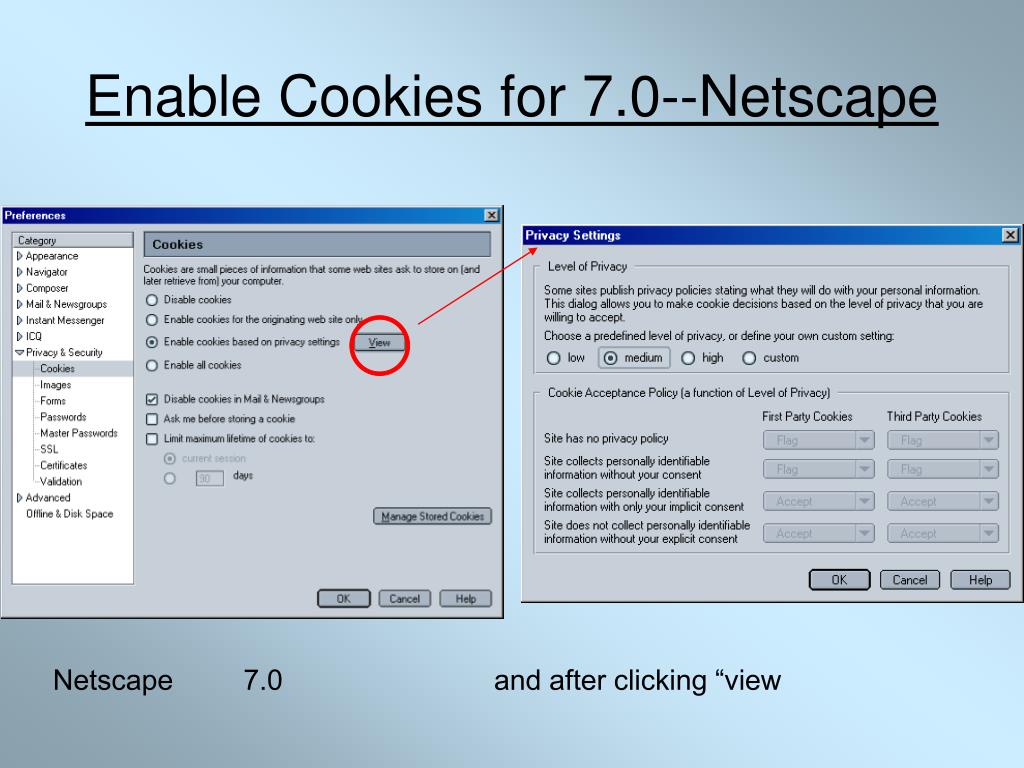

  36. Enable Cookies for 7.0--Netscape Netscape 7.0 and after clicking “view

  37. JavaScripts for 7.0 --Netscape …and finally.
