SCIF Orientation Flow Cytometry VenuPolineni Research Associate, Stem Cell Instrumentation Foundry UCM 5200 N. Lake Road Merced, CA 95343 Email: email@example.com

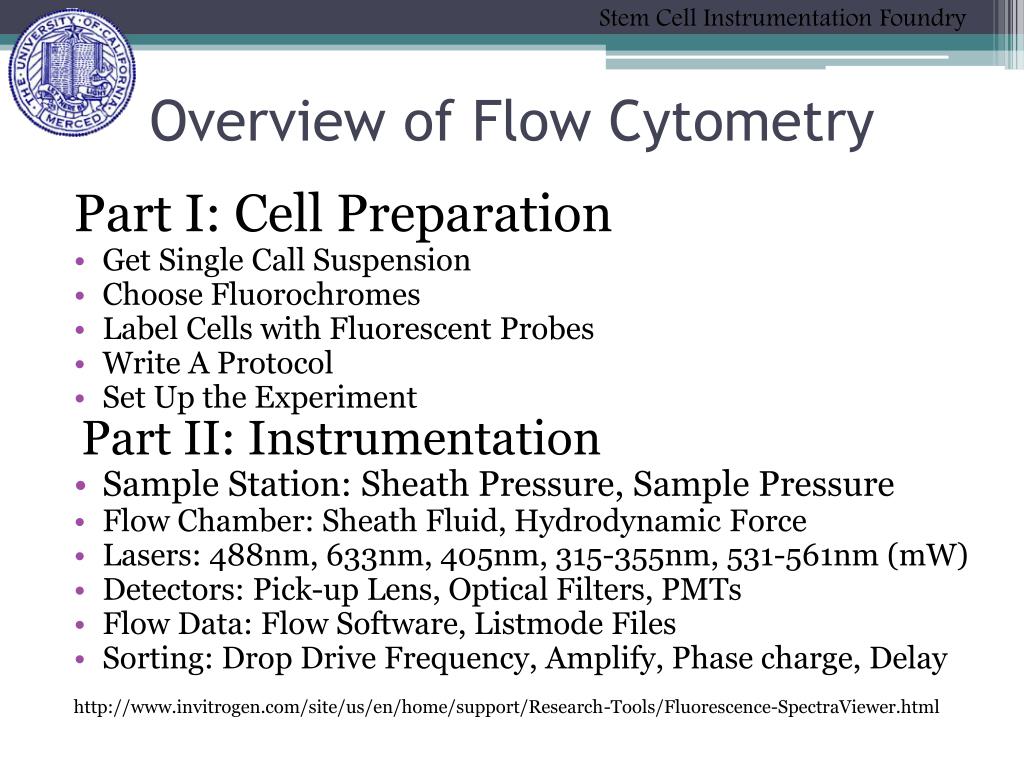

Overview of Flow Cytometry Part I: Cell Preparation • Get Single Call Suspension • Choose Fluorochromes • Label Cells with Fluorescent Probes • Write A Protocol • Set Up the Experiment Part II: Instrumentation • Sample Station: Sheath Pressure, Sample Pressure • Flow Chamber: Sheath Fluid, Hydrodynamic Force • Lasers: 488nm, 633nm, 405nm, 315-355nm, 531-561nm (mW) • Detectors: Pick-up Lens, Optical Filters, PMTs • Flow Data: Flow Software, Listmode Files • Sorting: Drop Drive Frequency, Amplify, Phase charge, Delay http://www.invitrogen.com/site/us/en/home/support/Research-Tools/Fluorescence-SpectraViewer.html

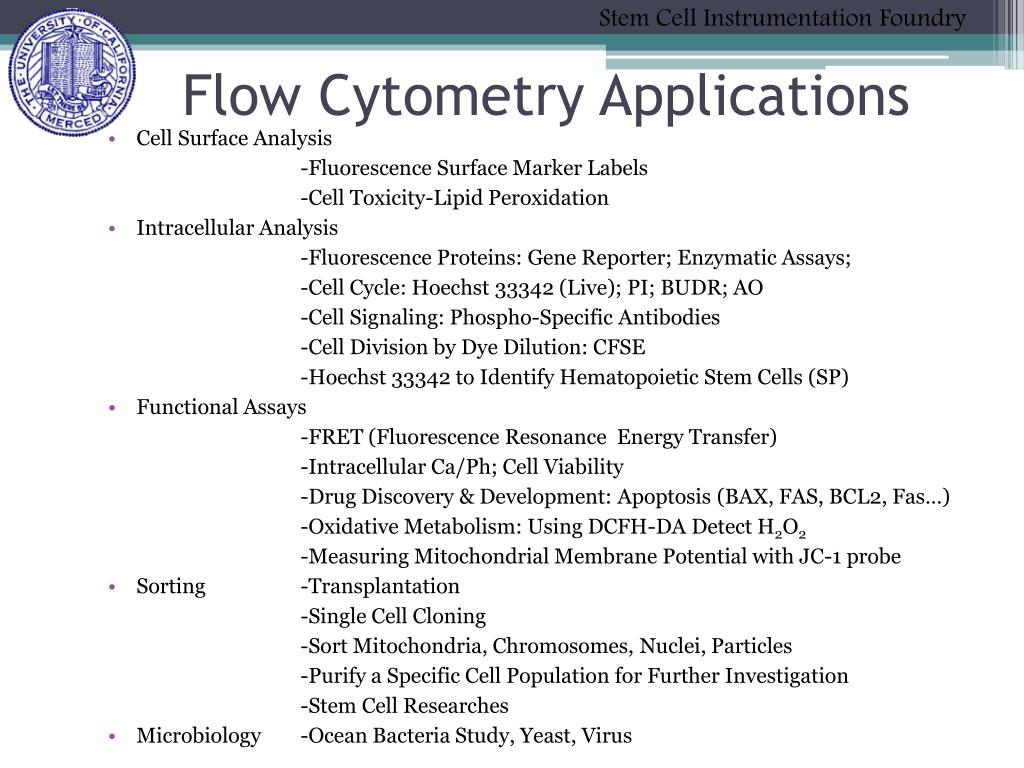

Flow Cytometry Applications • Cell Surface Analysis -Fluorescence Surface Marker Labels -CellToxicity-Lipid Peroxidation • Intracellular Analysis -Fluorescence Proteins: Gene Reporter; Enzymatic Assays; -Cell Cycle: Hoechst 33342 (Live); PI; BUDR; AO -Cell Signaling: Phospho-Specific Antibodies -Cell Division by Dye Dilution: CFSE -Hoechst 33342 to Identify Hematopoietic Stem Cells (SP) • Functional Assays -FRET (Fluorescence Resonance Energy Transfer) -IntracellularCa/Ph; Cell Viability -Drug Discovery & Development: Apoptosis (BAX, FAS, BCL2, Fas…) -Oxidative Metabolism: Using DCFH-DA Detect H2O2 -Measuring Mitochondrial Membrane Potential with JC-1 probe • Sorting -Transplantation -Single Cell Cloning -Sort Mitochondria, Chromosomes, Nuclei, Particles -Purify a Specific Cell Population for Further Investigation -Stem Cell Researches • Microbiology -Ocean Bacteria Study, Yeast, Virus
SCIF Flow Cytometry Instrumentation BD LSRII Multi-Laser Analyzer BD AriaII/III Multi-Laser Sorter

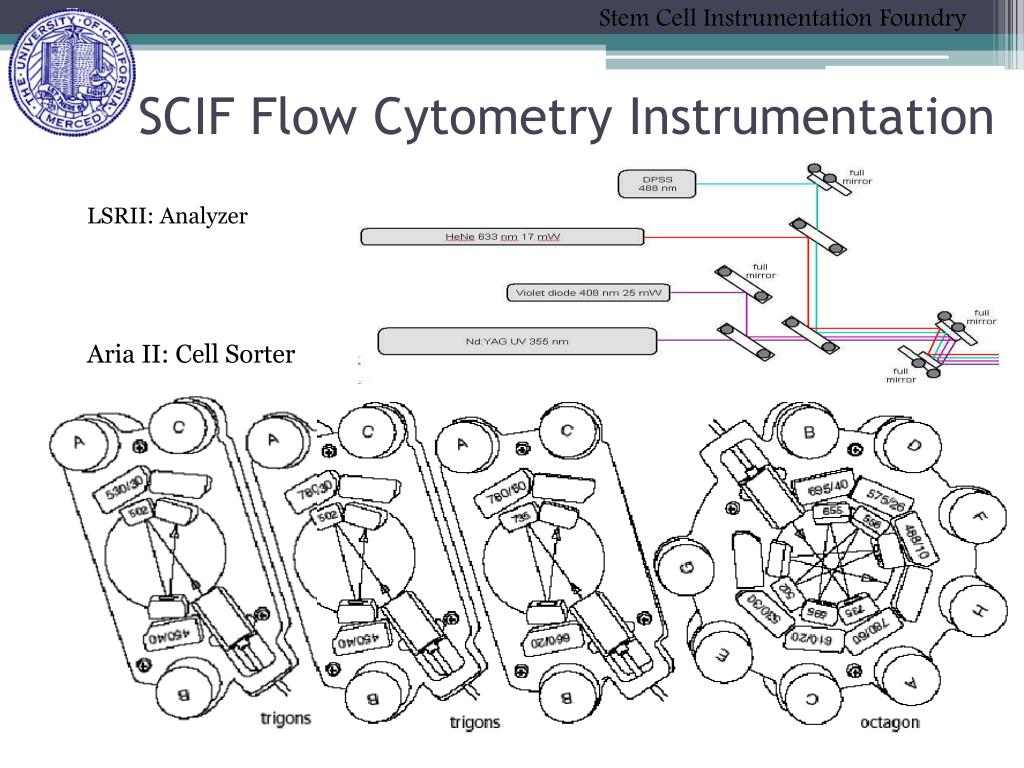

SCIF Flow Cytometry Instrumentation LSRII: Analyzer Aria II: Cell Sorter
SCIF Flow Cytometry Instrumentation Aria III Cell Sorter
Safety • -General Lab Safety • -Electrical Safety • -Optical/Laser Safety • -Biohazard Safety
Symbols Electrical Shock Laser Irradiation Biohazard Caution • Electrical Shock-Risk of Electric Shock • Laser Irradiation-Avoid looking directly into laser, as it may cause permanent eye damage. • Biohazard-Biological hazard/Risk • Caution-Important; Attention; Refer to Accompanying Documentation
General Lab Safety The Flow Core is a BSL-2 Lab • Controlled access • Users must wash their hands after working with potentially hazardous materials and before leaving the laboratory. • No food and drink • Mouth pipetting is prohibited • Perform all procedures to minimize the creation of splashes and/or aerosols. • Gloves, lab coat and eye protection be worn when handling biohazard samples and waste fluid which may contain hazardous levels of biological contamination • Decontaminate Machine after completion of work • Decontaminate all cultures, stocks, and other potentially infectious materials
Electrical Safety • Stream Charge When the sheath stream is charged and individual droplets are formed, the droplets remain the charge present on the stream. • Do not insert any object into the charged stream. • Do not touch any steel parts. • Drop Drive Voltage This ranges from 0-140 VAC and is used to drive the piezoelectric crystal mounted in the cuvette flow cell • Do not touch the cuvette flow cell • Sort Deflection Plates The range of voltage applied to these plates is 0-4000 VDC • Do not touch the charged plates when HV is on.
Laser Safety • Accessible Emission Limit, AEL, Maximum Permissible Exposure, MPE, Nominal Hazard Zone, NHZ, Laser Product Hazard Classified, Class 1 to 4. • Class1 • Meaning: safe • Type of laser: very low power lasers or enclosed lasers. • MPE: is never exceeded, even for very long exposure (hours), or with the use of optical instruments. • Nominal Hazard Zone: none. • Typical AEM: 40 µW for blue. • The lasers on LSRII and Arias are a class 1 product; meaning operators are not exposed to harmful levels of laser irradiation during normal operation. • Cautions: • Remove all jewelry when working with an open beam. Do not place shiny or reflective objects into the path of the laser beam. Use all protective housing , interlocks, and shields as identified in training.
Biological Effects of Laser Irradiation • Eye Injury eye exposure to a direct laser beam can cause permanent eye damage including blindness. Laser wavelengths between 400-1400 nm are the most hazardous for retinal eye injury. UV-A lasers (315-390 nm) can cause damage to the lens of the eye contributing to cataracts. • Do not expose your eye to the horizontal plane of the laser beam (direct or diffuse).
Biological Effects of Laser Irradiation Skin Injury • Skin exposure to direct and diffuse laser light can cause damage. Lasers in the UV-A (315-390 nm) can cause erythema (sunburn). Exposure in the UV-B (280-315 nm) can cause the most severe effects, such as sunburn, skin cancer and accelerated skin aging. • Wear protective clothing (lab coat, long-sleeves) when using UV lasers and when potential exposure to direct laser beam exit.
Biohazard Safety IMPORTANT If any hazardous organism, material, or agent is used in the instrument, the Principal Investigator is responsible for informing the Dept. SCIF in writing of those hazards before receiving service. This includes a list of all pathogenic cell lines, hazardous reagents, radioactive material, or agents with a BSL level II or higher. Failure to report this information may delay services on an instruments.

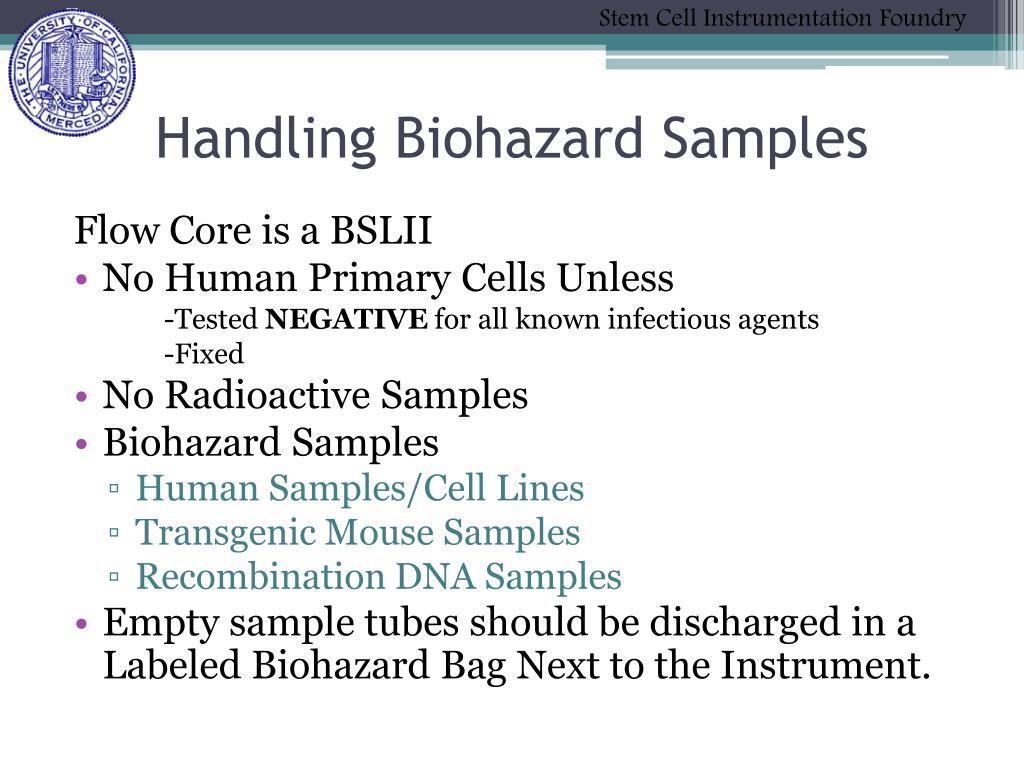

Handling Biohazard Samples Flow Core is a BSLII • No Human Primary Cells Unless -Tested NEGATIVE for all known infectious agents -Fixed • No Radioactive Samples • Biohazard Samples • Human Samples/Cell Lines • Transgenic Mouse Samples • Recombination DNA Samples • Empty sample tubes should be discharged in a Labeled Biohazard Bag Next to the Instrument.
Hazard Waste Hazardous Chemical List: • Sodium Azide -Beads -Primary/2n d Abs • All empty bottles should be discharged in a Labeled Chemical Hazard Bag Next to the Instrument. • Propidium Iodide • Sample Tubes: should through in Labeled Biohazard Bag or Container • Pipette Tips: should through in Labeled Biohazard Sharp Container • Waste Sheath Fluid • Should always be 10% Bleach (300-400ml bleach)
Rules and regulations Procedures and policies outlined in this presentation are for the purpose of protecting the SCIF wet laboratory workers and equipment. Anyone found in violation of the aforementioned procedures will suffer consequences, which may include a loss of privileges or even a complete loss of access to the SCIF. In order to prevent such consequences, it is your responsibility to review the SCIF SOPs.
SCIF Flow Cytometry Additional Rules All users should: • Complete the Orientation and pass the test • Must Be trained, Certified, and signed off before operating independently • Required to signed the SCIF Disclosure Agreement • Must follow the SCIF Flow Cytometry procedures • Clean up the working area after finish The first user of a day MUST empery the waste tank The last user of a day MUST fill up the sheath tank

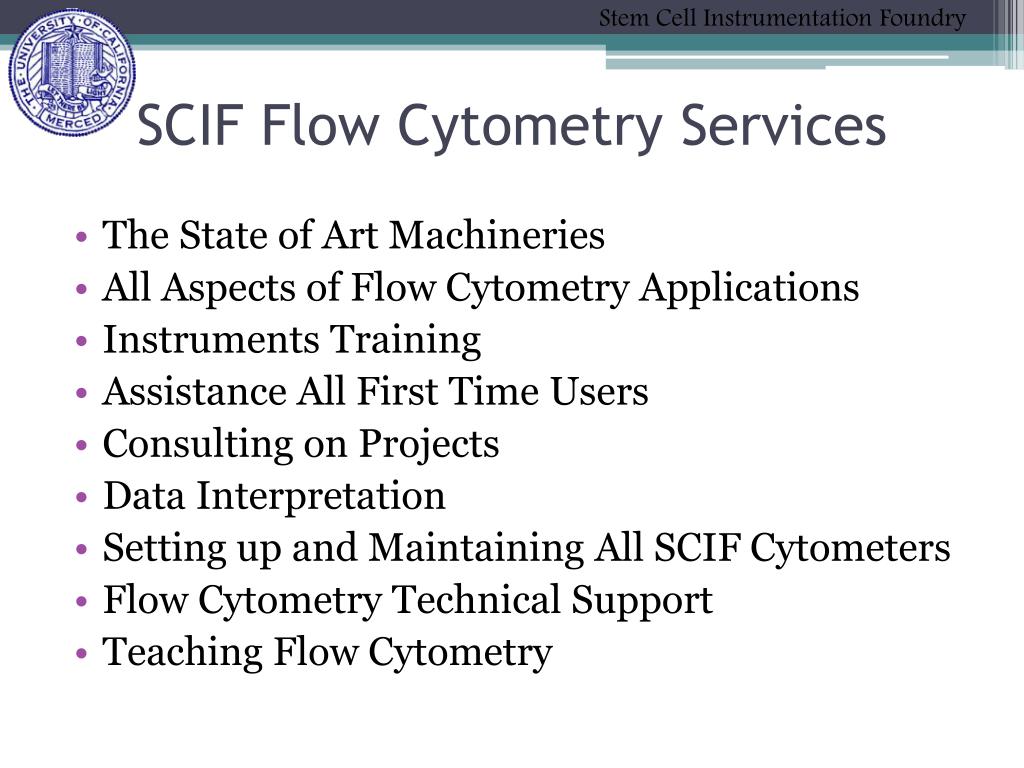

SCIF Flow Cytometry Services • The State of Art Machineries • All Aspects of Flow Cytometry Applications • Instruments Training • Assistance All First Time Users • Consulting on Projects • Data Interpretation • Setting up and Maintaining All SCIF Cytometers • Flow Cytometry Technical Support • Teaching Flow Cytometry
