Detecting Format String Vulnerabilities with Type Qualifier Umesh Shankar, Kunal Talwar, Jeffrey S. Foster, David Wanger University of California at Berkeley
Format String Bugs • I/O functions in C use format strings printf(“%s”, buf) print buf as string • But you can also do printf(buf);
Format String Bugs • Attacker may set the content in the buffer buf = <data-from-network> printf(buf); • Set buf = “%s%s%s%s%s” to crash program • Set buf = “…%n…” to write to memory may yield exploits to gain root access

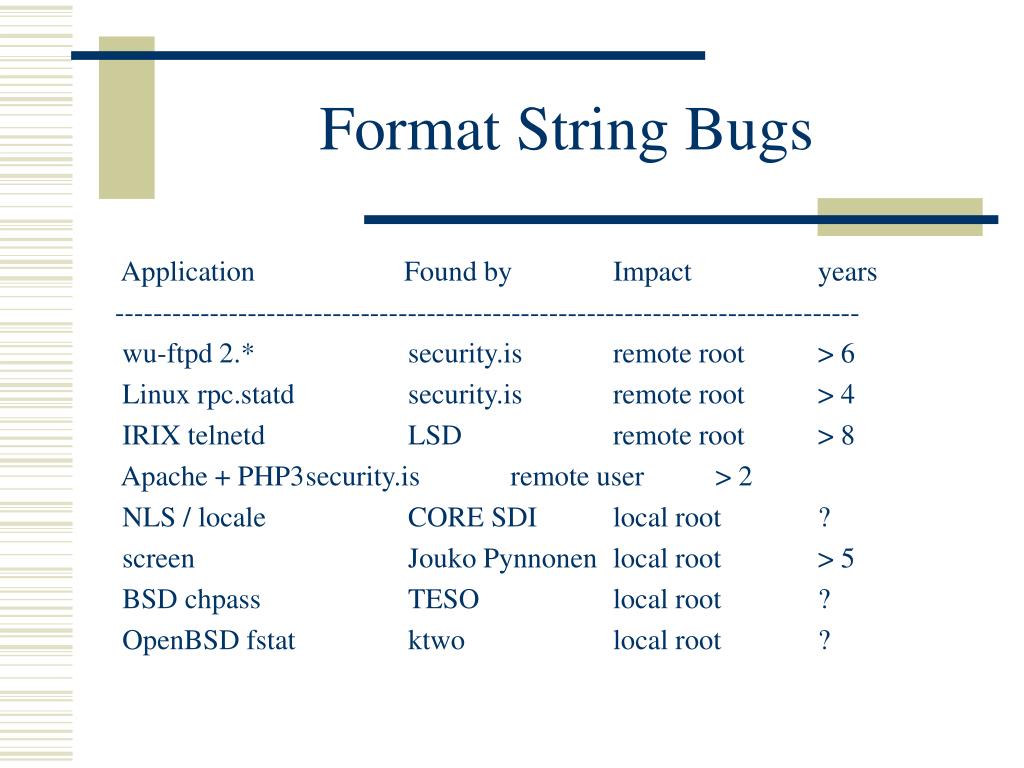

Format String Bugs Application Found by Impact years ------------------------------------------------------------------------------- wu-ftpd 2.* security.is remote root > 6 Linux rpc.statd security.is remote root > 4 IRIX telnetd LSD remote root > 8 Apache + PHP3 security.is remote user > 2 NLS / locale CORE SDI local root ? screen Jouko Pynnonen local root > 5 BSD chpass TESO local root ? OpenBSD fstat ktwo local root ?

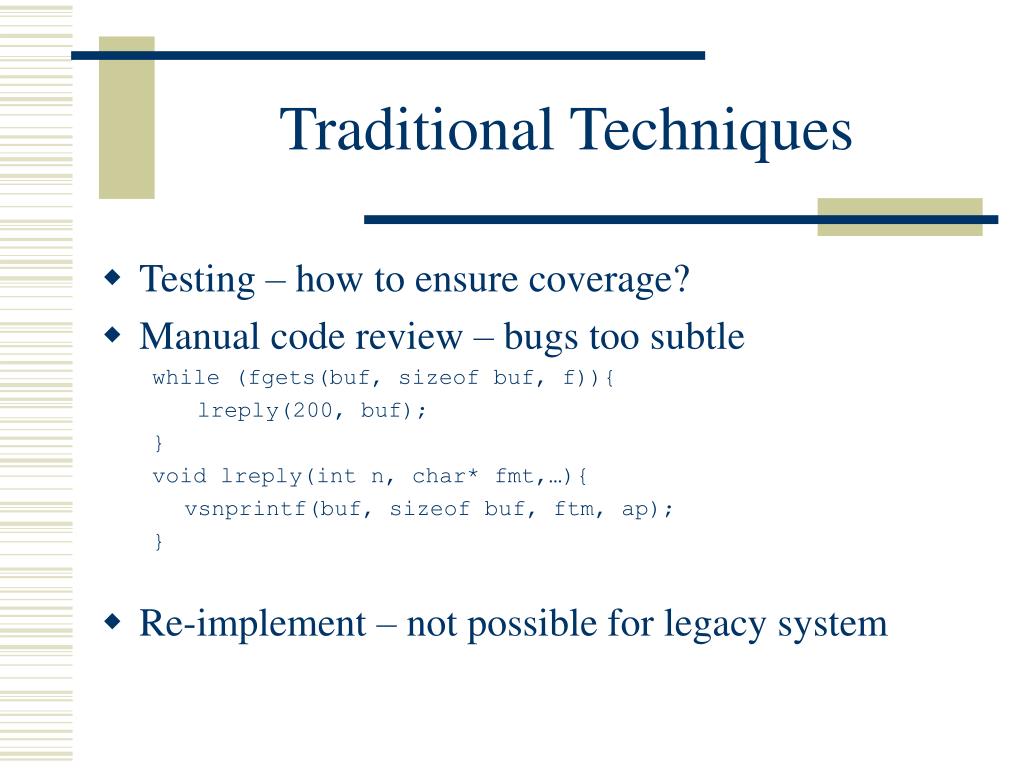

Traditional Techniques • Testing – how to ensure coverage? • Manual code review – bugs too subtle while (fgets(buf, sizeof buf, f)){ lreply(200, buf); } void lreply(int n, char* fmt,…){ vsnprintf(buf, sizeof buf, ftm, ap); } • Re-implement – not possible for legacy system
Using Type Qualifiers • Add qualifier annotations int printf(untainted char *fmt, …); tainted int getchar(); int main(int argc, tainted char *argv[]); tainted = may be controlled by the attacker untainted = must not be controlled by the attacker
The Basic Idea void f(tainted int); untainted int a; tainted int b; f(a); // OK f(b); // OK void g(untainted int) untainted int a; tainted int b; g(a); // OK g(b); // Error
Subtyping void f(tainted int); untainted int a; f(a); void g(untainted int) tainted int b; g(b); f accepts both tainted and untainted data. g only accepts untainted data. untainted < tainted

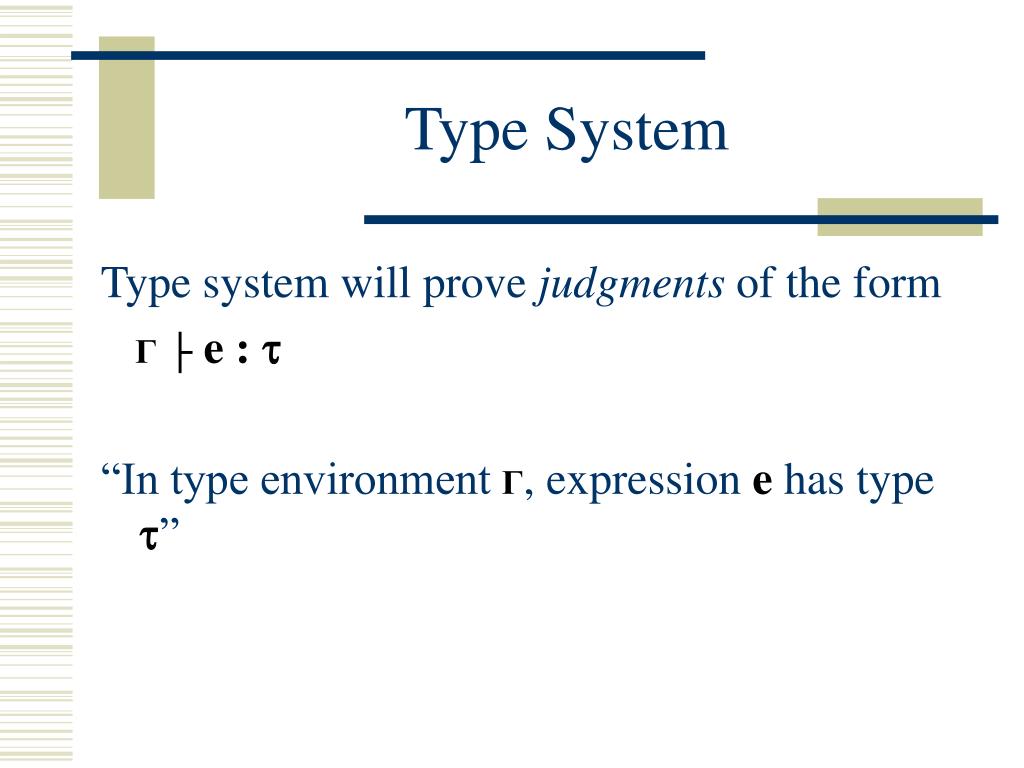

Type System Type system will prove judgments of the form Γ├ e : “In type environment Γ, expression e has type ”
Type Rules ├ e1: 1 2 ├ e2: 1 ├ e1 e2: 2 “In type environment , if expression e1 has type from 1 to 2 and e2 has type 1, then application of e2 to e1 has type 2”
Partial Order A partial order is a relation that satisfies the following three properties: 1. reflexivity: a a 2. antisymmetry: If a b and b a then a = b 3. transitivity: If a b, b c, then a c
a c d tainted b untainted Lattice A lattice is a partial order where any two elements x and y have a least upper bound, x y, and a greatest lower bound, x y.

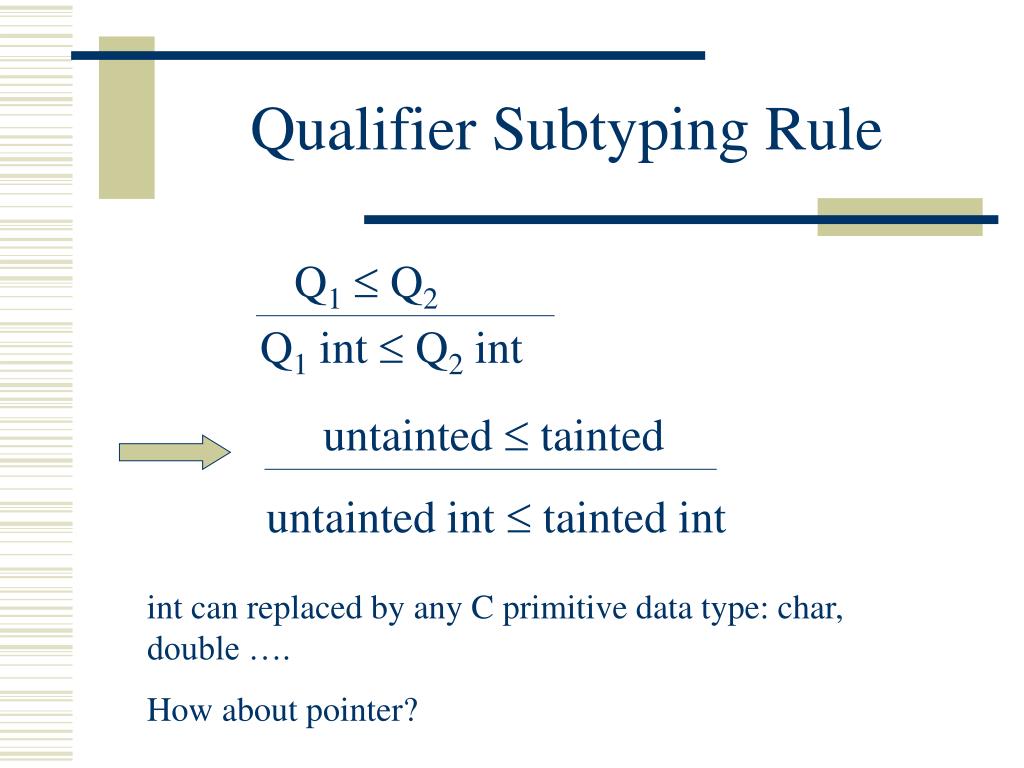

Qualifier Subtyping Rule Q1 Q2 Q1 int Q2 int untainted tainted untainted int tainted int int can replaced by any C primitive data type: char, double …. How about pointer?
Pointer Qualifier Subtyping Rule Q1 Q2 T1 T2 Q1 ptr(T1) Q2 ptr(T2) Wrong! tainted char *t; // T2 = tainted char untainted char *u; // T1 = untainted char t = u; // allowed by the wrong rule *t = <tainted data>; // t is alias of u

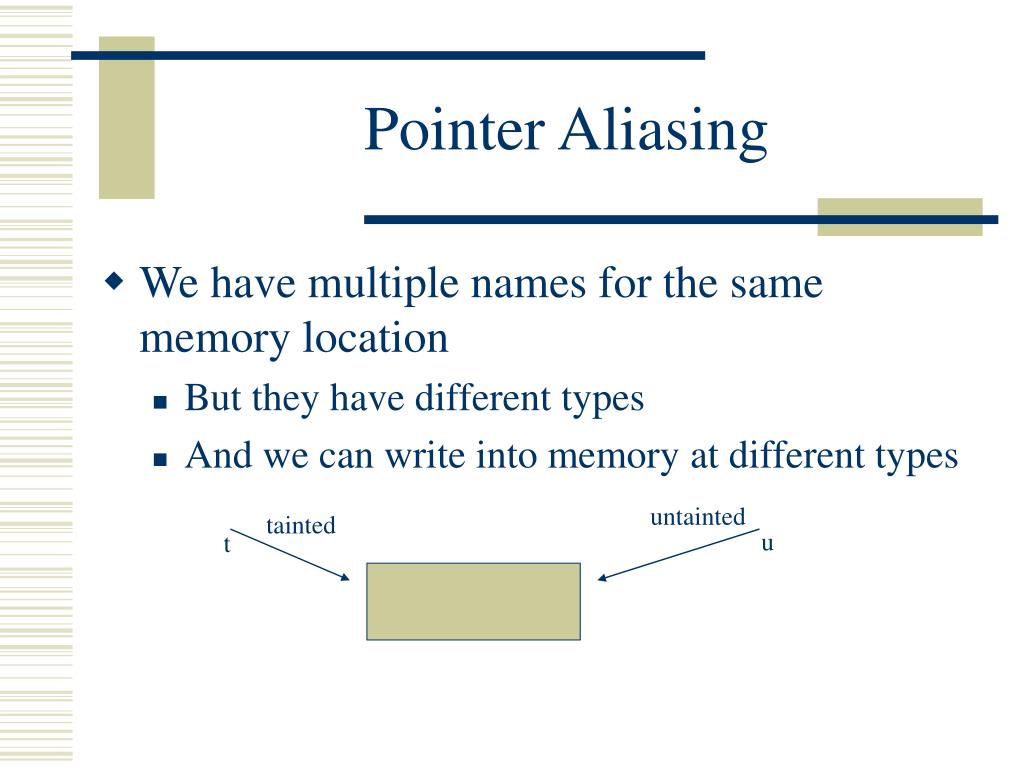

Pointer Aliasing • We have multiple names for the same memory location • But they have different types • And we can write into memory at different types untainted tainted u t

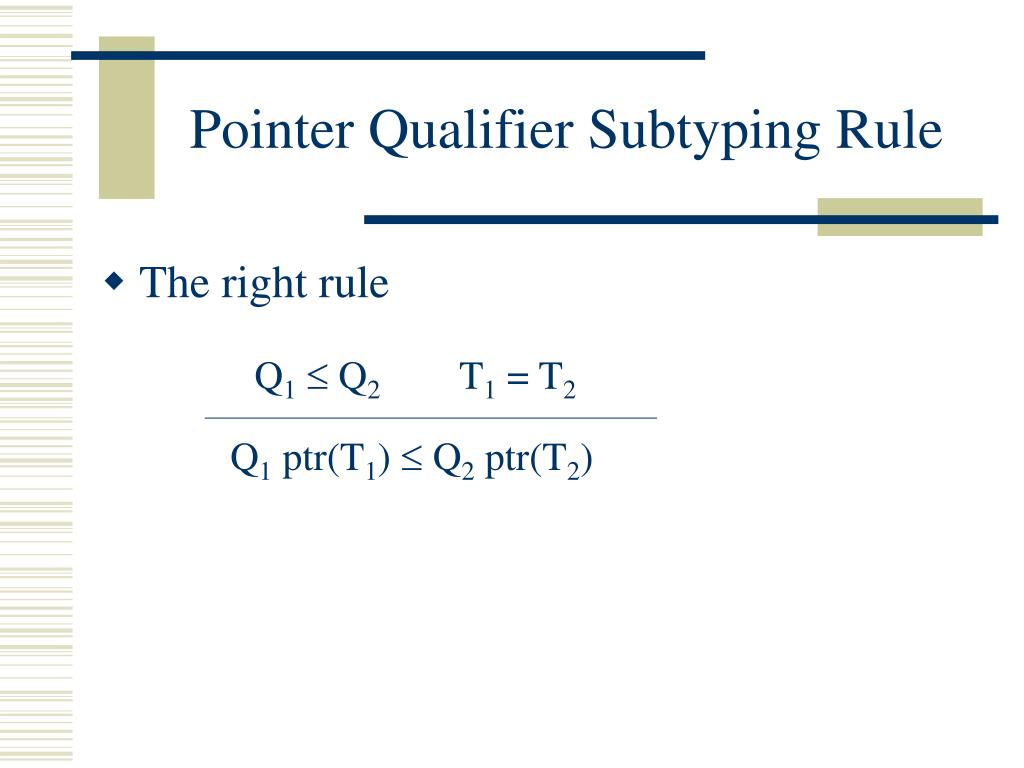

Pointer Qualifier Subtyping Rule • The right rule Q1 Q2 T1 = T2 Q1 ptr(T1) Q2 ptr(T2)
Type Qualifier Inference • Recall the format string vulnerabilities • We have legacy C program that had no information about qualifiers • We add qualifier annotation for the standard library functions • Then we check whether there were any contradiction • This requires type qualifier inference
Qualifier Inference • A small number of annotations at key places in the program • Generate a fresh qualifier variable at every position for a type • Analyze and generate sub-typing constraints • Check if the constraints have a valid solution
Qualifier Inference Example getenv_ret_p = tainted printf_arg0_p = untainted getenv_ret s getenv_ret_p s_p s t s_p t_p t printf_arg0 t printf_arg0_p tainted char *getenv (const char *name) int printf(untaintd const char *fmt, …) char *s, *t s = getenv(“LD_LIBRARY_PATH”); t = s; printf(t); tainted = getenv_ret_p s_p t_p printf_arg0_p = untainted tainted untainted Error!
Type Rules So Far • Primitive types Q1 Q2 Q1 int Q2 int • Pointer Q1 Q2 T1 = T2 Q1 ptr(T1) Q2 ptr(T2)

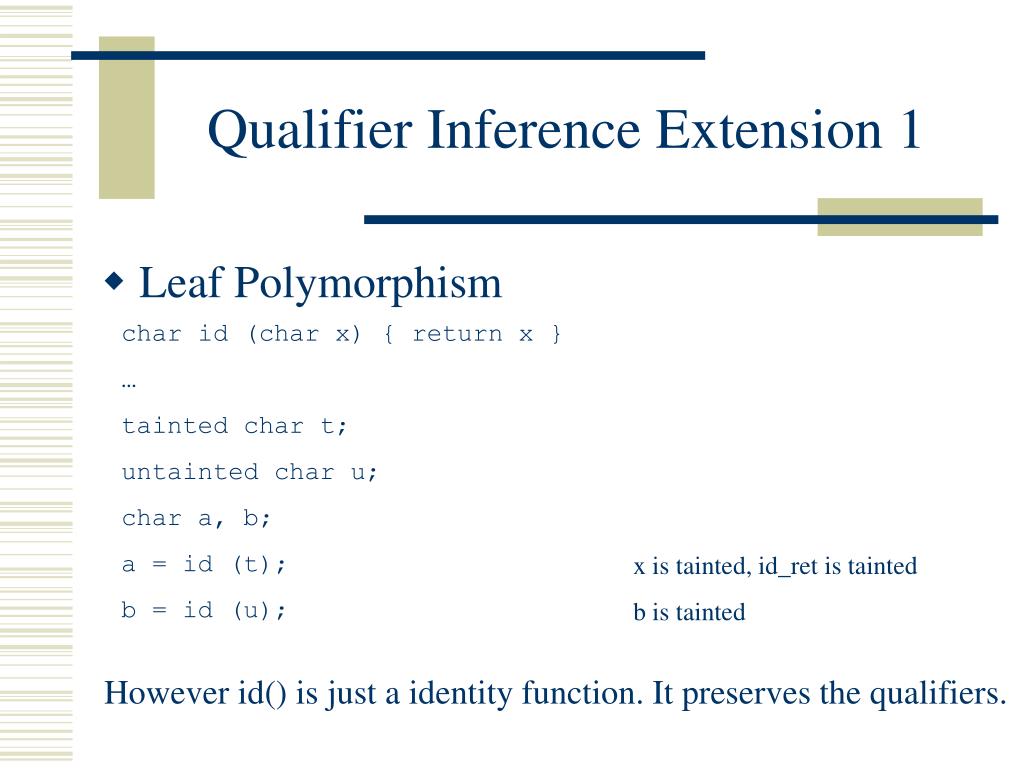

Qualifier Inference Extension 1 • Leaf Polymorphism char id (char x) { return x } … tainted char t; untainted char u; char a, b; a = id (t); b = id (u); x is tainted, id_ret is tainted b is tainted However id() is just a identity function. It preserves the qualifiers.
Polymorphism • Add in a qualifier variable to id() function char id ( char x) • Instantiate the to the correct qualifier for each function call a = id (t) tainted char id (tainted char x) b = id (u) untainted char id (untainted char x)
Polymorphism - Subtyping • Use naming trick to specify subtyping relation for polymorphism $_1_2 char* strcat($_1_2 char*, $_1 const char*) {1} {1, 2} $_1 $_1_2
Qualifier Inference Extension 2 • Explicit Type Casts • Type cast should preserve the qualifier void *y; char *x = (char*) y; // if y is tainted, x should be tainted • Preserve by collapsing qualifiers char **s, **t; void *v = (void *) s; s_p = s_p_p = v_p t = (char **)v; v_p = t_p = t_p_p If either *s or **s is tainted, then *v is tainted and *t and **t is tainted

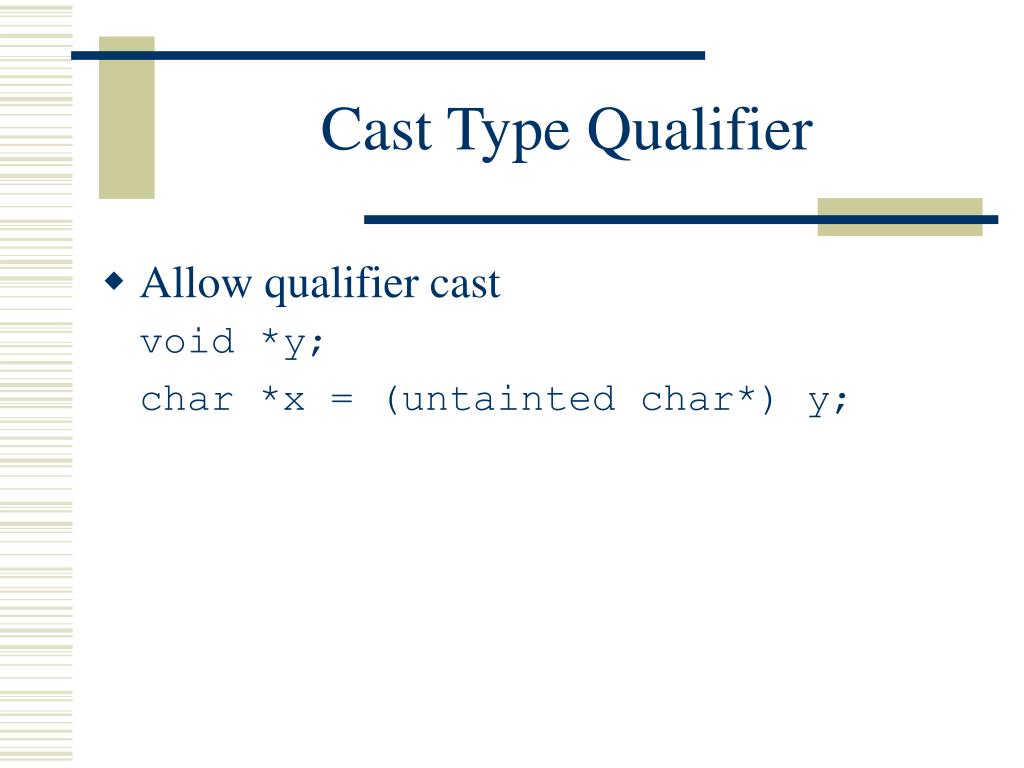

Cast Type Qualifier • Allow qualifier cast void *y; char *x = (untainted char*) y;
Qualifier Inference Extension 3 • Variable Argument Functions • Annotate the varargs specifier … int printf(untainted char*, untainted …); • Use naming trick to specify the subtyping relation int sprintf($_1_2 char*, untainted char *, $_2 …);
Qualifier Inference Extension 4 • Const f(const char *x); char *unclean, *clean; unclean = getenv(“PATH”); // returns tainted f(unclean); f(clean); unclean is tainted clean is tainted Pointer Rule Q1 Q2 T1 = T2 Q1 ptr(T1) Q2 ptr(T2)

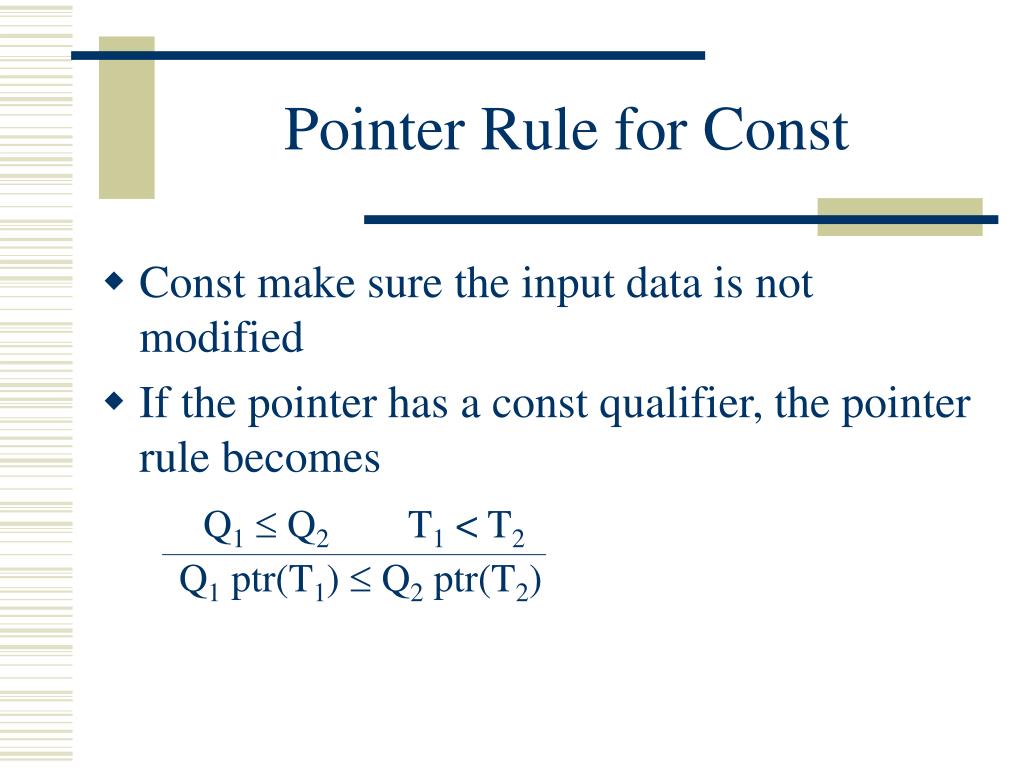

Pointer Rule for Const • Const make sure the input data is not modified • If the pointer has a const qualifier, the pointer rule becomes Q1 Q2 T1 < T2 Q1 ptr(T1) Q2 ptr(T2)
Evaluation
Conclusion • Qualifier is a generic static analysis technique • User-Space/Kernel-Space Trust Errors • Deadlock Detection • Has low false positive and negative rates
Demo of Cqual
