Central Limit Theorem

Central Limit Theorem. Example: (NOTE THAT THE ANSWER IS CORRECTED COMPARED TO NOTES5.PPT) 5 chemists independently synthesize a compound 1 time each. Each reaction should produce 10ml of a substance.

jaafar
Télécharger la présentation

Central Limit Theorem

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. Central Limit Theorem • Example: (NOTE THAT THE ANSWER IS CORRECTED COMPARED TO NOTES5.PPT) • 5 chemists independently synthesize a compound 1 time each. • Each reaction should produce 10ml of a substance. • Historically, the amount produced by each reaction has been normally distributed with std dev 0.5ml. • What’s the probability that less than 49.8mls of the substance are made in total? • What’s the probability that the average amount produced is more than 10.1ml? 3. Suppose the average amount produced is more than 11.0ml. Is that a rare event? Why or why not? If more than 11.0ml are made, what might that suggest?

  2. Answer: • Central limit theorem: If E(Xi)=m and Var(Xi)=s2 for all i (and independent) then: X1+…+Xn ~ N(nm,ns2) (X1+…+Xn)/n ~ N(m,s2/n)

  3. Lab: • Let Y = total amount made. Y~N(5*10,5*0.52) (by CLT)Pr(Y<49.8) = Pr[(Y-50)/1.12 < (49.8-50)/1.12]=Pr(Z < -0.18) = 0.43 • Let W = average amount made.W~N(10,0.52/5) (by CLT)Pr(W > 10.1) = Pr[Z > (10.1 – 10)/0.22]=Pr(Z > 0.45) = 0.33

  4. Lab (continued) • One definition of rare:It’s a rare event if Pr(W > 11.0) is small(i.e. if “Seeing probability of 11.0 or something more extreme is small”)Pr(W>11) = Pr[Z > (11-10)/0.22] = Pr(Z>4.55) = approximately zero. This suggests that perhaps either the true mean is not 10 or true std dev is not 0.5 (or not normally distributed…)

  5. Sample size: 1006 (source: gallup.com)

  6. Let Xi = 1 if person i thinks the Presidentis hiding something and 0 otherwise. • Suppose E(Xi) = p and Var(Xi) = p(1-p) and each person’s opinion is independent. • Let Y = total number of “yesses” = X1+…+ X1006 • Y ~ Bin(1006,p) • Suppose p = 0.36 (this is the estimate…) • What is Pr(Y < 352)? Note that this definition turns three outcomes intotwo outcomes

  7. Normal Approximation to the binomial CDF Pr(Y<352) = Pr(Y=0)+…+Pr(Y=351), where Pr(Y=k) = (1006 choose k)0.36k0.641006-k • Even with computers, as n gets large, computing things like this can become difficult. (1006 is OK, but how about 1,000,000?) • Idea: Use the central limit theorem approximate this probability • Y is approximately N[1006*0.36, (0.36)*(0.64)*1006]= N(362.16,231.8) (by central limit theorem) Pr[ (Y-362.16)/15.2 < (352-362.16)/15.2]= Pr(Z < -0.67) = 0.25

  8. Normal Approximation to the binomial CDF Black “step function” is plots of bin(1006,0.36) pdf versus Y (integers) Blue line is plot of Normal(362.16,231.8) pdf

  9. Normal Approximation to the binomial CDF Area under blue curve to left of 352 is approximately equal to the sum of areas of rectangles (black Stepfunction) to the left of 352

  10. Comments about normal approximation of the binomial : Rule of thumb is that it’s OK if np>5 and n(1-p)>5. “Continuity correction” Y is binomial. If we use the normal approximation to the probability that Y<k, we should calculate Pr(Y<k+.5) If we use the normal approximation to the probability that Y>k, we should calculate Pr(Y<k-.5) (see picture on board)

  11. Probability meaning of 6 sigma • Even if you shift the process mean for the center of the specifications to 1.5 standard deviations toward one of the specifications, then you will expect no more than 3.4 out of a million defects outside of the specification toward which you shifted. • (I know it’s convoluted, but that’s the definition…)

  12. What does 6 sigma mean?(example) • Suppose a product has a quantitative specification:ex: “Make the gap between the car door and the car body between 3.4 and 4.6mm.” • When cars are actually made, the “std dev of car door gap is 0.1mm”. i.e. X1,…,Xn are gap widths. The sqrt(sample variance of X1,…,Xn)= 0.1mm

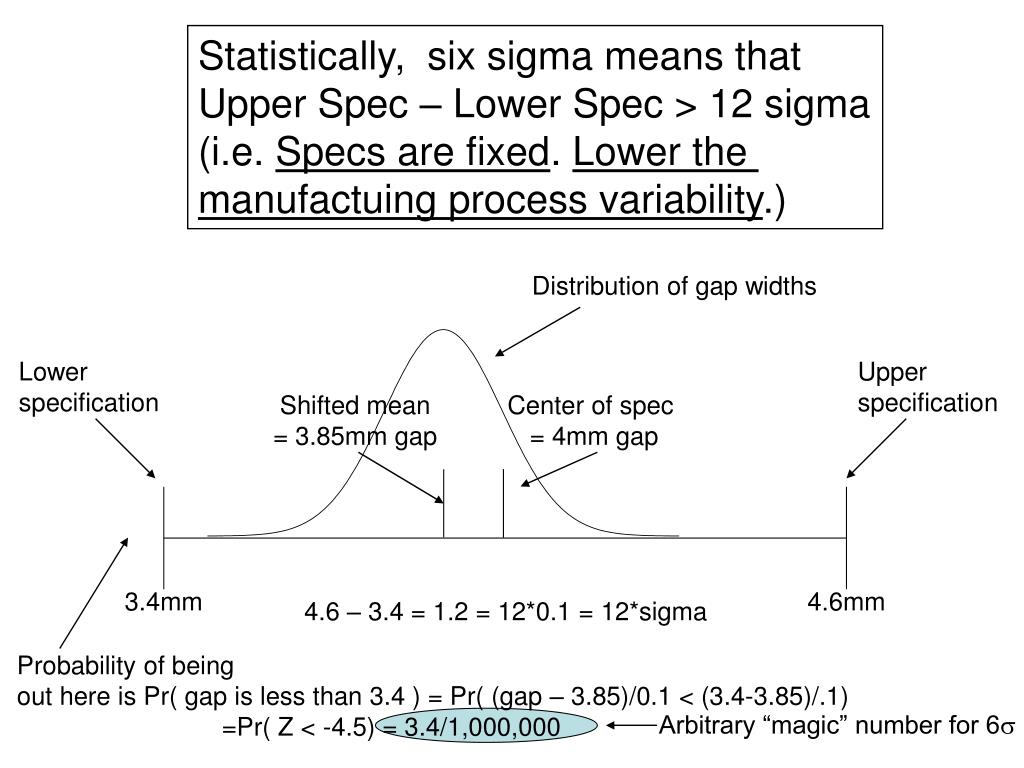

  13. Statistically, six sigma means that Upper Spec – Lower Spec > 12 sigma (i.e. Specs are fixed. Lower the manufactuing process variability.) Distribution of gap widths Lower specification Upper specification Shifted mean= 3.85mm gap Center of spec = 4mm gap 3.4mm 4.6mm 4.6 – 3.4 = 1.2 = 12*0.1 = 12*sigma Probability of beingout here is Pr( gap is less than 3.4 ) = Pr( (gap – 3.85)/0.1 < (3.4-3.85)/.1) =Pr( Z < -4.5) = 3.4/1,000,000 Arbitrary “magic” number for 6s

  14. Probability meaning of 6 sigma In general: Assume process mean is 1.5 standard deviations toward the lower spec: i.e. E(X)=4-1.5s and assume X has a normal distribution. When the process is in control enough so that the distance between the center of the specs and the lower spec is least 6s, then Pr(X below lower spec) =Pr( X<4- 6s)=Pr[(X- (4-1.5s))/s < (4-6s-(4-1.5s))/s ] =Pr(Z<-4.5) = 3.4/1,000,000

  15. Control Charts • Let X = an average of n measurements. • Each measurement has mean m andvariance s2. • Fact: • By the central limit theorem, almost all observations of X fall in the intervalm +/- 3s/sqrt(n) (i.e. mean +/- 3 standard deviations) • s/sqrt(n) is also called sx or standard error

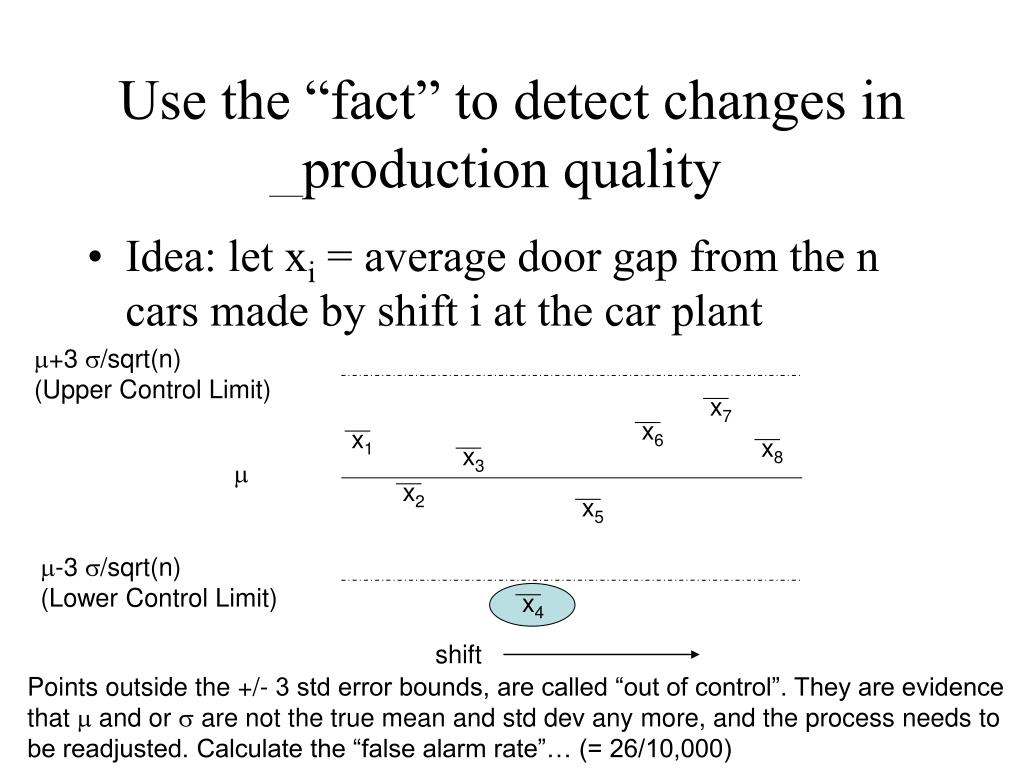

  16. Use the “fact” to detect changes in production quality • Idea: let xi = average door gap from the n cars made by shift i at the car plant m+3 s/sqrt(n) (Upper Control Limit) x7 x6 x1 x8 x3 m x2 x5 m-3 s/sqrt(n) (Lower Control Limit) x4 shift Points outside the +/- 3 std error bounds, are called “out of control”. They are evidence that m and or s are not the true mean and std dev any more, and the process needs to be readjusted. Calculate the “false alarm rate”… (= 26/10,000)

  17. Assume 100 new people arepolled.Assume true pr( a new person says yes) = 0.36.Let P = “P hat” = number say yes/100 What’s an approximation tothe distribution of P-hat?Use the approximation todetermine a number so thatthe Pr(p-hat> that number) = 0.95.

  18. EXAMPLE OF SAMPLING DISTRIBUTION OF P-HAT Xk = 1 if person k says yes and 0 if not. Note that E(Xk)=0.36=p and Var(Xk)=0.36*0.64=p(1-p) Note that Xk is binomial(1,0.36). P-hat = (X1+…+X100)/100. By CLT, P-hat is approximately N(0.36,0.36*0.64/100). (Rule of thumb is that this approximation is good if np>5 and n(1-p)>5.)

  19. Suppose true p is 0.36. • If survey is conducted again on 100 people, then P-hat ~ N(.36,(.36)(.64)/100) = N(.36, 0.002304)Want p0 so that Pr(P-hat<p0) = 0.95 Pr(P-hat<p0) = 0.95 means Pr(Z < (p0-.36)/0.048) = 0.95.Since Pr(Z<1.645) = 0.95,(p0-.36)/0.048 = 1.645(p0-.36) = 0.07896p0 = 0.43896

  20. Suppose true p is 0.40. • If survey is conducted again on 49 people, what’s the probability of seeing 38% to 44% favorable responses? Pr( 0.38 < P ”hat” < 0.44) = Pr[(0.38-0.40)/sqrt(0.40*0.60/49) < Z < (0.44-0.40)/sqrt(0.40*0.60/49) ] = Pr(-0.29 < Z < 0.57)= Pr(Z<0.57) – Pr(Z<-0.29)= 0.7157-0.3859=0.3298
