  1. Future of Architecture Enterprise Architecture Unified Profile for DoDAF and MODAF (UPDM) Strategies, Policy, Governance, and Implementation DoD and Federal Departments 15 July 2011 Walt Okon Senior Architect Engineer Architecture & Infrastructure Directorate Office of DoD CIO walt.okon@osd.mil 703-607-0502

  2. Secure Information Sharing It is imperative to effectively securely exchange information among components, Federal agencies, coalition partners, foreign governments and international organizations as a critical element of our efforts to defend the nation and execute national strategy Effectively Securely Exchange Information

  3. Secure Information Sharing The use of architecture techniques ensures alignment, clarity, and interoperability across information sharing initiatives; Information Sharing Environment (ISEs)) Architectures enable Departments and agencies to eliminate redundancies by identifying information sharing services that may be implemented and shared internal to DoD and, potentially, across the Federal Government. Architectures Enabled

  4. Secure Information Sharing DoD is implementing services for IS that employs Enterprise Services (ES) including service registration, authentication, attribute‐based access control, directory services, metadata registration, federated search, and collaboration. DoD partnering with IC on initiatives; e.g., service definition and implementation, metadata descriptions, Universal Core context‐independent framework, and cross‐domain solutions.

  5. Elements of Quality Architecture • Single Architecture Framework • Policy, Direction, Guidance • Exchange • Architecture Tools • Certified Architects Enabling efficient and effective acquisition of hardware, software and services used by DoD in missions Common Architecture Framework Approach

  6. DoDAF V2.0 Viewpoints Fit-For Purpose Capability Viewpoint Articulate the capability requirement, delivery timing, and deployed capability Operational Viewpoint Articulate operational scenarios, processes, activities & requirements Project Viewpoint Describes the relationships between operational and capability requirements and the various projects being implemented; Details dependencies between capability management and the Defense Acquisition System process. Standards Viewpoint Articulate applicable Operational, Business, Technical, and Industry policy, standards, guidance, constraints, and forecasts Data and Information Viewpoint Articulate the data relationships and alignment structures in the architecture content All Viewpoint Overarching aspects of architecture context that relate to all models Services Viewpoint Articulate the performers, activities, services, and their exchanges providing for, or supporting, DoD functions Systems Viewpoint Articulate the legacy systems or independent systems, their composition, interconnectivity, and context providing for, or supporting, DoD functions Renamed New New New New Architecture viewpoints are composed of data that has been organized to facilitate understanding. 6

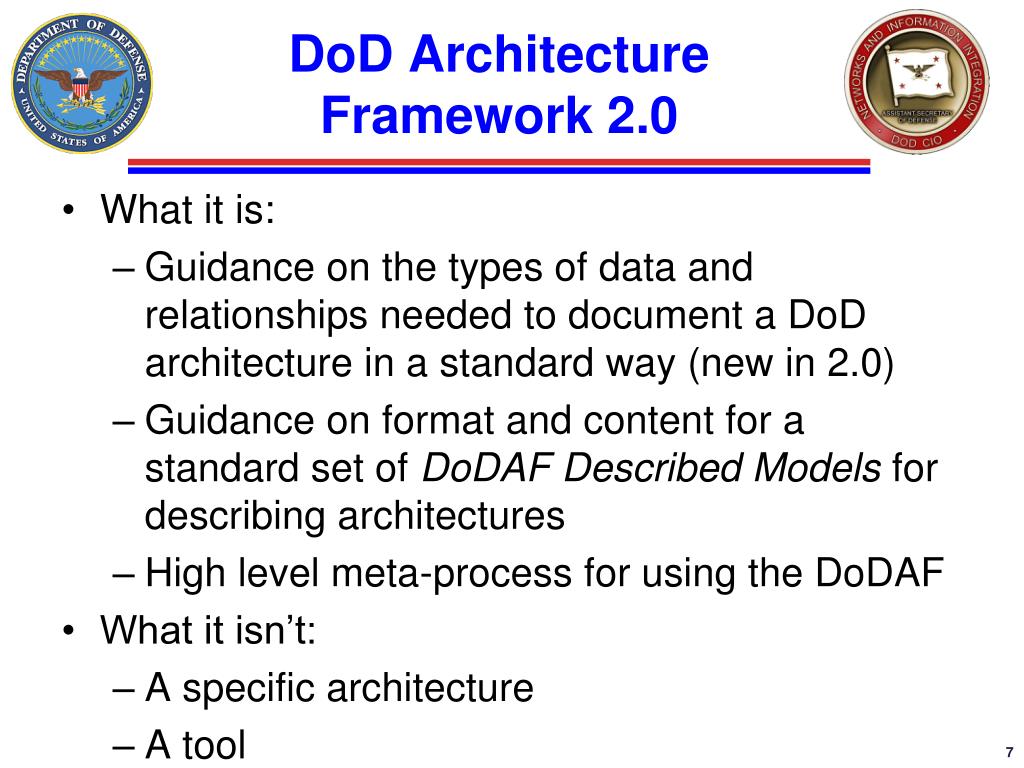

  7. DoD Architecture Framework 2.0 • What it is: • Guidance on the types of data and relationships needed to document a DoD architecture in a standard way (new in 2.0) • Guidance on format and content for a standard set of DoDAF Described Models for describing architectures • High level meta-process for using the DoDAF • What it isn’t: • A specific architecture • A tool • A detailed architecture development process

  8. DoDAF V2.0 Vision Views for Other Stakeholders Structured Knowledge Base – Common Model Views for the Architect

  9. Levels of Architecture DoD Enterprise Enterprise Level Architectures System Context SoS Architectures FoS Architectures Capability Based Segment Level Architectures Solution Level Architectures

  10. http://www.defenselink.mil/cio-nii/sites/diea/ 10

  11. UPDM – Unified Profile for DoDAF/MODAF UPDM RFC Group Adaptive Artisan Software ASMG BAE Systems DoD DND embeddedPlus Generic IBM Thales Lockheed Martin Co Mitre L3 Comms MOD NoMagic Raytheon Rolls Royce Sparx Systems VisumPoint Selex Walt OkonDoD Support

  12. Why do we need Exchange UCore Middle East Pro-Democracy Movements Coalition Partners Japan Earth Quake, Tsunami, Nuclear Risks DoD and IC Information Sharing Initiatives Federal Inter-Agency Implement Lessons Learned To Achieve Operationally Significant Results Haiti Earthquake DOJ/DHS Experience in Federal, State, Local, Tribal Interoperability Christmas Day Terrorist Attempt State, Civil, Local Hurricane Katrina NGOs and Industry 11 Sep 2001 Terrorist Attacks “The bottom line is this:  The U.S. government had sufficient information to have uncovered this plot and potentially disrupt the Christmas Day attack.  But our intelligence community failed to connect those dots, which would have placed the suspect on the "no fly" list. In other words, this was not a failure to collect intelligence; it was a failure to integrate and understand the intelligence that we already had. ” President Barack Obama, 05 JAN 2010

  13. What is UCore UCore V2.0 Conceptual Data Model Message Framework Metadata • XML representation Interrogatives: When, Where, Who, What, • What Taxonomy • Common Terms • Security markings • Message framework • Rendering Instructions • Extension Guidance When What Where Who

  14. Architecture Tools • Guidance • DoDAF v2.0 • Federated Architecture Strategy • DoD IEA • DoD Tools • DoD Architecture Registry System (DARS) • DoD IT Standards Registry (DISR) • GIG Technical Guidance (GTG) Tool • Meta Data Repository (MDR) Vendor Tools are Necessary

  15. Architecture Education & Training Certified Enterprise Architects design the information technology architecture structure enabling the efficient and effective acquisition of hardware, software and services utilized by the DoD in missions supporting the warfighters. Common Architecture Framework

  16. Elements of Quality Architecture • Single Architecture Framework • Policy, Direction, Guidance • Exchange • Architecture Tools • Certified Architects Enabling efficient and effective acquisition of hardware, software and services used by DoD in missions deliverables. Common Architecture Framework Approach

  17. Future of Architecture Achieving Secure Information Sharing Information Integration SubcommitteeIdentity Federation Meeting Implement ICAM Identity, Credential, and Access Management

  18. Federal CIO Council ICAM Alliances:Interagency Security Committee, NSTIC NPO, CNSS, IC IdAM, NASCIO, & More Unclassified

  19. Secure Information Sharing • Extract from FY10: Leveraging the Power of Technology • To support this effort, the Federal Identity, Credential, and Access Management (ICAM) segment architecture provides Federal agencies with a consistent approach for managing the vetting and credentialing of individuals requiring access to Federal information systems and facilities • The ICAM segment architecture will serve as an important tool for providing awareness to external mission partners and drive the development and implementation of interoperable solutions

  20. Secure Information Sharing • Extract from FY12: IT Security and Privacy • Improve Identity Management: ICAM, PIV Credentials, HSPD-12, NSTIC • ICAM solutions leverage existing investments in the Federal Government while promoting efficient use of tax dollars when designing, deploying, and operating information technology systems • With the majority of the Federal work- force now possessing credentials, agencies can accelerate their use of these for secure access to Federal facilities and information systems

  21. ICAM Scope Persons Non-Persons Logical Access Physical Access Unclassified

  22. Current DOD IdAM Attribute Governance DOD/IC Authorization Attribute Steering Committee AASC • Legend for governance • light blue: DOD organizationsdark blue: DOD governance bodiesgrey: DOD/IC governance bodies • black: federal governance bodies Federal CIO Council (FICAM Subcommittee)

  23. Architecture & Information Sharing Achieving Secure Information Sharing Office of Management and Budget Common Approach Federal Enterprise Architecture (CA-FEA) Dr. Scott Bernard, Federal Chief Architect

  24. Changes in Federal Direction Mission. Federal enterprise architects provide leading-edge advisement, analysis, and design services that align strategic priorities with mission capabilities and technology solutions. Vision. To be a trusted, knowledgeable partners with agency executives, managers, staff, and external stakeholders to help accomplish mission goals, manage change, and optimize resources through proven enterprise architecture methods.

  25. Changes in Direction Outcomes: • Revitalized community that is relevant and engaged. • Strongleadership support for the participation of architects in key initiatives. • A diversity of views within the community are heard and considered. • New methods for architecture that are more agile, efficient and standard. • Updated policy to reflect new priorities, methods, and desired outcomes. • A career path and training standards for federal enterprise architects.

  26. Changes in Governance • OMB, Federal CIO: Sets federal policy- EA programs, practices, reporting. • OMB, Chief Architect: Leads federal EA community, advises Federal CIO. Runs quarterly Chief Architect Forum Meetings. • OMB, FEAPMO: Maintains federal EA approach and does projects. • CIO Council: Promotes federal IT community discussions, advises Federal CIO, publishes best practices and reports, maintains reference archive. • CIO Council, AIC: Promotes best practices, supports outreach. • AIC Sub-Committees: Promotes the development of best practices and methods in specific EA areas, supports outreach, and projects. • AIC Outreach Sub-Committee: Runs quarterly “Architecture Plus” meetings for government and industry participants to discuss EA issues.

  27. Changes in Approach Common Approach to Federal EA FEAF-II

  28. Changes in Scope Multiple Agencies National/Global Outcomes Govt.-Wide Services U.S. & Other Governments Medium Government-Wide & International Multiple Agencies, Businesses, Interest Groups Sector Outcomes Sector Services Medium Multi G2C, G2B, G2G Agency-Wide Services Line of Business Specific Services Single Agency Program Specific Services

  29. Changes in Use – Shared Services Sector designations are needed to support new services and interoperability across traditional agency boundaries. Example: Electronic Patient Records Example: Border Protection Example: International Legal Cases Example: International Trade & Exports Example: Global Economic Tracking Example: On-line Learning Example: Energy Efficient Housing Example: Smart-Roads Example: Alternative Fuels Central sector for general government support services and transparency

  30. Secure Information Sharing Achieving Secure Information Sharing White House Information Sharing Environment Governance Interagency Policy Committee

  31. Information Sharing Environment Governance Cross Federal Information Sharing IS&A Sub IPCs • Intelligence • Law Enforcement • Defense • Homeland Security • Foreign Affairs Information Sharing and Access IPC Scope Information and Communications Infrastructure IPC Co Chairs NSS / PM-ISE National SAR Initiative DOJ BJA Fusion Centers DHS I&A Co Chairs WH / DHS Architecture/ R&D Smart GridCyber Security DNI Watchlisting & Screening DHS POL Privacy, Civil Rights, Civil Liberties Information Integration PMISE IC ISE TREAS Cyber Legislation International DHS DNI DOS TREAS DOD DOJ IRIS Cyber Budget DHS DOS IC CIO Privacy, Civil Rights, Civil Liberties DOJ DOD TBD Legal Cyber OPS TBD I&A / POL LEISP DoD CIO RISS RISS National Policy Group

  32. Sub-Committees Information Sharing & Access Interagency Policy Committee Co-Chairs: Monte Hawkins, NSS & Kshemendra Paul, PM-ISE Paul Grant (DoD CIO); Chuck Kosak (USD(P)); Karen Riggs (JS) Watchlisting & Screening Chair: Monte Hawkins (NSS) Fusion Center Chair: Bart Johnson (DHS) Vice Chair: Owen Harris (FBI) Privacy, Civil Rights & Civil Liberties Chair: Alex Joel (DNI) Suspicious Activity Reporting Chair: Jim Burch (DoJ/BJA) Information Integration Chair: David Bray (PM-ISE) • Matt Taveres (HD&ASA) • Adam Gorowitz (USD(P)) • Mike Reheuser (DPCLO) • Chuck Kosak (USD(P)) • Paul Grant (DoD CIO) • Carl Consumano (DoD CIO) • Stephanie Beavers (HD&ASA) Working Groups HSPD-6 International Outreach HSPD-24 National Security Threat ISE Privacy Guideline Revisions Information Technology Audit Standards Working Group Chair: Walt Okon (DoD) Nominations Database Enhancements Assured Secret Network Interoperability Working Group Chair: James Beagles (DHS) Assured SBU Network Interoperability Working Group Chair: Kevin Heald Data Aggregation Working Group Chair: Donna Roy (DHS) Chair: Hank Bebe (DNI) Screening Encounters • Regina Piper (DoD CIO) • Paul Grant (DoD CIO) • Carl Consumano (DoD CIO) • Paul Grant (DoD CIO) • Walt Okon (DoD CIO)

  33. Federal Shared Services StrategyShared Service Working GroupOffice of Management and BudgetOffice of E-Government & IT

  34. Shared Services: Part of the IT Reform Agenda Reform Item #6: Develop a Strategy for Shared Services

  35. Cloud-First 2010 Lines of Business Round 2 (Geo, BFE, ITI, ISS) 2006 E-Gov Initiatives Round 2 (DAIP, ITDS, IAD-Loans/Grants) 2008 Shared Services 2011 Lines of Business Initial 5 (HR, GM, FM, FHA,CM) 2004 E-Government Act 2002 Quicksilver 2001 Payroll Consolidation Completes 2009 E-Gov Initiatives Initial 25 2003 Clinger-Cohen 1996 GAO Report: Opportunities to Reduce Potential Duplication 2011 History of Shared Services

  36. What is a Shared Service? Shared Service Producer Provider Consumers • Roles: Provider, Producer, Consumer • Sources: Internal or external to the agency (government or commercial).

  37. Shared Service Concept Education & Workforce Defense & Security Economic & Financial Transport & Space MISSION SERVICE SECTORS Health & Well-Being Diplomacy & Trade Environment & Natural Resources Energy & Technology enablers Content Management Virtual Meeting SUPPORT SERVICE SECTOR Others Cloud eMail Collaboration First focus on support sector services, as this has the greatest initial potential for lowering duplication & waste. Public Clouds Federal Clouds

  38. Delivery Channels & Considerations • Delivery Considerations • Is the service commercially available? • Are there security, privacy, classified requirements? • Does the agency need to be a provider? • How does a provider agency meet customer needs?

  39. Secure Information Sharing Questions Walt Okon Senior Architect Engineer Architecture & Infrastructure Directorate Office of DoD CIO walt.okon@osd.mil 703-607-0502
