  1. Electronic Circuits VOLTAGE REGULATION

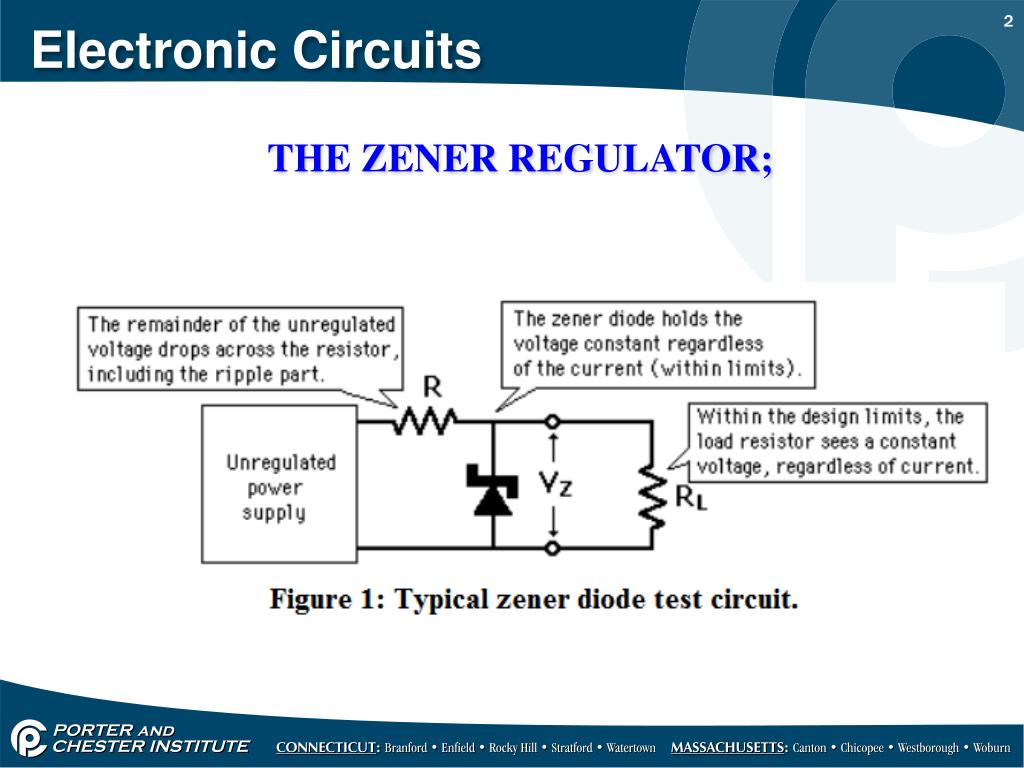

  2. Electronic Circuits THE ZENER REGULATOR;

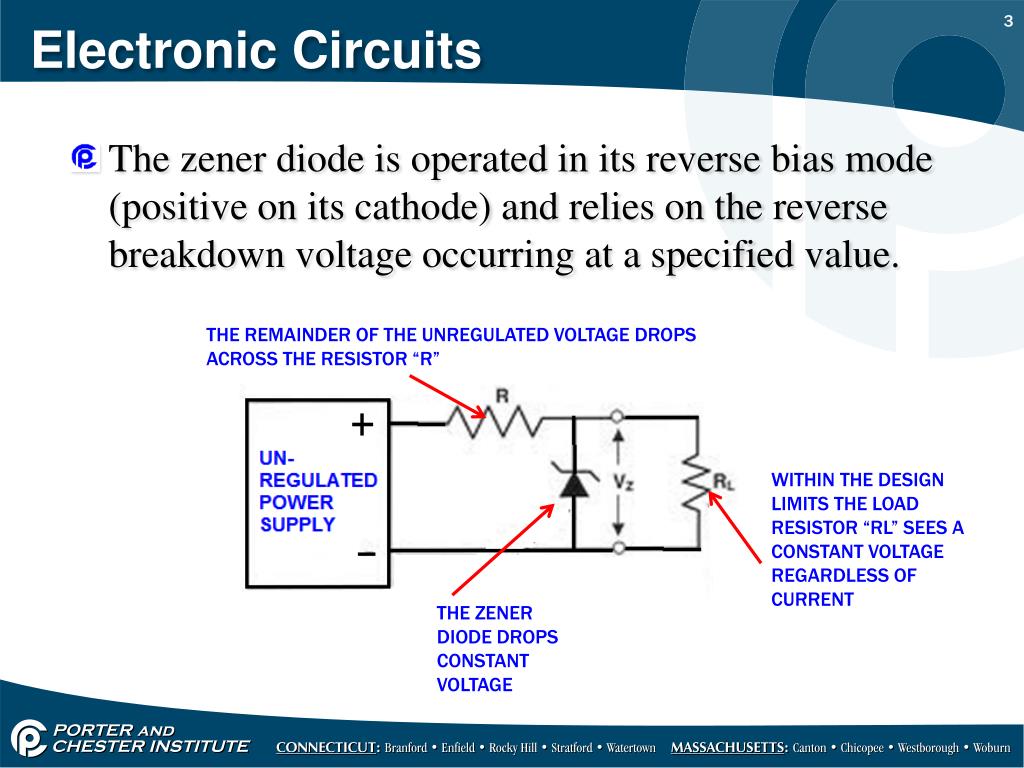

  3. Electronic Circuits • The zener diode is operated in its reverse bias mode (positive on its cathode) and relies on the reverse breakdown voltage occurring at a specified value. THE REMAINDER OF THE UNREGULATED VOLTAGE DROPS ACROSS THE RESISTOR “R” WITHIN THE DESIGN LIMITS THE LOAD RESISTOR “RL” SEES A CONSTANT VOLTAGE REGARDLESS OF CURRENT THE ZENER DIODE DROPS CONSTANT VOLTAGE

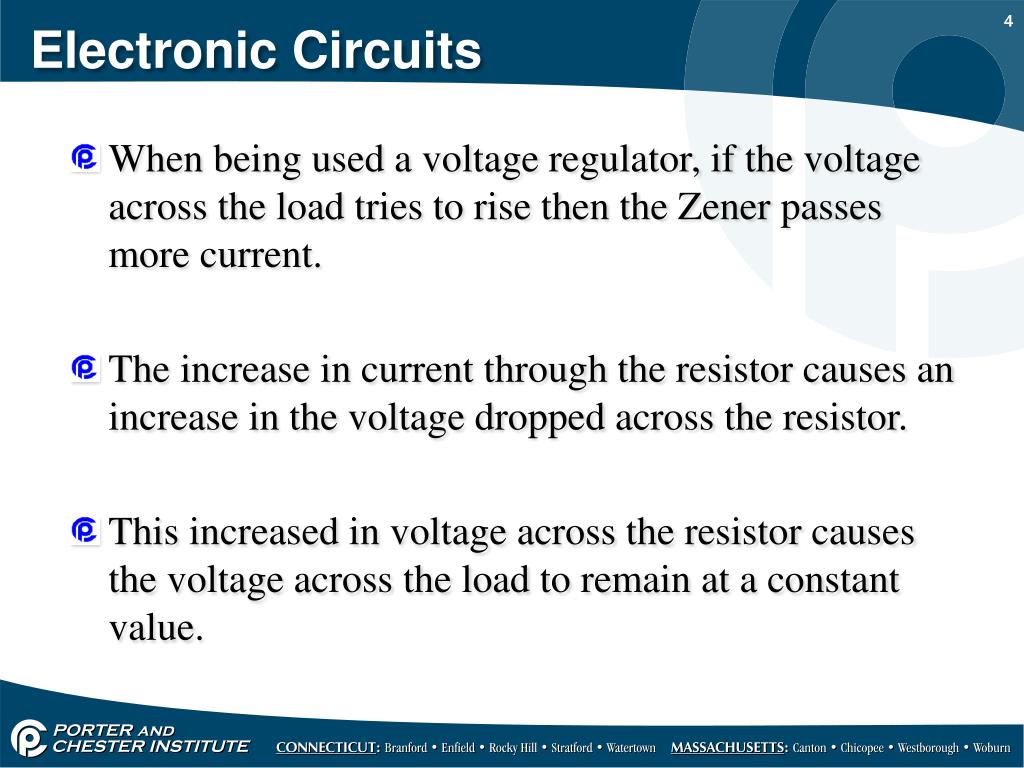

  4. Electronic Circuits • When being used a voltage regulator, if the voltage across the load tries to rise then the Zener passes more current. • The increase in current through the resistor causes an increase in the voltage dropped across the resistor. • This increased in voltage across the resistor causes the voltage across the load to remain at a constant value.

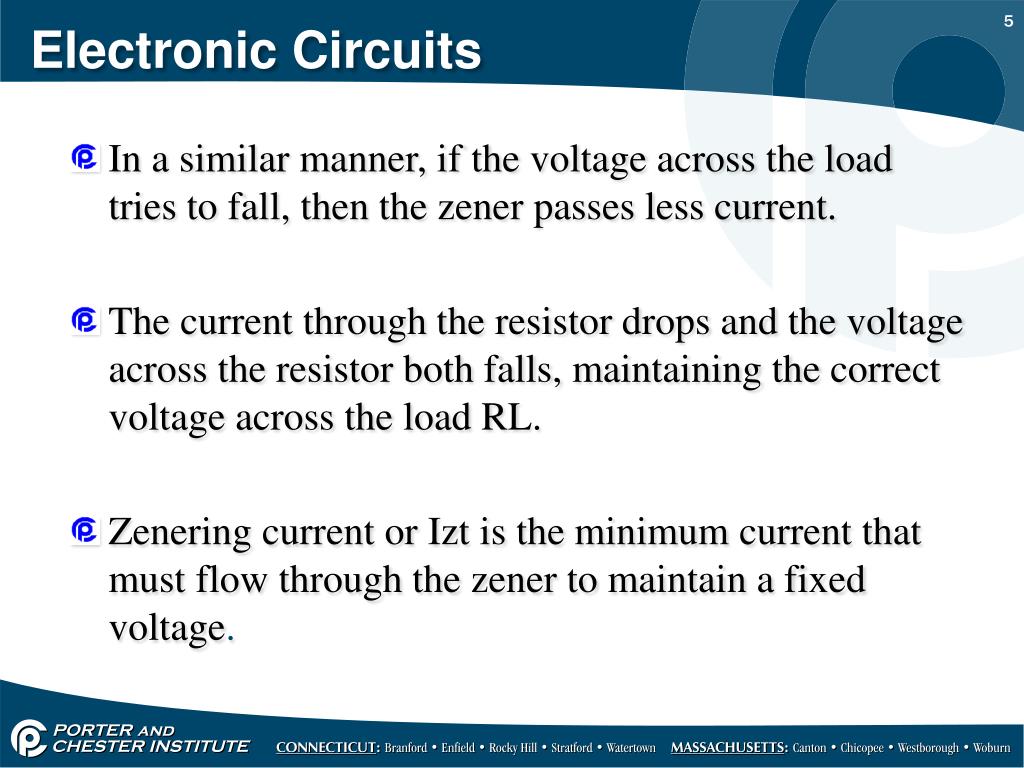

  5. Electronic Circuits • In a similar manner, if the voltage across the load tries to fall, then the zener passes less current. • The current through the resistor drops and the voltage across the resistor both falls, maintaining the correct voltage across the load RL. • Zenering current or Izt is the minimum current that must flow through the zener to maintain a fixed voltage.

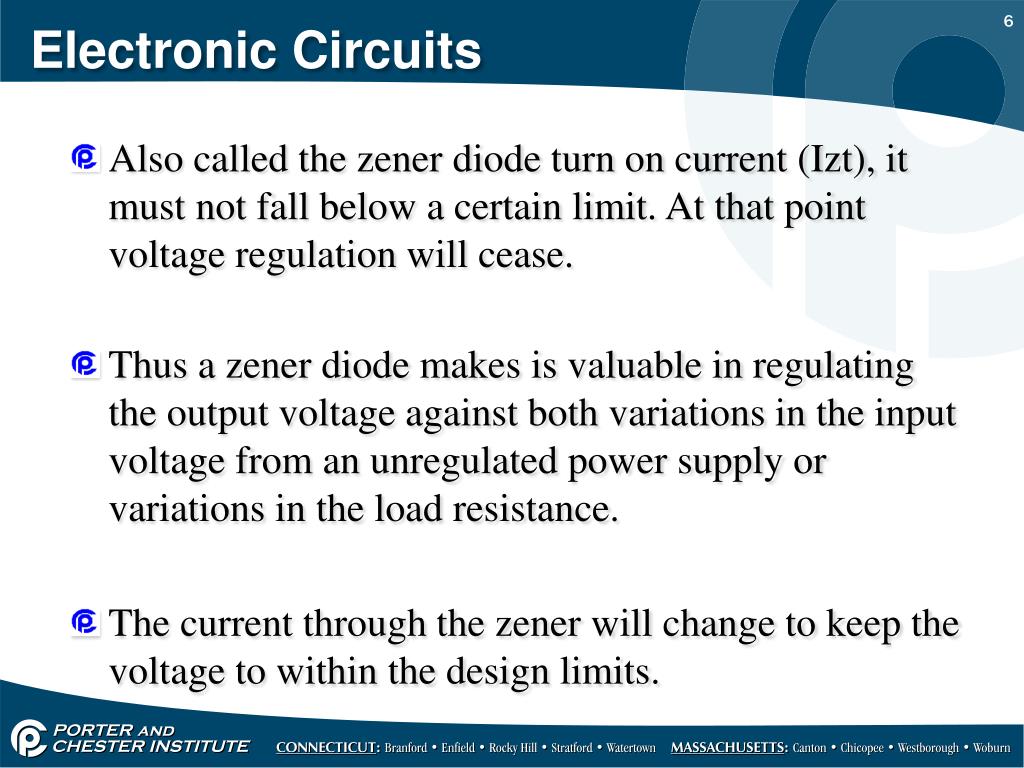

  6. Electronic Circuits • Also called the zener diode turn on current (Izt), it must not fall below a certain limit. At that point voltage regulation will cease. • Thus a zener diode makes is valuable in regulating the output voltage against both variations in the input voltage from an unregulated power supply or variations in the load resistance. • The current through the zener will change to keep the voltage to within the design limits.
