1. Introduction to Databases 2 Lecture 2

2. Relational Database • Relational databases work on the principle that each table has a key field that uniquely identifies each row, and that these key fields can be used to connect one table of data to another. • Consider a table student below. Which field uniquely identifies each record? • ID or Phone, but not name

3. Contd.. Student • Data in relational databases is stored in different tables, each having a key field that uniquely identifies each row. • In relational databases, a relationship is created between different tables. What relation is there between the tables shown on the right? • Relational databases connect data in different files by using common data elements or a key field. What is the address of the student with ID=2009477321? Student-Address

5. File maintenance Keeping data current • Adding records • A new customer, product, transaction etc • Changing (editing) records • New address, change of name etc • Deleting records • Person leaves, product no longer stocked etc • Usually a record is not deleted, but is flaggede.g. a customer is marked "inactive" • The data remains, but is not included in current activity

6. Forms • File maintenance is often carried out using a form • Same data,different view

7. Data validation • Comparing data to a set of rules to make sure the data is correct • Five common validity checks:

8. Query Language • Query language allows the user to interact directly with the database software in order to perform information-processing tasks using data in a database. • It is usually an easy-to-use computer language that relies on basic words such as SELECT, DELETE, or MODIFY. • Using query language a user enters commands that instruct the DBMS to retrieve data from a database or update data in a database.

9. Structured Query Language (SQL) • Structured Query Language (SQL) is one type of query language that is widely used to perform operations using relational databases. • SQL can be used to retrieve information from related tables in a database or to select and retrieve information from specific rows and columns in one or more tables. • One of the keys to understanding how SQL works in a relational database is to realize that each table and column has a specific name associated with it. • In order to query a table, the user specifies the name of the table (indicating the rows to be displayed) and the names of the columns to be displayed. • For example consider the table “Student” given before, suppose we know the ID, and want to display the name, then the query would be- • SELECT name FROM STUDENT where ID=2009477321

10. Web and the databases • Behind many web sites there is a database • The web page is the front end (client side) • The database is the back end (server side) • For example a web site that sells books online may have following fields in their database tables • Books in stock • Customers • Orders • Shipping • A CGI script links the web page and the database • A customer supplies his/her information and then all the information is transported to the database.

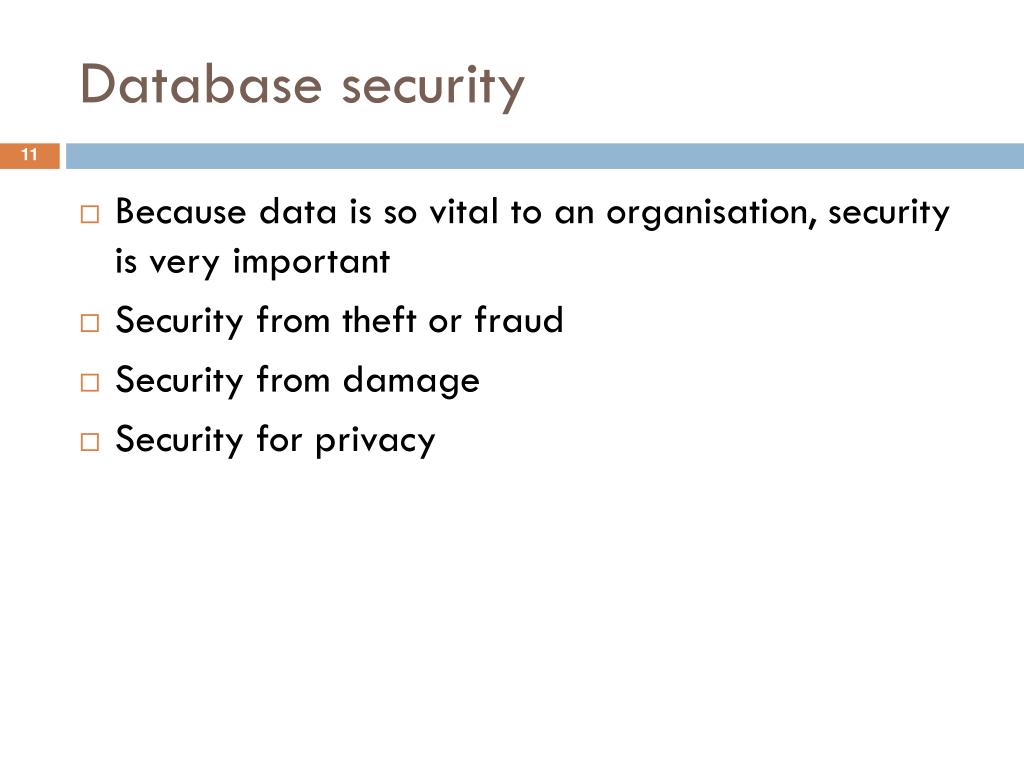

11. Database security • Because data is so vital to an organisation, security is very important • Security from theft or fraud • Security from damage • Security for privacy

12. Security from theft or fraud • Threats from within or outside the organisation • Most danger is from employees • Access controls • Physical access - doors, windows etc • Electronic access • Firewalls • Login names and passwords • Biometric controls • Procedural controls • Double checks • Job rotation, job sharing

13. Security from damage • Accidental damage - "human error" • Data checking and validation • Restrict user rights (e.g. can't delete) • Environmental risks • Fire, storm, flood, power fluctuation • Secure, safe buildings • Power smoothers and uninterruptible power supply (UPS) • In all cases, a good backup system

14. Security for privacy • Privacy of the people the organisation holds information about • Doctor-patient, lawyer-client confidentiality etc • Sometimes national laws • Privacy of the company information • "The secret recipe"; car company's designs for next year's model; industrial secrets

15. Disaster recovery plan • All organisations should plan before disaster strikes • Emergency plan • What to do at the time • Backup plan • How to restore equipment and data • Recovery plan • How to get back to full operability • Test plan • How to test the above

16. Backup systems • Frequent Backups are required to ensure data recovery. • If you are not taking backups your organisation may loose important data. • Backup methods on next slide • For personal backup • Use a USB stick, CD-R, DVD-R or similar • Store it away from your computer • For important data, keep at least three copies

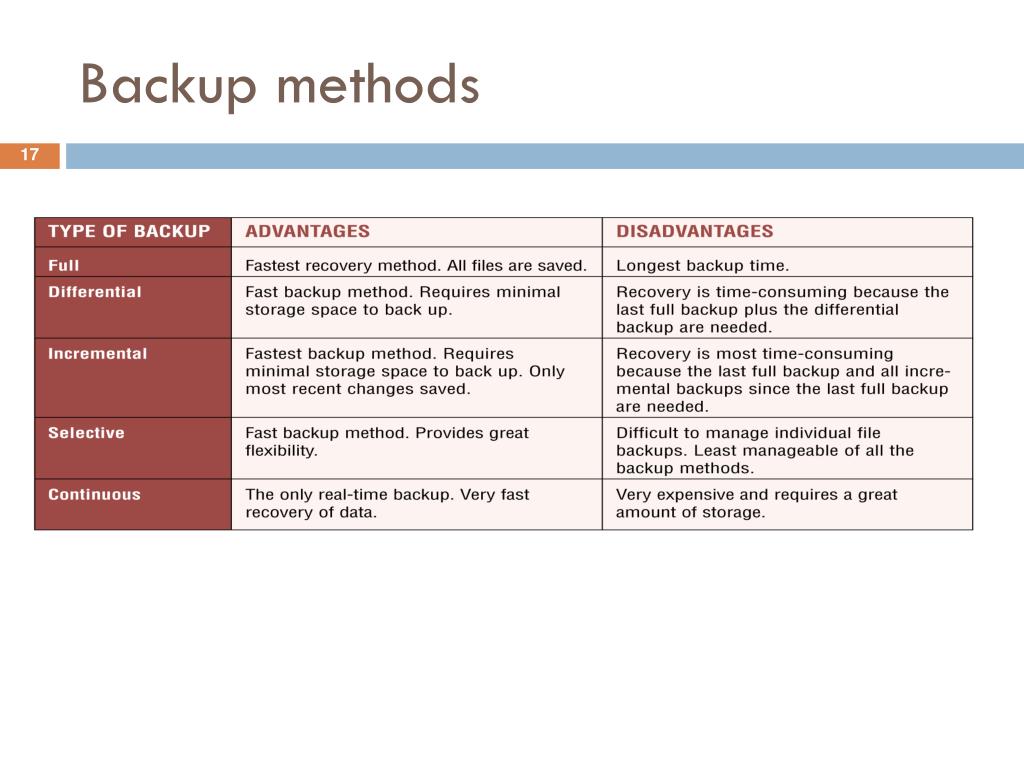

17. Backup methods
