  1. Chapter 3 2-D Kinematics

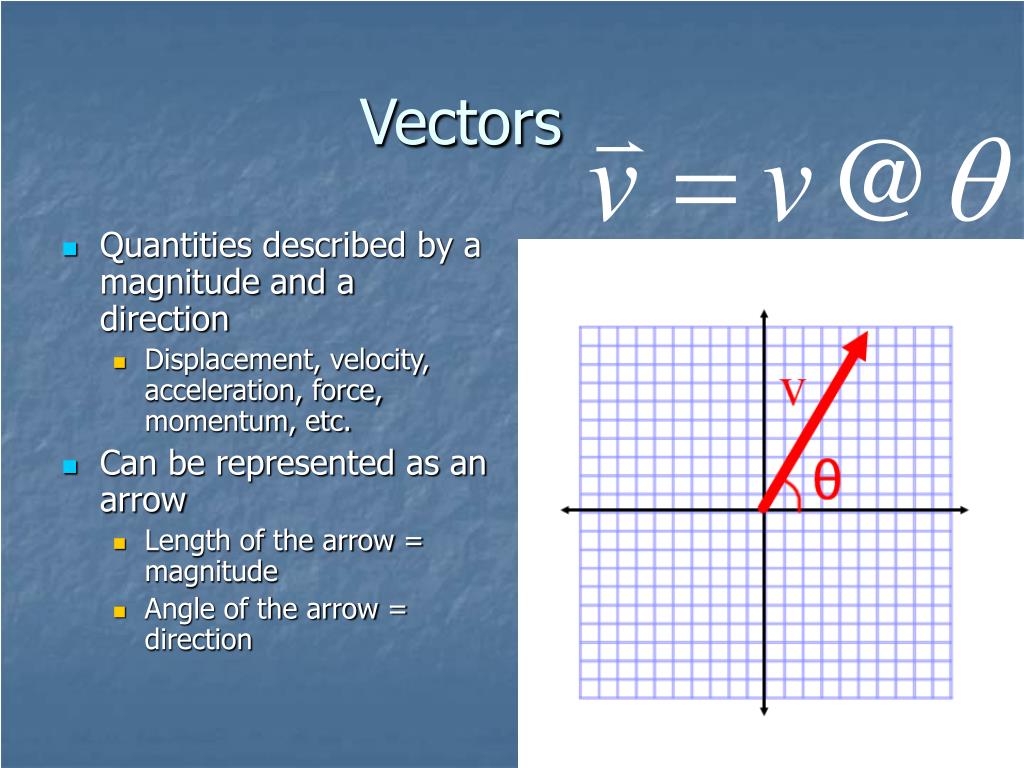

  2. Vectors • Quantities described by a magnitude and a direction • Displacement, velocity, acceleration, force, momentum, etc. • Can be represented as an arrow • Length of the arrow = magnitude • Angle of the arrow = direction

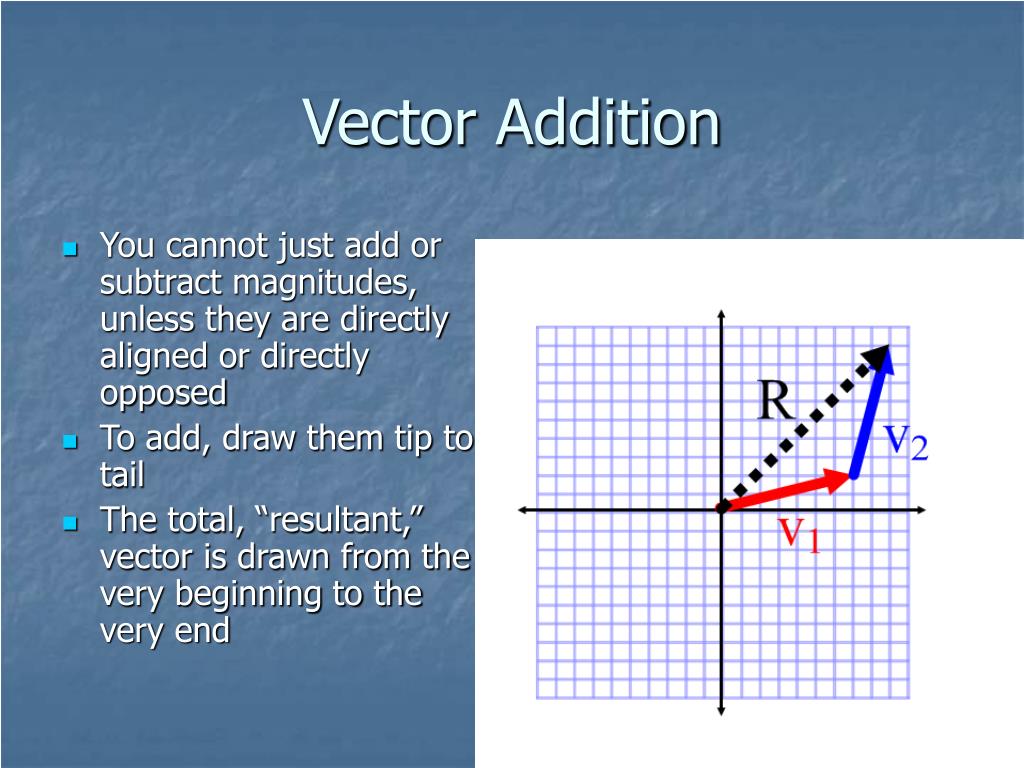

  3. Vector Addition • You cannot just add or subtract magnitudes, unless they are directly aligned or directly opposed • To add, draw them tip to tail • The total, “resultant,” vector is drawn from the very beginning to the very end

  4. Vector components • Each vector can be treated as the hypotenuse of a right triangle • Every vector is the resultant of a horizontal and vertical component vector

  5. Adding by components • Find components of all vectors • Rx = Ax + Bx + . . . • Ry = Ay + By + . . . • R2 = Rx2 + Ry2 • tan = Ry/Rx

  6. Relative Velocity • All vectors are measured in reference to a particular place, called a ‘reference frame’

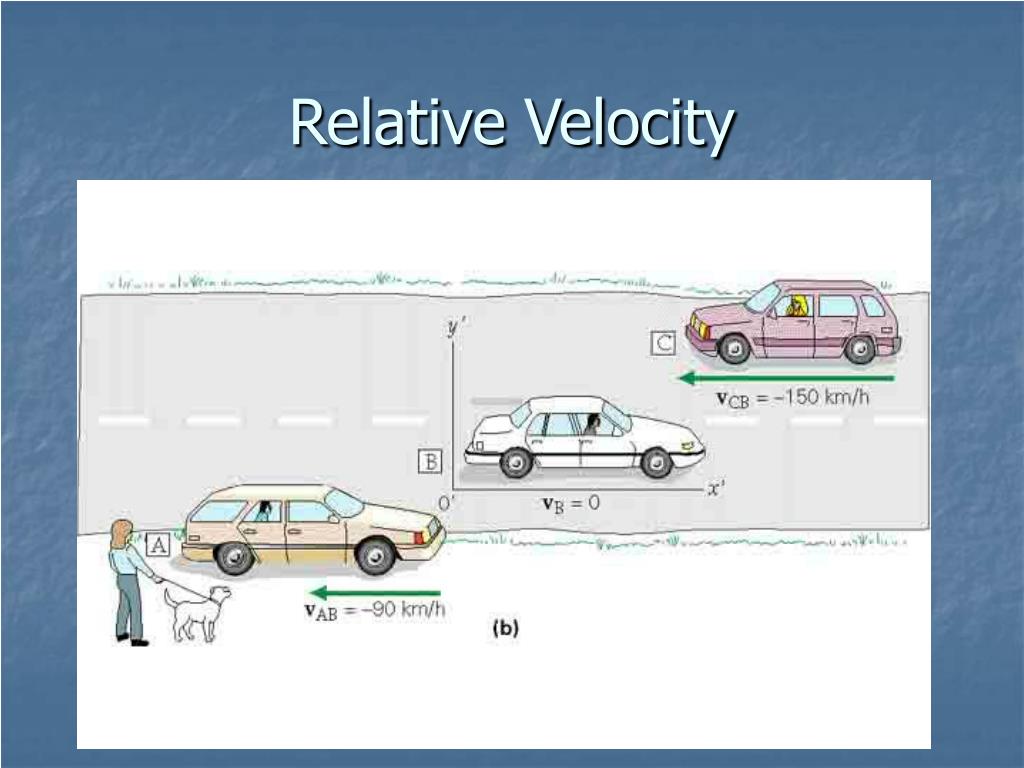

  7. Relative Velocity

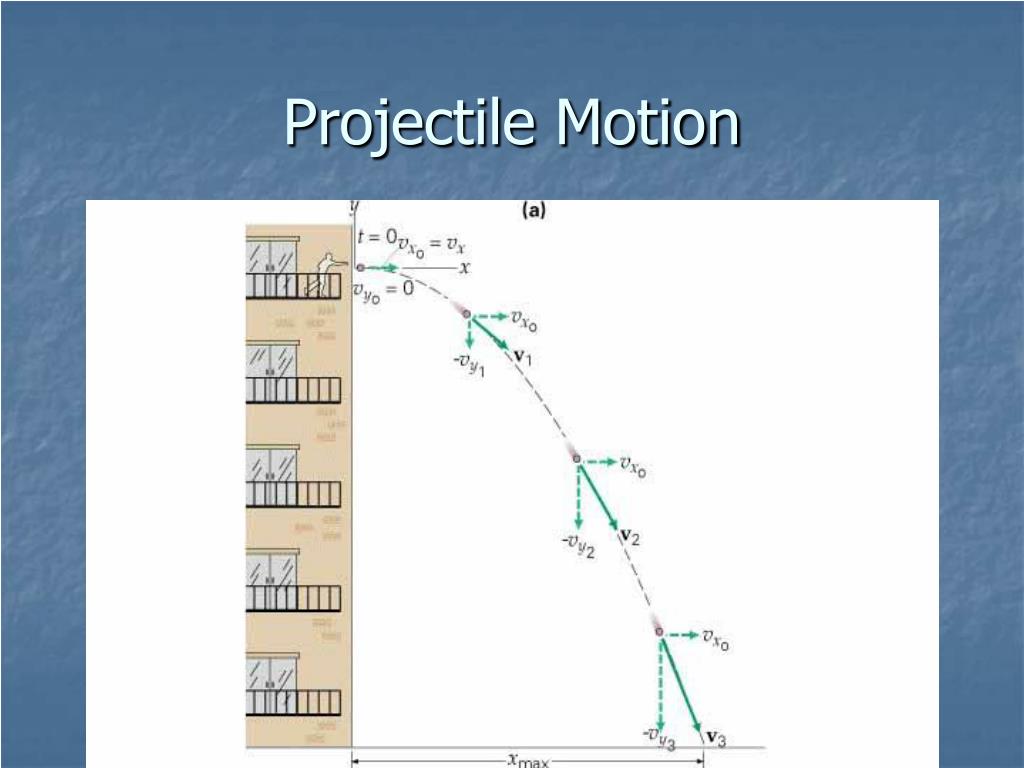

  8. Projectile Motion • Falling through the air while moving horizontally • Constant velocity horizontally • Constant acceleration (-9.8 m/s2) vertically • Only consider moment just after launch to the moment just after landing • Projectiles follow parabolic paths

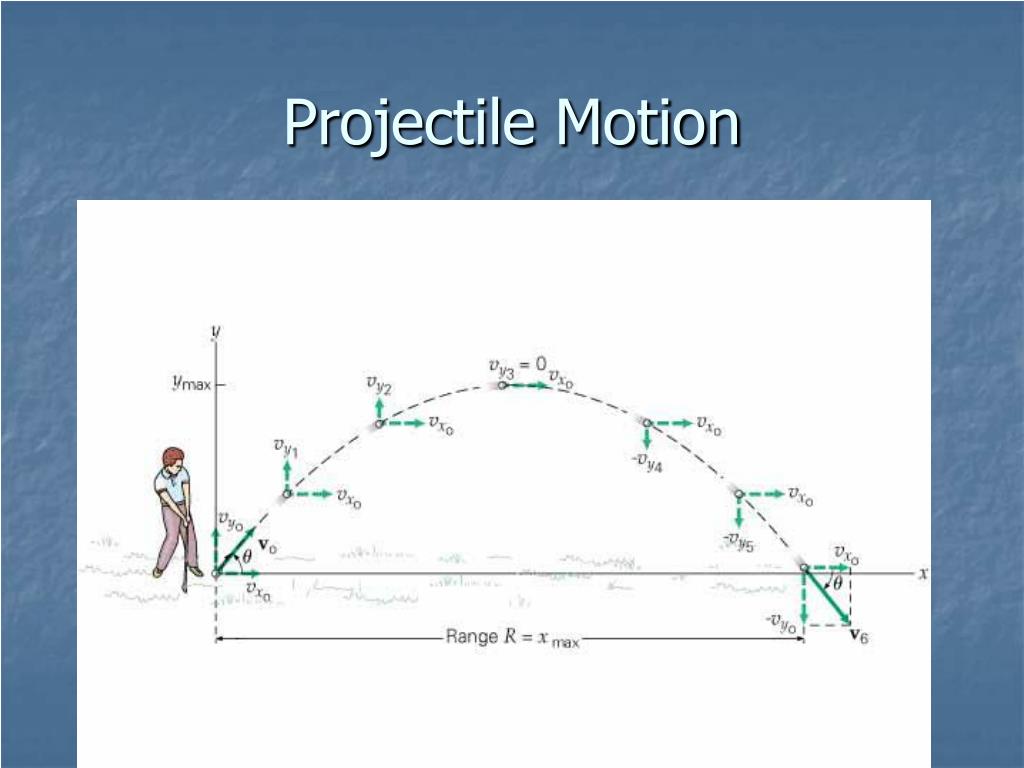

  9. Projectile Motion

  10. Projectile Motion

  11. Projectile Motion • X and Y motions are completely separate • Time is a scalar, so it’s the same for both • Do kinematics separately for each x = vix = vfx = ax = 0 t = y = viy = vfy = ay = -9.8 m/s2 t =
