Presentation Transcript

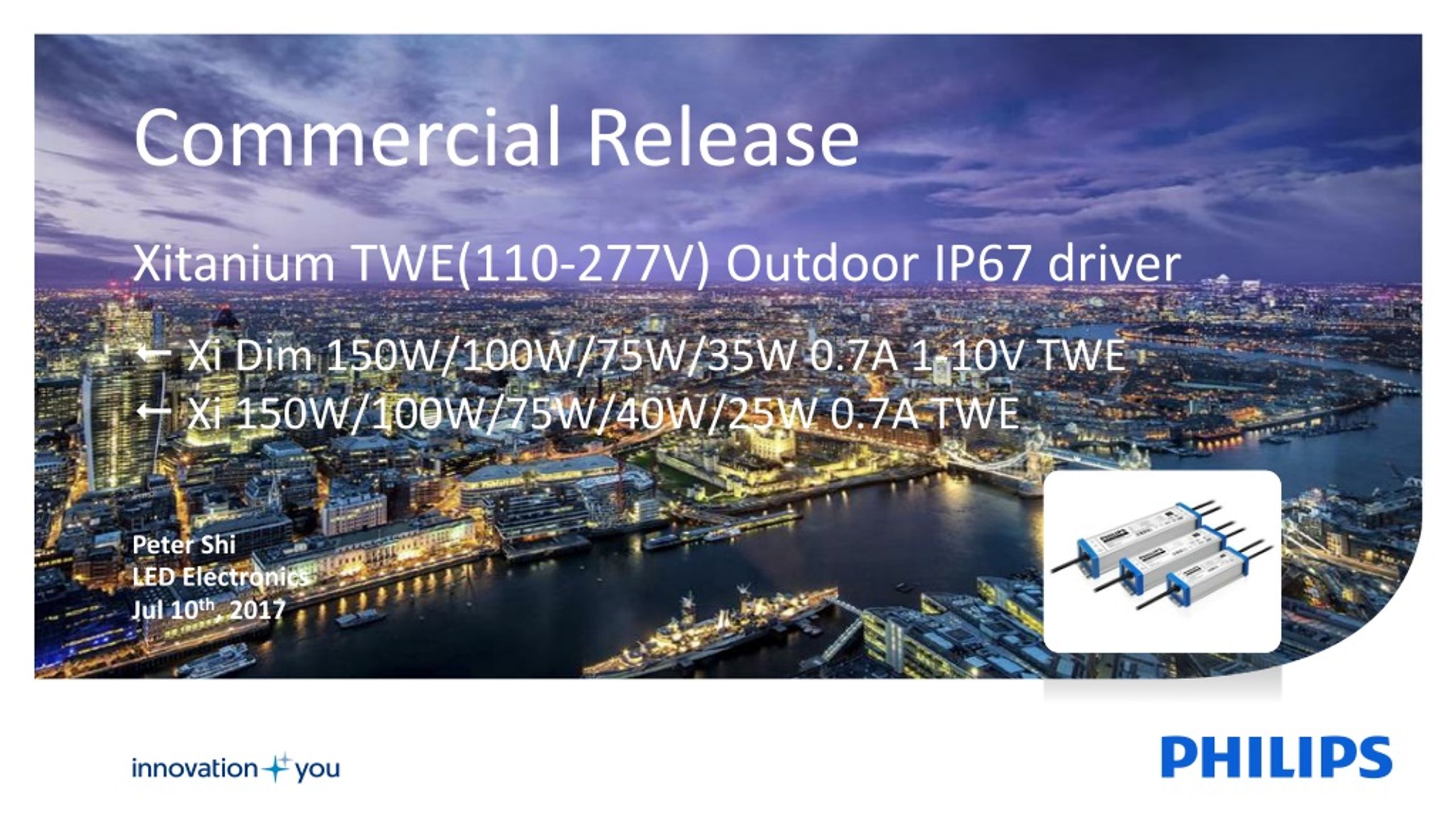

  1. Peter Shi LED Electronics Jul 10th, 2017 Commercial Release XitaniumTWE(110-277V) Outdoor IP67 driver Xi Dim 150W/100W/75W/35W 0.7A 1-10V TWE Xi 150W/100W/75W/40W/25W 0.7A TWE

  2. Value proposition Product Introduction Applications Key benefits Specification Wiring diagram Certificates Ordering info Content Xitanium TWE Outdoor IP67 driver

  3. Value proposition

  4. Value Proposition-APR Single Current Window current • With Philips Outdoor LED Drivers we want to serve those customers looking for reliable & robust solutions from a known/trusted brand. • LED Outdoor Drivers offers A range offering the highest flexibility through smart window approach & power cut to offer maximum Power range • Optimized range targeting best value for money & proven reliability with Fix Current/Limited Voltage range or adjustable current via analog diming interface.

  5. New Xitanium drivers – Portfolio overview Window current Single Current

  6. Product introduction & Key application

  7. Xi Dim 150/100/75/35W 0.7A 1-10V TWE & Xi 150/100/75/40/25W 0.7A TWE IP67 Outdoor LED driver are an excellent solution for outdoor applications. Ultimate robustness and reliability to secure the lowest maintenance overtime Reliable HV solutions for best energy efficiency Easy to design-in, based on extra EMI margin and broad compatibility for independent use Consistent waterproof performance throughout the lifecycle Compliance with IEC and UL standards, suitable for various markets Product introduction Xitanium TWE Outdoor IP67 driver

  8. Ideal for LED lighting applications in demanding environments • Road lighting, • Residential Area • Architectural lighting • Tunnel lighting • Area lighting Key application Areas

  9. Key benefits

  10. Key benefits “The ideal reliable & affordable solution for LED-based outdoor lighting applications - Long-lasting and low maintenance, high reliable technology designed around your needs” • Proven robustness and reliable platform design • Achieving highest efficiencies based on advanced technology • Extra EMI margin for varies independent use • Universal design comply with IEC & UL standards , suitable for various markets Unique solution • Reliable • Robust design; withstanding harsh outdoor conditions. • Consistent IP67 waterproof performance through the lifecycle • Long lifetime; 50k hrs @Tc max, • Backed by 5 year warranty from a trust brand solution • Low initial cost via advance platform design • Ultimate robustness and reliability secure the lowest luminaires maintenance • Universal design comply with IEC&UL standards,(Less SKUs)suitable for various markets Value for money • Extra EMI margin to simplify the design-in and fit for varies independent use • Independent(IP67) for most inhospitable outdoor conditions • Easy to use

  11. Key Specification Wiring diagram & Dimension

  12. Key specification Core / Xi Dim Entry/Xi Fixed 150/100/75/35W 40/25W

  13. Wiring diagram Xi Dim/Fix 150/100/75/35W TWE IP67 driver Output Input 1-10V Dim Input Output Top View Independent driver (Cable version)

  14. Wiring diagram Xi Fix 40/25W TWE IP67 driver Input Output Top View

  15. Dimension -(Unit: mm) Xi Dim/Fix 150W/100W TWE IP67 driver Xi Dim Xi Fixed

  16. Dimension -(Unit: mm) Xi Dim/Fix 75/35W TWE IP67 driver Xi Dim Xi Fixed

  17. Dimension -(Unit: mm) Xi Fix 40/25W TWE IP67 driver Xi Fixed

  18. Certificates & Ordering info

  19. Certifications Core / Xi Dim Entry/Xi Fixed To be active in Q3’17

  20. Ordering information Core / Xi Dim Entry/Xi Fixed To be active in Q3’17
