Overall Project Objective:

This document outlines the objectives and current progress of an innovative Radio-Frequency indoor/outdoor navigation system designed to leverage existing wireless infrastructure. Key milestones include the completion of structural and schematic designs, with significant advancement in layout and transistor counts. Major components such as the FPU and Lookup functionalities have been tested and verified. We are focused on completing global routing and finalizing interconnects to ensure project timelines align with critical milestones. Upcoming tasks include splitting schematics for LVS and addressing simulation delays.

jeff
Télécharger la présentation

Overall Project Objective:

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

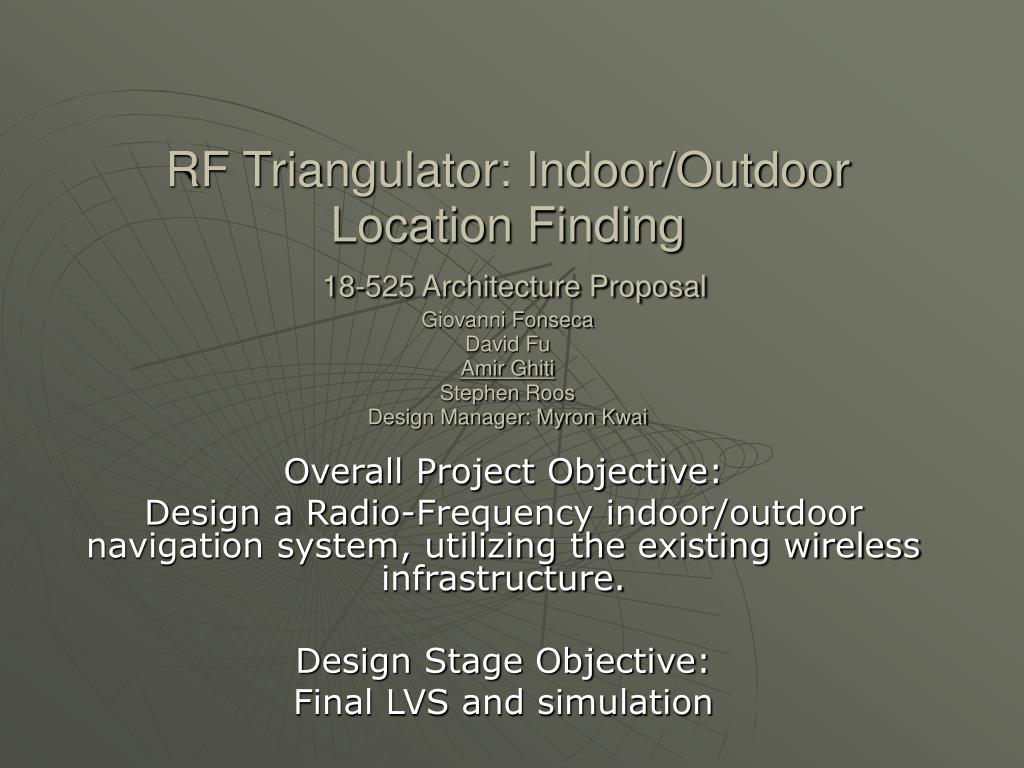

  1. Overall Project Objective: Design a Radio-Frequency indoor/outdoor navigation system, utilizing the existing wireless infrastructure. Design Stage Objective: Final LVS and simulation RF Triangulator: Indoor/Outdoor Location Finding18-525 Architecture ProposalGiovanni FonsecaDavid FuAmir GhitiStephen RoosDesign Manager: Myron Kwai

  2. Status Structural Verilog complete. Schematics completed. Layout of basic components complete. Major Layouts: ~90% done FPU: Done, tested. Lookup: Done, tested. Calc: interconnects. Top Three: Finishing layout: 85% done Global routing still needs to be done

  3. Current Transistor counts • Total: 27,150 transistors* • Top Three: 6,500 trans. 3 x FPU Add/Sub Unit 1500 trans. Control Registers & Muxes: 2000 trans. • Calc: 17,950 trans. 2 x FPU Add/Sub Unit: 1500 trans. 1 x FPU Mult/Div Unit: ~5000 trans. 1 x Logshifter: 200 trans. 1 x Comparator: 800 transistors. FSM Logic: 850 transistors 25 x 12-bit M-S En Reg: 6600 trans. total 8-1,6-1,4-1,2-1 Mux Sets: 3000 trans. total • Lookup: 2,700 trans. Control Registers & Muxes: 2000 trans. Control Logic: 163 trans. • SRAM: 12k trans * count not including SRAM, with SRAM: ~38k

  4. Floorplan

  5. FPU Layouts Multiplication & Division Layout FASU Layout

  6. Lookup Layout Total transistor count: 15018 in layout 14851 in schematic Area = 208.8*232.3 = 48504u^2. Density: .31 transistor per u^2.

  7. Top Three Progress Last week’s This week’s

  8. Lookup rise time

  9. Lookup fall time

  10. Lookup propagation time

  11. To do • Lookup: done • FPU: done • Calc: • Finish up the interconnects. • Top Three: • Finish up the interconnects. • Split the schematics and layout into parts for LVS

  12. Questions/Concerns • Large block simulations take a long time • Getting top3 and calc to lvs before carnival!
