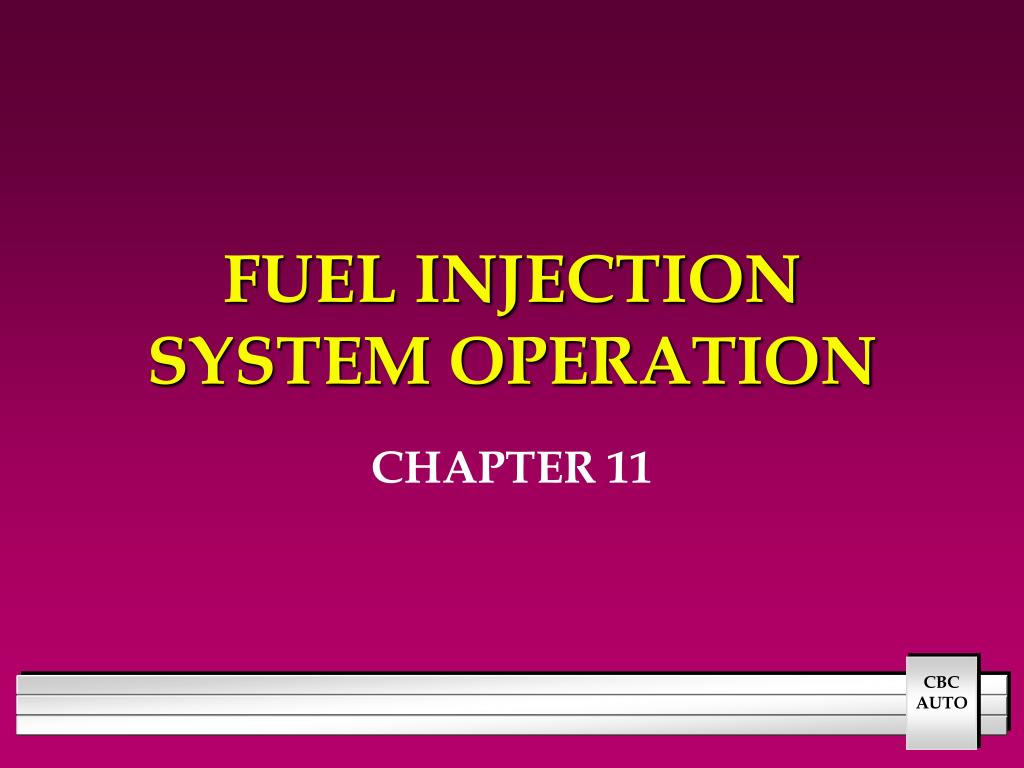

  1. FUEL INJECTION SYSTEM OPERATION CHAPTER 11

  2. FUEL INJECTION TYPES • THROTTLE BODY INJECTION (TBI) • INJECTED ABOVE THROTTLE PLATES • SINGLE INJECTOR • CENTRAL PORT INJECTION (CFI) • INJECTED ABOVE THROTTLE PLATES • USUALLY MORE THAN ONE INJECTOR • PORT FUEL INJECTION (PFI) • INJECTORS IN INTAKE RUNNERS

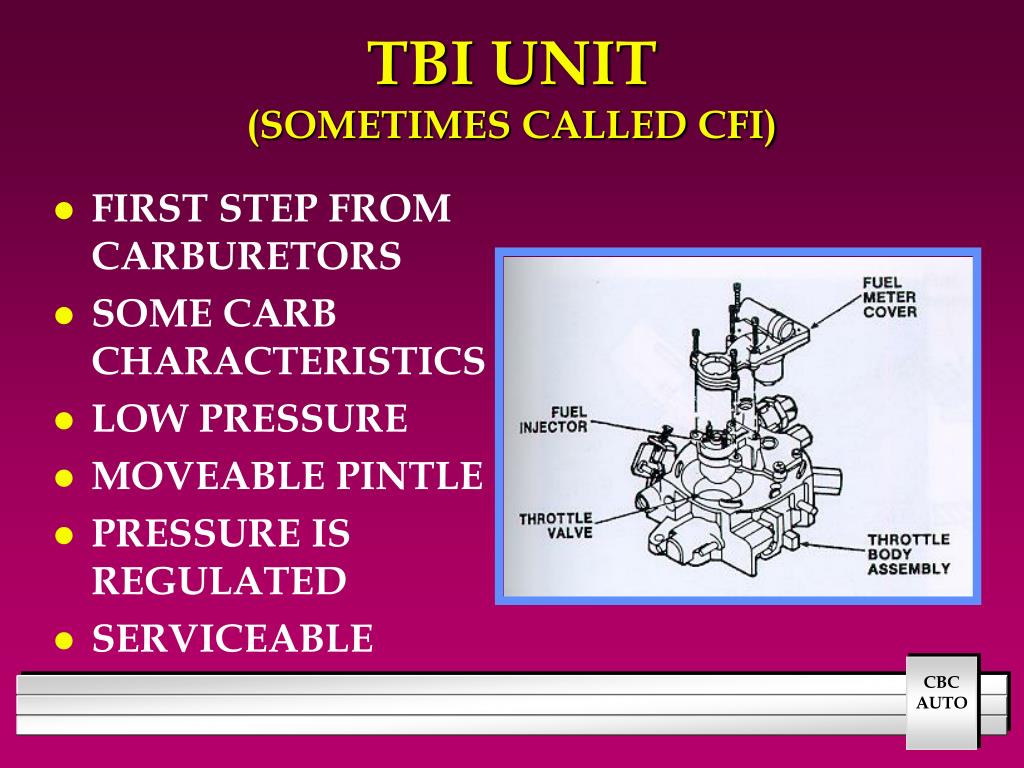

  3. TBI UNIT(SOMETIMES CALLED CFI) • FIRST STEP FROM CARBURETORS • SOME CARB CHARACTERISTICS • LOW PRESSURE • MOVEABLE PINTLE • PRESSURE IS REGULATED • SERVICEABLE FIG 6-40 CLASS

  4. LOW PRESSURE SYSTEM

  5. FUEL INLET AND OUTLET

  6. LOW PRESSURE FUEL INJECTOR • 13-16 PSI • TWO O-RINGS • BALL PINTLE • USED ON TBI AND CFI SYSTEMS • MESH SCREEN • EASY TO REPLACE

  7. TWO INJECTOR SYSTEM

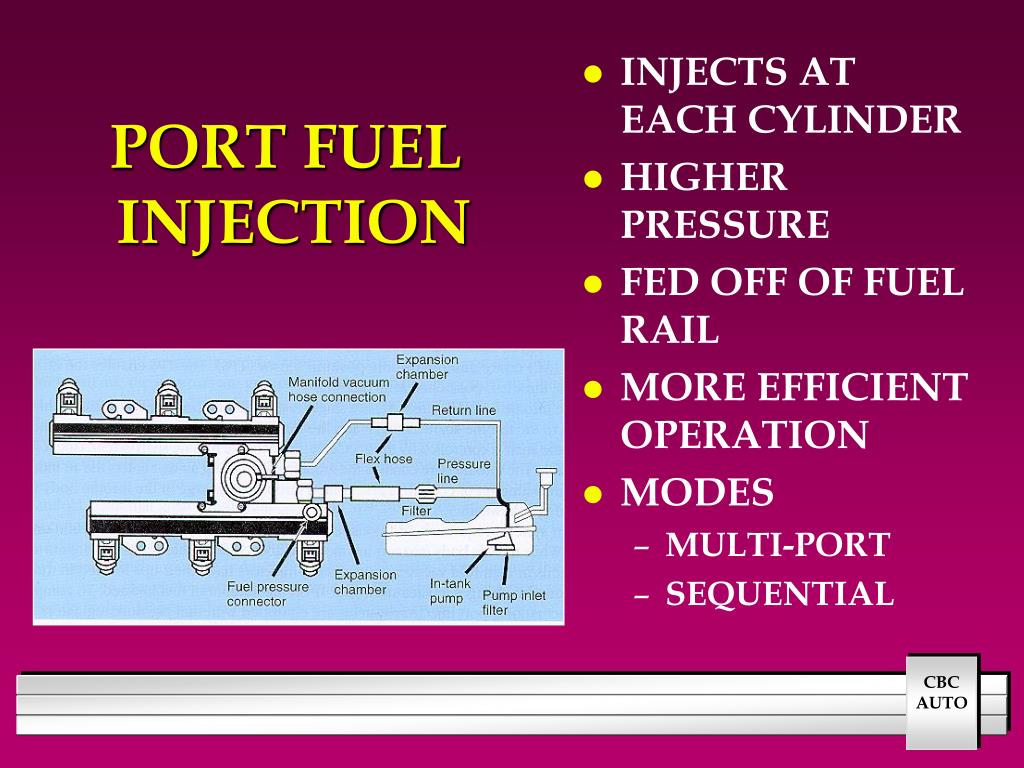

  8. PORT FUEL INJECTION • INJECTS AT EACH CYLINDER • HIGHER PRESSURE • FED OFF OF FUEL RAIL • MORE EFFICIENT OPERATION • MODES • MULTI-PORT • SEQUENTIAL

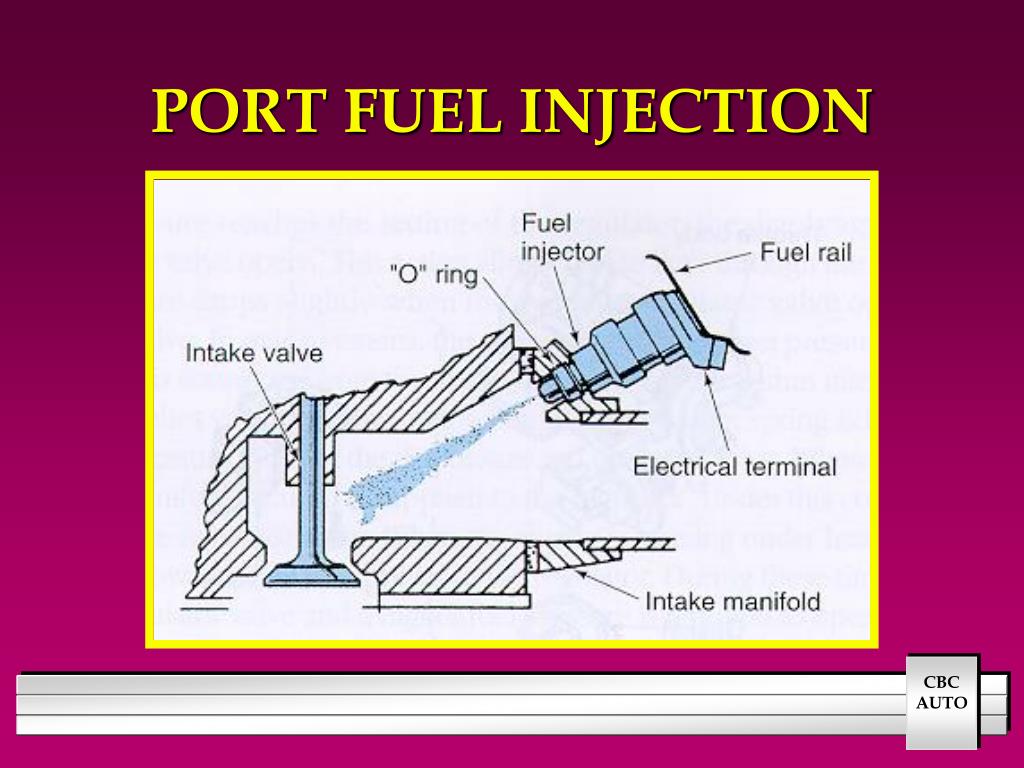

  9. PORT FUEL INJECTION

  10. CENTRAL POINT INJECTION • GM SYSTEM • INJECTOR LOCATED IN LOWER HALF OF INTAKE MANIFOLD • POPPET VALVES • HIGH PRESSURE 60 PSI FIG 6-49 CLASS

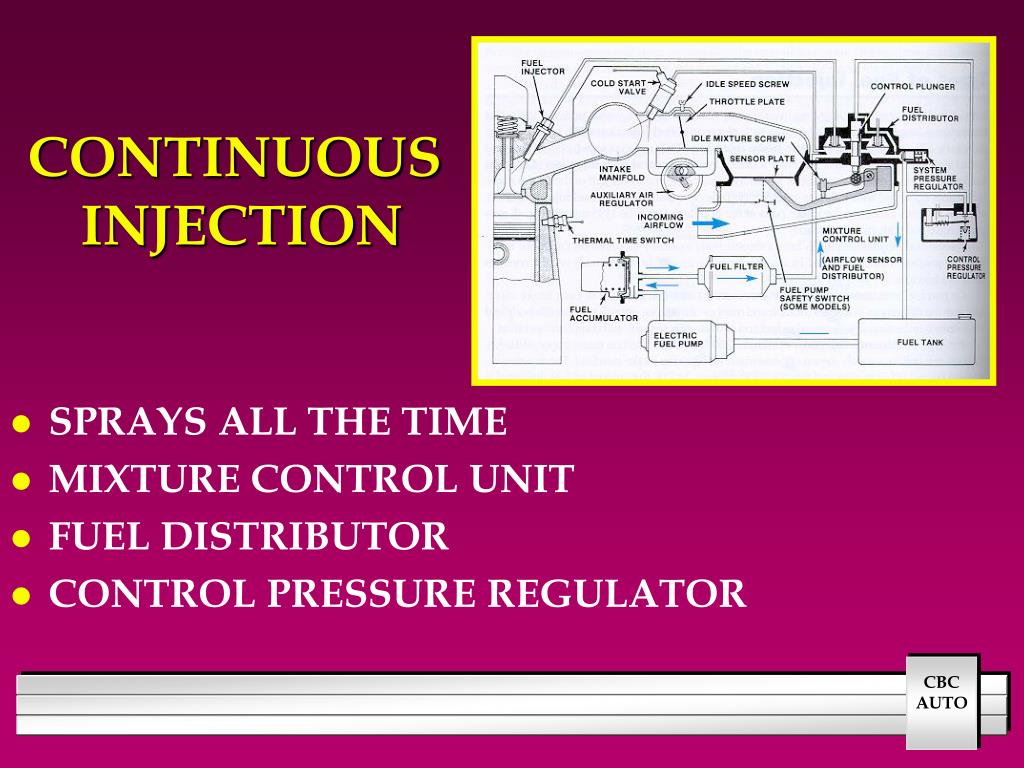

  11. CONTINUOUS INJECTION • SPRAYS ALL THE TIME • MIXTURE CONTROL UNIT • FUEL DISTRIBUTOR • CONTROL PRESSURE REGULATOR

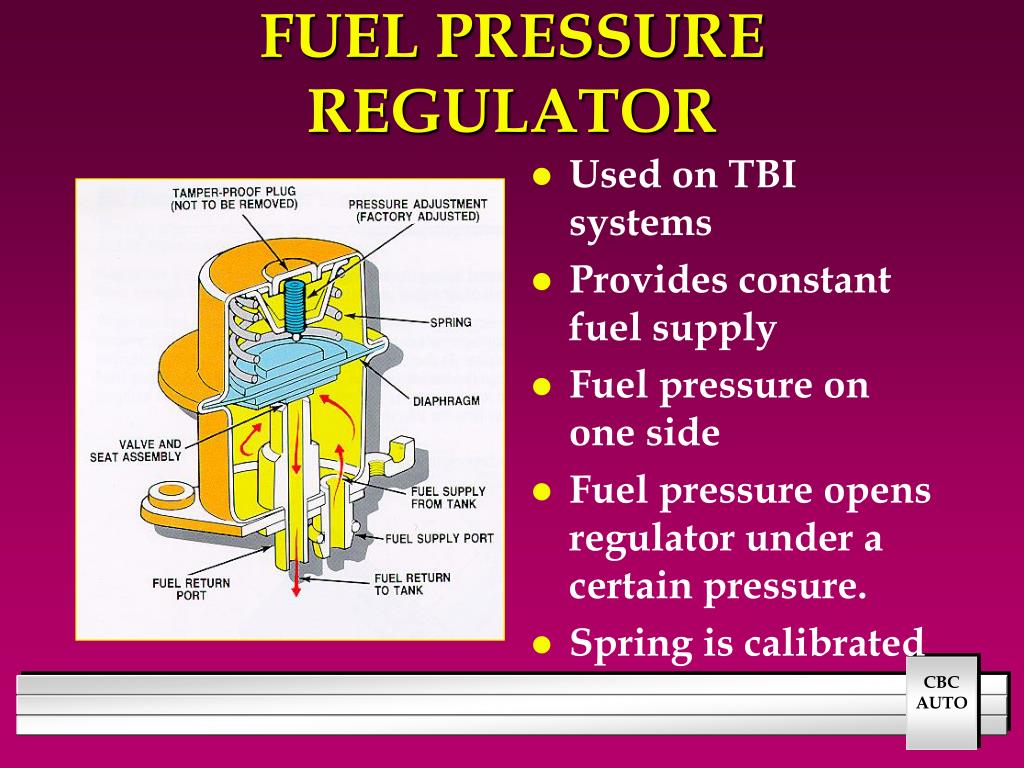

  12. FUEL PRESSURE REGULATOR • Used on TBI systems • Provides constant fuel supply • Fuel pressure on one side • Fuel pressure opens regulator under a certain pressure. • Spring is calibrated

  13. INJECTION SYSTEM SERVICE CHAPTER 6 LAB MANUAL

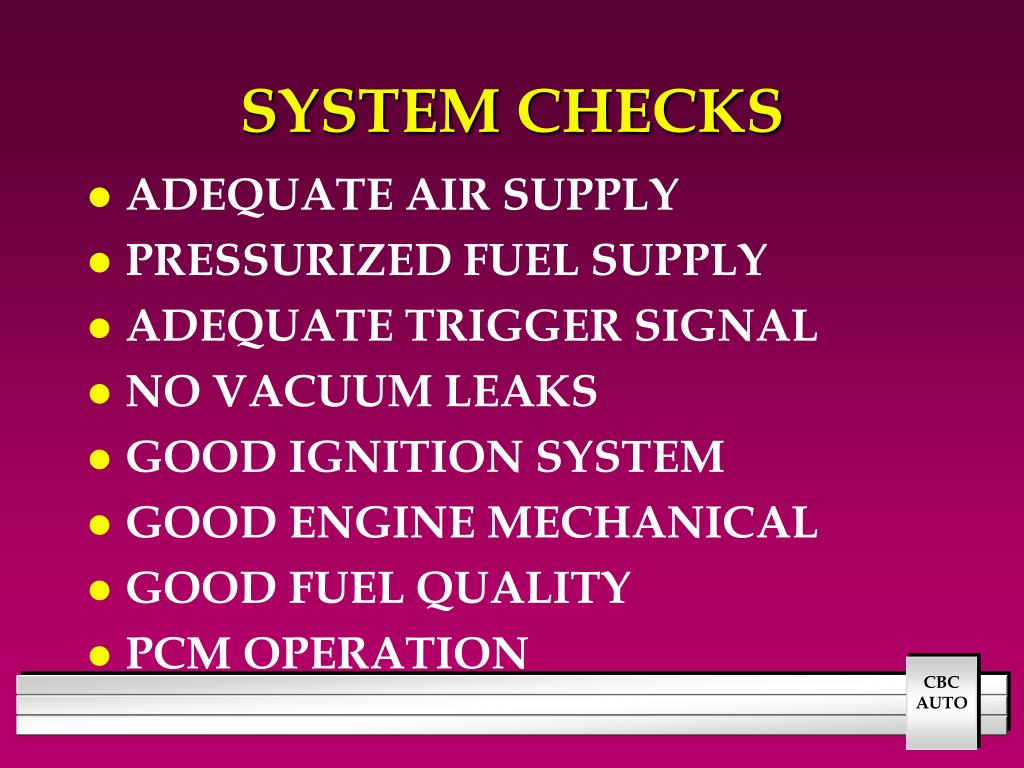

  14. SYSTEM CHECKS • ADEQUATE AIR SUPPLY • PRESSURIZED FUEL SUPPLY • ADEQUATE TRIGGER SIGNAL • NO VACUUM LEAKS • GOOD IGNITION SYSTEM • GOOD ENGINE MECHANICAL • GOOD FUEL QUALITY • PCM OPERATION

  15. FUEL DELIVERY • Fuel Pump noises • Does fuel pump run at all? • Fuel filter condition? • Connections to fuel pump

  16. COMPONENT CHECKS • AIR INDUCTION • AIR FLOW SENSORS • THROTTLE BODY • FUEL SYSTEM CHECKS • FUEL DELIVERY • INJECTOR CHECKS • INJECTOR CLEANING 6-61 LAB

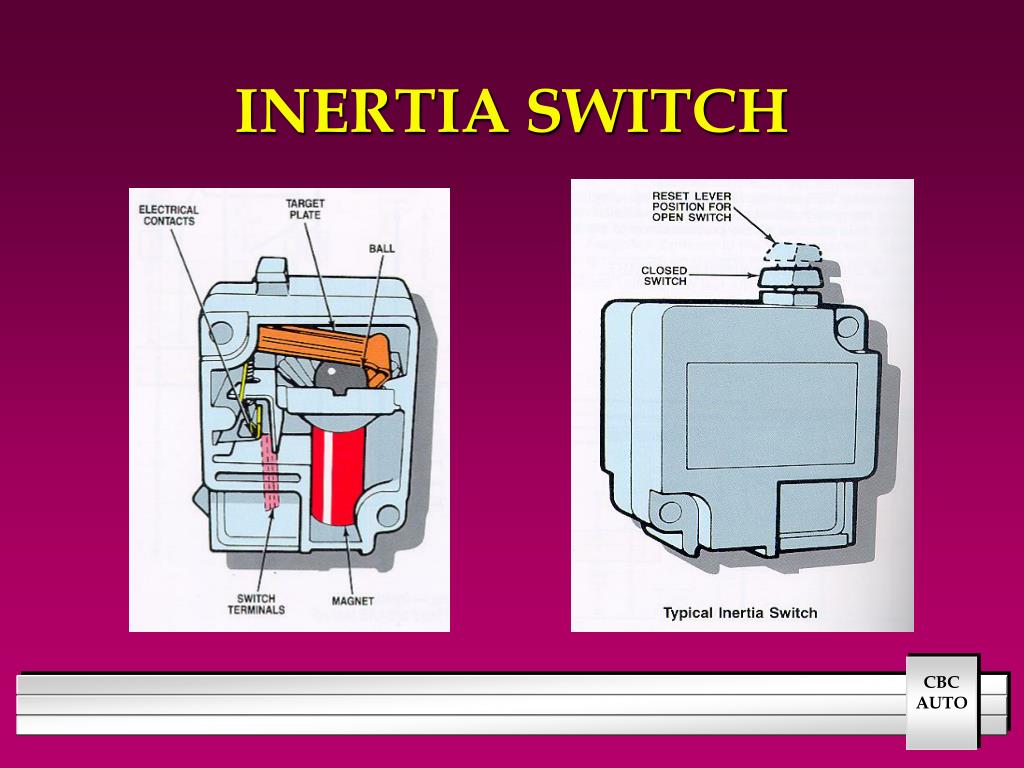

  17. INERTIA SWITCH

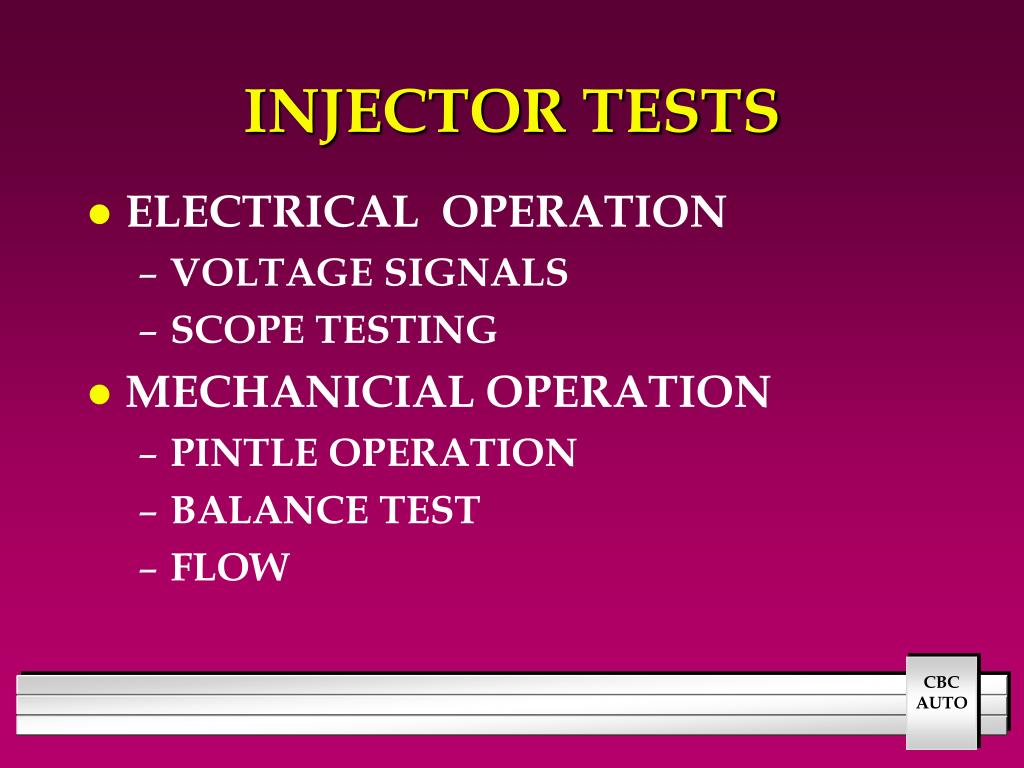

  18. INJECTOR TESTS • ELECTRICAL OPERATION • VOLTAGE SIGNALS • SCOPE TESTING • MECHANICIAL OPERATION • PINTLE OPERATION • BALANCE TEST • FLOW
