Ionic Bonds

. :. Li. :. F. :. :. F –. :. +. :. :. Li +. +. Ionic Bonds. An ionic bond is formed when or more electrons are transferred from a metal to the nonmetal.

jeroen
Télécharger la présentation

Ionic Bonds

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

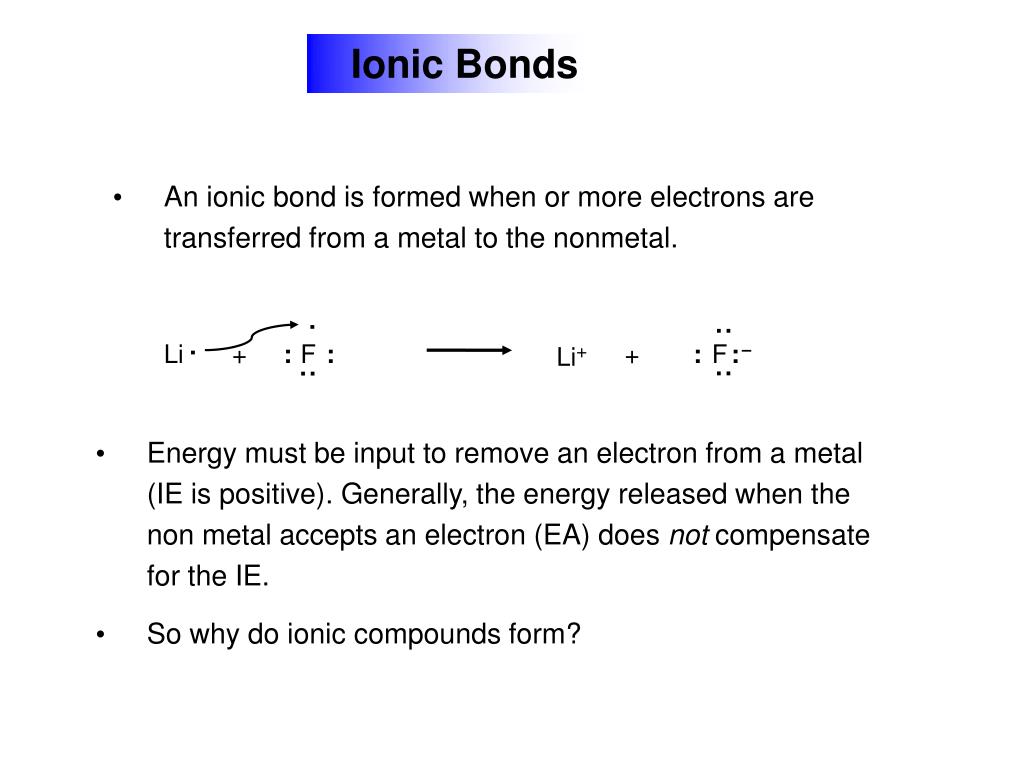

  1. . : . Li : F : : F – : + : : Li+ + Ionic Bonds • An ionic bond is formed when or more electrons are transferred from a metal to the nonmetal. • Energy must be input to remove an electron from a metal (IE is positive). Generally, the energy released when the non metal accepts an electron (EA) does not compensate for the IE. • So why do ionic compounds form?

  2. Lattice Energy • Remember, IE and EA are for adding/removing an electron to/from an atom in the gaseous state. • Ionic compounds are usually solids. The release of energy on forming the solid, called the lattice energy is the driving force for the formation of ionic compounds. • Because of high lattice energies, ionic solids tend to be hard and have high melting points. Ionic compounds are insulators in the solid state, because electrons are localized on the ions, but conduct when molten or in solution, due to flow of ions (not electrons). • Lattice energies can be calculated using Hess’s law, via a Born-Haber Cycle.

  3. The Born-Haber cycle for lithium fluoride

  4. Calculating Lattice Energy • Step 1: Convert elements to atoms in the gas state • e.g. for Li, Li (s)  Li (g) DH1 = DHatomization • for F, 1/2 F2 (g)  F (g) DH2 = 1/2 (Bond Energy) • Step 2: Electron transfer to form (isolated) ions • Li (g)  Li+ (g) + e–DH3 = IE1 • F (g) + e– F– (g) DH4 = EA1 • Step 3: Ions come together to form solid • Li+ (g) + F– (g) LiF (s) DH5 = Lattice Energy • Overall: Li (s) + 1/2 F2 (g) LiF (s) DH = DHf = S(DH1–5) • Lattice Energy = DHf – (DH1 + DH2 + DH3 + DH4)

  5. Periodic Trends in Lattice Energy Coulomb’s Law charge A X charge B electrostatic force a distance2 charge A X charge B or, electrostatic energy a distance (since energy = force X distance) • So, lattice energy increases, as ionic radius decreases (distance between charges is smaller). • Lattice energy also increases as charge increases.

  6. Trends in lattice energy
