  1. User-Level Infrastructure for System Call Interposition:A Platform for Intrusion Detection and Confinement K. Jain and R. Sekar Cho, Ho-Gi Operating System Lab in GNU

  2. Abstract • Untrusted or malicious applications • damage can ultimately be inflicted only via system calls made by processes running on the target system • Detection and confinement • Previous work • have relied on an in-kernel approach • This paper • user-level infrastructure • providing adequate set of capabilities in the infrastructure • portability of the security enhancements and the infrastructure itself across different operating systems • minimizing performance overheads associated with interception for a wide range of applications [JaSe00]

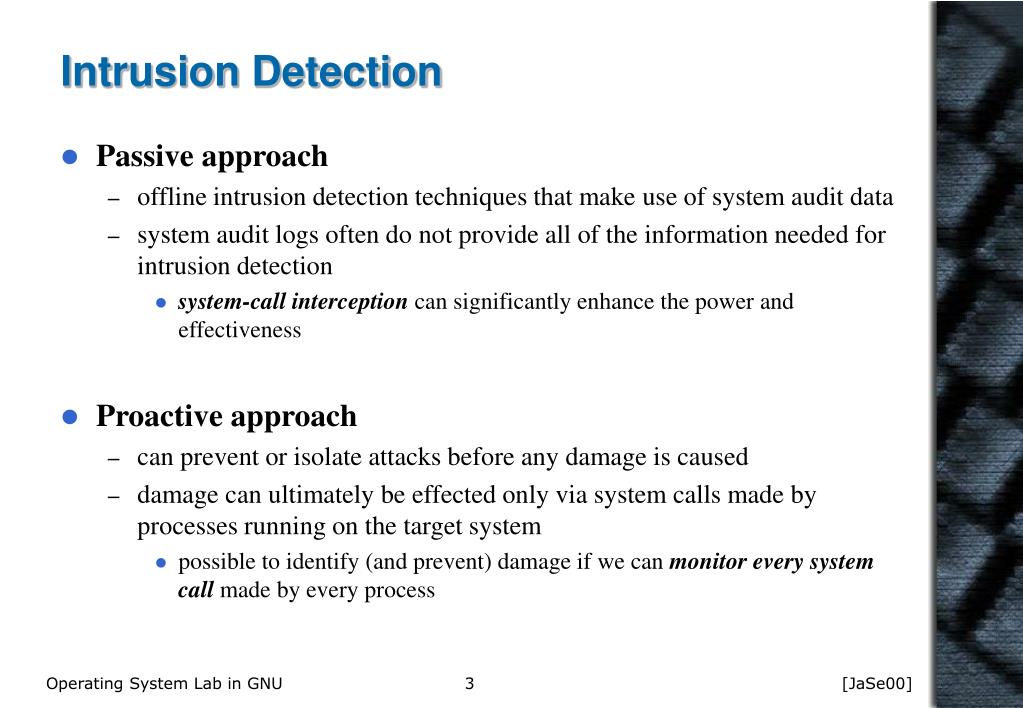

  3. Intrusion Detection • Passive approach • offline intrusion detection techniques that make use of system audit data • system audit logs often do not provide all of the information needed for intrusion detection • system-call interception can significantly enhance the power and effectiveness • Proactive approach • can prevent or isolate attacks before any damage is caused • damage can ultimately be effected only via system calls made by processes running on the target system • possible to identify (and prevent) damage if we can monitor every system call made by every process [JaSe00]

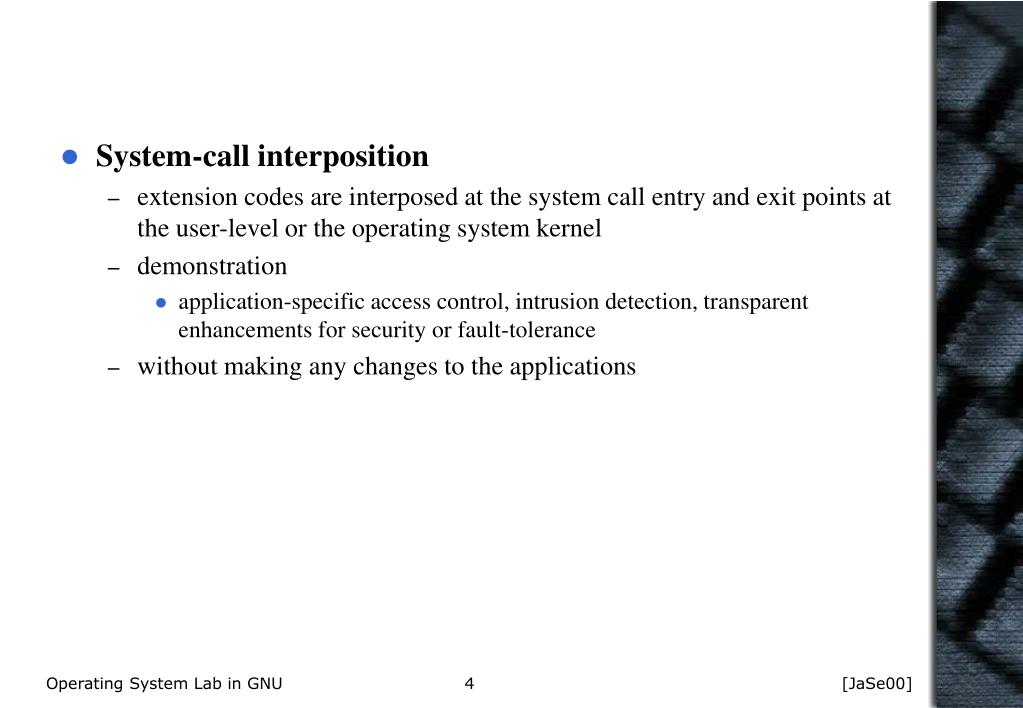

  4. System-call interposition • extension codes are interposed at the system call entry and exit points at the user-level or the operating system kernel • demonstration • application-specific access control, intrusion detection, transparent enhancements for security or fault-tolerance • without making any changes to the applications [JaSe00]

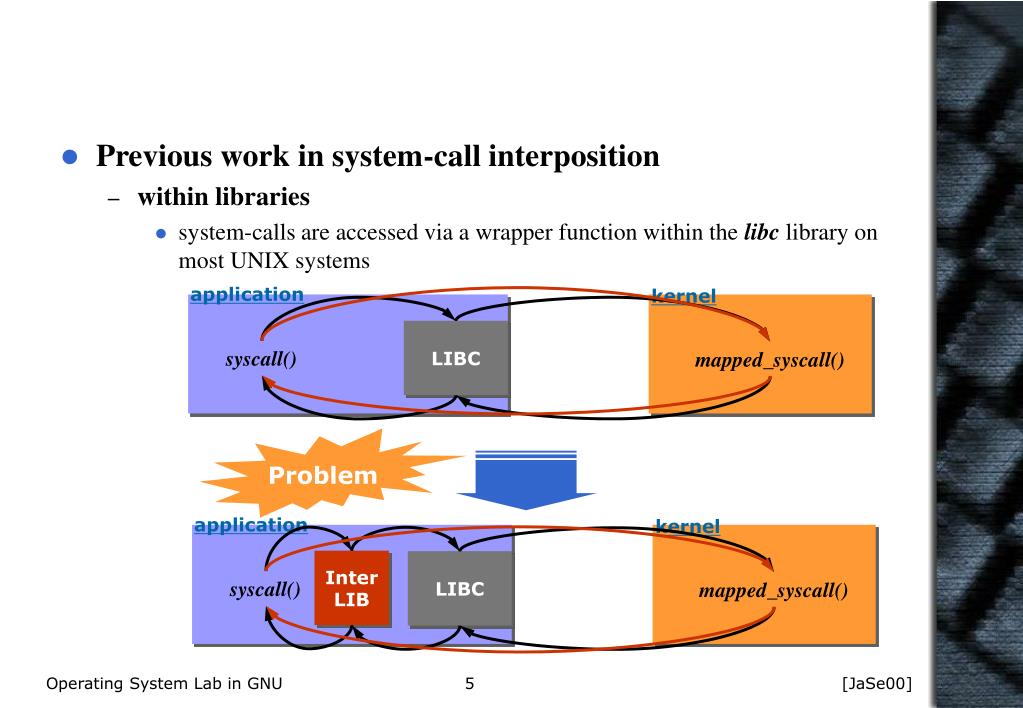

  5. application kernel kernel LIBC syscall() mapped_syscall() mapped_syscall() application LIBC syscall() • Previous work in system-call interposition • within libraries • system-calls are accessed via a wrapper function within the libc library on most UNIX systems Problem Inter LIB [JaSe00]

  6. within the operating system kernel • all of the extension code (for all processes being monitored) runs in the kernel mode • low interception overhead • problems • bring down the entire system • state-of-the-art kernel-resident software development lags user-level software development significantly • require superuser privileges • require kernel modifications [JaSe00]

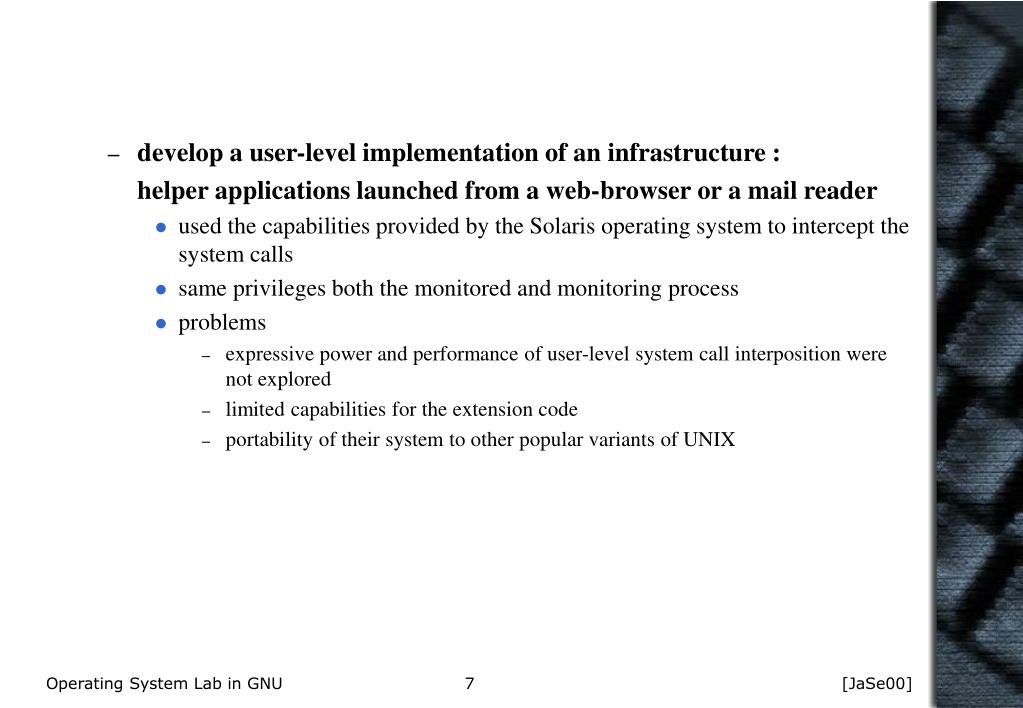

  7. develop a user-level implementation of an infrastructure : helper applications launched from a web-browser or a mail reader • used the capabilities provided by the Solaris operating system to intercept the system calls • same privileges both the monitored and monitoring process • problems • expressive power and performance of user-level system call interposition were not explored • limited capabilities for the extension code • portability of their system to other popular variants of UNIX [JaSe00]

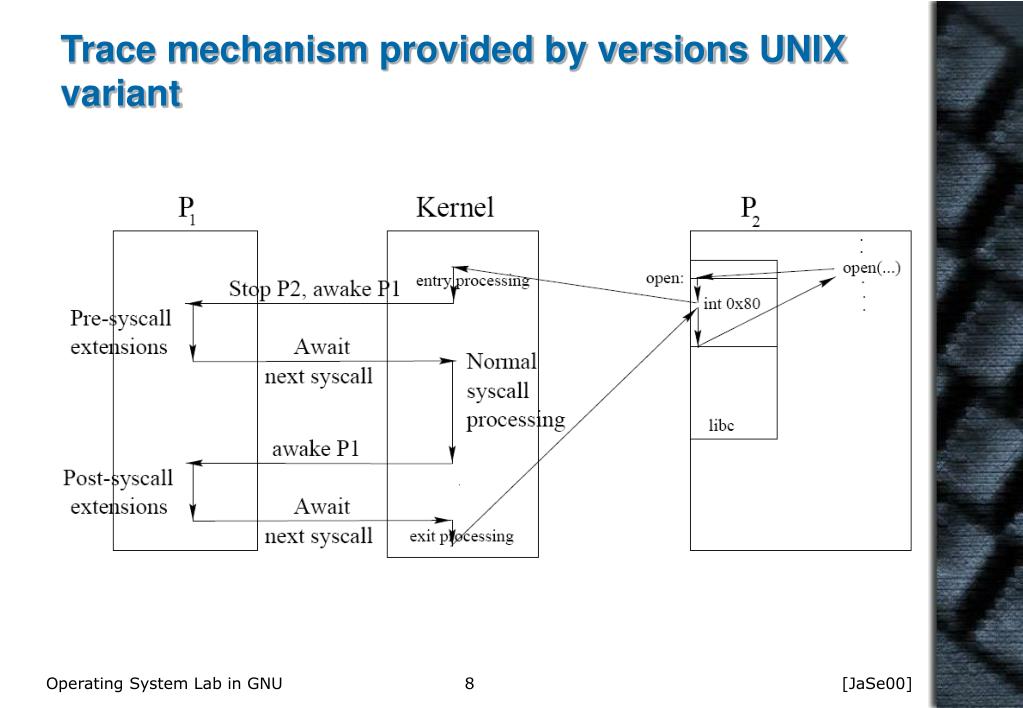

  8. Trace mechanism provided by versions UNIX variant [JaSe00]

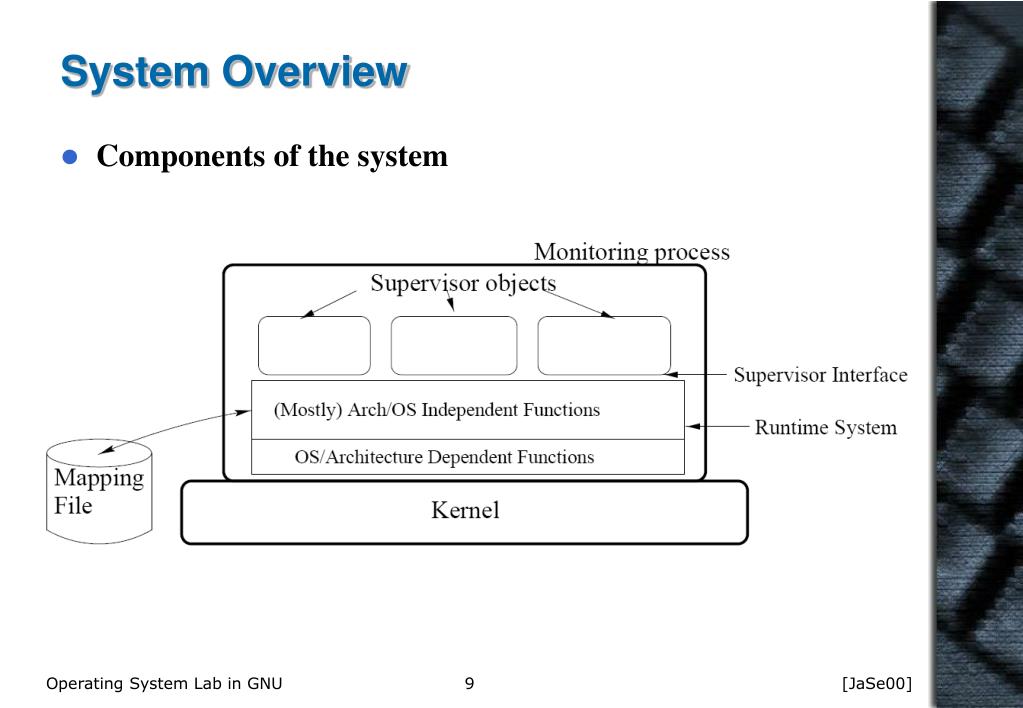

  9. System Overview • Components of the system [JaSe00]

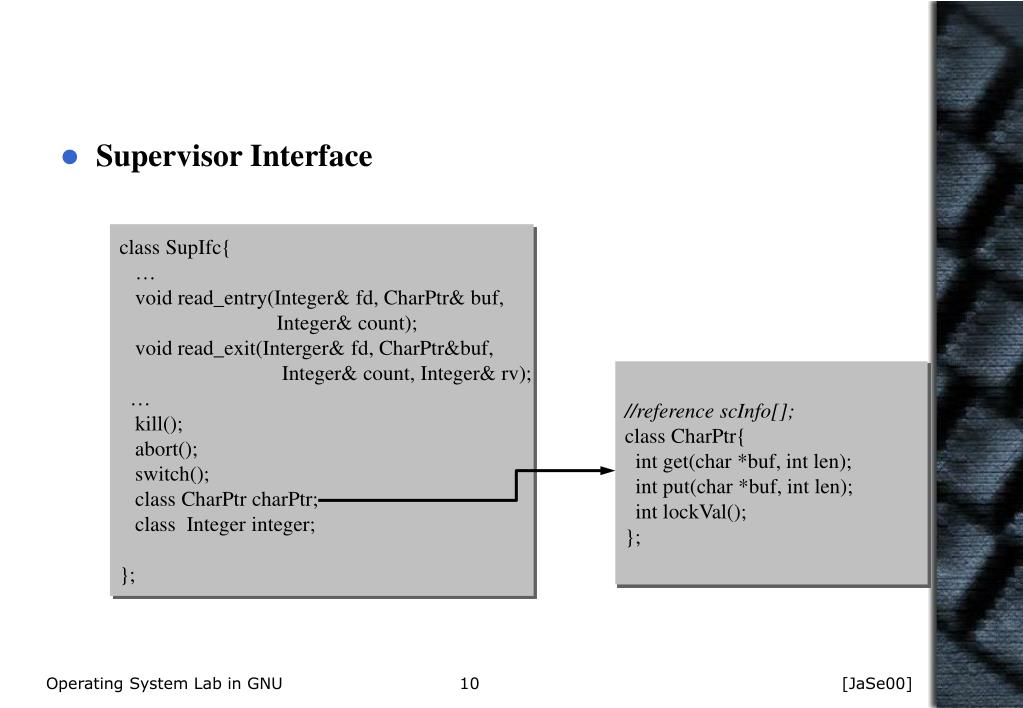

  10. Supervisor Interface class SupIfc{ … void read_entry(Integer& fd, CharPtr& buf, Integer& count); void read_exit(Interger& fd, CharPtr&buf, Integer& count, Integer& rv); … kill(); abort(); switch(); class CharPtr charPtr; class Integer integer; }; //reference scInfo[]; class CharPtr{ int get(char *buf, int len); int put(char *buf, int len); int lockVal(); }; [JaSe00]

  11. abstraction mechanisms for writing a supervisor class without having to hard-code system call names or argument types specific to one or more variants of UNIX • Basic form • Example • Linux • OSF/1 eventName(X) ::= (s1(Y1)|Cond1)||…||(sn(Yn)|Condn) readFd(Integer fd) ::= read(fd,_,_) || readdir(fd,_,_) || getdents(fd,_,_) || readv(fd,_,_) readFd(Integer fd) ::= read(fd,_,_) || readdir(fd,_,_) || getdents(fd,_,_,_) || readv(fd,_,_) [JaSe00]

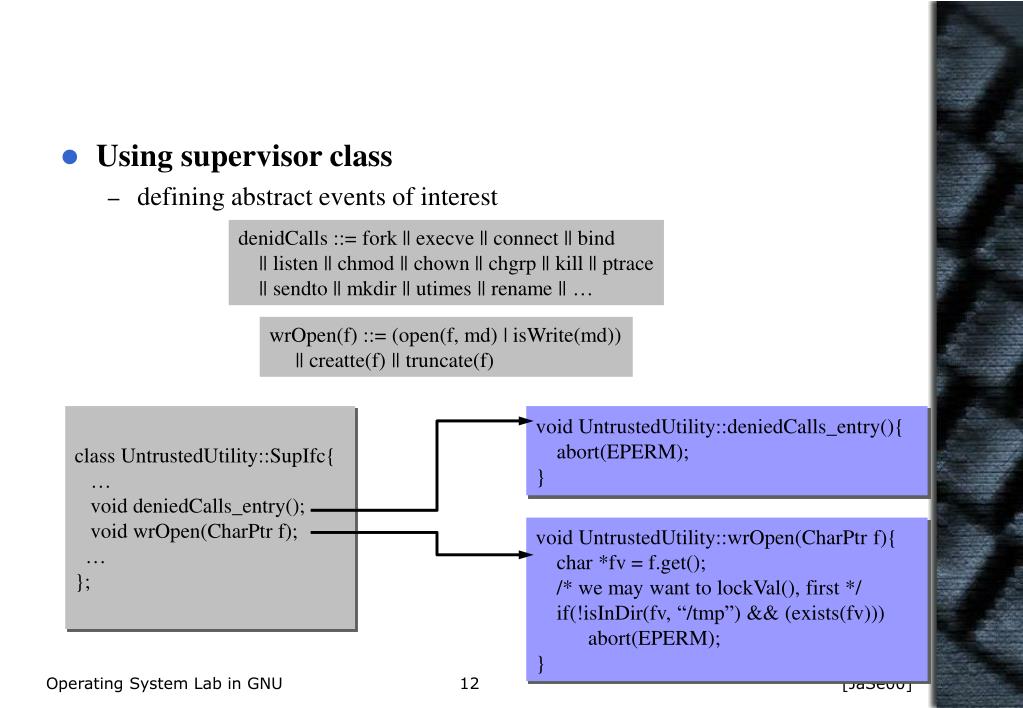

  12. Using supervisor class • defining abstract events of interest denidCalls ::= fork || execve || connect || bind || listen || chmod || chown || chgrp || kill || ptrace || sendto || mkdir || utimes || rename || … wrOpen(f) ::= (open(f, md) | isWrite(md)) || creatte(f) || truncate(f) class UntrustedUtility::SupIfc{ … void deniedCalls_entry(); void wrOpen(CharPtr f); … }; void UntrustedUtility::deniedCalls_entry(){ abort(EPERM); } void UntrustedUtility::wrOpen(CharPtr f){ char *fv = f.get(); /* we may want to lockVal(), first */ if(!isInDir(fv, “/tmp”) && (exists(fv))) abort(EPERM); } [JaSe00]

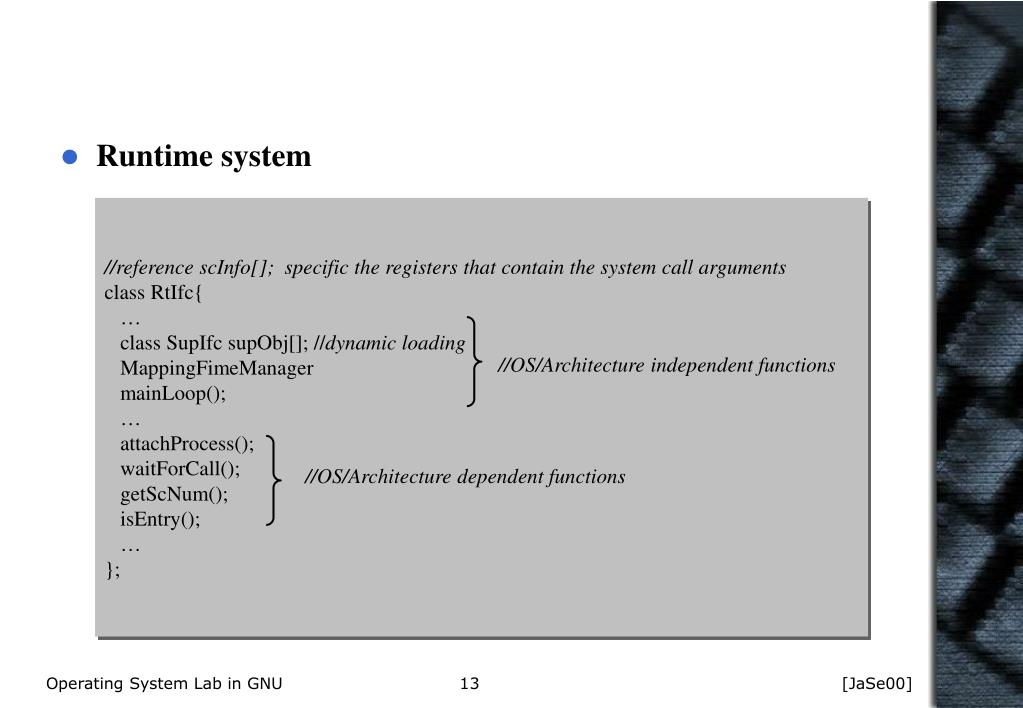

  13. Runtime system //reference scInfo[]; specific the registers that contain the system call arguments class RtIfc{ … class SupIfc supObj[]; //dynamic loading MappingFimeManager mainLoop(); … attachProcess(); waitForCall(); getScNum(); isEntry(); … }; //OS/Architecture independent functions //OS/Architecture dependent functions [JaSe00]

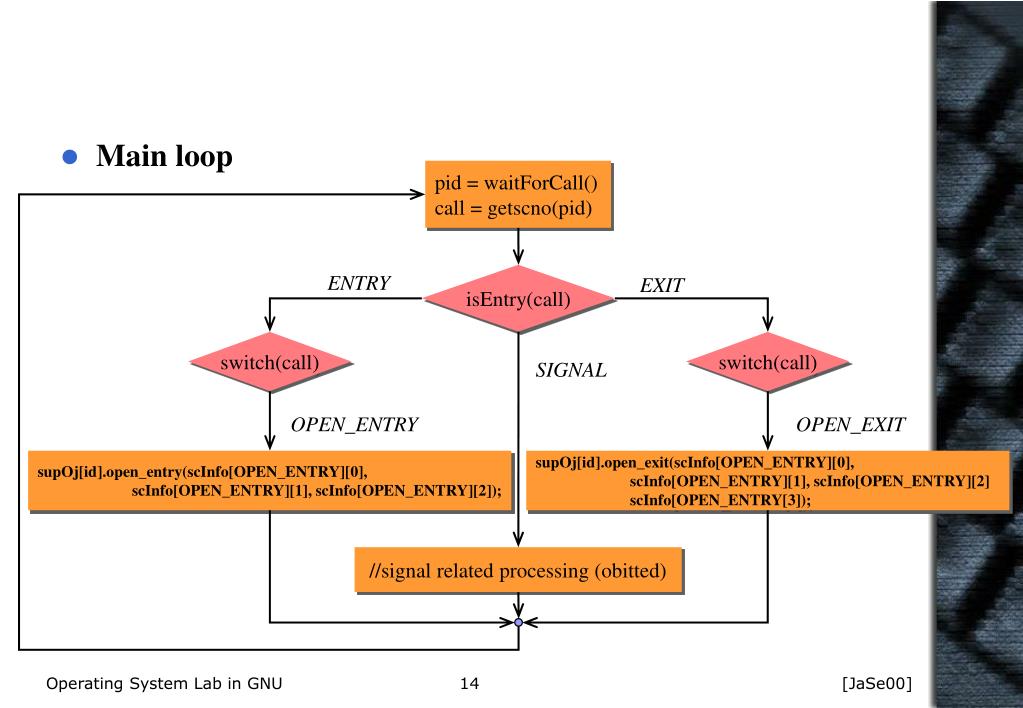

  14. pid = waitForCall() call = getscno(pid) ENTRY isEntry(call) EXIT SIGNAL switch(call) switch(call) OPEN_ENTRY OPEN_EXIT supOj[id].open_entry(scInfo[OPEN_ENTRY][0], scInfo[OPEN_ENTRY][1], scInfo[OPEN_ENTRY][2]); supOj[id].open_exit(scInfo[OPEN_ENTRY][0], scInfo[OPEN_ENTRY][1], scInfo[OPEN_ENTRY][2] scInfo[OPEN_ENTRY[3]); //signal related processing (obitted) • Main loop [JaSe00]

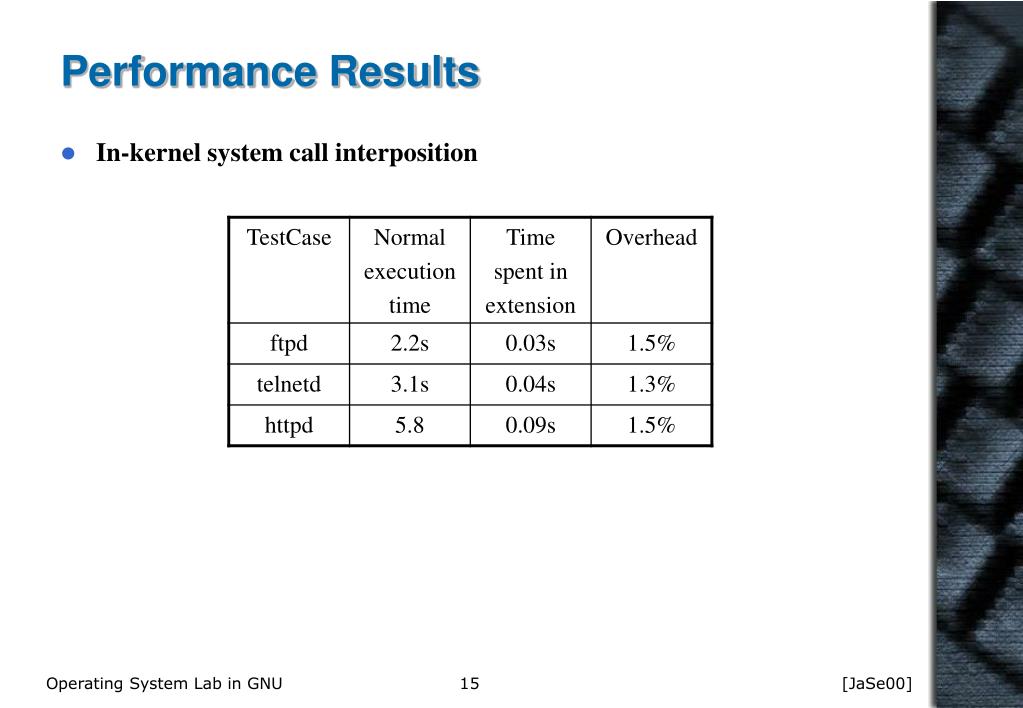

  15. Performance Results • In-kernel system call interposition [JaSe00]

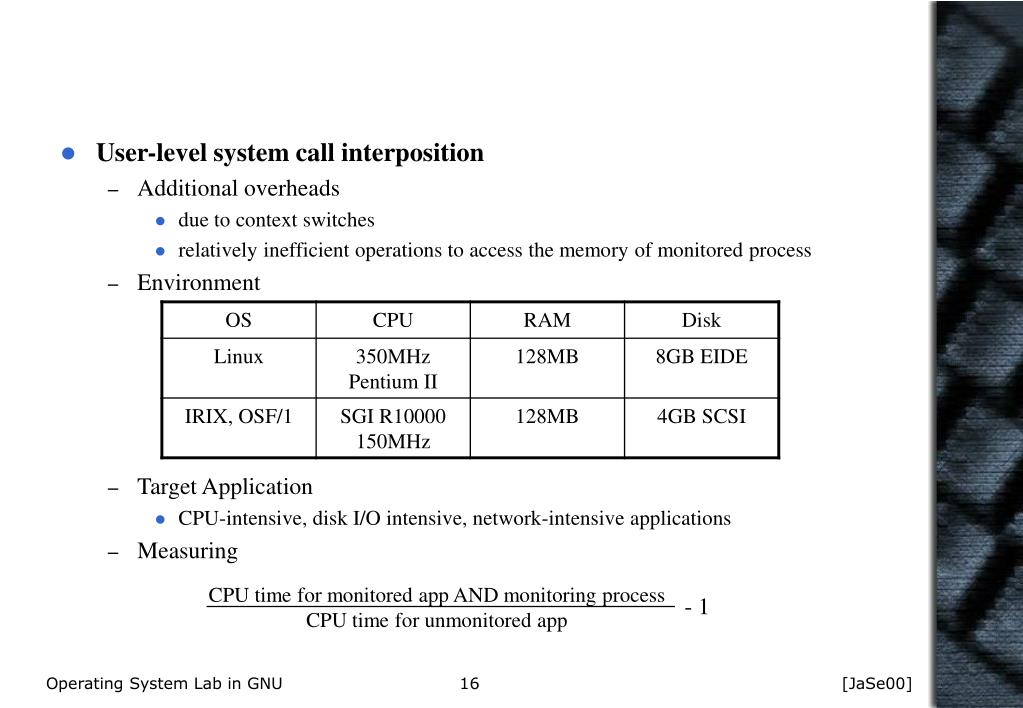

  16. CPU time for monitored app AND monitoring process CPU time for unmonitored app • User-level system call interposition • Additional overheads • due to context switches • relatively inefficient operations to access the memory of monitored process • Environment • Target Application • CPU-intensive, disk I/O intensive, network-intensive applications • Measuring - 1 [JaSe00]

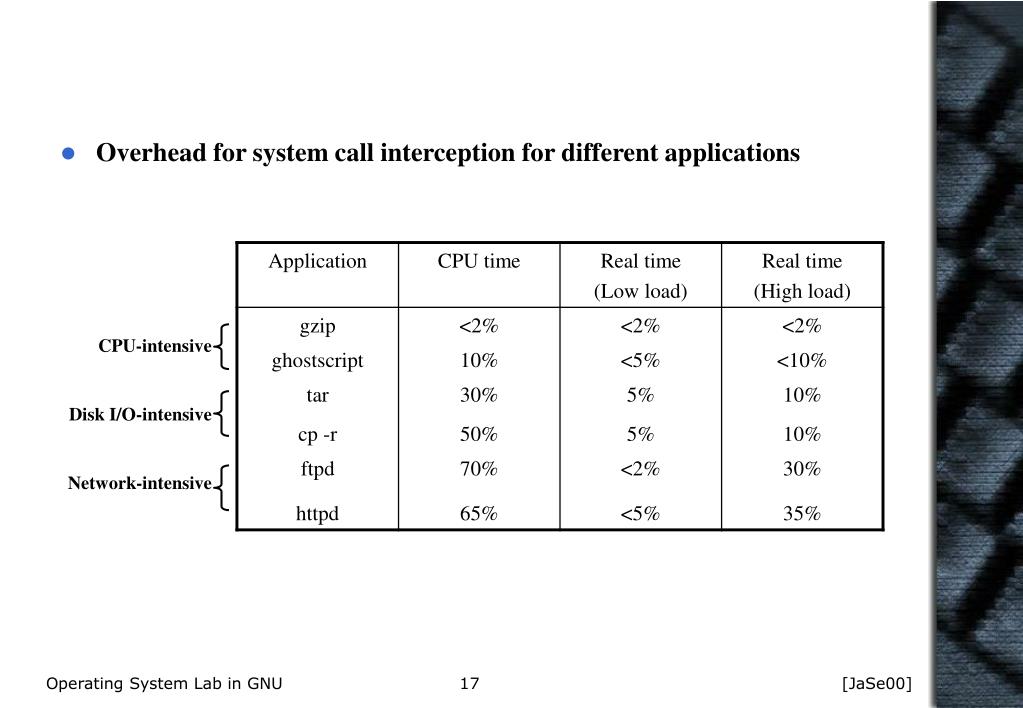

  17. Overhead for system call interception for different applications CPU-intensive Disk I/O-intensive Network-intensive [JaSe00]

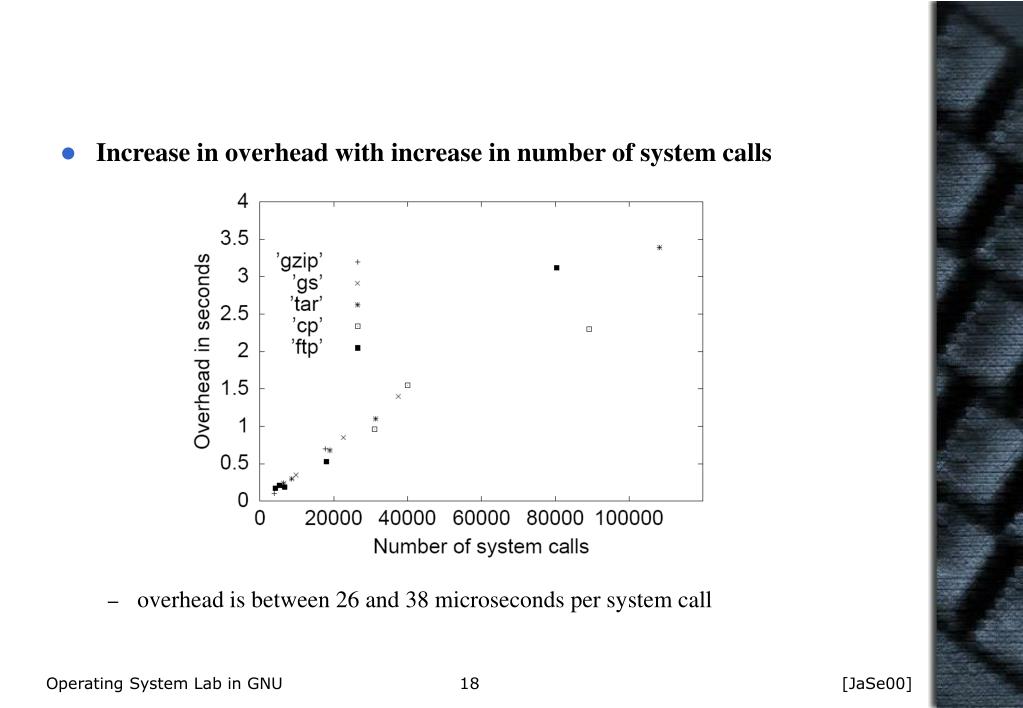

  18. Increase in overhead with increase in number of system calls • overhead is between 26 and 38 microseconds per system call [JaSe00]

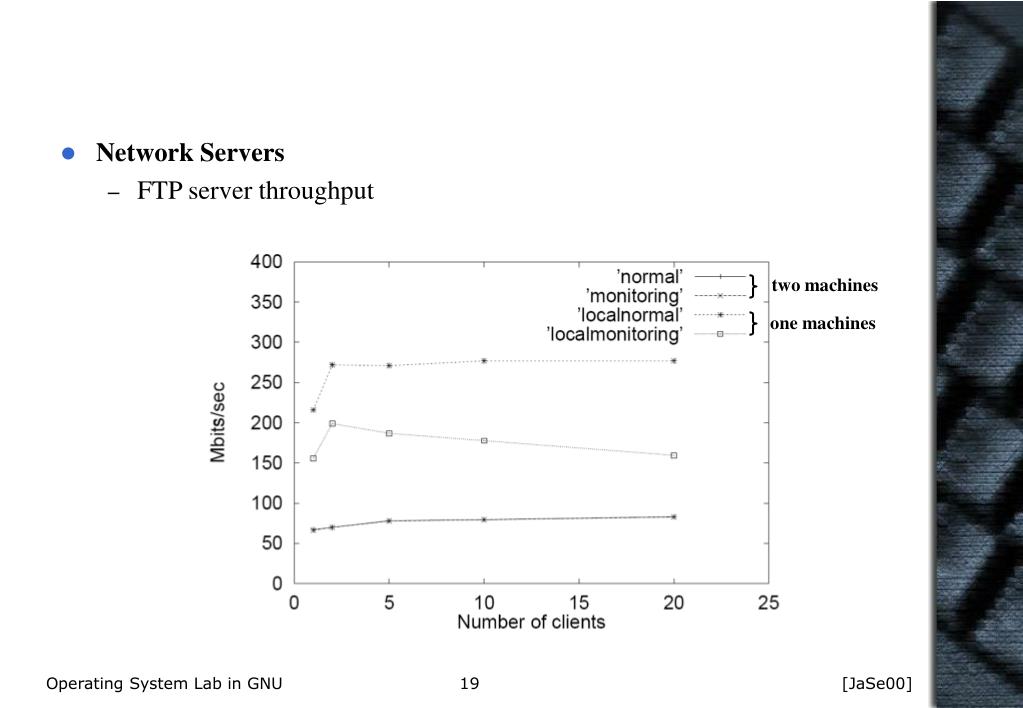

  19. Network Servers • FTP server throughput two machines one machines [JaSe00]

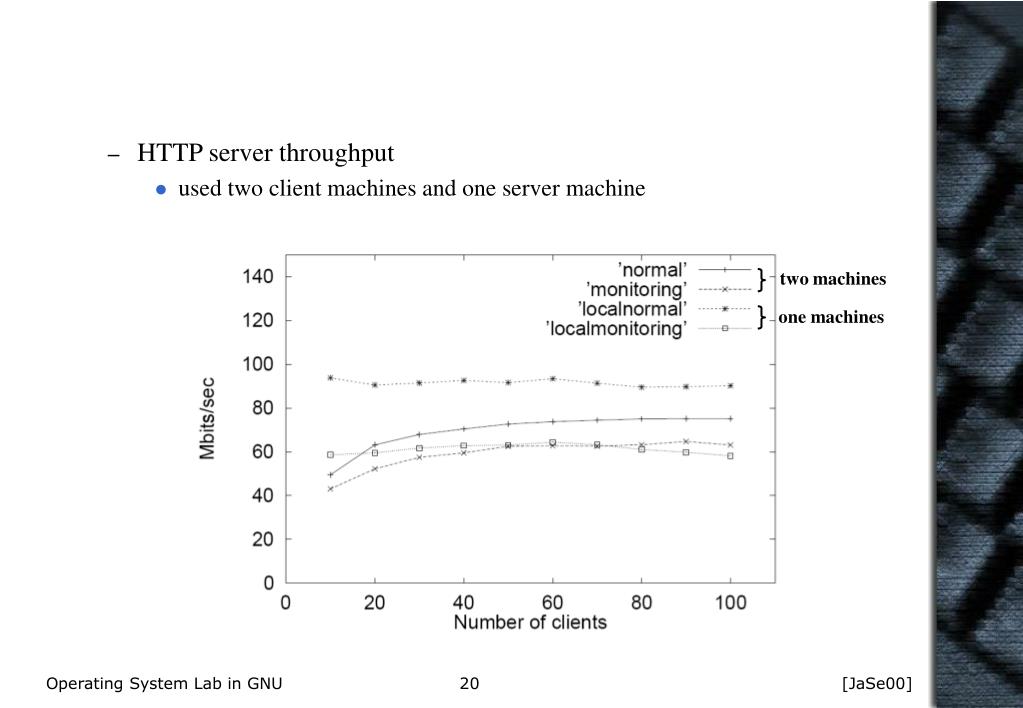

  20. HTTP server throughput • used two client machines and one server machine two machines one machines [JaSe00]

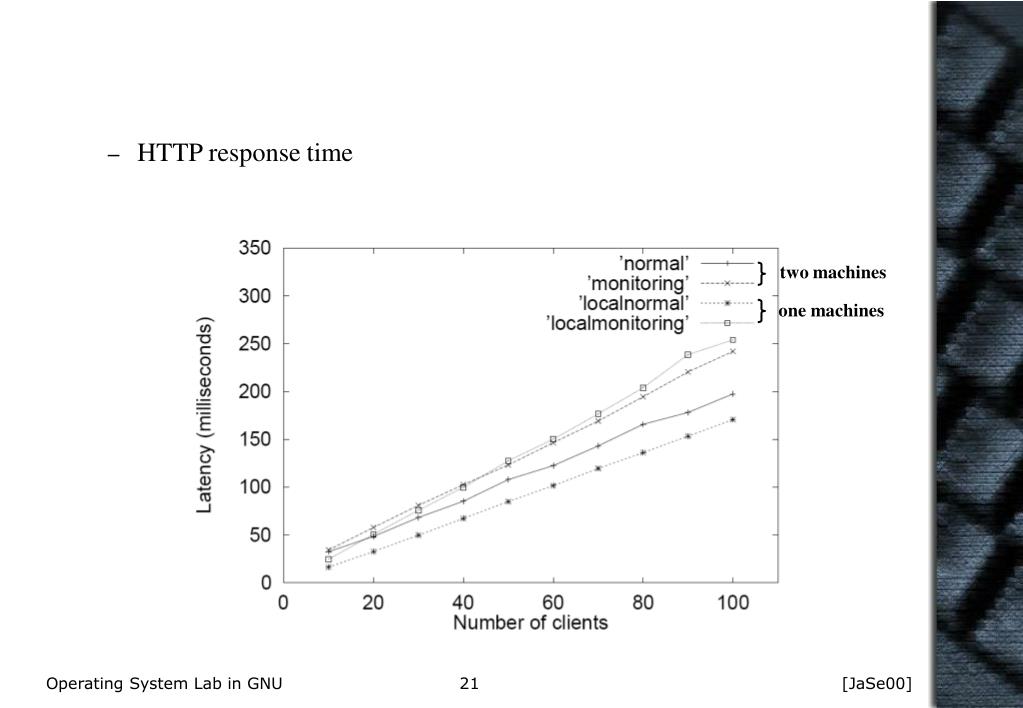

  21. HTTP response time two machines one machines [JaSe00]

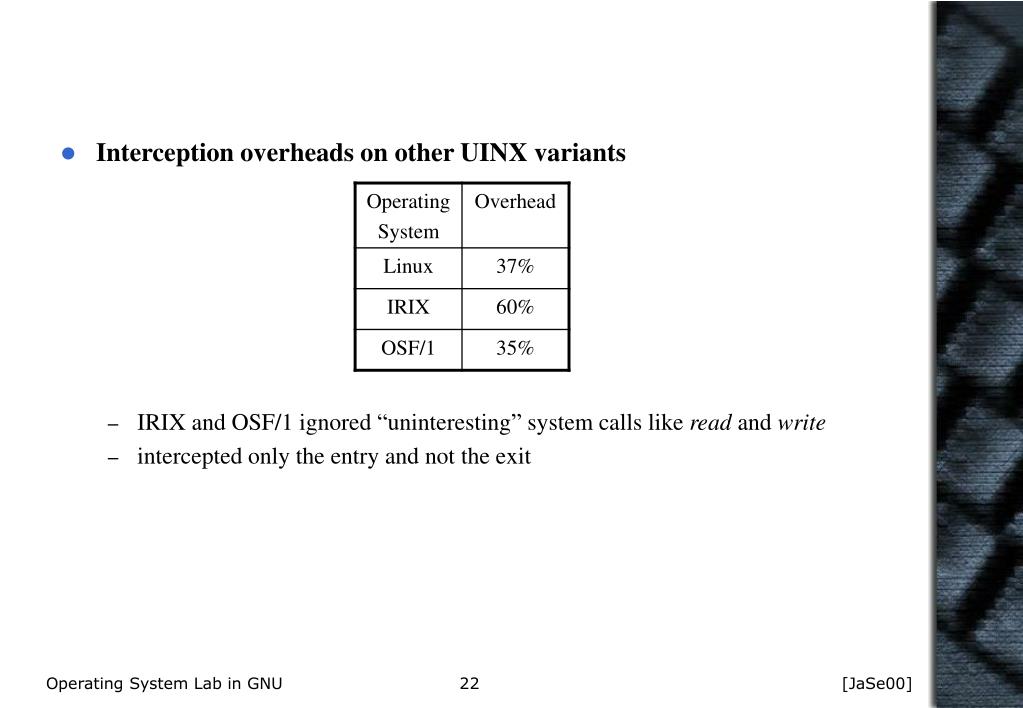

  22. Interception overheads on other UINX variants • IRIX and OSF/1 ignored “uninteresting” system calls like read and write • intercepted only the entry and not the exit [JaSe00]

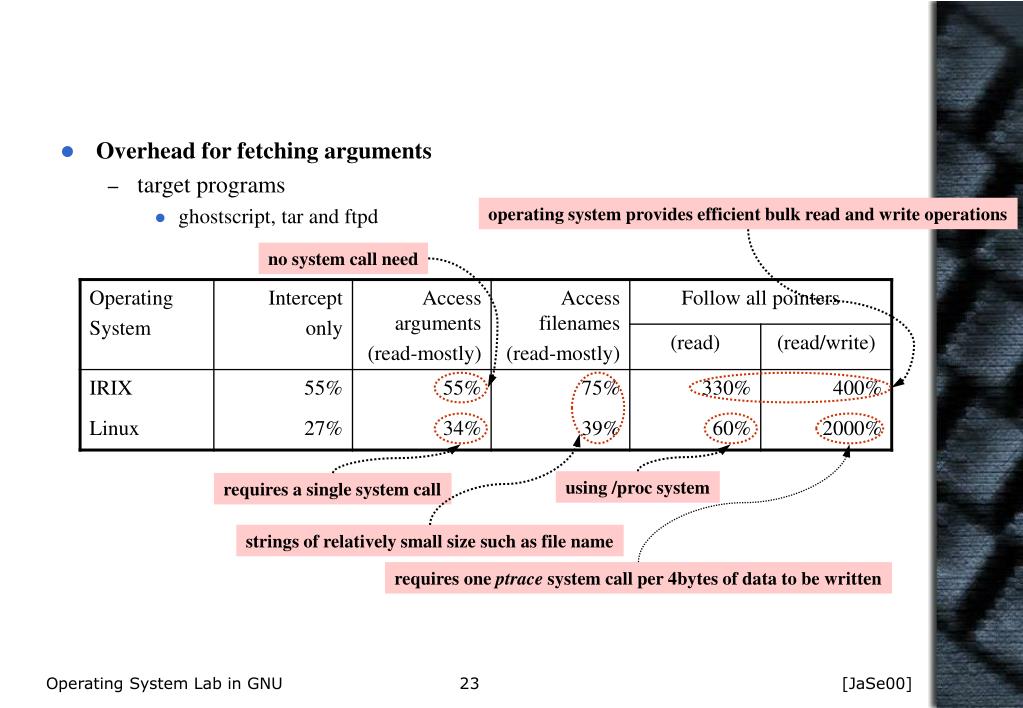

  23. Overhead for fetching arguments • target programs • ghostscript, tar and ftpd operating system provides efficient bulk read and write operations no system call need using /proc system requires a single system call strings of relatively small size such as file name requires one ptrace system call per 4bytes of data to be written [JaSe00]

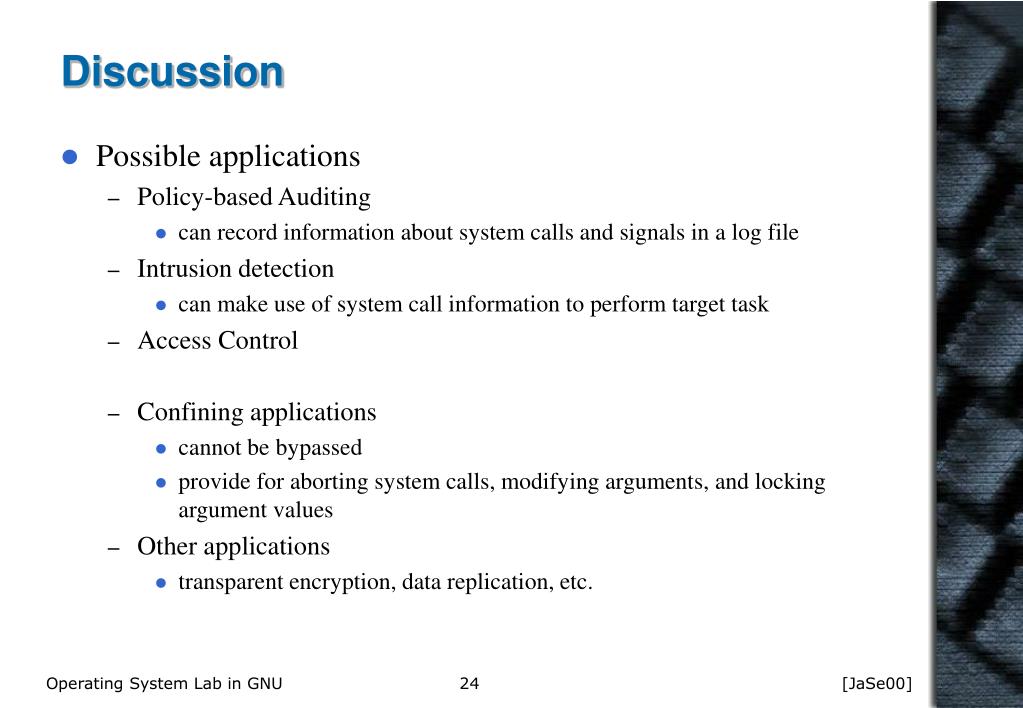

  24. Discussion • Possible applications • Policy-based Auditing • can record information about system calls and signals in a log file • Intrusion detection • can make use of system call information to perform target task • Access Control • Confining applications • cannot be bypassed • provide for aborting system calls, modifying arguments, and locking argument values • Other applications • transparent encryption, data replication, etc. [JaSe00]

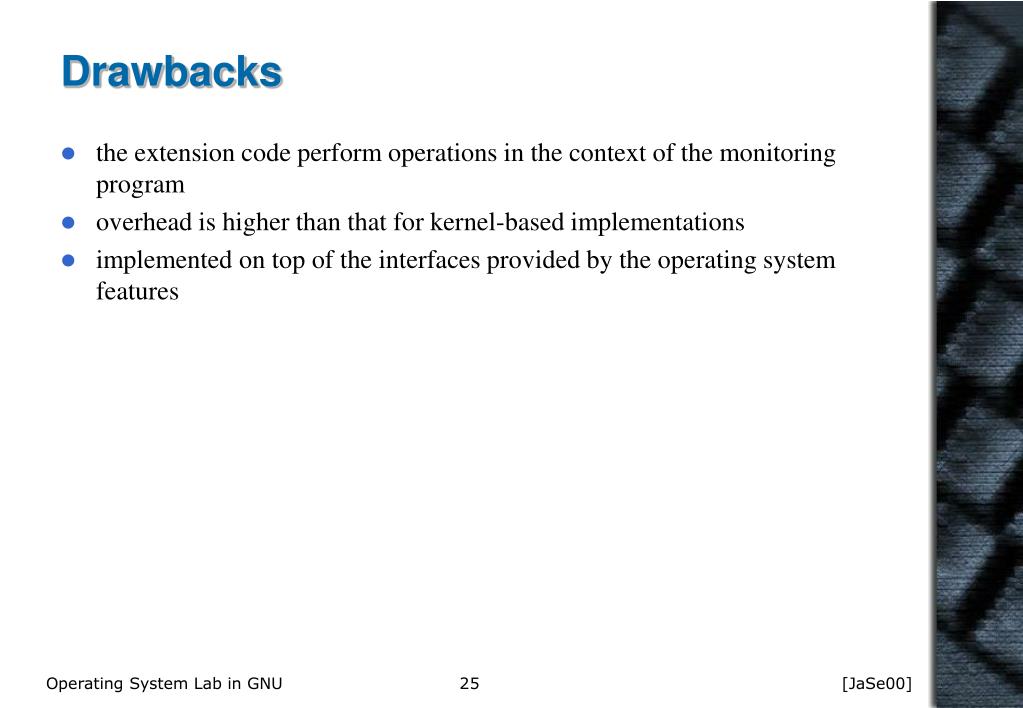

  25. Drawbacks • the extension code perform operations in the context of the monitoring program • overhead is higher than that for kernel-based implementations • implemented on top of the interfaces provided by the operating system features [JaSe00]

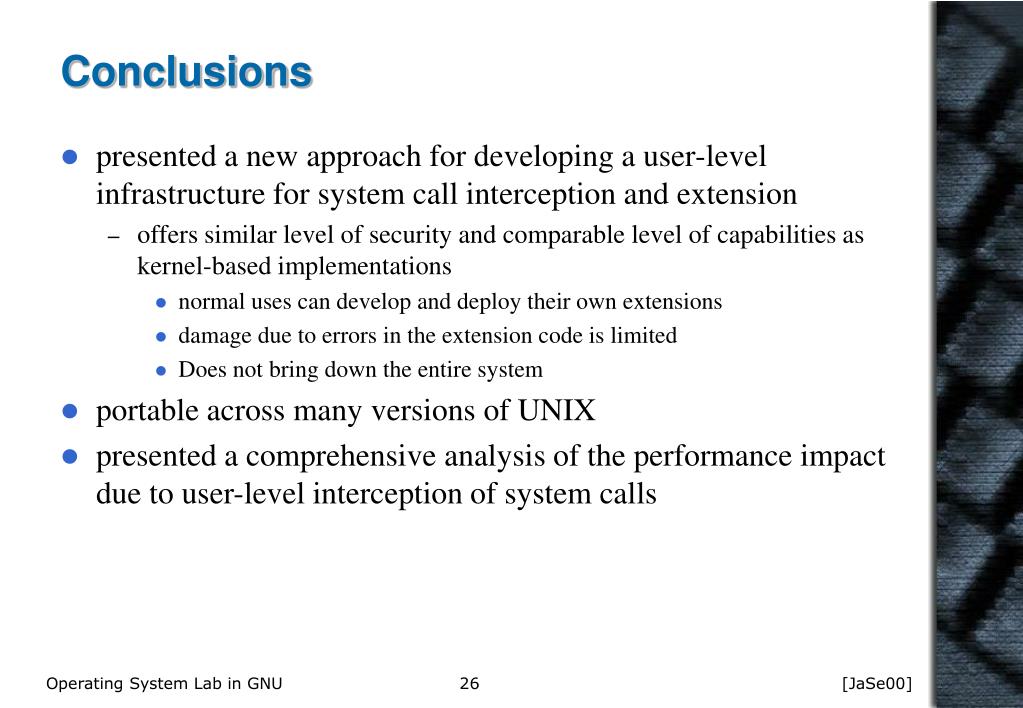

  26. Conclusions • presented a new approach for developing a user-level infrastructure for system call interception and extension • offers similar level of security and comparable level of capabilities as kernel-based implementations • normal uses can develop and deploy their own extensions • damage due to errors in the extension code is limited • Does not bring down the entire system • portable across many versions of UNIX • presented a comprehensive analysis of the performance impact due to user-level interception of system calls [JaSe00]
