Histones are critical proteins that form the scaffold for DNA, organizing it into nucleosomes and regulating access. With their various modifications, such as acetylation and methylation, histones can influence gene expression by compacting or loosening DNA. Transcription factors, both general and specific, mediate transcription initiation and recruit RNA polymerase II to target genes. Techniques such as ChIP-chip and chromatin immunoprecipitation are essential for assessing protein-DNA interactions and understanding these complex regulatory mechanisms.

ChIP-chip Data - slide 1
01 / 18ChIP-chip Data
1 / 17

Télécharger la présentation

ChIP-chip Data
Une image / un lien ci-dessous est fourni (tel quel) pour télécharger la présentation

Politique de téléchargement : le contenu du site vous est fourni TEL QUEL pour votre information et votre usage personnel ; il ne peut être vendu, concédé sous licence ni partagé sur d’autres sites sans l’accord de son auteur.Le contenu vous est fourni TEL QUEL, pour votre information et votre usage personnel uniquement. Téléchargez la présentation en cliquant sur ce lien. Lors du téléchargement, si vous ne parvenez pas à télécharger une présentation, l’éditeur a peut-être supprimé le fichier de son serveur.Pendant le téléchargement, si vous ne parvenez pas à obtenir une présentation, le fichier a peut-être été supprimé par l’éditeur.

F I N

Plus de contenu associé

Transcription de la présentation

  1. ChIP-chip Data

  2. DNA-binding proteins • Constitutive proteins (mostly histones) • Organize DNA • Regulate access to DNA • Have many modifications • Acetylation, methylation, … • Sporadic proteins (Transcription Factors) • Mediate docking of transcription apparatus • Modify histones • Methylate DNA

  3. Histones Histones are an ancient family of proteins which serve as the scaffold for DNA Four types of histones assemble in pairs to form a nucleosome DNA is wrapped twice around each nucleosome

  4. Histones and Modifications Histone tails can be modified DNA contacts histones on their tails Histones can stay loose or assemble tightly – this compacts the DNA

  5. Transcription Factors • General – help to set up transcription of many genes • Specific – draw in general factors or RNA Pol II to specific genes TATA Binding Protein

  6. DNA Methylation Adding a Methyl to Cytosine Cytosine methylation is passed on to daughter cells

  7. Chromatin Immuno-precipitation

  8. Tiling Array • One probe every n base pairs over some length of chromosome • Interrupted by repeat regions • Promoter array: each (known) promoter tiled An Affymetrix tiling design

  9. What the data look like histone acetylation on 15 samples over one promoter (raw)

  10. Multiple Promoters

  11. Normalized by Medians

  12. Methods and Issues • Normalization • Different enrichment ratios • Different probe thermodynamics • Dye and probe bias • Estimation • Categorical or continuous? • Individual values are noisy: • For TF binding: where is the peak?

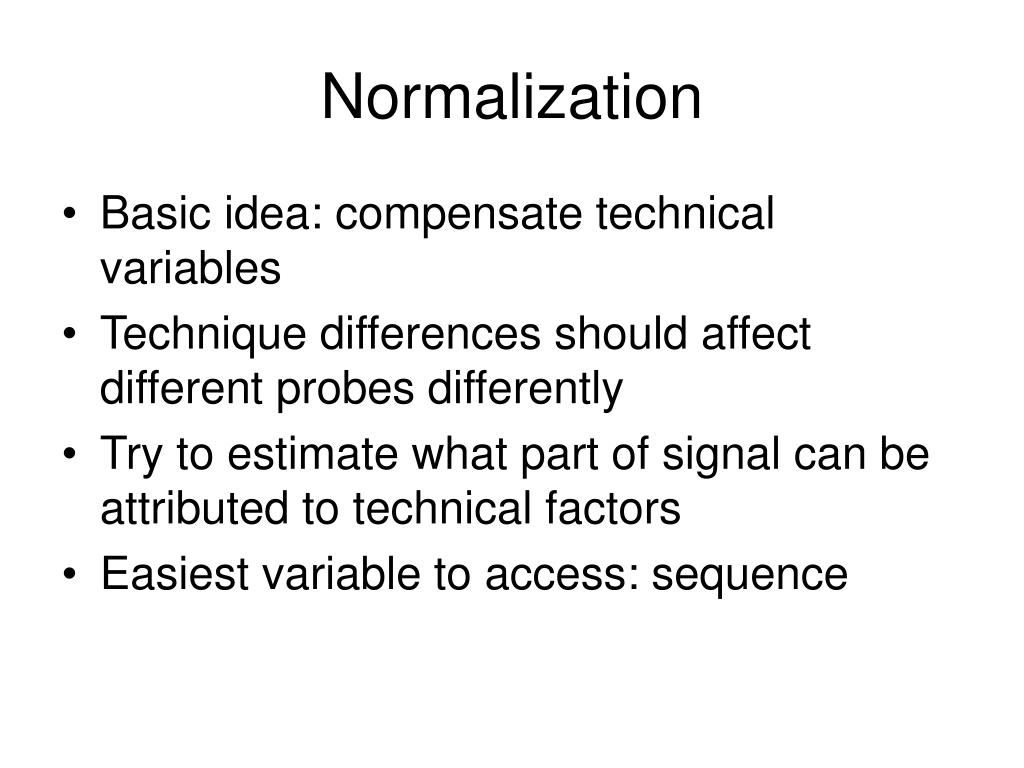

  13. Normalization • Basic idea: compensate technical variables • Technique differences should affect different probes differently • Try to estimate what part of signal can be attributed to technical factors • Easiest variable to access: sequence

  14. MAT • One color Affy array • Needs separate array for comparison • Normalizes probe thermodynamics & enrichment ratio • Estimation by (robust) moving average

  15. Normalized Data – Rare Event

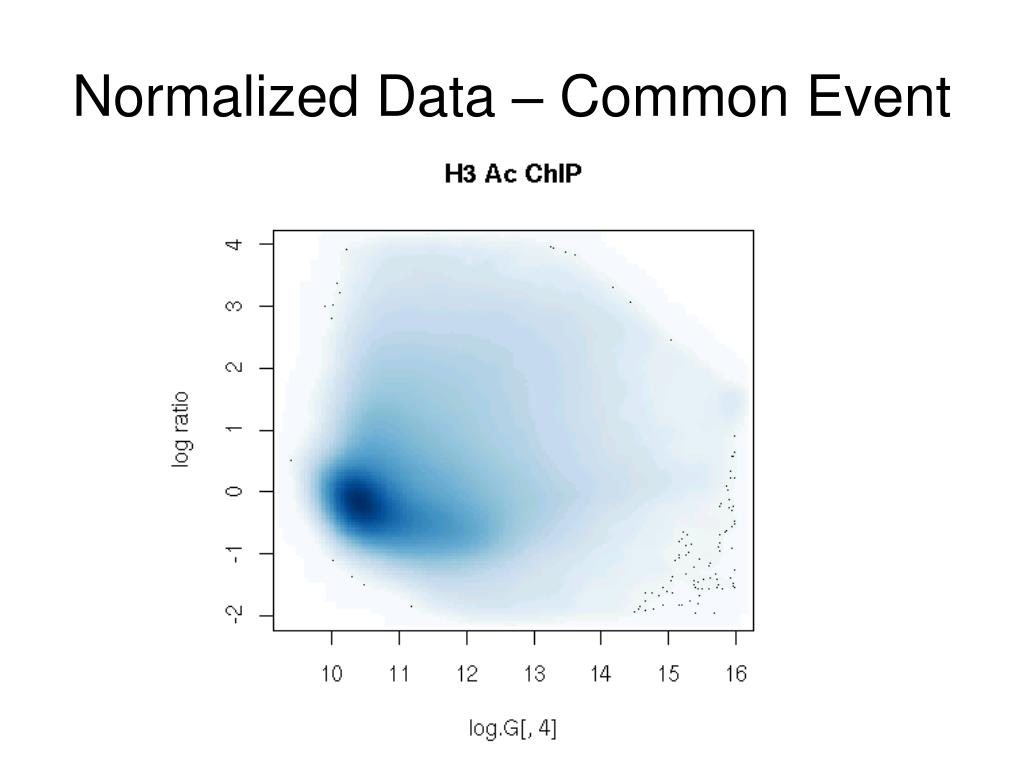

  16. Normalized Data – Common Event

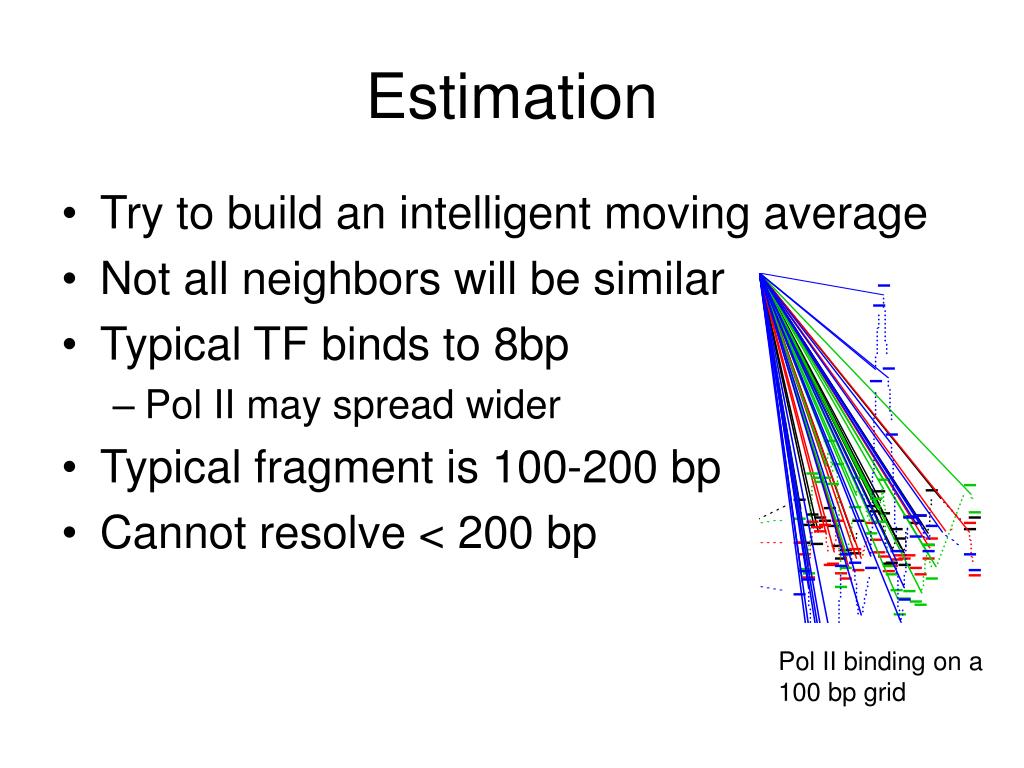

  17. Estimation • Try to build an intelligent moving average • Not all neighbors will be similar • Typical TF binds to 8bp • Pol II may spread wider • Typical fragment is 100-200 bp • Cannot resolve < 200 bp Pol II binding on a 100 bp grid

  18. TileMap • Ignores normalization • ‘Shrinkage’ estimator of variance • Improves individual scores • Smooths noise by moving average
