Fluidics chip

Fluidics chip. Platelet inlet Focusing buffer inlet Outlet. Electrode chip. DE focusing electrodes. Sensing electrodes 3 pairs for differential measurements. Two electrode chips create the top and bottom of the fluidic channel. At each side the electrode pads are available for

whitley
Télécharger la présentation

Fluidics chip

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

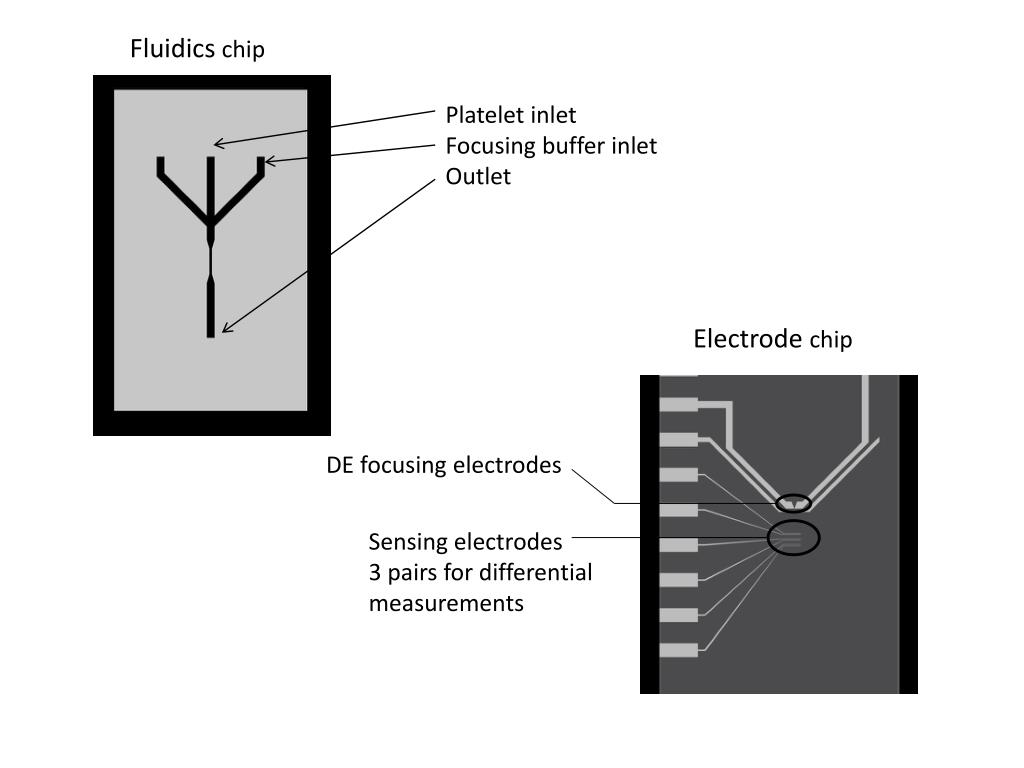

  1. Fluidics chip Platelet inlet Focusing buffer inlet Outlet Electrode chip DE focusing electrodes Sensing electrodes 3 pairs for differential measurements

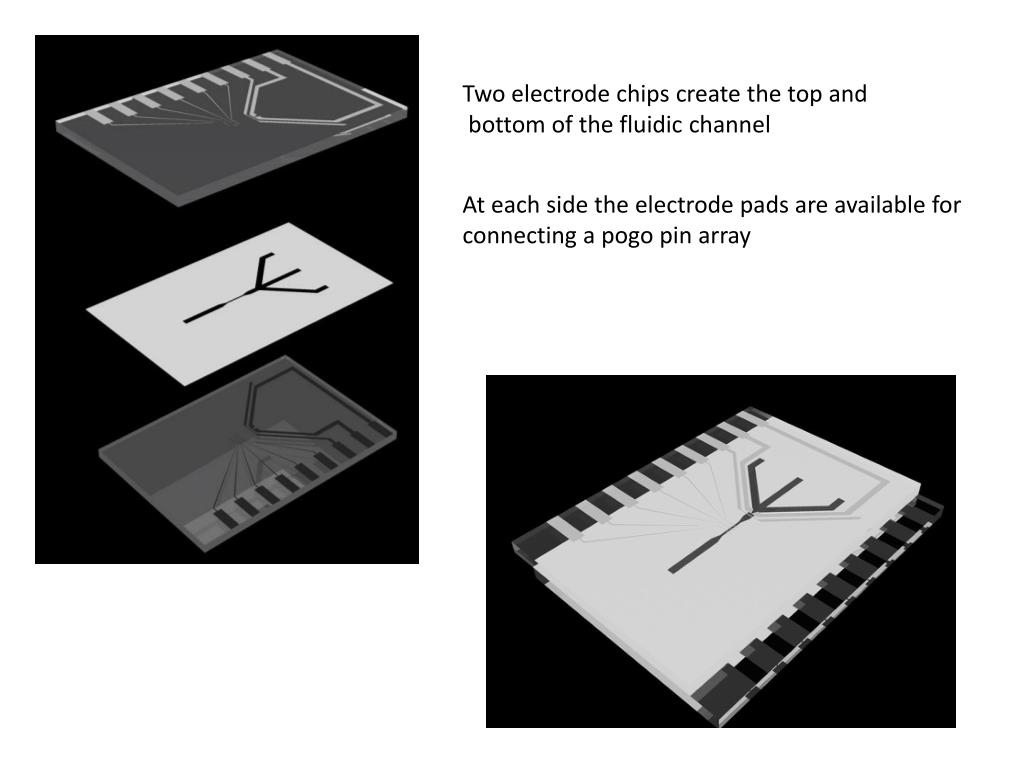

  2. Two electrode chips create the top and bottom of the fluidic channel At each side the electrode pads are available for connecting a pogo pin array

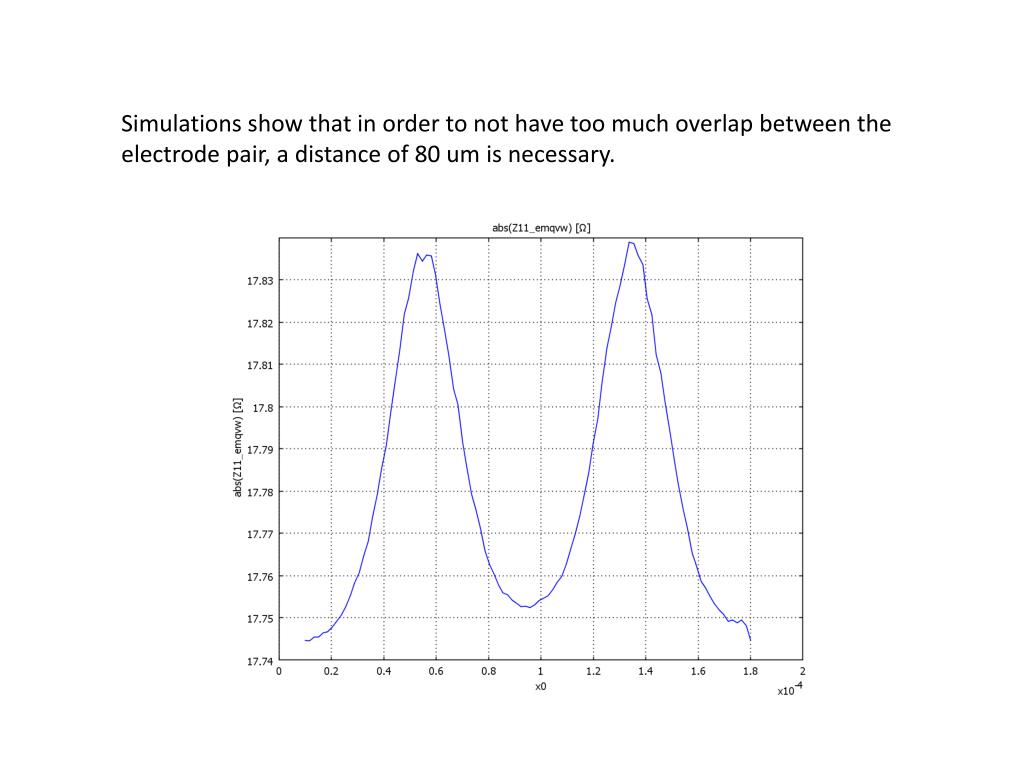

  3. Simulations show that in order to not have too much overlap between the electrode pair, a distance of 80 um is necessary.

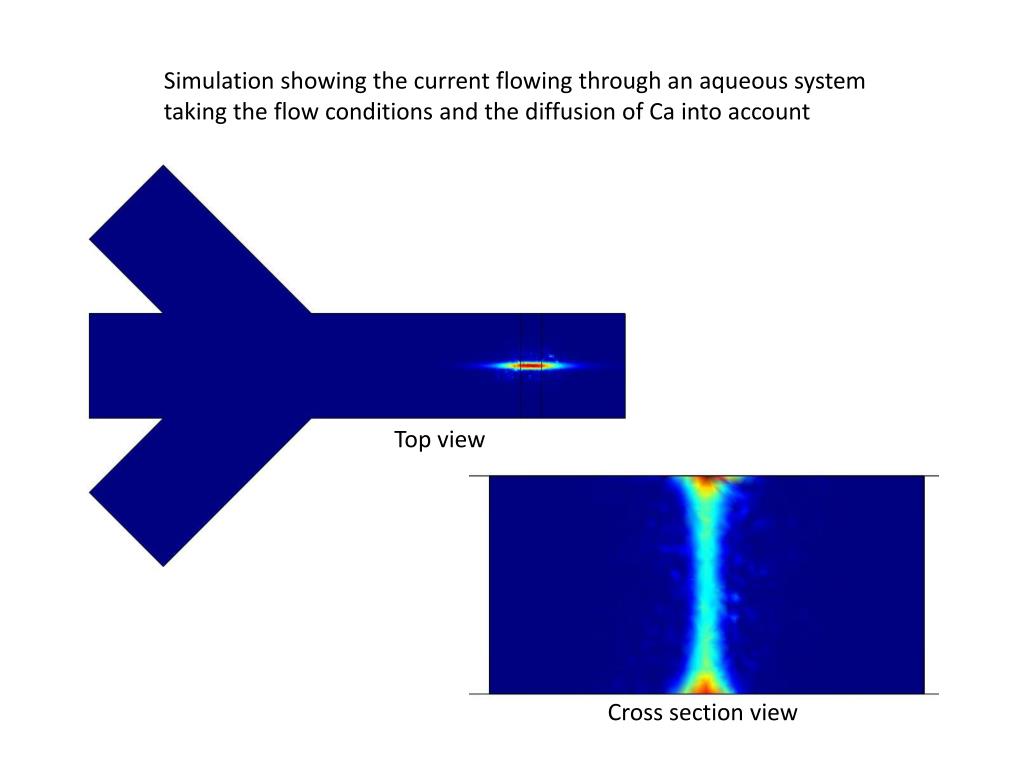

  4. Simulation showing the current flowing through an aqueous system taking the flow conditions and the diffusion of Ca into account Top view Cross section view
