Env . model evaluator: Motivation

1. Env. model evaluator: Motivation • Saves repeated renaming and substitution: explicit substitution is replaced by variable bindings using new data structures (frame, environment). • Can be utilized to gain further improvements that cannot be achieved using the substitution model (The analyzer/compiler)

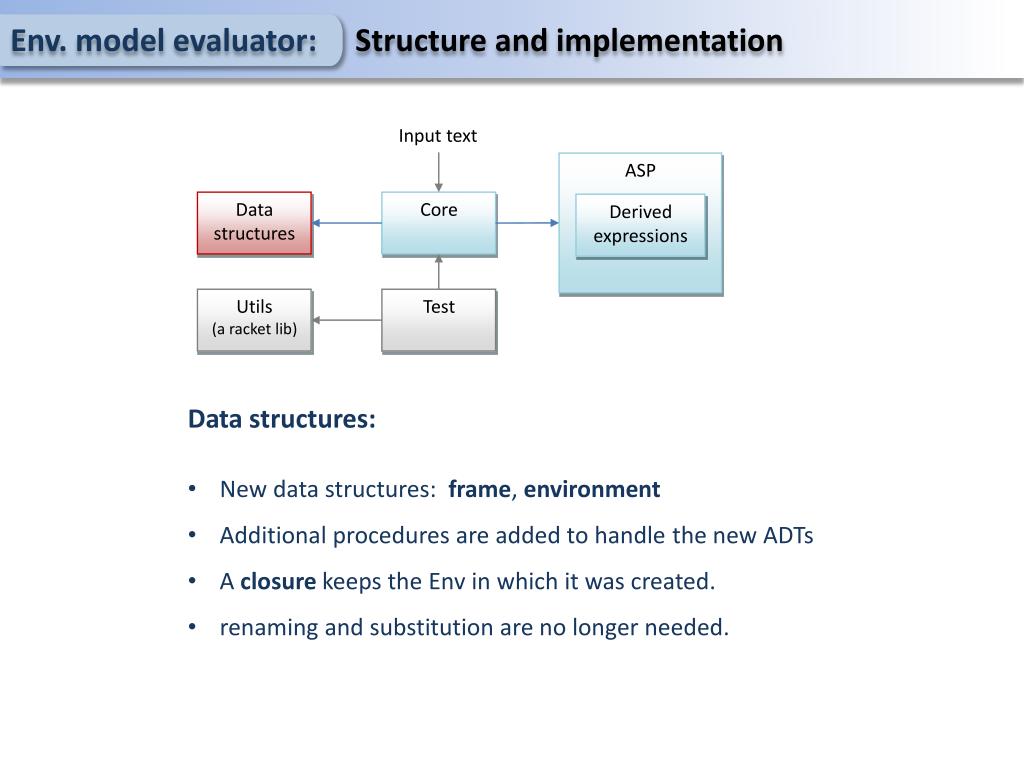

2. Env. model evaluator: Structure and implementation Input text ASP Data structures Core Derived expressions Utils(a racket lib) Test • Data structures: • New data structures: frame, environment • Additional procedures are added to handle the new ADTs • A closure keeps the Env in which it was created. • renaming and substitution are no longer needed.

3. Env. model evaluator: Structure and implementation Input text ASP ASP: No changes here! Data structures Core Derived expressions Utils(a racket lib) Test • Core: • Procedure application (apply procedure) and evaluation of expressions are done with respect to a certain environment. • Tests: • Updated accordingly.

4. Env. model evaluator: Structure and implementation Box, unbox: • The global environment may change (E.g., by definitions). • Values that may change should be boxed (similar to pointers). Binding: implemented as a Pair #<primitive:+> + • A correspondence between a variable and its value. Frame: Implemented as a substitution ‘((x foo) (4 <procedure (x) x>)) • A substitution from variables to values. Each variable is bound to a single value.

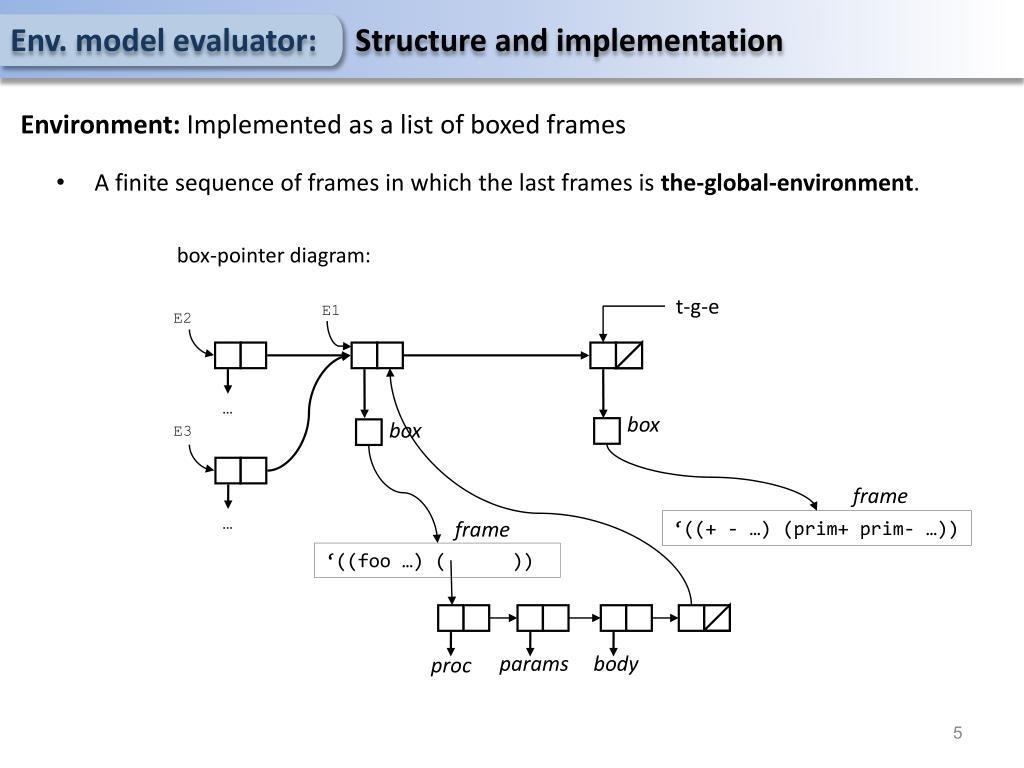

5. Env. model evaluator: Structure and implementation Environment: Implemented as a list of boxed frames • A finite sequence of frames in which the last frames is the-global-environment. box-pointer diagram: t-g-e E1 E2 … box box E3 frame … frame ‘((+ - …) (prim+ prim- …)) ‘((foo …) ( )) params body proc

6. Env. model evaluator: Evaluation examples (1) Evaluating a definition expression: • > (env-eval(derive '(define f (lambda (x) (lambda (y) (+ x y))))) t-g-e) (define env-eval (lambda (expenv) (cond ((atomic? exp) (eval-atomic expenv)) ((special-form? exp) (eval-special-form expenv)) ...))) (define eval-special-form (lambda (expenv) (cond ... ((definition? exp) (if (not (eq? env t-g-e)) (error 'eval "non global definition: ~s" exp) (eval-definition exp))) ...))) (define eval-definition (lambda (exp) (add-binding! (make-binding (definition-variable exp) (env-eval (definition-value exp) t-g-e))) 'ok))

7. Env. model evaluator: Evaluation example (1) Evaluating a definition expression: • > (env-eval(derive '(define f (lambda (x) (lambda (y) (+ x y))))) t-g-e) (define eval-special-form (lambda (expenv) (cond ... ((lambda? exp) (eval-lambda expenv)) ...))) t-g-e (define eval-lambda (lambda (expenv) (make-procedure (lambda-parameters exp) (lambda-body exp) env))) (define make-procedure (lambda (parameters body env) (attach-tag (list parameters body env) 'procedure))) (attach-tag (list '(x) '(lambda (y) (+ x y)) t-g-e)) 'procedure) • P: xB: (lambda (y) (+ x y))

8. Env. model evaluator: Evaluation example (1) Evaluating a definition expression: • > (env-eval(derive '(define f (lambda (x) (lambda (y) (+ x y))))) t-g-e) (define env-eval (lambda (expenv) (cond ((atomic? exp) (eval-atomic expenv)) ((special-form? exp) (eval-special-form expenv)) ...))) (define eval-special-form (lambda (expenv) (cond ... ((definition? exp) (if (not (eq? env t-g-e)) (error 'eval "non global definition: ~s" exp) (eval-definition exp))) ...))) (define eval-definition (lambda (exp) (add-binding! (make-binding (definition-variable exp) (env-eval (definition-value exp) t-g-e))) 'ok)) Done! (add-binding! (make-binding f (list 'procedure '(x) '(lambda (y) (+ x y)) t-g-e))

9. Env. model evaluator: Evaluation example (2) Evaluating a user procedure: • > (derive-eval'f t-g-e) (define env-eval (lambda (expenv) (cond((atomic? exp) (eval-atomic expenv)) ((special-form? exp) (eval-special-form expenv)) ...))) (define eval-atomic (lambda (expenv) (if (or (number? exp) (boolean? exp) (null? exp)) exp (lookup-variable-value expenv)))) > '(procedure (x) ((lambda (y) (+ x y))) t-g-e) • We look upfin the given env. • The result is our representation of a procedure.

10. Env. model evaluator: Evaluation example (3) Evaluating an application of a user procedure: > (derive-eval'(define g (f 1)) t-g-e) (apply-procedure <procedure (x) ((lambda (y) (+ x y))) t-g-e>(1)) Create a new frame where x maps to 1 (make-frame ‘(x) ‘(1)) Extend the environment (extend-env new-frame t-g-e) GE Evaluate the body x: 1 (eval-sequence body new-env)

11. Env. model evaluator: Supporting let* Reminder: What is a let* expression? • Can be regarded as a nested let expression. • Similar to let, but defined variable can be used in the following definitions. Example: > (definea 10) • > (let* ((a 1) • (c (* a 2))) • (+ a c)) • > (let ((a 1)) • (let ((c (* a 2))) • (+ a c))) • > ((λ (a) • ((λ (c) (+ a c)) • (* a 2)) • 1) = = > 3 > (let ((a 1) (c (* a 2))) (+ a c)) > 21

12. Env. model evaluator: Supporting let* Evaluation rule for a let* expression: • An expression (let* ((v1 e1) (v2 e2) … (vn en)) b1 b2 … bm), with respect to environment E0, is defined as follows: E1E0 * make-frame [(v1),(env-eval e1 E0)] E2E1 * make-frame [(v2),(env-eval e2 E1)] ... EnEn-1* make-frame [(vn),(env-eval en En-1)] env-evalb1 En) ... (env-eval bm-1 En) Return(env-evalbm En) • Q: How would the evaluation rule for let look like? • A: e1…en will be evaluated with respect to E0. A new frame mapping (v1…vn)to (e1…en) • will extend E0, creating a new environment, E1.

13. Env. model evaluator: Supporting let* - as a derived expression • 1. Add the required ADT procedures to the ASP (define (let*? exp) (tagged-list? exp 'let*)) (define (let*-first-variable exp) (caar (let*-bindings exp))) (define let*-bindingscadr) (define (let*-first-initial-value exp) (cadar (let*-bindings exp))) (define let*-bodycddr) Data structures Core ASP Derived expressions (define (let*-variables exp) (map car (let*-bindings exp))) (define (make-let*-bindingsvarsvals) (map list varsvals)) (define (let*-initial-values exp) (map cadr (let*-bindings exp))) (define (make-let* bindings body) (append (list 'let* bindings) body)) (let* ((v1 e1) (v2 e2) … (vn en)) b1 b2 … bm)

14. Env. model evaluator: Supporting let* - as a derived expression • 2. Modify the procedure derived? (define (derived? exp) (or (cond? exp) (function-definition? exp) (let? exp) (let*? exp))) • 3. Modify the procedure shallow-derive (define (shallow-derive exp) (cond ((cond? exp) (cond->if exp)) ... ((let*? exp) (let*->nested-let exp)) (else "Unhandled " exp))) Data structures Core ASP Derived expressions (let* ((v1 e1) (v2 e2) … (vn en)) b1 b2 … bm)

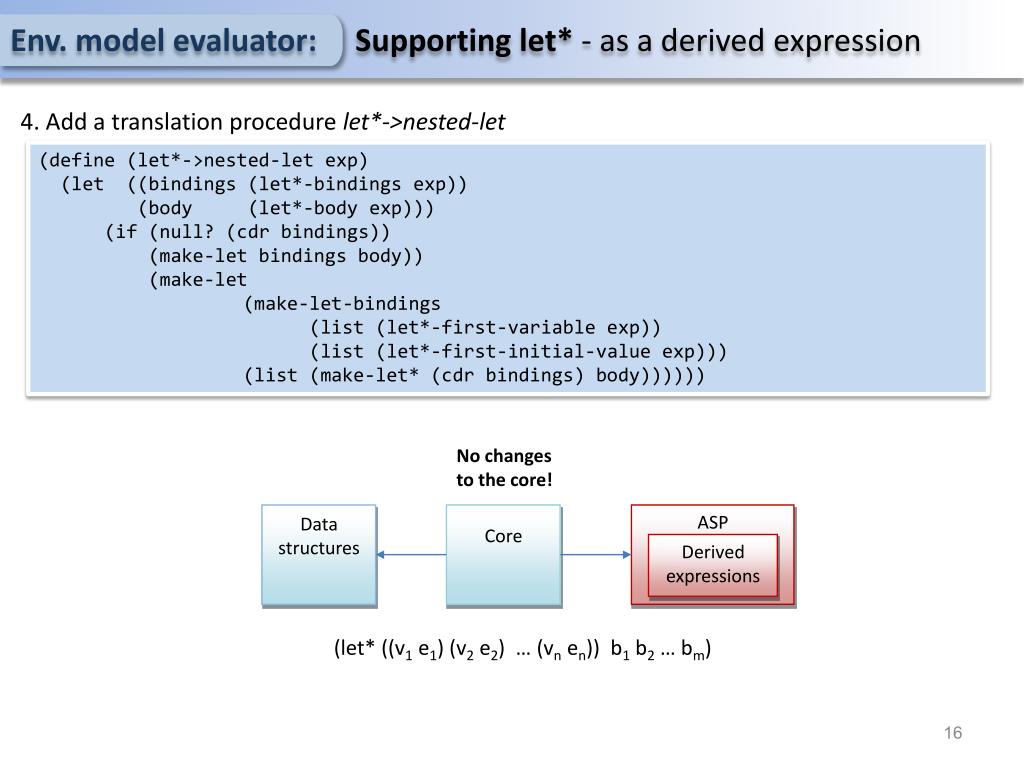

15. Env. model evaluator: Supporting let* - as a derived expression • 4. Add a translation procedure let*->nested-let (define (let*->nested-let exp) (let ((bindings (let*-bindings exp)) (body (let*-body exp))) (if (null? (cdr bindings)) (make-let bindings body)) (make-let (make-let-bindings (list (let*-first-variable exp)) (list (let*-first-initial-value exp))) (list (make-let* (cdrbindings) body)))))) No changes to the core! Data structures Core ASP Derived expressions (let* ((v1 e1) (v2 e2) … (vn en)) b1 b2 … bm)

16. Env. model evaluator: Supporting let* - as a derived expression • 4. Add a translation procedure let*->nested-let (define (let*->nested-let exp) (let ((bindings (let*-bindings exp)) (body (let*-body exp))) (if (null? (cdr bindings)) (make-let bindings body)) (make-let (make-let-bindings (list (let*-first-variable exp)) (list (let*-first-initial-value exp))) (list (make-let* (cdrbindings) body)))))) (derive (let*->nested-let • Q: The result is a let exp.Shouldn’t it be further derived? • A: Nah.. It will be taken care of by derive which calls itself until the result expdoes not change. • Q: What about the let* expression created by make-let*? • A: Nope. derive is recursively called for all sub expressions. • Q: When the if-condition does not hold, we wrap the body parameter in a list. Why? • A: Since the body of a let expression may consist of several expressions.

17. Env. model evaluator: Supporting let* - as a special form • 1. Add the required ADT procedures to the ASP DONE Data structures Core ASP Derived expressions (let* ((v1 e1) (v2 e2) … (vn en)) b1 b2 … bm)

18. Env. model evaluator: Supporting let* - as a special form • 2. Modify the procedure special-form? (define (special-form? exp) (or (quoted? exp) (lambda? exp) (definition? exp) (if? exp) (begin? exp) (let*? exp))) • 3. Modify eval-special-form (define (eval-special-form exp env) (cond ((quoted? exp) (text-of-quotation exp)) ((lambda? exp) (eval-lambda expenv)) … ((let*? exp) (eval-let* exp env)))) Data structures Core ASP Derived expressions (let* ((v1 e1) (v2 e2) … (vn en)) b1 b2 … bm)

19. Env. model evaluator: Supporting let* - as a special form • 4. Add the procedure eval-let* (define (eval-let* expenv) (let ((vars (let*-variables exp)) (vals (let*-initial-values exp)) (body (let*-body exp))) (letrec ((helper (lambda (vars-lstvals-lstenv) (if (null? vars-lst) (eval-sequence body env) (helper (cdrvars-lst) (cdrvals-lst) (extend-env (make-frame (list (car vars-lst)) (list (env-eval(car vals-lst) env))) env)))))) (helper varsvalsenv)))) • Extend the environment with a new frame per variable. • When no variables remain, evaluate the body.

20. Env. model Compiler: Motivation Special form? (define length (lambda (lst) (if (null? lst) 0 (* 1 (length (cdrlst)))))) What’s fact? What is * ? • Each time fact is called, the interpreter: • Uses the ASP to identify the body as an ifexp, • Extracts the required components for evaluation, • Looks-up variables, etc. • To avoid repeated analysis, the compiler: • Analyses a given expression in static (compilation) time. • Returns a procedure that awaits an environment argument. • Once applied, it evaluates the analyzed expression with respect to the given environment. • No further Analysis is performed!

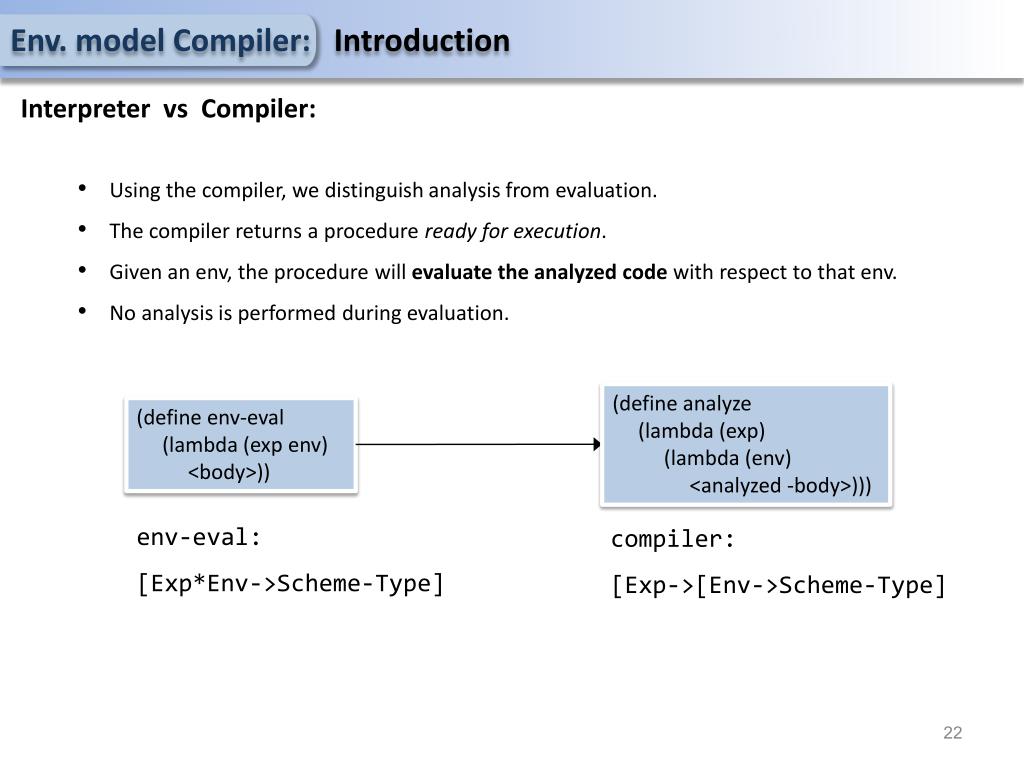

21. Env. model Compiler: Introduction Interpreter vs Compiler: • Using the compiler, we distinguish analysis from evaluation. • The compiler returns a procedure ready for execution. • Given an env, the procedure will evaluate the analyzed code with respect to that env. • No analysis is performed during evaluation. env-eval: [Exp*Env->Scheme-Type] compiler: [Exp->[Env->Scheme-Type] (define analyze (lambda (exp) (lambda (env) <analyzed -body>))) (define env-eval (lambda (exp env) <body>))

22. Env. model Compiler: Comparing with env-eval The analyze procedure: (define (analyze exp) (cond ((atomic? exp) (analyze-atomic exp)) ((special-form? exp) (analyze-special-form exp)) ((application? exp) (analyze-application exp)) (else (error "Unknown expression type -- EVAL“ exp)))) Handling an if expression: (define eval-if (lambda (expenv) (if (true? (env-eval (if-predicate exp) env)) (env-eval (if-consequent exp) env) (env-eval (if-alternative exp) env)))) Evaluator (define analyze-if (lambda (exp) (let ((pred (analyze (if-predicate exp))) (consequent (analyze (if-consequent exp))) (alternative (analyze (if-alternative exp)))) (lambda (env) (if (true? (predenv)) (consequent env) (alternative env)))))) Analyzer

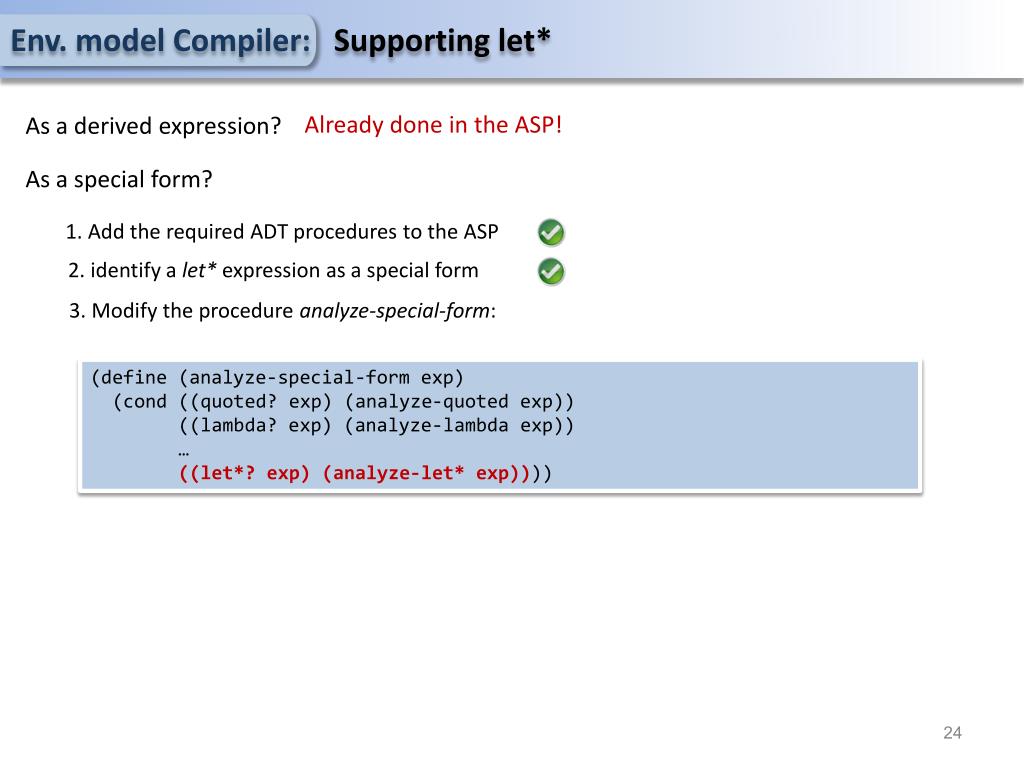

23. Env. model Compiler: Supporting let* • Already done in the ASP! • As a derived expression? • As a special form? • 1. Add the required ADT procedures to the ASP • 3. Modify the procedure analyze-special-form: • 2. identify a let* expression as a special form (define (analyze-special-form exp) (cond ((quoted? exp) (analyze-quoted exp)) ((lambda? exp) (analyze-lambda exp)) … ((let*? exp) (analyze-let* exp))))

24. Env. model Compiler: Supporting let* • 4. Add the procedure analyze-let*: • “Translate” eval-let*, to an analyzer procedure: • Curry the env parameter. • Inductively analyze all sub expressions. (define (analyze-let* exp) (let ((vars (let*-variables exp)) (vals (map analyze (let*-initial-values exp))) (body (analyze-sequence (let*-body exp)))) (letrec ((helper (lambda (vars-lstvals-lstenv) (if (null? vars-lst) (body env) (helper (cdrvars-lst) (cdrvals-lst) (extend-env (make-frame (list (car vars-lst)) (list ((car vals-lst) env))) env)))))) (lambda (env) (helper varsvalsenv)))))
