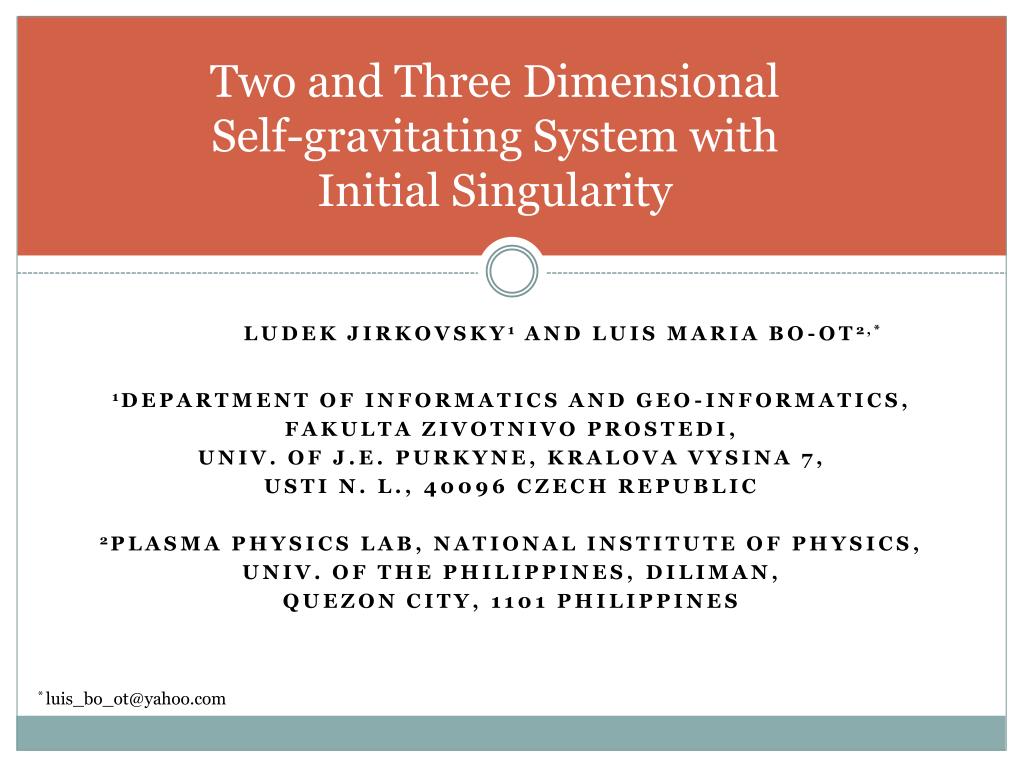

  1. Two and Three Dimensional Self-gravitating System with Initial Singularity Ludek Jirkovsky1 and Luis Maria Bo-oT2,* 1Department of Informatics and Geo-informatics, FakultaZivotnivoProstedi, Univ. of J.E. Purkyne, KralovaVysina 7, Usti n. L., 40096 Czech Republic 2Plasma Physics Lab, National institute of Physics, Univ. of the Philippines, Diliman, Quezon City, 1101 Philippines * luis_bo_ot@yahoo.com

  2. Abstract • Motivation & Objective • Coupled Vlasov-Poisson Equation • Results for Two and Three Dimension • Conclusion & Prospects • References & Acknowledgement

  3. Abstract It is shown that it is possible to extend perturbation calculations used in solving the coupled Vlasov-Poisson Equations for a one-dimensional gravitational gas to two and three dimensions. An example using AN initial Dirac delta distribution and Maxwellian velocity distribution is given. We reproduce main features of the one-dimensional model such as formation of inhomogeneities and also OBTAIN quantitatively and qualitatively new results in the higher dimensions Demonstrating how galaxies could be formed in the early universe.

  4. Motivation/Objective A suggestion (Mineauetal, 1990; Muriel etal, 1993) that limited results in the studies of the one-dimensional gravitational gas should be extended to two and three dimensions is the main motivation. Studies for gravitational gas in higher dimensions are rare, and even until recently, most of them are numerical solutions (Bonvinetal, 1998; Miller etal, 2005) since analytic solutions are difficult. Our purpose is to reproduce the results in one dimension, and obtain new and interesting results for the case of two and three dimensions.

  5. Coupled Vlasov-Poisson Equation The coupled Vlasov-Poisson equation (1) (2) where is the particle density as an integral of the distribution function over velocity space and is the gravitational constant.

  6. ‘Linearizing’ (Landau, 1946), perturbing and transforming Eqns. 1 & 2 to spherical coordinates we obtain Expanding the distribution function and the field in perturbation series, ie then substituting to Eq. 1 after which we extract terms of appropriate orders of . (3) (4).

  7. Zero-order Vlasov Equation: (5). First-order Eqn.: (6). Second-order Eqn.: (7). - - - - - - - - - - - - - - Zero-order Solution: where is the number of particles, is chosen as a Maxwellian velocity distribution, and is an arbitrary function .

  8. The i-th order Solution: (8) ● time development of density not exceeding Jeans period ● true values for ; ;

  9. Results Zero-order -function in polar coordinates: Initial Singularity with Maxwellian velocity distibution: Zero-order distribution: satisfying Vlasov eqn. Zero-order density: Zero-order density from Poisson eqn:

  10. …..the expressions for the first-order correction to the field and the succeeding second-order corrections to the distribution function and density are algebraically lengthy involving exponentials and erf functions….!!! ...even using Maple®!!

  11. Fig. 1. For the two-dimensional system, time development of mass density vs. radial distance for t=4,6,8 (above, left to right).

  12. Fig. 2. For the three dimensional system, time development of mass density vs. radial distance for t =1-10.

  13. Conclusions Reproduced main feature of the one-dimensional gas model—formation of inhomogeneities hinting at substructures which are important to formation of galaxies. There is some ‘angular motion’ as seen in the three-dimensional case. • However, in three-dimensions unlike in one-dimension, the inhomogeneities are positive. • Also, time evolution of the density also shows ‘splitting’.

  14. Prospects • Term by term analysis of the more involved analytic expansions. • We note that only gravitational forces are used in this work, no electromagnetic forces so far.

  15. References & Acknowledgment References Bonvin, J.C., MartinP.A., Piasecki J. and Zotos X.: 1998 J. Stat. Phys. 91, 177 Landau, L.D.: 1946, J. Phys. (USSR) 10, 25 Lecar, M. and Chen, L.: 1971, Astrophys. Space Sci. 13, 397 Miller, B., Yawn, K. and Maier, B.: 2005, Phys. Lett. A 346, 92 Mineau, P., Feix, M.R and Muriel, A.:1990, Astron. Astrophys. 233, 422 Muriel, A., Feix, M. and Jirkovsky, L.: 1993, Astron. Astrophys. 279, 341 This work acknowledges support from the Hitachi Scholarship Foundation.
