  1. Timing Verification of VLSI Circuits Professor Weiping Shi http://ece.tamu.edu/~wshi/689.html ELEN 689

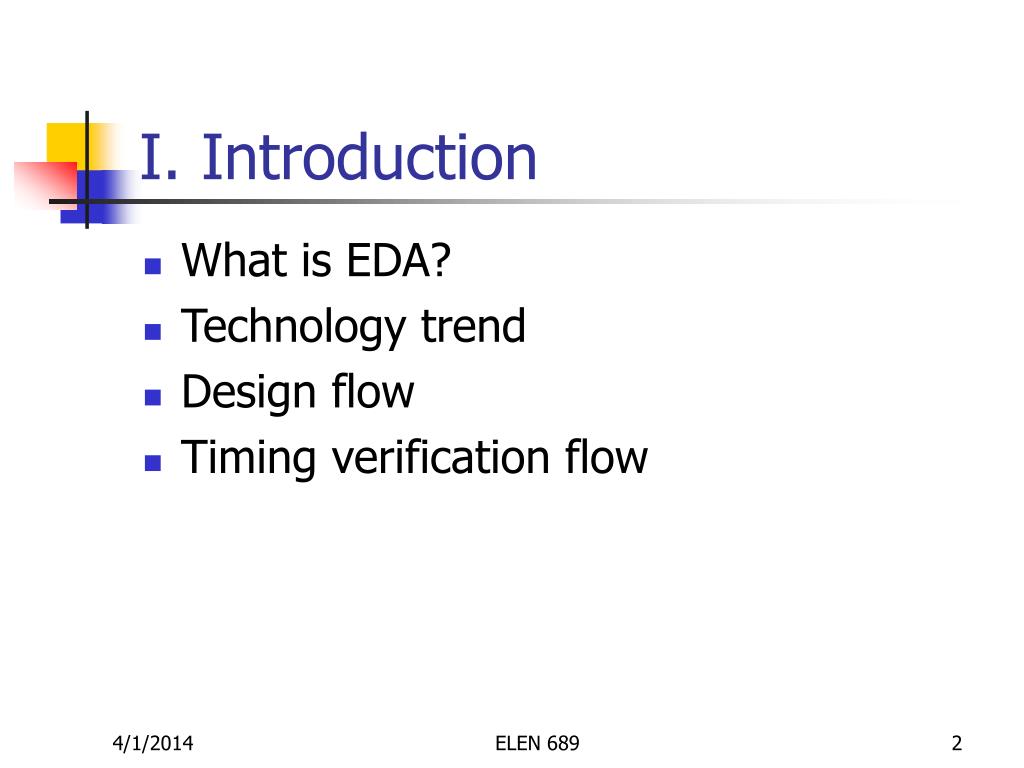

  2. I. Introduction • What is EDA? • Technology trend • Design flow • Timing verification flow ELEN 689

  3. Technology Trend • International Technology Roadmap for Semiconductors (ITRS) • World-wide and industry-wide cooperation since 1992 • Consensus on R&D needs out to a 15 year horizon ELEN 689

  4. ITRS Trend for Scaling ELEN 689

  5. Implication • Signal propagation becomes more difficult due to increasing capacitive and inductive coupling • Signal integrity degrades and cause both timing uncertainty and potential logic errors ELEN 689

  6. Implication • Testing • Decreasing pin/gate ratio • Delay fault v.s. stack-at fault • Low power • Heat already a big problem • Wireless applications • More… ELEN 689

  7. MPU/ASIC Design Flow Design Spec Behavioral Design Verify Function Logic Synthesis Verify Function Physical Synthesis Verify Timing and Function ELEN 689

  8. Timing Verification • Synthesized circuits meet timing constraints • Post-synthesis verification • Use simple estimation such as unit delay • Post-layout verification • Use accurate interconnect and gate parasitic • Design closure ELEN 689

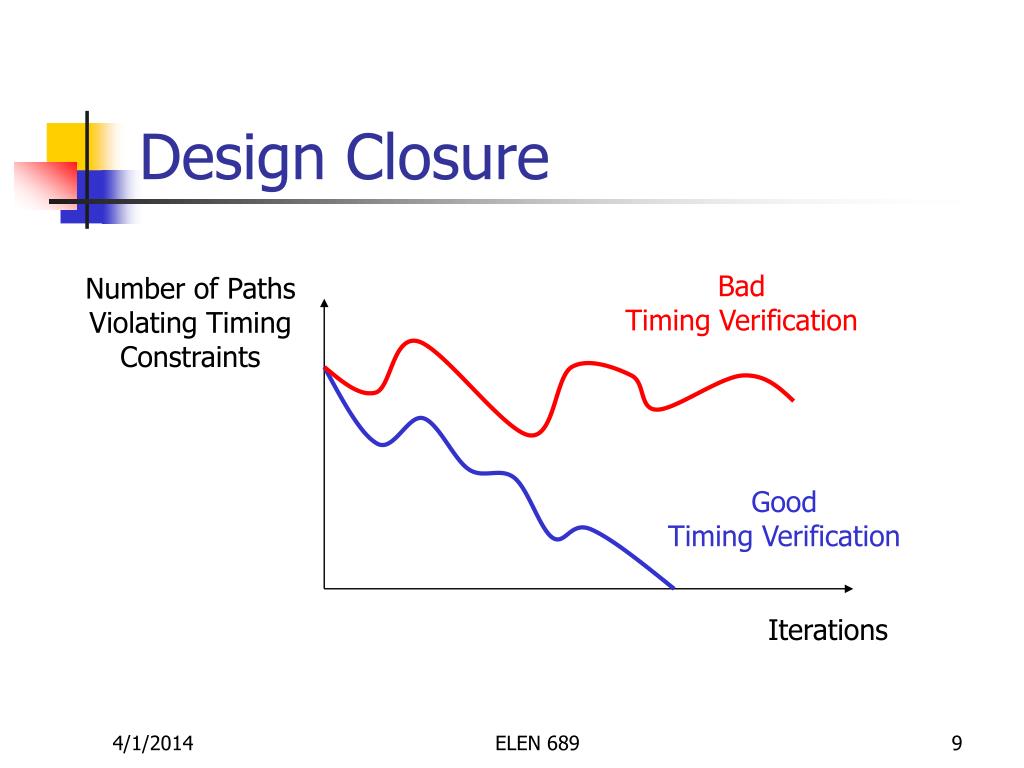

  9. Design Closure Bad Timing Verification Number of Paths Violating Timing Constraints Good Timing Verification Iterations ELEN 689

  10. What to Verify? • Synchronous circuit and scan design • Combinational circuit between flip-flops • Setup time, hold time, clock skew, etc Combinational Circuit … … clock ELEN 689

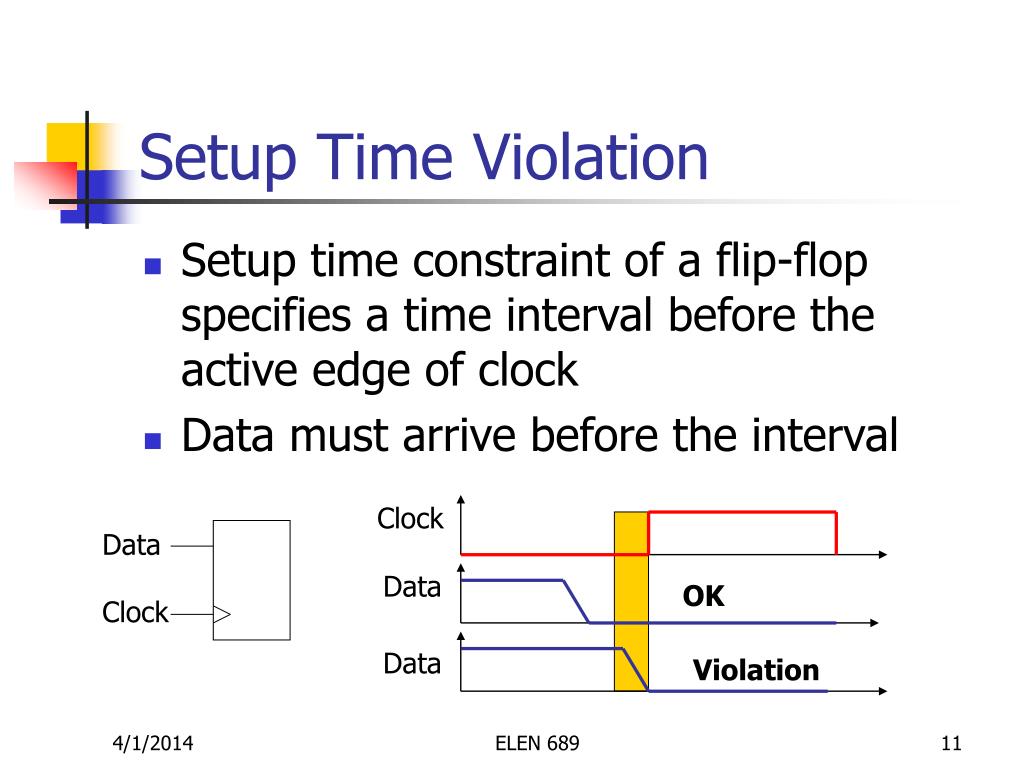

  11. Setup Time Violation • Setup time constraint of a flip-flop specifies a time interval before the active edge of clock • Data must arrive before the interval Clock Data Data OK Clock Data Violation ELEN 689

  12. Hold Time Violation • Hold time constraint of a flip-flop specifies an interval after the active edge of clock • Data must be stable in the interval Clock Data Data Violation Clock Data OK ELEN 689

  13. Clock Skew • Signal skew is the arriving time difference between two signals • Clock skew between any two leaves must be within the requirement ELEN 689

  14. Timing Verification Flow Layout (gds2, LEF/DEF) Cell Library Netlist Interconnect Parasitic Extraction Model Order Reduction Delay Evaluation Paths Violate Timing Constrains Timing Analysis ELEN 689

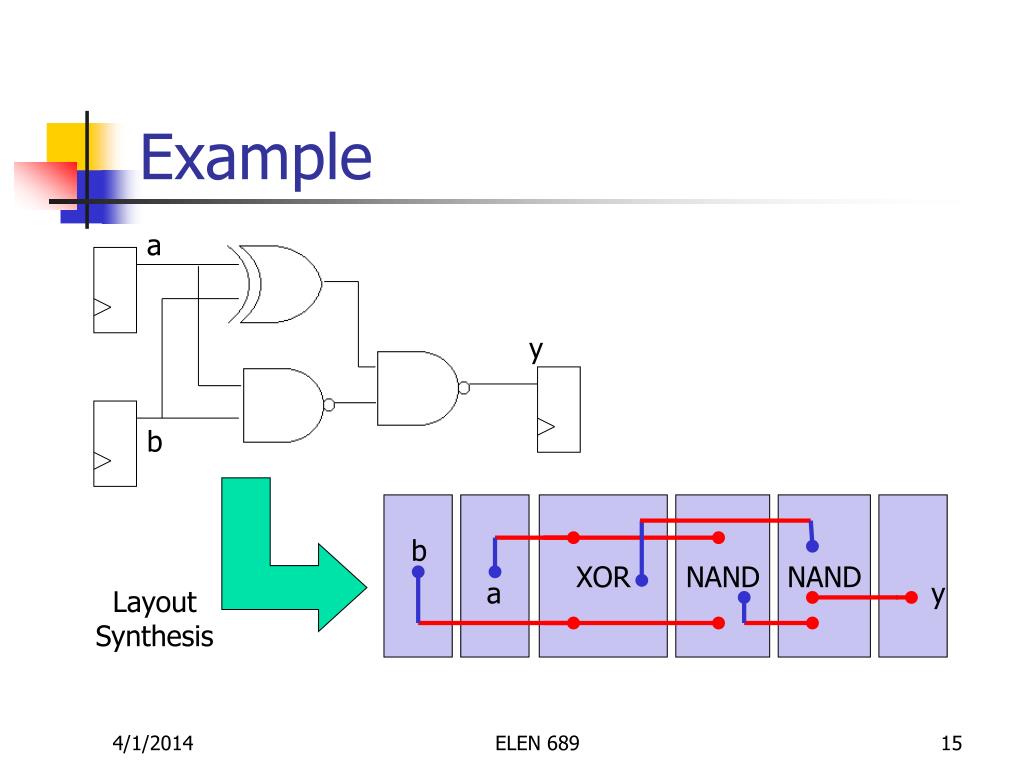

  15. Example a y b XOR NAND NAND b a y Layout Synthesis ELEN 689

  16. Step 1. Parasitic Extraction s1 XOR NAND NAND s2 a Distributed RC R1 R2 R3 : parasitic res C1 C2 C3 : parasitic cap Cxor Cnand: gate sink cap R1 Cnand Cxor R2 R3 a s1 s2 Parasitic Extraction or each net C3 C1 C2 ELEN 689

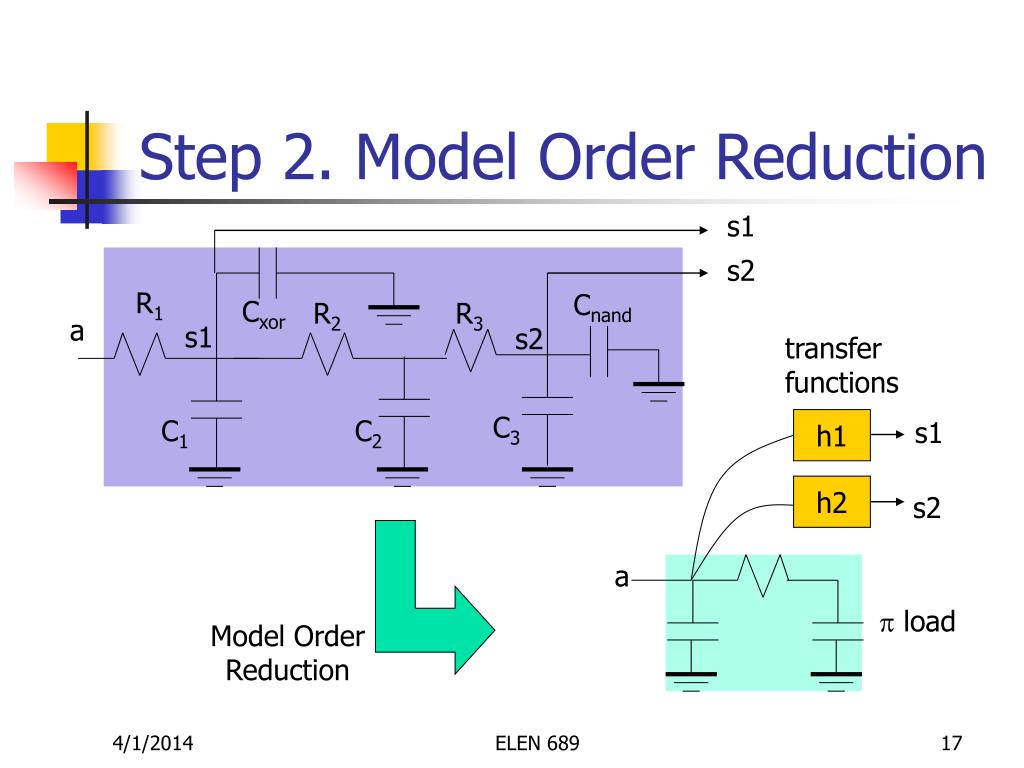

  17. Step 2. Model Order Reduction s1 s2 R1 Cnand Cxor R2 R3 a s1 s2 transfer functions C3 C1 C2 h1 s1 h2 s2 a  load Model Order Reduction ELEN 689

  18. Step 3. Delay Evaluation 50% buffer-to-buffer delay at s1 Buffer-to-buffer Delay: Time for signal to travel from input pin of a gate to input pin of next gate h1 s1 h2 s2 a 50% buffer-to-buffer delay at s2 ELEN 689

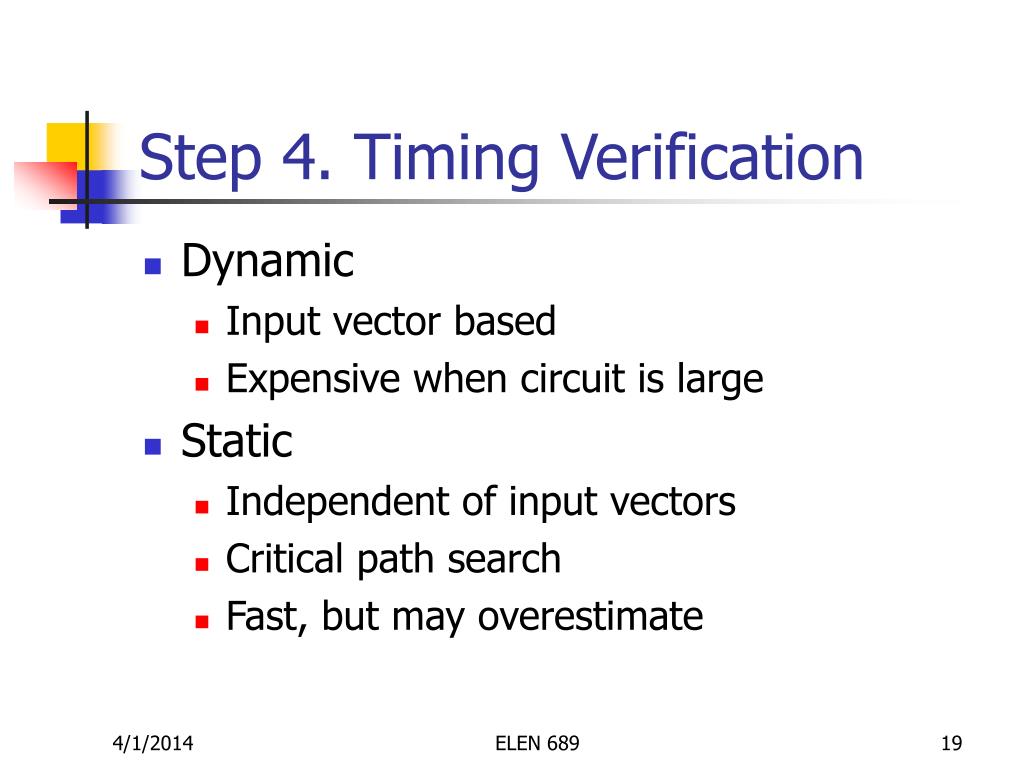

  19. Step 4. Timing Verification • Dynamic • Input vector based • Expensive when circuit is large • Static • Independent of input vectors • Critical path search • Fast, but may overestimate ELEN 689

  20. Signal Coupling Coupling Capacitance Noise ELEN 689

  21. Crosstalk • Cross talk affects delay 01 nominal delay 0 01 delay increased 10 01 delay reduced 01 ELEN 689

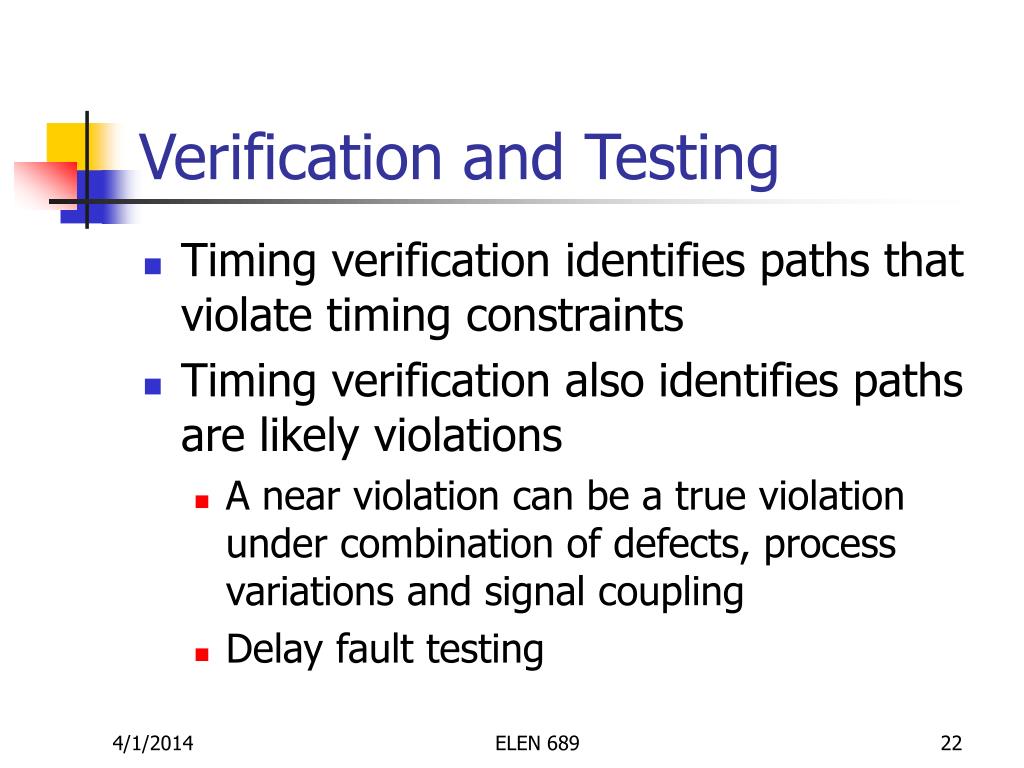

  22. Verification and Testing • Timing verification identifies paths that violate timing constraints • Timing verification also identifies paths are likely violations • A near violation can be a true violation under combination of defects, process variations and signal coupling • Delay fault testing ELEN 689

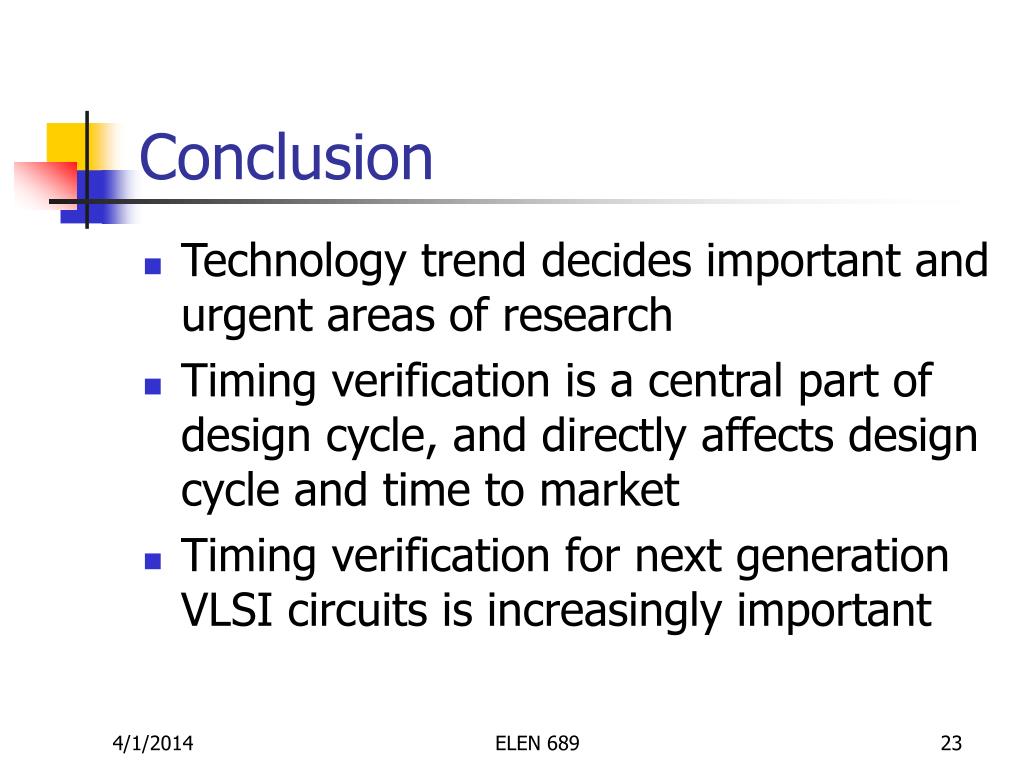

  23. Conclusion • Technology trend decides important and urgent areas of research • Timing verification is a central part of design cycle, and directly affects design cycle and time to market • Timing verification for next generation VLSI circuits is increasingly important ELEN 689

  24. Assignments #1 • Read ITRS (http://public.itrs.net/) and for the area of your interest, identify issues that are important • Go to MOSIS (http://www.mosis.com) and check their technology file, SPICE models and design rules ELEN 689
