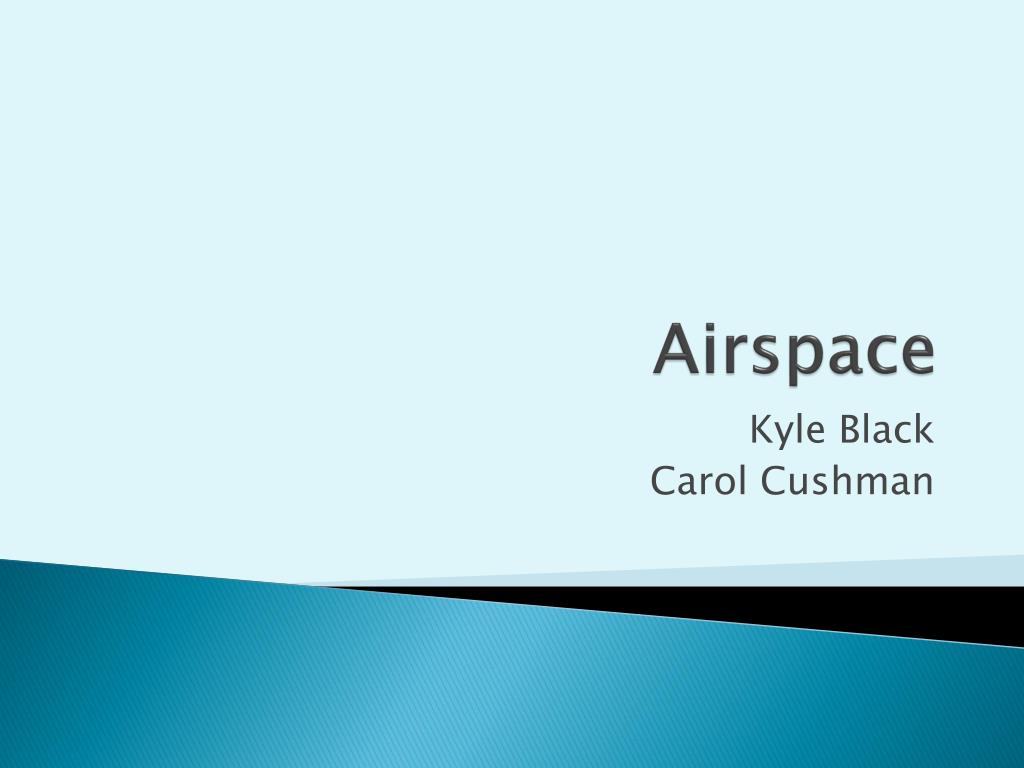

Airspace. Kyle Black Carol Cushman. What is airspace? “The portion of the atmosphere above a particular land area, especially above a nation.”. In order to fly in the airspace, do you think certain rules or requirements must be met? Of course! VFR weather minimums apply to us…

johnson
Télécharger la présentation

Airspace

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. Airspace Kyle Black Carol Cushman

  2. What is airspace? “The portion of the atmosphere above a particular land area, especially above a nation.”

  3. In order to fly in the airspace, do you think certain rules or requirements must be met? • Of course! • VFR weather minimums apply to us… • Equipment and communication requirements too…

  4. Airspace Classification What are the two broad categories of airspace? • Controlled • Class A • Class B • Class C • Class D • Class E • Uncontrolled • Class G

  5. Airspace Classification Why do we have different classifications? • Primary reason is the separation of IFR and VFR traffic. • What is IFR traffic? • Pilots which are properly certificated can fly in controlled airspace when weather minimums are below VFR.

  6. Airspace Terms • Floor • Used to refer to the lowest altitude at which the airspace segment begins • Ceiling • Upper limit of the airspace

  7. Class G Airspace • Are you required to communicate with ATC? • No • Moving from uncontrolled to controlled airspace due to the increasing need to coordinate the movement of air traffic.

  8. Class G Airspace • What are the dimensions? • Surface to 14,500’ • Surface to 700’ / 1200’ AGL • Weather minimums? • Depends on day or night and altitude…

  9. Controlled Airspace • Separation of air traffic is primary ATC function – radar being the primary tool. • FARs require an aircraft transponder (if aircraft is equipped), whenever flying in controlled airspace. • What is a transponder? • Electronic device aboard the airplane which when assigned an individual code helps to distinguish the aircraft from others in the area.

  10. Transponder • Mode A • Usually able to be set to any of 4,096 codes • Mode C • Mode A with altitude encoding equipment • Mode S • Uses advanced technology, also compatible with Mode C altitude reporting equipment

  11. Transponder • When is a Mode C Transponder required? • Class A airspace • Class B airspace • In and within 30 nm of Class B primary airports • Class C airspace • In and above • At or above 10,000’ MSL • Excluding airspace at and below 2500’ AGL • Rule applies in all airspace within 48 contiguous states and District of Columbia

  12. Class E • No communication requirements • Cannot fly in weather below VFR minimums unless instrument rated. • What are the dimensions? • Dimensions vary… • Surface surrounding an airport to 17,999’ • 700’ / 1200’ to 17,999’ • 14,500’ to 17,999’ • Above FL600

  13. How about airways? • Victor or Federal Airways • Extends 4 nm to either side of centerline (total of 8 nm wide) What are Class E weather minimums?

  14. Class D • Where is Class D airspace found? • Airport with operating control tower with no radar services • Only Class D when control tower is operating • What are the communication requirements? • Two-way radio communication with the control tower must be established. • What does it mean to establish two-way radio communication?

  15. Class D • What are the usual dimensions? • 4 nm radius • Surface to approximately 2500’ AGL • Lateral dimensions may change depending on instrument approach procedures • What are the weather minimums?

  16. Class C • What are considerations that may be taken to designate an airspace as Class C versus just Class D? • Safety • Users’ needs • Volume of air traffic • Provides radar service to all IFR and VFR aircraft • What are the communication requirements? • Two-way radio communication with the controlling facility must be established

  17. Class C • What are the usual dimensions? • 5 nm radius core surface to 4,000’ above arpt elev. • 10 nm radius shelf extends from 1,200’ to 4,000’ above arpt elev. • May vary depending on airport environment • What are the weather minimums?

  18. Class B • Where might Class B airspace be found? • Country’s busiest airports • May serve several airports in the area, although designated for one major terminal • What are the communication requirements? • Two-way radio communication with the controlling facility must be established and a CLEARANCE must be obtained prior to entrance

  19. Class B • What are the usual dimensions? • Usually extends to 10,000’ MSL • Designed to serve needs of the airport it surrounds • Often resembles an “upside down wedding cake” • What are the weather minimums?

  20. Class A • Where’s Waldo? Just kidding...Where is Class A airspace? It’s not depicted on sectionals… • Covers majority of the contiguous states and Alaska and extends 12 nm out from coast • 18,000’ MSL to FL600 • What are the communication requirements? • IFR clearance required meaning… • Must be on IFR Flight Plan • IFR equipped aircraft • Instrument rated pilot • Which means...what? • NO MINIMUM WEATHER REQUIREMENTS…woohoo!

  21. Who’s ready for a break?

  22. We just talked about various airspaces and weather minimums, do you think as a brand new private pilot these would be your personal minimums? • Why or why not?

  23. Special VFR • In addition to VFR minimums, to operate within Class B, C, D, or E airspace which extend to the surface around an airport • Ground visibility must be at least 3 sm • Ceilings must be at least 1,000’ AGL

  24. Special VFR • What is a Special VFR clearance? • Allows for operation within the surface areas of Class B, C, D, or E airspace when VFR minimums are not met. • What are the minimums required for a Special VFR clearance? • 1 sm • Ability to remain clear of clouds • Why might you want to get a Special VFR clearance?

  25. Airspeed Limitations • Speed limits in the sky? • Why? Where? • Higher congestion • Lower altitudes • Below 10,000 MSL • Max indicated 250 knots • Operating within Class C or D airspace, at or below 2,500’ above surface, 4 nm from primary airport • Max indicated 200 knots • Applies to airspace underlying Class B and in VFR corridors through Class B YES!

  26. Special Use Airspace • What are the different Special Use Airspaces? • Alert Areas • Military Operations Areas (MOAs) • Warning Areas • Restricted Areas • Prohibited Areas • Controlled Firing Areas • National Security Areas

  27. Alert Areas • Shown on aeronautical charts to inform of unusual types of aerial activities • Parachute jumping • Glider towing • High concentrations of student pilot training

  28. Military Operations Area (MOA) • What takes place in an MOA? • Military training • Military maneuvers • Specified floors and ceilings • Are VFR aircraft allowed to fly through an active MOA? • Yes, extreme caution should be used

  29. Warning Areas • Where are they found? • Extend from 3 nm outward from the coast • What type of activity is conducted? • Activity which can be hazardous to nonparticipating aircraft • Possibly: • Aerial gunnery • Guided missiles

  30. Restricted Areas • What type of activity is conducted in a restricted area? • Artillery firing • Aerial gunnery • Guided Missiles • Do we need permission to fly through it? • Yes – by the controlling agency

  31. Prohibited Areas • Why are prohibited areas established? • Security or reasons of national welfare • Flight of aircraft is prohibited • Can permission be obtained to fly through it? • Yes – from the controlling agency • Will we get it? – No…not unless we’re flying Air Force One, or close to it…

  32. Controlled Firing Areas • What is special about a controlled firing area? • Spotter aircraft, radar, or ground lookout personnel are used to determine if an aircraft might be approaching the area • Activities are discontinued if a non-participating aircraft is approaching • Not depicted on aeronautical charts

  33. National Security Areas • Established at locations where increased security and safety of ground facilities is required. • It is “requested” to voluntarily avoid flying through area • Flight through may be prohibited in some cases – notified through NOTAMs

  34. Military Training Routes • Why are they established? • Low-level, high-speed military training flights • Where? • Generally established below 10,000’ MSL for speeds in excess of 250 knots • Routes at and below 1,500’ AGL designed to be flown under VFR • Routes above 1,500’ AGL primarily for IFR

  35. Military Training Routes

  36. Temporary Flight Restrictions • Why are they created? What do they do? • Provide a safe environment for rescue/relief operations • Prevent unsafe congestion of sightseeing or other aircraft above an incident or event • Other reasons? • How do we know they exist? • NOTAMs

  37. Terminal Radar Service Areas • Not a controlled airspace • By contacting approach, radar services can be provided • Participation is not mandatory

  38. Air Defense Identification Zones • Identifies U.S. international airspace boundaries • Must file an IFR or defense VFR (DVFR) flight plan for all ops that enter or exit an ADIZ • Requires operating transponder with Mode C capability and two-way radio to make position reports

  39. Airspace Summary
