OS Driven Core Selection for HCMP Systems Anand Bhatia, RishkulKulkarni
Outcomes O Characterization – based on static parameters - Comparison – Heterogeneity aware vs oblivious scheduler O A functional core selector – OSDCS Module X Study of performance change O : Complete - : Partial X : Pending
Prior Work • Efficient program scheduling for heterogeneous multi-core processors – J. Chen, L.K. John • Static Characteristics • Euclidean distance based signature matching • HASS: A scheduler for Heterogeneous Multicore Systems - Shelepov, D., Fedorova et. al. • DVFS scaling • Process differences • A Unified View of Core Selection and Application Steering in Heterogeneous Chip Multiprocessors – SandeepNavada • Bottleneck counters • Execution migration
Phase 1 - Characterization • Signature Generation • Static Measurements • Dependence Distance (Issue Width) • Stack Distance (Cache Size) • Branch Variability (Branch Predictor Size) • Instructions Per Branch (Experimental) • Projection Functions • Core Exploration
Phase 1 - Results Representative Core Configs • Issue width | Dependence distance • BP Size | Branch variability • D$ Size | Stack Distance • AL Size | IPB IPC on chosen core configs • Independent runs • Useful to determine workload mix for scheduler

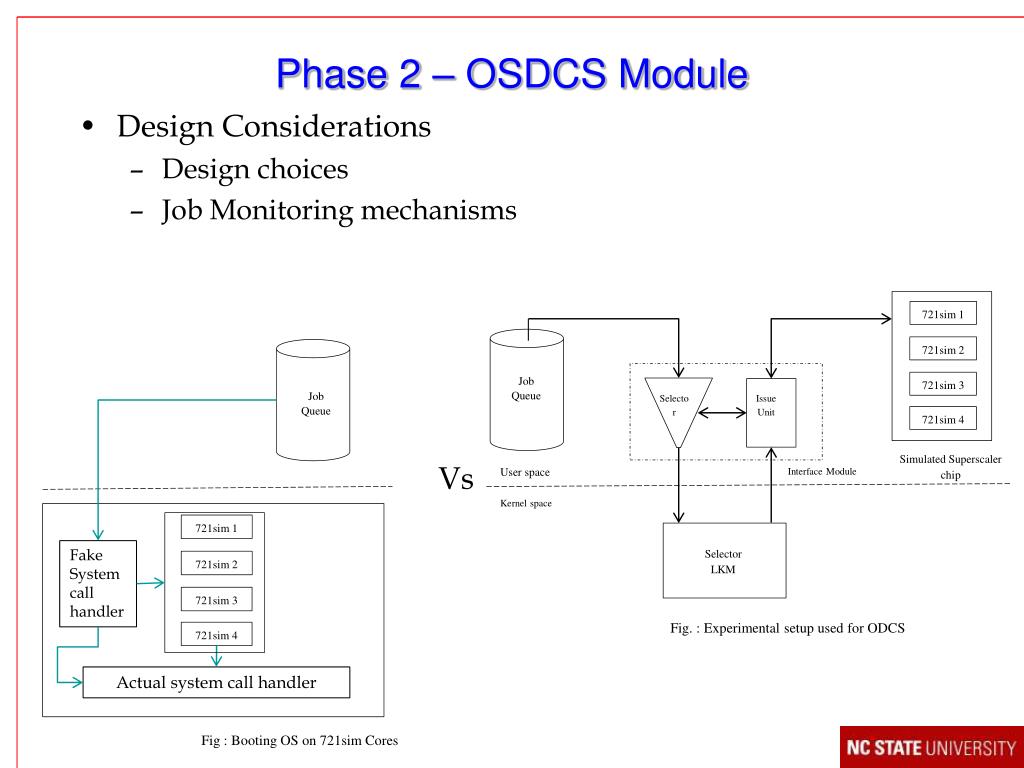

721sim 1 Phase 2 – OSDCS Module 721sim 2 Job Queue 721sim 3 Selector Issue Unit 721sim 4 Simulated Superscaler chip Interface Module User space Kernel space Selector LKM Fig. : Experimental setup used for ODCS Job Queue 721sim 1 Fake System call handler 721sim 2 721sim 3 721sim 4 Actual system call handler • Design Considerations • Design choices • Job Monitoring mechanisms Vs Fig : Booting OS on 721sim Cores

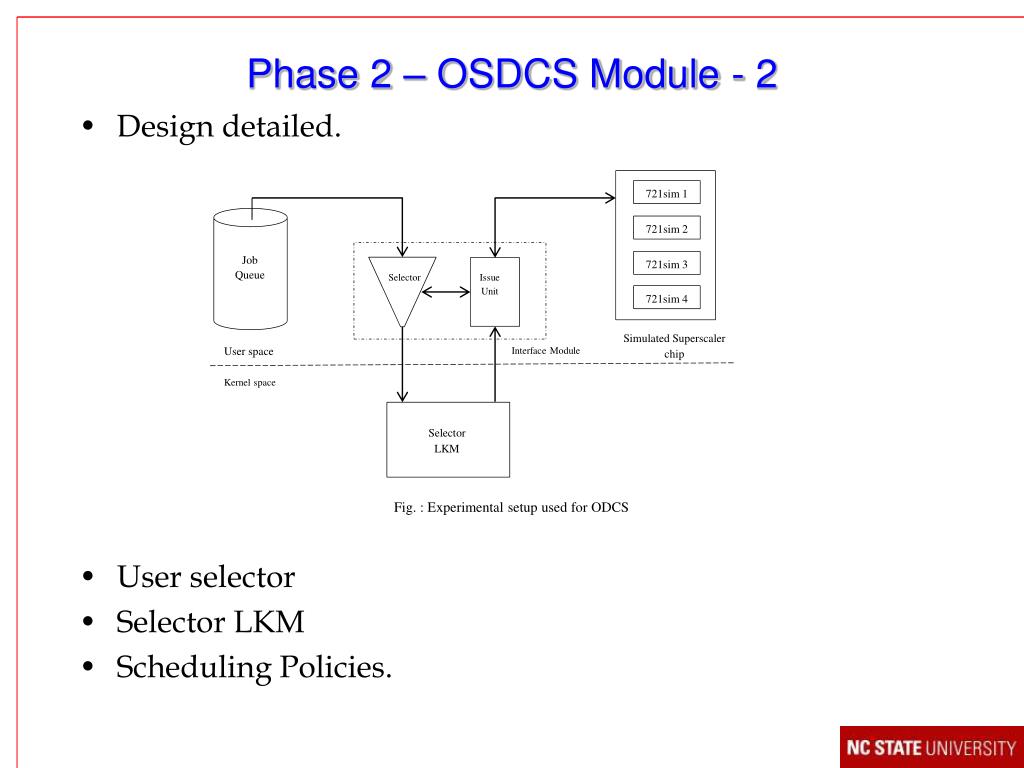

721sim 1 Phase 2 – OSDCS Module - 2 721sim 2 Job Queue 721sim 3 Issue Unit Selector 721sim 4 Simulated Superscaler chip Interface Module User space Kernel space Selector LKM Fig. : Experimental setup used for ODCS Design detailed. User selector Selector LKM Scheduling Policies.
Phase 2 - Policies Two different types: • Varying Schedule & Dispatch mechanisms • Greedy • Non work-conserving • Weights • Bias logically similar parameters heavily.

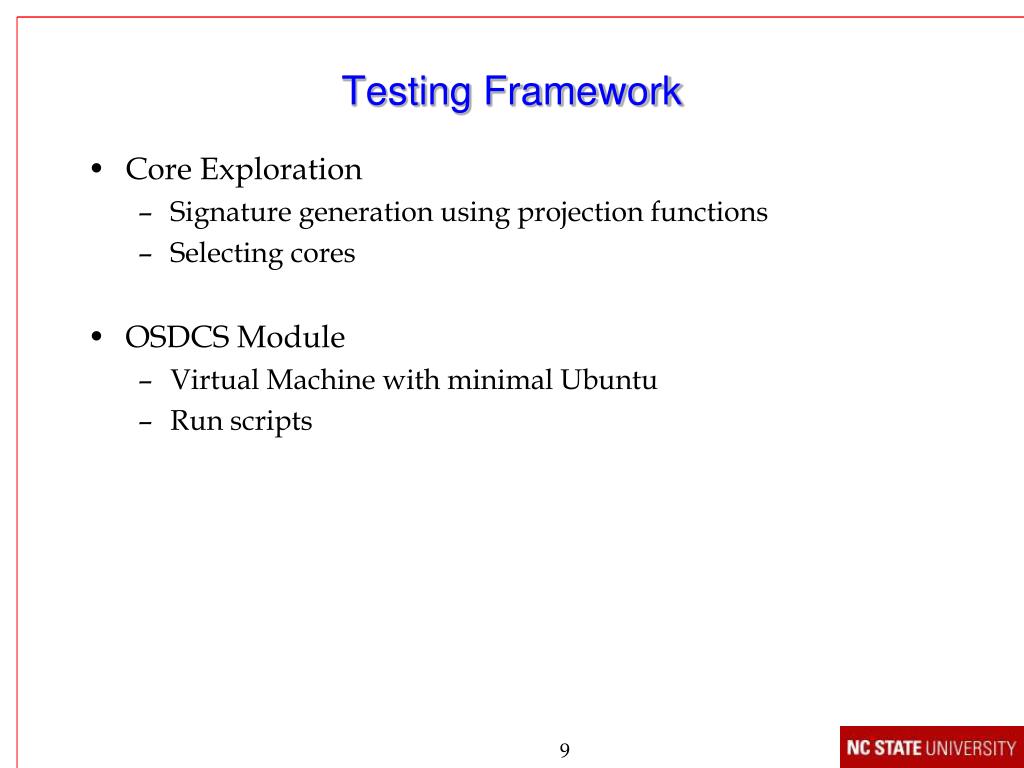

Testing Framework • Core Exploration • Signature generation using projection functions • Selecting cores • OSDCS Module • Virtual Machine with minimal Ubuntu • Run scripts
Limitations Insensitive to behavioral changes in workload phases Oblivious to dynamically changing inputs to workloads
Future Work Furthering OSDCS module to incorporate timing model Investigating specialized cores/accelerators. Devising projection functions for more parameters like IPB and LSQ sizing. Implement enhanced scheduling policies such as confidence based weighing.

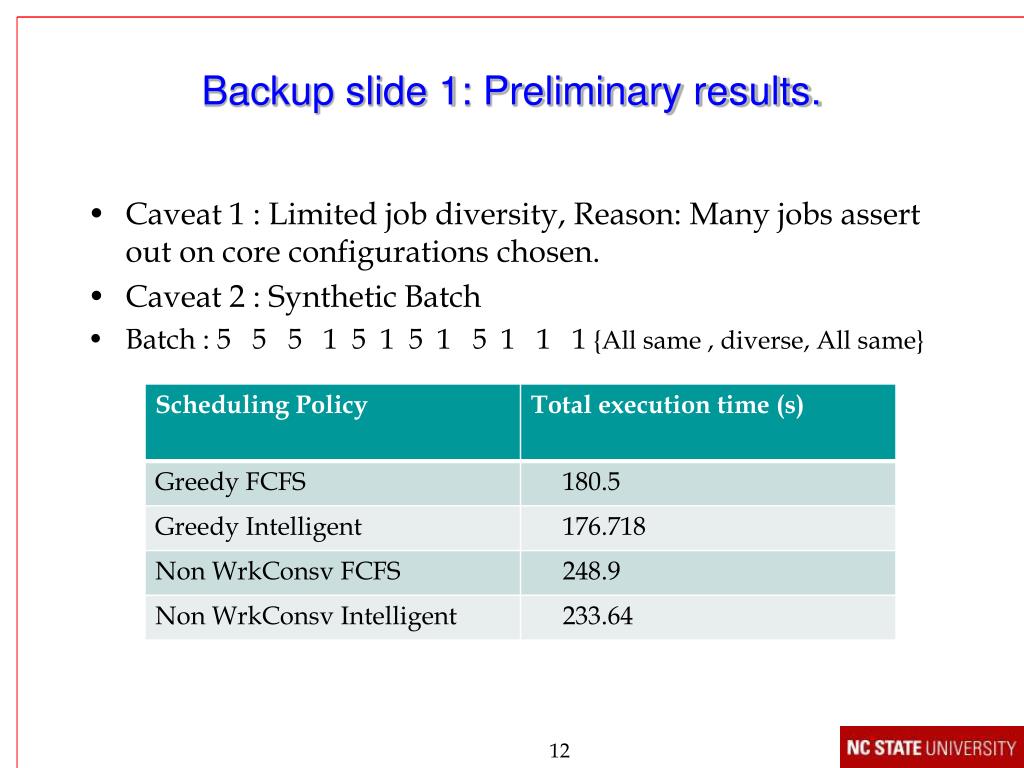

Backup slide 1: Preliminary results. Caveat 1 : Limited job diversity, Reason: Many jobs assert out on core configurations chosen. Caveat 2 : Synthetic Batch Batch : 5 5 5 1 5 1 5 1 5 1 1 1 {All same , diverse, All same}
