  1. Wayne Twp FDRadio Navigation by radio type

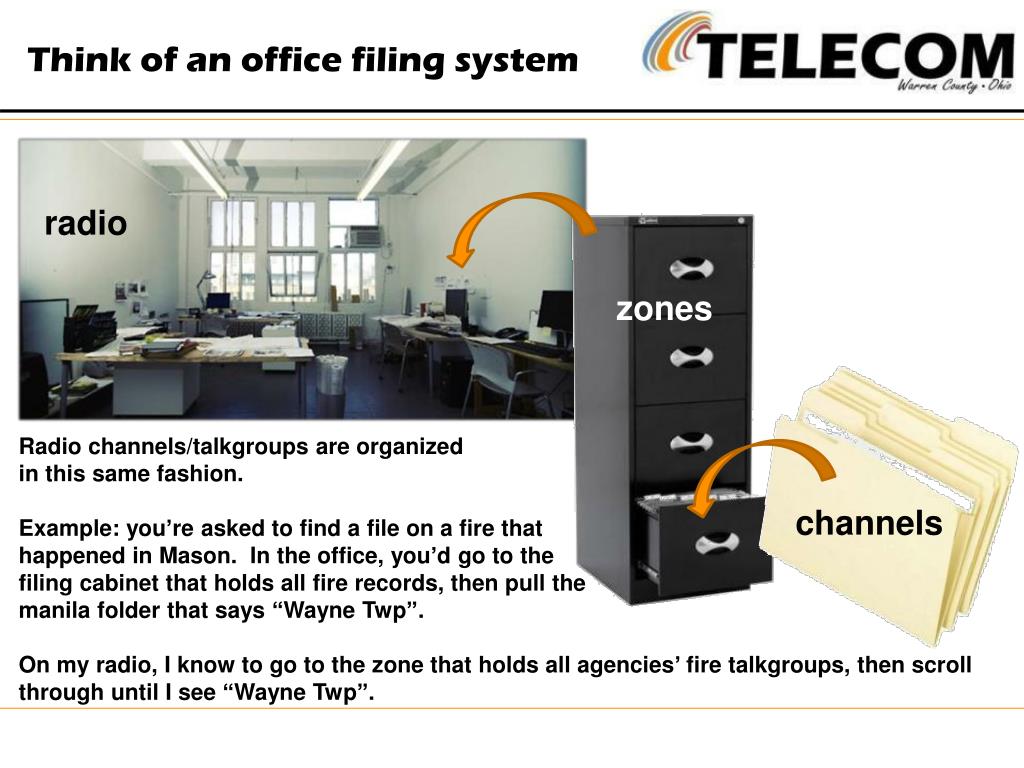

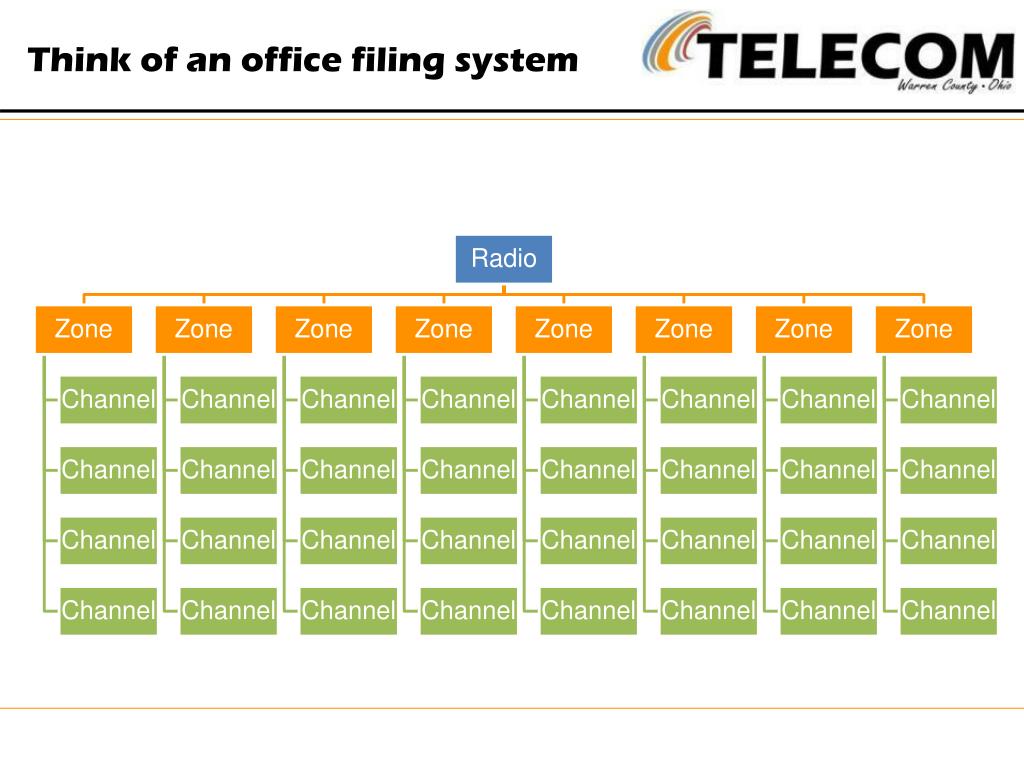

  2. Think of an office filing system radio zones Radio channels/talkgroups are organizedin this same fashion. Example: you’re asked to find a file on a fire thathappened in Mason. In the office, you’d go to thefiling cabinet that holds all fire records, then pull themanila folder that says “Wayne Twp”. On my radio, I know to go to the zone that holds all agencies’ fire talkgroups, then scroll through until I see “Wayne Twp”. channels

  3. Think of an office filing system

  4. Think of an office filing system

  5. Big Picture Radio ZNUP / ZNDN button Zone C Zone D Zone E Zone F Zone G Zone A Zone B Zone H Zone I Zone J Zone K Zone L Zone M Zone N Zone O

  6. 16 Channels per Zone Zone Channel 3 Channel 4 Channel 5 Channel 6 Channel 7 Channel 1 Channel 2 Channel 8 Channel 16 Channel 9 Channel 10 Channel 11 Channel 12 Channel 13 Channel 14 Channel 15

  7. Big Picture Channel 1 & 16 are the same talkgroup so that a total twist to the left or right will take you to the same place. Zone Channel 3 Channel 4 Channel 5 Channel 6 Channel 7 Channel 1 Channel 2 Channel 8 Channel 16 Channel 9 Channel 10 Channel 11 Channel 12 Channel 13 Channel 14 Channel 15

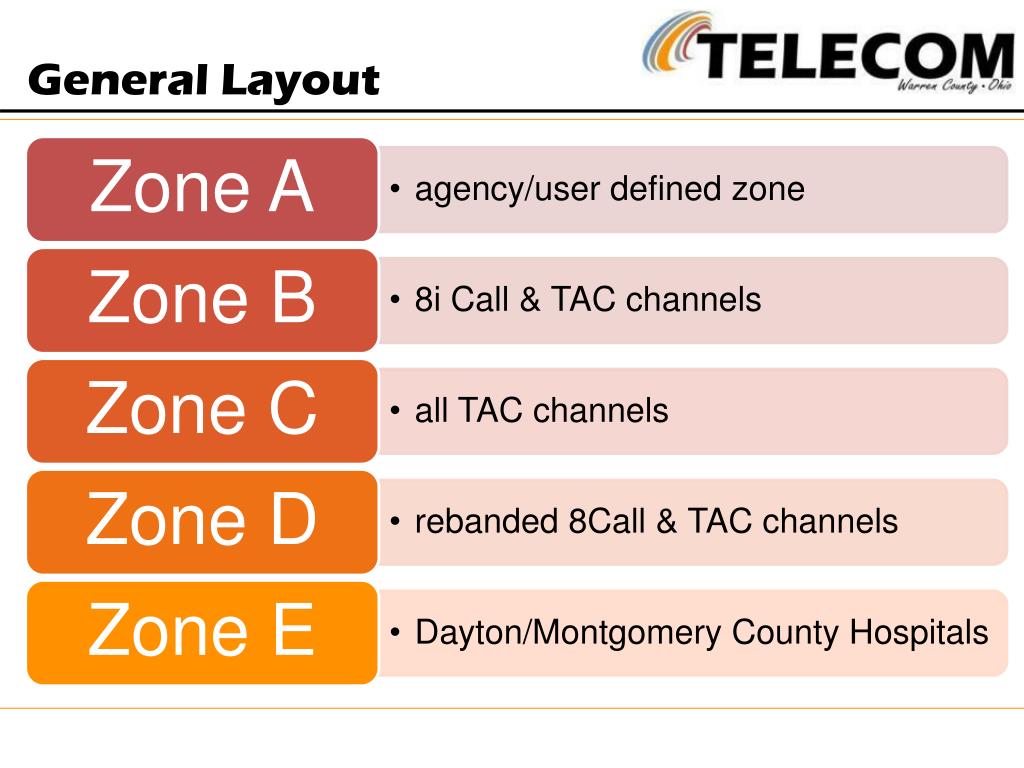

  8. General Layout

  9. Radio Menu Portables • MTS 2000 Top Display • MTS 2000 Full Keypad • XTS 2500 • XTS 5000 Mobiles • MCS 2000 • XTL 2500 Interoperability • MARCS • Hamilton County • Butler County When in Slide Show view, click on your radio model to walk through its channels/definitions. At the end of the section, click the home icon in the bottom corner to return to this menu.

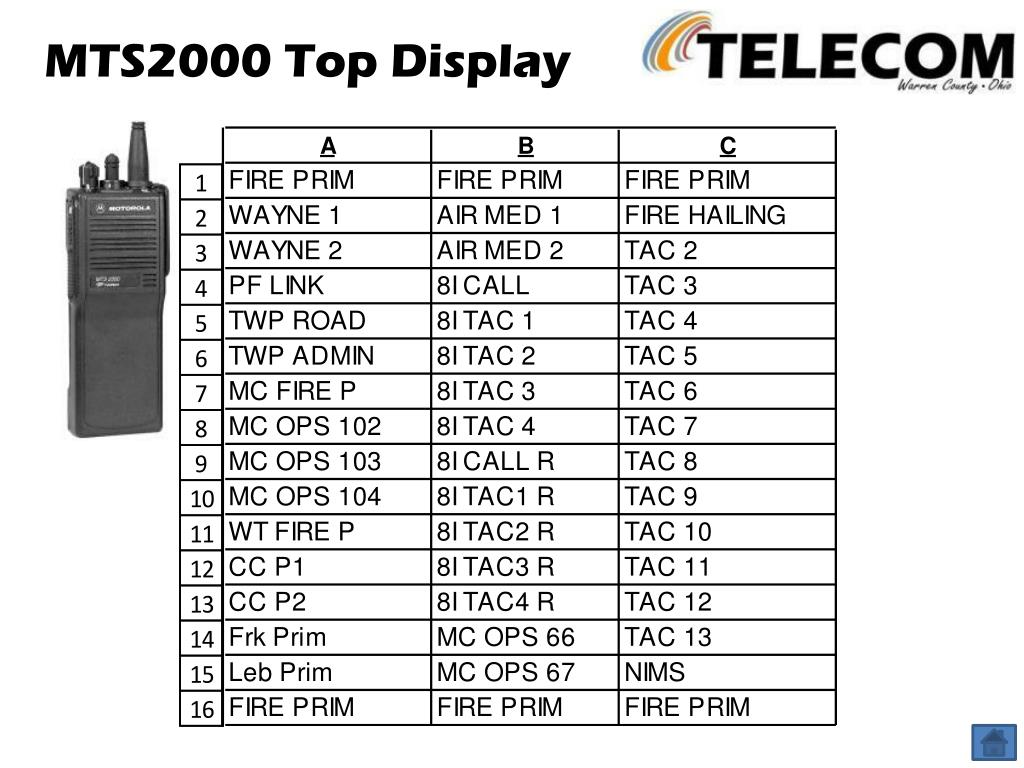

  10. MTS2000 Top Display

  11. MTS2000 Top Display FIRE PRIM = FIRE PRIMARY The main fire channel for traffic to/from Dispatch. All agencies have access to this.

  12. MTS2000 Top Display WAYNE 1 & 2 Local talkgroup specific to WTFD only

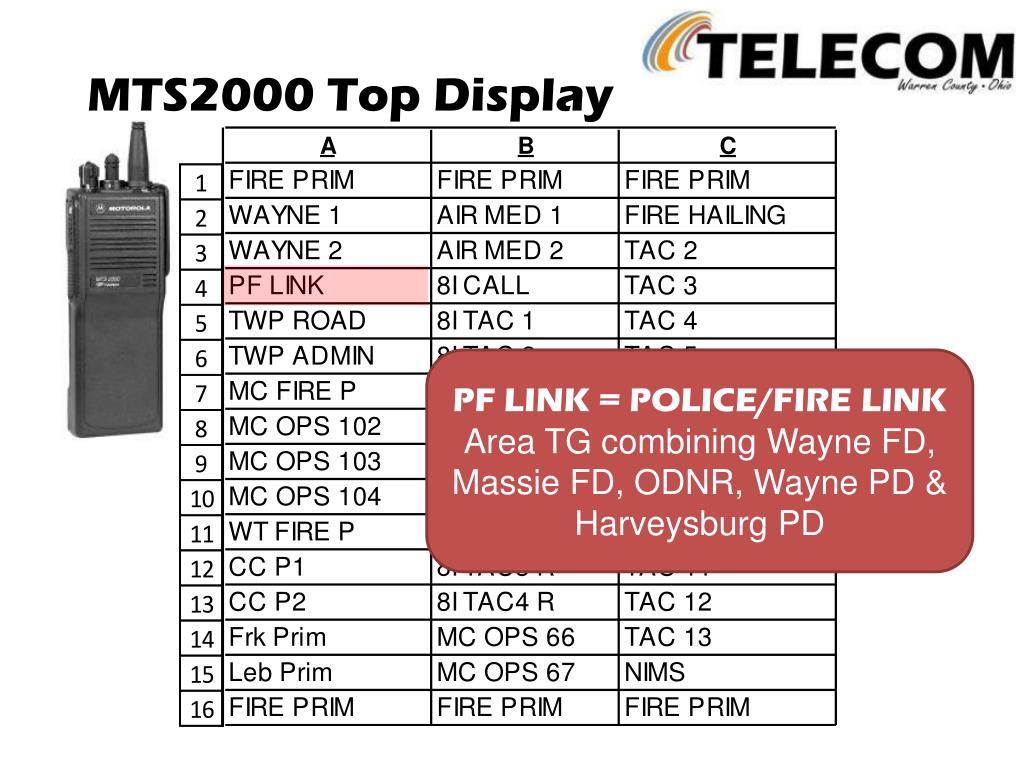

  13. MTS2000 Top Display PF LINK = POLICE/FIRE LINK Area TG combining Wayne FD, Massie FD, ODNR, Wayne PD & Harveysburg PD

  14. MTS2000 Top Display TWP ROAD Wayne Twp Road Division TWP ADMINWayne Twp Administration talkgroup in all Wayne Twp radios

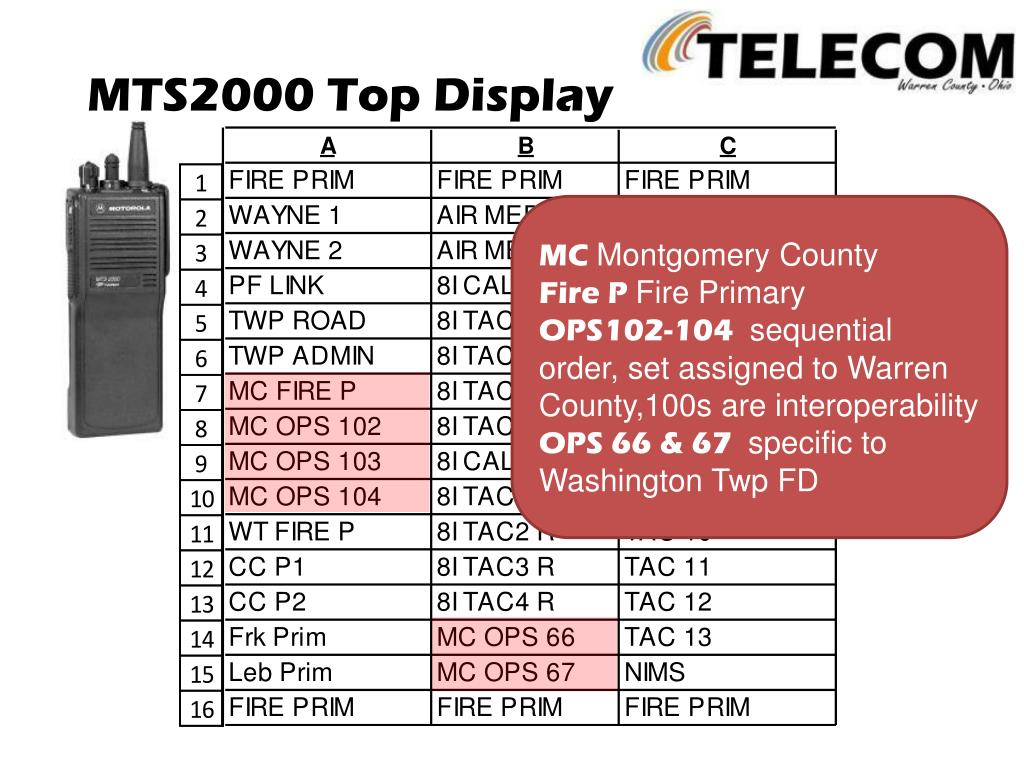

  15. MTS2000 Top Display MC Montgomery County Fire P Fire Primary OPS102-104 sequential order, set assigned to Warren County,100s are interoperability OPS 66 & 67 specific to Washington Twp FD

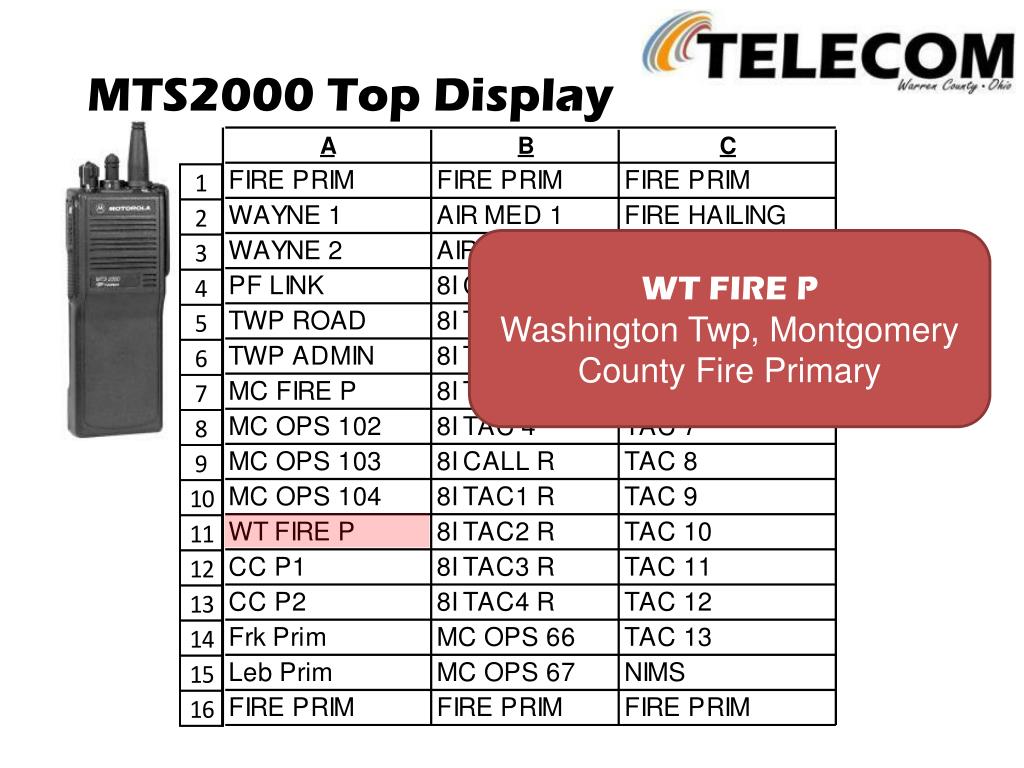

  16. MTS2000 Top Display WT FIRE P Washington Twp, Montgomery County Fire Primary

  17. MTS2000 Top Display CC P1 & P2 permanent patches between MC talkgroup & GC talkgroup. We use it to talk through MC’s system to get to GC because we don’t have direct access to GC’s radio system.

  18. MTS2000 Top Display FrkPrim Franklin Dispatch’s Primary Fire Channel Leb Prim Lebanon Dispatch’s Primary Fire Channel

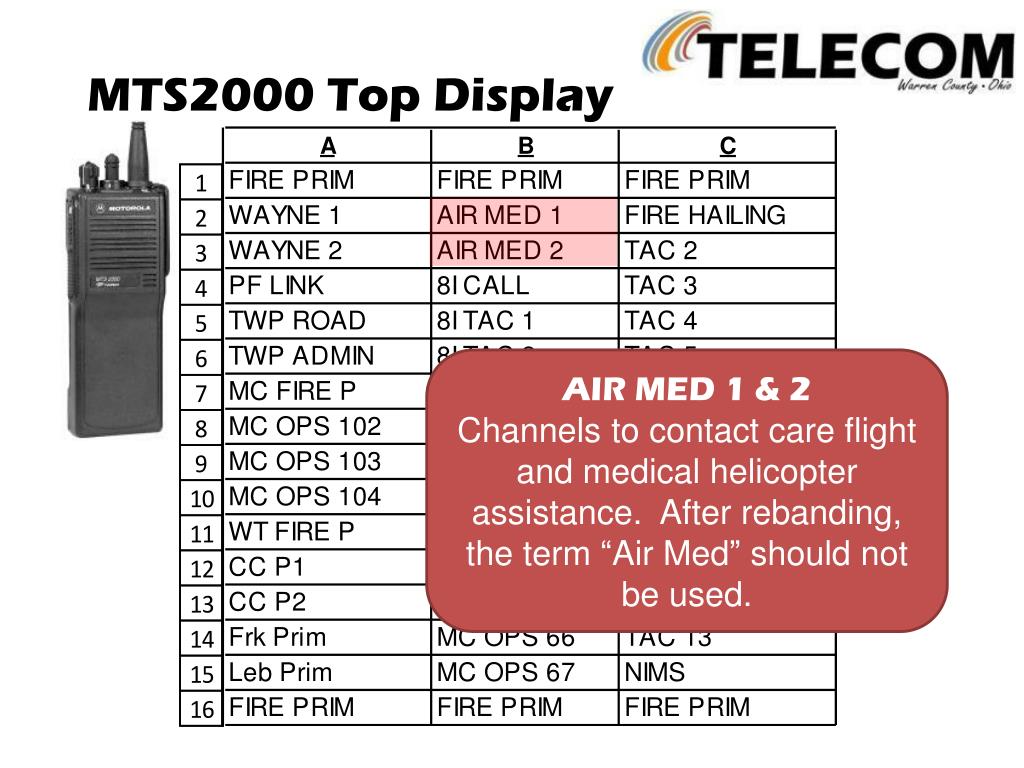

  19. MTS2000 Top Display AIR MED 1 & 2 Channels to contact care flight and medical helicopter assistance. After rebanding, the term “Air Med” should not be used.

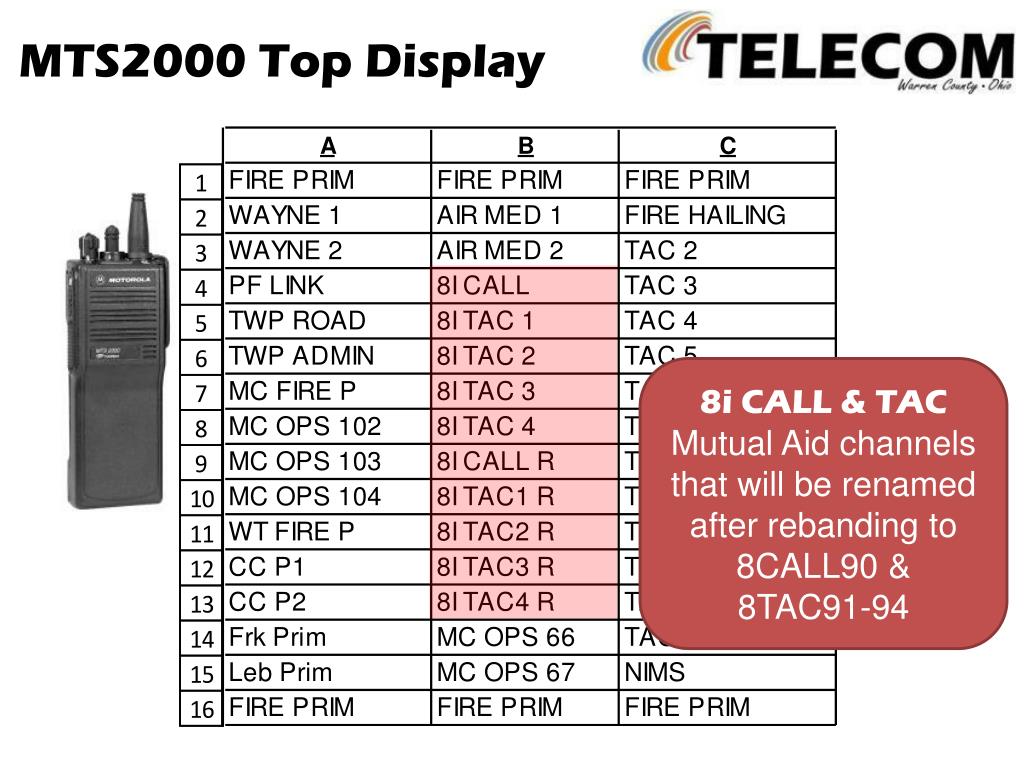

  20. MTS2000 Top Display 8i CALL & TAC Mutual Aid channels that will be renamed after rebanding to 8CALL90 & 8TAC91-94

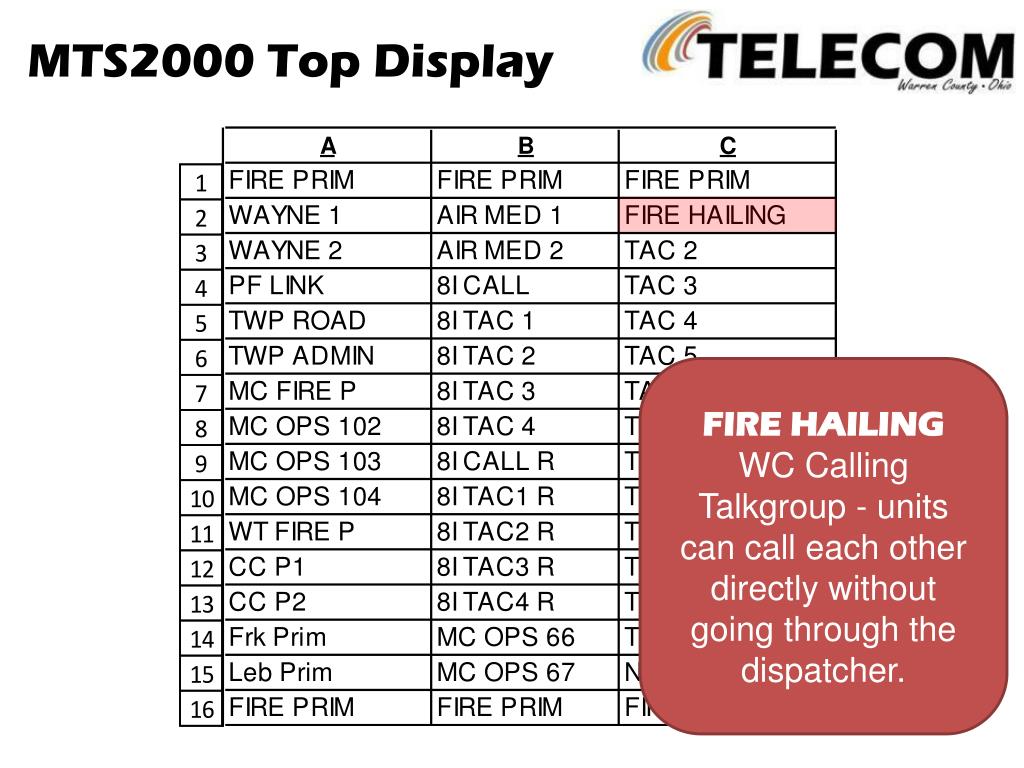

  21. MTS2000 Top Display FIRE HAILING WC Calling Talkgroup - units can call each other directly without going through the dispatcher.

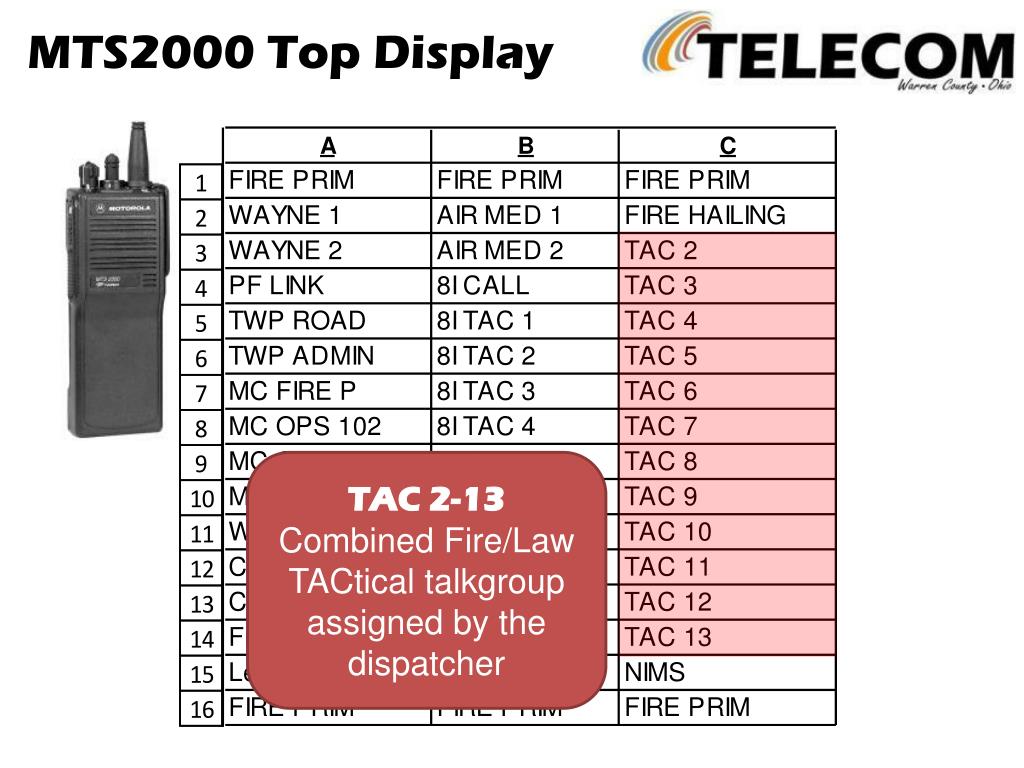

  22. MTS2000 Top Display TAC 2-13 Combined Fire/Law TACtical talkgroup assigned by the dispatcher

  23. MTS2000 Top Display NIMS National Incident Management System Can be used to reach everyone including non-public safety agencies, for large scale incidents.

  24. MTS 2000 Full Keypad Portable MCS 2000 Mobile Radio

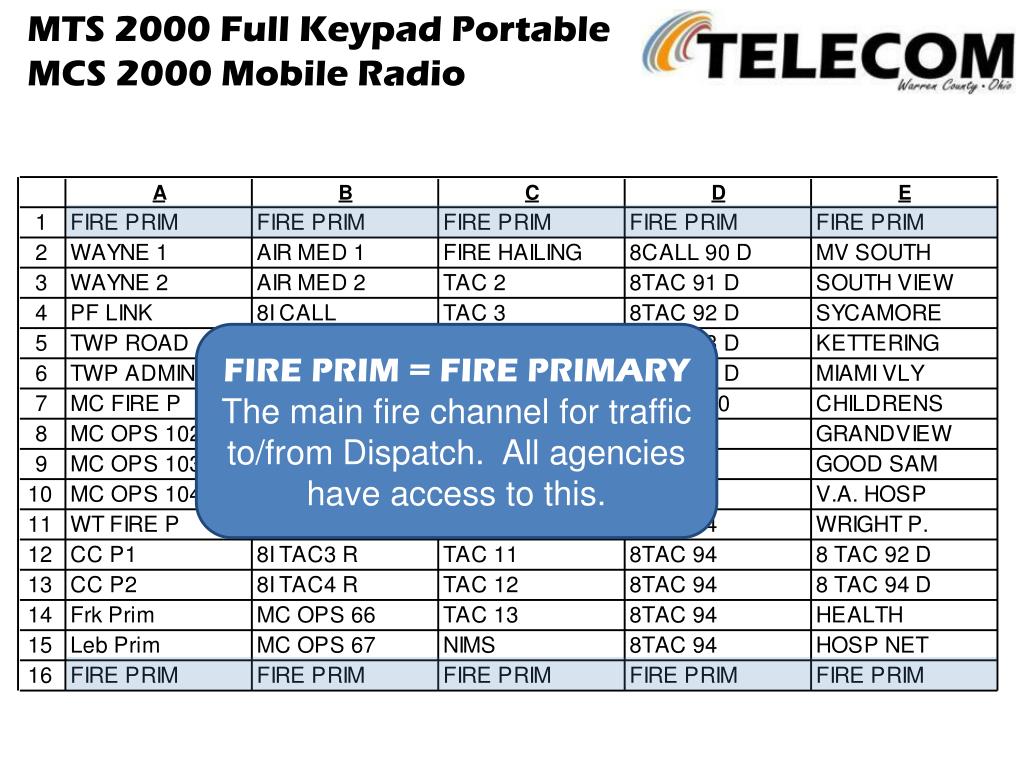

  25. MTS 2000 Full Keypad PortableMCS 2000 Mobile Radio FIRE PRIM = FIRE PRIMARY The main fire channel for traffic to/from Dispatch. All agencies have access to this.

  26. MTS 2000 Full Keypad PortableMCS 2000 Mobile Radio WAYNE 1 & 2 Local talkgroup specific to WTFD only.

  27. MTS 2000 Full Keypad PortableMCS 2000 Mobile Radio PF LINK = POLICE/FIRE LINK Area TG combining Wayne FD, Massie FD, ODNR, Wayne PD & Harveysburg PD

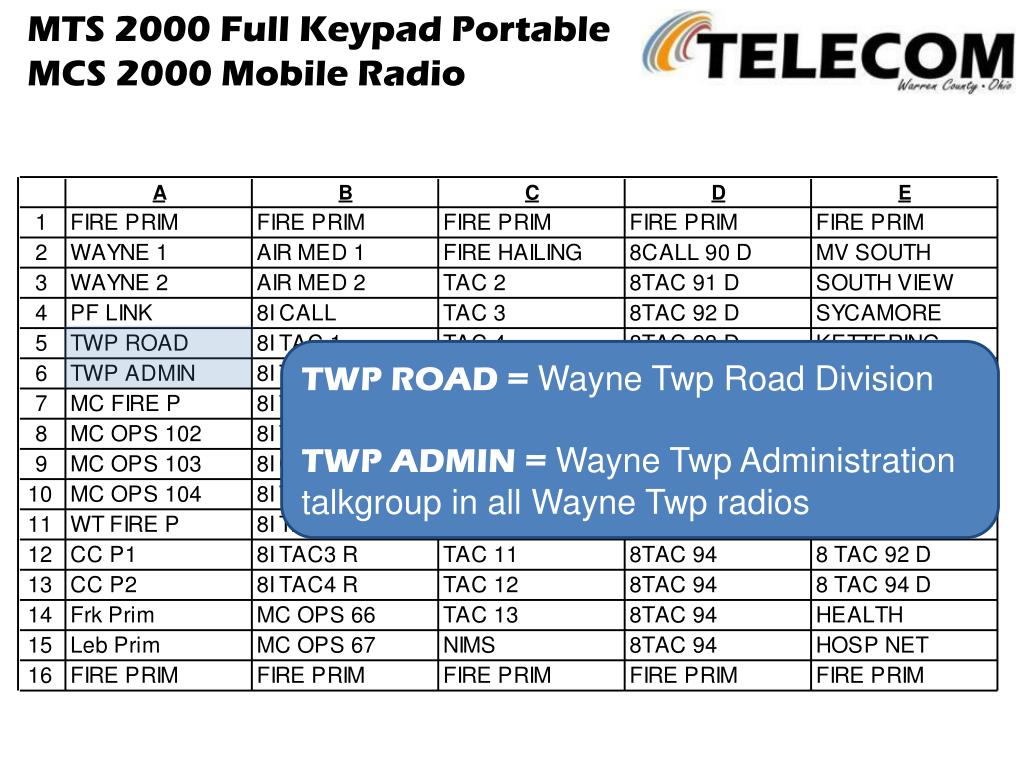

  28. MTS 2000 Full Keypad PortableMCS 2000 Mobile Radio TWP ROAD = Wayne Twp Road Division TWP ADMIN = Wayne Twp Administration talkgroup in all Wayne Twp radios

  29. MTS 2000 Full Keypad PortableMCS 2000 Mobile Radio MC Montgomery County Fire P Fire Primary OPS102-104 sequential order, set assigned to Warren County,100’s are interoperability OPS 66 & 67 specific to Washington Twp FD

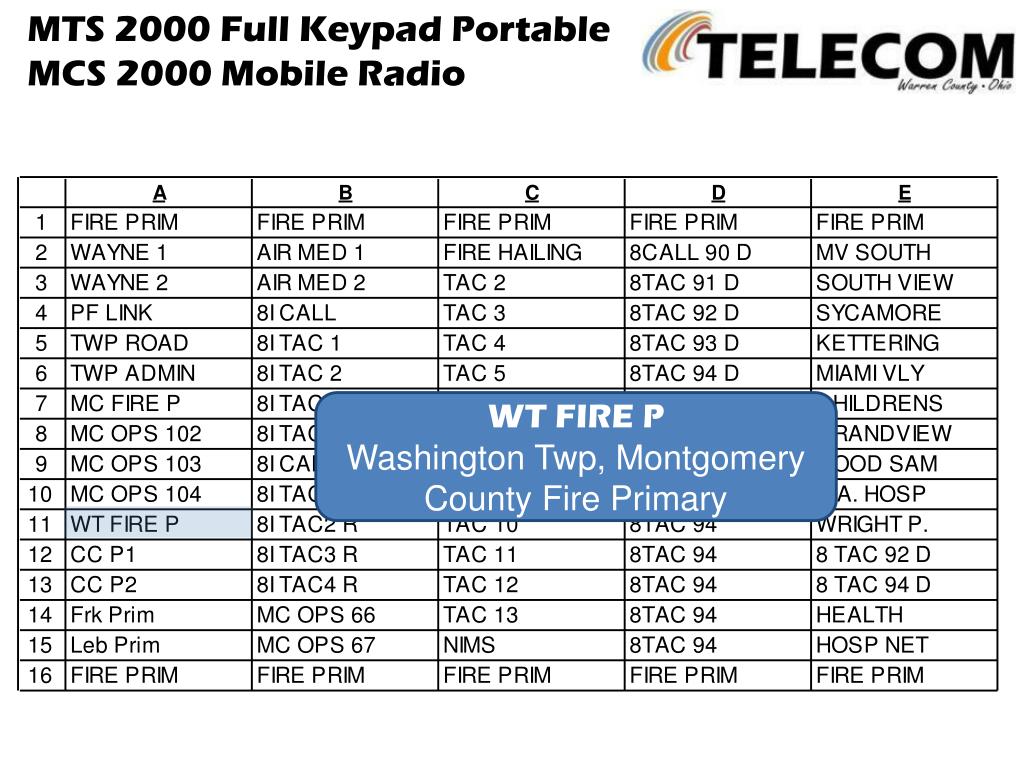

  30. MTS 2000 Full Keypad PortableMCS 2000 Mobile Radio WT FIRE P Washington Twp, Montgomery County Fire Primary

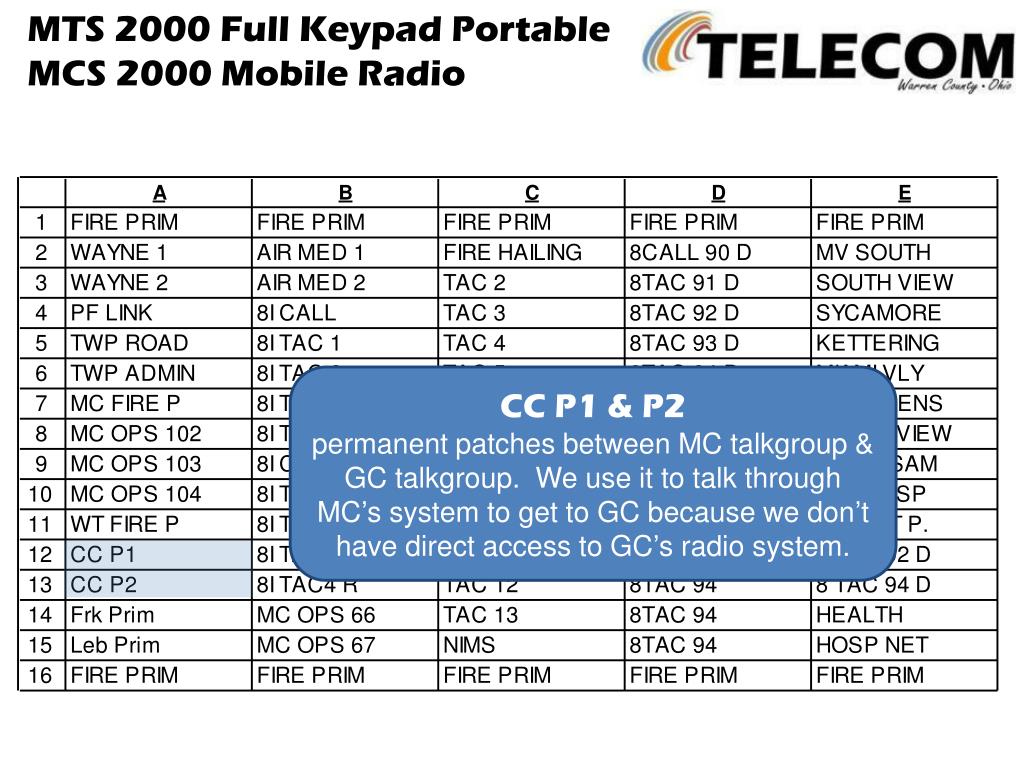

  31. MTS 2000 Full Keypad PortableMCS 2000 Mobile Radio CC P1 & P2 permanent patches between MC talkgroup & GC talkgroup. We use it to talk through MC’s system to get to GC because we don’t have direct access to GC’s radio system.

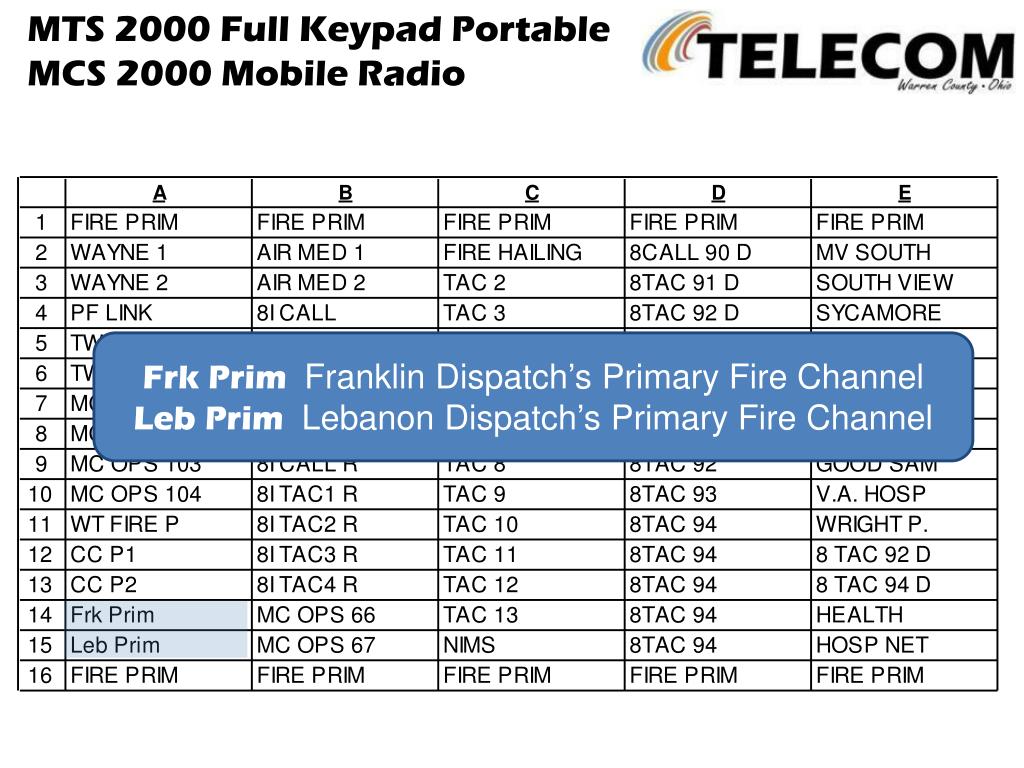

  32. MTS 2000 Full Keypad PortableMCS 2000 Mobile Radio Frk Prim Franklin Dispatch’s Primary Fire Channel Leb Prim Lebanon Dispatch’s Primary Fire Channel

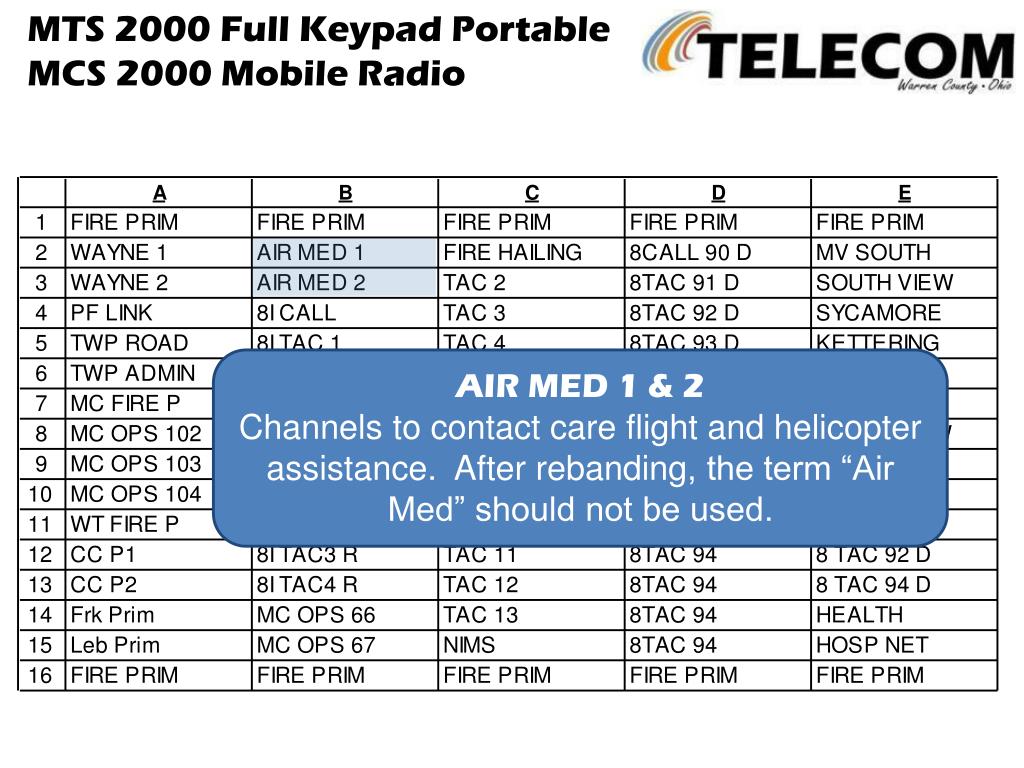

  33. MTS 2000 Full Keypad PortableMCS 2000 Mobile Radio AIR MED 1 & 2 Channels to contact care flight and helicopter assistance. After rebanding, the term “Air Med” should not be used.

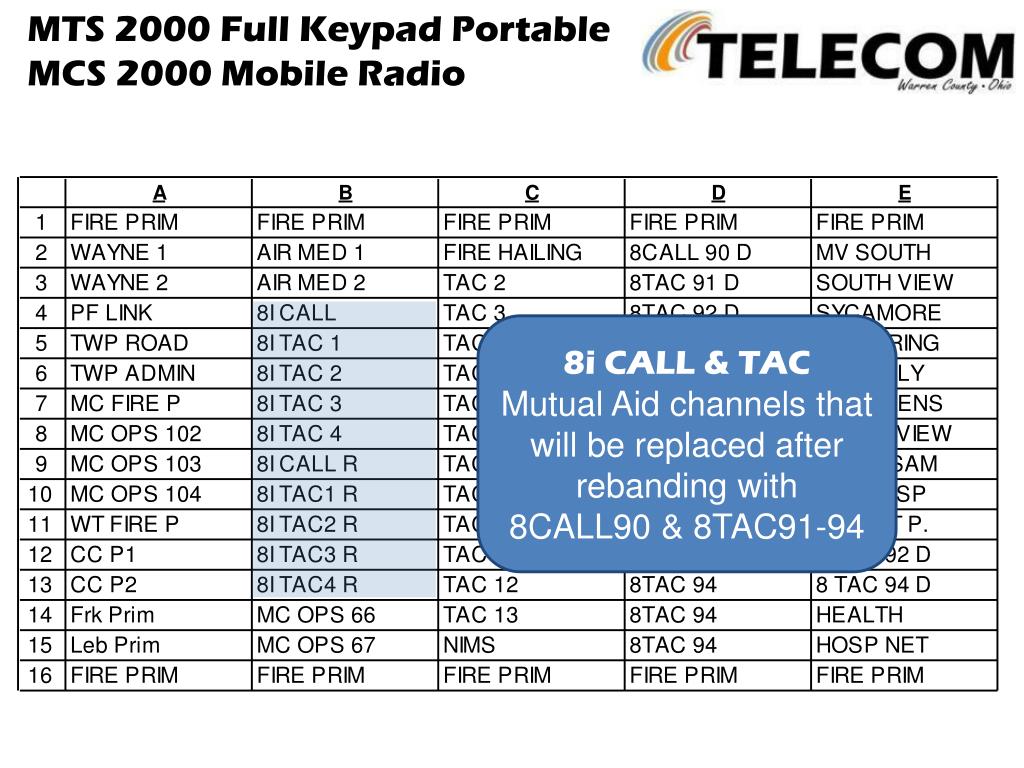

  34. MTS 2000 Full Keypad PortableMCS 2000 Mobile Radio 8i CALL & TAC Mutual Aid channels that will be replaced after rebanding with 8CALL90 & 8TAC91-94

  35. MTS 2000 Full Keypad PortableMCS 2000 Mobile Radio FIRE HAILING WC Calling Talkgroup - units can call each other directly without going through the dispatcher.

  36. MTS 2000 Full Keypad PortableMCS 2000 Mobile Radio TAC 2-13 Combined Fire/Law TACtical talkgroup assigned by the dispatcher

  37. MTS 2000 Full Keypad PortableMCS 2000 Mobile Radio NIMS National Incident Management System. Can be used to reach everyone including non-public safety agencies, for large scale incidents.

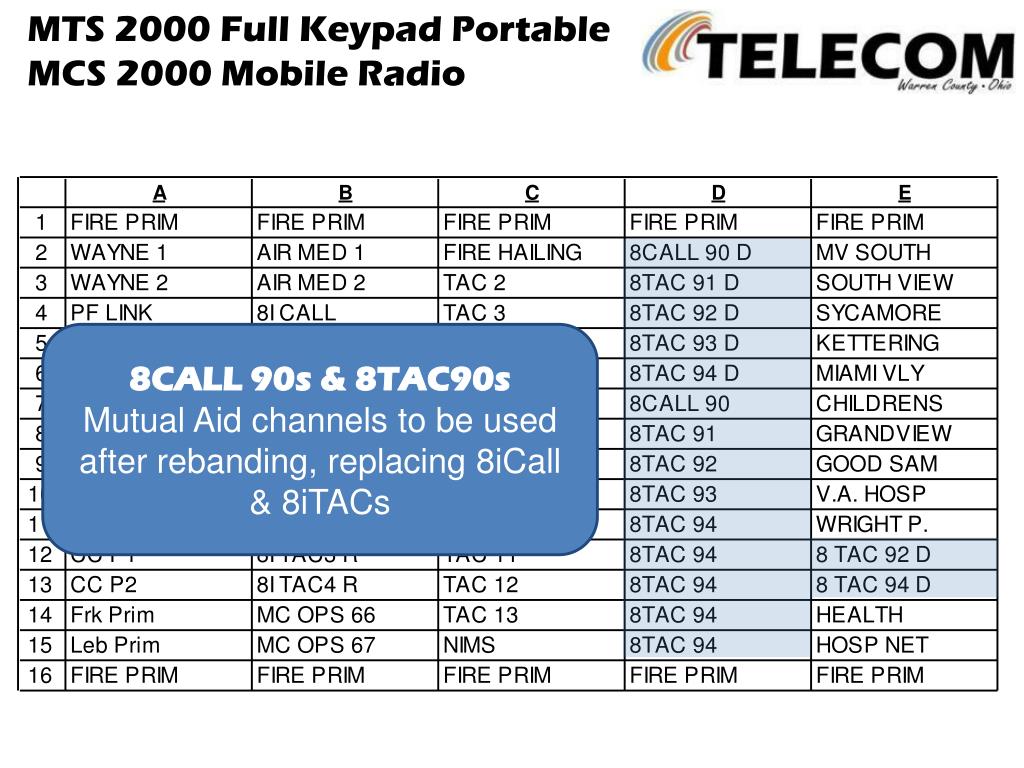

  38. MTS 2000 Full Keypad PortableMCS 2000 Mobile Radio 8CALL 90s & 8TAC90s Mutual Aid channels to be used after rebanding, replacing 8iCall & 8iTACs

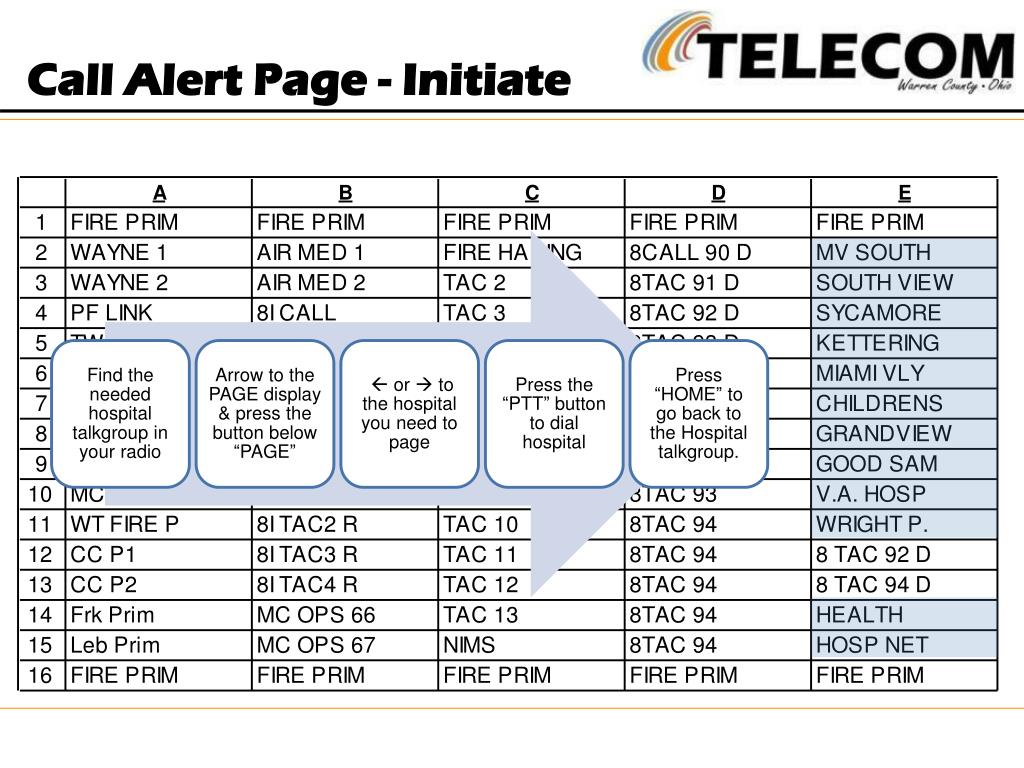

  39. Call Alert Page - Initiate

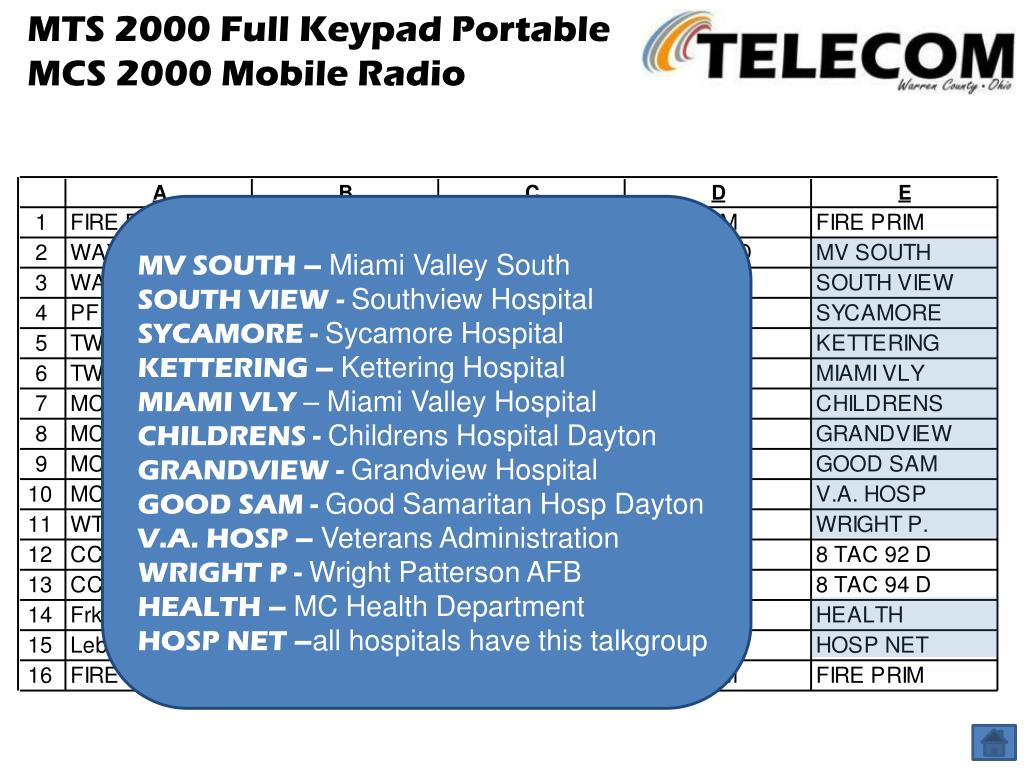

  40. MTS 2000 Full Keypad PortableMCS 2000 Mobile Radio MV SOUTH – Miami Valley South SOUTH VIEW - Southview Hospital SYCAMORE - Sycamore Hospital KETTERING – Kettering Hospital MIAMI VLY – Miami Valley Hospital CHILDRENS - Childrens Hospital Dayton GRANDVIEW - Grandview Hospital GOOD SAM - Good Samaritan Hosp Dayton V.A. HOSP – Veterans Administration WRIGHT P - Wright Patterson AFB HEALTH – MC Health Department HOSP NET –all hospitals have this talkgroup

  41. XTS2500 portable &XTL2500 mobile

  42. XTS2500 portable &XTL2500 mobile FIRE PRIM = FIRE PRIMARY The main fire channel for traffic to/from Dispatch. All agencies have access to this

  43. XTS2500 portable &XTL2500 mobile WAYNE 1 & 2 Local talkgroup specific to WTFD only.

  44. XTS2500 portable &XTL2500 mobile PF LINK = POLICE/FIRE LINK Area TG combining Wayne FD, Massie FD, ODNR, Wayne PD & Harveysburg PD

  45. XTS2500 portable &XTL2500 mobile TWP ROAD Wayne Twp Road Division TWP ADMIN Wayne Twp Administration talkgroup in all Wayne Twp radios

  46. XTS2500 portable &XTL2500 mobile MC Montgomery County Fire P Fire Primary OPS102-104 sequential order, set assigned to Warren County,100s are interoperability OPS 66 & 67 specific to Washington Twp FD

  47. XTS2500 portable &XTL2500 mobile WT FIRE P Washington Twp, Montgomery County Fire Primary

  48. XTS2500 portable &XTL2500 mobile CC P1 & P2 permanent patches between MC talkgroup & GC talkgroup. We use it to talk through MC’s system to get to GC because we don’t have direct access to GC’s radio system.

  49. XTS2500 portable &XTL2500 mobile Frk Prim Franklin Dispatch’s Primary Fire Channel Leb Prim Lebanon Dispatch’s Primary Fire Channel

  50. XTS2500 portable &XTL2500 mobile AIR MED 1 & 2 Channels to contact care flight and helicopter assistance. After rebanding, the term “Air Med” should not be used.
