Presentation Transcript

  1. BACTERIA Courtesy of: http://4.bp.blogspot.com

  2. PROTIST Courtesy of: www.cbu.edu

  3. FUNGI Courtesy of www.biocourseware.com

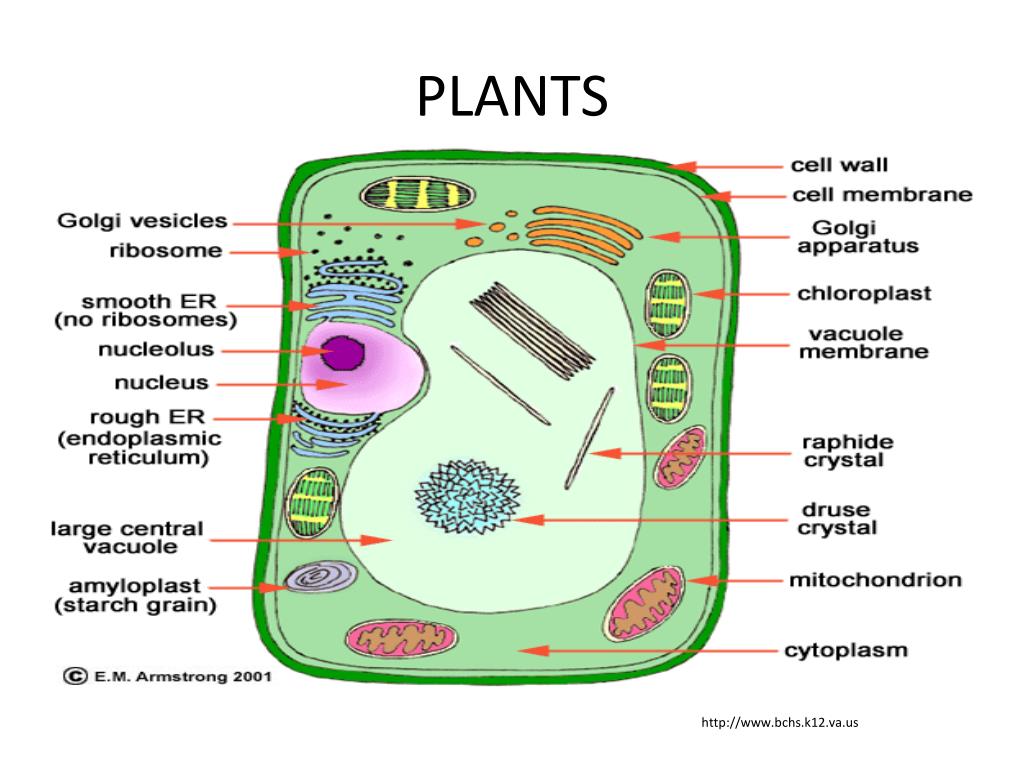

  4. PLANTS http://www.bchs.k12.va.us

  5. ANIMALS Courtesy of: http://visual.merriam-webster.com

  6. CELL STRUCTURE & FUNCTION

  7. Levels of Organization Individual Cells  Tissues  Organs  Organ Systems-> Organism Courtesy of: http://academic.kellogg.edu

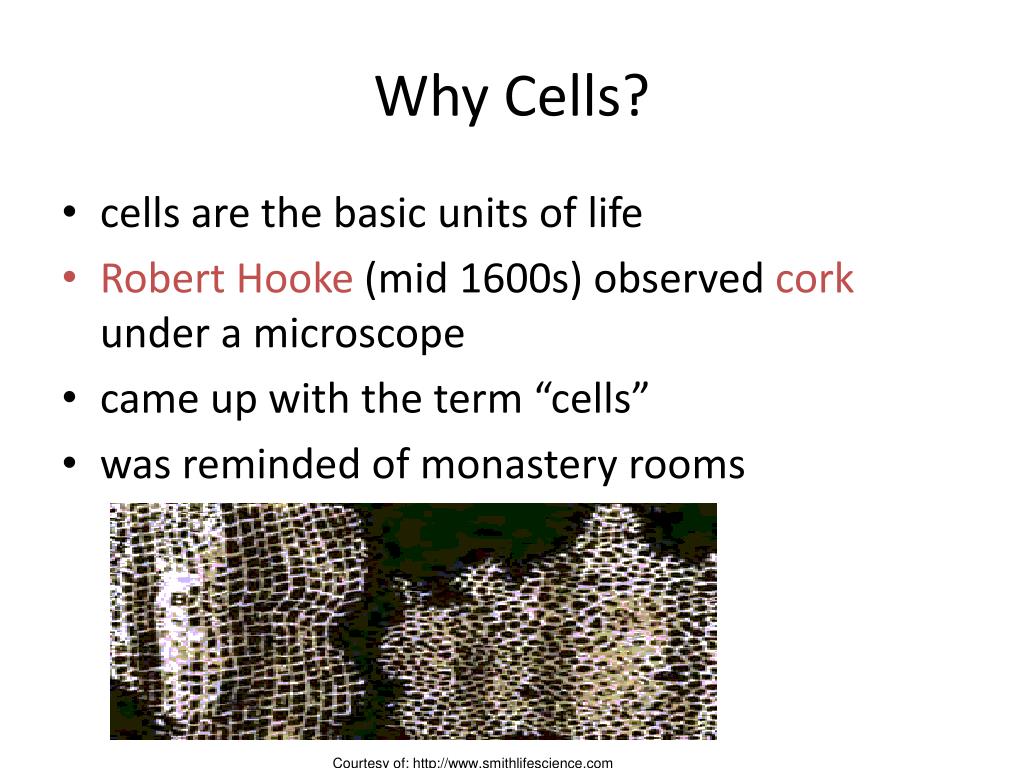

  8. Why Cells? • cells are the basic units of life • Robert Hooke (mid 1600s) observed cork under a microscope • came up with the term “cells” • was reminded of monastery rooms Courtesy of: http://www.smithlifescience.com

  9. History of Cells • Antony Van Leeuwenhoek (late 1600s) • would grind up lenses and construct early microscopes • first recorded observations of bacteria from the plaque of his teeth (animalcules) Courtesy of: http://www.ucmp.berkeley.edu

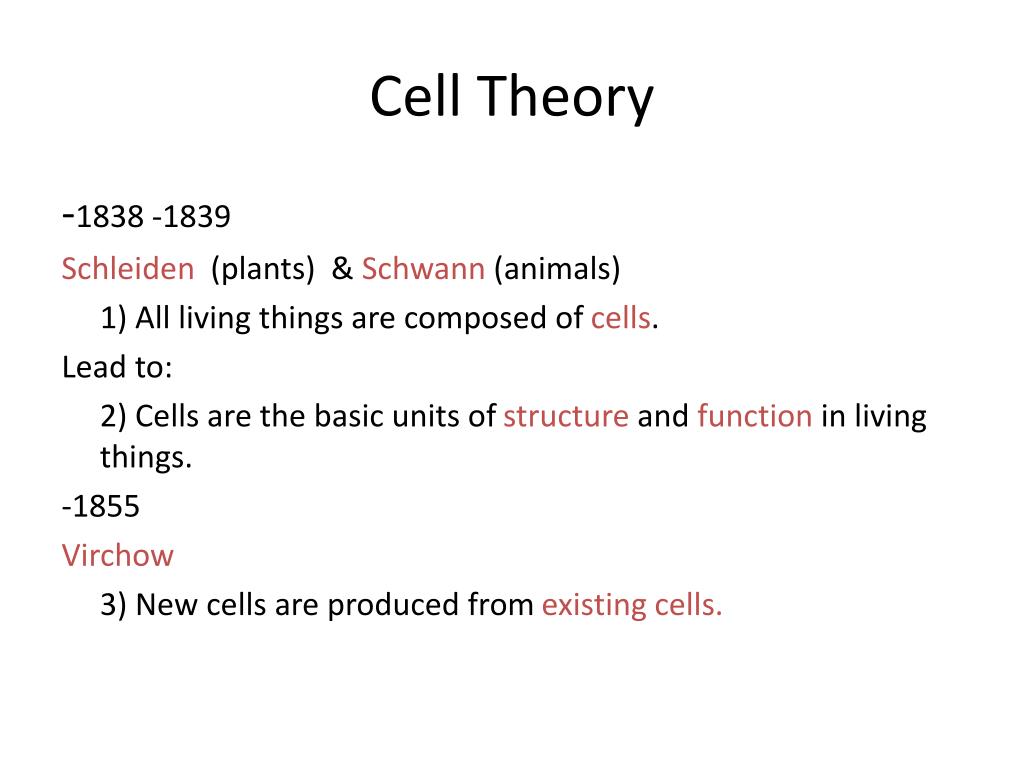

  10. Cell Theory -1838 -1839 Schleiden (plants) & Schwann (animals) 1) All living things are composed of cells. Lead to: 2) Cells are the basic units of structure and function in living things. -1855 Virchow 3) New cells are produced from existing cells.

  11. Spontaneous Generation • SG: belief that non-living objects can give rise to living organisms • 1668: Redi’s meat/maggot experiment • Proved SG was wrong Courtesy of: http://biology.clc.uc.edu

  12. Cell Size • Small! • 1 to 100 micrometers • 1 um = .001 mm • Surface area/volume ratio limits size • Exchanges nutrients and waste through diffusion https://ca7science.wikispaces.com

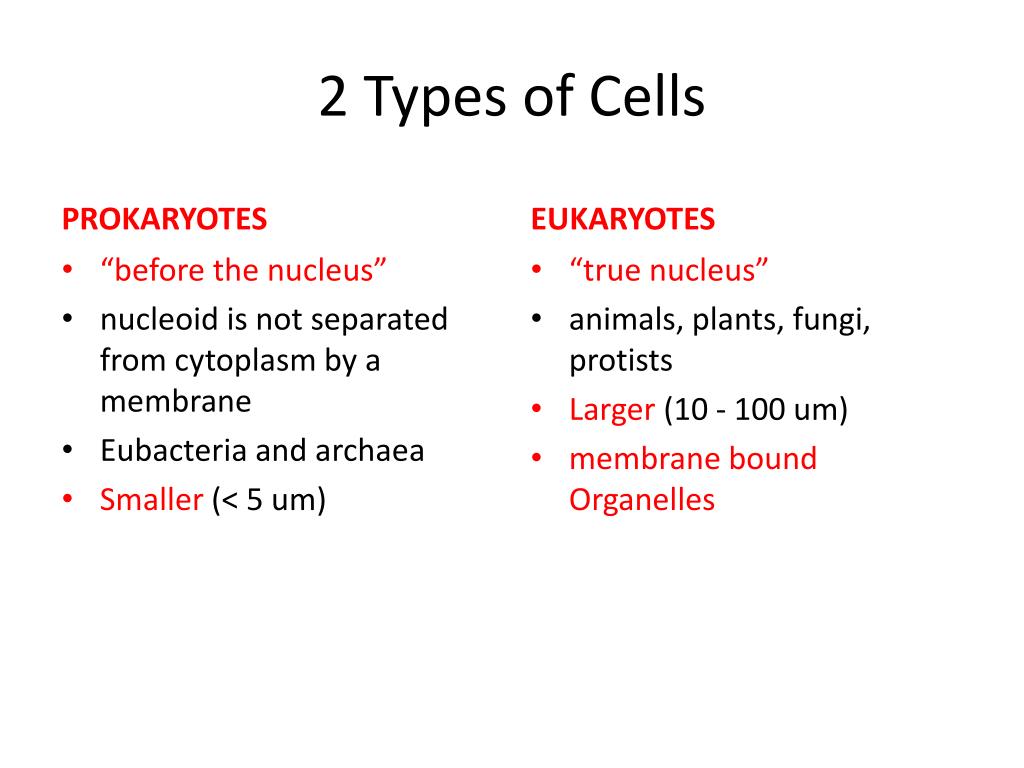

  13. 2 Types of Cells PROKARYOTES EUKARYOTES “true nucleus” animals, plants, fungi, protists Larger (10 - 100 um) membrane bound Organelles • “before the nucleus” • nucleoid is not separated from cytoplasm by a membrane • Eubacteria and archaea • Smaller (< 5 um)

  14. Bacteria Protists Fungi Plants Animals Prokaryotes vs. Eukaryotes

  15. isolates the cell contents from the environment regulates movement of materials into and out of the cell allows communication with other cells Seen in all cell types Cell Membrane Courtesy of: http://www.google.com/imgres?imgurl=http://

  16. Nucleus • control center for cells • contains DNA and chromosomes • membrane bound • only in eukaryotes Courtesy of: http://upload.wikimedia.org

  17. Produce energy by aerobic respiration Powerhouse of the cell Generates ATP Eukaryotic structure unique DNA Mitochondria Courtesy of: http://www.google.com/

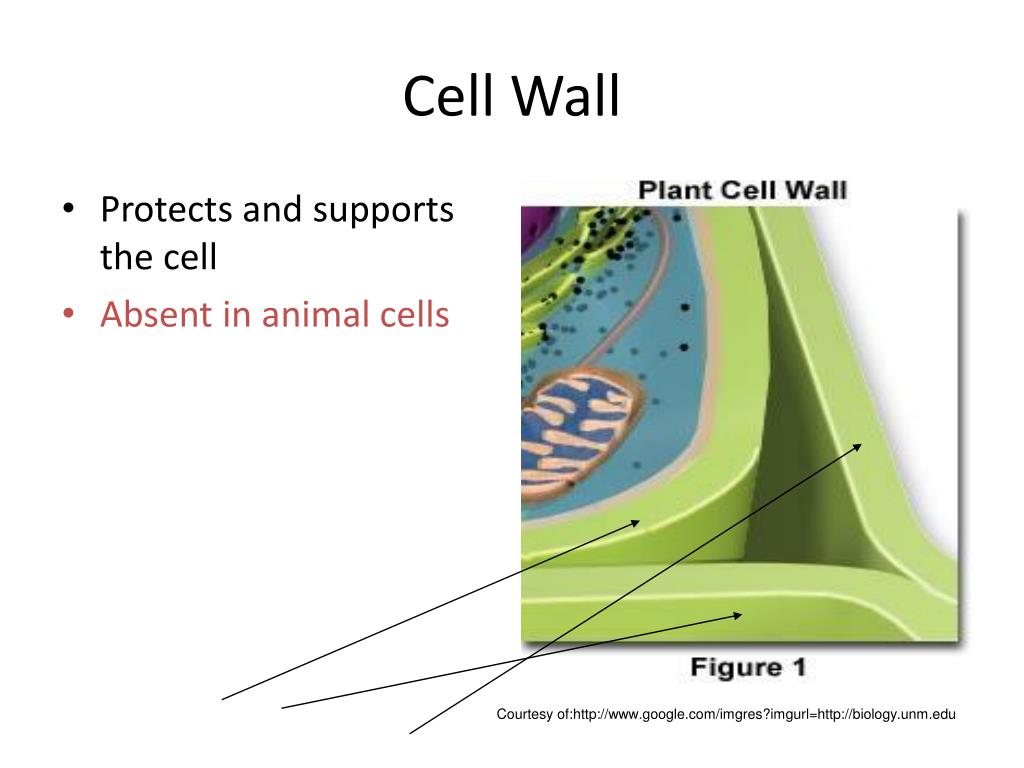

  18. Protects and supports the cell Absent in animal cells Cell Wall Courtesy of:http://www.google.com/imgres?imgurl=http://biology.unm.edu

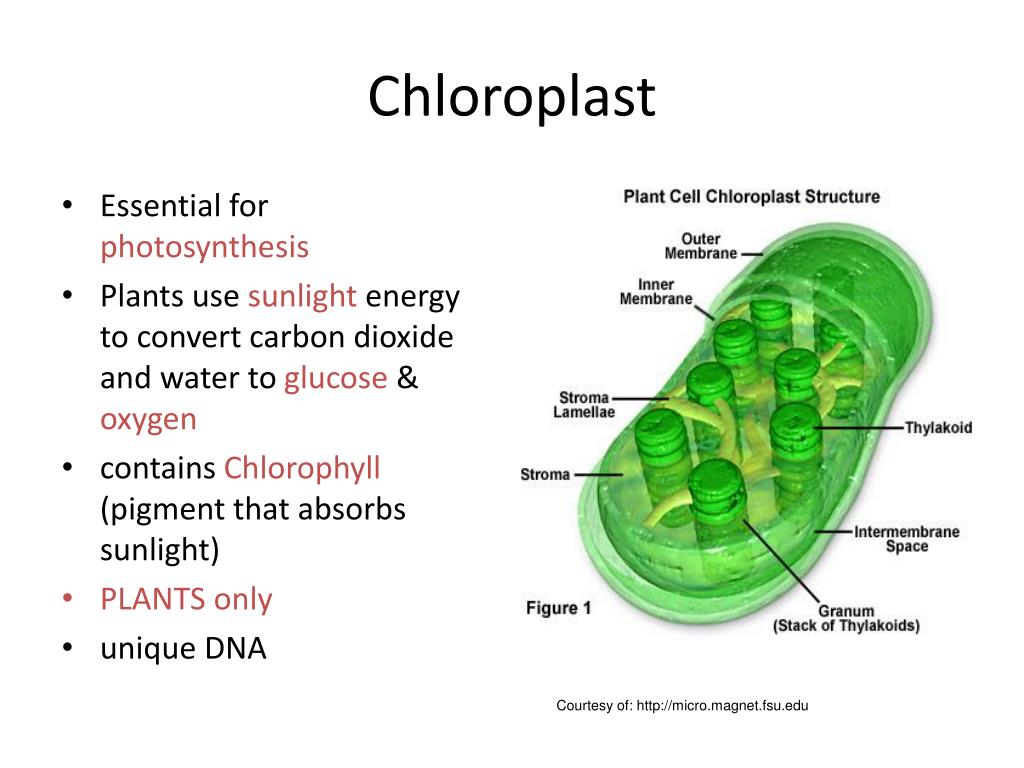

  19. Essential for photosynthesis Plants use sunlight energy to convert carbon dioxide and water to glucose & oxygen contains Chlorophyll (pigment that absorbs sunlight) PLANTS only unique DNA Chloroplast Courtesy of: http://micro.magnet.fsu.edu

  20. PLANTS – central vacuole that contains water and waste also helps the cell support heavy structures ANIMALS – smaller vacuoles and vesicles for food storage, water,and waste Vacuoles Courtesy of: http://www.progressivegardens.com

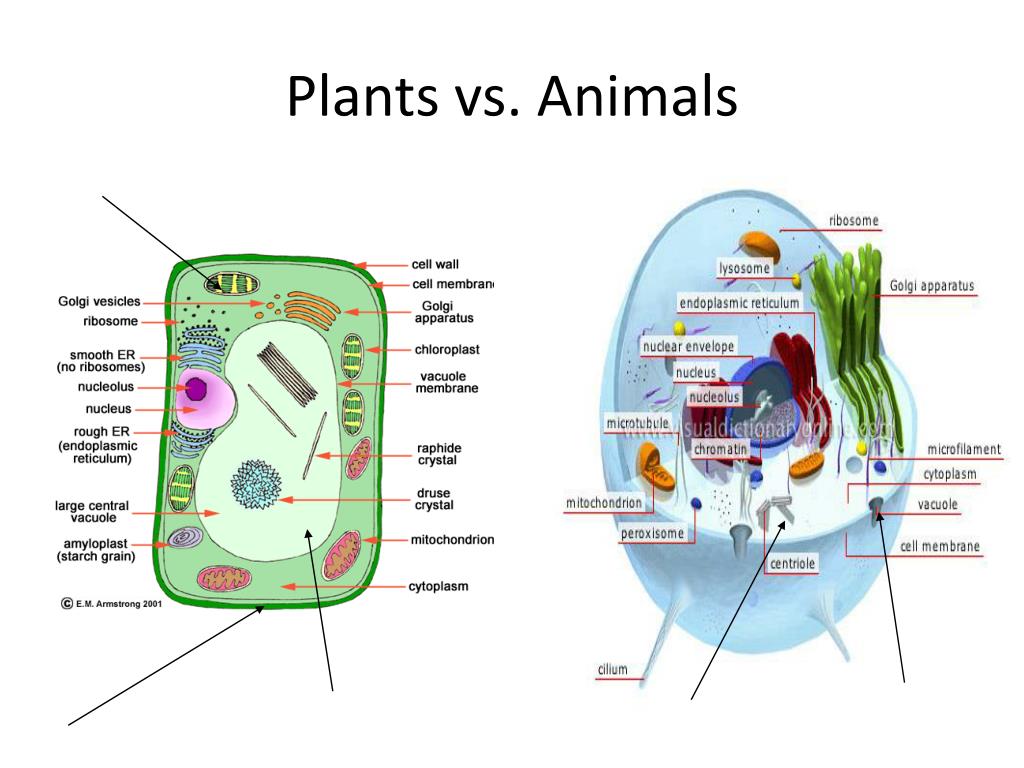

  21. Plants vs. Animals

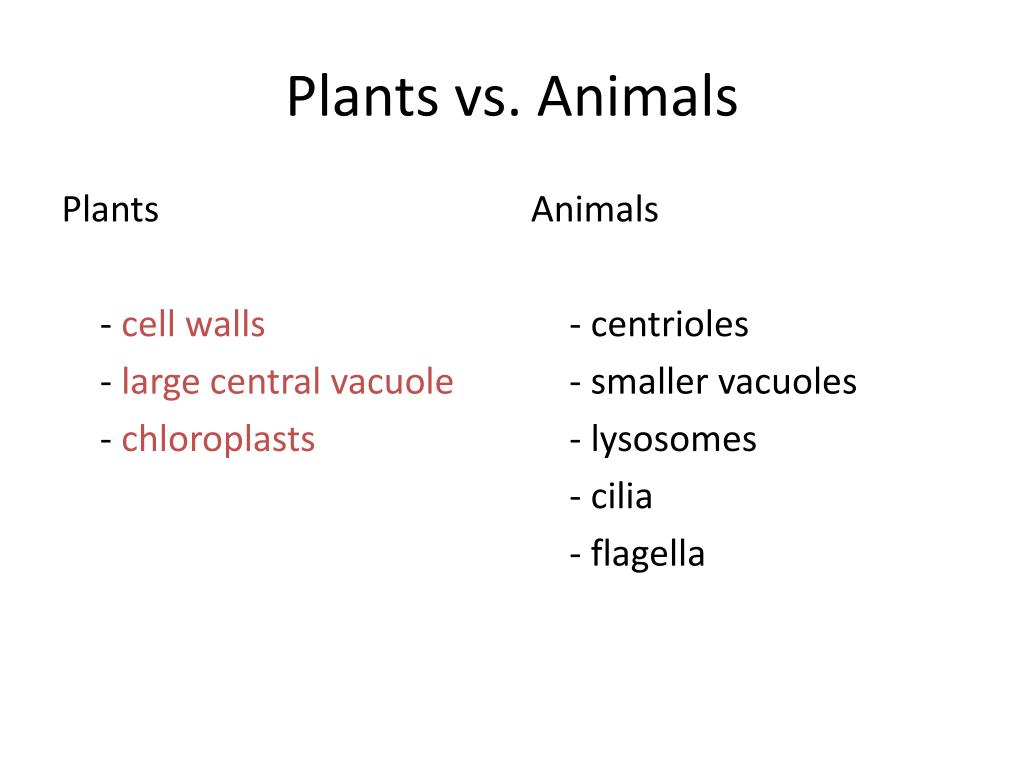

  22. Plants - cell walls - large central vacuole - chloroplasts Animals - centrioles - smaller vacuoles - lysosomes - cilia - flagella Plants vs. Animals

  23. Nucleus Nucleolus Nuclear envelope Chromatin & Chromosomes Ribosomes Rough Endoplasmic reticulum (rough ER) Smooth Endoplasmic reticulum (smooth ER) Cilia flagella Golgi Apparatus Lysosomes Vacuole Mitochondria Chloroplasts Cytoskeleton Cell membrane Cell Wall Centrioles Cell Structures – Group Activity
