This project aims to enhance water management in irrigation districts through technical assistance, research, and educational programs. The focus is on developing a GIS-based decision support system for efficient district water use, including irrigation scheduling, rainfall analysis, and crop modeling.

Efficient Water Management Innovation Program - slide 1
01 / 27Efficient Water Management Innovation Program
1 / 17

Télécharger la présentation

Efficient Water Management Innovation Program
Une image / un lien ci-dessous est fourni (tel quel) pour télécharger la présentation

Politique de téléchargement : le contenu du site vous est fourni TEL QUEL pour votre information et votre usage personnel ; il ne peut être vendu, concédé sous licence ni partagé sur d’autres sites sans l’accord de son auteur.Le contenu vous est fourni TEL QUEL, pour votre information et votre usage personnel uniquement. Téléchargez la présentation en cliquant sur ce lien. Lors du téléchargement, si vous ne parvenez pas à télécharger une présentation, l’éditeur a peut-être supprimé le fichier de son serveur.Pendant le téléchargement, si vous ne parvenez pas à obtenir une présentation, le fichier a peut-être été supprimé par l’éditeur.

F I N

Plus de contenu associé

Transcription de la présentation

  1. Task 3 Institutional Incentives for Efficient Water Use

  2. Objectives • technical assistance, • applied research, and • educational programs Provide to improve district water management and modernization

  3. Vision... To build a GIS-based decision support system for total irrigation district management Such as: scheduling field irrigation and water delivery distribution network management regional water conservation planning

  4. Crop Modeling Irrigation Scheduling Weather Data Routing Models GIS-based DMS

  5. Rain ET River Pump ET Field demands ET Reservoir Storage Control gate Field demands canal canal canal Field demands seepage seepage seepage spills spills Water Balance Equation:Change in storage + inflows - outflows +Precipitation - Et - Infiltration Irrigation District Water Balance Equation: Multiplied 100 plus...

  6. Aerial Photo

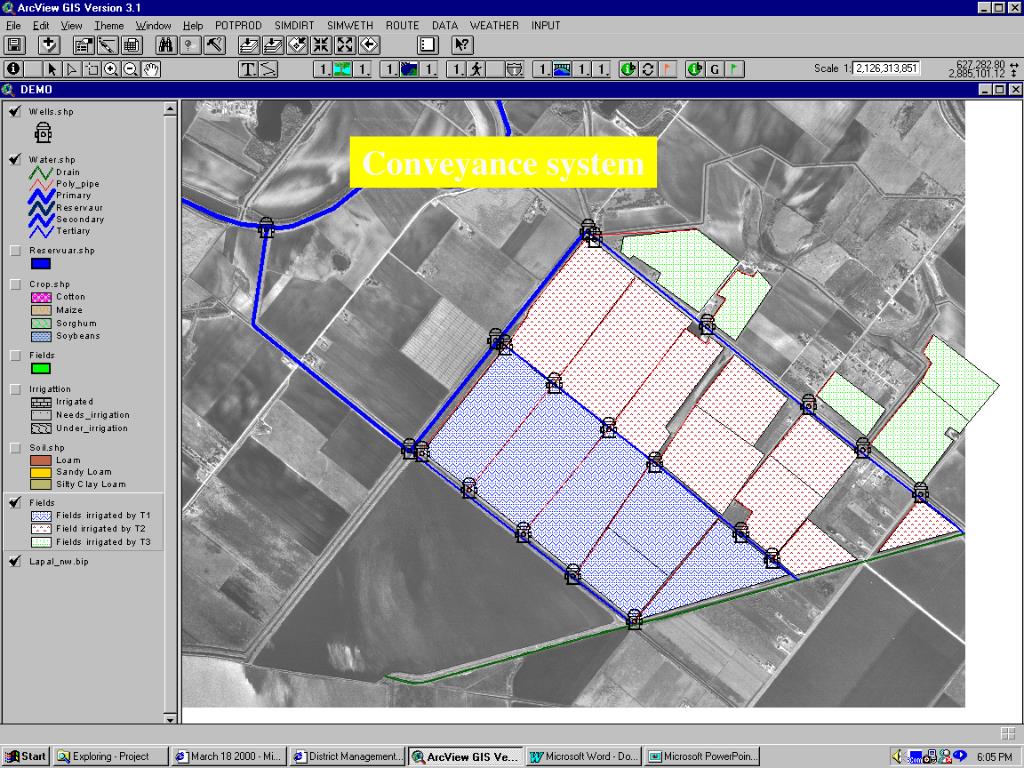

  7. Conveyance system

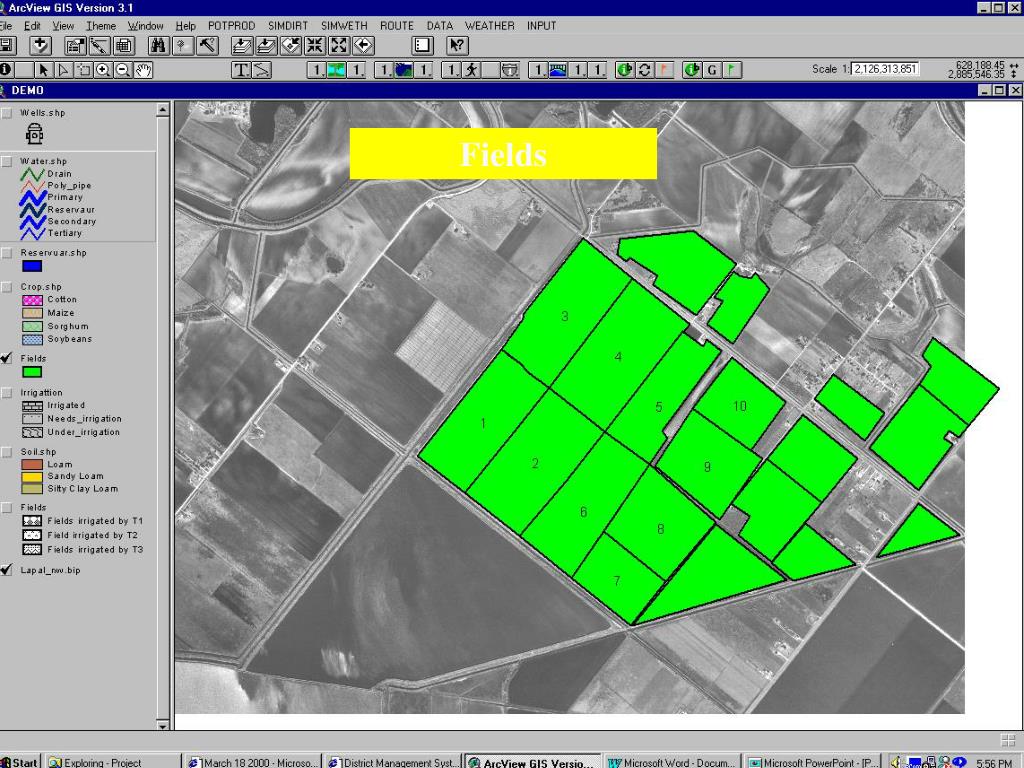

  8. Fields

  9. Crops

  10. Gates

  11. Work Plan • Provide education and research programs on improved district water management and modernization • Evaluate emerging technologies for automatic gate and flow control, canal lining, etc. • Investigate use of remote sensing, satellite and aerial photography.

  12. Work Plan • Develop and implement a water demand forecasting system • Establish training and certification programs for canal riders • Continue to develop and implement GIS-based District Management System (DMS).

  13. Focus for 2002 • Continue District Assistance/Training • Thermal Imaging • District Management System Development • GIS-Based Distribution Network Model • Web-Based GIS Products and Services for Districts • Verification of an Irrigation Demand Forecasting Model

  14. District Assistance Continued support of districts in GIS mapping and database development and implementation

  15. District Assistance (cont.) • In-District Support and Training (by mutual agreement) • Workshops • Hands-on GPS • ArcView 8.1

  16. District Assistance (cont.) Evaluating canal lining alternatives to determine water savings and cost effectiveness. • San Benito – (on-going) • 2002 • Edinburg • Harlingen

  17. Thermal Imaging(Remote Sensing) • to rapidly detect leaks in canals and underground pipelines • measures surface temperature differences in surrounding areas of canals

  18. Thermal Imaging: Work Done • Flyover in August 2001 of United and San Benito Irrigation Districts • Processed and enhanced images • Selected canal segments for field verification

  19. Thermal Imaging: What is Next? • Field reconnaissance of selected segments for verification • Flyovers in Summer & Winter 2002 • Using an improved multi-band imaging sensor

  20. Distribution Network Model Existing models do not work due to: • Small hydraulic gradient • Combination of open channels and pipelines • Need GIS compatibility

  21. Distribution Network Model Possible Uses: • Optimize management for distribution networks • Evaluate need for rehabilitation • Determine “head” improvement

  22. GIS-Based Distribution Network Model • Create a new distribution network model with OOP (Object-Oriented Programming) in C++ and ArcView • GIS Interface with automatic gate and pump control algorithms

  23. Web-Based GIS Products and Services Develop prototype systems: • Allow growers to access their accounts on the web to verify field boundaries and other information • Integrating district communication and data management

  24. Irrigation Demand Forecasting Model • Collecting crop production data from 6 fields of furrow and center pivot irrigation for model verification • Enhance model capabilities
