  1. Eclipse Debug Views Update Policy

  2. Agenda • Where we left off last time… • Design of the Prototype • Demo • What next…

  3. Where we left off last time… • Need to make view update more flexible • Use of pluggable update policies • View updates done by a generic interface. • Update policies are contributed by extension point. • Views could have multiple policy handlers when multiple models are displayed. Multi-Targets View Static View Input Updater 1 Model A Updater 2 Update (elementA) Model B Updater 3 Update (elementB) Model C Updater 4 Update (elementC)

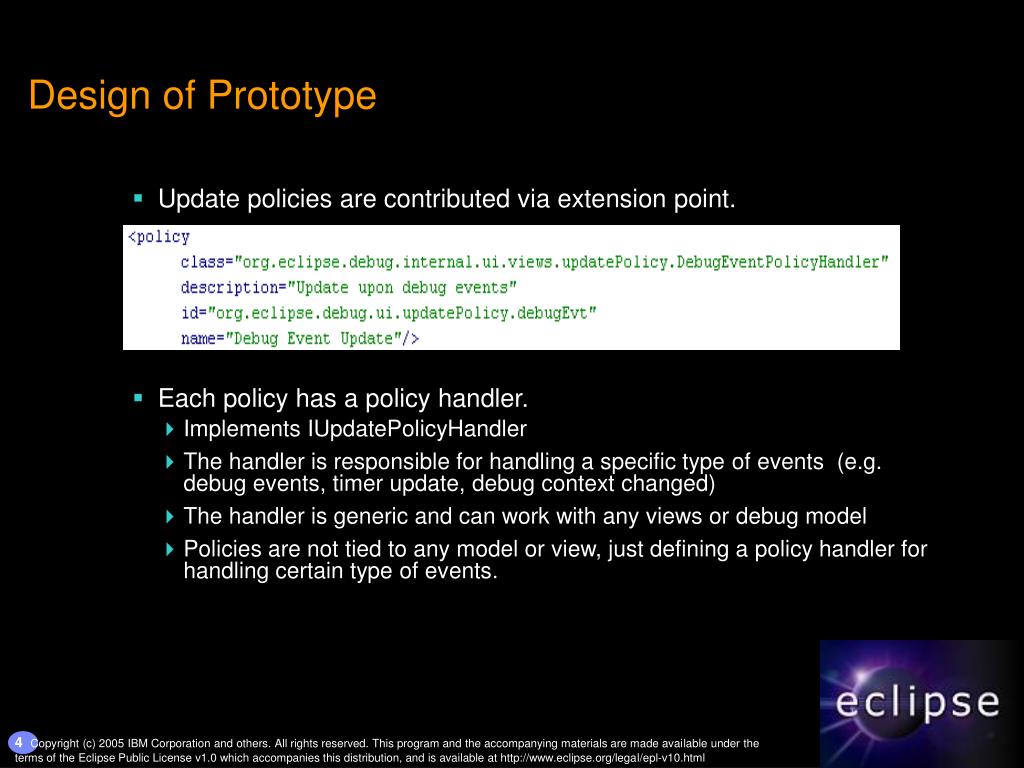

  4. Design of Prototype • Update policies are contributed via extension point. • Each policy has a policy handler. • Implements IUpdatePolicyHandler • The handler is responsible for handling a specific type of events (e.g. debug events, timer update, debug context changed) • The handler is generic and can work with any views or debug model • Policies are not tied to any model or view, just defining a policy handler for handling certain type of events.

  5. Design of Prototype • Platform provides: • An extension point for contributing update policies • A framework for managing these contributed policies (IUpdatePolicyManager and other related interfaces) • Abstract implementation to IUpdatePolicyHandler (AbstractUpdatePolicyHandler) • Abstract implementation that extends AbstractDebugView to support pluggable update policy in debug views (AbstractDebugViewExtension) • A generic set of update policies: • Debug context changed policy • Debug event policy • Delayed debug event policy • Timer Policy • Clients may define other update policies

  6. Design of Prototype • Clients may employ update policies by defining a policy set: • Clients may define more than one policy set per view • Platform provides UI to allow user to create new policy sets • Platform provides UI to allow user to switch policy sets while debugging

  7. Demotime…

  8. What next… • Migrated Variables View, Registers View and Expressions View • Still have the following to work on: • Could not quite get the Expressions View to work • Conflicts between policy handlers. • Need better communication between policy handlers • Have been focusing on “when” to update, need to look at “what” to update: • e.g. update what’s visible. • Can the design work with asynchronous tree viewer and flexible hierarchy? • Need to experiment with the Debug View • Need to experiment with the Memory View • Problems with allowing user to define customized policy sets on the fly.
