Comparing Exponential and Linear Functions

This lesson explores the differences between exponential and linear functions through a detailed comparison using a table of values. Students will learn to identify linear behavior through constant differences in values, while exponential growth is indicated by constant ratios. The lesson includes step-by-step instructions for entering data into a calculator, determining formulas for each function, and comparing growth rates. By solving equations graphically or algebraically, students will understand how exponential growth eventually outpaces linear growth.

jorn
Télécharger la présentation

Comparing Exponential and Linear Functions

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. Comparing Exponential and Linear Functions Lesson 3.2

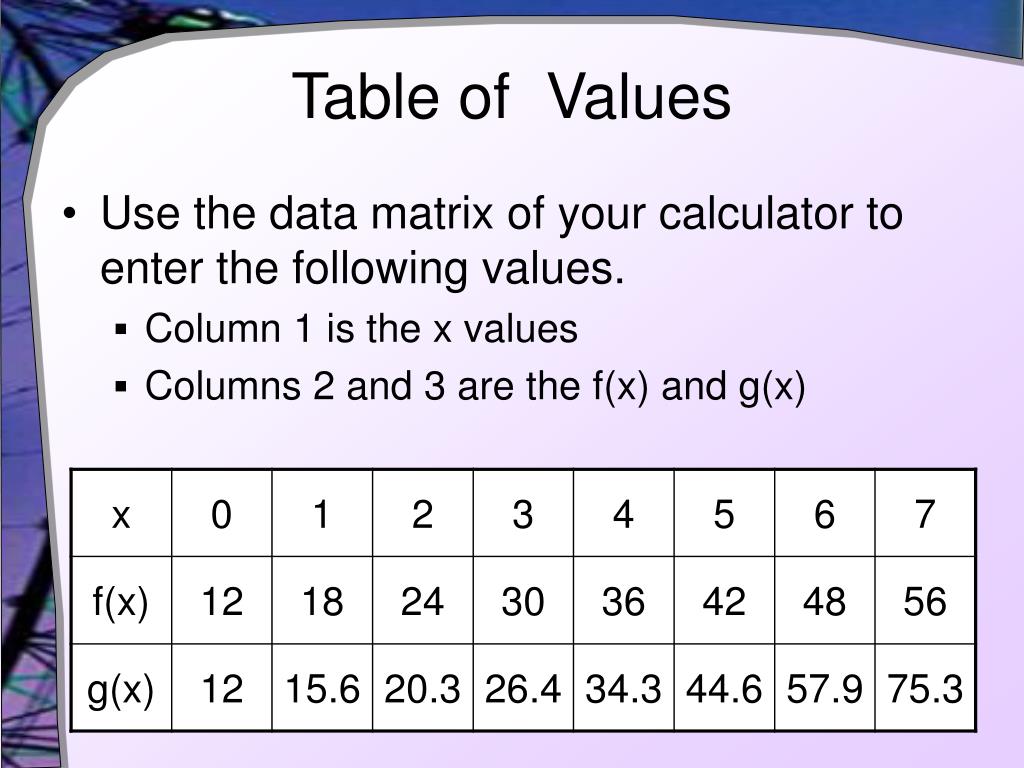

  2. Table of Values • Use the data matrix of your calculator to enter the following values. • Column 1 is the x values • Columns 2 and 3 are the f(x) and g(x)

  3. Table of Values • Click APPS then 6, then Current(F1, 8 to clear if needed) • Enter values as shown below

  4. Two Different Functions • Note the succession of values for f(x) • Differ by 6 each • This implies linear

  5. Cursor must be here Note ratio is 1.3 Two Different Functions • Note the succession of values for g(x) • They do NOT differ by a constant • However, the successive values have the same ratio • Show by placing formula in column 4 This shows it is an exponential function.

  6. How to Determine the Formula • From previous lesson we know that • Where b is the growth factor • In our case the common ratio = 1.3 • Solve for a • Substitute b = 1.3, any ordered pair

  7. Determine Function from Two Points • We can create twoequations with twounknowns • Solve for one of the variables • Substitute into the other equation • (-1, 2.5) (1, 1.6) • Answer b=0.8a=2

  8. Lineary = m*x + by = m+m+ … m+ b x terms Exponentialy = a * bxy = a * b * b * … * b x factors Compare and Contrast

  9. Compare and Contrast • Exponential growth will always outpace linear growth • In the long run • Eventually • Question:Where? • Solve graphically or algebraically or observe table

  10. Where Exponential Passes Linear • Giveny = 100 (1.02)x y = 100 + 12x • Algebraically : no current tools to solve 100 (1.02)x = 100 + 12x • Graphically : ask calculator to find intersection • Or observe tables

  11. Assignment • Lesson 3.2A • Page 119 • Exercises3, 5, 7, 9, 11, 13, 15, 17, 21, 23, 25 • Lesson 3.2B • Page 121 • Exercises27 – 39 odd
