  1. Compound Names and Formulas

  2. Overview • Naming Ionic Compounds • Writing Formulas for Ionic Compounds • Naming Covalent Compounds • Chemical Formulas for Covalent Compounds

  3. Naming Ionic Compounds • To do this you need some terminology. • Cation- Positive Ions • Anions- Negative Ions • These form when ionic bonds form. Ones that lose electrons are Cations and ones that gain electrons are anions.

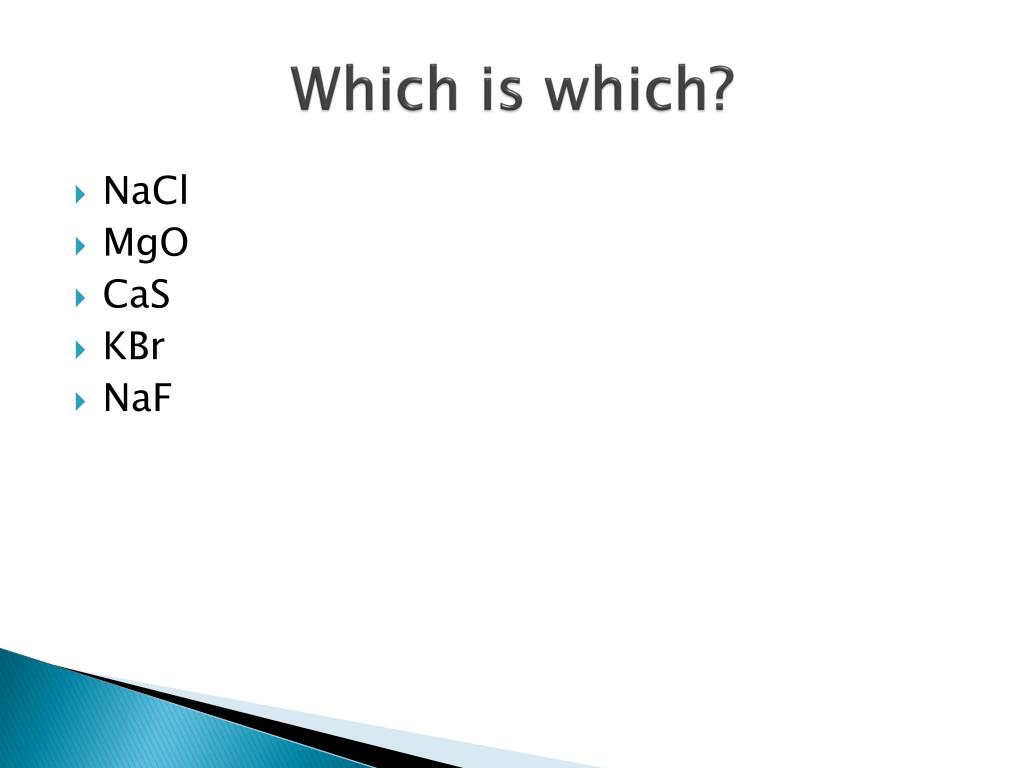

  4. Which is which? • NaCl • MgO • CaS • KBr • NaF

  5. Naming Ionic Compounds • Names of cations stay the same- Sodium, Potassium…etc • Name of anions change-you must cut off the end and add ide for the majority- examples include. • Oxygen to oxide • Fluorine to Fluride • Bromine to Bromide. • Once you get the anion and the cation names you just put them together. Ex. Sodium Chloride. NaCl

  6. Name That Ionic Compound • KCl • MgO • LiF • MgS • CaO • CaS • NaF

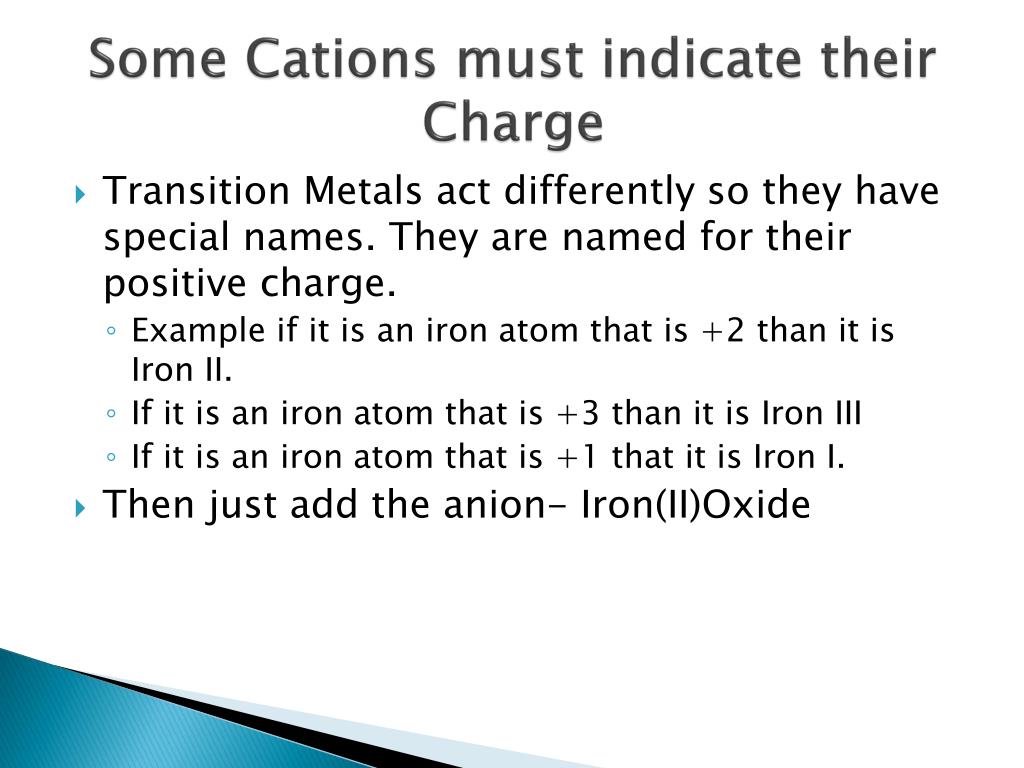

  7. Some Cations must indicate their Charge • Transition Metals act differently so they have special names. They are named for their positive charge. • Example if it is an iron atom that is +2 than it is Iron II. • If it is an iron atom that is +3 than it is Iron III • If it is an iron atom that is +1 that it is Iron I. • Then just add the anion- Iron(II)Oxide

  8. Special Cations • Copper that is +1 • Copper that is +2 • Nickel that is +2 • Nickel that is +3 • They have these in table 6 on page 160 of the book.

  9. Writing Ionic Formulas • Must do the math to figure out the ratio. Then once you figure out the right number of each then you write out the formula with the cation first. • Magnesium Fluoride- Magnesium has 2 valence electrons so it must give away two. Fluorine needs 1 valence electron so there must be two Fluorine atoms to accommodate Magnesium.

  10. Examples • CaO • LiO • CaN • NaO • Page 161 practice at the bottom of the page do numbers 1-4 and turn it in.

  11. Covalent Compounds • Numerical Prefixes are used to name covalent compounds of two elements. • Examples-Table 7 Page 162 • These denote the number of atoms present of that given element • Only denote the number of the first elements atoms if there are more than one.

  12. Examples • CO • CO2 • CO3 • NF2 • N2F2 • N3F

  13. Covalent Compounds • The element that is furthest to the left on the periodic table goes first. • The element that is furthest to the right on the periodic table goes last and ends in ide. • NO-Nitrogen monoxide • NO2-Nitrogen Dioxide

  14. Examples • BF4 • CF3 • NO2 • PBr2

  15. Going Backwards • We can also work backwards to get the formula. • Take into account how many of each atom and write it out using the simple. • Carbon Dioxide • Carbon Monoxide • Dinitrogentetraoxide.
