Reactive Power Control Using Inverters

Reactive Power Control Using Inverters. CSI. VSI. Phasor Diagram (Source Notation). VSI. CSI. Power Relationship. No dc current in VSI and no dc voltage in CSI when the load power factor is zero. The reactive power is interchanged among phases without involving the dc circuit.

julie
Télécharger la présentation

Reactive Power Control Using Inverters

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

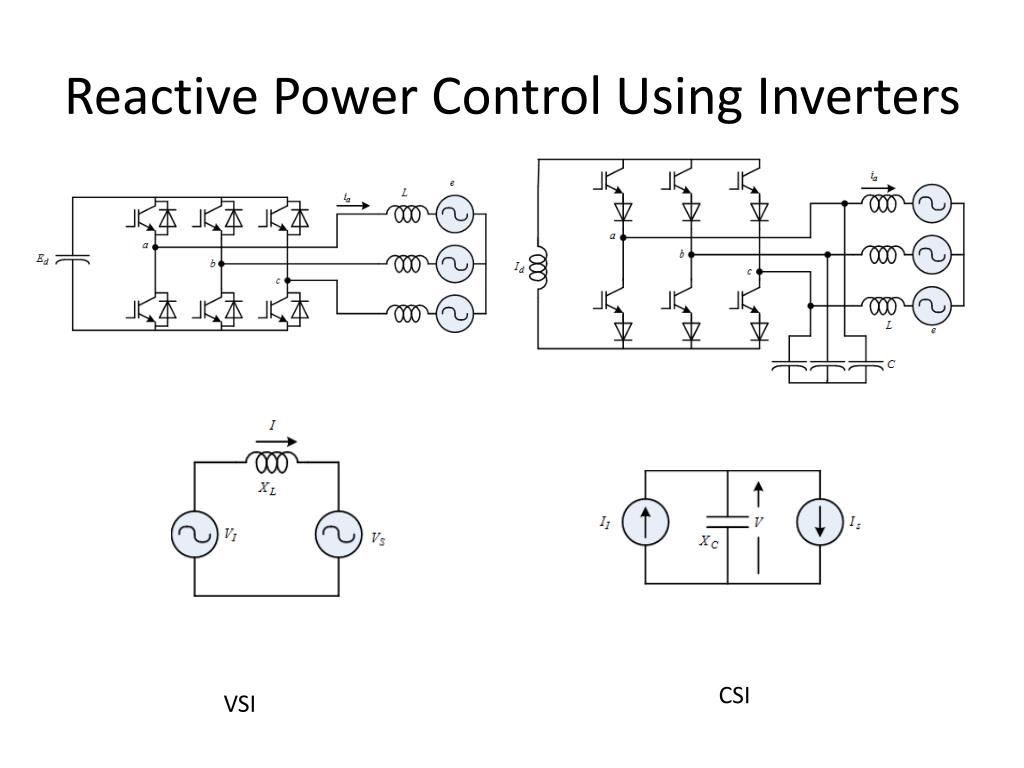

  1. Reactive Power Control Using Inverters CSI VSI

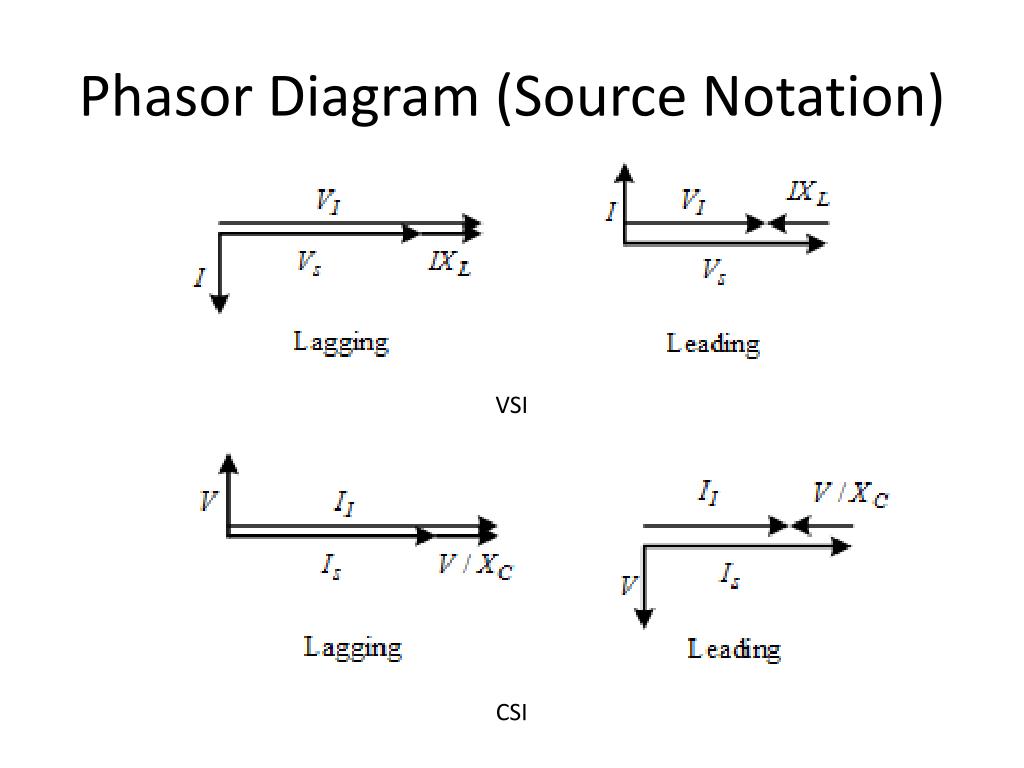

  2. Phasor Diagram (Source Notation) VSI CSI

  3. Power Relationship No dc current in VSI and no dc voltage in CSI when the load power factor is zero. The reactive power is interchanged among phases without involving the dc circuit. Thus, the sizes of C in VSI and L in CSI have no relationship with the reactive power on the ac side. The dc side voltage and current are related only to the active power of the ac side
