  1. Connecting the Un-Connected and Under-Connected October 2013

  2. ePMP Genesis Cambium Heritage Cambium Innovation • Resiliency • Scalability • Performance • Security • Ease of deployment • Manageability • Mass Market 802.11n system on a chip (SoC) • Custom high performing, synchronized and scalable MAC and PHY • World’s most affordable, global broadband wireless solutionfor broadband wireless access to support developing communities, without sacrificing quality.

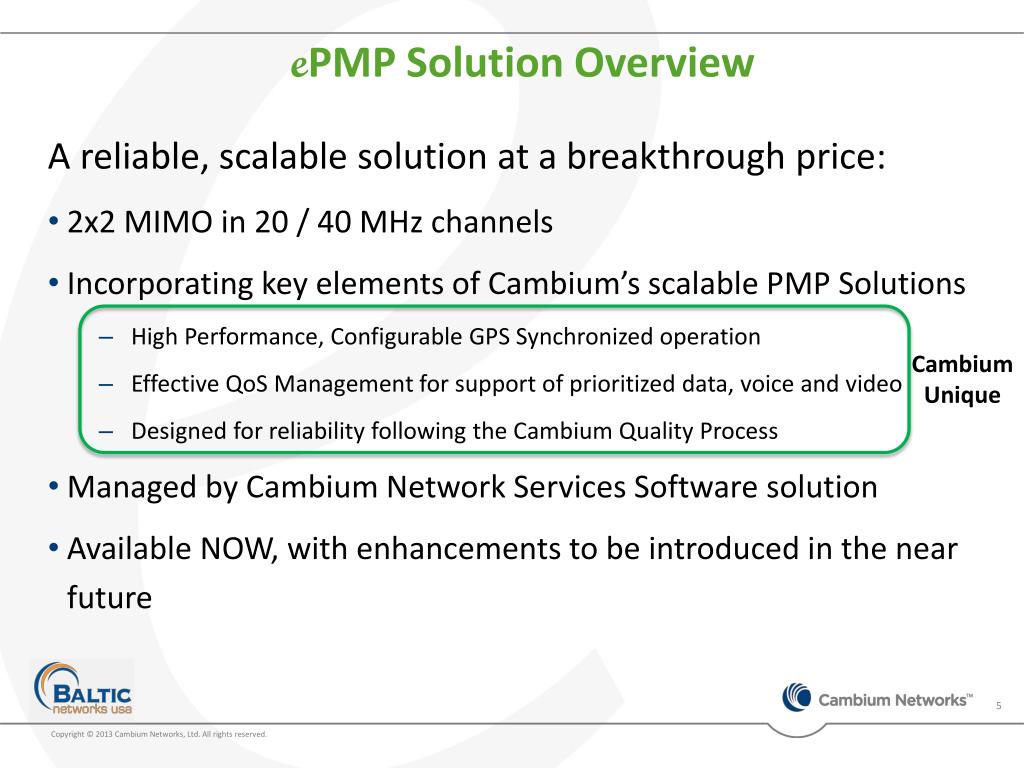

  3. ePMP Solution Overview A reliable, scalable solution at a breakthrough price: • 2x2 MIMO in 20 / 40 MHz channels • Incorporating key elements of Cambium’s scalable PMP Solutions • High Performance, Configurable GPS Synchronized operation • Effective QoS Management for support of prioritized data, voice and video • Designed for reliability following the Cambium Quality Process • Managed by Cambium Network Services Software solution • Available NOW, with enhancements to be introduced in the near future Cambium Unique

  4. The Power of GPS Synchronization

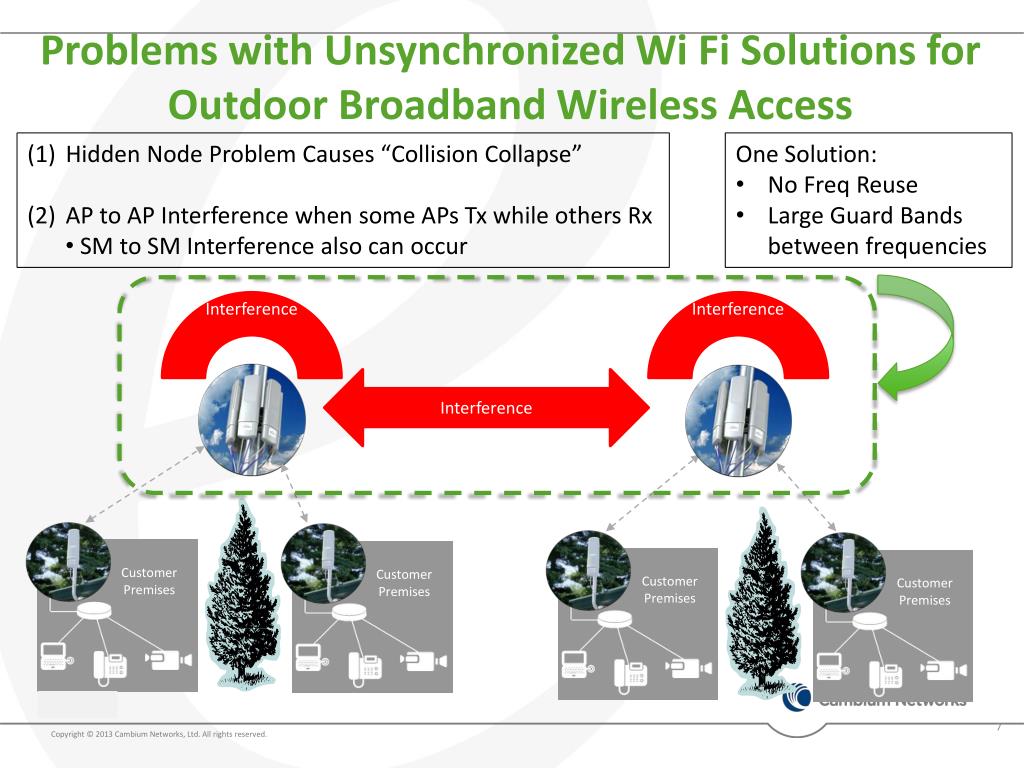

  5. Problems withUnsynchronized Wi Fi Solutions for Outdoor Broadband Wireless Access • Hidden Node Problem Causes “Collision Collapse” • AP to AP Interference when some APs Tx while others Rx • SM to SM Interference also can occur • One Solution: • No Freq Reuse • Large Guard Bands between frequencies Interference Interference Interference Customer Premises Customer Premises Customer Premises Customer Premises

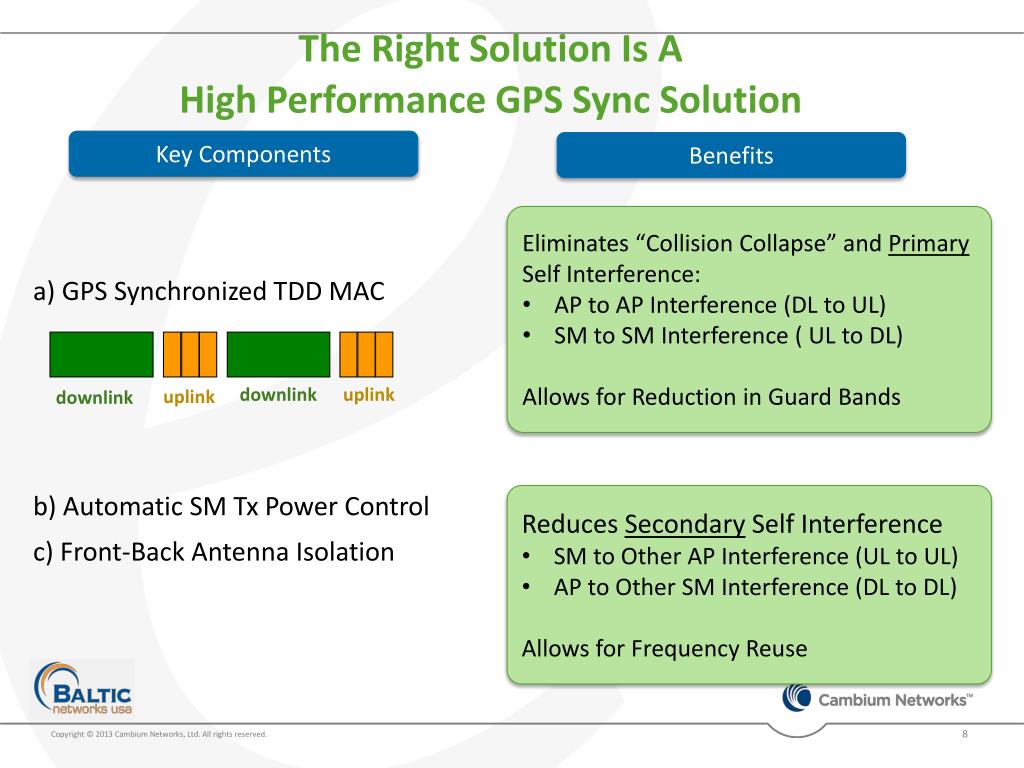

  6. The Right Solution Is AHigh Performance GPS Sync Solution Key Components Benefits a) GPS Synchronized TDD MAC b) Automatic SM Tx Power Control c) Front-Back Antenna Isolation • Eliminates “Collision Collapse” and Primary Self Interference: • AP to AP Interference (DL to UL) • SM to SM Interference ( UL to DL) • Allows for Reduction in Guard Bands downlink uplink uplink downlink • Reduces Secondary Self Interference • SM to Other AP Interference (UL to UL) • AP to Other SM Interference (DL to DL) • Allows for Frequency Reuse 8

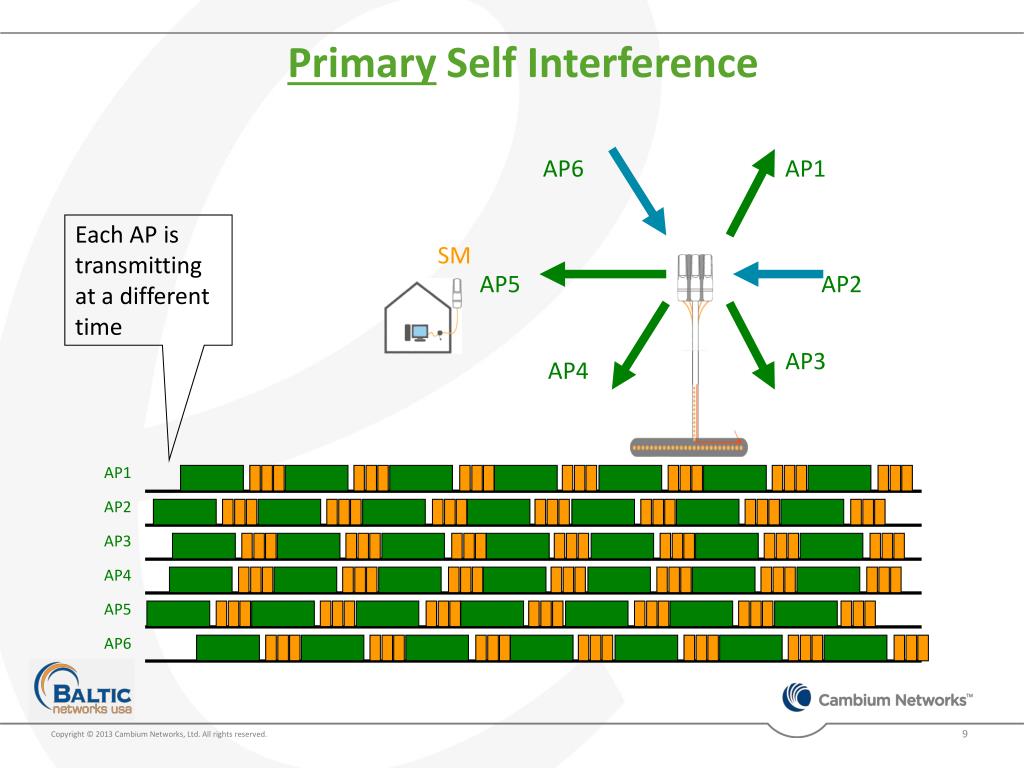

  7. Primary Self Interference AP6 AP1 Each AP is transmitting at a different time SM AP5 AP2 AP3 CMM AP4 AP1 AP2 AP3 AP4 AP5 AP6 AP: Access Point

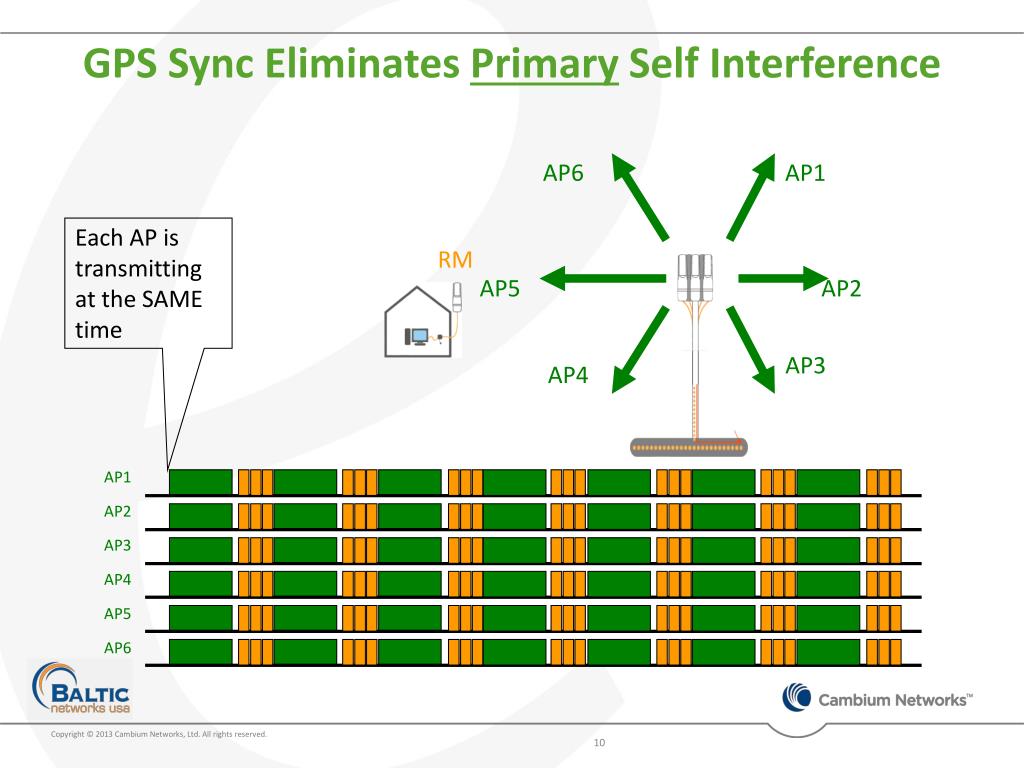

  8. GPS Sync Eliminates PrimarySelf Interference AP6 AP1 Each AP is transmitting at the SAME time RM AP5 AP2 AP3 AP4 AP1 AP2 AP3 AP4 AP5 AP6 AP: Access Point

  9. SecondarySelf Interference - Uplink Auto SM TxPwr Control Auto SM TxPwr Control SM-X SM-Y AP-Y AP-X Freq A Freq A Antenna Back Attenuates Antenna Front Amplifies High Front Amplification and High Back Attenuation are required Need High Front to Back (F/B) Ratio > 30 dB

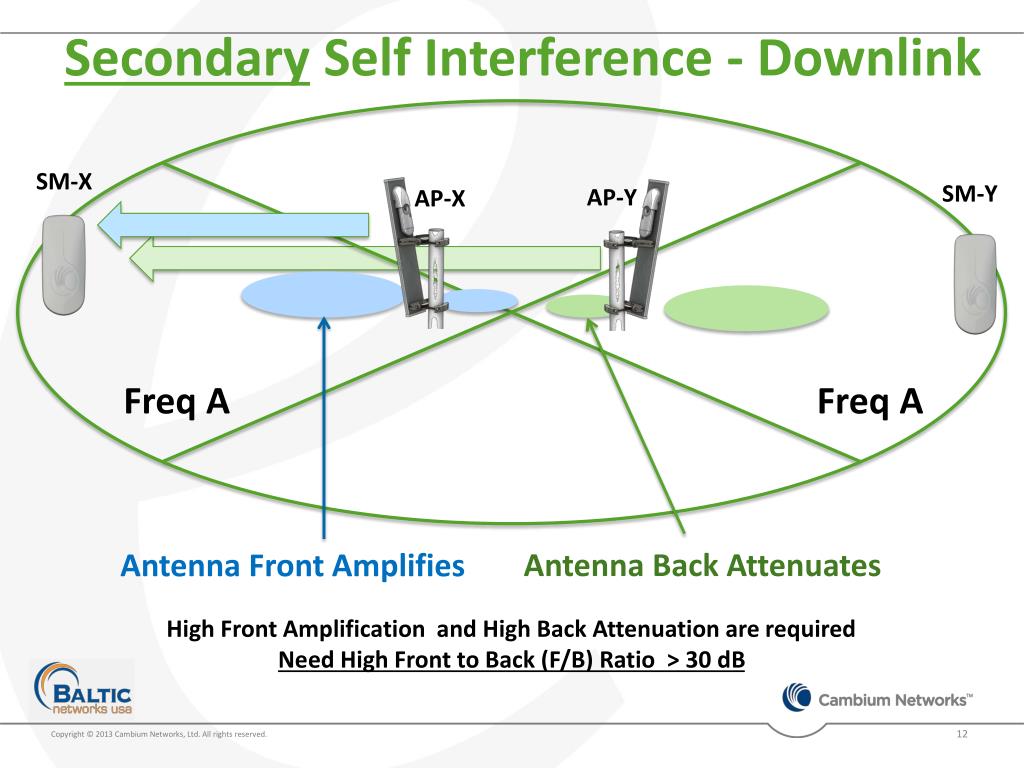

  10. SecondarySelf Interference - Downlink SM-X SM-Y AP-Y AP-X Freq A Freq A Antenna Back Attenuates Antenna Front Amplifies High Front Amplification and High Back Attenuation are required Need High Front to Back (F/B) Ratio > 30 dB

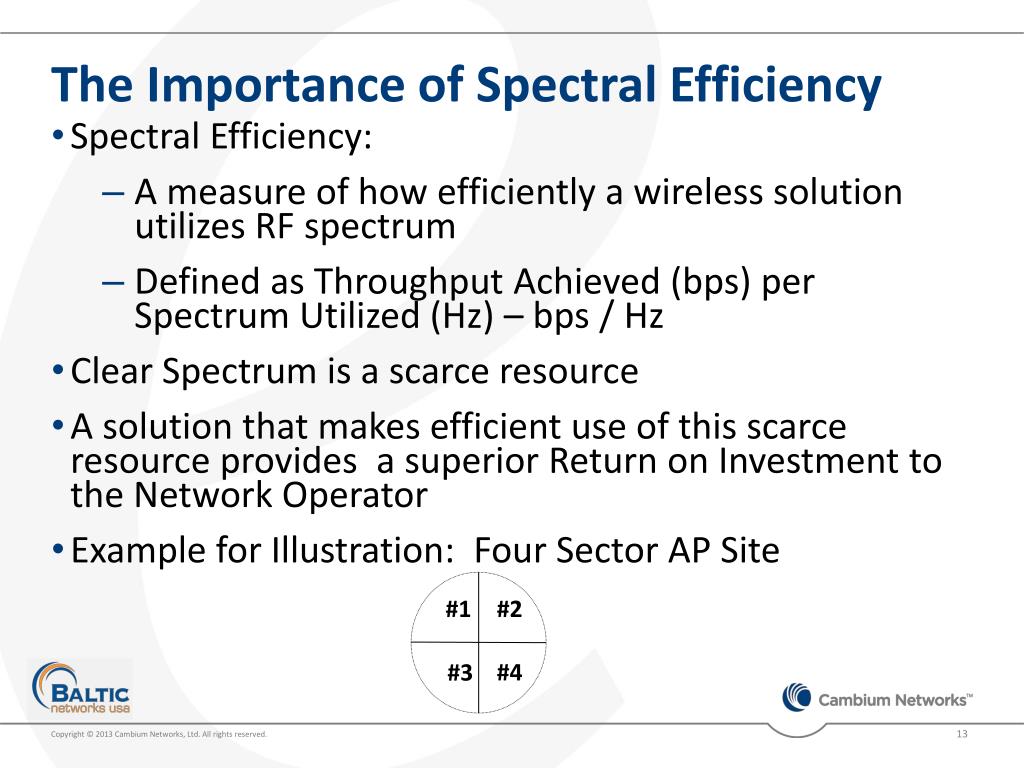

  11. The Importance of Spectral Efficiency • Spectral Efficiency: • A measure of how efficiently a wireless solution utilizes RF spectrum • Defined as Throughput Achieved (bps) per Spectrum Utilized (Hz) – bps / Hz • Clear Spectrum is a scarce resource • A solution that makes efficient use of this scarce resource provides a superior Return on Investment to the Network Operator • Example for Illustration: Four Sector AP Site #1 #2 #4 #3

  12. Spectral Efficiency of Deployment Alternatives • No Freq Reuse • Must have >= 2 x Channel BW Freq Separation between Chans • Spectral Efficiency is: • 4 x 80 mbps / (80 + 120) = 1.6 bps/Hz 3) A A A B B B C A C B D D • No Freq Reuse • Must have >= 1 x Channel BW Freq Separation between Chans • Throughput down to 50 Mbps • Spectral Efficiency is: • 4 x 50 mbps / (80 + 60) = 1.4 bps/Hz • 2 Channel Freq Reuse • Only 5 MHz Guard Bands between Adj Sectors • Throughput supports 80 Mbps • Spectral Efficiency is: • 4 x 80 mbps / (40 + 5) = 7.1 bps/Hz > 4X Spectral Efficiency 14 • No Synchronization • Incomplete GPS Sync: • Inefficient Sync’ed MAC • No TxPwr Control • Poor Antenna F-B isolation • ePMP GPS Sync

  13. The ROI of GPS Synchronization • 4X the Spectral Efficiency with ePMP, means • 4X the number of subscribers, which means • 4X the monthly revenue, which means • Much Faster Payback with the ePMP

  14. Solution Capabilities

  15. ePMP Solution Overview High Performance GPS-Synchronized MAC • Precision Timing • Extended Dynamic Tx Range withAutomatic Tx Power Control • 3 Level QoS with Automatic VoIP Prioritization Integrated Radio GPS Synchronized Radio SW Platform including Intuitive GUI and ElementManagement System Sector Antennas 90 degree Sector 120 degree Sector

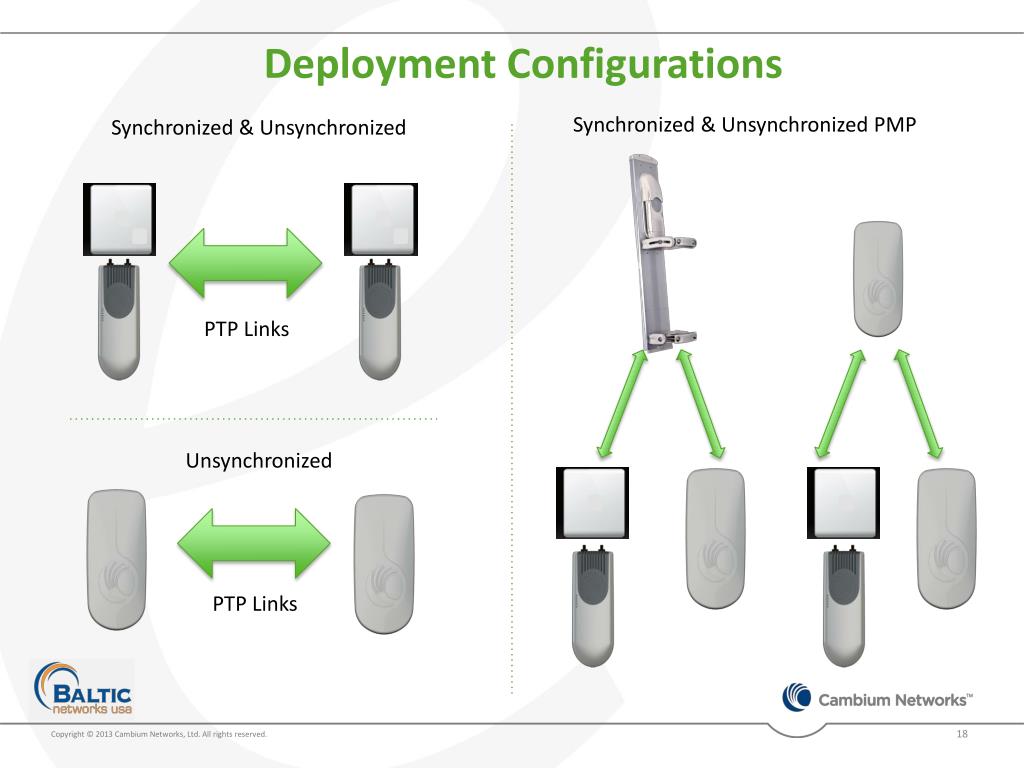

  16. Deployment Configurations Synchronized & Unsynchronized PMP Synchronized & Unsynchronized PTP Links Unsynchronized PTP Links

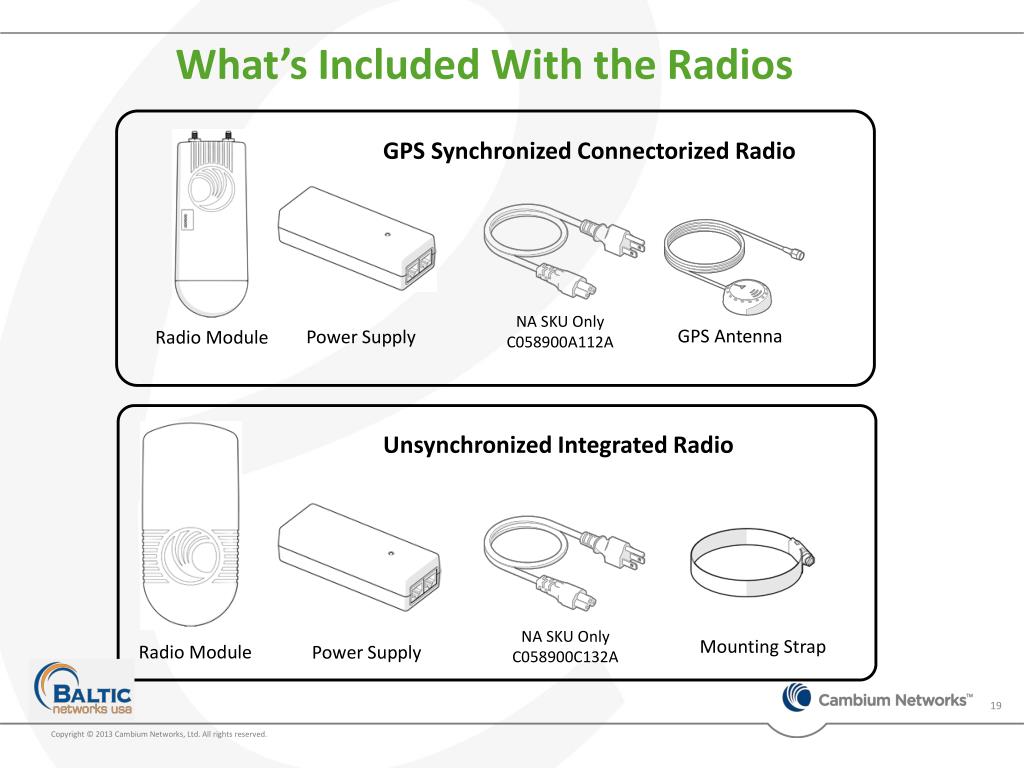

  17. What’s Included With the Radios GPS Synchronized Connectorized Radio NA SKU Only C058900A112A GPS Antenna Power Supply Radio Module Unsynchronized Integrated Radio NA SKU Only C058900C132A Mounting Strap Radio Module Power Supply

  18. Radio Interconnections GPS Synchronized Connectorized Radio Unsynchronized Integrated Radio RF Connections Gigabit Ethernet Main 100BaseT Ethernet GPSAntenna Connector Ground Lug (optional) Auxiliary 100BaseT Ethernet

  19. Sector Antennas Slot for GPS Antenna Removable Protective Cover Grounding and Mechanical Connection via screw Adjustable Brackets

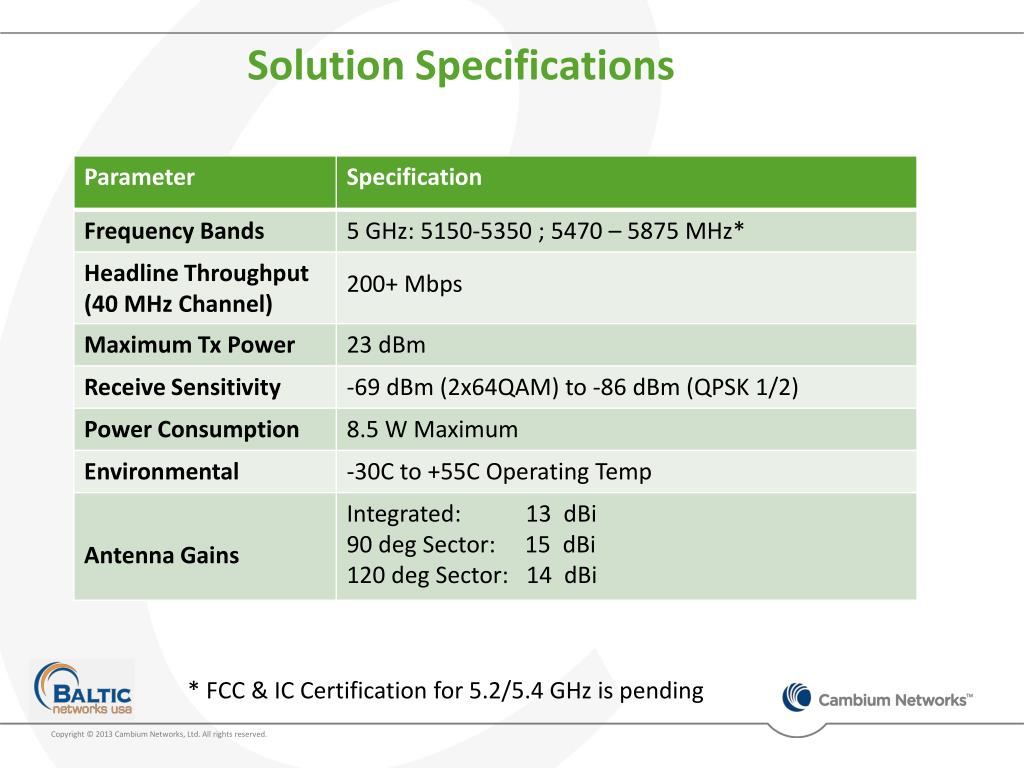

  20. Solution Specifications * FCC & IC Certification for 5.2/5.4 GHz is pending

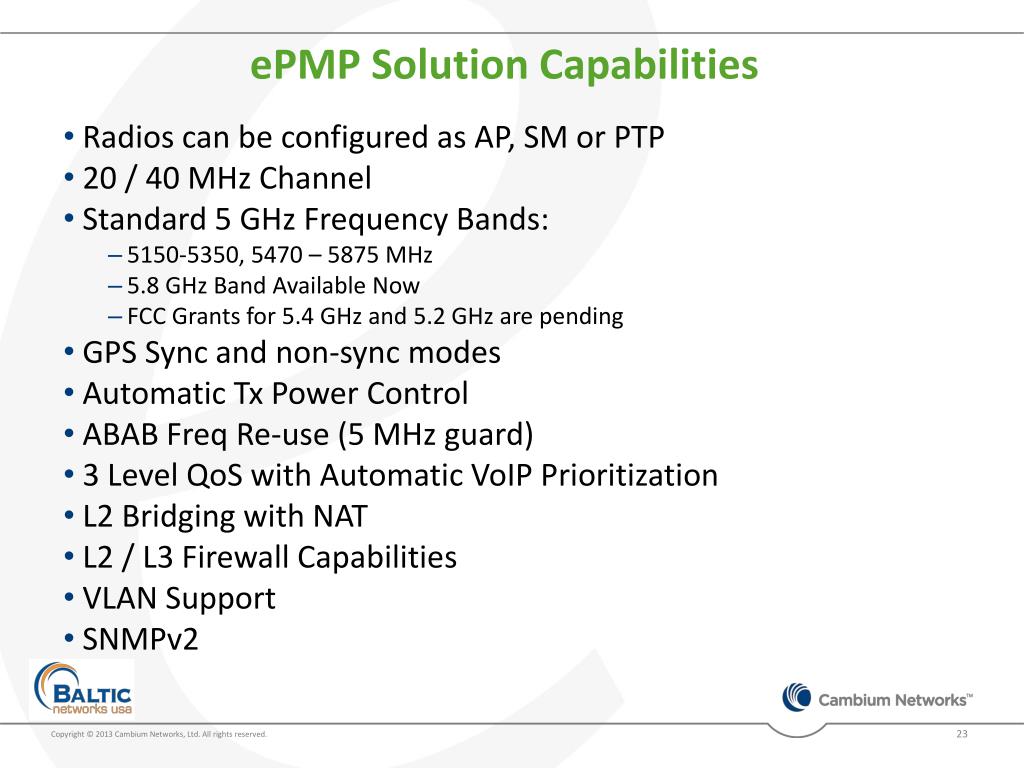

  21. ePMP Solution Capabilities • Radios can be configured as AP, SM or PTP • 20 / 40 MHz Channel • Standard 5 GHz Frequency Bands: • 5150-5350, 5470 – 5875 MHz • 5.8 GHz Band Available Now • FCC Grants for 5.4 GHz and 5.2 GHz are pending • GPS Sync and non-sync modes • Automatic Tx Power Control • ABAB Freq Re-use (5 MHz guard) • 3 Level QoS with Automatic VoIP Prioritization • L2 Bridging with NAT • L2 / L3 Firewall Capabilities • VLAN Support • SNMPv2 23

  22. Cambium Reliability Recipe Design with Margin High Quality Components ESD / Surge Protection Robust Enclosure Robust Design Verification Reliability Testing (ALT) High Quality Manufacturing

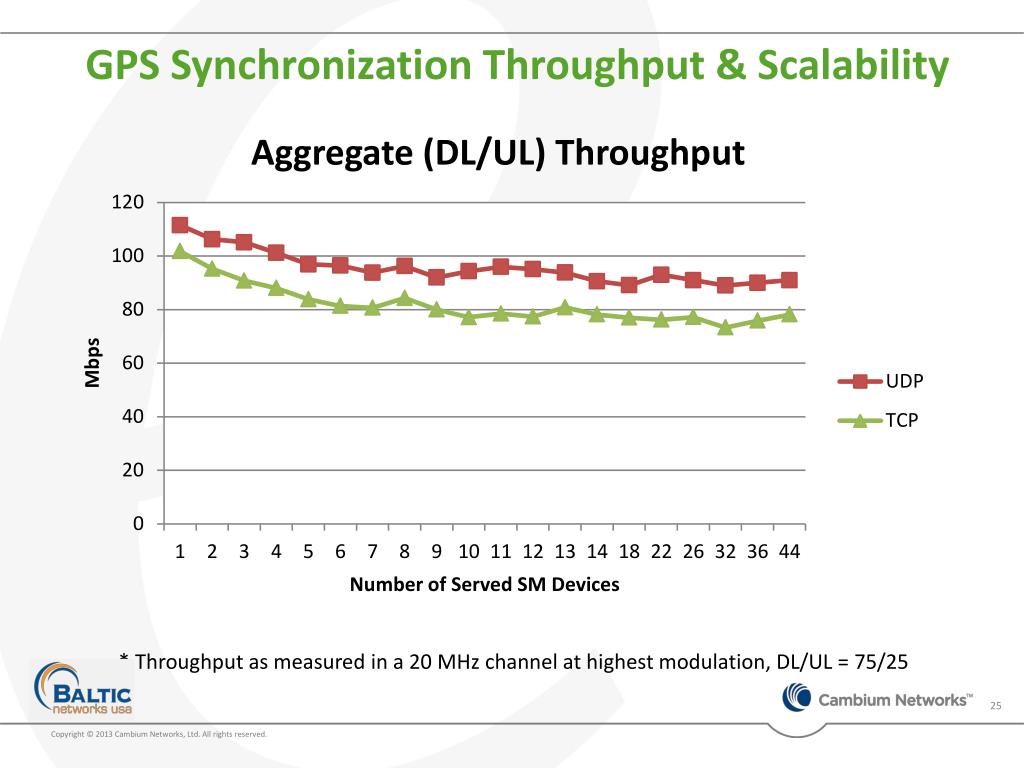

  23. GPS Synchronization Throughput & Scalability * Throughput as measured in a 20 MHz channel at highest modulation, DL/UL = 75/25

  24. ePMP Operations and Management

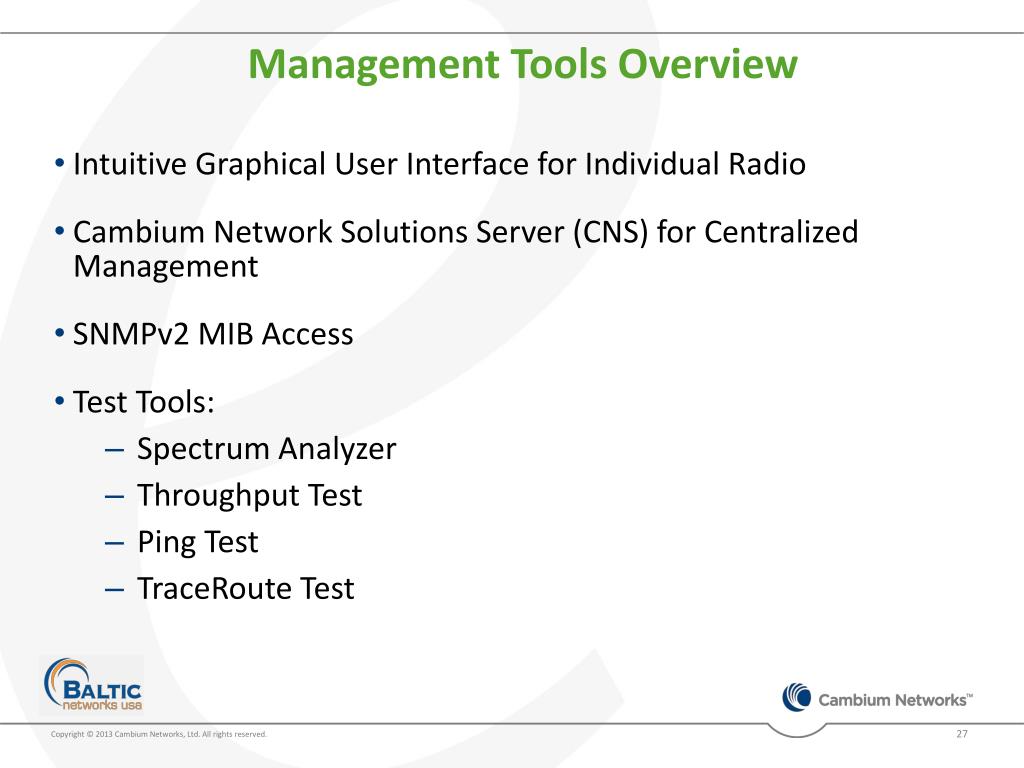

  25. Management Tools Overview • Intuitive Graphical User Interface for Individual Radio • Cambium Network Solutions Server (CNS) for Centralized Management • SNMPv2 MIB Access • Test Tools: • Spectrum Analyzer • Throughput Test • Ping Test • TraceRoute Test

  26. Easy to Use Management Interface Reduces Operational Expense

  27. Cambium Network Services Solution (CNS) • New Element Management System for ePMP • Initial Release will support: • SW Upgrades • Future Releases will Support • Monitoring of traps and statistics • Configuration Updates • Management of other Cambium PMP/PTP Solutions

  28. Summary

  29. ePMP • ePMP leverages Cambium’s 10+ years of experience to bring a level of reliability and scalability never seen before at this price • GPS Synchronized Operation is the key to scalability and reliability of performance and for making optimal use of scarce available spectrum: • Reduces self-interference • Allows for a high degree of frequency reuse • Allows for dense, high capacity performance without impact to reliability • This is just the beginning for the ePMP Portfolio. Look for enhancements and additions to the portfolio in the near future • For more information visit: www.cambiumnetworks.com • The ePMP Solution is available NOW. Visit: • http://www.balticnetworks.com/catalogsearch/result/?q=ePMP
