  1. By: Akram Ali Hard Drive Disks (HDD)

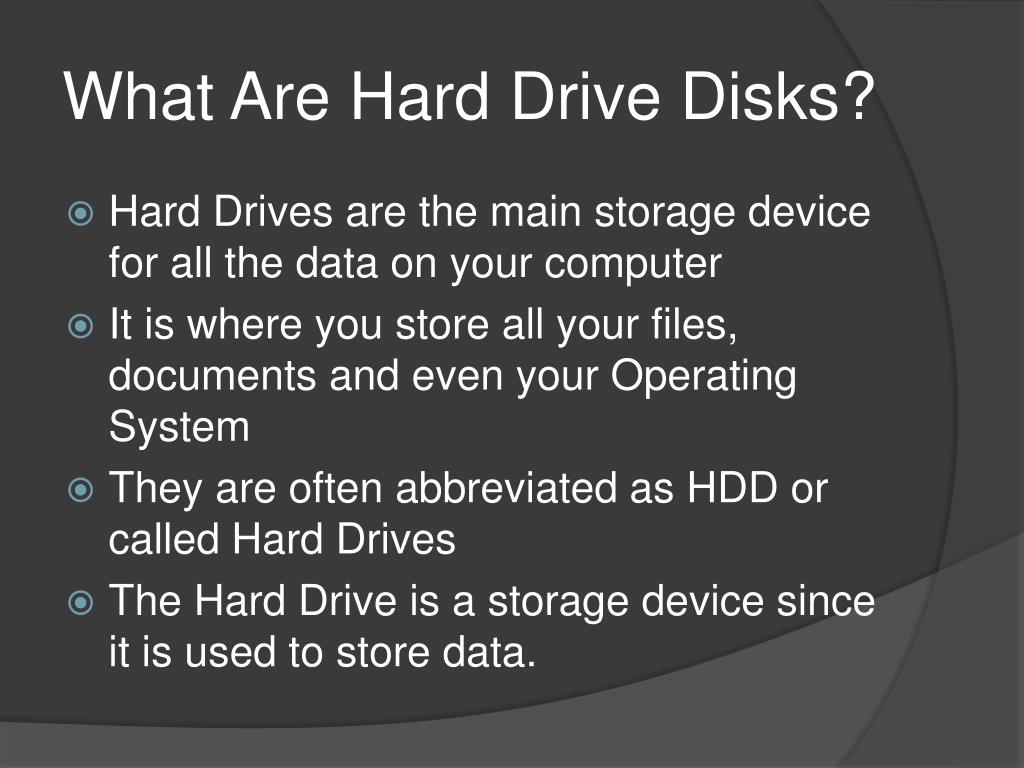

  2. What Are Hard Drive Disks? • Hard Drives are the main storage device for all the data on your computer • It is where you store all your files, documents and even your Operating System • They are often abbreviated as HDD or called Hard Drives • The Hard Drive is a storage device since it is used to store data.

  3. History Of Hard Drives • Were invented in 1950 • Often called “fixed disks” which was a codename for the IBM product • They were very large measuring up to twenty inches in diameter • Later they were given the name “Hard Drive” to differentiate them from Floppy Disks

  4. Early Hard Drives

  5. Diagram Of The Hard Drive

  6. Parts of The Hard Drive • Spindle- The shaft that rotates in the middle of the hard drive. Is attached to the platter. • Platter- A round magnetic plate inside the hard drive. There are many platters in a hard drive. • Actuator & Actuator Arm- Is the part of the hard drive where the read/write head attaches.

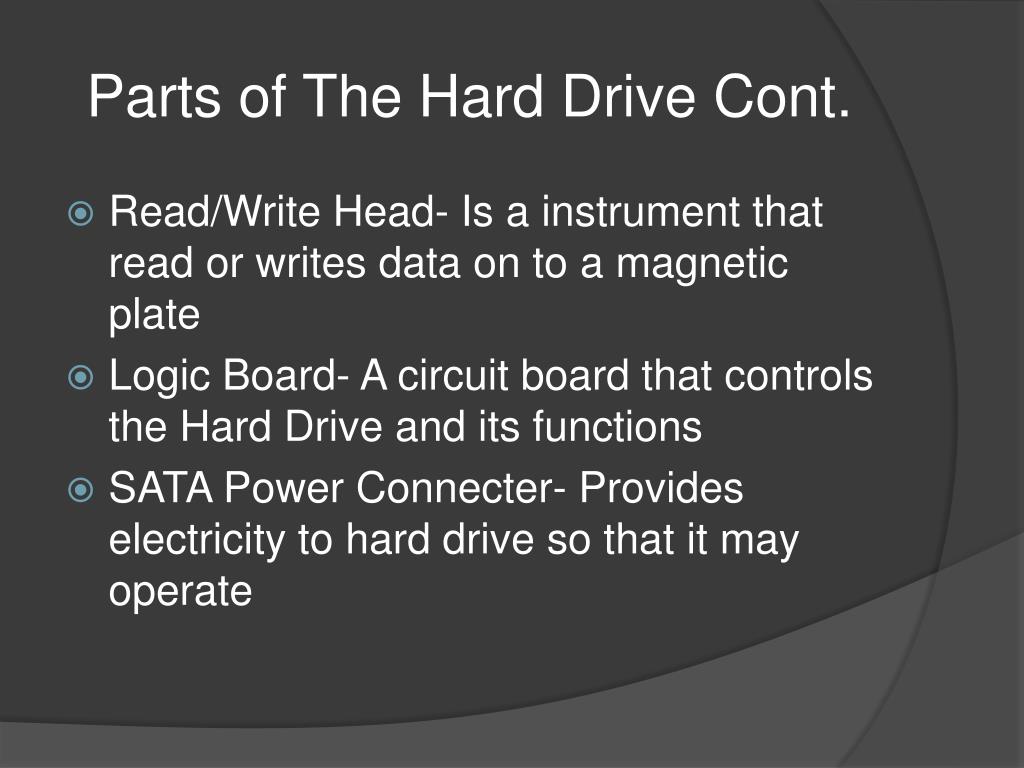

  7. Parts of The Hard Drive Cont. • Read/Write Head- Is a instrument that read or writes data on to a magnetic plate • Logic Board- A circuit board that controls the Hard Drive and its functions • SATA Power Connecter- Provides electricity to hard drive so that it may operate

  8. Parts of The Hard Drive Cont. • SATA Data Connector- Allows the hard drive to communicate with other parts of the computer and transfer data • SATA: Serial Advanced Technology Attachment. It is bus interface that allows the connecting of mass storage devices.

  9. A Hard Drive In Operation

  10. Specifications • Capacity: Is how much data the hard drive can store (ex. 500 GB) • Rotational Speed: Measured in rotations per minute(RPM). It is how fast the spindle inside the hard drive can rotate per minute (ex. 7200 RPM) • Seek Speed: Measured in milliseconds, it is the amount of time it takes for a hard drive to find a specific piece of data

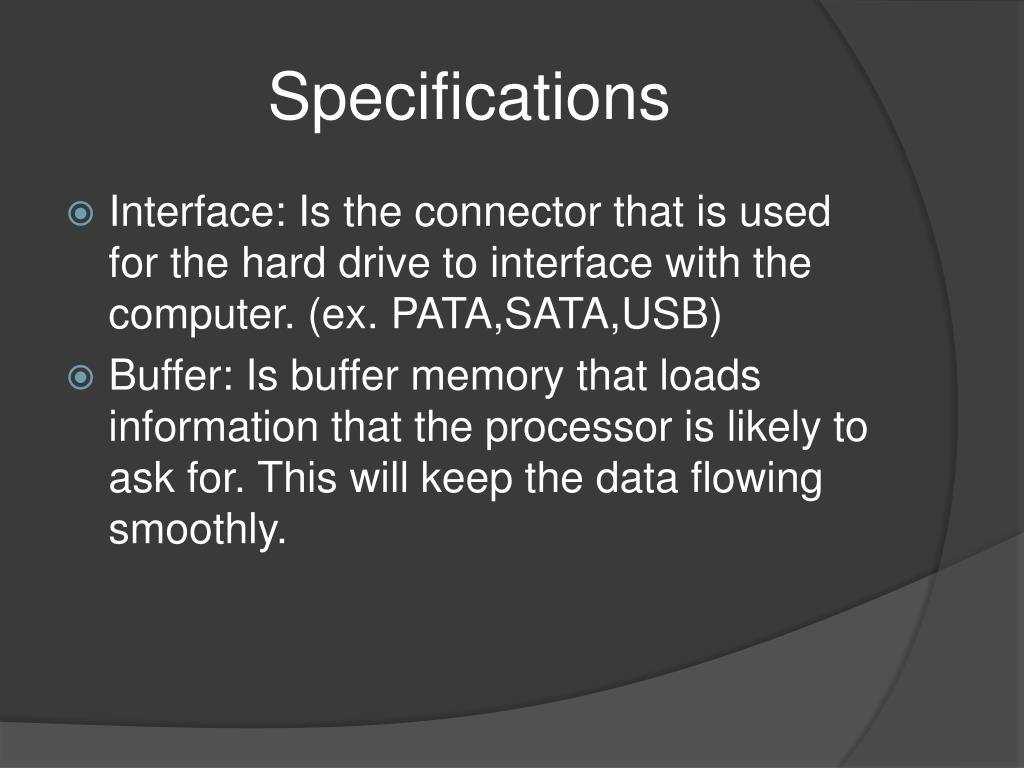

  11. Specifications • Interface: Is the connector that is used for the hard drive to interface with the computer. (ex. PATA,SATA,USB) • Buffer: Is buffer memory that loads information that the processor is likely to ask for. This will keep the data flowing smoothly.

  12. FutureTrends • Hybrid Hard Drives: Is a hard drive that holds all the components in a traditional hard drive. However, now a small Solid State Drive has been integrated into it. Seagate, the manufacturer of the hard drive, claims that the Hybrid Hard Drive can be up to three times faster than a traditional hard drive.

  13. Additional Information 2011 Thailand Flooding • Hard Drive Manufacturers have risen the prices by 20 to 40 percent, due to flooding. • In Thailand, which is the second highest exporter of hard drives in the world was flooded damaging many of the factories and killed 377 people since July 2011. • Western Digital predicts that it will not have production back to pre-flood levels until the third quarter of 2012. • This has caused the price of computers to increase and decrease sales all over the technology industry.

  14. Works Cited • http://www.pcworld.com/article/125778-3/how_to_buy_a_hard_drive.html • http://www.webopedia.com/TERM/A/actuator.html • http://www.webopedia.com/TERM/H/head.html • http://www.webopedia.com/TERM/P/platter.html • http://www.webopedia.com/TERM/S/spindle.html • http://www.webopedia.com/DidYouKnow/Hardware_Software/2002/InsideHardDrive.asp • http://www.pcmag.com/article2/0,2817,2397008,00.asp • http://www.reuters.com/article/2011/10/28/us-thai-floods-drives-idUSTRE79R66220111028 • http://www.infoworld.com/d/the-industry-standard/hard-drive-shortages-continue-bite-tech-industry-184973
