Bivariate Statistics

Bivariate Statistics. Dependent variable “Y”. Independent variable “X” . Dependent variable “Y” is said to be a function of independent variable “X”; i.e. Y = f(X). Scatter Plot Examples. Scatter Plot Examples (cont.). Scatter Plot Examples (cont.). Correlation Coefficient “r”.

kareem
Télécharger la présentation

Bivariate Statistics

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

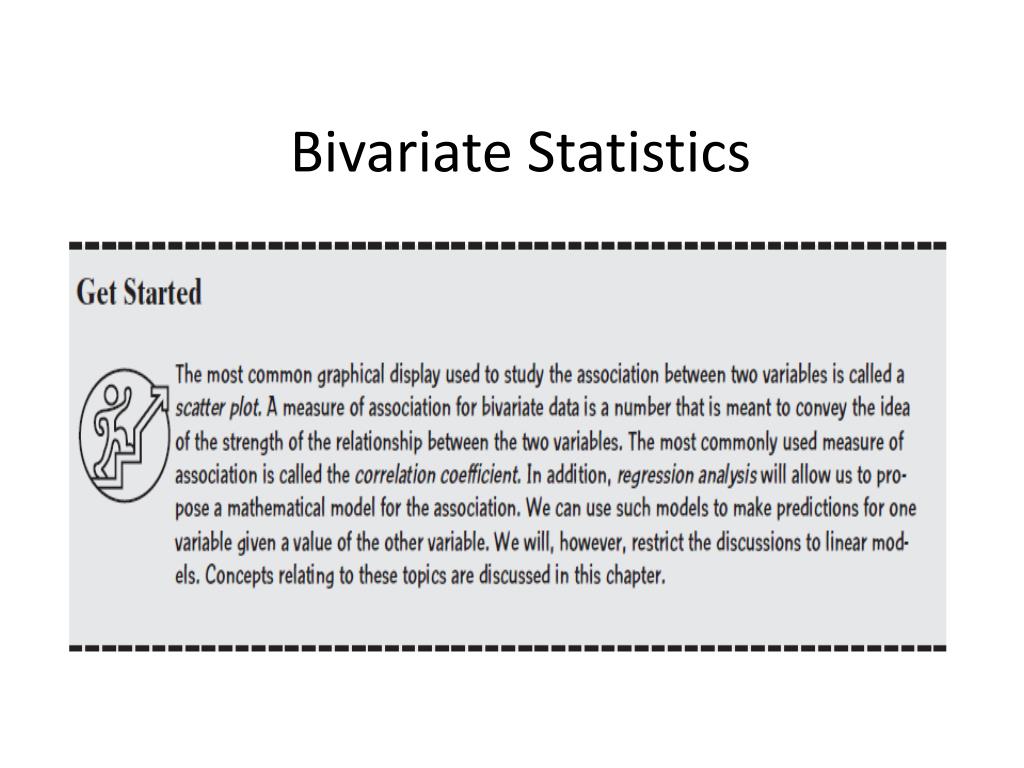

  1. Bivariate Statistics

  2. Dependent variable “Y” Independent variable “X” Dependent variable “Y” is said to be a function of independent variable “X”; i.e. Y = f(X).

  3. Scatter Plot Examples

  4. Scatter Plot Examples (cont.)

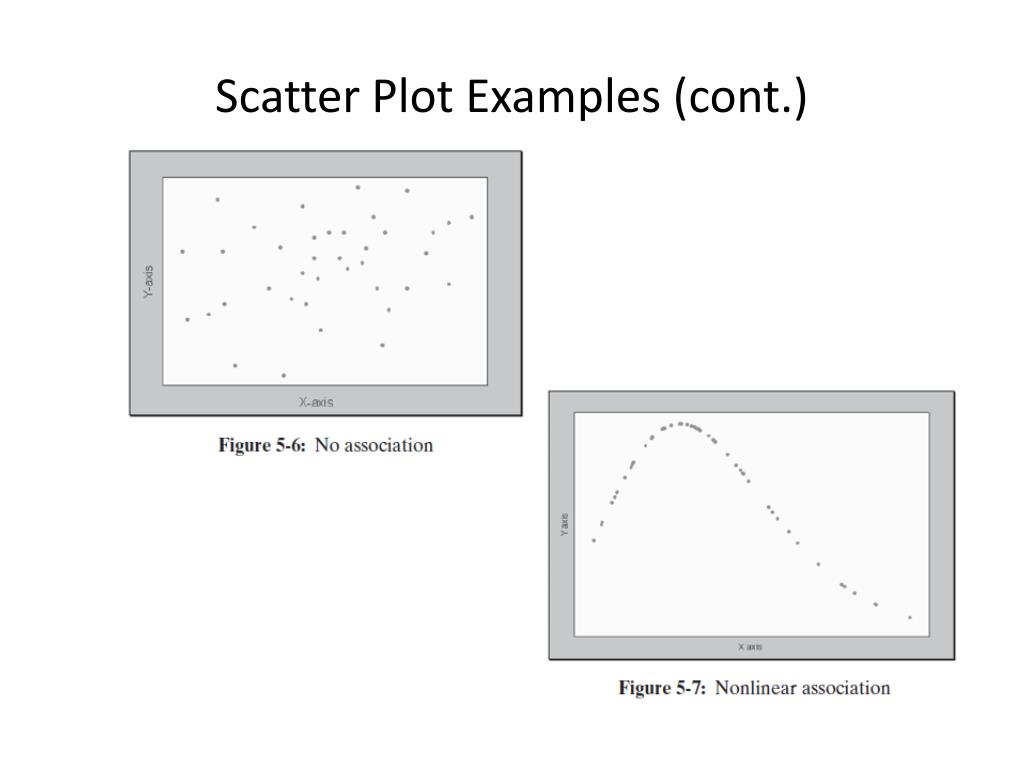

  5. Scatter Plot Examples (cont.)

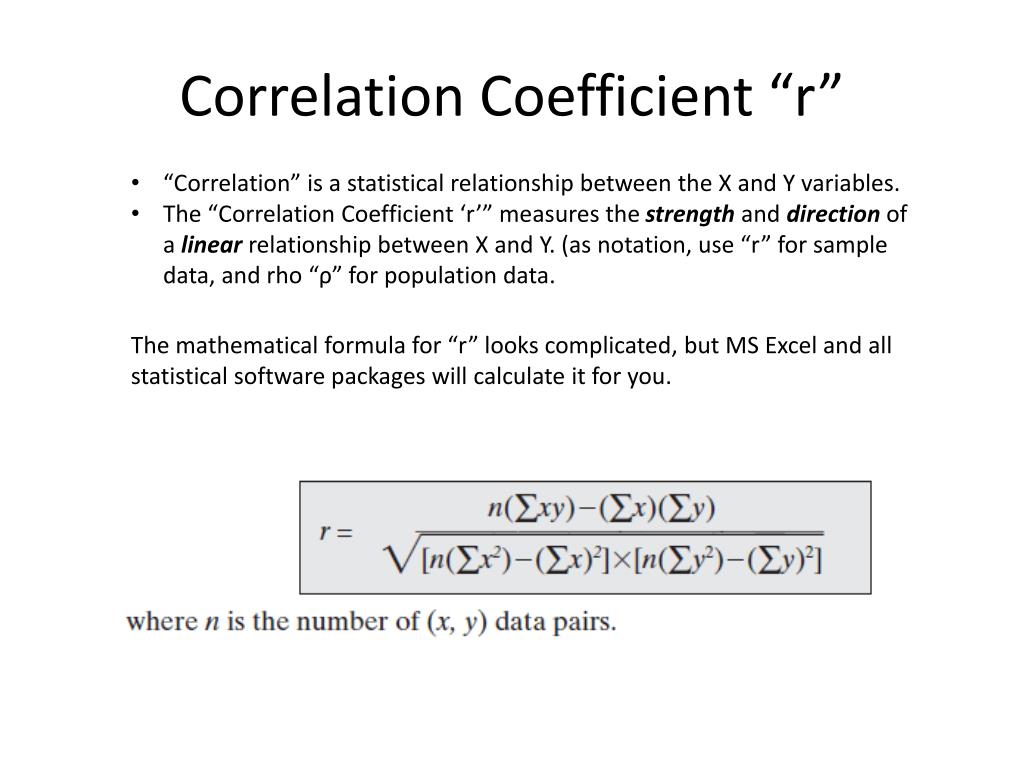

  6. Correlation Coefficient “r” • “Correlation” is a statistical relationship between the X and Y variables. • The “Correlation Coefficient ‘r’” measures the strength and direction of a linear relationship between X and Y. (as notation, use “r” for sample data, and rho “ρ” for population data. The mathematical formula for “r” looks complicated, but MS Excel and all statistical software packages will calculate it for you.

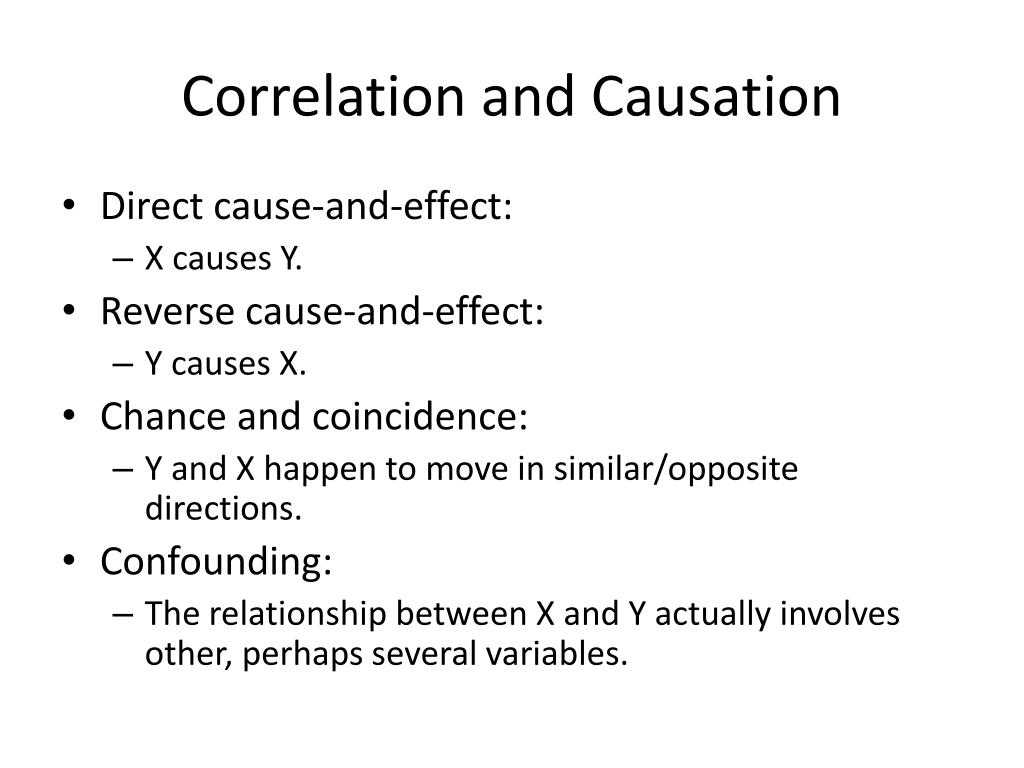

  7. Correlation and Causation • Direct cause-and-effect: • X causes Y. • Reverse cause-and-effect: • Y causes X. • Chance and coincidence: • Y and X happen to move in similar/opposite directions. • Confounding: • The relationship between X and Y actually involves other, perhaps several variables.

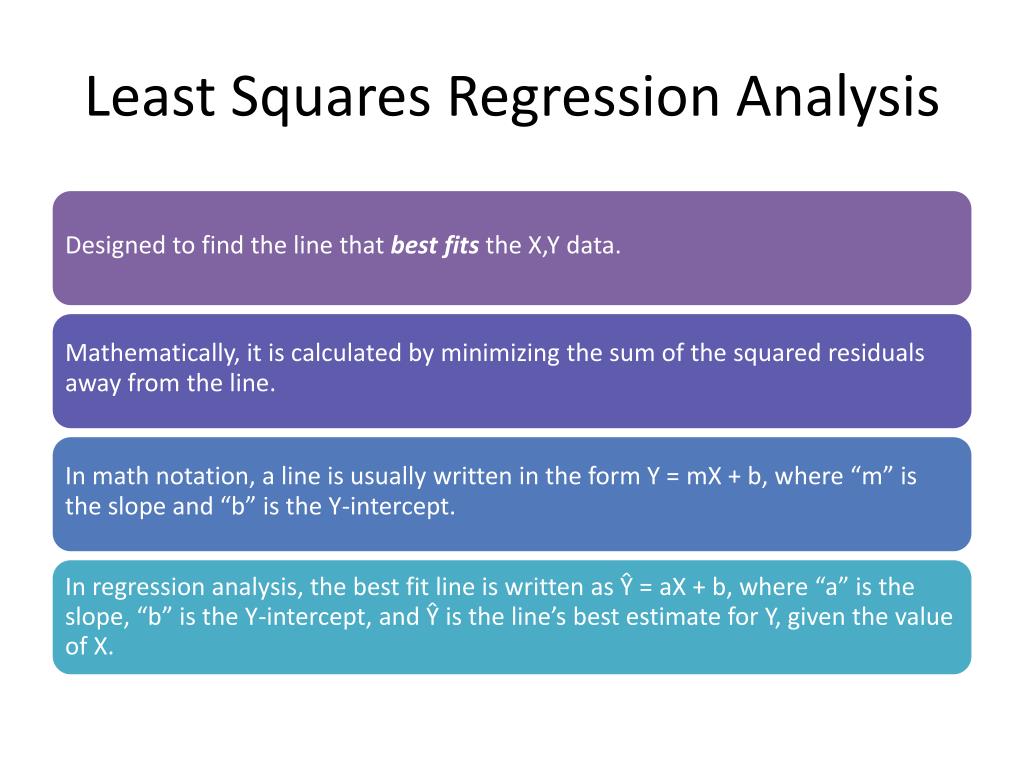

  8. Least Squares Regression Analysis

  9. Calculating “a” and “b” * Once again, MS Excel or any statistical software package will calculate these for you automatically!

  10. The Coefficient of Determination “R2”

  11. Outliers and Influential Points
