  1. Tomostatic Waveform Tomography for Mapleton, Utah data Jianming Sheng, and Maike Buddensiek University of Utah Feb. 5, 2004

  2. Outline Motivation Data Preprocessings Waveform Tomogram Summary

  3. First-break + First-peak 0 2500 Depth (m) 500 m/s 45 0 Distances (m) 80

  4. Observed Predicted Motivations • Produce better seismic image by fitting waveforms

  5. Recorded CSG # 49 0 168 shots 168 receiver Interval: 5m Time (sec.) dt: 0.5 ms length: 1s 0.15 Geophone # 20 160

  6. Outline Motivation Data Preprocessings Waveform Tomogram Summary

  7. Data Preprocessings • Instrument caused amplitude anomalies

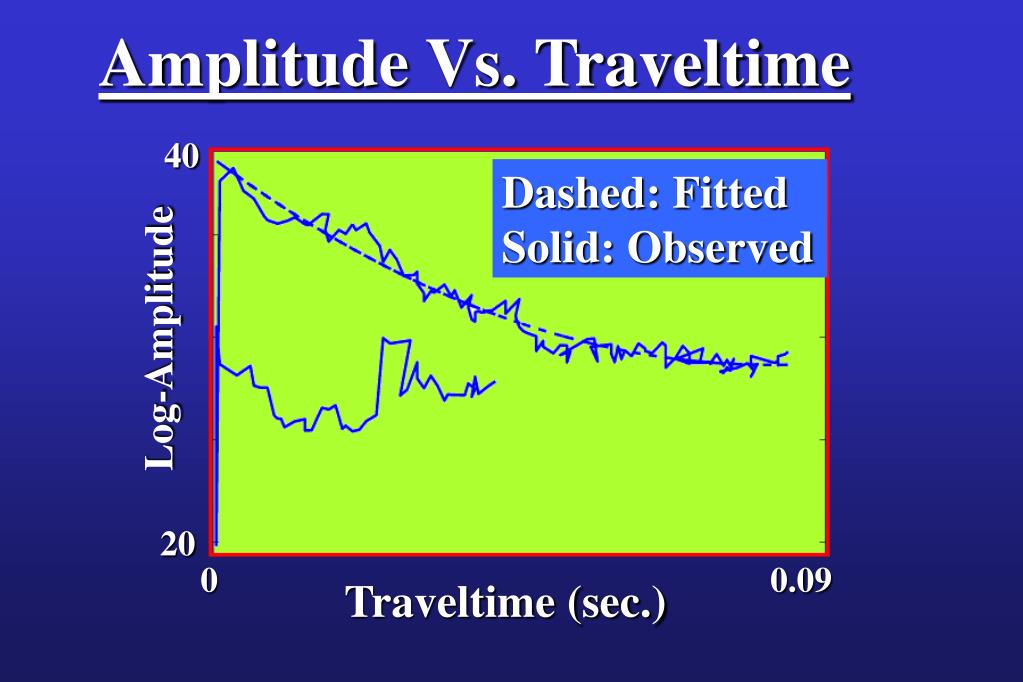

  8. Amplitude Vs. Traveltime 40 Dashed: Fitted Solid: Observed Log-Amplitude 20 0 0.09 Traveltime (sec.)

  9. Data Preprocessings • Instrument caused amplitude anomalies • Earth attenuation

  10. Frequency Spectrum Vs. Offset 0.0 Frequency (Hz) 100 0 60 Offset (m)

  11. Spectrum variance Attenuation factor Centroid frequency Attenuation Compensation Liao and McMechan (1997)

  12. Q=24.0013 Frequency vs. Traveltime 85 Frequency (Hz) 40 0 0.1 Traveltime (sec.)

  13. multiply to spectrum multiply for the geometrical spreading Data Preprocessings • Instrument caused amplitude anomalies • Earth attenuation • Transform data to 2D format

  14. Preprocessed CSG # 49 0 Time (sec.) 0.15 Geophone # 20 160

  15. Frequency Spectrum Vs. Offset 0.0 Frequency (Hz) 100 0 60 Offset (m)

  16. Frequency Spectrum Vs. Offset 0.0 Frequency (Hz) 100 0 60 Offset (m)

  17. Outline Motivation Data Preprocessings Waveform Tomogram Summary

  18. Selected receiver Convolution Misfit Function Frazer and Sun, 1998

  19. Waveform Tomogram 0 2500 Depth (m) 500 m/s 45 0 Distances (m) 80

  20. First-break + First-peak 0 2500 Depth (m) 500 m/s 45 0 Distances (m) 80

  21. Outline Motivation Data Preprocessings Waveform Tomogram Summary

  22. Summary • The waveform tomogram does not show • much improvement compared to the first- • break and first-peak tomogram. • Elastic modeling code is needed.

  23. Acknowledgment I thank the sponsors of the 2003 UTAM Consortium for their financial support .
