1. Surface wave tomography：part3: waveform inversion, adjoint tomography Huajian Yao USTC May 24, 2013

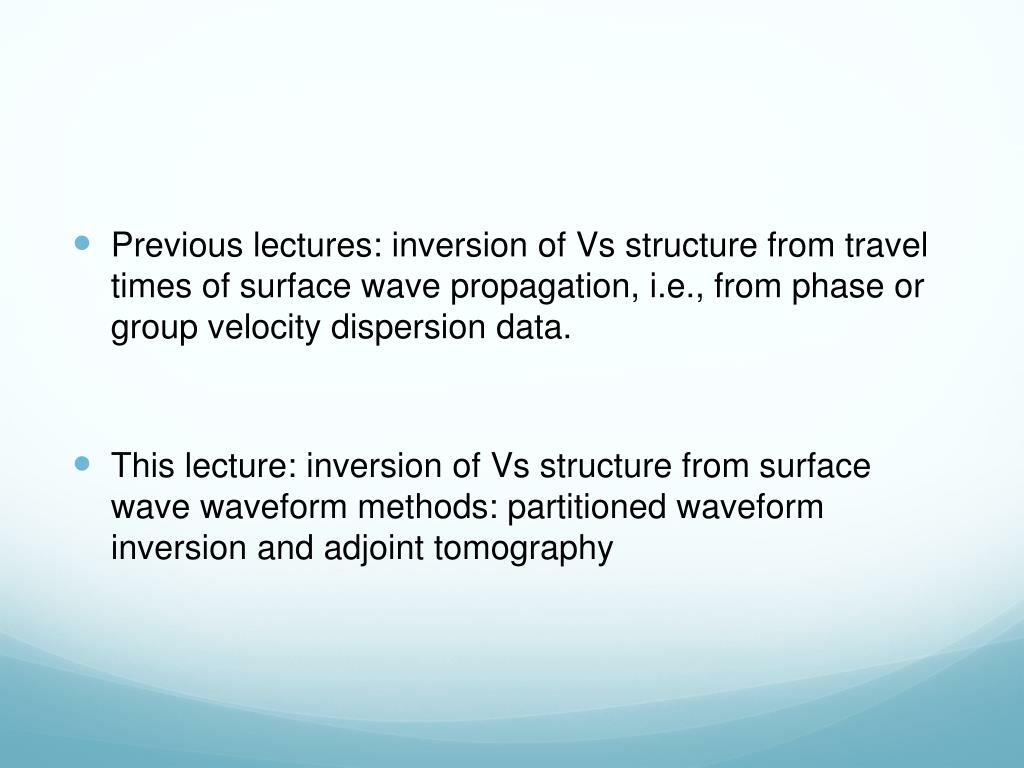

2. Previous lectures: inversion of Vs structure from travel times of surface wave propagation, i.e., from phase or group velocity dispersion data. • This lecture: inversion of Vs structure from surface wave waveform methods: partitioned waveform inversion and adjoint tomography

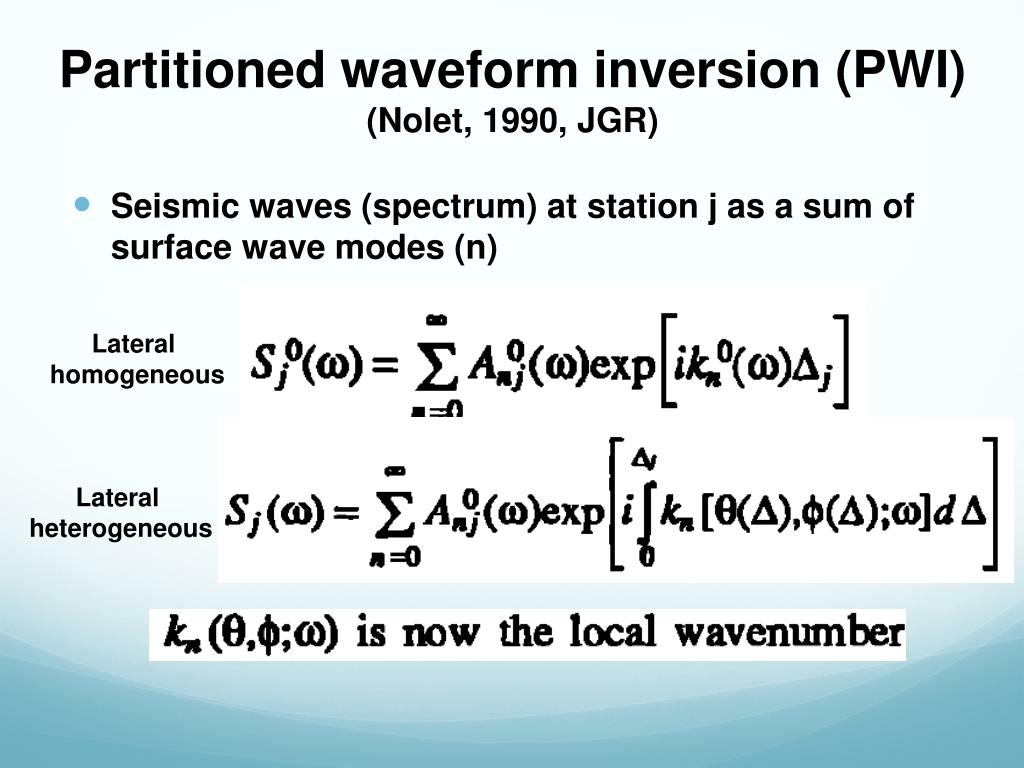

3. Partitioned waveform inversion (PWI)(Nolet, 1990, JGR) • Seismic waves (spectrum) at station j as a sum of surface wave modes (n) Lateral homogeneous Lateral heterogeneous

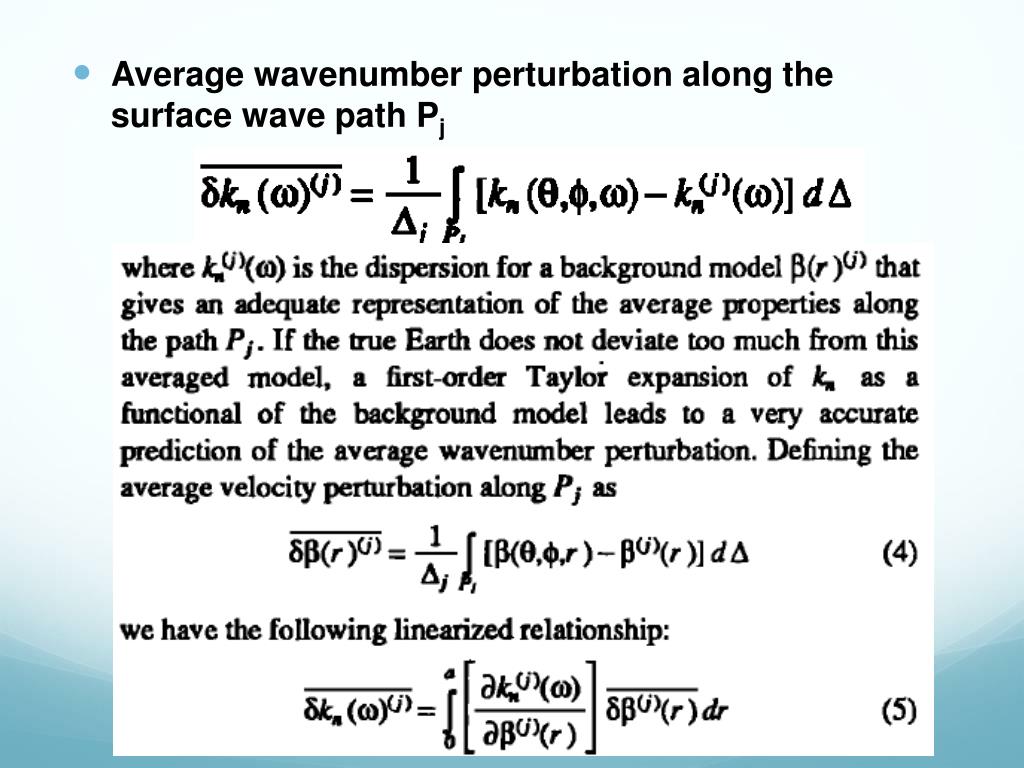

4. Average wavenumber perturbation along the surface wave path Pj

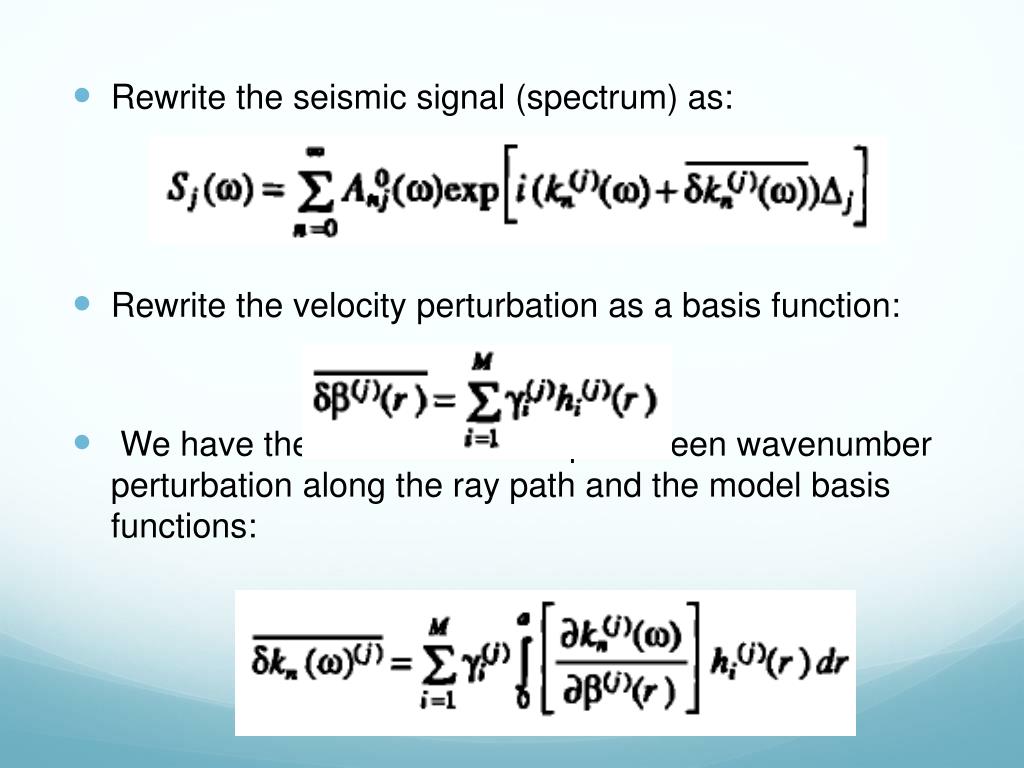

5. Rewrite the seismic signal (spectrum) as: • Rewrite the velocity perturbation as a basis function: • We have the linear relationship between wavenumber perturbation along the ray path and the model basis functions:

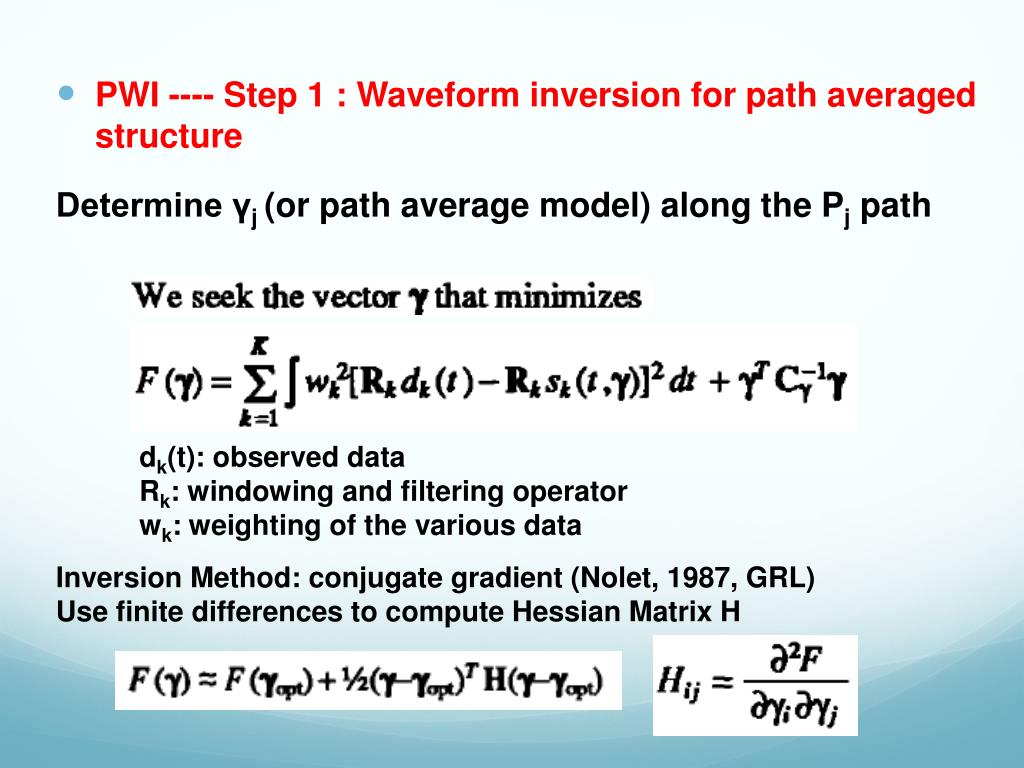

6. PWI ---- Step 1 : Waveform inversion for path averaged structure Determine γj (or path average model) along the Pj path dk(t): observed data Rk: windowing and filtering operator wk: weighting of the various data Inversion Method: conjugate gradient (Nolet, 1987, GRL) Use finite differences to compute Hessian Matrix H

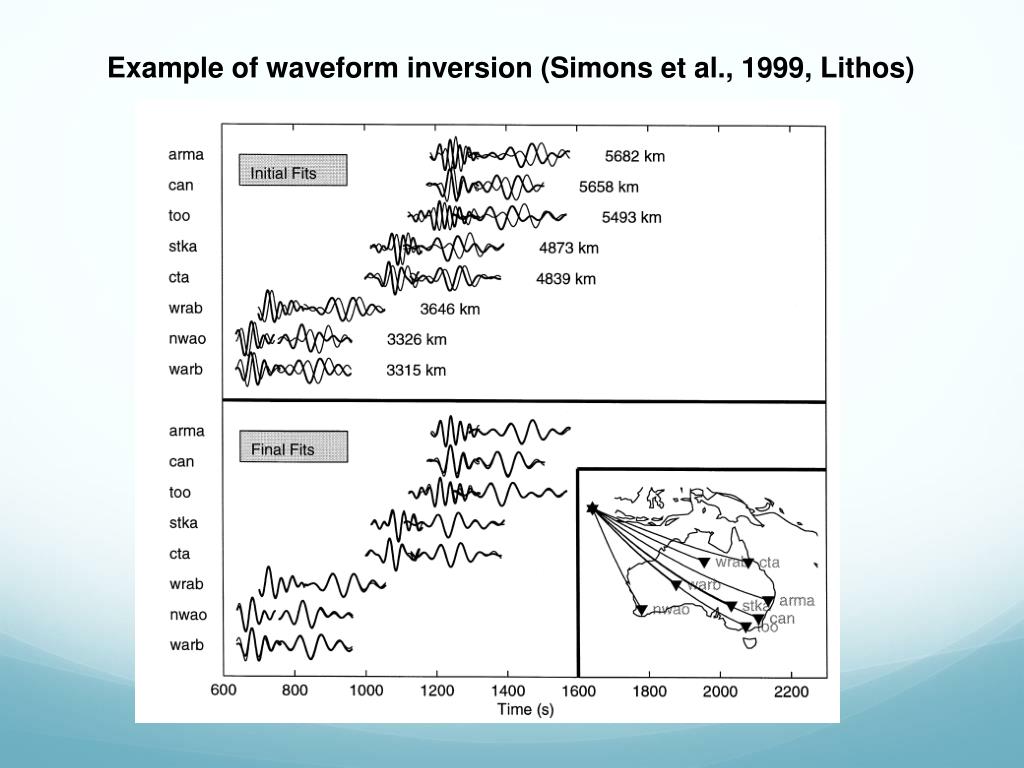

7. Example of waveform inversion (Simons et al., 1999, Lithos)

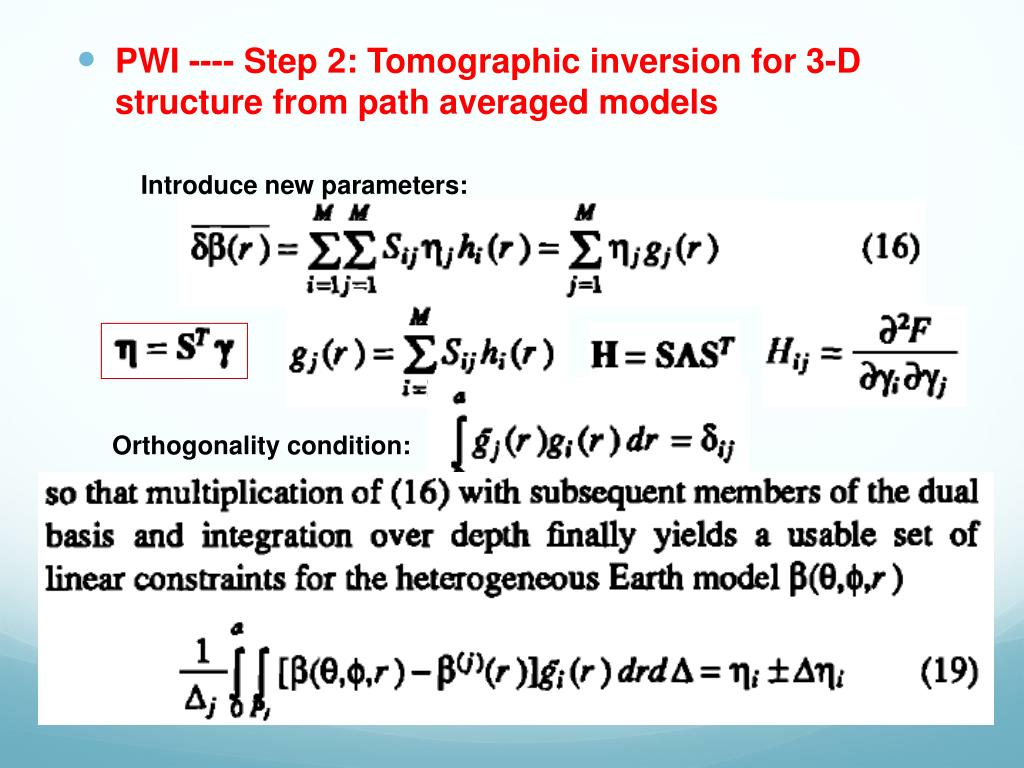

8. Introduce new parameters: • PWI ---- Step 2: Tomographic inversion for 3-D structure from path averaged models Orthogonality condition:

9. Example of tomographic inversion for 3-D structure from path averaged models (Simons et al., 1999, Lithos)

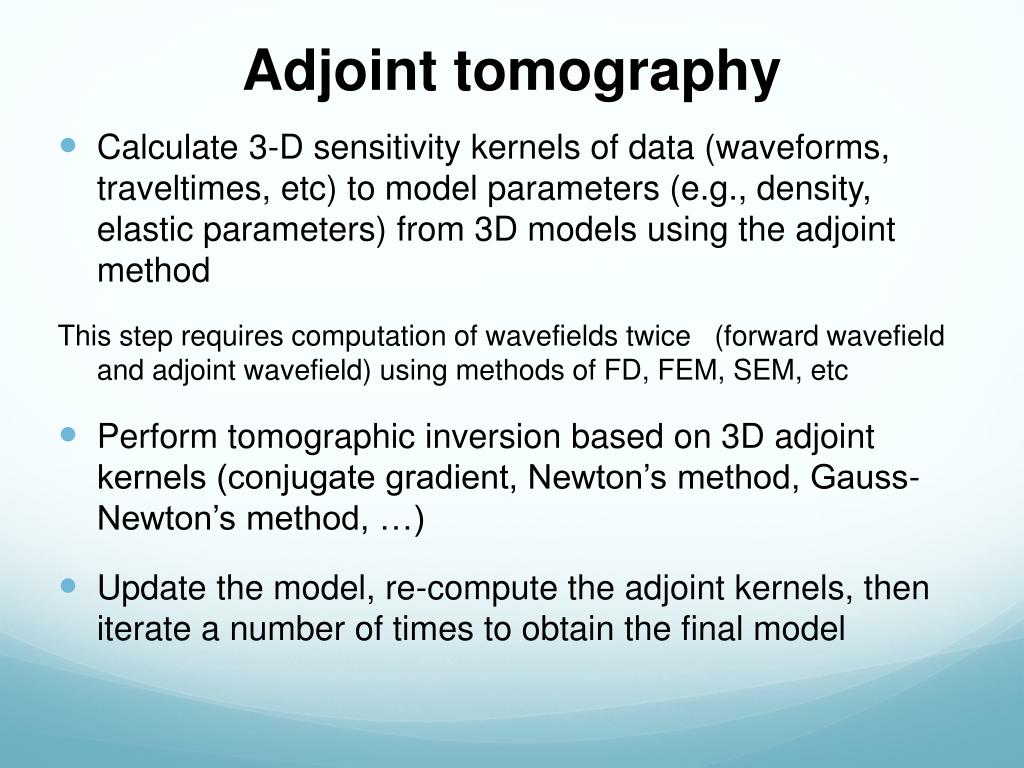

11. Adjoint tomography • Calculate 3-D sensitivity kernels of data (waveforms, traveltimes, etc) to model parameters (e.g., density, elastic parameters) from 3D models using the adjoint method This step requires computation of wavefields twice (forward wavefield and adjoint wavefield) using methods of FD, FEM, SEM, etc • Perform tomographic inversion based on 3D adjoint kernels (conjugate gradient, Newton’s method, Gauss-Newton’s method, …) • Update the model, re-compute the adjoint kernels, then iterate a number of times to obtain the final model

12. Some reference papers • Tarantola, A., 1986. A strategy for nonlinear elastic inversion of seismic reflection data. Geophysics 51, 1893–1903. • Tromp, J., Tape, C.H., Liu, Q., 2005. Seismic tomography, adjoint methods, time reversal and banana-doughnut kernels. Geophysical Journal International 160, 195–216. • Liu, Q., Tromp, J., 2006. Finite-frequency kernels based on adjoint methods. Bulletin of the Seismological Society of America 96, 2283–2397. • Tape, C.H., Liu, Q., Tromp, J., 2007. Finite-frequency tomography using adjoint methods — methodology and examples using membrane surface waves. Geophysical Journal International 168, 1105–1129 • Fichtner, A., Bunge, H.P., Igel, H., 2006a. The adjoint method in seismology — I. Theory. Physics of the Earth and Planetary Interiors 157, 86–104. • Fichtner, A., Bunge, H.P., Igel, H., 2006b. The adjoint method in seismology — II. Applications:traveltimes and sensitivity functionals. Physics of the Earth and Planetary Interiors 157, 105–123. • Liu, Q, Y.J. Gu, 2012. Seismic imaging: From classical to adjoint tomography. Tectonophysics, http://dx.doi.org/10.1016/j.tecto.2012.07.006

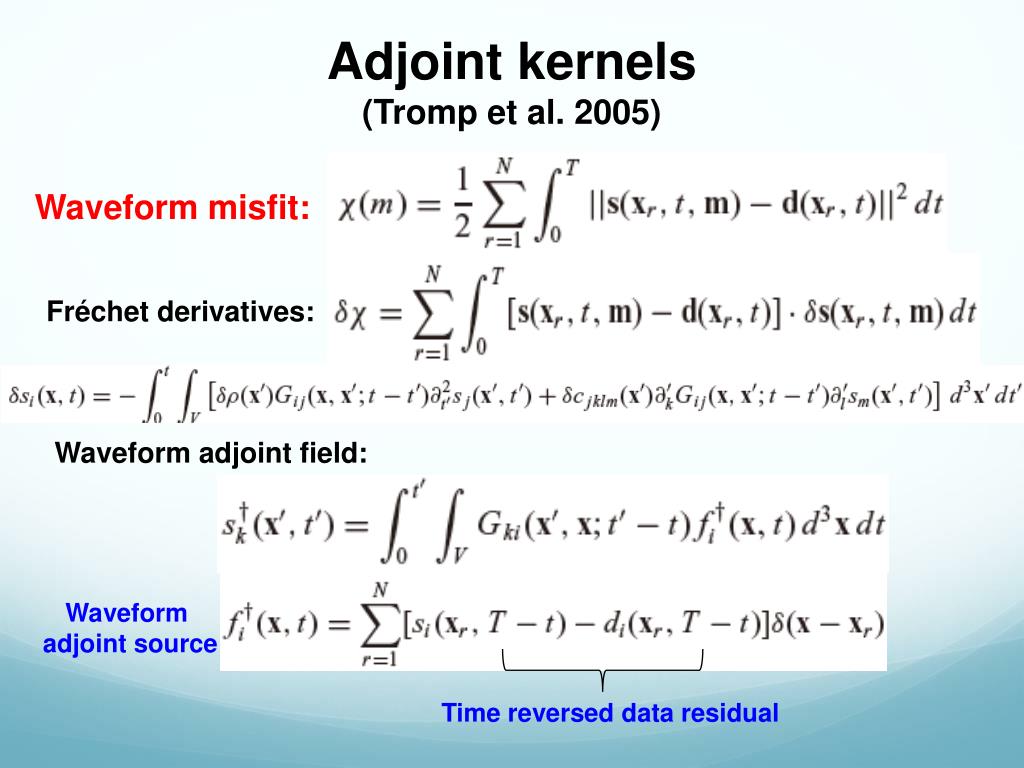

13. Adjoint kernels (Tromp et al. 2005) Waveform misfit: Fréchet derivatives: Waveform adjoint field: Waveform adjoint source Time reversed data residual

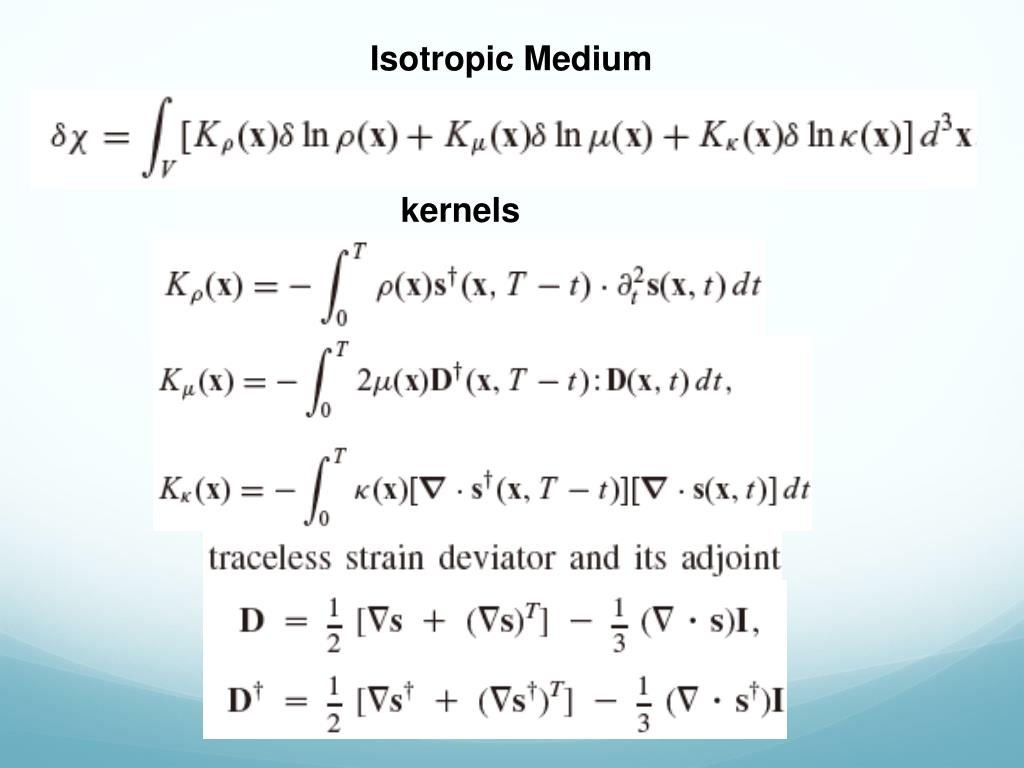

14. Isotropic Medium kernels

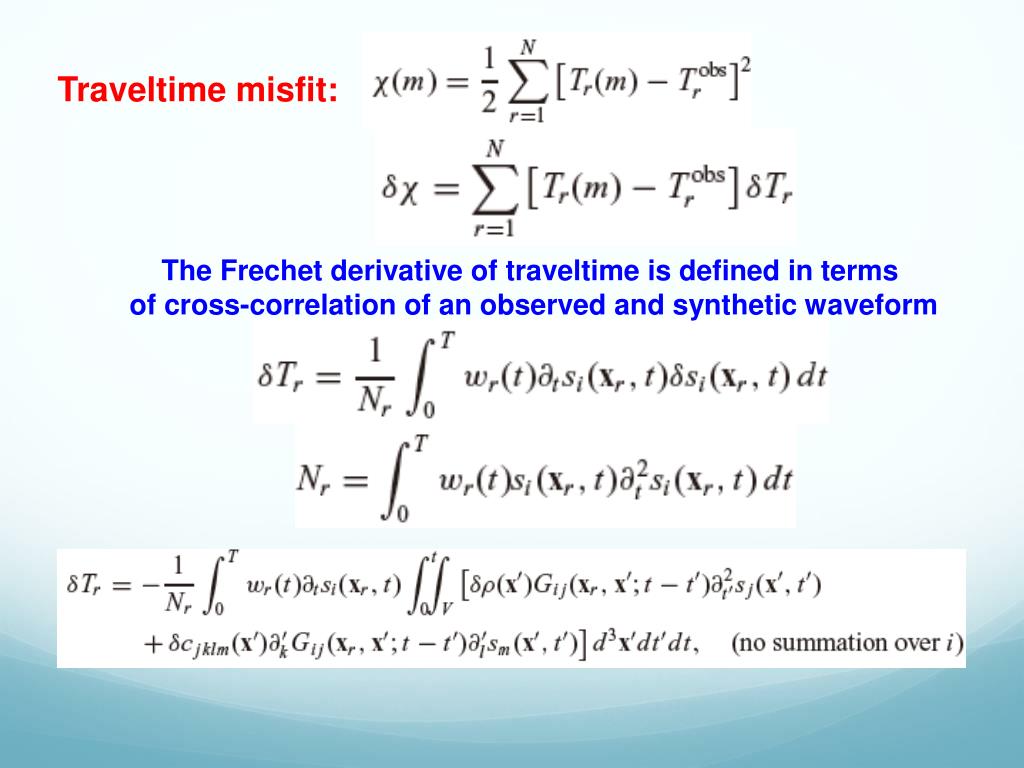

15. Traveltime misfit: The Frechet derivative of traveltime is defined in terms of cross-correlation of an observed and synthetic waveform

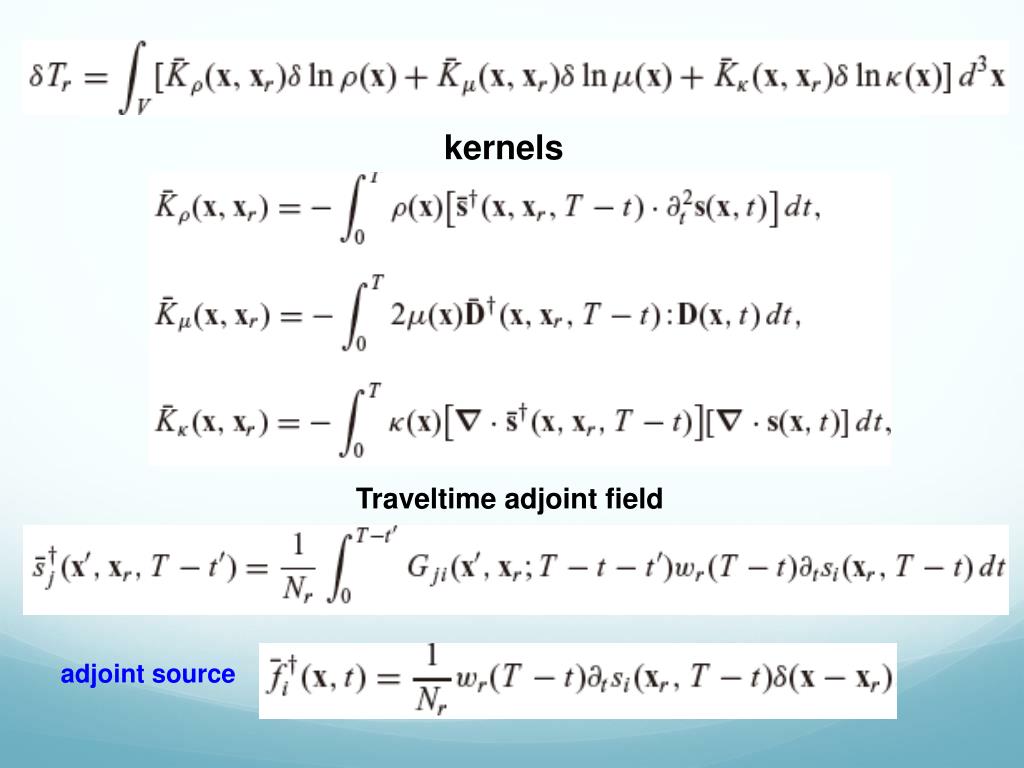

16. kernels Traveltime adjoint field adjoint source

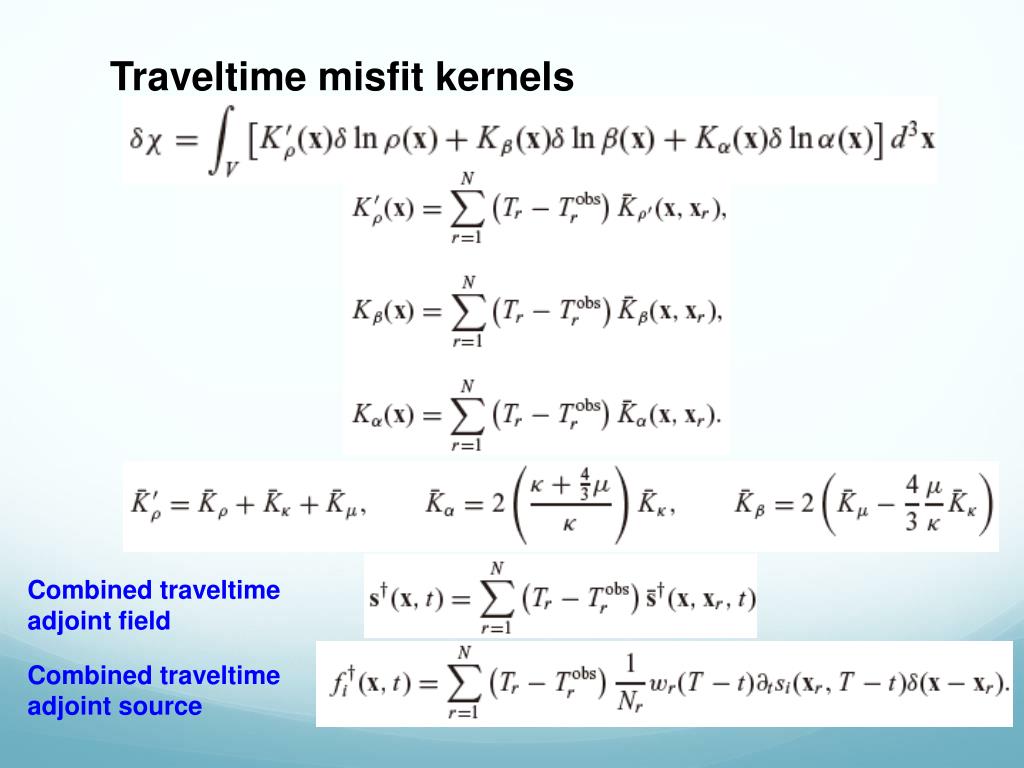

17. Traveltime misfit kernels Combined traveltime adjoint field Combined traveltime adjoint source

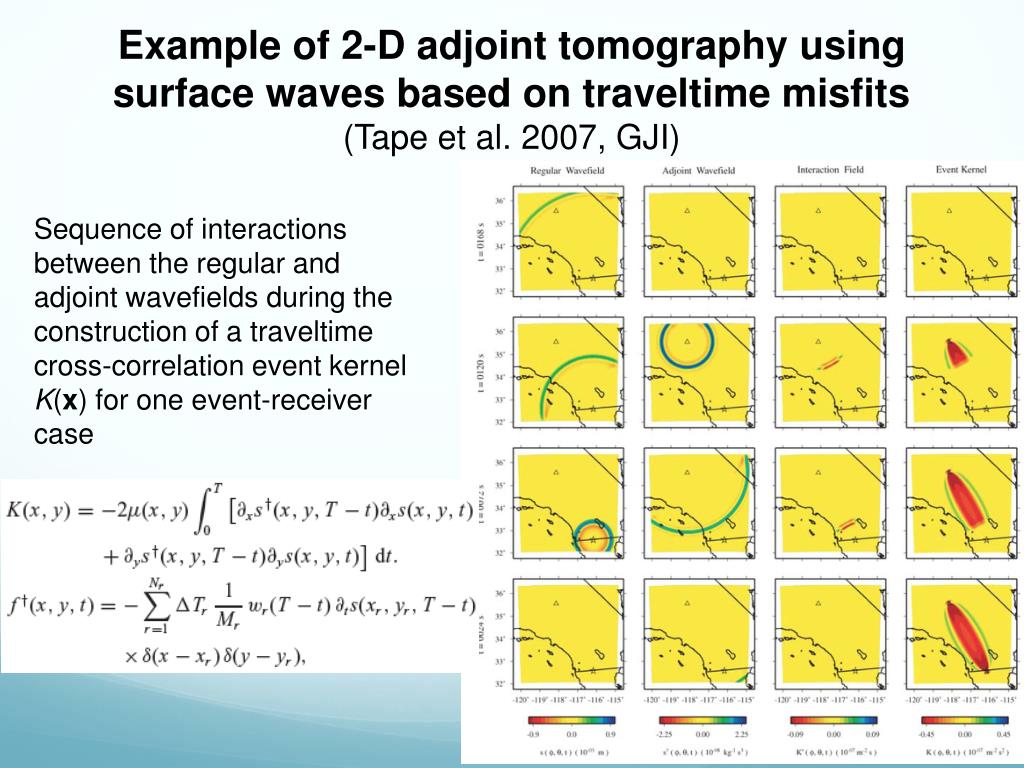

18. Example of 2-D adjoint tomography using surface waves based on traveltime misfits (Tape et al. 2007, GJI) Sequence of interactions between the regular and adjointwavefields during the construction of a traveltime cross-correlation event kernel K(x) for one event-receiver case

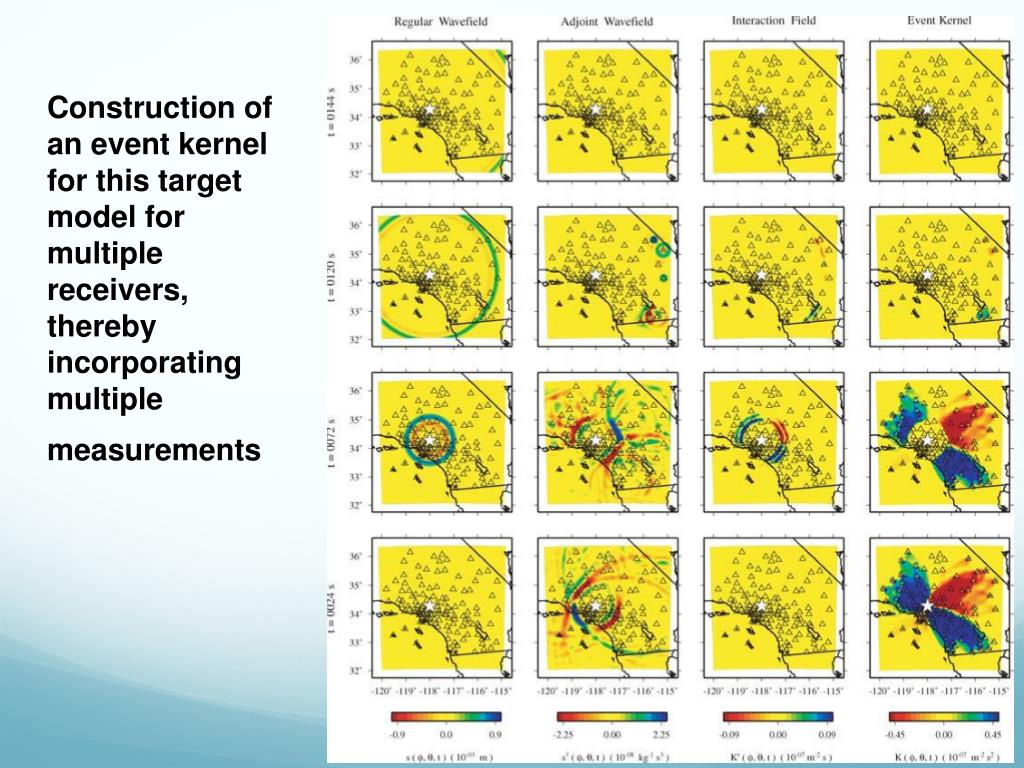

20. Construction of an event kernel for this target model for multiple receivers, thereby incorporating multiple measurements

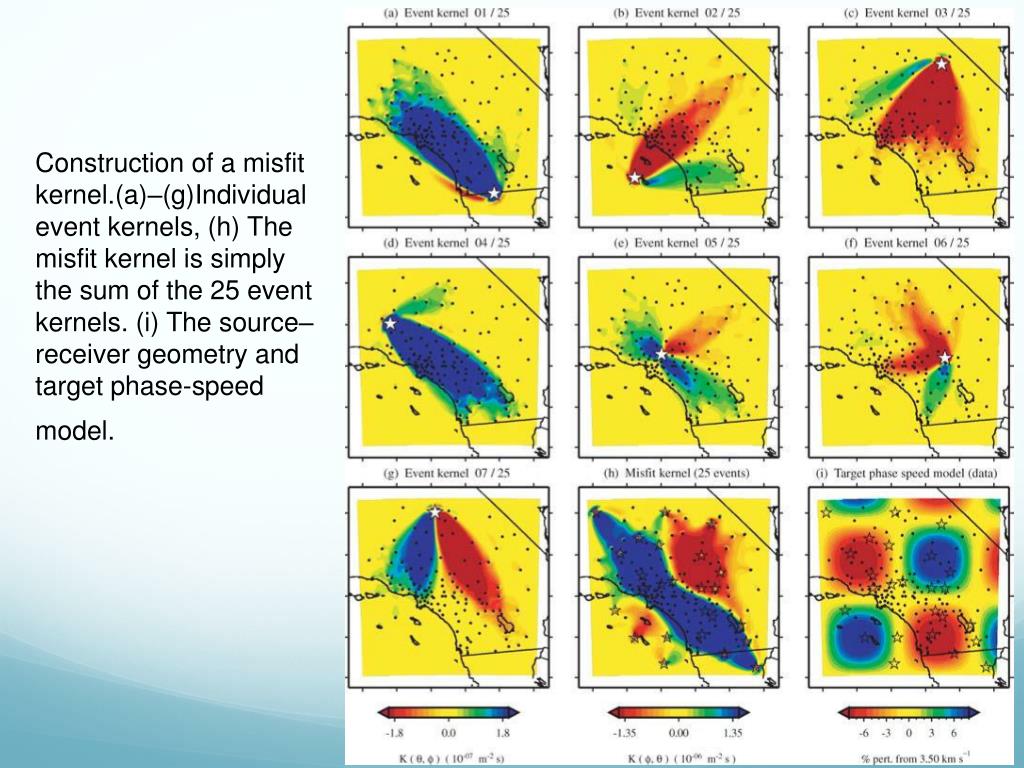

21. Construction of a misfit kernel.(a)–(g)Individual event kernels, (h) The misfit kernel is simply the sum of the 25 event kernels. (i) The source–receiver geometry and target phase-speed model.

22. Iterative improvement of the reference phase-speed model using the conjugate gradient algorithm

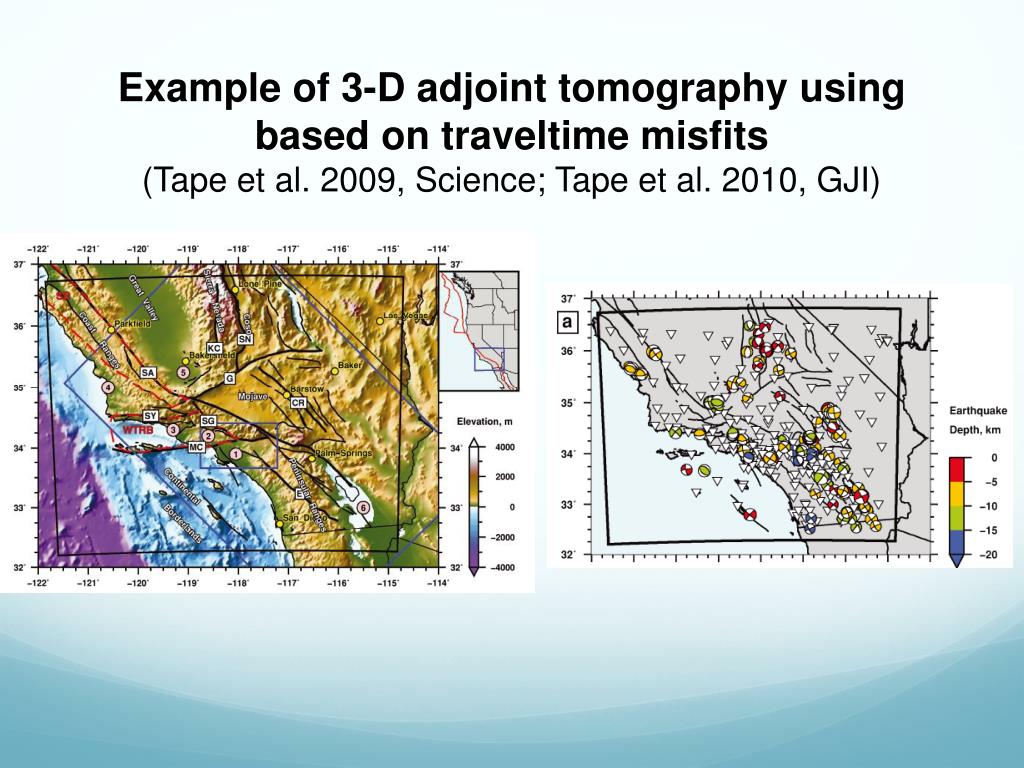

23. Example of 3-D adjoint tomography using based on traveltime misfits (Tape et al. 2009, Science; Tape et al. 2010, GJI)

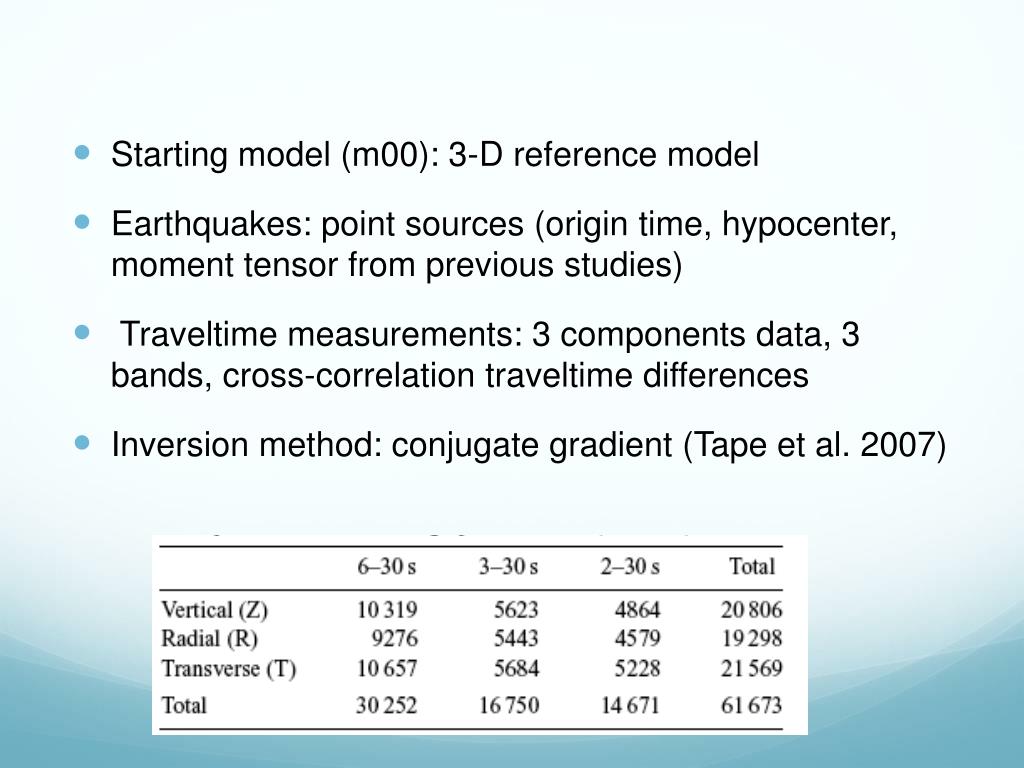

24. Starting model (m00): 3-D reference model • Earthquakes: point sources (origin time, hypocenter, moment tensor from previous studies) • Traveltime measurements: 3 components data, 3 bands, cross-correlation traveltime differences • Inversion method: conjugate gradient (Tape et al. 2007)

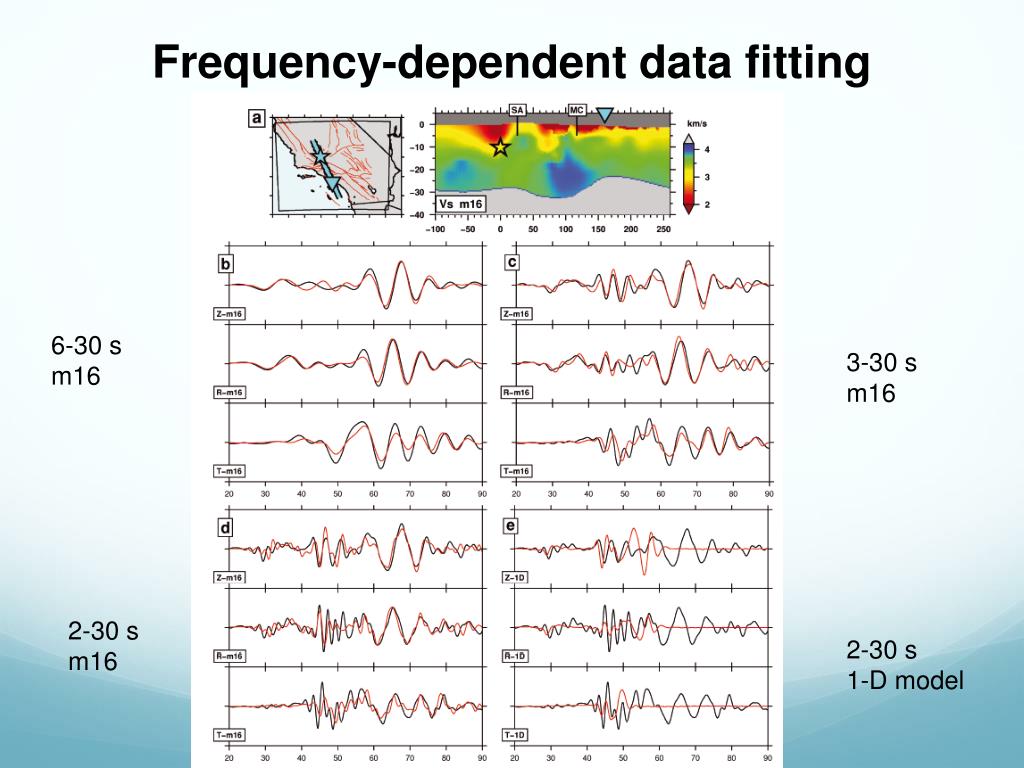

26. Frequency-dependent data fitting 6-30 s m16 3-30 s m16 2-30 s m16 2-30 s 1-D model

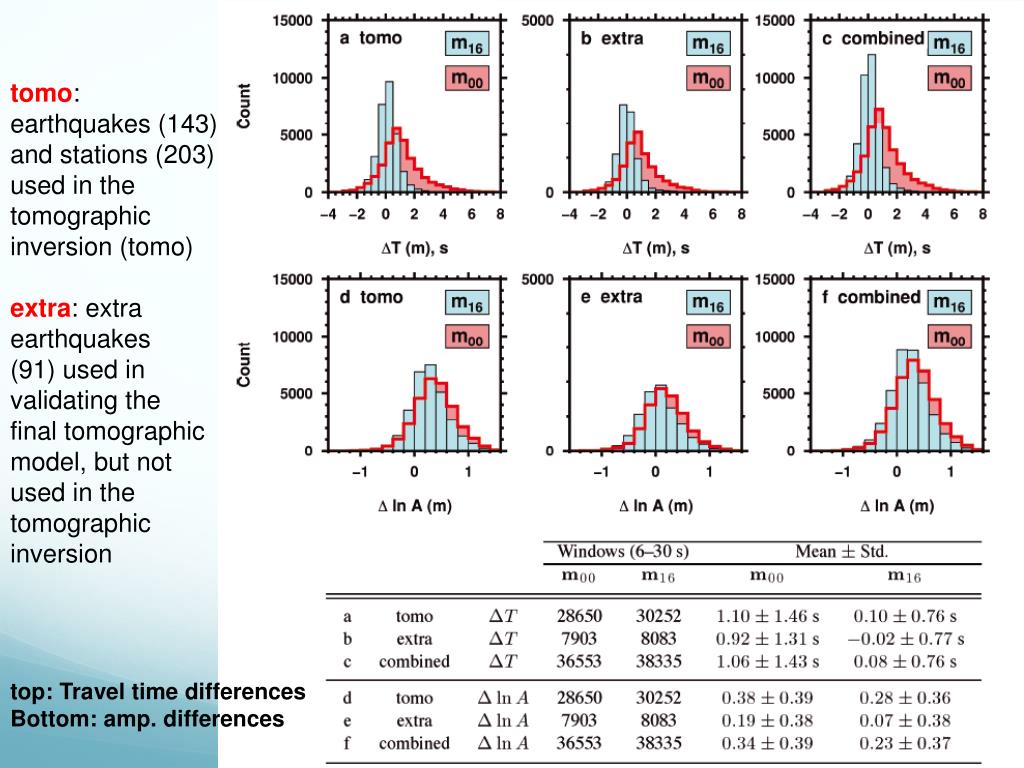

29. tomo: earthquakes (143) and stations (203) used in the tomographic inversion (tomo) extra: extra earthquakes (91) used in validating the final tomographic model, but not used in the tomographic inversion top: Travel time differences Bottom: amp. differences

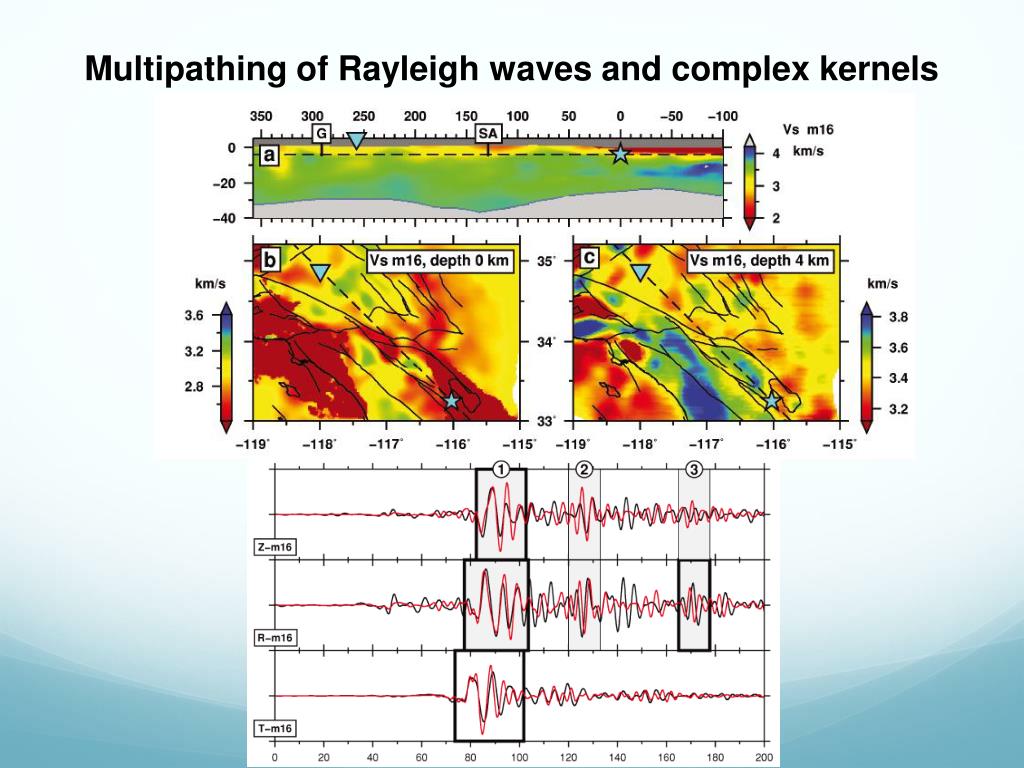

30. Multipathing of Rayleigh waves and complex kernels
