Chapter 11. Game Theory and the Tools of Strategic Business Analysis. Game Theory. Game theory applied to economics by John Von Neuman and Oskar Morgenstern Game theory allows us to analyze different social and economic situations. Games of Strategy Defined.

Télécharger la présentation
## Chapter 11

**An Image/Link below is provided (as is) to download presentation**
Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author.
Content is provided to you AS IS for your information and personal use only.
Download presentation by click this link.
While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server.
During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

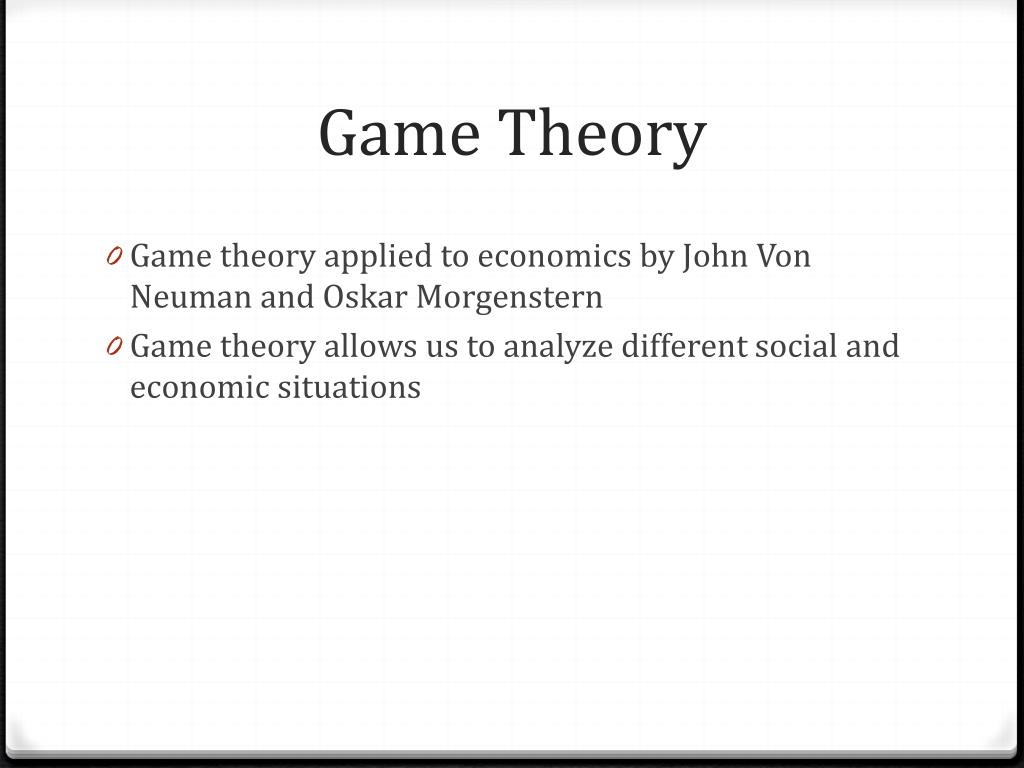

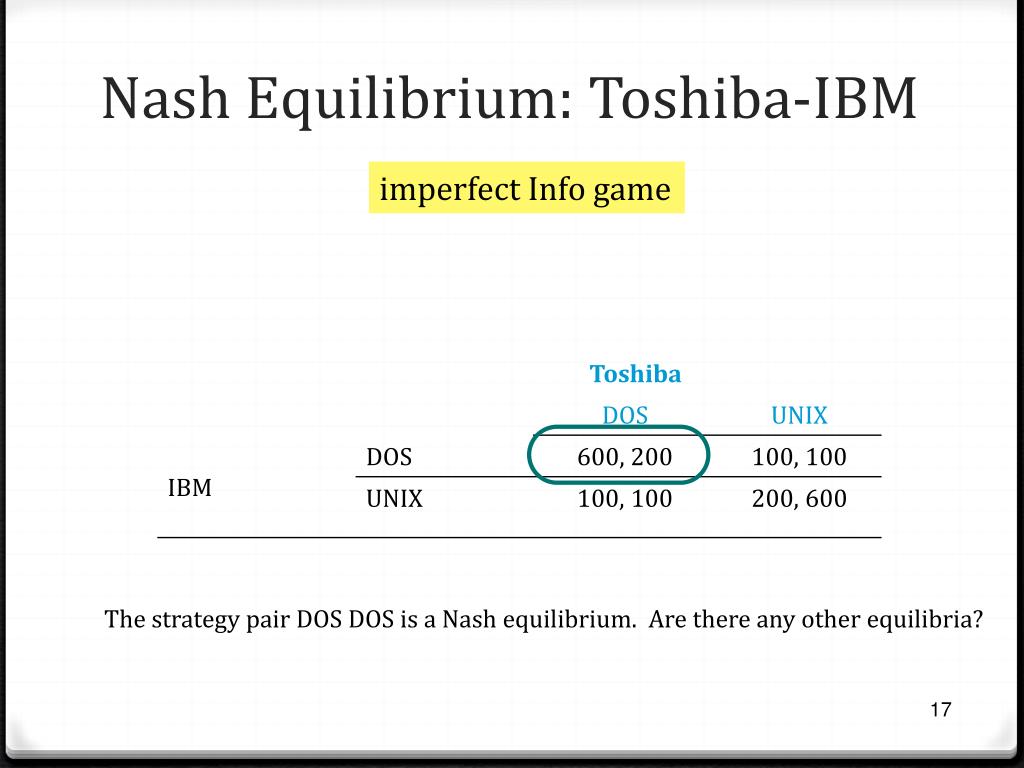

**Chapter 11**Game Theory and the Tools of Strategic Business Analysis**Game Theory**• Game theory applied to economics by John Von Neuman and Oskar Morgenstern • Game theory allows us to analyze different social and economic situations**Games of Strategy Defined**• Interaction between agents can be represented by a game, when the rewards to each depends on his actions as well as those of the other player • A game is comprised of • Number of players • Order to play • Choices • Chance • Information • Utility**Representing Games**• Game tree • Visual depiction • Extensive form game • Rules • Payoffs**Game Types**• Game of perfect information • Player – knows prior choices • All other players • Game of imperfect information • Player – doesn’t know prior choices**Strategy**• A player’s strategy is a plan of action for each of the other player’s possible actions**Game of perfect information**In extensive form IBM DOS UNIX Toshiba Toshiba 1 2 DOS UNIX DOS UNIX 3 200 600 600 200 100 100 100 100 Player 2 (Toshiba) knows whether player 1 (IBM) moved to the left or to the right. Therefore, player 2 knows at which of two nodes it is located**Strategies**• IBM: • DOS or UNIX • Toshiba • DOS if DOS and UNIX if UNIX • UNIX if DOS and DOS if UNIX • DOS if DOS and DOS if UNIX • UNIX if DOS and UNIX if UNIX**Game of perfect information**In normal form**Game of imperfect information**• Assume instead Toshiba doesn’t know what IBM chooses • The two firms move at the same time • Imperfect information • Need to modify the game accordingly**Game of imperfect information**In extensive form IBM Information set DOS UNIX • Toshiba’s strategies: • DOS • UNIX Toshiba Toshiba 1 2 DOS UNIX DOS UNIX 3 600 200 100 100 100 100 200 600 Toshiba does not know whether IBM moved to the left or to the right, i.e., whether it is located at node 2 or node 3.**Game of imperfect information**In normal form**Extensive form of the game of matching pennies**Child 1 Heads Tails Child 2 Child 2 Heads Tails Heads Tails +1 - 1 +1 - 1 - 1 +1 • 1 +1 Child 2 does not know whether child 1 chose heads or tails. Therefore, child 2’s information set contains two nodes.**Equilibrium for GamesNash Equilibrium**• Equilibrium • state/ outcome • Set of strategies • Players – don’t want to change behavior • Given - behavior of other players • Noncooperative games • No possibility of communication or binding commitments**Nash Equilibrium: Toshiba-IBM**imperfect Info game The strategy pair DOS DOS is a Nash equilibrium. Are there any other equilibria?**Dominant Strategy Equilibria**• Strategy A dominates strategy B if • A gives a higher payoff than B • No matter what opposing players do • Dominant strategy • Best for a player • No matter what opposing players do • Dominant-strategy equilibrium • All players - dominant strategies**Oligopoly Game**• Ford has a dominant strategy to price low • If GM prices high, Ford is better of pricing low • If GM prices low, Ford is better of pricing low**Oligopoly Game**• Similarly for GM • The Nash equilibrium is Price low, Price low**The Prisoners’ Dilemma**• Two people committed a crime and are being interrogated separately. • The are offered the following terms: • If both confessed, each spends 8 years in jail. • If both remained silent, each spends 1 year in jail. • If only one confessed, he will be set free while the other spends 20 years in jail.**Prisoners’ Dilemma**• Numbers represent years in jail • Each has a dominant strategy to confess • Silent is a dominated strategy • Nash equilibrium: Confess Confess**Prisoners’ Dilemma**• Each player has a dominant strategy • Equilibrium is Pareto dominated**Elimination of Dominated Strategies**• Dominated strategy • Strategy dominated by another strategy • We can solve games by eliminating dominated strategies • If elimination of dominated strategies results in a unique outcome, the game is said to be dominance solvable**Games with Many Equilibria**• Coordination game • Players - common interest: equilibrium • For multiple equilibria • Preferences - differ • At equilibrium: players - no change**Games with Many Equilibria**The strategy pair DOS DOS is a Nash equilibrium as well as UNIX, UNIX**Normal Form of Matching Numbers: coordination game with ten**Nash equilibria**Table 11.12**A game with no equilibria in pure strategies**Credible Threats**• An equilibrium refinement: • Analyzing games in normal form may result in equilibria that are less satisfactory • These equilibria are supported by a non credible threat • They can be eliminated by solving the game in extensive form using backward induction • This approach gives us an equilibrium that involve a credible threat • We refer to this equilibrium as a sub-game perfect Nash equilibrium.**Non credible threats: IBM-Toshiba**In normal form • Three Nash equilibria • Some involve non credible threats. • Example IBM playing UNIX and Toshiba playing UNIX regardless: • Toshiba’s threat is non credible**Backward induction**IBM DOS UNIX Toshiba Toshiba 1 2 DOS UNIX DOS UNIX 3 100 100 600 200 100 100 200 600**Subgame perfect Nash Equilibrium**• Subgame perfect Nash equilibrium is • IBM: DOS • Toshiba: if DOS play DOS and if UNIX play UNIX • Toshiba’s threat is credible • In the interest of Toshiba to execute its threat**Rotten kid game**• The kid either goes to Aunt Sophie’s house or refuses to go • If the kid refuses, the parent has to decide whether to punish him or relent**Rotten kid game in extensive form**Kid Go to Aunt Sophie’s House Refuse Parent 1 2 Punish if refuse Relent if refuse -1 -1 2 0 1 1 • The sub game perfect Nash equilibrium is: Refuse and Relent if refuse • The other Nash equilibrium, Go and Punish if refuse, relies on a non credible threat by the parent
