LU Decomposition: Efficient Matrix Inversion and System Solving Techniques

Chapter 10 explores LU decomposition, a method that improves the efficiency of matrix inversion by separating the time-consuming elimination process from the manipulation of the right-hand side. It presents a systematic way to solve systems of equations using forward and back substitution, starting from a decomposed lower triangular matrix (L) and an upper triangular matrix (U). This method retains the same computational complexity as Gaussian elimination (in terms of floating-point operations) while significantly saving computation time. The chapter provides clear examples and explanations of this powerful technique.

kathie
Télécharger la présentation

LU Decomposition: Efficient Matrix Inversion and System Solving Techniques

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. Chapter 10 Chapter 10

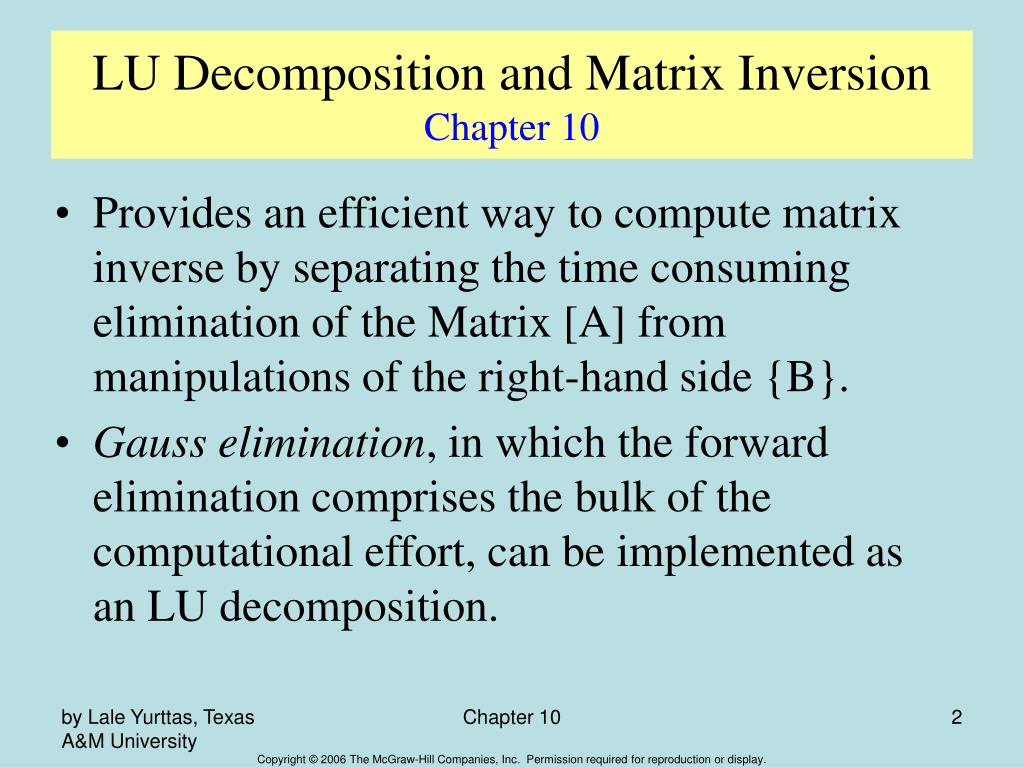

  2. LU Decomposition and Matrix InversionChapter 10 • Provides an efficient way to compute matrix inverse by separating the time consuming elimination of the Matrix [A] from manipulations of the right-hand side {B}. • Gauss elimination, in which the forward elimination comprises the bulk of the computational effort, can be implemented as an LU decomposition. Chapter 10

  3. If L- lower triangular matrix U- upper triangular matrix Then, [A]{X}={B} can be decomposed into two matrices [L] and [U] such that [L][U]=[A] [L][U]{X}={B} Similar to first phase of Gauss elimination, consider [U]{X}={D} [L]{D}={B} • [L]{D}={B} is used to generate an intermediate vector {D} by forward substitution • Then, [U]{X}={D} is used to get {X} by back substitution. Chapter 10

  4. Fig.10.1 Chapter 10

  5. LU decomposition • requires the same total FLOPS as for Gauss elimination. • Saves computing time by separating time-consuming elimination step from the manipulations of the right hand side. • Provides efficient means to compute the matrix inverse Chapter 10
