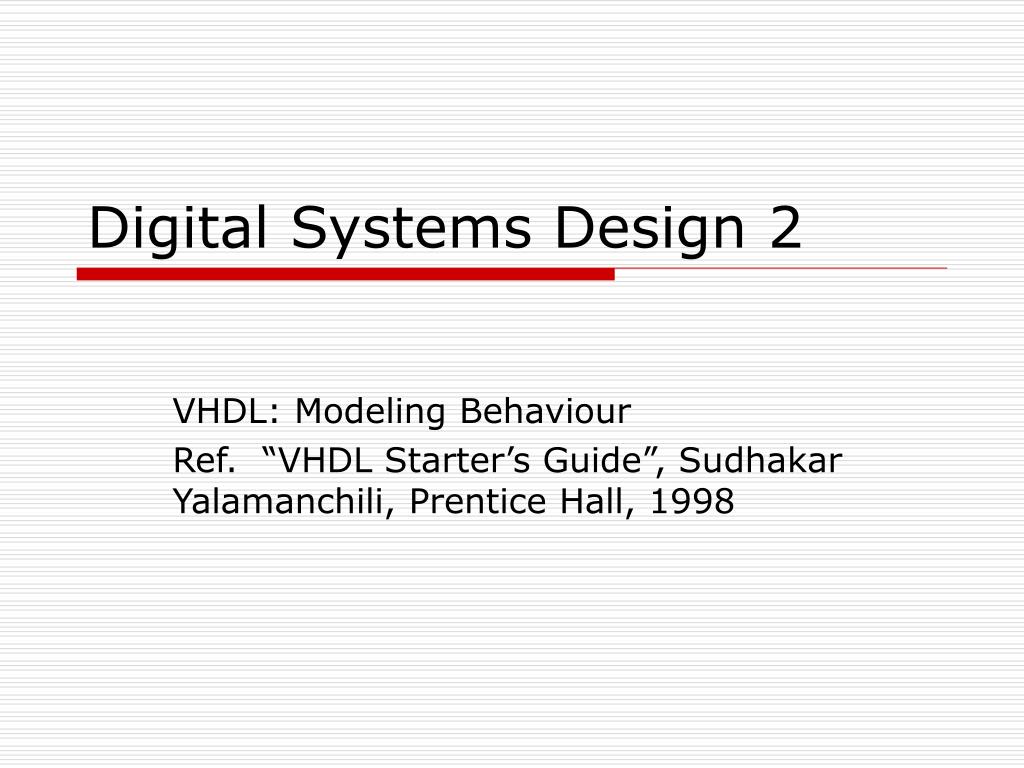

  1. Digital Systems Design 2 VHDL: Modeling Behaviour Ref. “VHDL Starter’s Guide”, Sudhakar Yalamanchili, Prentice Hall, 1998

  2. Modeling Behavior with VHDL • Presented VHDL constructs (e.g., CSAs) are limited in modeling only certain class of digital components. In order to be able to describe and model a larger set of digital components a more powerful language construct is needed. • The process construct of VHDL provides the basis for these descriptions. • It is a construct that can model: • the behavior of components that are much more complex than delay elements through CSA constructs, and • systems at higher level of abstraction. Veton Këpuska

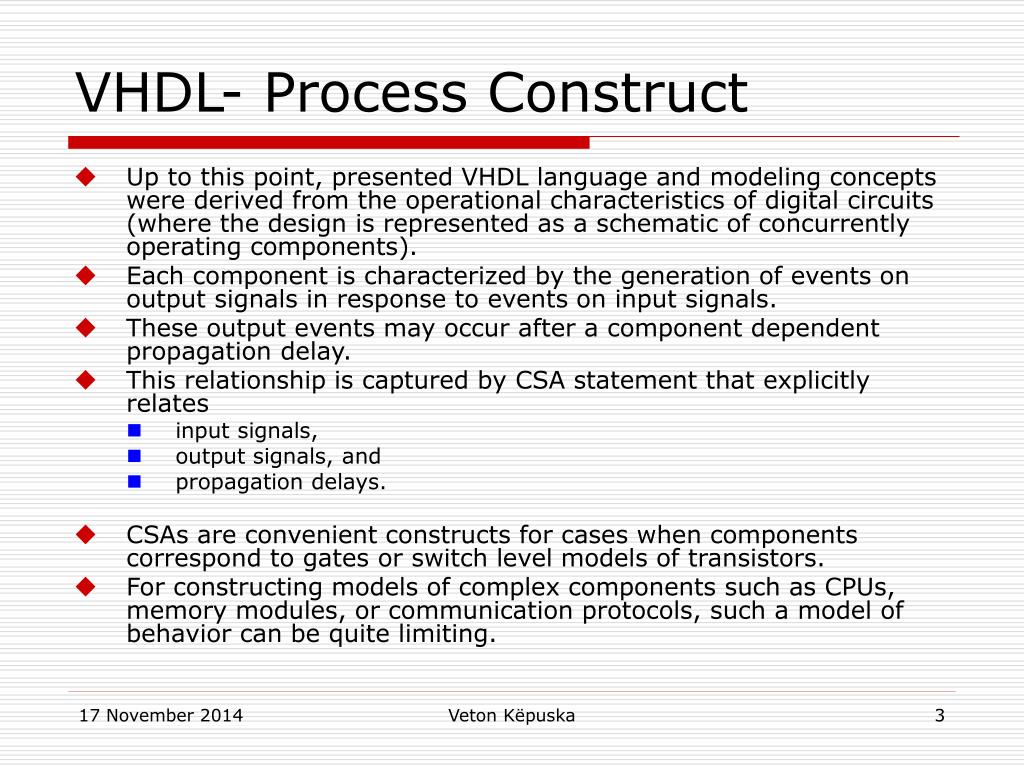

  3. VHDL- Process Construct • Up to this point, presented VHDL language and modeling concepts were derived from the operational characteristics of digital circuits (where the design is represented as a schematic of concurrently operating components). • Each component is characterized by the generation of events on output signals in response to events on input signals. • These output events may occur after a component dependent propagation delay. • This relationship is captured by CSA statement that explicitly relates • input signals, • output signals, and • propagation delays. • CSAs are convenient constructs for cases when components correspond to gates or switch level models of transistors. • For constructing models of complex components such as CPUs, memory modules, or communication protocols, such a model of behavior can be quite limiting. Veton Këpuska

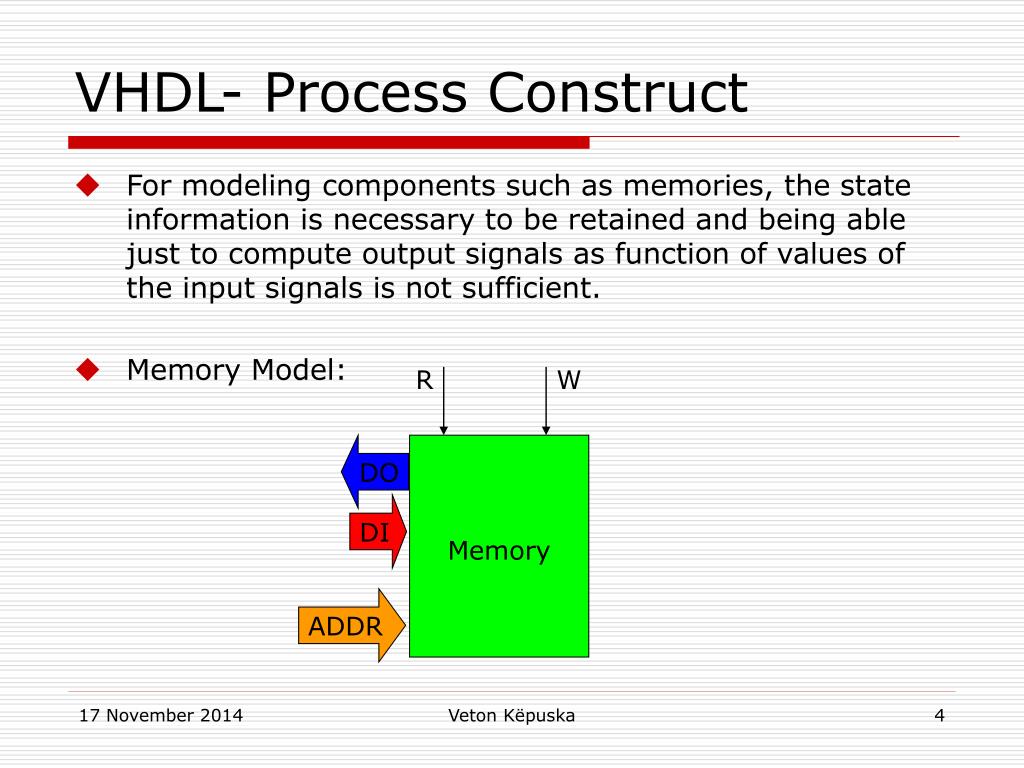

  4. VHDL- Process Construct • For modeling components such as memories, the state information is necessary to be retained and being able just to compute output signals as function of values of the input signals is not sufficient. • Memory Model: R W DO DI Memory ADDR Veton Këpuska

  5. VHDL Process example: Memory Model • Memory can be implemented using conventional sequential programming constructs: • Memory can be implemented as an array. • Address value can be used to index this array. • Depending on the value of the control signals one can determine read from array or write into array operation. This behavior can be realized in VHDL by using sequential statements in the process construct. Veton Këpuska

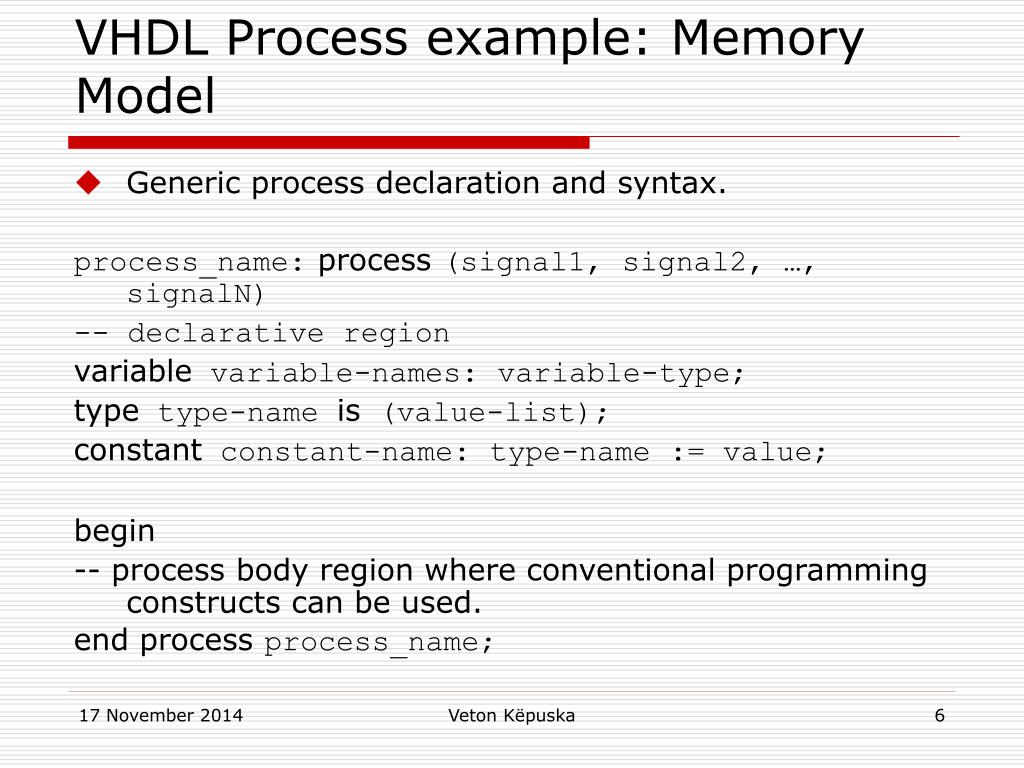

  6. VHDL Process example: Memory Model • Generic process declaration and syntax. process_name: process (signal1, signal2, …, signalN) -- declarative region variable variable-names: variable-type; type type-name is (value-list); constant constant-name: type-name := value; begin -- process body region where conventional programming constructs can be used. end process process_name; Veton Këpuska

  7. library IEEE; use IEEE.std_logic_1164.all; use WORK.std_logic_arith.all; entity memory is port (address, write_data: in std_logic_vector(31 downto 0); MemWrite, MemRead: in std_logic; read_data: out std_logic_vector(31 downto 0) end memory; architecture memory_func of memory is type mem_array is array(0 to 7) of std_logic_vector(31 downto 0); begin -- for architecture mem_process: process (address, write_data) variable data_mem: mem_array := ( to_stdlogicvector(X”00000000”), to_stdlogicvector(X”00000000”), to_stdlogicvector(X”00000000”), to_stdlogicvector(X”00000000”), to_stdlogicvector(X”00000000”), to_stdlogicvector(X”00000000”), to_stdlogicvector(X”00000000”), to_stdlogicvector(X”00000000”)); variable addr: integer; begin -- for process -- the following conversion function is in WORK.std_logic_arith package addr := to_integer (address (2 downto 0)); if MemWrite = ‘1’ then data_mem(addr) := write_data; elsif MemRead = ‘1’ then read_data <= data_mem(addr) after 10 ns; end if; end process mem_process; end memory_func; VHDL – Memory Example Veton Këpuska

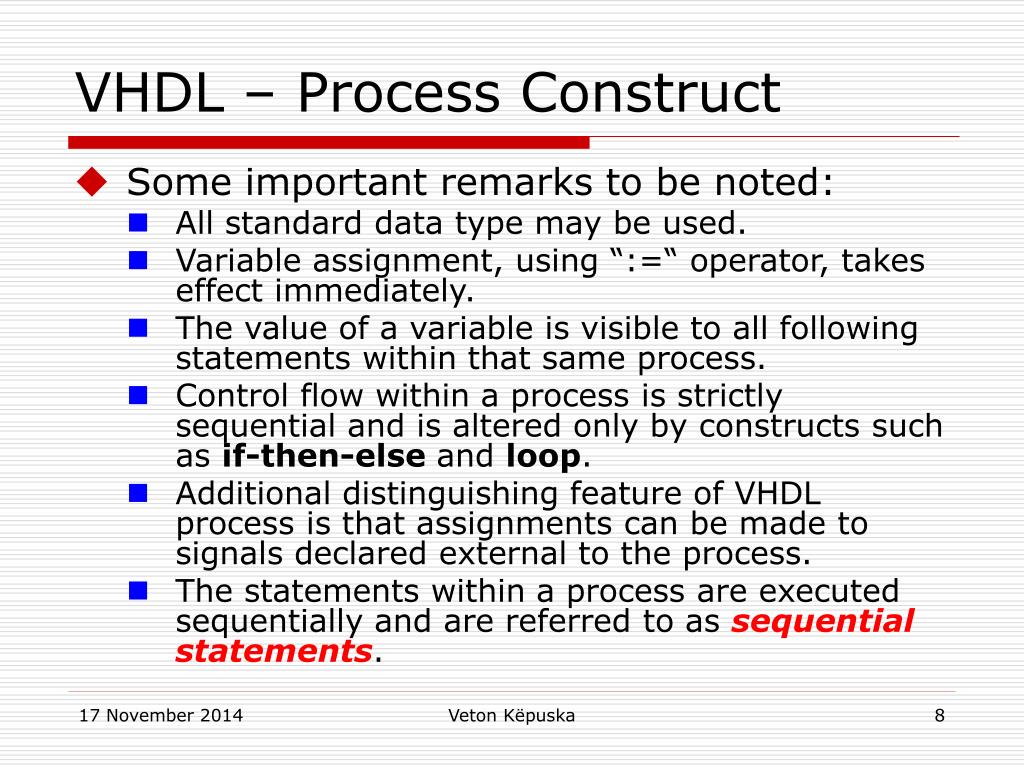

  8. VHDL – Process Construct • Some important remarks to be noted: • All standard data type may be used. • Variable assignment, using “:=“ operator, takes effect immediately. • The value of a variable is visible to all following statements within that same process. • Control flow within a process is strictly sequential and is altered only by constructs such as if-then-else and loop. • Additional distinguishing feature of VHDL process is that assignments can be made to signals declared external to the process. • The statements within a process are executed sequentially and are referred to as sequential statements. Veton Këpuska

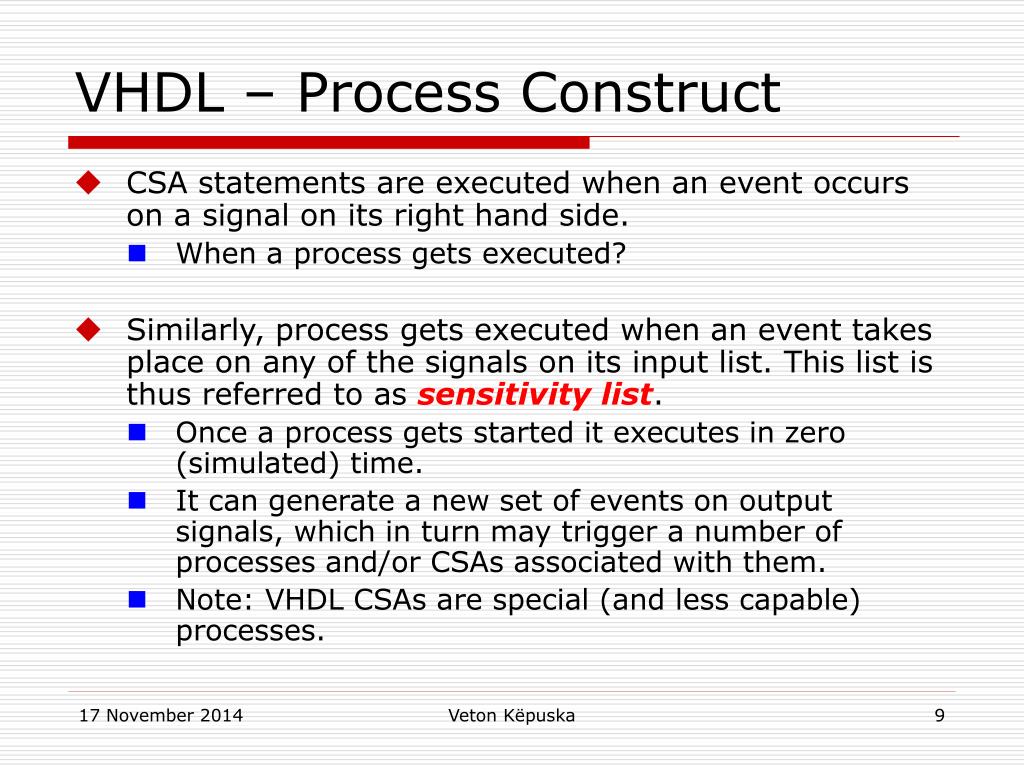

  9. VHDL – Process Construct • CSA statements are executed when an event occurs on a signal on its right hand side. • When a process gets executed? • Similarly, process gets executed when an event takes place on any of the signals on its input list. This list is thus referred to as sensitivity list. • Once a process gets started it executes in zero (simulated) time. • It can generate a new set of events on output signals, which in turn may trigger a number of processes and/or CSAs associated with them. • Note: VHDL CSAs are special (and less capable) processes. Veton Këpuska

  10. Syntax of VHDL if statements: if boolean-expression then sequential-statement end if; if boolean-expression then sequential-statement else sequential-statement end if; if boolean-expression then sequential-statement elsif boolean-expression then sequential-statement … elsif boolean-expression then sequential-statement else sequential-statement end if; Programming Constructs Veton Këpuska

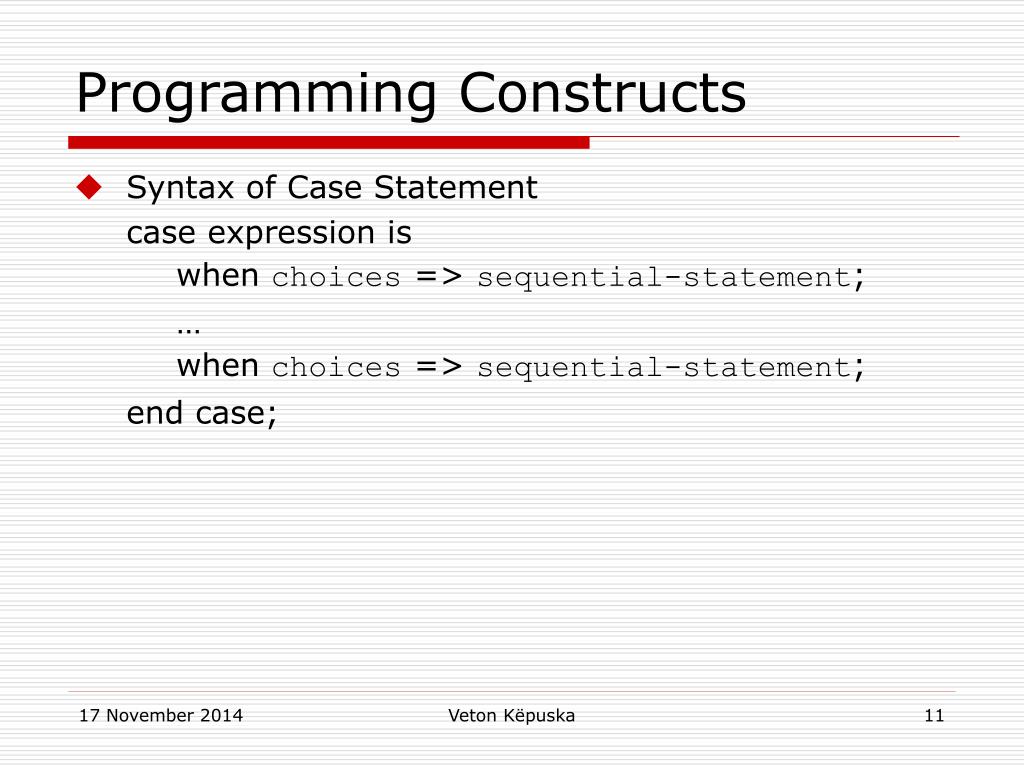

  11. Programming Constructs • Syntax of Case Statement case expression is when choices => sequential-statement; … when choices => sequential-statement; end case; Veton Këpuska

  12. Concurrent Processes and the Case Statement library IEEE; use IEEE.std_logic_1164.all; entity half_adder is port (a,b: in std_logic; sum,carry: out std_logic end half_adder; architecture half_adder_func of half_adder is begin sum_process: process(a,b) begin if (a=b) then sum <= ‘0’ after 5 ns; else sum <= (a or b) after 5 ns; endif end process sum_process; carry_process: process(a,b) begin case a is when ‘0’ => carry <= a after 5 ns; when ‘1’ => carry <= b after 5 ns; when others => carry <= ‘X’ after 5 ns; end case; end process; end half_adder_func; Programming Constructs Veton Këpuska

  13. Programming Constructs • Loop construct while boolean-expression loop sequential-statement; … sequential-statement; end loop; • For construct for boolean-expression in range loop sequential-statement; … sequential-statement; end loop; Veton Këpuska

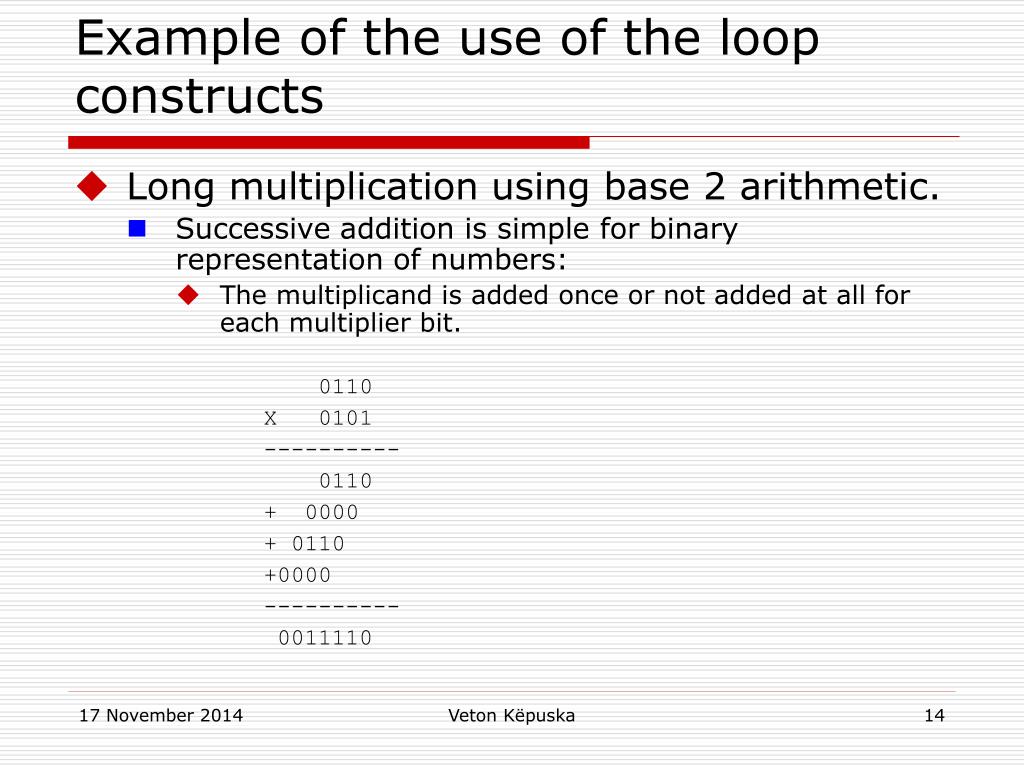

  14. Example of the use of the loop constructs • Long multiplication using base 2 arithmetic. • Successive addition is simple for binary representation of numbers: • The multiplicand is added once or not added at all for each multiplier bit. 0110 X 0101 ---------- 0110 + 0000 + 0110 +0000 ---------- 0011110 Veton Këpuska

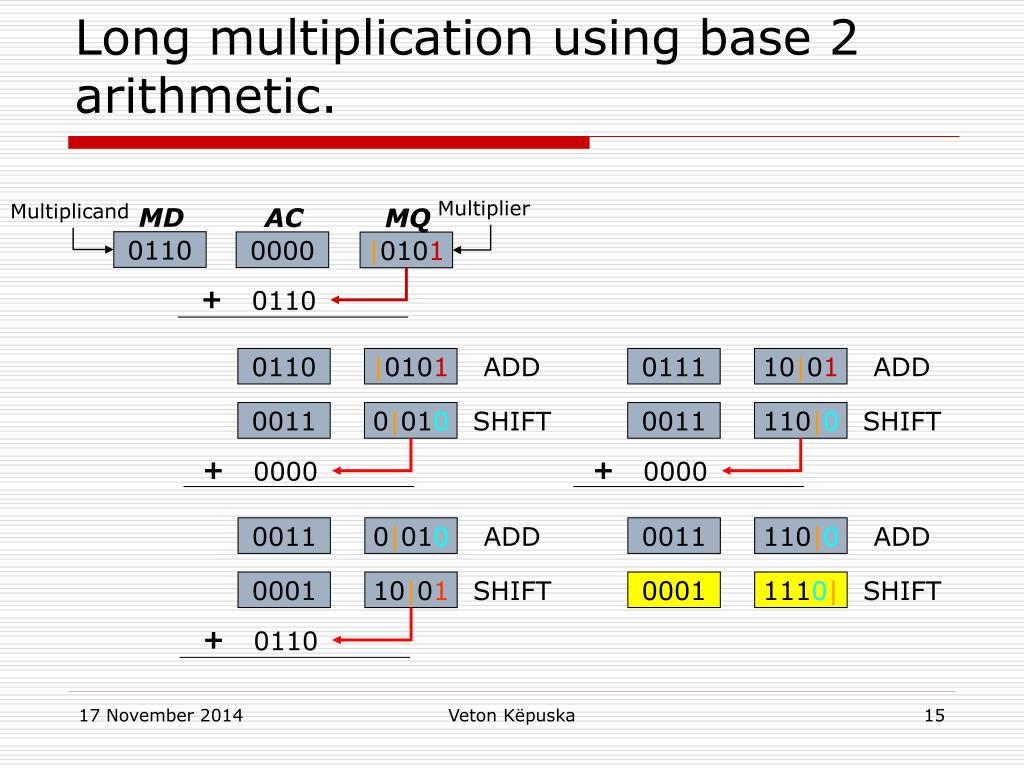

  15. Long multiplication using base 2 arithmetic. Multiplier Multiplicand MD AC MQ 0110 0000 |0101 + 0110 0110 |0101 ADD 0111 10|01 ADD 0011 0|010 SHIFT 0011 110|0 SHIFT + + 0000 0000 0011 0|010 ADD 0011 110|0 ADD 0001 10|01 SHIFT 0001 1110| SHIFT + 0110 Veton Këpuska

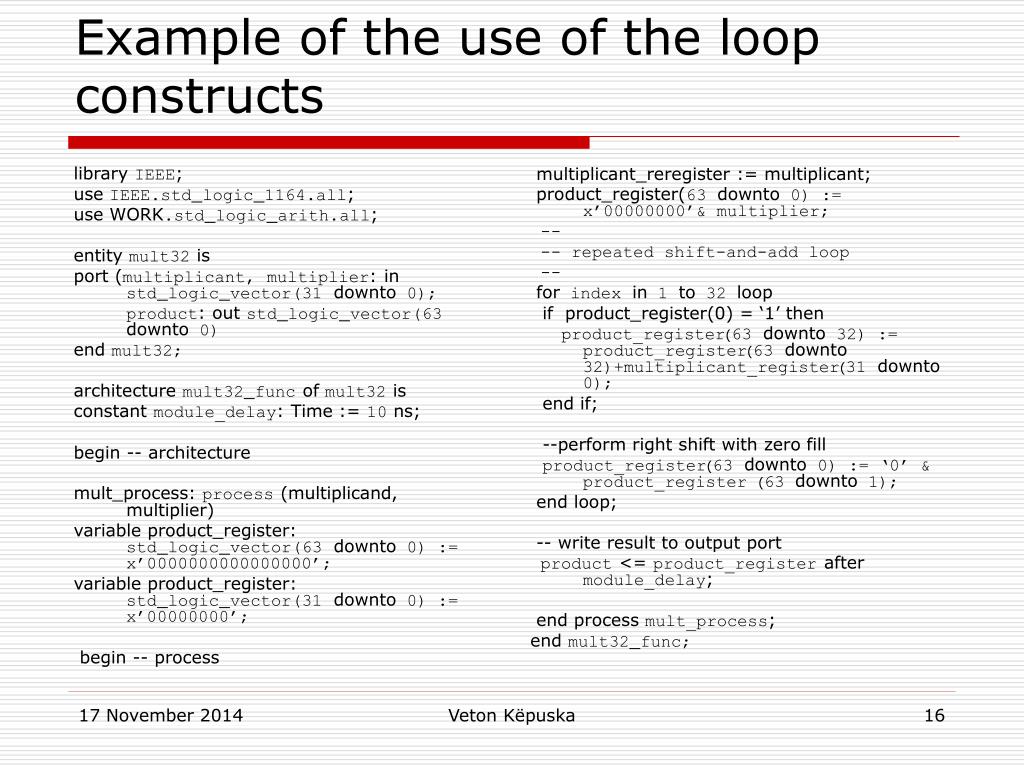

  16. library IEEE; use IEEE.std_logic_1164.all; use WORK.std_logic_arith.all; entity mult32 is port (multiplicant, multiplier: in std_logic_vector(31 downto 0); product: out std_logic_vector(63 downto 0) end mult32; architecture mult32_func of mult32 is constant module_delay: Time := 10 ns; begin -- architecture mult_process: process (multiplicand, multiplier) variable product_register: std_logic_vector(63 downto 0) := x’0000000000000000’; variable product_register: std_logic_vector(31 downto 0) := x’00000000’; begin -- process multiplicant_reregister := multiplicant; product_register(63 downto 0) := x’00000000’& multiplier; -- -- repeated shift-and-add loop -- for index in 1 to 32 loop if product_register(0) = ‘1’ then product_register(63 downto 32) := product_register(63 downto 32)+multiplicant_register(31 downto 0); end if; --perform right shift with zero fill product_register(63 downto 0) := ‘0’ & product_register (63 downto 1); end loop; -- write result to output port product <= product_register after module_delay; end process mult_process; end mult32_func; Example of the use of the loop constructs Veton Këpuska

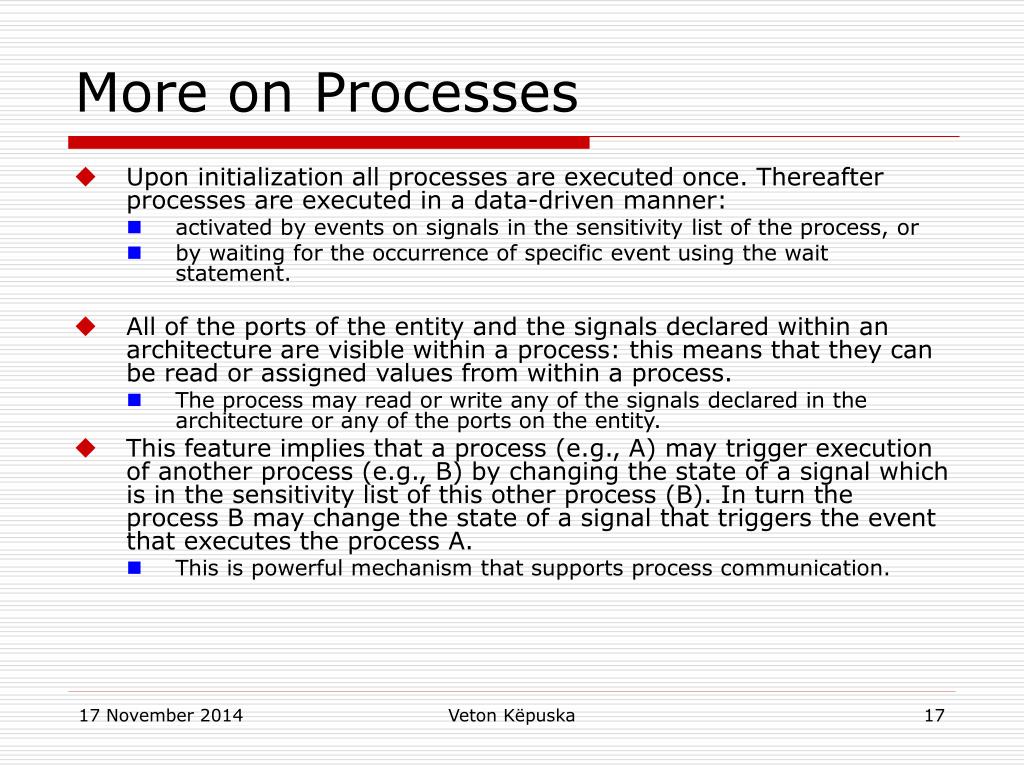

  17. More on Processes • Upon initialization all processes are executed once. Thereafter processes are executed in a data-driven manner: • activated by events on signals in the sensitivity list of the process, or • by waiting for the occurrence of specific event using the wait statement. • All of the ports of the entity and the signals declared within an architecture are visible within a process: this means that they can be read or assigned values from within a process. • The process may read or write any of the signals declared in the architecture or any of the ports on the entity. • This feature implies that a process (e.g., A) may trigger execution of another process (e.g., B) by changing the state of a signal which is in the sensitivity list of this other process (B). In turn the process B may change the state of a signal that triggers the event that executes the process A. • This is powerful mechanism that supports process communication. Veton Këpuska

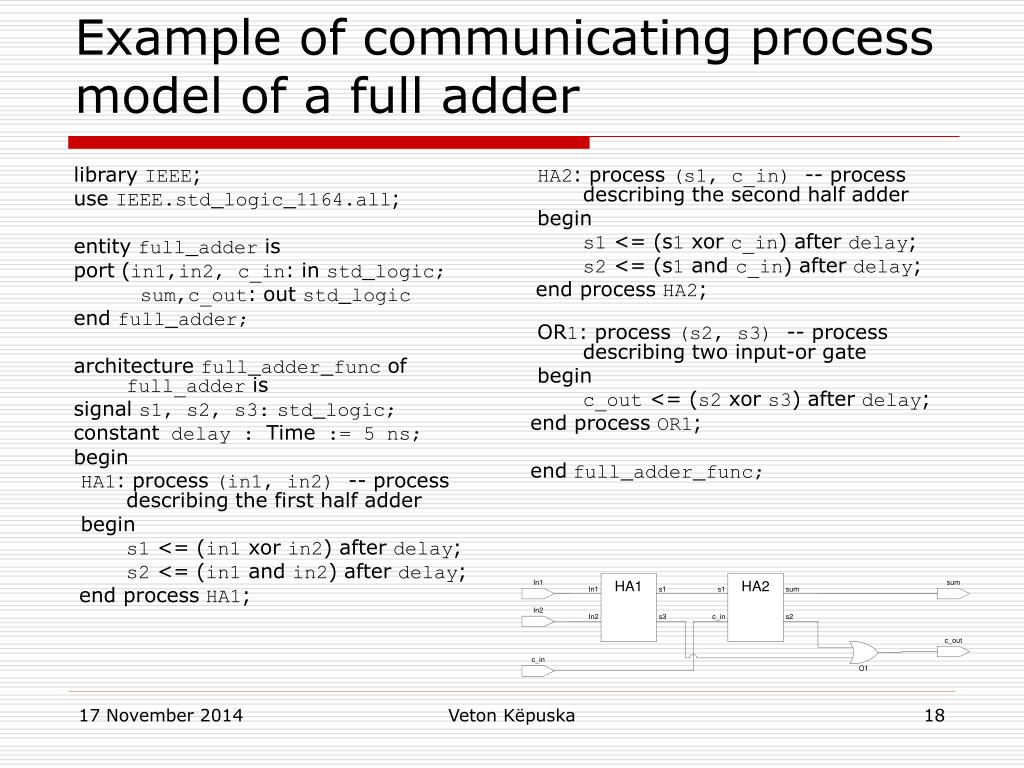

  18. library IEEE; use IEEE.std_logic_1164.all; entity full_adder is port (in1,in2, c_in: in std_logic; sum,c_out: out std_logic end full_adder; architecture full_adder_func of full_adder is signal s1, s2, s3:std_logic; constant delay : Time := 5 ns; begin HA1: process (in1, in2) -- process describing the first half adder begin s1 <= (in1 xor in2) after delay; s2 <= (in1 and in2) after delay; end process HA1; HA2: process (s1, c_in) -- process describing the second half adder begin s1 <= (s1 xor c_in) after delay; s2 <= (s1 and c_in) after delay; end process HA2; OR1: process (s2, s3) -- process describing two input-or gate begin c_out <= (s2 xor s3) after delay; end process OR1; endfull_adder_func; Example of communicating process model of a full adder Veton Këpuska

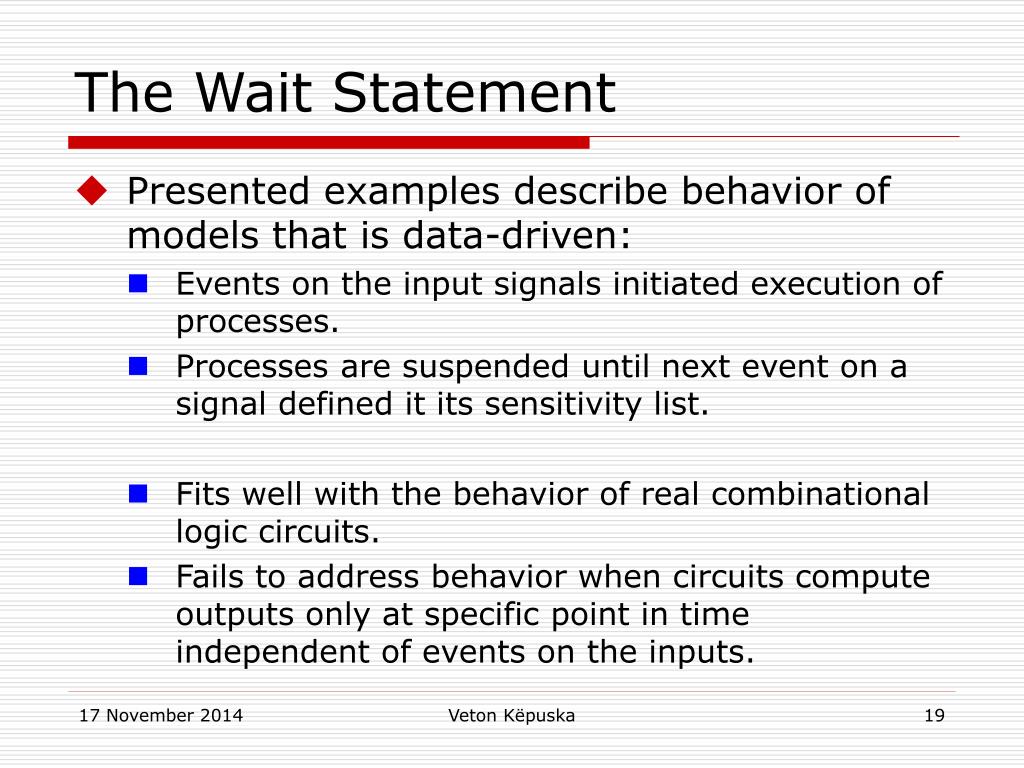

  19. The Wait Statement • Presented examples describe behavior of models that is data-driven: • Events on the input signals initiated execution of processes. • Processes are suspended until next event on a signal defined it its sensitivity list. • Fits well with the behavior of real combinational logic circuits. • Fails to address behavior when circuits compute outputs only at specific point in time independent of events on the inputs. Veton Këpuska

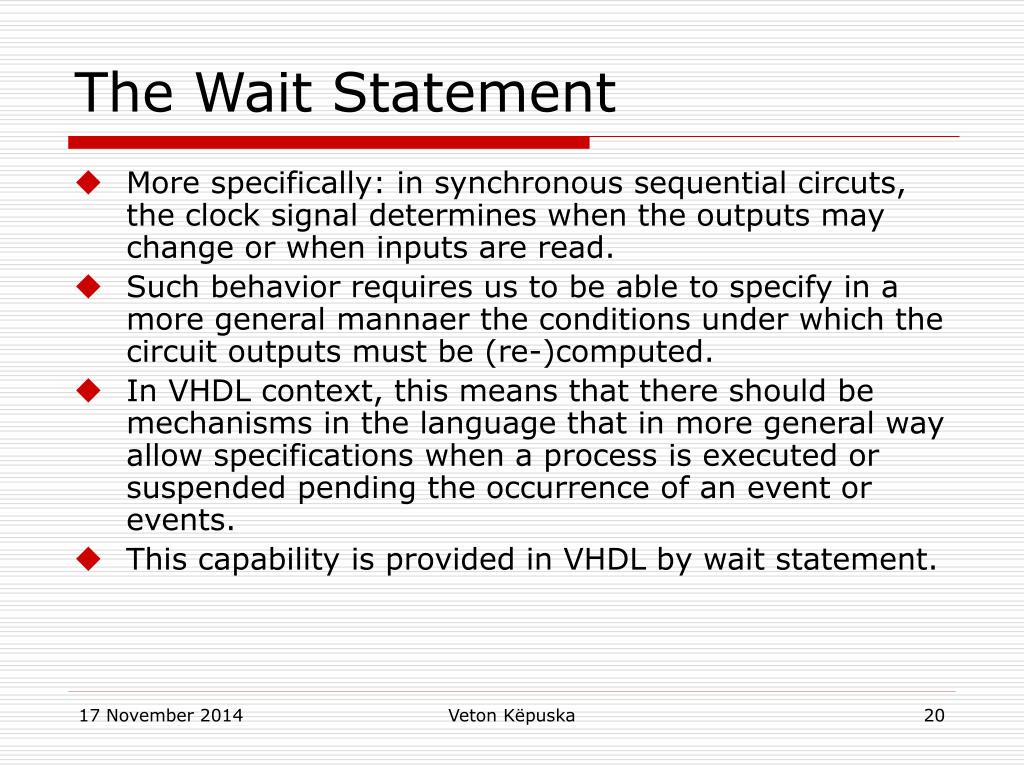

  20. The Wait Statement • More specifically: in synchronous sequential circuts, the clock signal determines when the outputs may change or when inputs are read. • Such behavior requires us to be able to specify in a more general mannaer the conditions under which the circuit outputs must be (re-)computed. • In VHDL context, this means that there should be mechanisms in the language that in more general way allow specifications when a process is executed or suspended pending the occurrence of an event or events. • This capability is provided in VHDL by wait statement. Veton Këpuska

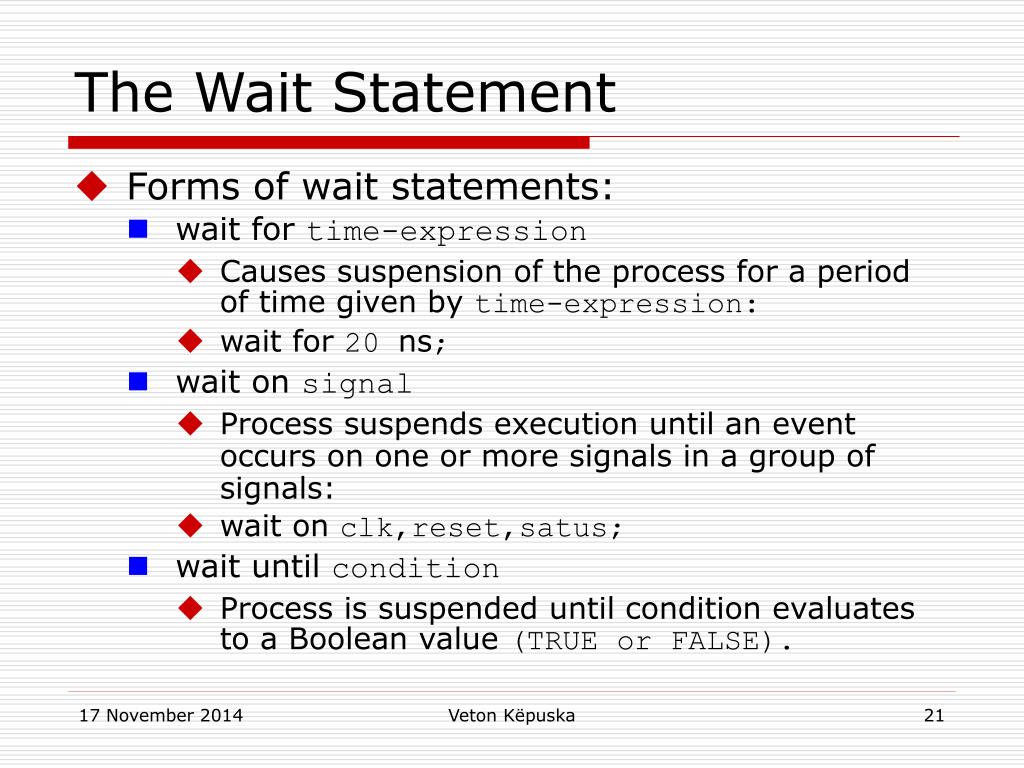

  21. The Wait Statement • Forms of wait statements: • wait for time-expression • Causes suspension of the process for a period of time given by time-expression: • wait for 20 ns; • wait on signal • Process suspends execution until an event occurs on one or more signals in a group of signals: • wait on clk,reset,satus; • wait until condition • Process is suspended until condition evaluates to a Boolean value (TRUE or FALSE). Veton Këpuska

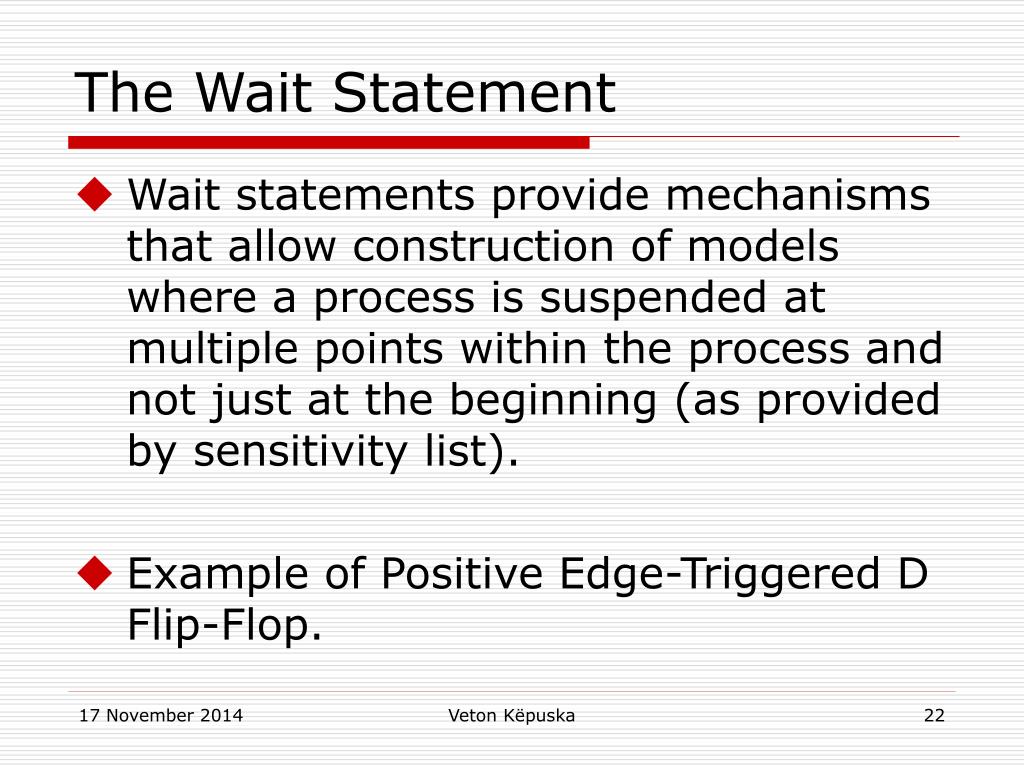

  22. The Wait Statement • Wait statements provide mechanisms that allow construction of models where a process is suspended at multiple points within the process and not just at the beginning (as provided by sensitivity list). • Example of Positive Edge-Triggered D Flip-Flop. Veton Këpuska

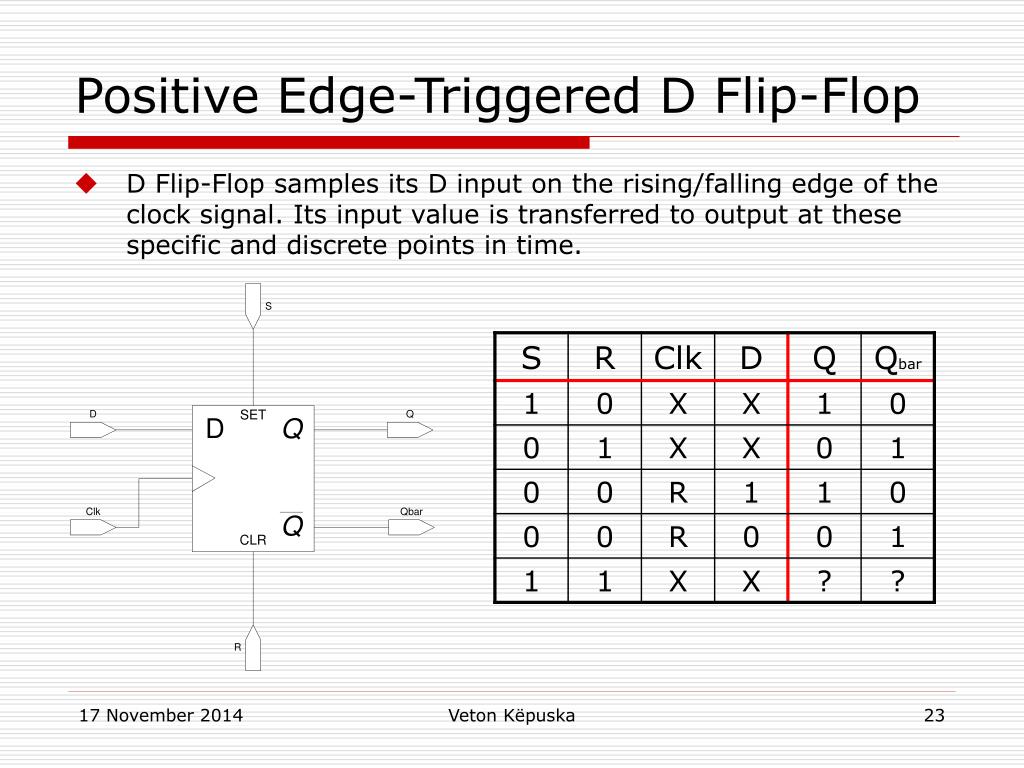

  23. Positive Edge-Triggered D Flip-Flop • D Flip-Flop samples its D input on the rising/falling edge of the clock signal. Its input value is transferred to output at these specific and discrete points in time. Veton Këpuska

  24. library IEEE; use IEEE.std_logic_1164.all; entity asynch_dff is port (R,S,D,Clk: in std_logic; Q,Qbar: out std_logic end asynch_dff; architecture asynch_dff_func of asynch_dff is begin Dff_process: process (R,S,Clk) begin if (R = ‘1’) then Q <= ‘0’ after 5 ns; Qbar <= ‘1’ after 5 ns; elsif (S = ‘1’) then Q <= ‘1’ after 5 ns; Qbar <= ‘0’ after 5 ns; elsif (Clk’eventand Clk=‘1’) then Q <= D after 5 ns; Qbar <= (not D) after 5 ns; endif; end process Dff_process; end asynch_dff_func; D Flip-Flop with Asynchronous Set and Reset inputs Veton Këpuska

  25. RQ – request signal ACK – acknowledgment transmit_data - Transmit data signal Following example illustrates The use of wait statement to control asynchronous communication between processes. The ability to suspend the execution of a process at multiple points within the VHDL code. 4-phase handshake Example of Asynchronous Communication Veton Këpuska

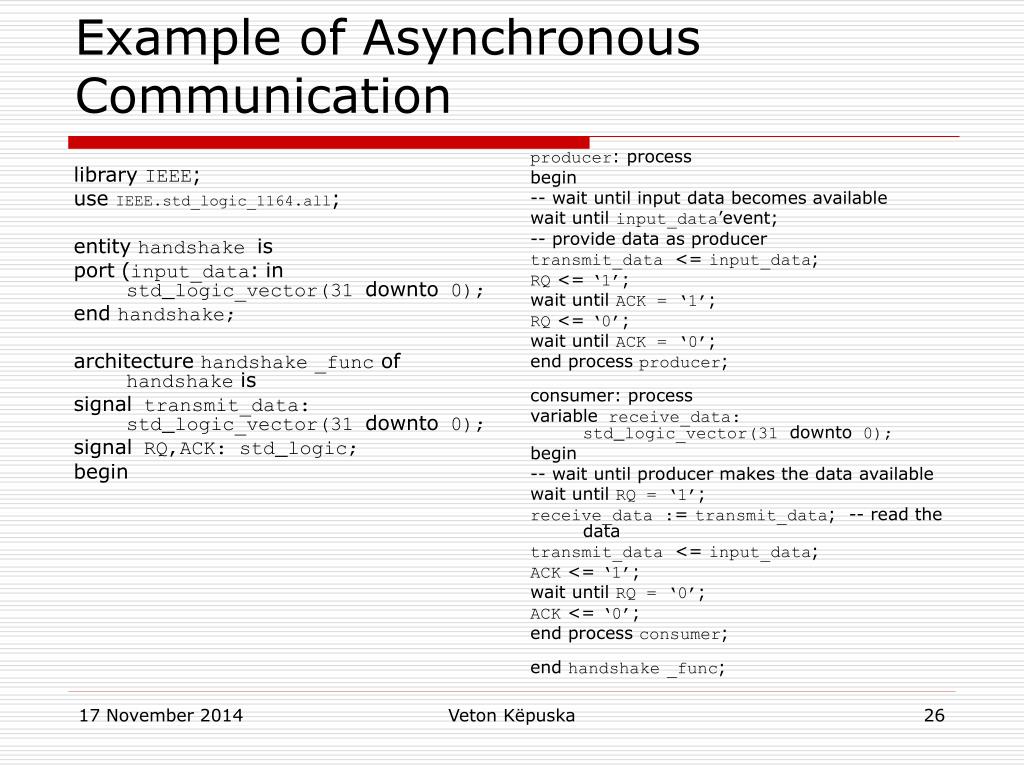

  26. library IEEE; use IEEE.std_logic_1164.all; entity handshake is port (input_data: in std_logic_vector(31 downto 0); end handshake; architecture handshake_func of handshake is signal transmit_data: std_logic_vector(31 downto 0); signal RQ,ACK: std_logic; begin producer: process begin -- wait until input data becomes available wait until input_data’event; -- provide data as producer transmit_data <= input_data; RQ <= ‘1’; wait until ACK = ‘1’; RQ <= ‘0’; wait until ACK = ‘0’; end process producer; consumer: process variable receive_data: std_logic_vector(31 downto 0); begin -- wait until producer makes the data available wait until RQ = ‘1’; receive_data := transmit_data; -- read the data transmit_data <= input_data; ACK <= ‘1’; wait until RQ = ‘0’; ACK <= ‘0’; end process consumer; end handshake_func; Example of Asynchronous Communication Veton Këpuska

  27. Attributes • D flip-flop example introduced the idea of an attribute of a signal. Attributes can be used to return various types of information about the signal. • Example: • Determining if an event has occurred, • Amount of time that has elapsed since the last event occurred on the signal: • Clk’last_event • etc. • In effect, when simulator executes the above statement a function call occurs that checks this property. This function returns the time since the last event occurred on signal clk. Such attributes are referred to as function attributes. Veton Këpuska

  28. Some useful Function Attributes Veton Këpuska

  29. Attributes • There are numerous other classes of attributes. Only one additional one will be described in this section: value attribute. • These attributes return values. Veton Këpuska

  30. Some useful Value Attributes Veton Këpuska

  31. Attributes • Example 1: Memory model described earlier contains the definition of a new type as follows: type mem_array is array(0 to 7) of std_logic_vector(31 downto 0); • mem_array’left = 0; • mem_array’ascending = true; • mem_array’length = 8; Veton Këpuska

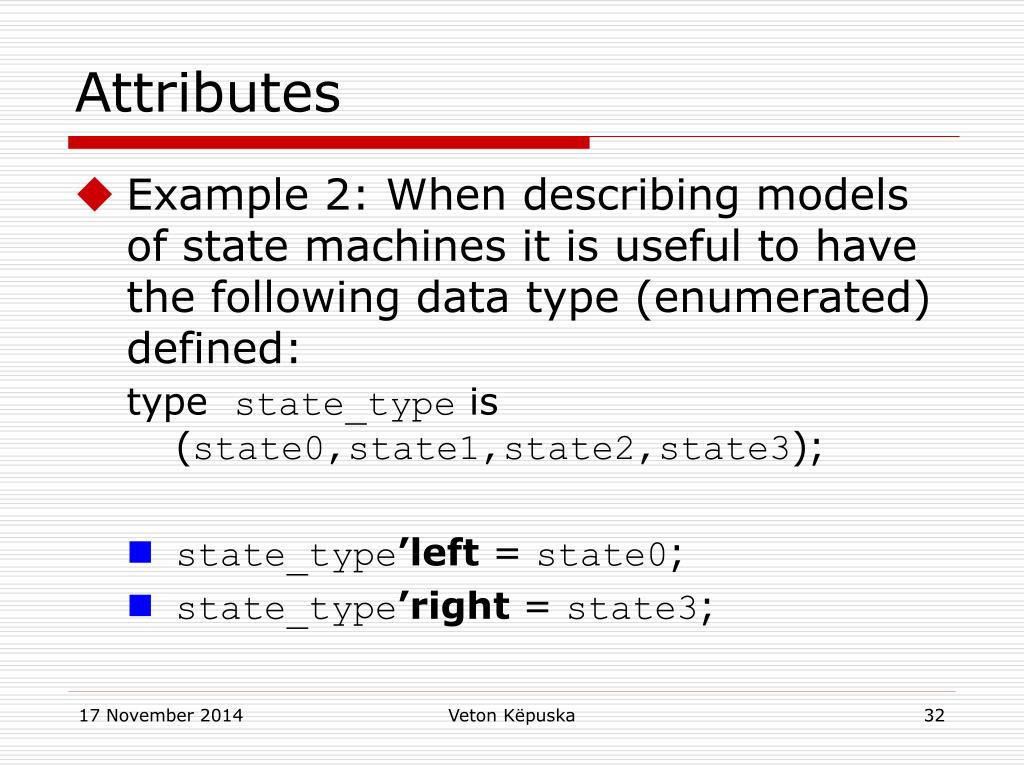

  32. Attributes • Example 2: When describing models of state machines it is useful to have the following data type (enumerated) defined: type state_type is (state0,state1,state2,state3); • state_type’left = state0; • state_type’right = state3; Veton Këpuska

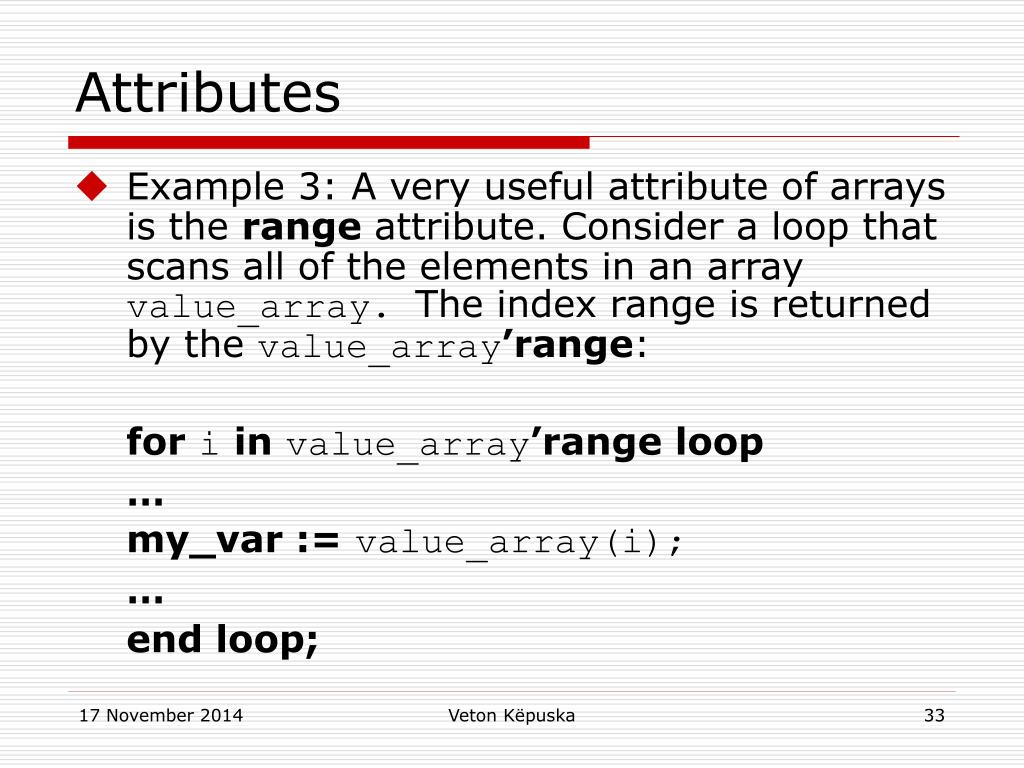

  33. Attributes • Example 3: A very useful attribute of arrays is the range attribute. Consider a loop that scans all of the elements in an array value_array. The index range is returned by the value_array’range: foriinvalue_array’range loop … my_var := value_array(i); … end loop; Veton Këpuska

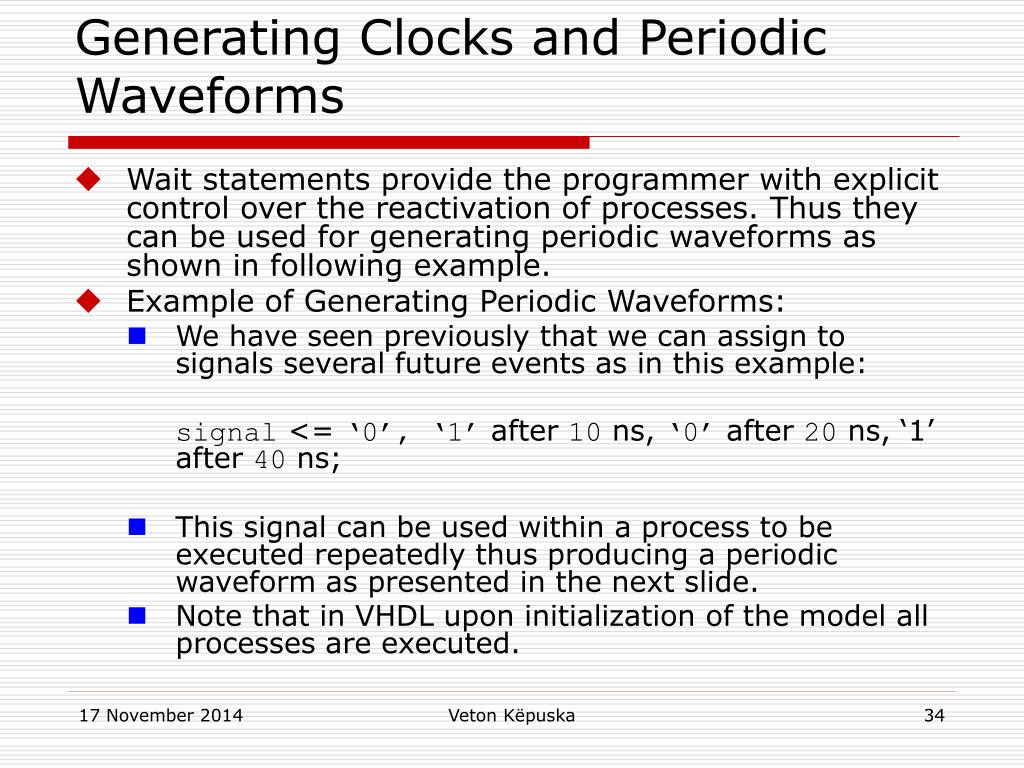

  34. Generating Clocks and Periodic Waveforms • Wait statements provide the programmer with explicit control over the reactivation of processes. Thus they can be used for generating periodic waveforms as shown in following example. • Example of Generating Periodic Waveforms: • We have seen previously that we can assign to signals several future events as in this example: signal <= ‘0’, ‘1’ after 10 ns, ‘0’ after 20 ns, ‘1’ after 40 ns; • This signal can be used within a process to be executed repeatedly thus producing a periodic waveform as presented in the next slide. • Note that in VHDL upon initialization of the model all processes are executed. Veton Këpuska

  35. Generating Clocks and Periodic Waveforms library IEEE; use IEEE.std_logic_1164.all; entity periodic is port (Z: out std_logic); end periodic; architecture periodic_func of periodic is begin process begin Z <= ‘0’, ‘1’ after 10 ns, ‘0’ after 20 ns, ‘1’ after 40 ns; wait for 50 ns; end process; end periodic_func; Veton Këpuska

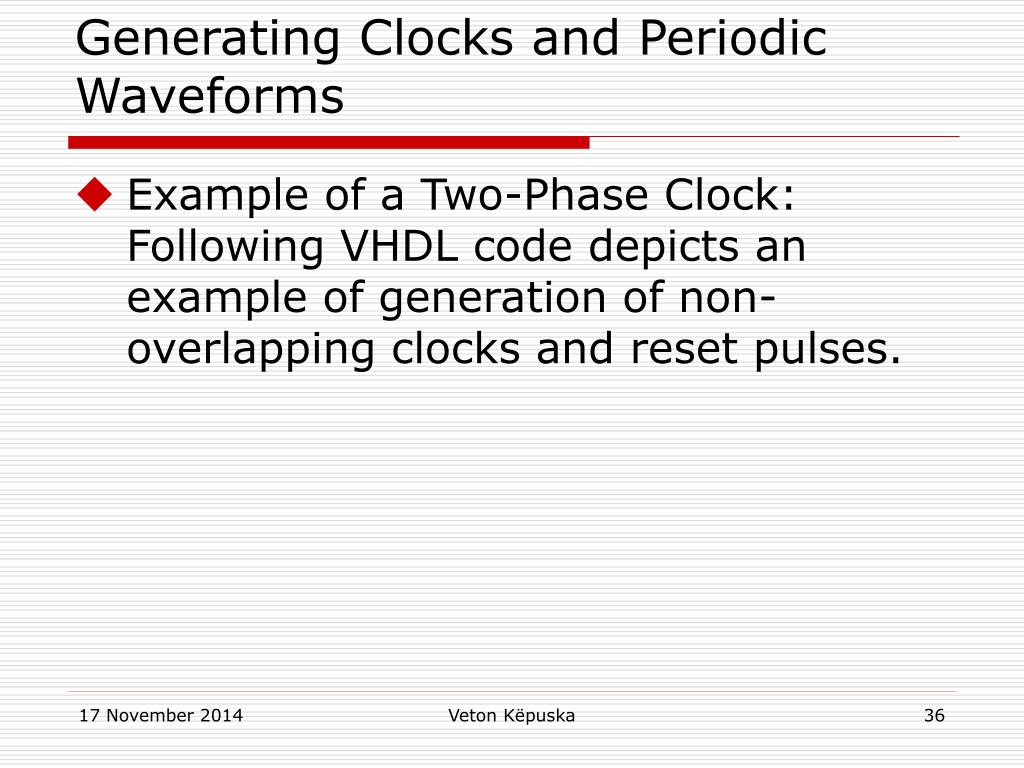

  36. Generating Clocks and Periodic Waveforms • Example of a Two-Phase Clock: Following VHDL code depicts an example of generation of non-overlapping clocks and reset pulses. Veton Këpuska

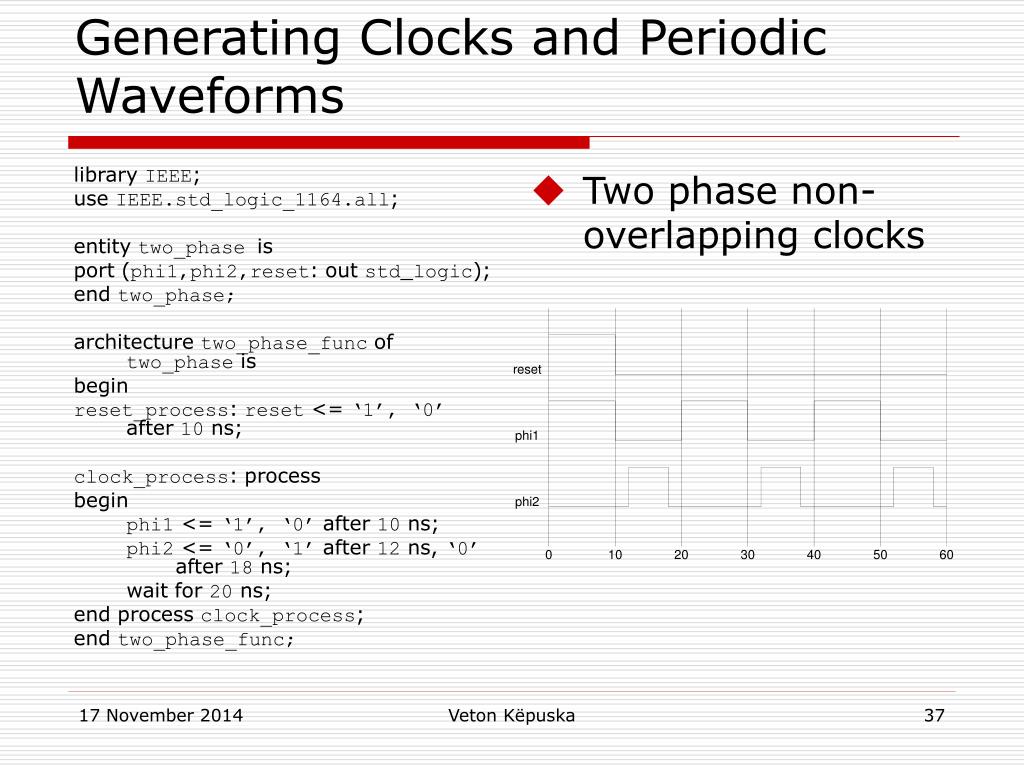

  37. library IEEE; use IEEE.std_logic_1164.all; entity two_phase is port (phi1,phi2,reset: out std_logic); end two_phase; architecture two_phase_func of two_phase is begin reset_process: reset <= ‘1’, ‘0’ after 10 ns; clock_process: process begin phi1 <= ‘1’, ‘0’ after 10 ns; phi2 <= ‘0’, ‘1’ after 12 ns, ‘0’ after 18 ns; wait for 20 ns; end process clock_process; end two_phase_func; Two phase non-overlapping clocks Generating Clocks and Periodic Waveforms Veton Këpuska

  38. Modeling State Machines • The examples described up to now used only combinational and sequential circuits in isolation. • Processes that model combinational circuits are sensitive to the inputs; and are activated whenever an event occurs on an input signal. • Sequential devices on the other hand retain information stored in internal devices (e.g., flip-flops and latches) and their outputs depends on their current state as well as current inputs. • Sequential devices typically update their values at discrete points in time determined by a periodic signal (e.g., clock). • With finite number of storage elements, the number of unique states is finite and such circuits are referred to as finite state machines. Veton Këpuska

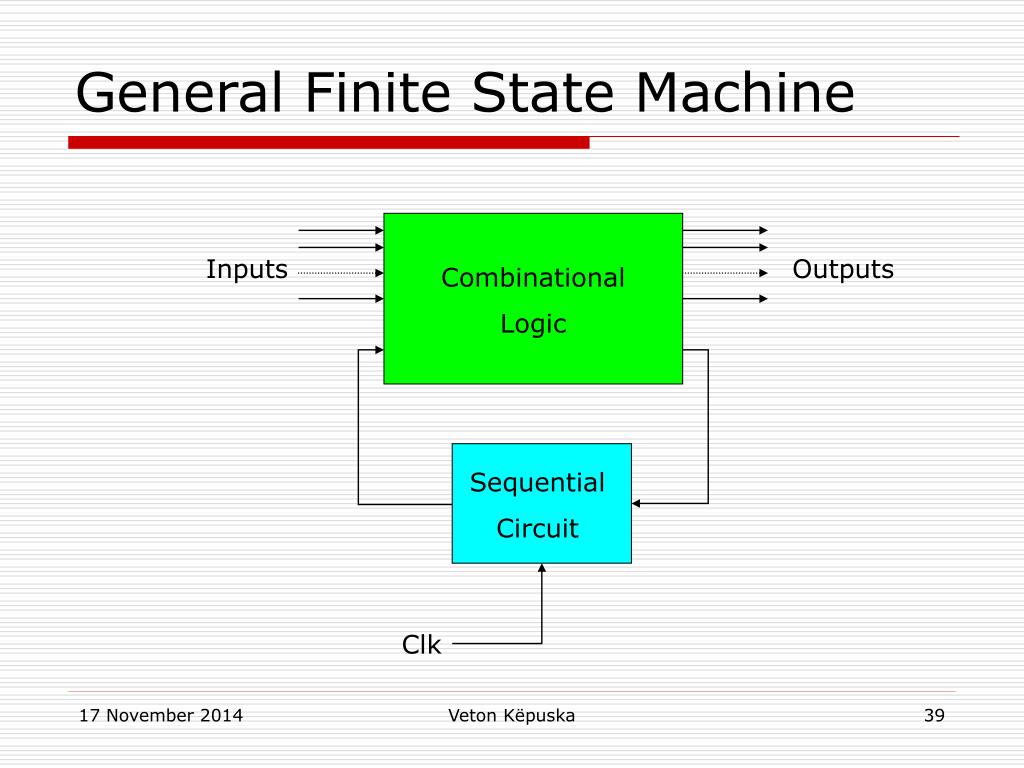

  39. General Finite State Machine Inputs Outputs Combinational Logic Sequential Circuit Clk Veton Këpuska

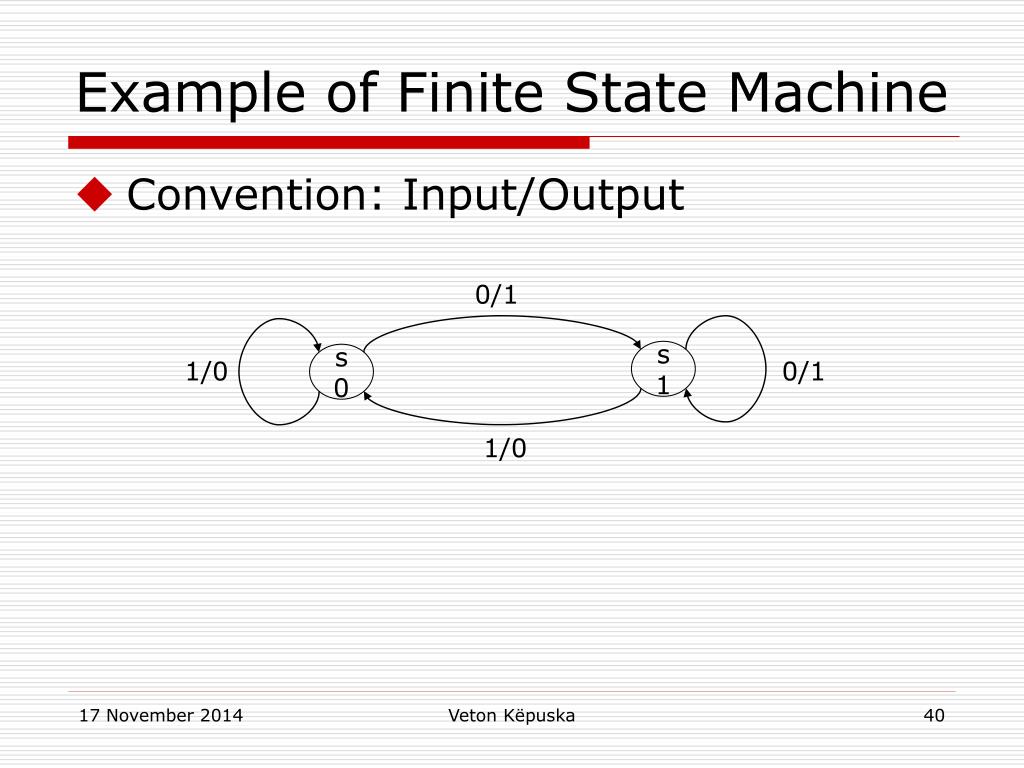

  40. Example of Finite State Machine • Convention: Input/Output 0/1 s1 s0 1/0 0/1 1/0 Veton Këpuska

  41. library IEEE; use IEEE.std_logic_1164.all; entity state_machine is port (reset,clk,x: in std_logic; z: out std_logic; end state_machine; architecture state_machine_func of state_machine is type state_type is (state0, state1); signal state,next_state: state_type := state0; begin comb_process: process (state, x) begin case state is when state0 => if x = ‘0’ then next_state <= state1; z <= ‘1’; else next_state <= state0; z <= ‘0’; endif when state1 => if x = ‘1’ then next_state <= state0; z <= ‘0’; else next_state <= state1; z <= ‘1’; endif end case; end process comb_process; Example of Finite State MachineSynchronous Implementation Veton Këpuska

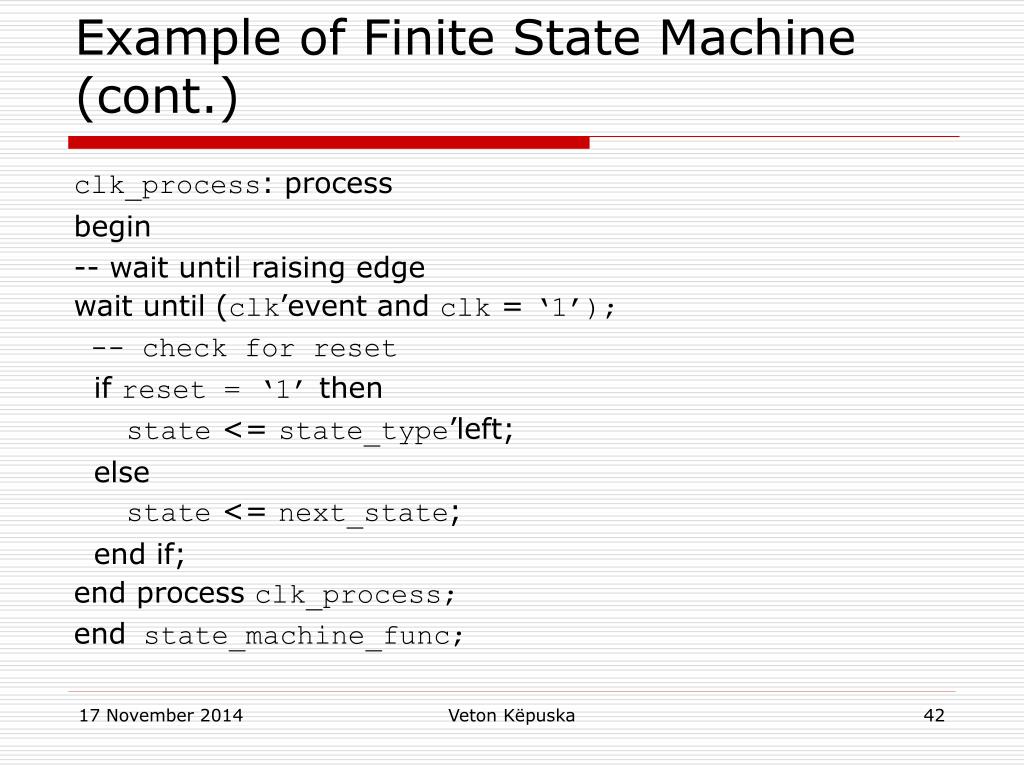

  42. Example of Finite State Machine (cont.) clk_process: process begin -- wait until raising edge wait until (clk’event and clk = ‘1’); -- check for reset if reset = ‘1’ then state <= state_type’left; else state <= next_state; end if; end process clk_process; end state_machine_func; Veton Këpuska

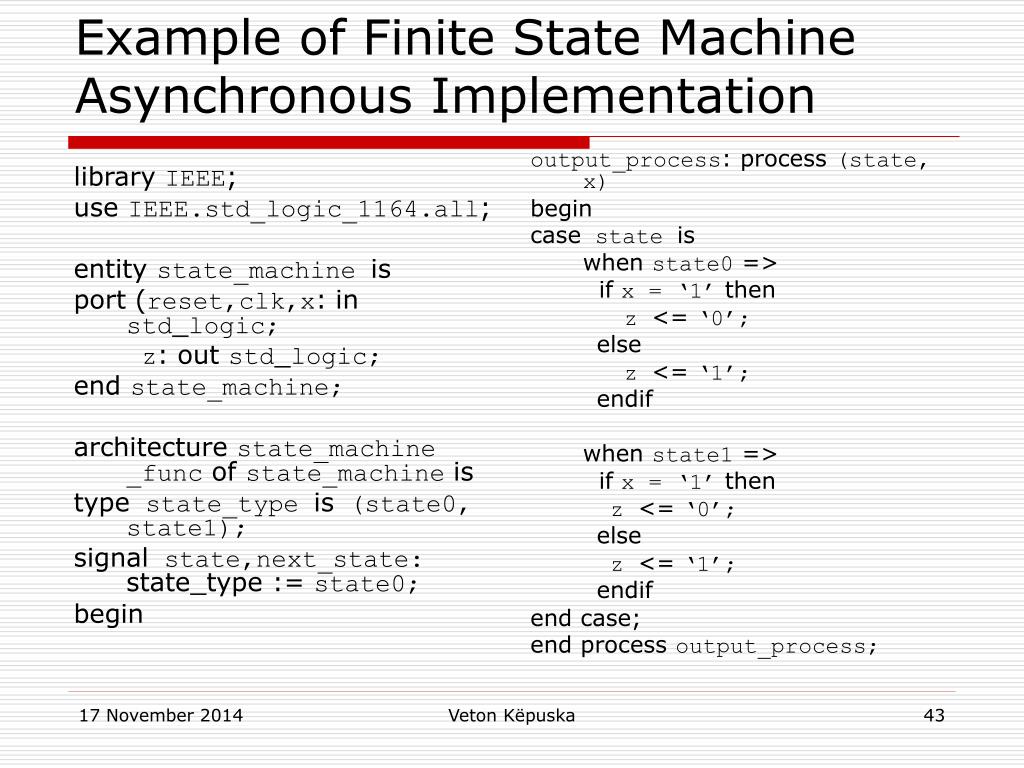

  43. library IEEE; use IEEE.std_logic_1164.all; entity state_machine is port (reset,clk,x: in std_logic; z: out std_logic; end state_machine; architecture state_machine_func of state_machine is type state_type is (state0, state1); signal state,next_state: state_type := state0; begin output_process: process (state, x) begin case state is when state0 => if x = ‘1’ then z <= ‘0’; else z <= ‘1’; endif when state1 => if x = ‘1’ then z <= ‘0’; else z <= ‘1’; endif end case; end process output_process; Example of Finite State MachineAsynchronous Implementation Veton Këpuska

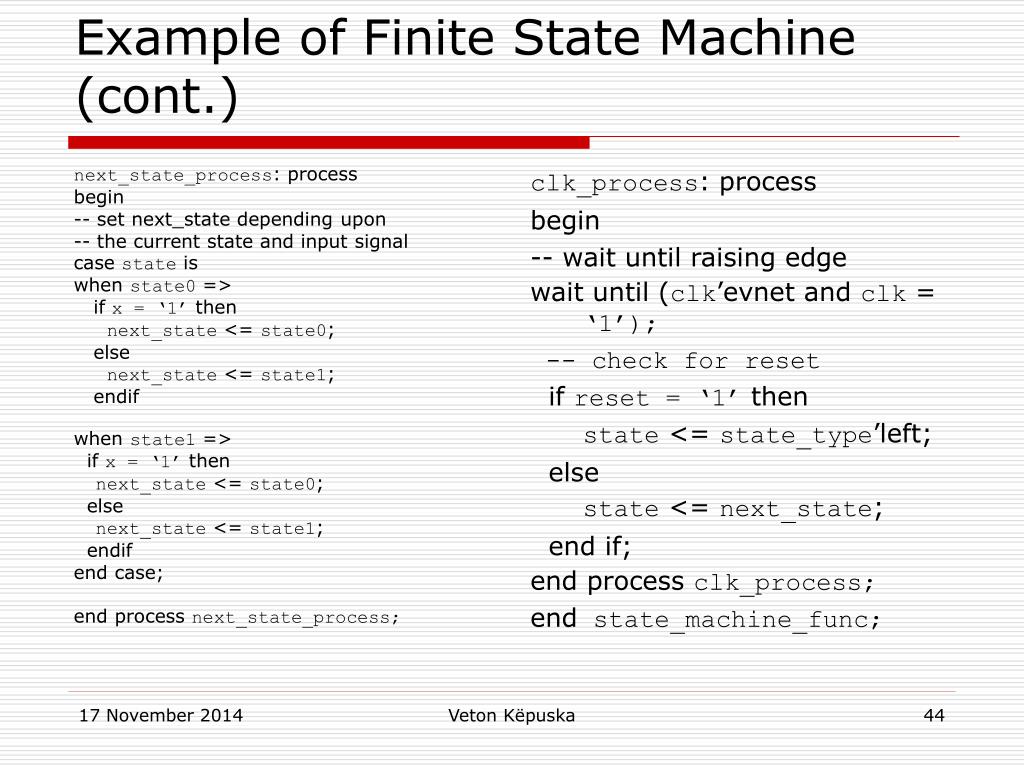

  44. next_state_process: process begin -- set next_state depending upon -- the current state and input signal case state is when state0 => if x = ‘1’ then next_state <= state0; else next_state <= state1; endif when state1 => if x = ‘1’ then next_state <= state0; else next_state <= state1; endif end case; end process next_state_process; clk_process: process begin -- wait until raising edge wait until (clk’evnet and clk = ‘1’); -- check for reset if reset = ‘1’ then state <= state_type’left; else state <= next_state; end if; end process clk_process; end state_machine_func; Example of Finite State Machine (cont.) Veton Këpuska

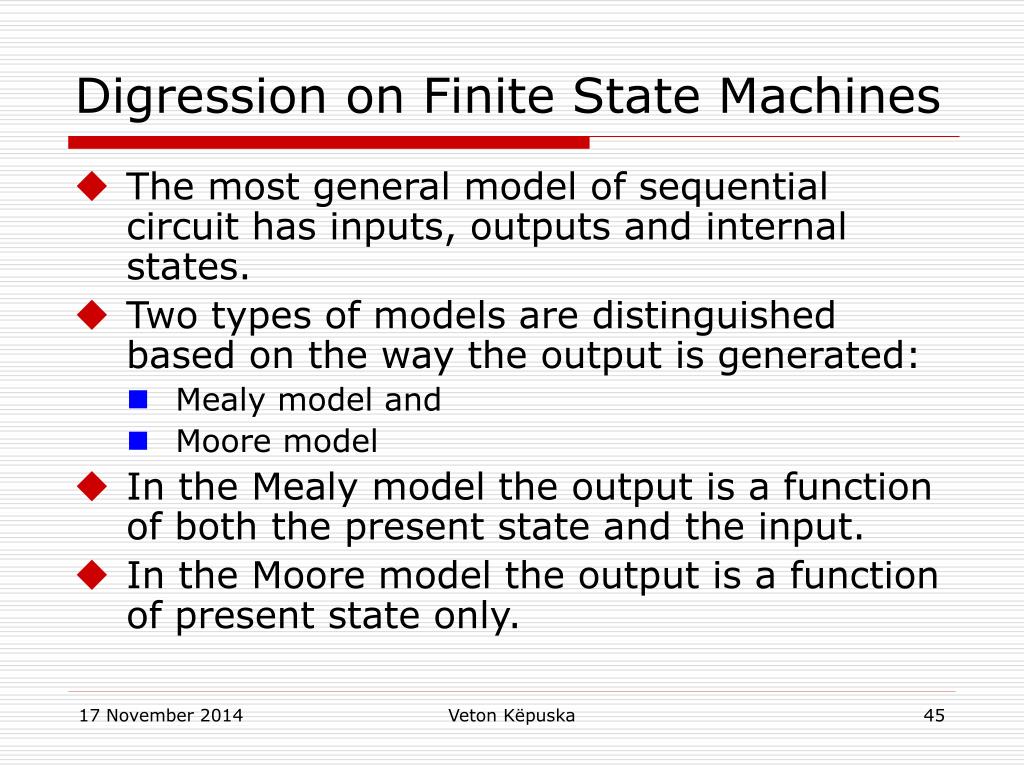

  45. Digression on Finite State Machines • The most general model of sequential circuit has inputs, outputs and internal states. • Two types of models are distinguished based on the way the output is generated: • Mealy model and • Moore model • In the Mealy model the output is a function of both the present state and the input. • In the Moore model the output is a function of present state only. Veton Këpuska
