  1. Project Arms Race Jason & Michaelle

  2. Armaments in the Past • 1939 - Richardson Model (explained later) of Arms Race developed for combatants of WWI. • Defenses and armaments dealt with at that time were guns (pistols,machine guns), flamethrowers, grenades, tanks.

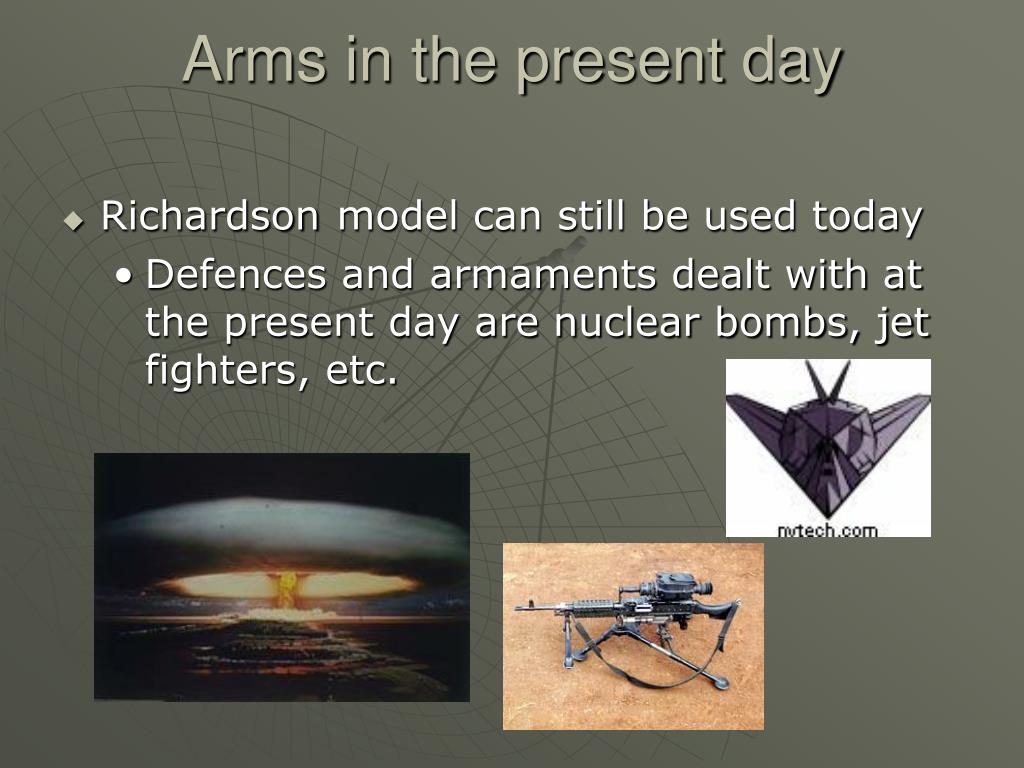

  3. Arms in the present day • Richardsonmodel can still be used today • Defences and armaments dealt with at the present day are nuclear bombs, jet fighters, etc.

  4. Problems to Discuss • Why are nations spurred to arm when other nations build defenses? • How do we develop a model that depicts how a nation determines how much to spend on arms? • How does a nation’s ill or good feelings towards other nations affect the time it takes for nations to be at peace(steady state)? • How do steady states differ in regards to maximum arms expenditure in a nation?

  5. Why are nations spurred to arm when other nations build defenses? • Nations are defensive and fearful in nature and will build defences for own protection. • (eg. Nation ‘X’ builds a tank for protection on time-step of the first year(t=1)) • This might seem offensive in the eyes of other nation(s). • … X(1) = 1

  6. Cont… • Nation ‘Y’ feels threatened and builds twice as many tanks as ‘X’ did at time t=1. • Introduce constant ‘b’. This determines how fearful nation ‘Y’ is of ‘X’. • In this case, b=2. • This is a simplified formulation of how the Richardson Model works. This simplified version is the Mutual Fear Model. • Note: new variables will be added on later slides + b*X(1) X(1) = 1 Y(1) = b*X(1) = 2

  7. How do we develop a model that depicts how a nation determines how much to spend on arms? • We will end up solving a system of continuous-time differential equations which depicts how a nation reacts to an arms increase of another nation • For ease of explanation, we will use a system of 2 equations while formulating the model, and add one more nation to the model later. • From previous, it is easy to see we can start with simple model of dx/dt=ay, dy/dt =bx. • Where ‘a’ and ‘b’ are “fear” constants. • i.e. if ‘a’ is large(>1), nation ‘X’ fears nation ‘Y’ more, (=1), nation ‘X’ wants to match ‘Y’. • This mutual fear model doesn’t account for a maximum expenditure of a nation on arms. Therefore we end up with a runaway model that increases infinitely. • …

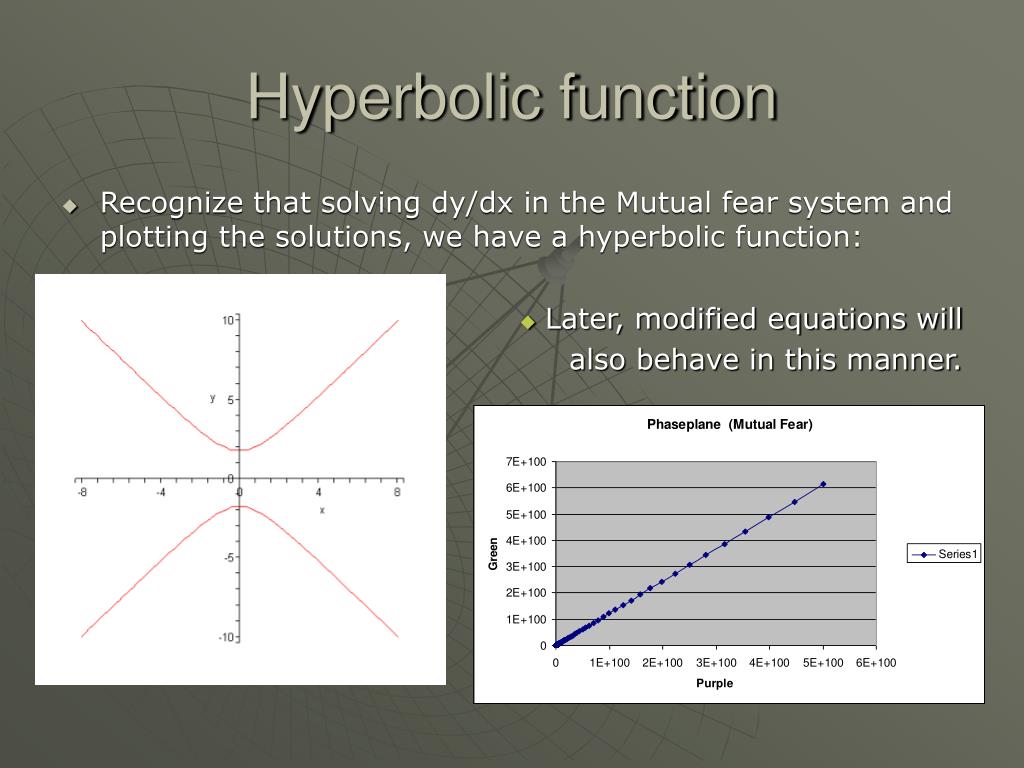

  8. Hyperbolic function • Recognize that solving dy/dx in the Mutual fear system and plotting the solutions, we have a hyperbolic function: • Later, modified equations will also behave in this manner.

  9. Cont…(adding a maximum constant • Unless nation has unlimited budget, we will need to introduce a new constant • Let Kx and Ky be maximum expenditure on arms of nations X and Y respectively. • Introduce new term (1-x/Kx) into equation • This term =0 if the expenditure of nation X (denoted by ‘x’) at time t equals the maximum expenditure. • Similar for ‘Y’ • Modified model is now • dx/dt = ay(1-x/Kx) • dy/dt = bx(1-y/Ky)

  10. Cont…(adding an economic constant) • Nations while competing sometimes forget they need to take care of their country(economically). • Introduce economic constants ‘m’ and ‘n’ for nations X and Y respectively. • e.g. if nation ‘X’ wants to spend ‘m’ times expenditures of arms on production of cars, we minus the term (mx) from the model. • Result model is :dx/dt = ay(1-x/Kx) - mx • Similar for ‘Y’ : dy/dt = bx(1-y/Ky) – ny

  11. Cont…(adding love/hate constant) • Nations can have underlying grievances or good will towards other nations. • New constants introduced will simply be added to the existing model • e.g. ‘r’ and ‘s’ are the love/hate constant for nations ‘y’ and ‘x’ respectively • If constant is: • >0, adds to expenditure since there is an underlying grievance to corresponding country. • <0, underlying good will • =0 neutral

  12. Finalized Model • Finalized model for 2 nations X,Y: • dx/dt = ay(1-x/Kx) – mx + r • dy/dt = bx(1-y/Ky) – ny + s

  13. Assumptions • Fear constants>= 1 because nations want to either match or better arms expenditures of their competing nation. • Assume a nation’s fear is constant towards all other nations. • Economic constants >=0. • Assume these constants are for the production of the corresponding nation’s highest grossing product in order to boost economy. • m,n increases as love does • Love/Hate constant can be any real number. • Assume nations either loves or hate all other nations, that is a nation either hates all other nations or loves all other nations. • Fear reduces as love increases.

  14. Mathematical Methods • Euler’s method, to solve for our continuous time model of 2 D.E. equations. Using the loop: While (t <= tend) RHS1 = a * y * (1 - (x / Kp)) - (m * x) + r RHS2 = b * x * (1 - (y / Kg)) - (n * y) + s x = x + deltat * RHS1 y = y + deltat * RHS2 t = t + deltat Row = Row + 1

  15. Steady State • Plotting nullclines – shows where steady state is: • a=2, b=1.5 • Kx=7, Ky=5 • m=0.5, n=0.5 • r=0.75, s=1.5 • xint=2, yint=3

  16. Steady State (cont…) • Steady state confirmed, (x = 5.5, y= 4.5)

  17. Stability Analysis • Jacobian of our 2-system model is: • Eigenvalues : -2.16, -0.29 • Therefore the steady states are stable.

  18. 3 Nation Model • We will now add a third nation to the model • Nation Z will be added to the model • Constants c, Kz, l, u will be added as fear, maximum, economic, and love/hate constants respectively. • Now nations are fearful of 2 nations at once. • Final equations of 3 nations become: • dx/dt = 2a(y+z)(1-x/Kx) – mx + r • dy/dt = 2b(x+z)(1-y/Ky) – ny + s • dz/dt = 2c(x+y)(1-z/Kz) – lz + u

  19. Effect of love/hate constantScenario 1 • Scenario 1 (nations all hate each other with Z nation being the biggest hater. • r=0.75,s=1.5,u=3.5 • Peace of arms race at t= 4.9 years

  20. Effect of love/hate constantScenario 2 • Scenario 2 (nations all love each other with X nation being the biggest lover. • r=-5,s=-2.5,u=-1.75 • Nations all disarm at t=3.2 years

  21. Effect of love/hate constantScenario 3 • Scenario 3 (there is some love as nation Y is the only nation who loves. • r=3,s=-2.5,u=1.75 • Peace of arms race at t=3.7 years • Large reason expenditures of nation Y is low • Only country with no grievances.

  22. How do steady states differ in regards to maximum arms expenditure in a nation? • With Z being richest nation, Y being poorest, steady states are higher and lower, respectively. • How rich or poor a country is reflects position of steady state.

  23. Model Critique • Variables were very interactive, therefore some of them were confounding if not changed appropriately. • Could change some of these variables to be proportional to say the love variable. • With D.E. of 3 nations, could have allowed the nations to hate one and love one, instead of having to make them hate all or love all. • That is to say we could introduce a different fear constant for each nation involved.

  24. NO NUKES! NO NUKES!
