Epitope Tagging:

Epitope Tagging:. Yak1: Protein: N- Met-Asn-Gln-…-Thr-Ser-C The HA epitope: Protein: N-Tyr-Pro-Tyr-Asp-Val-Pro-Asp-Tyr-Ala-C. Yak1. Yak1. Epitope Tagging:. Yak1: DNA: AAAG ATG AATCAG ... ACATCG TGA CCTA... Protein: N- Met-Asn-Gln-…-Thr-Ser-C The HA epitope:

keaton-nolan
Télécharger la présentation

Epitope Tagging:

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. Epitope Tagging: Yak1: Protein: N-Met-Asn-Gln-…-Thr-Ser-C The HA epitope: Protein: N-Tyr-Pro-Tyr-Asp-Val-Pro-Asp-Tyr-Ala-C Yak1 Yak1

  2. Epitope Tagging: Yak1: DNA: AAAGATGAATCAG ... ACATCGTGACCTA... Protein: N-Met-Asn-Gln-…-Thr-Ser-C The HA epitope: DNA: TATCCCTACGACGTTCCGGATTATGCC Protein: N-Tyr-Pro-Tyr-Asp-Val-Pro-Asp-Tyr-Ala-C Yak1

  3. Epitope Tagging: Yak1: DNA: AAAGATGAATCAG ... ACATCGTGACCTA... Protein: N-Met-Asn-Gln-…-Thr-Ser-C The HA epitope: DNA: TATCCCTACGACGTTCCGGATTATGCC Protein: N-Tyr-Pro-Tyr-Asp-Val-Pro-Asp-Tyr-Ala-C Fusion Gene: AAAGATGTATCCCTACGACGTTCCGGATTATGCC AATCAG… Yak1

  4. Epitope Tagging: Yak1: DNA: AAAGATGAATCAG ... ACATCGTGACCTA... Protein: N-Met-Asn-Gln-…-Thr-Ser-C The HA epitope: DNA: TATCCCTACGACGTTCCGGATTATGCC Protein: N-Tyr-Pro-Tyr-Asp-Val-Pro-Asp-Tyr-Ala-C Fusion Gene: AAAGATGTATCCCTACGACGTTCCGGATTATGCC AATCAG... Fusion Protein: N-Met-Tyr-Pro-Tyr-Asp-Val-Pro-Asp-Tyr-Ala-Asn-Gln-…-Thr-Ser-C Yak1 Yak1

  5. Making a Fusion Protein: Yak1: DNA: AAAGATGAATCAG ... ACATCGTGACCTA... Protein: N-Met-Asn-Gln-…-Thr-Ser-C GFP: DNA: GCAAATGAGTAAA ... CTGAAATAAGTAC... Protein: N-Met-Ser-Lys-… -Leu-Lys-C Yak1 GFP

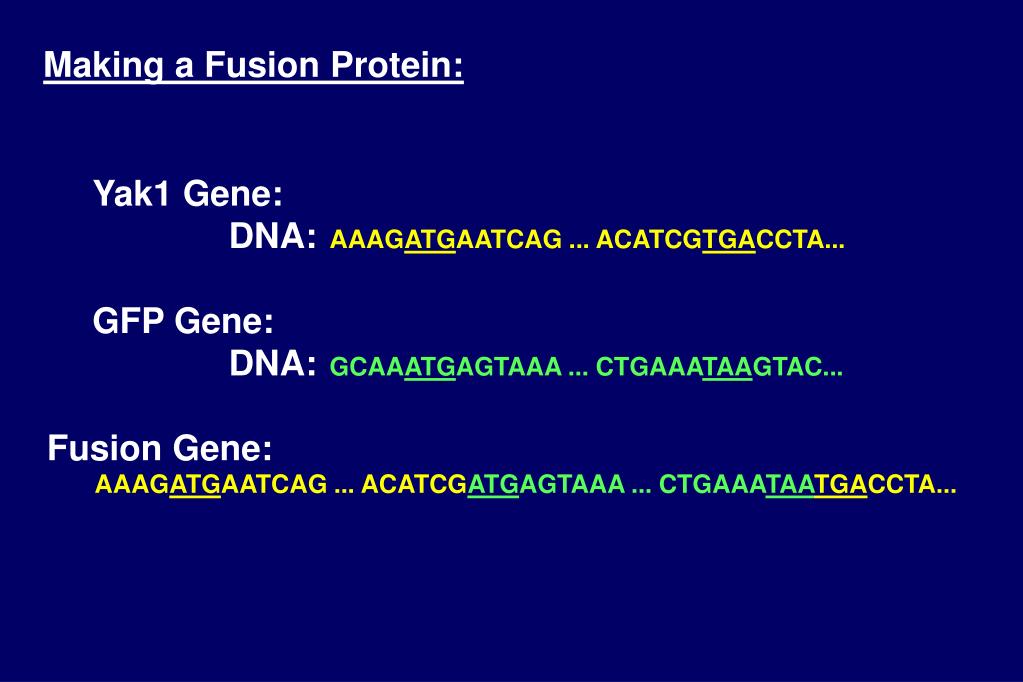

  6. Making a Fusion Protein: • Yak1 Gene: • DNA: AAAGATGAATCAG ... ACATCGTGACCTA... • GFP Gene: • DNA: GCAAATGAGTAAA ... CTGAAATAAGTAC... • Fusion Gene: • AAAGATGAATCAG ... ACATCGATGAGTAAA ... CTGAAATAATGACCTA...

  7. Making a Fusion Protein: Yak1 Gene: DNA: AAAGATGAATCAG ... ACATCGTGACCTA... Protein: N-Met-Asn-Gln-…-Thr-Ser-C GFP Gene: DNA: GCAAATGAGTAAA ... CTGAAATAAGTAC... Protein: N-Met-Ser-Lys-… -Leu-Lys-C Yak1 GFP N C Fusion Gene: AAAGATGAATCAG ... ACATCGATGAGTAAA ... CTGAAATAATGACCTA... Fusion Protein: N-Met-Asn-Gln-…-Thr-Ser-Met-Ser-Lys-… -Leu-Lys-C

  8. Human cells stained with an antibody for the Tubulin protein Image from Molecular Probes

  9. GFP-RAS2 in living Saccharomyces cerevisiae

  10. Images from Roger Tsein’s Lab
