  1. Migrating to Windows 2000 in a Large Environment

  2. User and Presentation Services Application Services Network Services Management Distributed Services Base Services Migrating to Windows 2000 in a Large Environment • Background of Active Directory • DNS in Windows 2000 • Migrating from WINS to DNS • Consolidating NT4 Domains • Conducting a Phased Migration • Next Generation MS-Exchange

  3. Microsoft Directory Evolution Now Now Coming Microsoft Exchange Server directory Windows 2000 Windows NT user directory Windows NT user directory • Singleenterprise logon • Centralmanagement • Replicated/ partitioned • E-mail namesand rich attributes • X.500 naming • MAPI, LDAP support • Scalable to “millions” • Integrated DNS, X.500 • Deep integration with OS security • More standard support: X.500 DAP/DSP, ADSI, OLE/dB, etc. • Scalable to millions

  4. What is Active Directory? • Windows 2000 directory service • Active Directory has • A hierarchical, flexible namespace • Partitioning for scalability • Multi-master replication • Dynamic extensibility • Open and extensible directory synchronization interfaces • Lightweight Directory Access Protocol (LDAP) as the core protocol for interoperability

  5. AD Terminology • Namespace • Name • Domain • Organizational Units (OUs) • Tree • Sites • Global Catalog • Schema

  6. Differentiation Administration Designators vs Replication Designators

  7. Creating Administrative Structures • First I Create my “Domain” and Give it an Organization Name • Then I Create Organizational Units within this Domain to Distribute Administration • I then Create Users within the Organizational Units where they Belong • Finally I Group the Users so I can more Easily set Policies to the Group

  8. Organizational Units Users and Groups Creating Administrative Structures Domain

  9. Enterprise is Made of Domains • Domains can be linked by trust • Domains can be related by name • Both X.500 and DNS naming DC=MyCorp,DC=Com whatever.edu DC=Dev,DC=MyCorp,DC=Com whatnot.whatever.edu

  10. Active DirectoryGlobal namespace = DNS + LDAP Directories com edu berkeley inacom microsoft students courses PoliSci Domain :inacom.com BSmith RJones AArney KBryant Domain : microsoft.com Domain: berkeley.edu

  11. Windows 2000 DNS Management Services

  12. Planning Your DNS Strategy • Active Directory is integrated with Domain Name System (DNS) • Therefore, it is important to • Determine which DNS server to use • Determine your DNS root

  13. DNS Server Options • Implement Microsoft DNS Exclusively • Implement Microsoft DNS as a Delegated Sub-domain • Use an Existing DNS Server

  14. Implement Microsoft DNS Exclusively • Benefits • Tight integration with Active Directory • Supports the extended character set, Unicode • Not dependent on existing DNS Servers • Will co-exist with other DNS Servers • Supports multi-master replication

  15. Implement Microsoft DNS as a Delegated Sub-domain • Benefits • Requires no upgrade of any existing DNS servers • Utilize existing DNS infrastructure • Minimizes dependency of Active Directory on existing DNS servers

  16. Use a Non-Microsoft DNS Server • Benefits • Does not require replacing existing DNS servers • No DNS changes required

  17. Existing DNS Server • To Support Active Directory, a DNS Server • Must support the SRV RR defined by RFC 2052 • Should also support: • The Dynamic Update Protocol - RFC 2136 • Incremental Zone Tranfers - RFC 1995

  18. Multiple Domains/Trees • Sometimes it is necessary to have more than one domain • Multiple domains with a contiguous name space are referred to as trees tailspintoys.com europe.tailspintoys.com marketing.europe.tailspintoys.com

  19. Microsoft.Com PBS.Microsoft.Com NTDev.PBS.Microsoft.Com Forest Definition • One or more Windows 2000 Trees • Do not form a contiguous namespace • Share a common schema, config., Global Catalog • All Trees in a Forest trust each other • Does not need a distinct name Softimage.Com Finance.Softimage.com

  20. Active Directory Safety: • Authenticode • Driver signing SingleSign-on Auth.: • Priv Key/Kerberos • Public Key/X.509 • NT4 PrivateComm. Protocol: • SSL • IPSEC • RPC/DCOM SecureBiz Tx • PK Certificates • Kerberos keys Base: • Crypto API • Encrypted F-S • More Auditing SecureDesktop Integrated Security Scenarios

  21. Goal of Windows 2000 for Enterprises:Reliability and Scalability Network Load Balancing Clustering

  22. Goal of Windows 2000 for Enterprises:World Ready • Multilingual user interface • Same code runs anywhere • Simultaneous support of multiple languages • Single world-wide API

  23. What Can be Done with NT4 in Anticipation of a Migration to Windows 2000

  24. Consider Implementing NT4 Workstation Today • Higher level of security • ability to lock down w/s hardware config • ability to create and manage set processes • Ability to use global roaming profiles • Key to Intellimirror in Windows 2000 • Consolidated DLL model in Windows 2000

  25. Design, Implement, and Gain Support for System Policies • Globally manage individuals, groups of users, or all users the ability to: • change screen saver • change desktop background • add applications • purposely or accidentally delete applications • drop to DOS prompt • modify workstation configurations

  26. System Policies

  27. Consolidate Domains • Minimize resource domains • Develop structure that utilizes fewer domains • Create simplified trust model • Document enterprise hierarchy • server/host configurations • segment addresses • segment bandwidth • trust and authentication process

  28. Fastlane Technologies: DM/Manager Selectively move single or multiple users from any Source Domain... ...to any Target Domain!

  29. Setting Rules / Policies for Migration Flexible migration options...

  30. Conduct Performance Analysis • Evaluate Client to Server Bandwidth Demands • Evaluate Server to Server Bandwidth Utilization • Analyze Server System Utilization • Conduct WAN Bandwidth Analysis Bluecurve “Dynameasure” recognized by Microsoft for capacity analysis and capacity planning (http://www.bluecurve.com)

  31. Performance Analysis Server CPU capacity is bottlenecked. All four server CPUs reach maximum thruput

  32. Implement TCP/IP and SMTP as Core Communications Protocols TCP/IP SMTP Site A Site B

  33. Implement DNS (in addition to (and in an Windows 2000 environment, in place of) WINS) • WINS needed for Netbios name resolution • DNS to be native in Windows 2000 complete TCP/IP environment

  34. Implement LDAP for Look-up Domain Controller Client Microsoft Management Console Legacy NT4 APIs NT4 BDC Replication SAM ADSI NW3 NW4 NT4 NTDS Windows 2000 M-M Replication Directory Service LDAP wldap32.dll Net APIs NCP NCP

  35. Create an Windows 2000 Deployment Team • Team Includes: • DNS Decision Makers (NT, UNIX, etc) • Hardware Implementers and Support Personnel • File/Print LAN/WAN Decision Makers • Firewall and Internet Security Decision Makers (Kerberos, X.509, etc) • Electronic Messaging Group • Desktop Support Group (Intellimirror, Windows Scripting, Sysclone, SMS)

  36. User and Presentation Services Application Services Network Services Management Distributed Services Base Services Migrating from NT4 to Windows 2000 • Migrating Domain Controllers • Migrating Servers • Migrating Users

  37. Migration • Any Windows NT domain model can be migrated easily to the Active Directory • Mixed environments • Fully supported • Look and act like Windows NT 4.0 domains • Migration to domain tree simple

  38. Migration (Initial State) Initial state Windows NT 4.x domain “PDC” BDC BDC

  39. Domain replica Global catalog Migration (Step 1) Upgrade PDC to Windows 2000 “PDC” BDC BDC BDC

  40. Domain replica Global catalog Migration (Step 2) Upgrade remaining Windows NT 4.x BDCs DC - GC DC DC DC

  41. Domain replica Global catalog Migration (Final State) DC - GC DC DC DC “Native” domain

  42. Migrationresource domains • Can be upgraded in place and joined to tree • Can be replaced with OUs • Convert in place • Join to tree • Create OU in parent domain • Drag resource domain contents into OU • Delete (empty) resource domain

  43. Server Role In Windows 2000 PDC BDC Replica Windows NT 4.0 Only writeable Read-only -- copy copy Windows 2000 Writeable copy. -- Writeable copy Appears as PDC to downlevel clients Windows 2000 Only writeable Read-only Read-onlyMixed domain copy (Windows copy copy NT 4.0 or (Windows Windows 2000) NT 4.0)

  44. Next Generation Microsoft Exchange 2000 codename “Platinum”

  45. Built on Windows 2000 Active Directory

  46. AD Does Exchange Administration

  47. Utilizes Multiple Storage Groups • More than 1 MDB Per Server • Smaller MDBs for easier backup/restore • Separate MDB for NNTP and Internal Public Folders • Distribute DBs across multiple Storage Area Network (SAN) devices • Distribute Administration of DB management on a single server

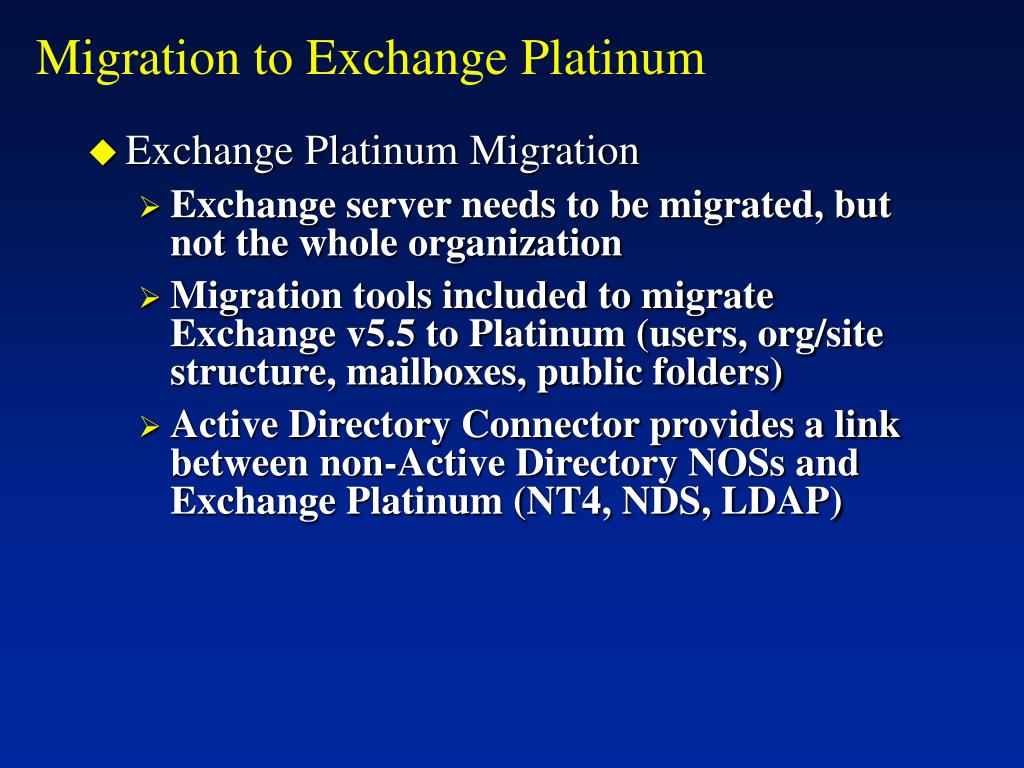

  48. Migration to Exchange Platinum • Exchange Platinum Migration • Exchange server needs to be migrated, but not the whole organization • Migration tools included to migrate Exchange v5.5 to Platinum (users, org/site structure, mailboxes, public folders) • Active Directory Connector provides a link between non-Active Directory NOSs and Exchange Platinum (NT4, NDS, LDAP)

  49. Preparing for Exchange Platinum • Upgrade to Exchange v5.5 (if you have not already done so) • Replace Site Connectors with SMTP or X.400 Connectors using InterOrg Directory Replication

  50. Questions ?
