  1. Sequential Statements Osman Hasan COEN 313

  2. Outline • VHDL process • Sequential signal assignment statement • Variable assignment statement • If statement

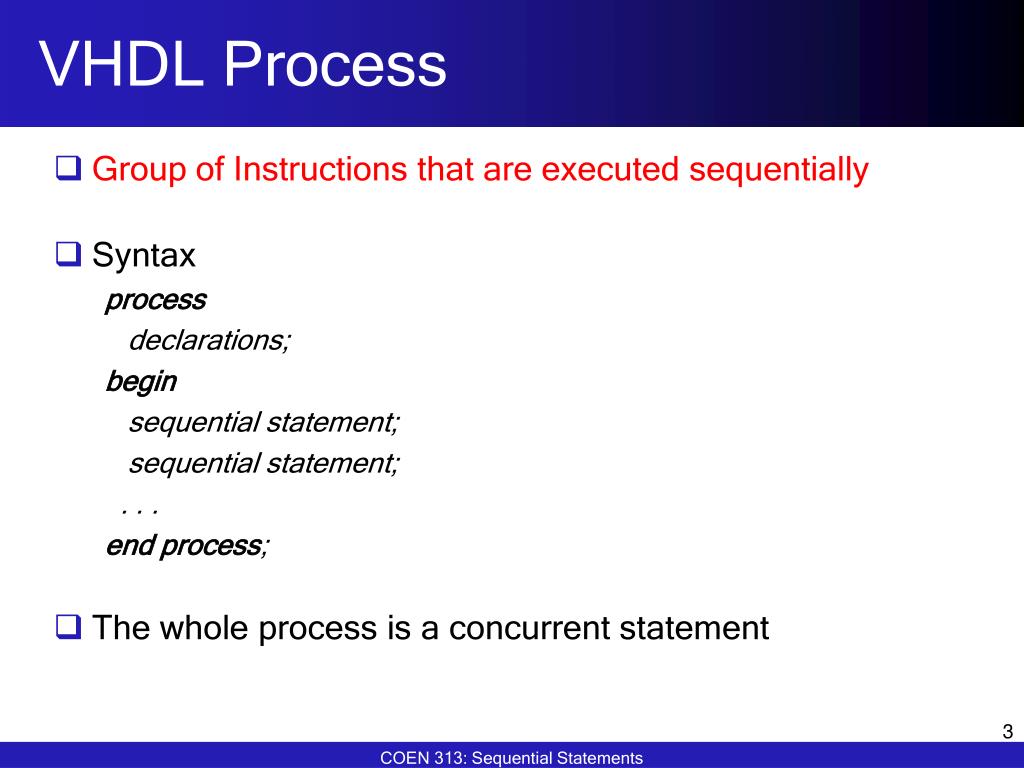

  3. VHDL Process Group of Instructions that are executed sequentially Syntax process declarations; begin sequential statement; sequential statement; . . . end process; The whole process is a concurrent statement 3

  4. VHDL Process - Types With Sensitivity list Process (sensitivity list) declarations; begin sequential statement; sequential statement; . . . end process; A process is activated when a signal in the sensitivity list changes its value • Example: 3 input AND gate • signal a,b,c,y: std_logic; • process(a,b,c) • begin • y <= a and b and c; • endprocess; • What happens if a is removed from the • sensitivity list? 4

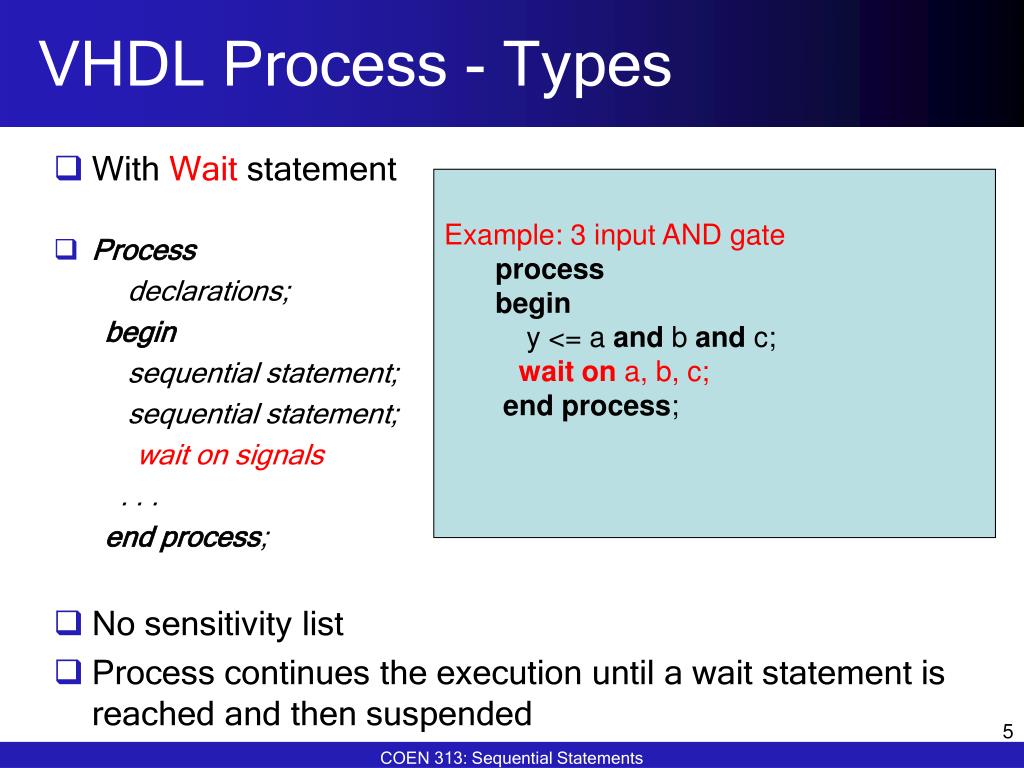

  5. VHDL Process - Types With Wait statement Process declarations; begin sequential statement; sequential statement; wait on signals . . . end process; No sensitivity list Process continues the execution until a wait statement is reached and then suspended • Example: 3 input AND gate • process • begin • y <= a and b and c; • waiton a, b, c; • endprocess; 5

  6. Points to Remember A process may or may not be mapped to physical hardware For a combinational circuit, all inputs should be included in the sensitivity list Process with sensitivity list is preferred for synthesis 6

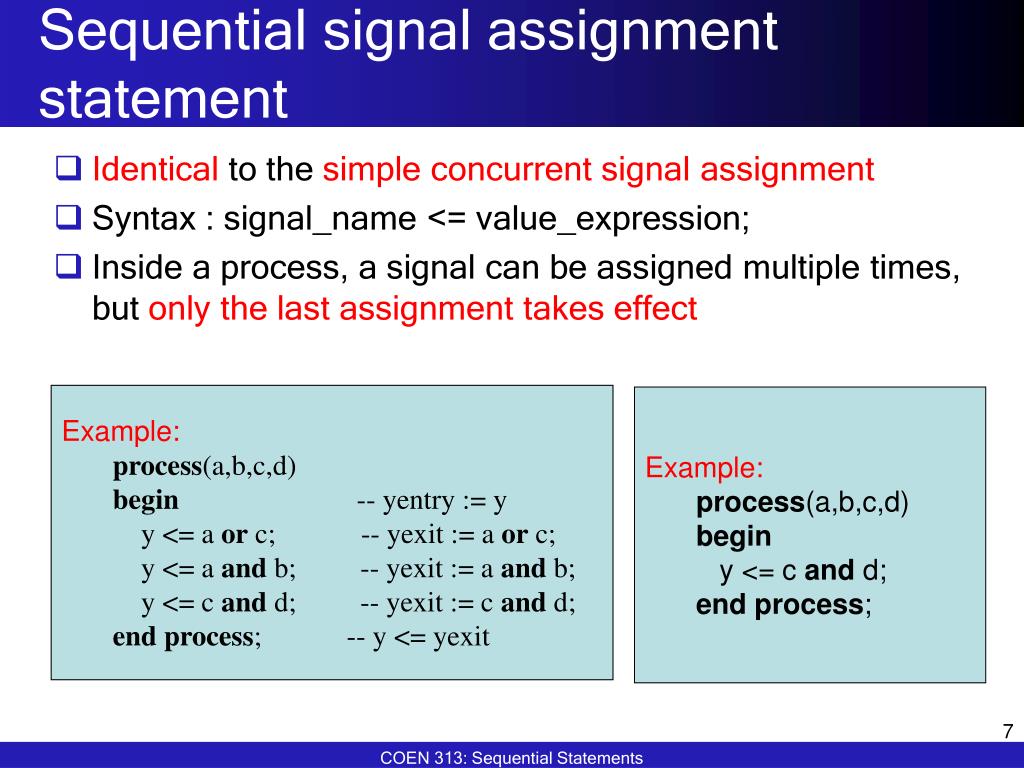

  7. Sequential signal assignment statement Identical to the simple concurrent signal assignment Syntax : signal_name <= value_expression; Inside a process, a signal can be assigned multiple times, but only the last assignment takes effect • Example: • process(a,b,c,d) • begin -- yentry := y • y <= a or c; -- yexit := a or c; • y <= a and b; -- yexit := a and b; • y <= c and d; -- yexit := c and d; • endprocess; -- y <= yexit • Example: • process(a,b,c,d) • begin • y <= c and d; • endprocess; 7

  8. Variable assignment statement Like variables in C/C++ Syntax : variable_name := value_expression; Assignment takes effect immediately What happens if := is replaced with <= • Example: • process(a,b,c) • variable tmp: std_logic; • begin • tmp := '0'; • tmp := tmp or a; • tmp := tmp or b; • y <= tmp; • end process; 8

  9. Quiz 1 LIBRARY IEEE; USE IEEE.STD_LOGIC_1164.ALL; ENTITY sig_ass IS END ENTITY; ARCHITECTURE beh OF sig_ass IS SIGNAL sum1,sum2 : INTEGER := 0; BEGIN p0: PROCESS BEGIN WAIT FOR 10 ns; sum1 <= sum1 + 1; sum2 <= sum1 + 1; END PROCESS; END beh; 0 0 0 10 0 0 10 + 1 Δ 1 1 20 1 1 20 + 1 Δ 2 2 30 2 2 30 + 1 Δ 3 3 9

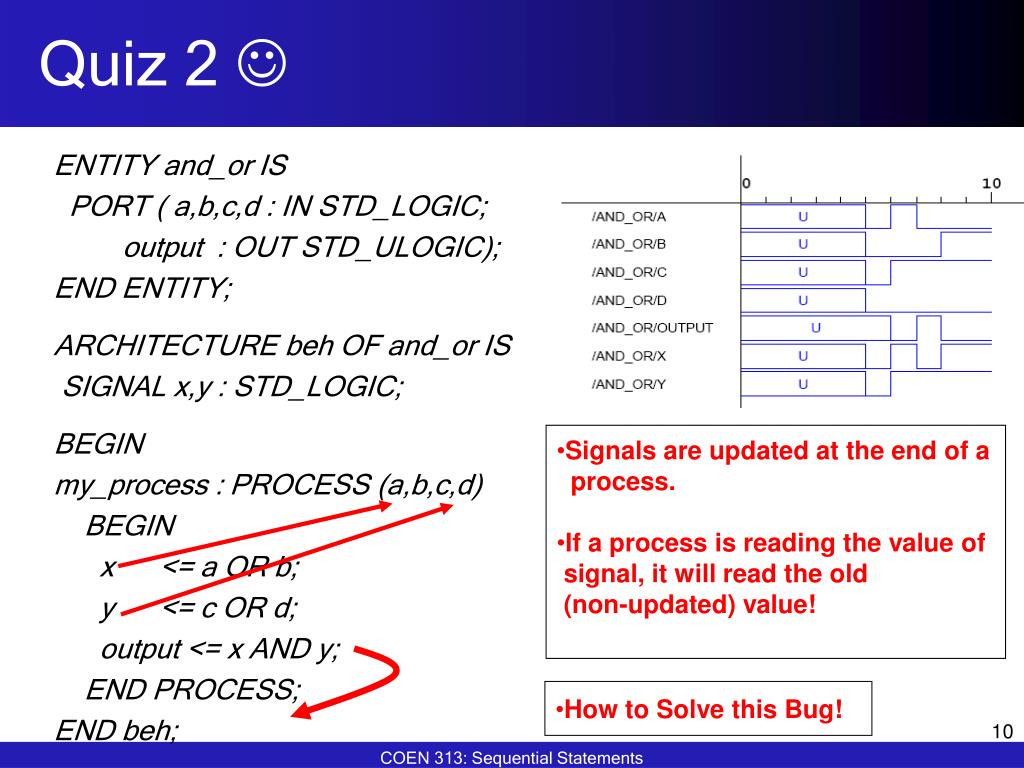

  10. Quiz 2  ENTITY and_or IS PORT ( a,b,c,d : IN STD_LOGIC; output : OUT STD_ULOGIC); END ENTITY; ARCHITECTURE beh OF and_or IS SIGNAL x,y : STD_LOGIC; BEGIN my_process : PROCESS (a,b,c,d) BEGIN x <= a OR b; y <= c OR d; output <= x AND y; END PROCESS; END beh; • Signals are updated at the end of a • process. • If a process is reading the value of • signal, it will read the old • (non-updated) value! • How to Solve this Bug! 10

  11. Outline VHDL process Sequential signal assignment statement Variable assignment statement If statement 11

  12. If Statement Sequential Conditional Statement in VHDL Syntax ifboolean_expr_1 then sequential_statements; elsifboolean_expr_2 then sequential_statements; elsif boolean_expr_3then sequential_statements; . . . else sequential_statements; endif; 12

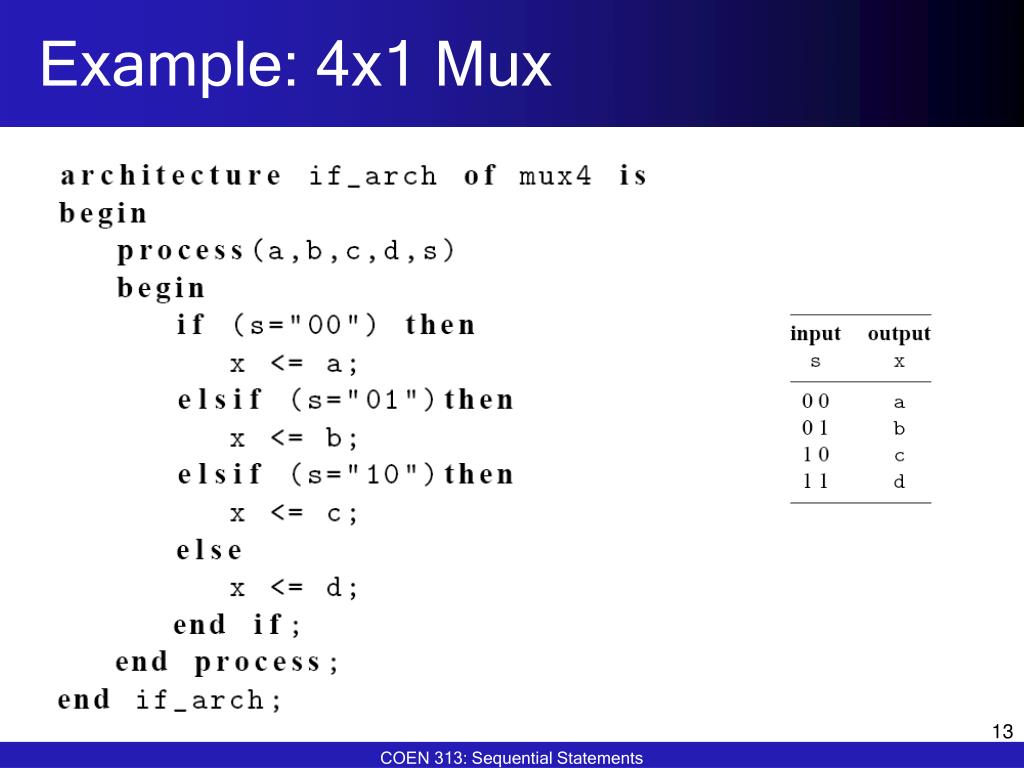

  13. Example: 4x1 Mux 13

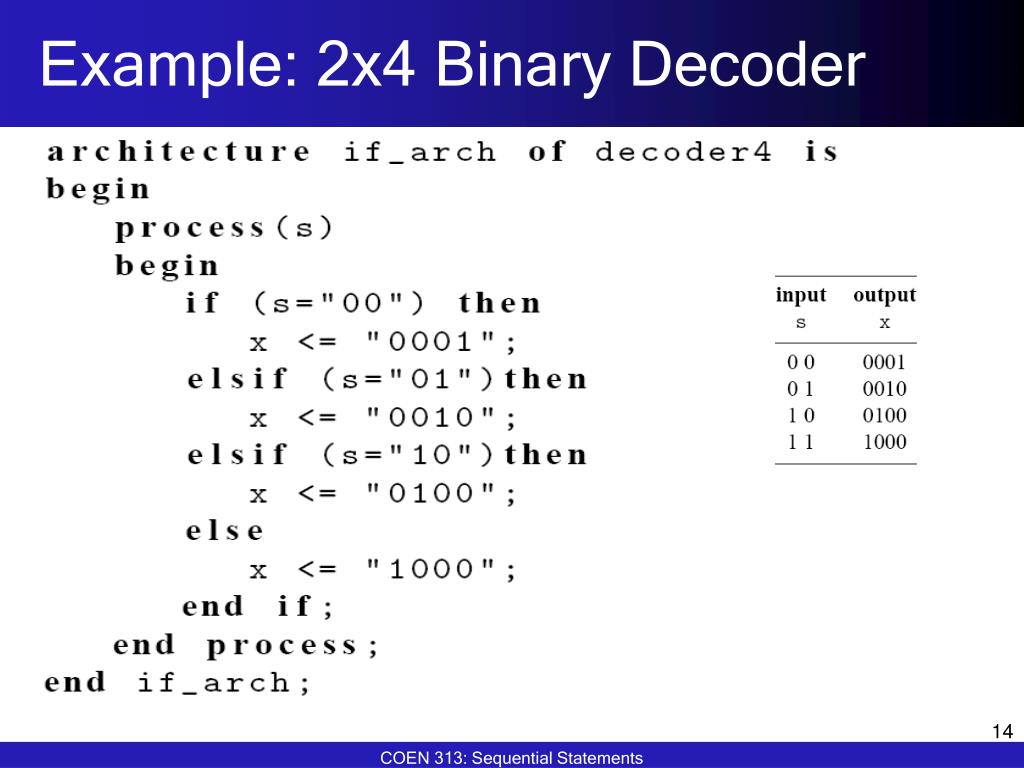

  14. Example: 2x4 Binary Decoder 14

  15. Example: 4-to-4 Priority Encoder • 4-to-2 priority encoder 15

  16. Last Quiz  LIBRARY IEEE; USE IEEE.STD_LOGIC_1164.ALL; ARCHITECTURE beh OF mystery IS BEGIN p0: PROCESS (data_in1, select_in) BEGIN IF select_in = '0' THEN output <= data_in1; ELSE output <= data_in2; END IF; END PROCESS; END beh; 16
