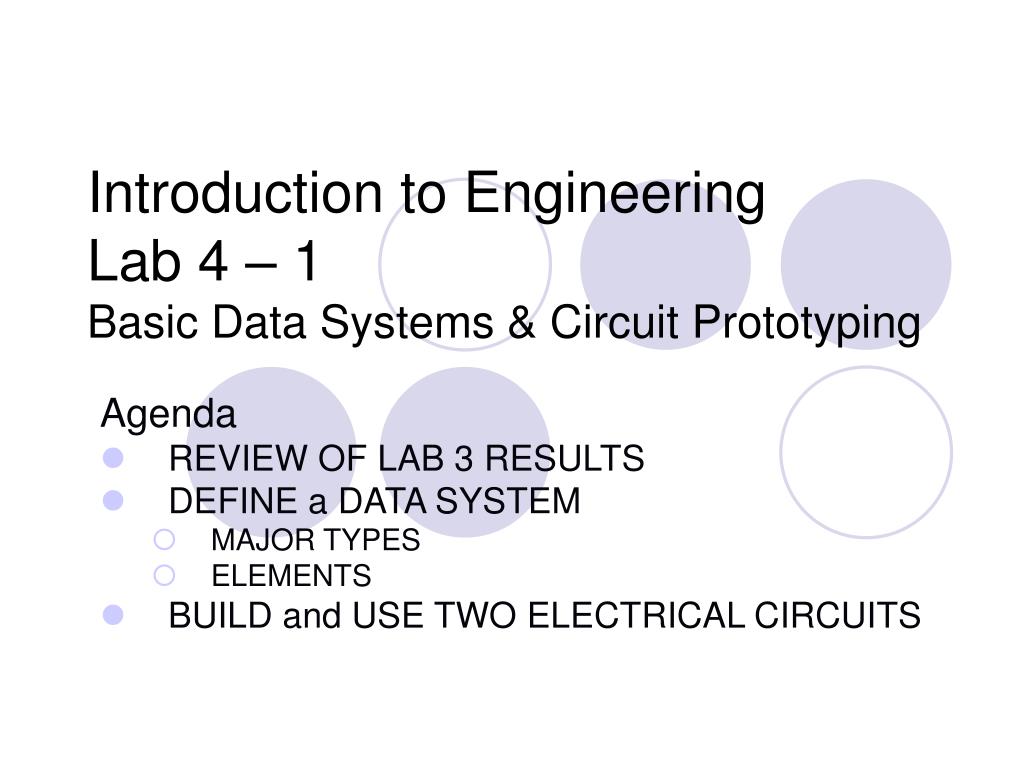

  1. Introduction to EngineeringLab 4 – 1Basic Data Systems & Circuit Prototyping Agenda REVIEW OF LAB 3 RESULTS DEFINE a DATA SYSTEM MAJOR TYPES ELEMENTS BUILD and USE TWO ELECTRICAL CIRCUITS

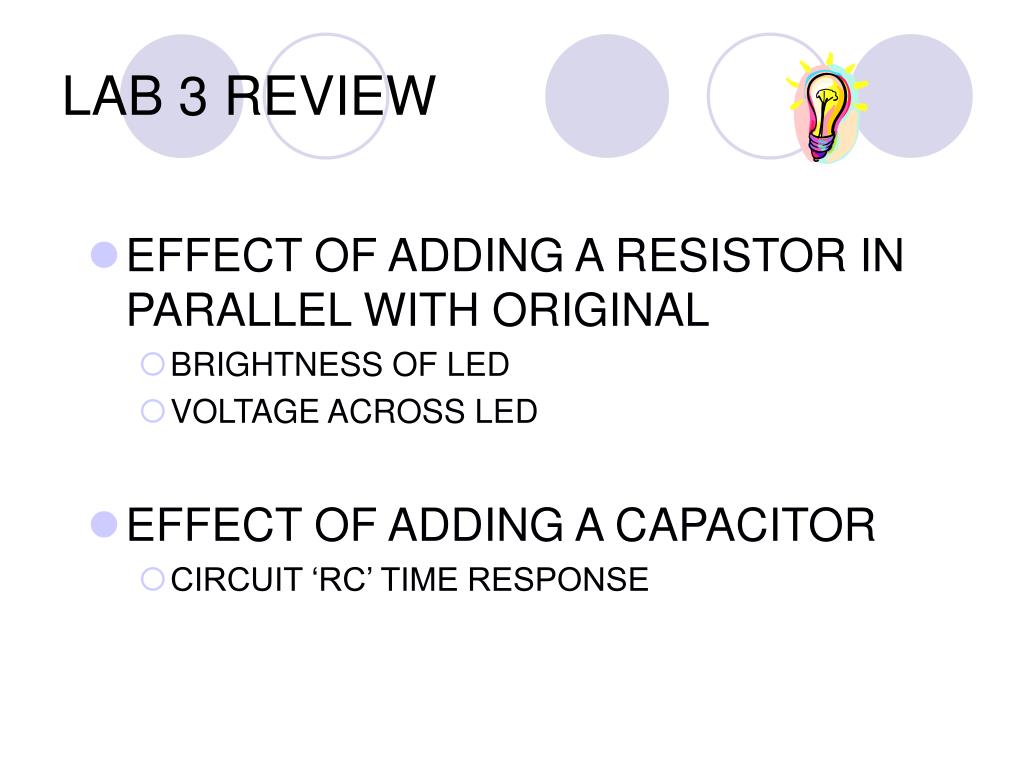

  2. LAB 3 REVIEW • EFFECT OF ADDING A RESISTOR IN PARALLEL WITH ORIGINAL • BRIGHTNESS OF LED • VOLTAGE ACROSS LED • EFFECT OF ADDING A CAPACITOR • CIRCUIT ‘RC’ TIME RESPONSE

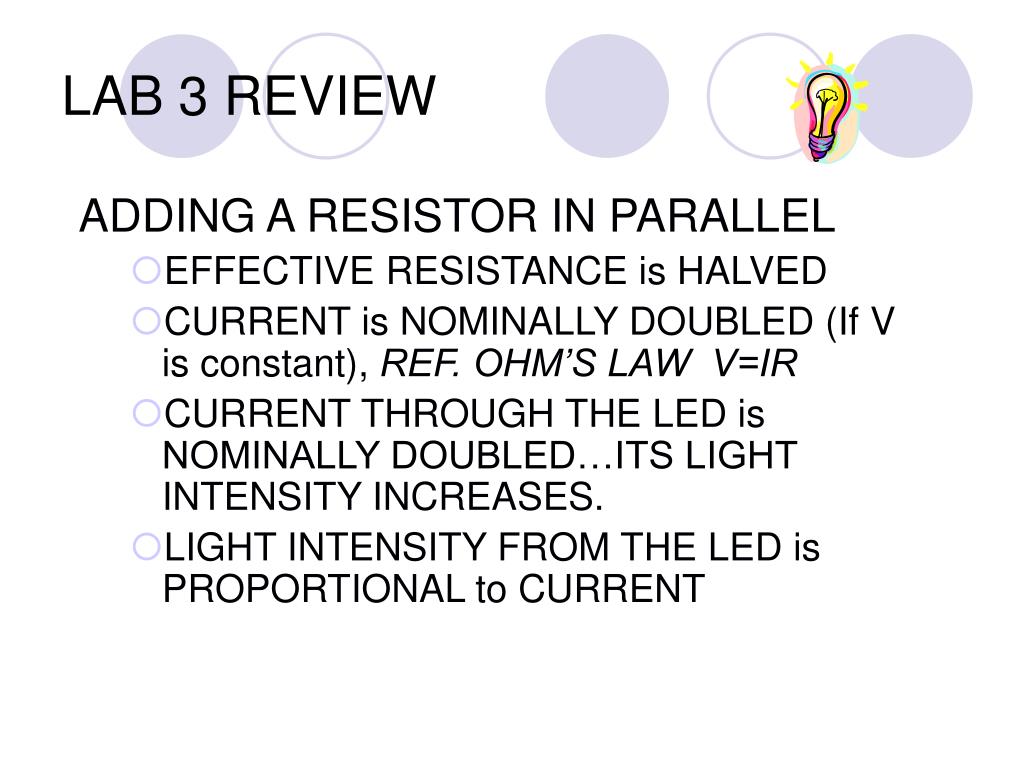

  3. LAB 3 REVIEW ADDING A RESISTOR IN PARALLEL • EFFECTIVE RESISTANCE is HALVED • CURRENT is NOMINALLY DOUBLED (If V is constant), REF. OHM’S LAW V=IR • CURRENT THROUGH THE LED is NOMINALLY DOUBLED…ITS LIGHT INTENSITY INCREASES. • LIGHT INTENSITY FROM THE LED is PROPORTIONAL to CURRENT

  4. Voltage at AA: 5.22 V Case 1: One resistor only Case 2: Two resistors Voltage at AA: 5.22 V * SAME VALUE BECAUSE it is the SUPPLY VOLTAGE

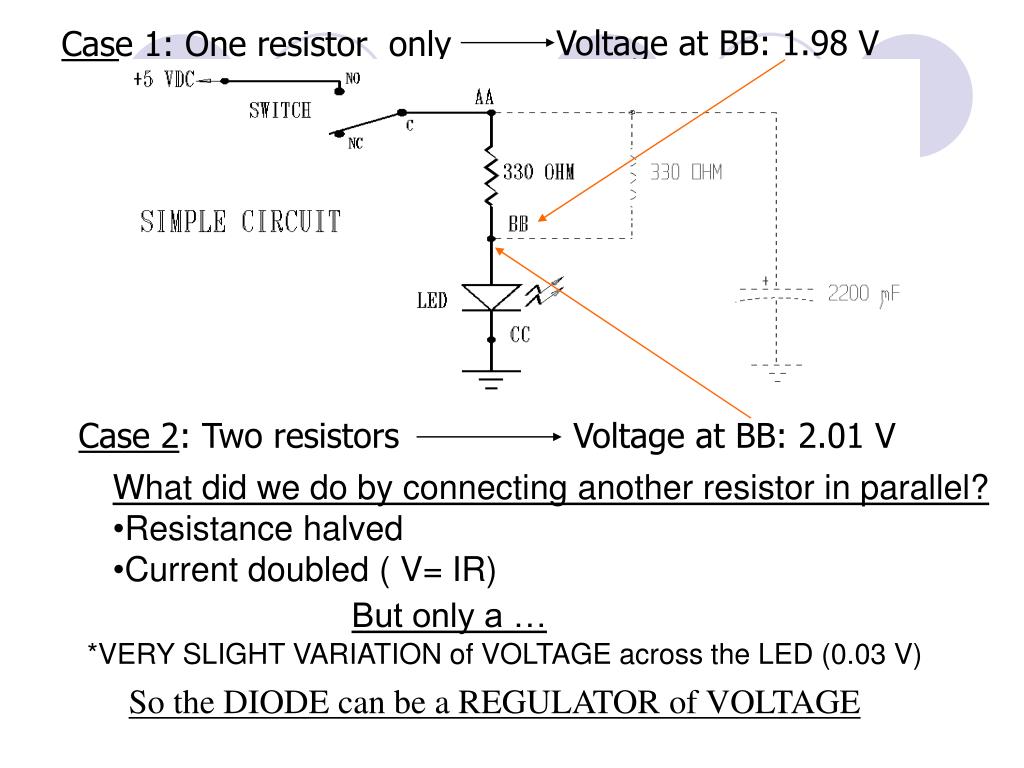

  5. Voltage at BB: 1.98 V Case 1: One resistor only Voltage at BB: 2.01 V Case 2: Two resistors • What did we do by connecting another resistor in parallel? • Resistance halved • Current doubled ( V= IR) But only a … *VERY SLIGHT VARIATION of VOLTAGE across the LED (0.03 V) So the DIODE can be a REGULATOR of VOLTAGE

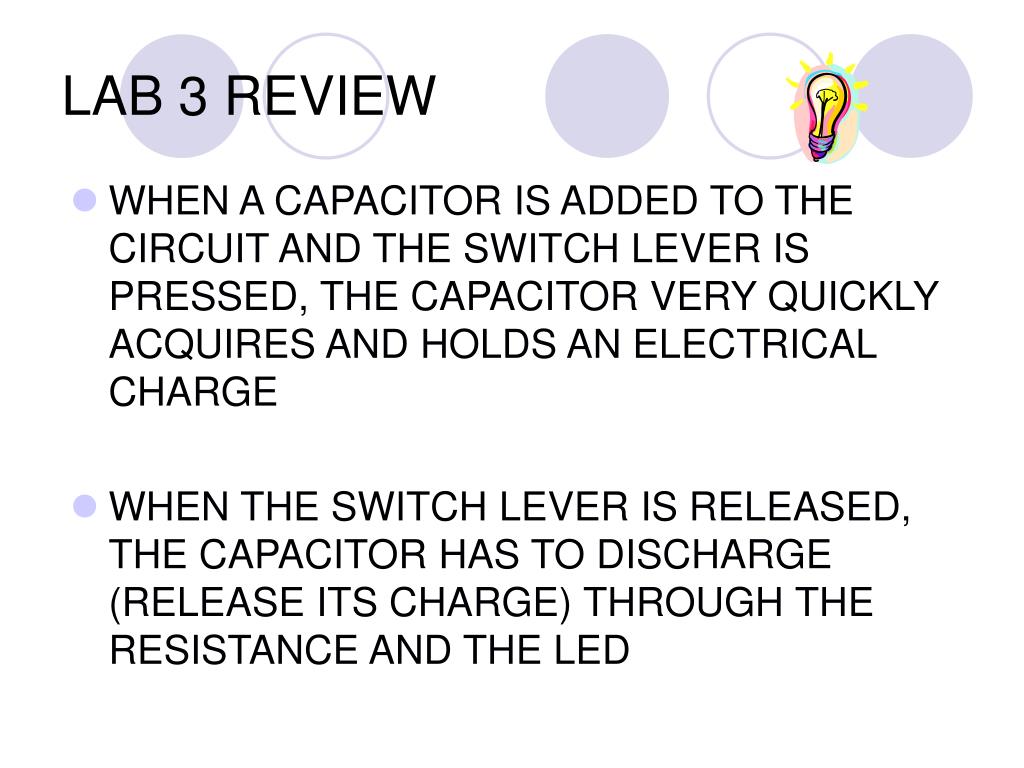

  6. LAB 3 REVIEW • WHEN A CAPACITOR IS ADDED TO THE CIRCUIT AND THE SWITCH LEVER IS PRESSED, THE CAPACITOR VERY QUICKLY ACQUIRES AND HOLDS AN ELECTRICAL CHARGE • WHEN THE SWITCH LEVER IS RELEASED, THE CAPACITOR HAS TO DISCHARGE (RELEASE ITS CHARGE) THROUGH THE RESISTANCE AND THE LED

  7. LAB 3 REVIEW • SINCE RESISTORS ‘RESIST’ THE FLOW OF CURRENT, THE LARGER THE RESISTANCE VALUE, THE LONGER TIME IT TAKES FOR THE LED TO TURN OFF • THE CIRCUIT TIME RESPONSE IS ACTUALLY PROPORTIONAL TO THE PRODUCT OF RESISTANCE AND CAPACITANCE (RC) AND THAT PRODUCT IS THE ‘RC TIME CONSTANT’ FOR THE CIRCUIT

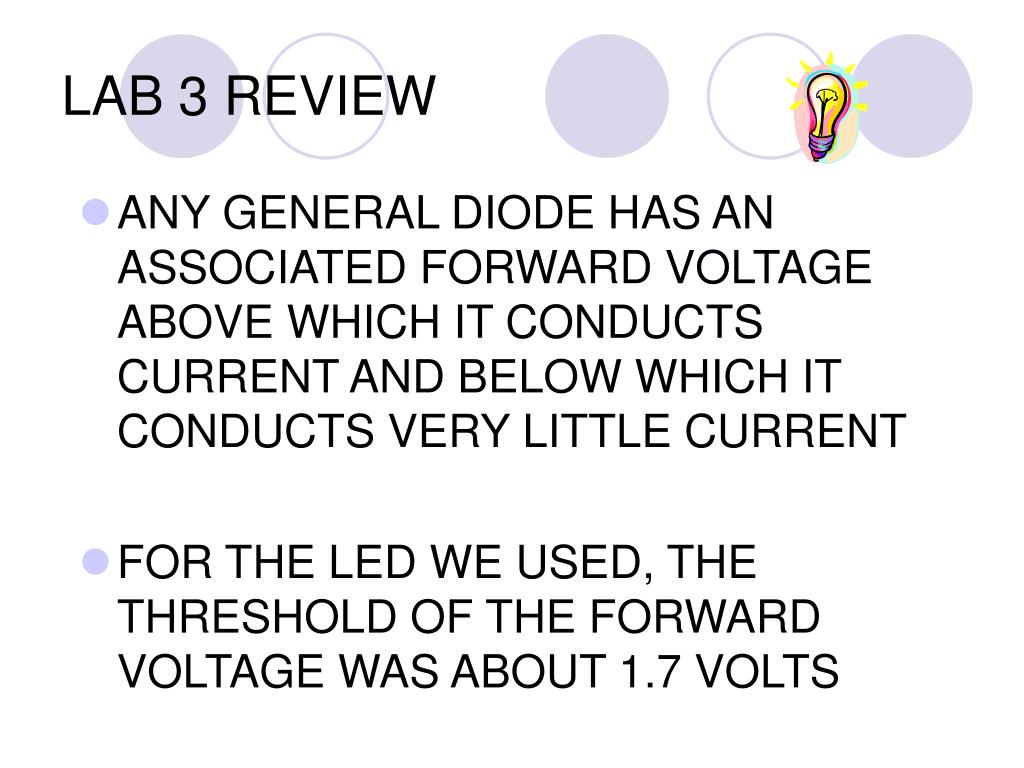

  8. LAB 3 REVIEW • ANY GENERAL DIODE HAS AN ASSOCIATED FORWARD VOLTAGE ABOVE WHICH IT CONDUCTS CURRENT AND BELOW WHICH IT CONDUCTS VERY LITTLE CURRENT • FOR THE LED WE USED, THE THRESHOLD OF THE FORWARD VOLTAGE WAS ABOUT 1.7 VOLTS

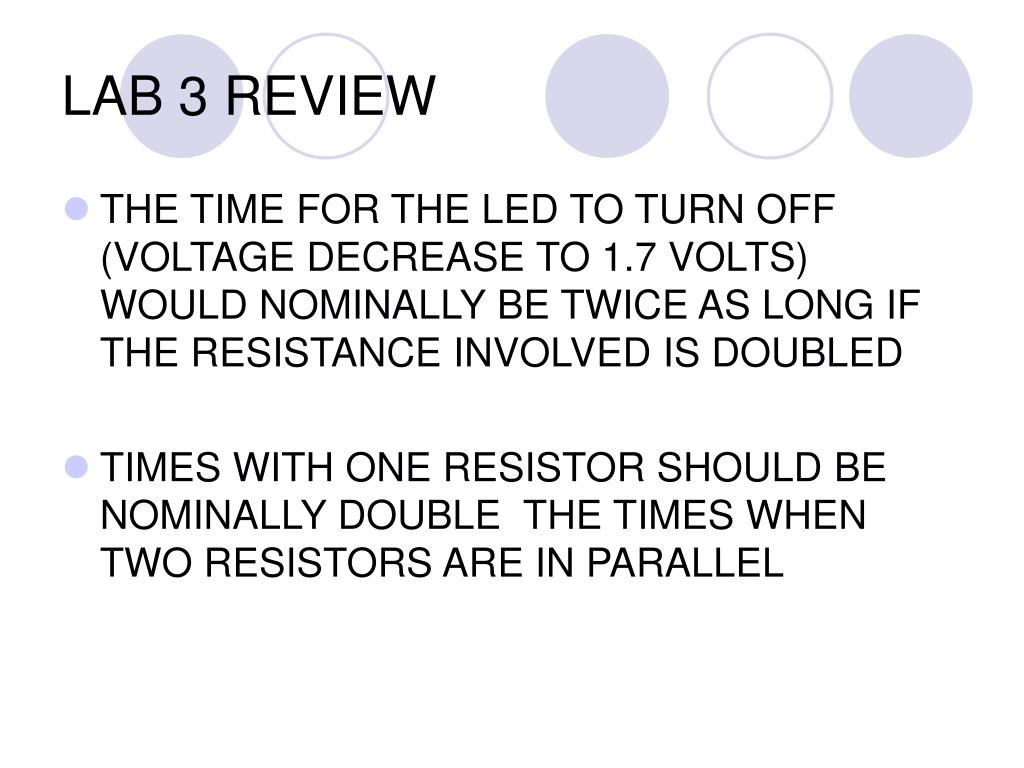

  9. LAB 3 REVIEW • THE TIME FOR THE LED TO TURN OFF (VOLTAGE DECREASE TO 1.7 VOLTS) WOULD NOMINALLY BE TWICE AS LONG IF THE RESISTANCE INVOLVED IS DOUBLED • TIMES WITH ONE RESISTOR SHOULD BE NOMINALLY DOUBLE THE TIMES WHEN TWO RESISTORS ARE IN PARALLEL

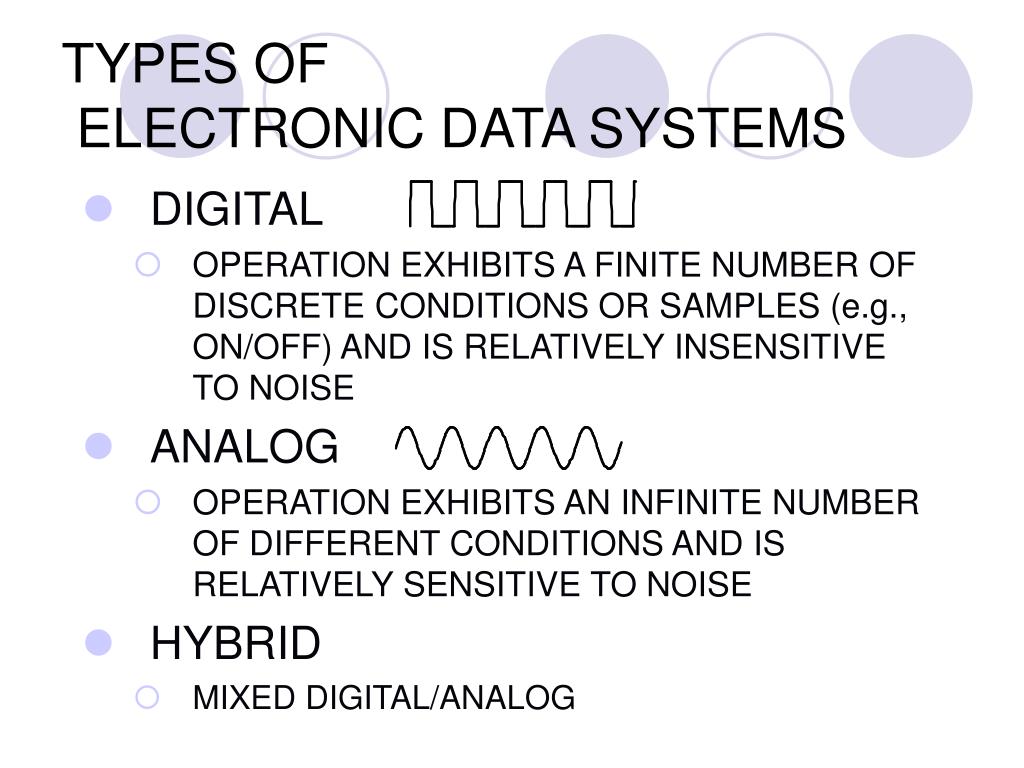

  10. TYPES OF ELECTRONIC DATA SYSTEMS • DIGITAL • OPERATION EXHIBITS A FINITE NUMBER OF DISCRETE CONDITIONS OR SAMPLES (e.g., ON/OFF) AND IS RELATIVELY INSENSITIVE TO NOISE • ANALOG • OPERATION EXHIBITS AN INFINITE NUMBER OF DIFFERENT CONDITIONS AND IS RELATIVELY SENSITIVE TO NOISE • HYBRID • MIXED DIGITAL/ANALOG

  11. ELEMENTS OF AN ELECTRONIC DATA SYSTEM • TRANSDUCERS (SENSORS) • SIGNAL CONDITIONING • DATA PROCESSING and CONTROL • ACTUATORS • DATA DISPLAY AND/OR RECORDING • ELECTRICAL POWER SOURCE • CONNECTION OF ELEMENTS

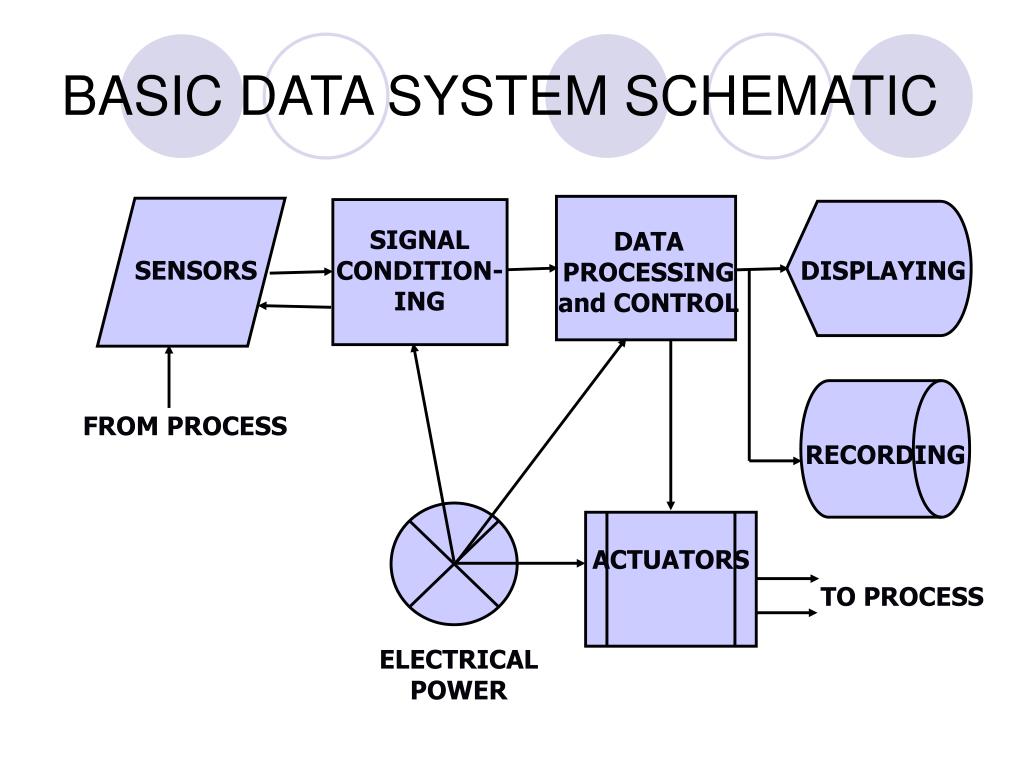

  12. BASIC DATA SYSTEM SCHEMATIC SIGNAL CONDITION-ING DATA PROCESSING and CONTROL SENSORS DISPLAYING FROM PROCESS RECORDING ACTUATORS TO PROCESS ELECTRICAL POWER

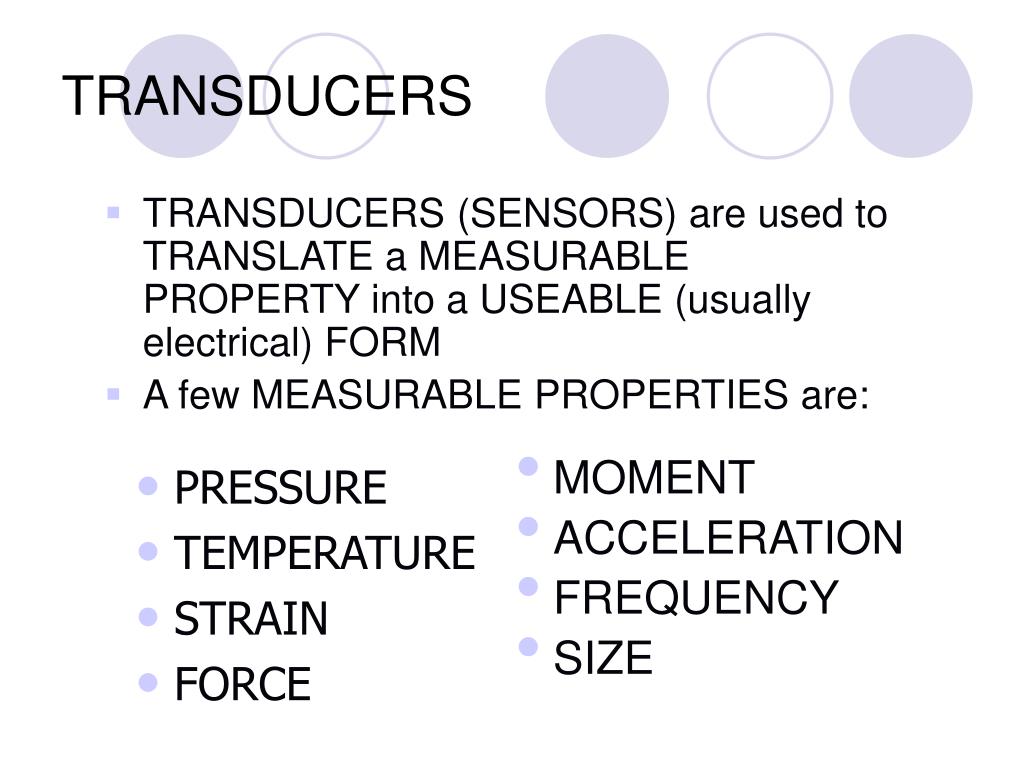

  13. TRANSDUCERS (SENSORS) are used to TRANSLATE a MEASURABLE PROPERTY into a USEABLE (usually electrical) FORM A few MEASURABLE PROPERTIES are: MOMENT ACCELERATION FREQUENCY SIZE TRANSDUCERS • PRESSURE • TEMPERATURE • STRAIN • FORCE

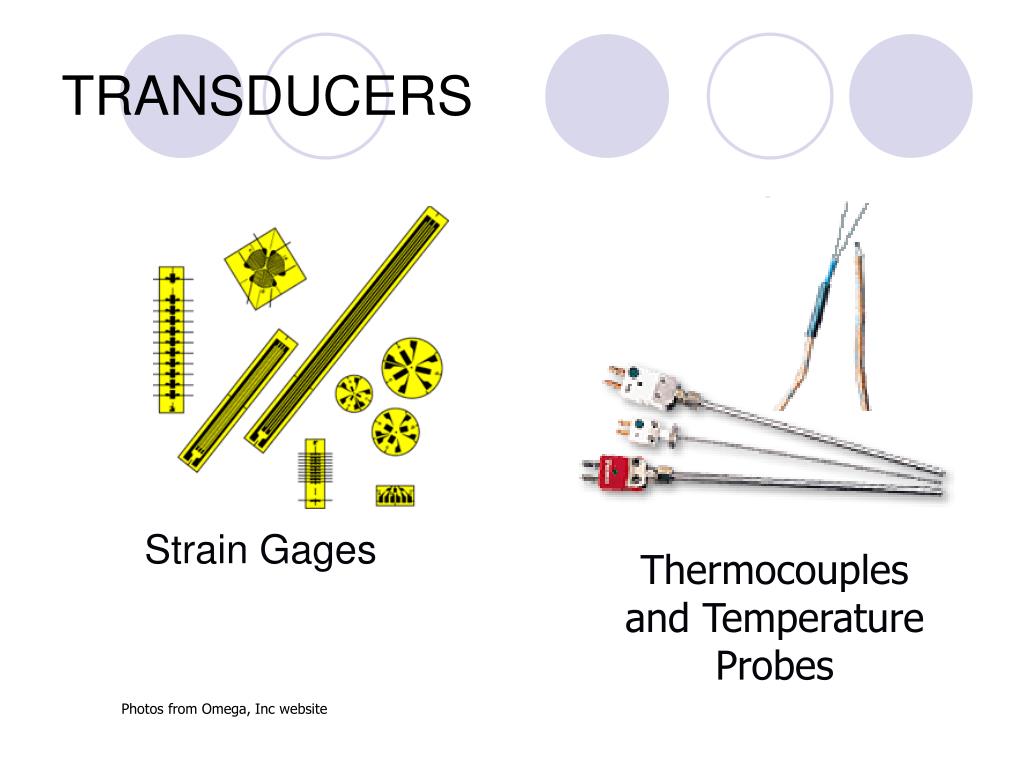

  14. TRANSDUCERS Strain Gages Thermocouples and Temperature Probes Photos from Omega, Inc website

  15. TRANSDUCERS Pressure Transducers Photos from Omega, Inc website

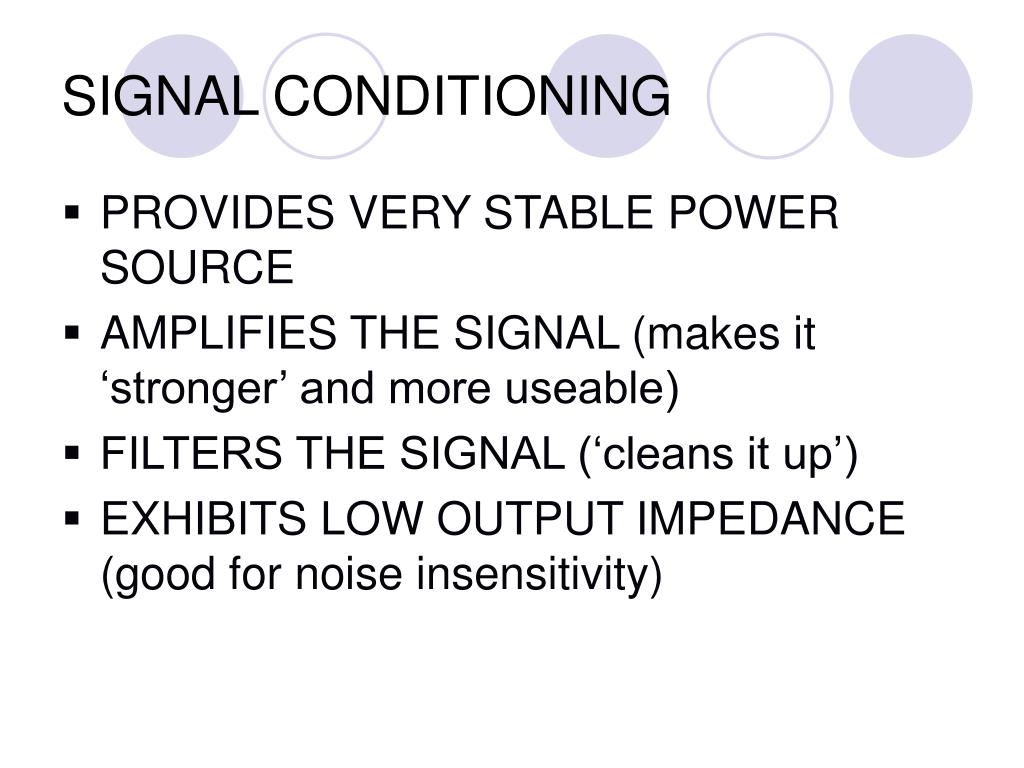

  16. SIGNAL CONDITIONING • PROVIDES VERY STABLE POWER SOURCE • AMPLIFIES THE SIGNAL (makes it ‘stronger’ and more useable) • FILTERS THE SIGNAL (‘cleans it up’) • EXHIBITS LOW OUTPUT IMPEDANCE (good for noise insensitivity)

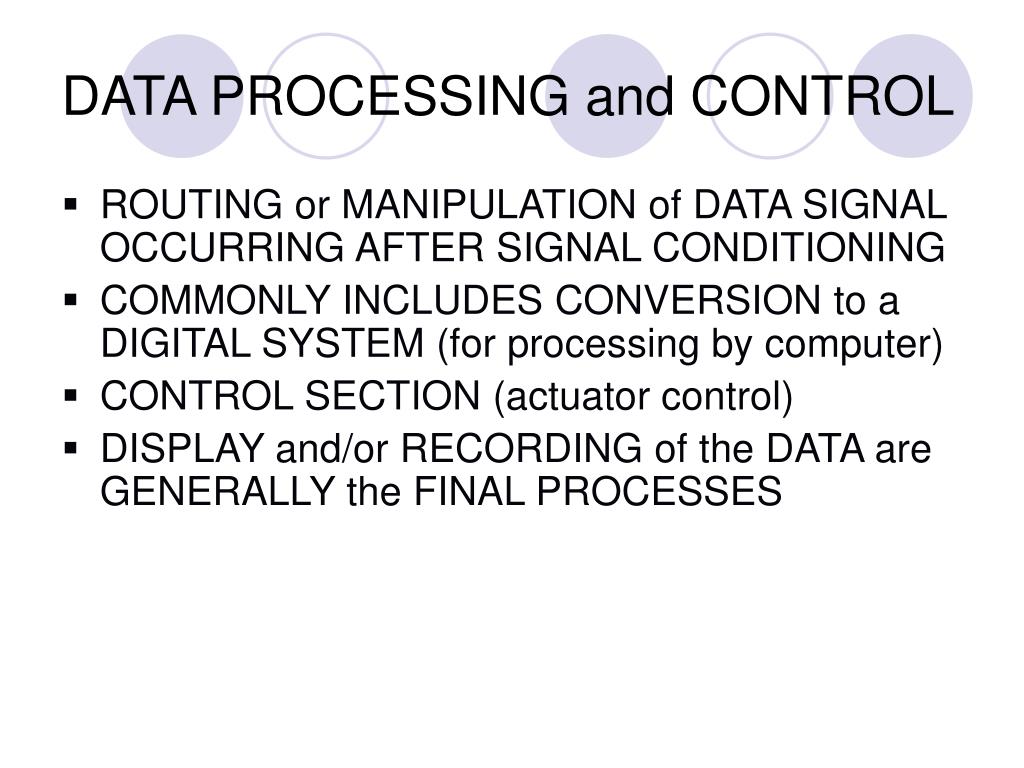

  17. DATA PROCESSING and CONTROL • ROUTING or MANIPULATION of DATA SIGNAL OCCURRING AFTER SIGNAL CONDITIONING • COMMONLY INCLUDES CONVERSION to a DIGITAL SYSTEM (for processing by computer) • CONTROL SECTION (actuator control) • DISPLAY and/or RECORDING of the DATA are GENERALLY the FINAL PROCESSES

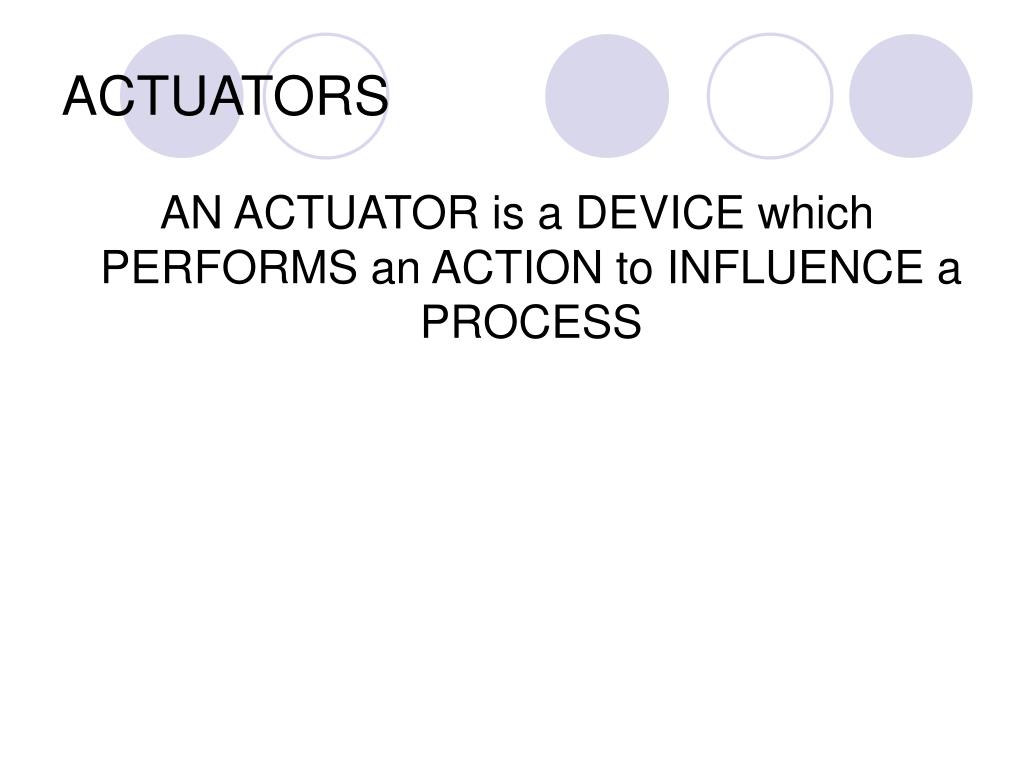

  18. ACTUATORS AN ACTUATOR is a DEVICE which PERFORMS an ACTION to INFLUENCE a PROCESS

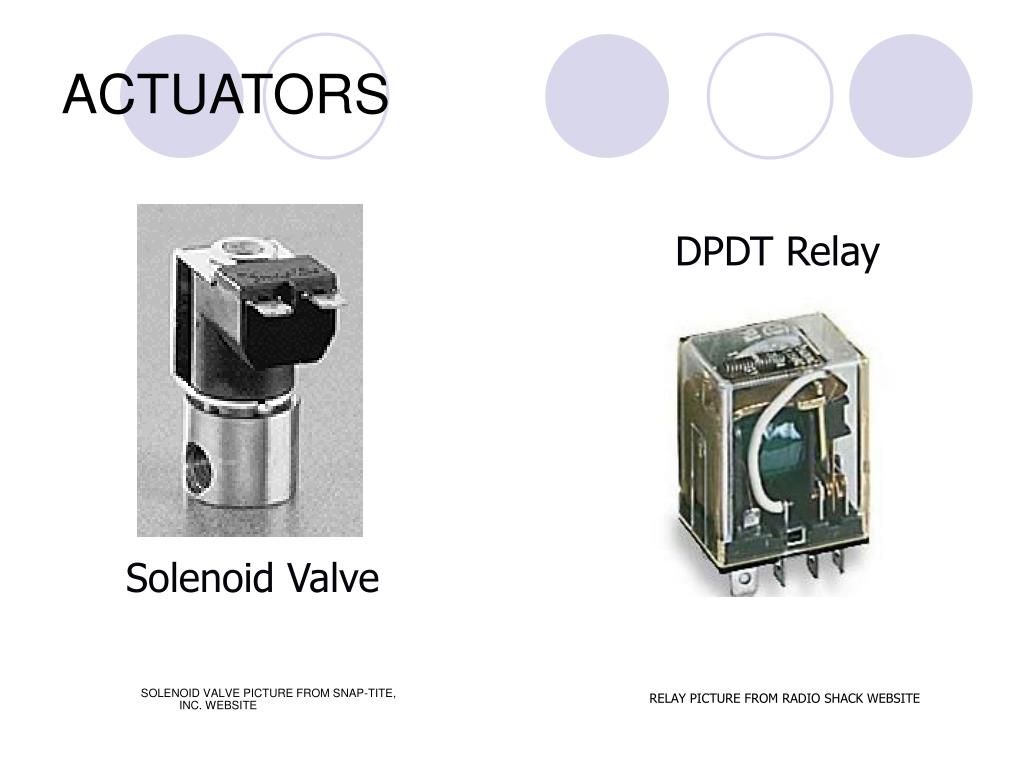

  19. ACTUATORS SOLENOID VALVE PICTURE FROM SNAP-TITE, INC. WEBSITE DPDT Relay Solenoid Valve RELAY PICTURE FROM RADIO SHACK WEBSITE

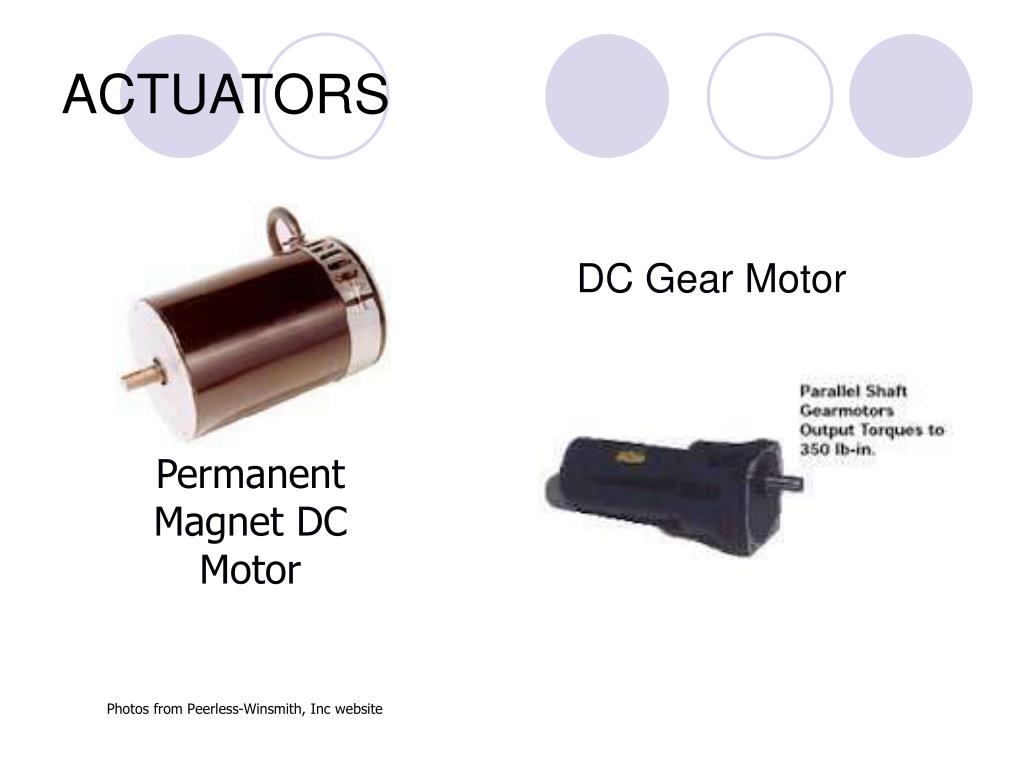

  20. ACTUATORS DC Gear Motor Permanent Magnet DC Motor Photos from Peerless-Winsmith, Inc website

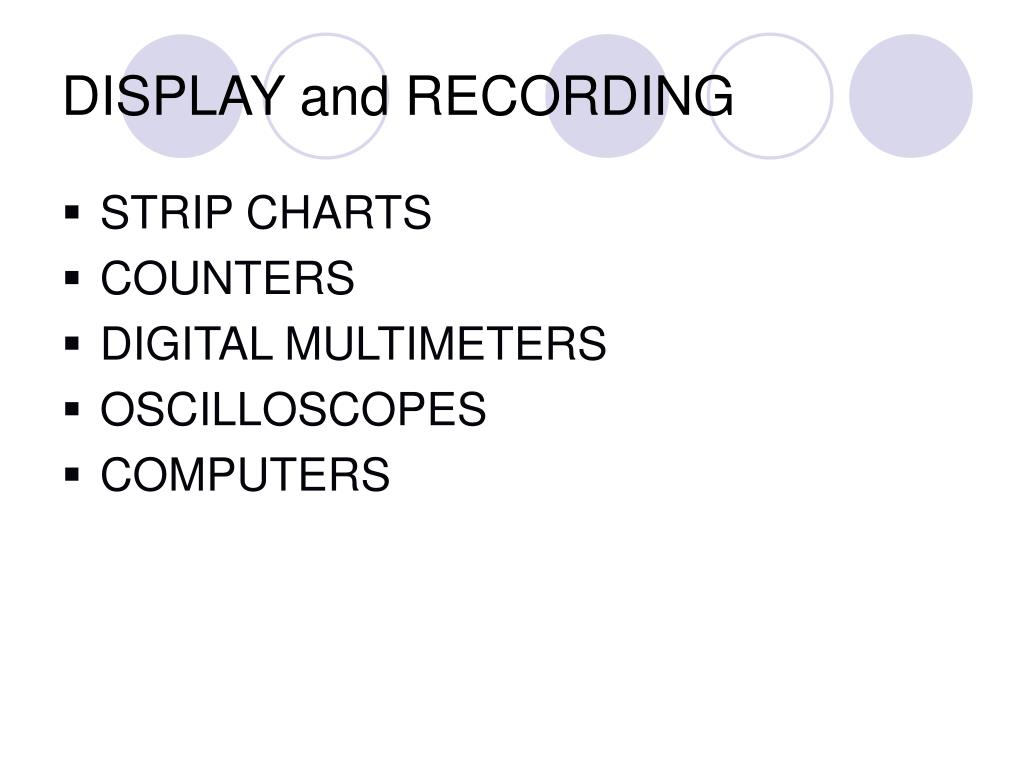

  21. DISPLAY and RECORDING • STRIP CHARTS • COUNTERS • DIGITAL MULTIMETERS • OSCILLOSCOPES • COMPUTERS Ca

  22. DISPLAY and RECORDING Counter Strip-chart recorder

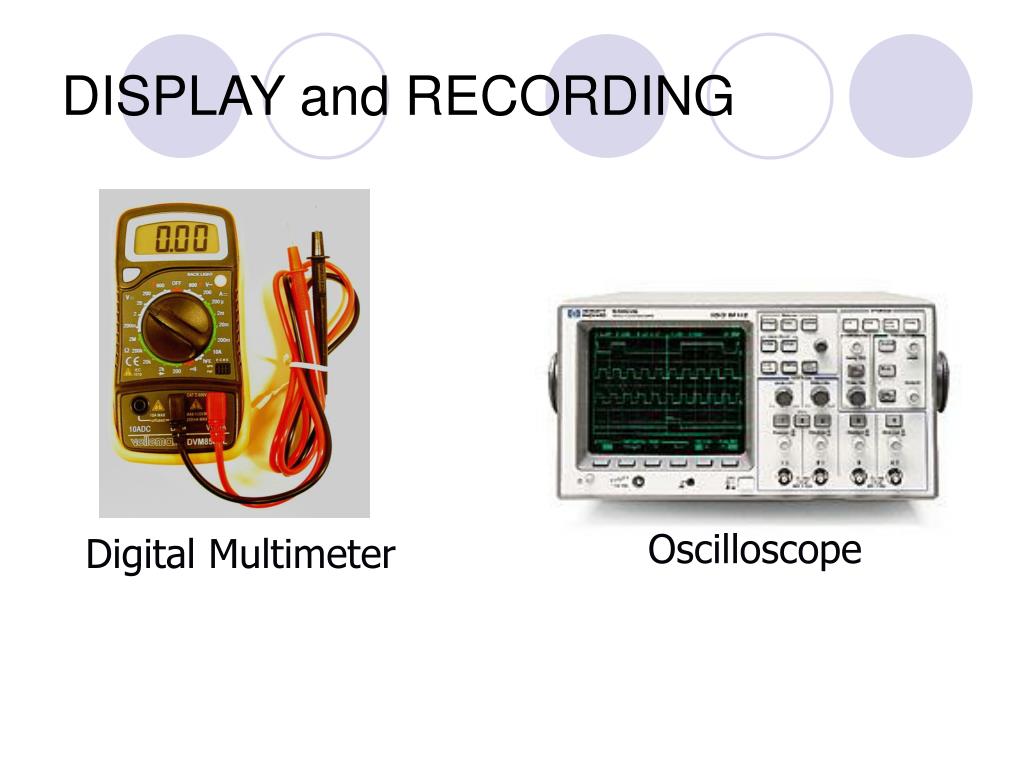

  23. DISPLAY and RECORDING Oscilloscope Digital Multimeter

  24. DISPLAY and RECORDING Picture from RadioShack Web site Computer system

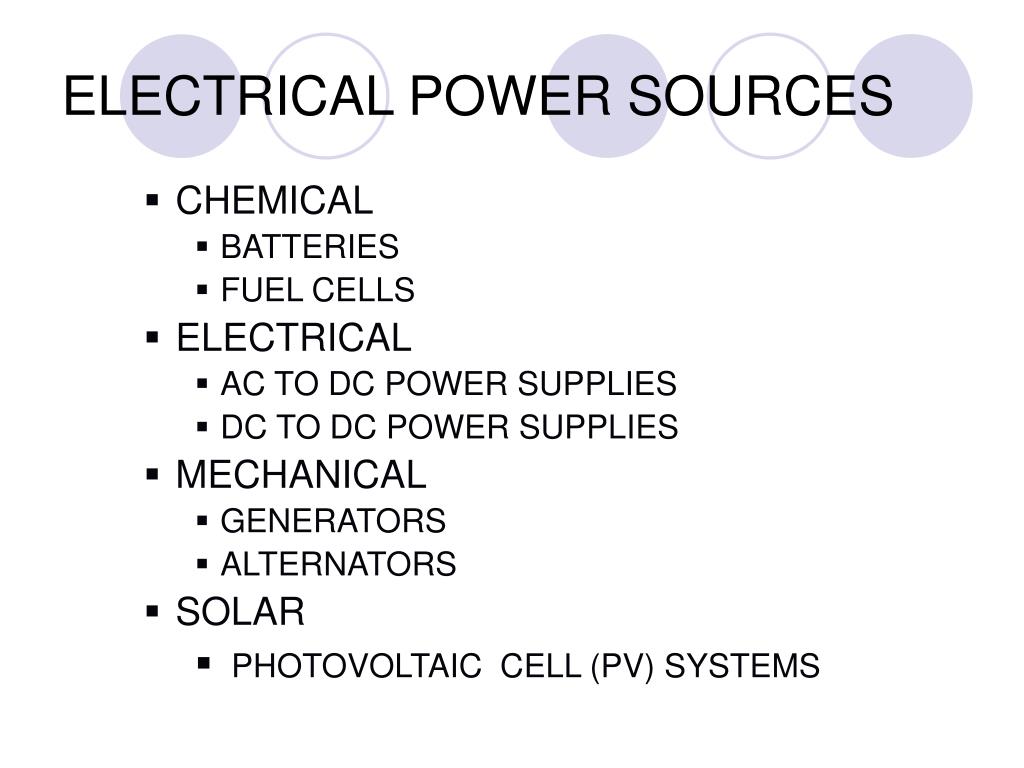

  25. ELECTRICAL POWER SOURCES • CHEMICAL • BATTERIES • FUEL CELLS • ELECTRICAL • AC TO DC POWER SUPPLIES • DC TO DC POWER SUPPLIES • MECHANICAL • GENERATORS • ALTERNATORS • SOLAR • PHOTOVOLTAIC CELL (PV) SYSTEMS

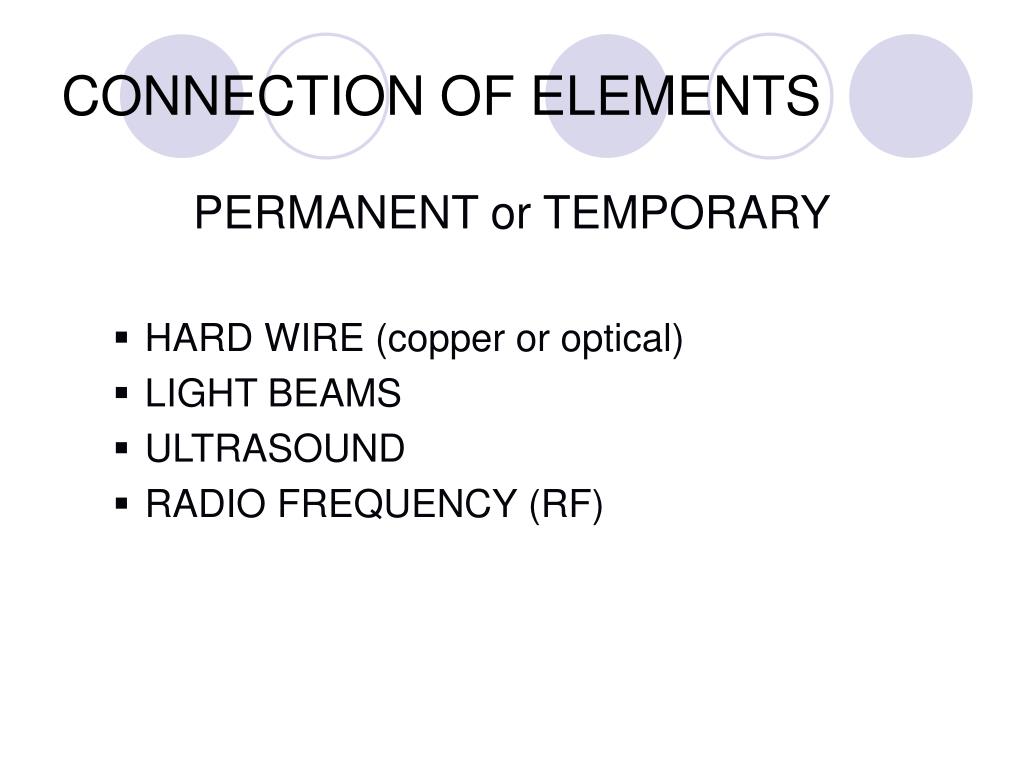

  26. CONNECTION OF ELEMENTS PERMANENT or TEMPORARY • HARD WIRE (copper or optical) • LIGHT BEAMS • ULTRASOUND • RADIO FREQUENCY (RF)

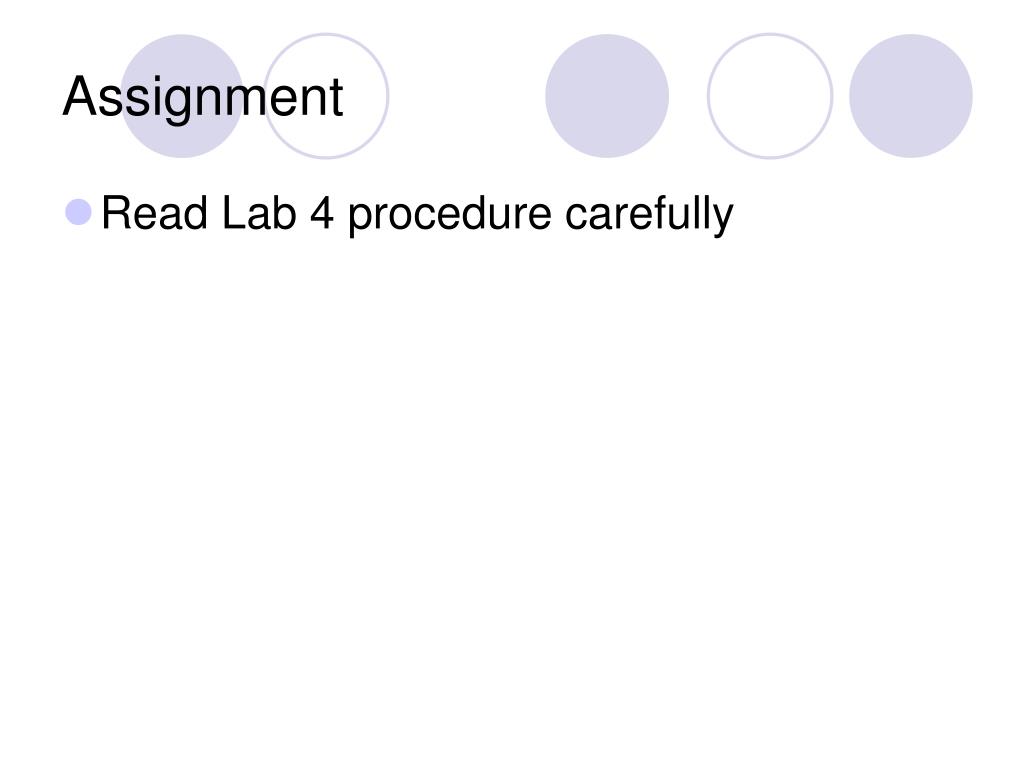

  27. Assignment • Read Lab 4 procedure carefully
